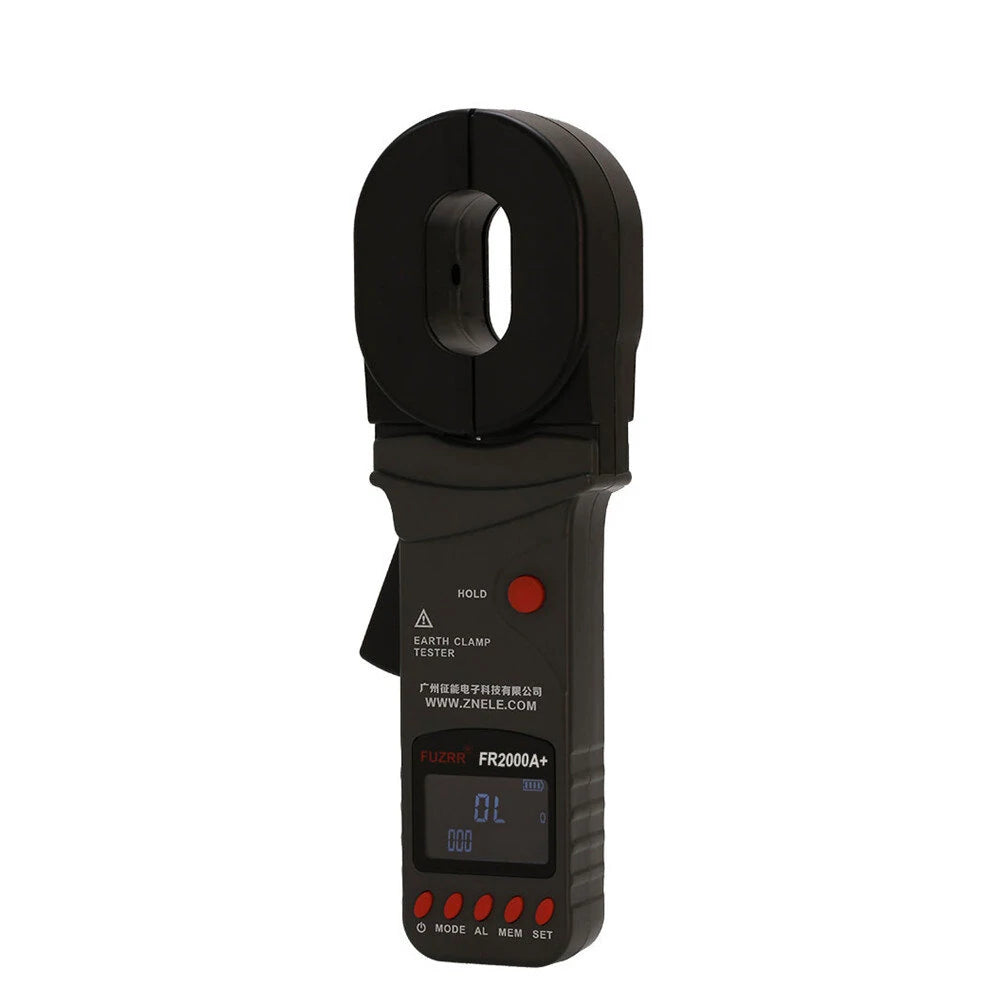

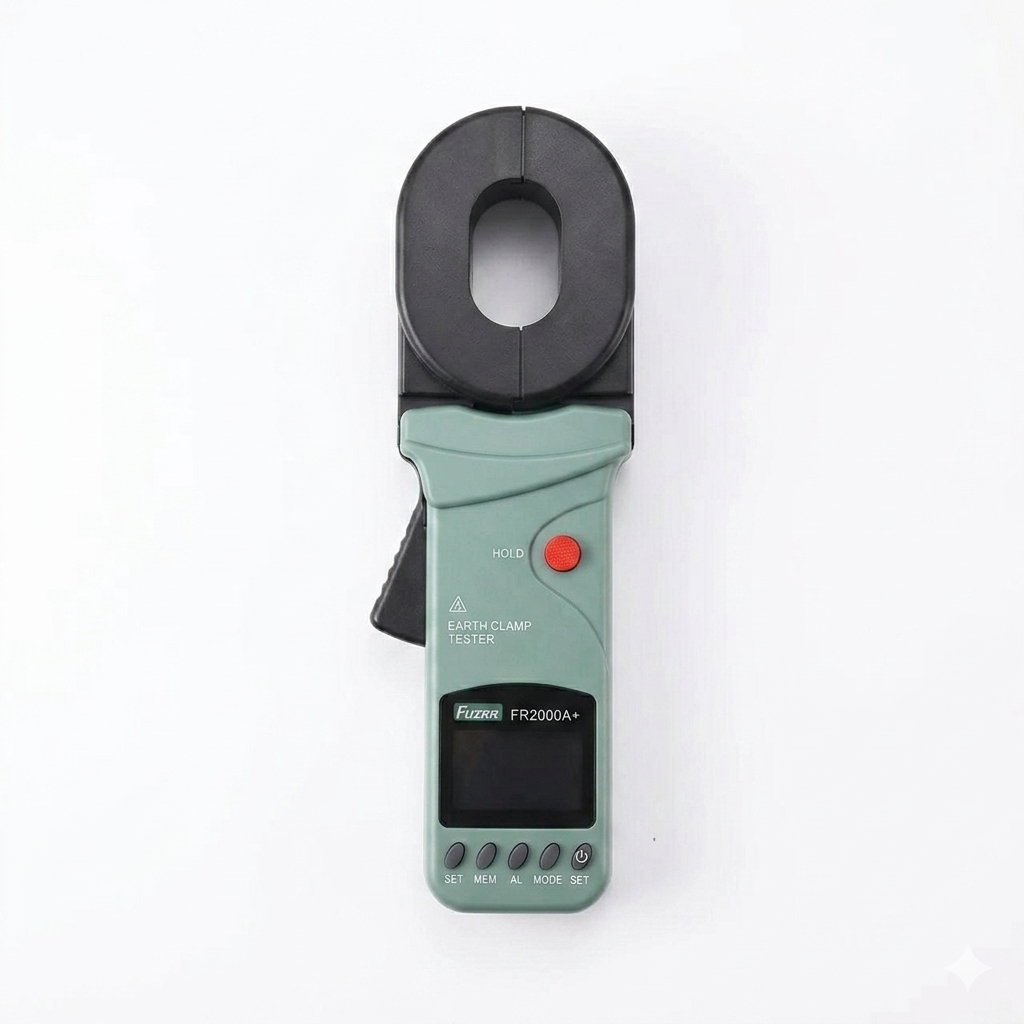

FR2000A+ Clamp Ground Resistance Tester, 0.01Ω-200Ω Range, Loop Resistance Tester with 300 Data Storage Sets

Description:

The FR2000+ Series Clamp-On Ground Resistance Tester is an advanced instrument developed by our skilled technical team. Featuring a modern LCD black screen backlight display and microprocessor technology, it offers simultaneous Ω and A displays. This tester provides a convenient and fast induction method for measuring grounding resistance without the need to disconnect ground wires or use auxiliary electrodes, ensuring a safe and efficient process.

Widely applicable in telecommunications, electric power, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, and more, the FR2000+ excels in providing accurate, fast, simple, stable, and reliable measurements.

The FR2000+ is managed by a microprocessor for precise ground resistance and leakage current testing. Its fast filtering technology reduces interference and can store up to 300 data sets simultaneously.

• Resistance Range: 0-1200Ω
• Current Range: 0-20A
• Premium Design: High-end black screen
• Synchronous Display: Ω and A on the same screen
• Quick Self-Check: Instant readiness
• Advanced Technology: Strong anti-interference capabilities
• Durable Design: Long-lasting clamp head
• Data Storage: 300 groups capacity

Specifications:

• Model: FR2000A
• Resistance Range: 0.01Ω-200Ω
• Type: Practical
• Resistance Resolution: 0.001Ω
• Functions: Ground resistance, loop resistance, leakage current testing
• Accuracy: Ground Resistance ±1%±0.01Ω, Current ±2%±1mA
• Environment: 23°C±5°C, below 75% RH
• Power Supply: DC 6V (4 AA alkaline dry batteries)
• Measurement Method: Mutual inductance
• Jaw Size: 55mm x 32mm
• Display: 4-digit LCD, black screen
• LCD Size: 46mm x 29mm
• Instrument Dimensions: 285mm x 85mm x 58mm
• Measurement Frequency: 2 times/sec
• Data Access and Alerts: Storage indication, overflow warning, noise detection
• Alarm Function: Alerts for exceeding set values
• Battery Monitoring: Real-time power display with charge reminders
• Auto Shutdown: 5-minute automatic inactivity shutdown
• Power Consumption: 50mA max
• Weight: 1180g (including battery)
• Operating Conditions: -10°C to 40°C; below 80% RH
• Storage Conditions: -20°C to 60°C; below 70% RH
• Insulation Resistance: Above 20MΩ (500V between circuit and case)
• Withstand Voltage: AC 3700V/rms (between circuit and case)
• Safety Compliance: IEC61010-1 (CAT II 300V, CAT IV 150V), IEC61010-031, IEC61557-1

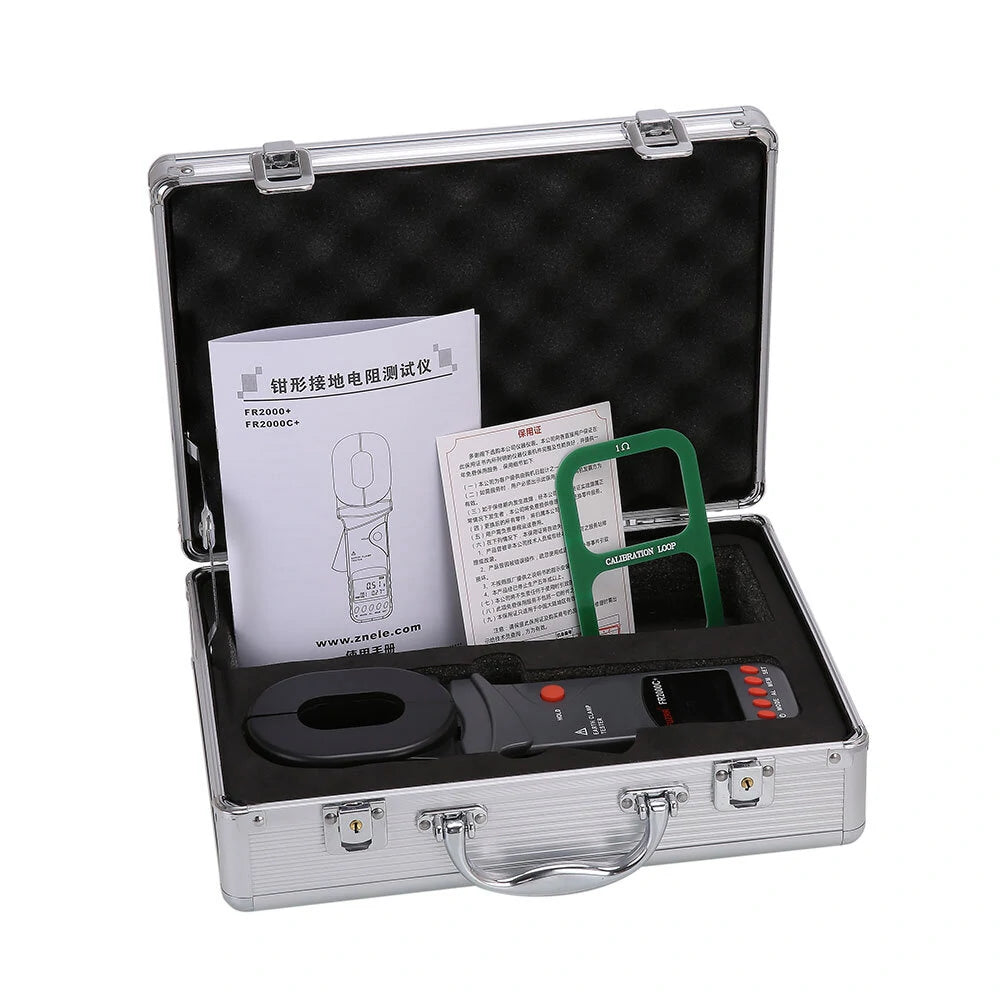

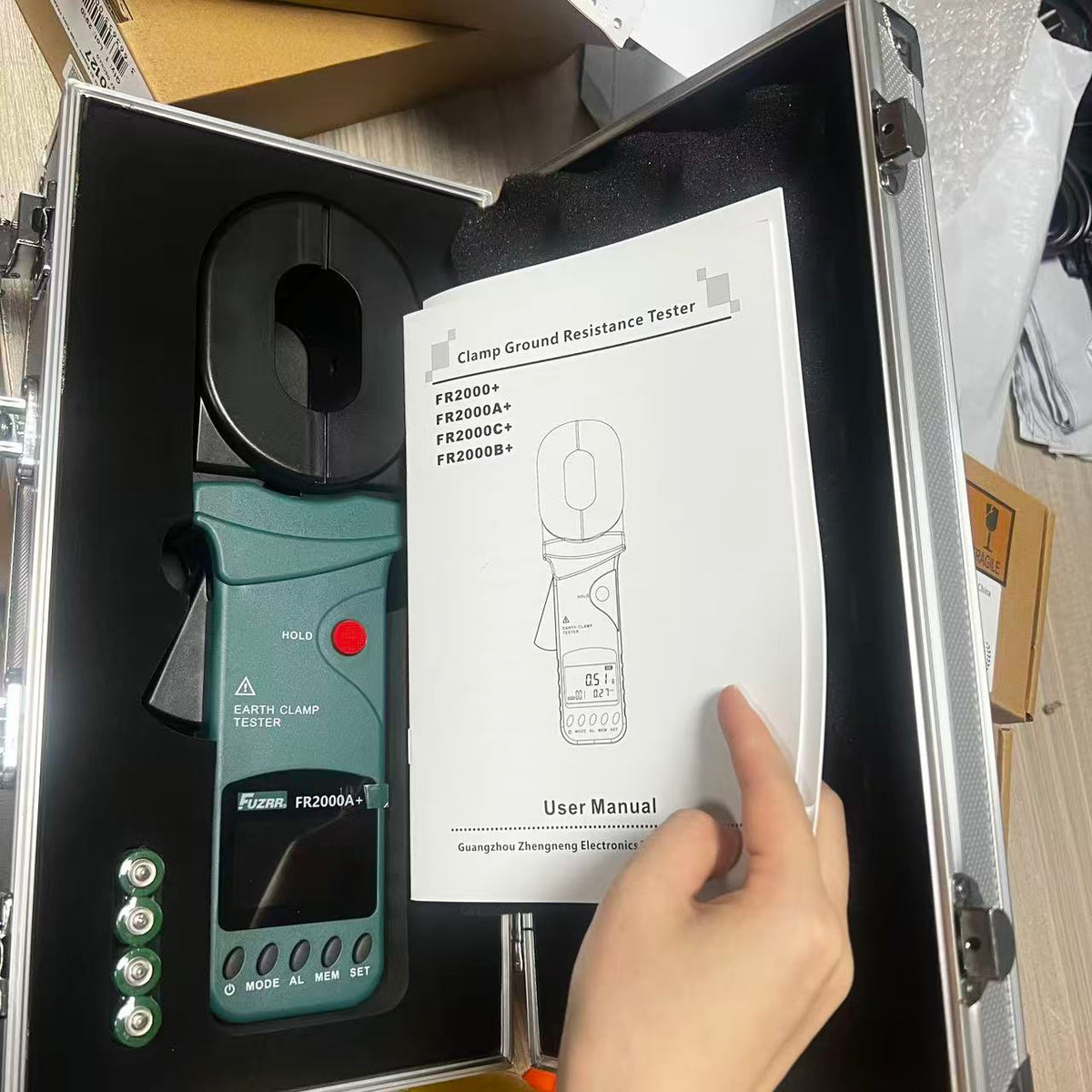

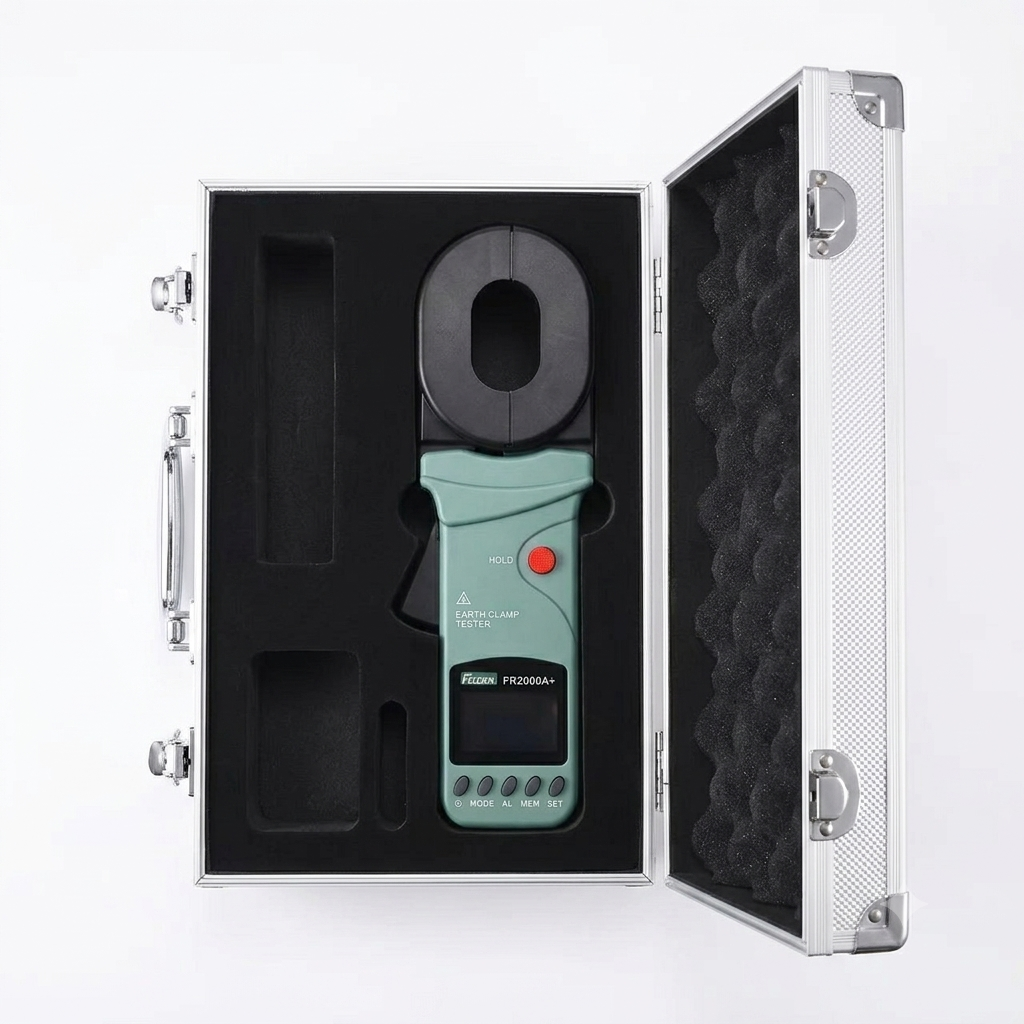

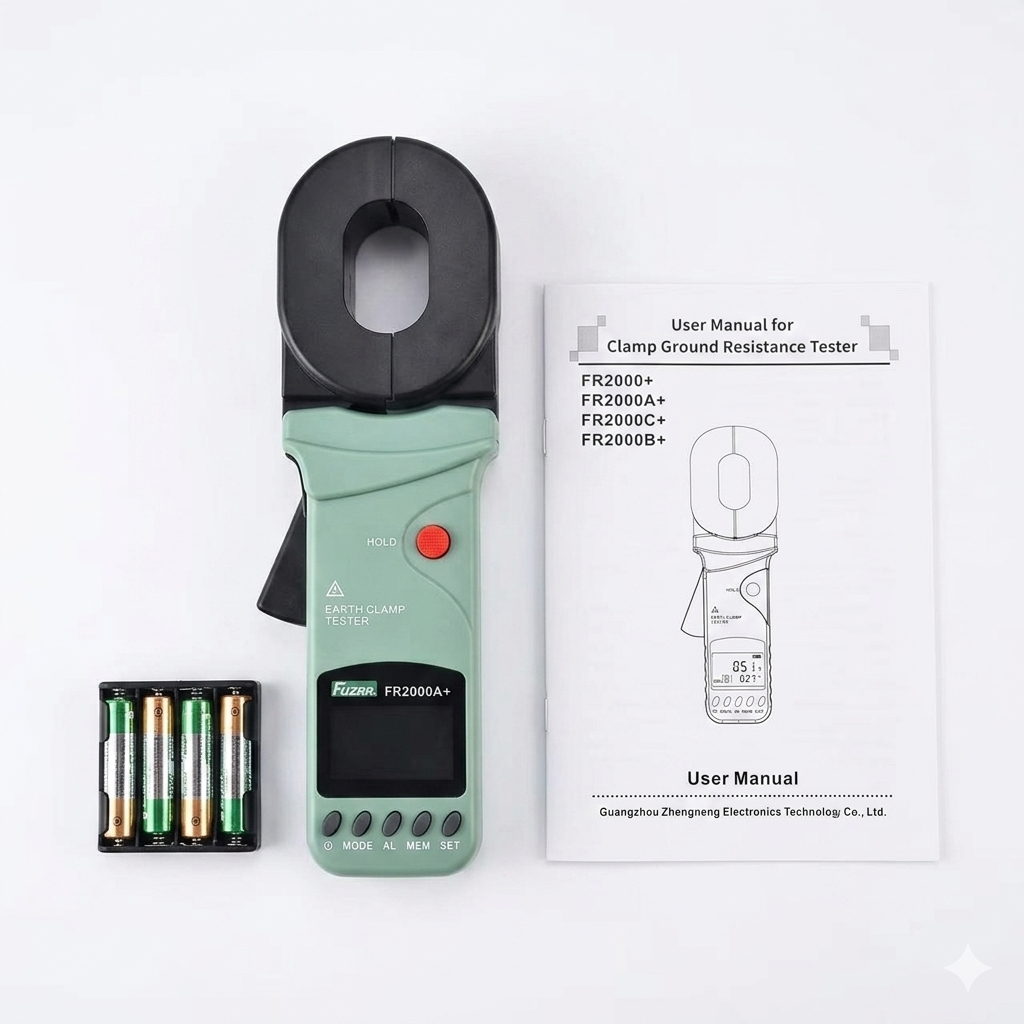

Package Includes:

• 1 x Meter

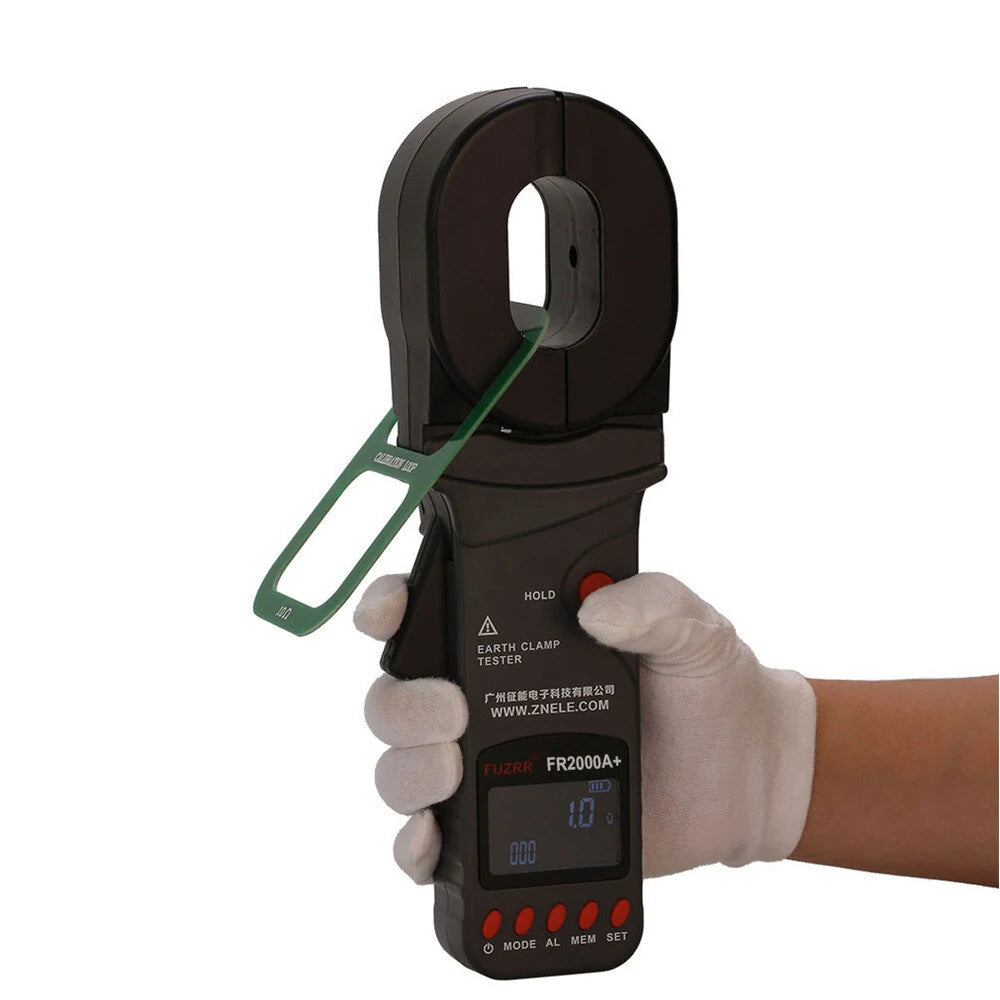

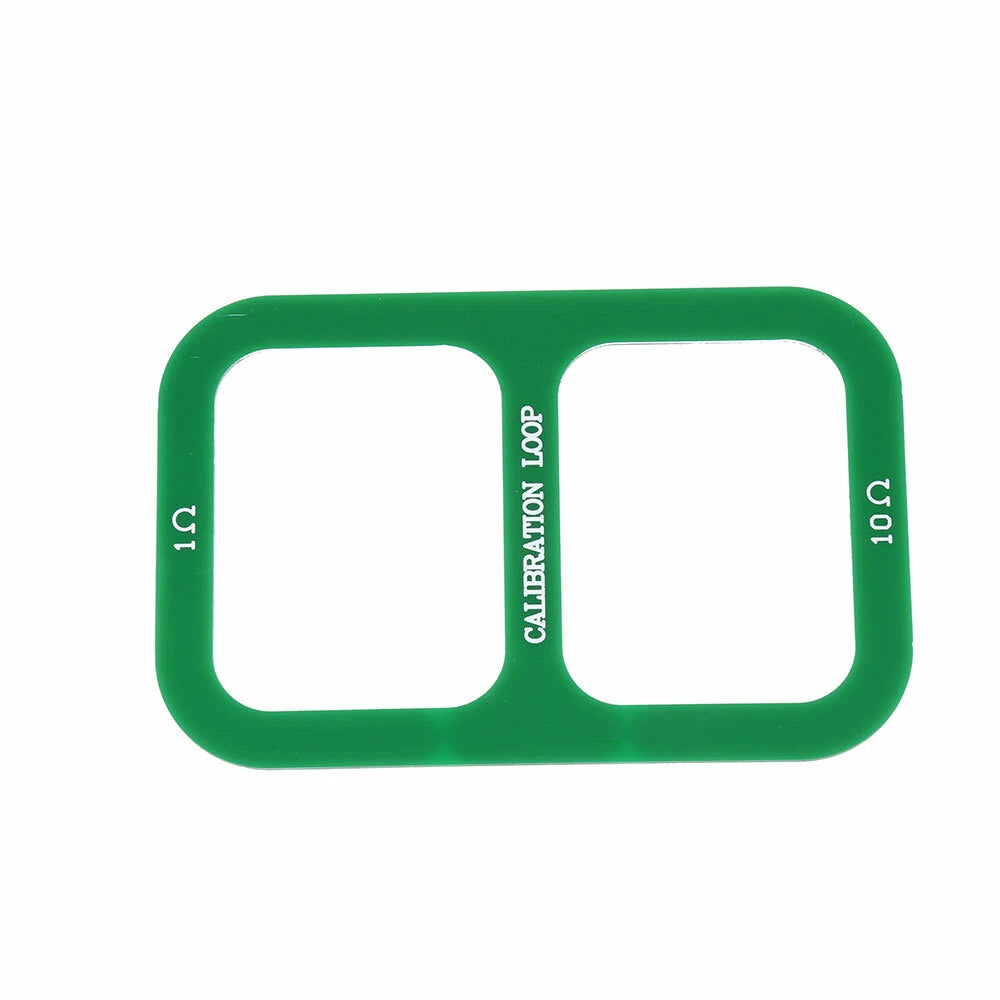

• 1 x Calibration Ring
• 1 x Instrument Package
• 1 x User Manual
