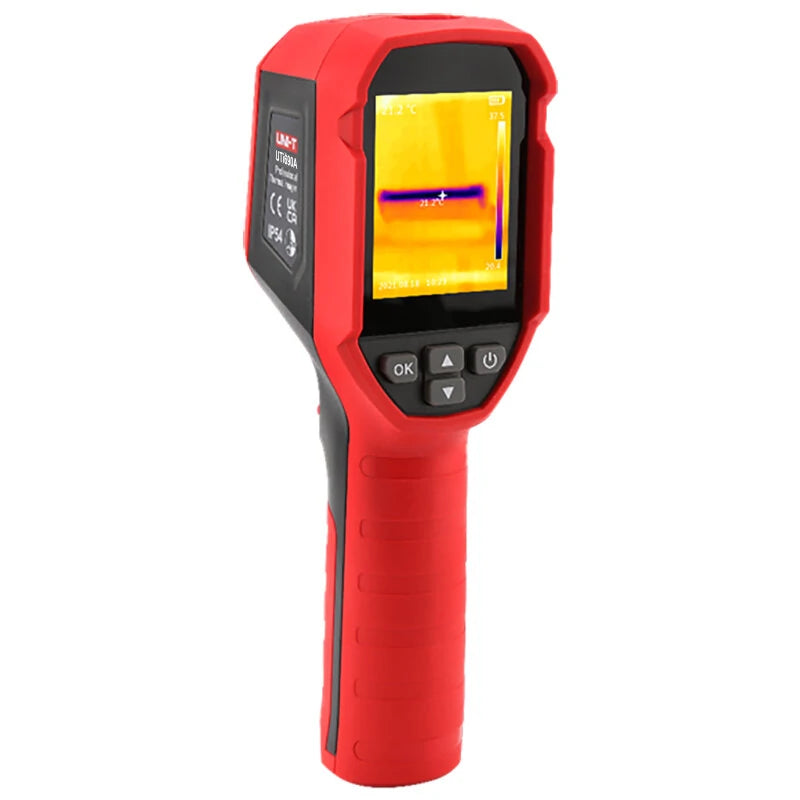

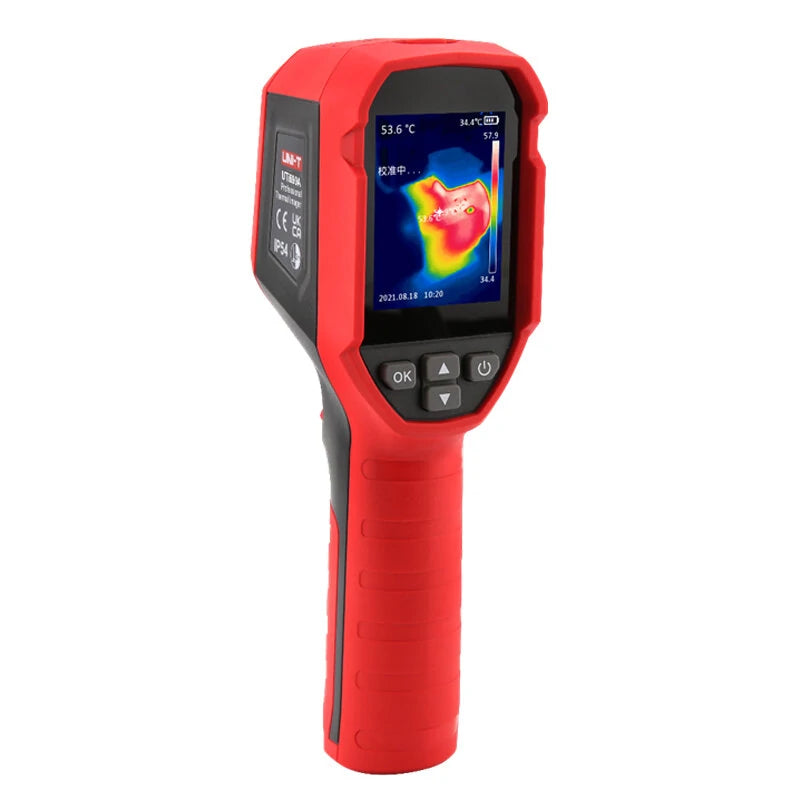

UTi690A Thermal Imager

Features

• Infrared Resolution: 120x90
• Temperature Range: -20°C to 400°C
• Temperature Measurement Mode: Center point, high and low temperature tracking
• Photo Storage: 16GB TF card
• High and Low Temperature Alarm: Image, buzzer, LED flashing
• Additional Features: Laser indicator and LED lighting
• Protection Design: IP54 with two meters of anti-fall resistance

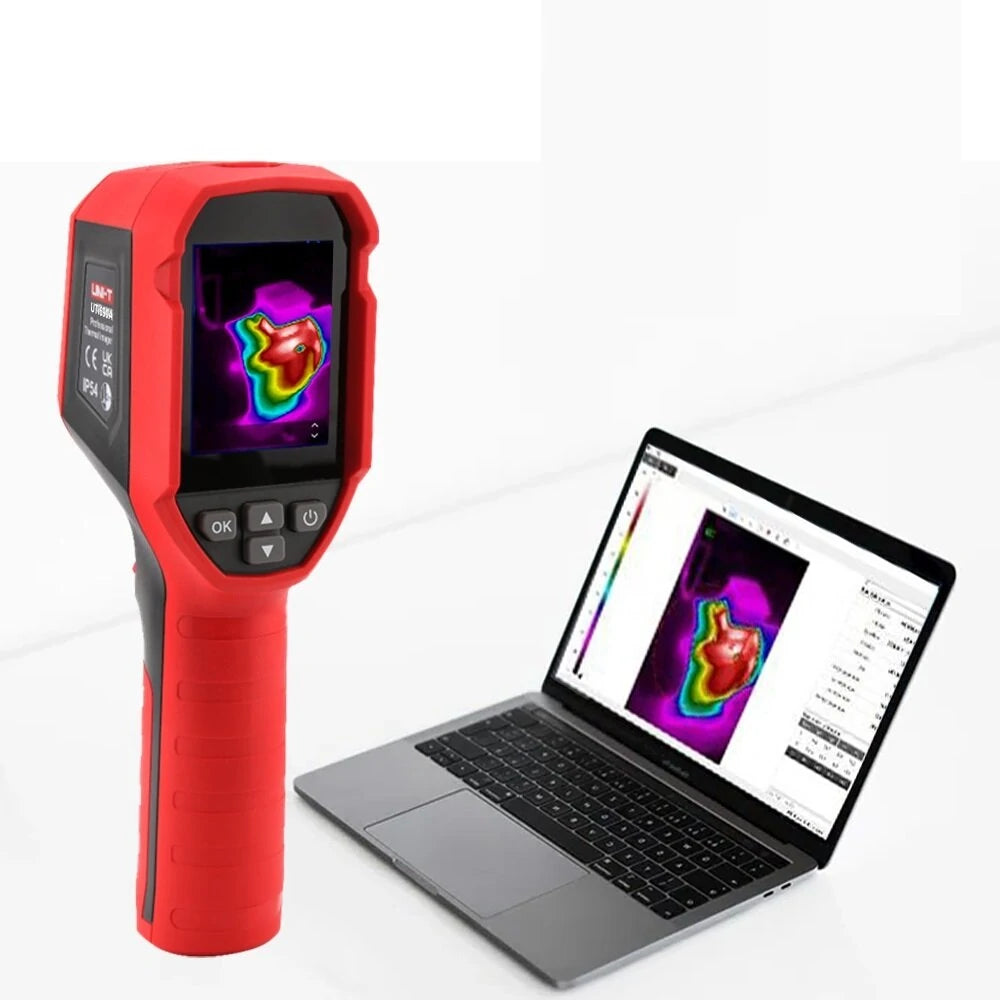

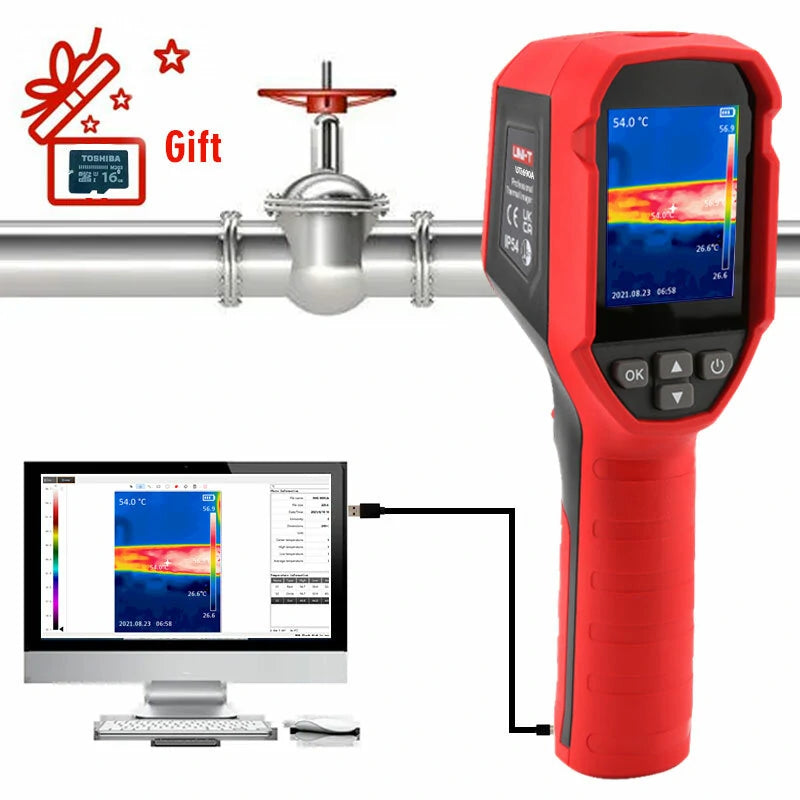

• Software: PC analysis software
• Color Palettes: Six available options
• Emissivity: Adjustable
• Usage Time: Not less than 9 hours
• Battery: 3.7V/2600mAh rechargeable lithium battery

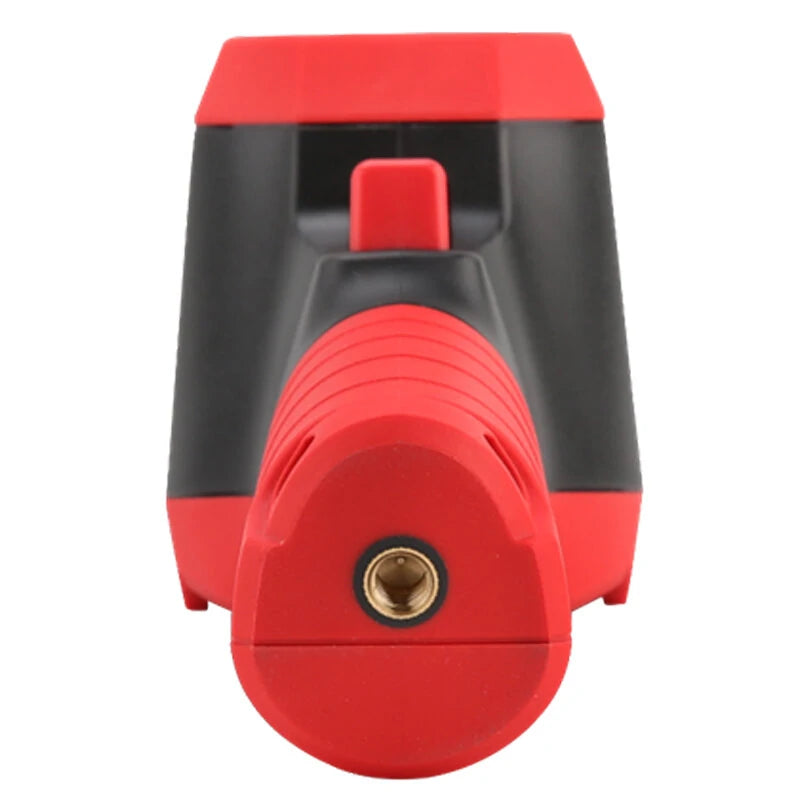

• Mounting: Bottom ¼ screw hole for tripod use
• Temperature Compensation: Updated from 2022.1.13

Specifications

• Model: UTi690A
• Temperature Range: -20°C to 400°C
• Sensor Type: Uncooled infrared focal plane
• Screen: 2.4 inch TFT LCD
• Display Resolution: 320x240
• Infrared Pixels: 120x90 (10800 pixels)
• Pixel Size: 17μm
• Color Palettes: White hot, black hot, iron red, rainbow, high-contrast rainbow, red hot
• Spectral Bandwidth: 8~14μm
• Field of View: 50°(H) x 38°(V)
• Optimal Test Distance: 50cm
• Temperature Resolution: 0.1°C
• Temperature Display: Center point, high and low temperature tracking
• Units: °C, °F
• Emissivity: Default 0.95, adjustable from 0.01 to 0.99

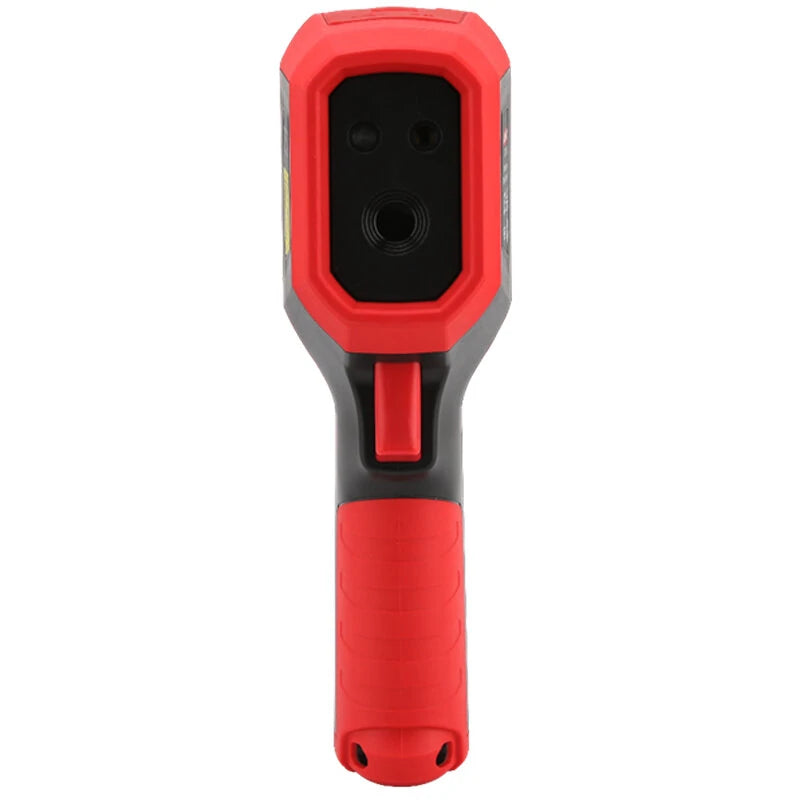

• Auxiliary Functions: LED light and laser indication
• Precision: ±2°C or 2%
• Data Communication: Type-C USB
• Certifications: CE, UKCA, EOHS
• Operating Temperature: 0°C-50°C (32°F-122°F)
• Storage Temperature: -20°C-60°C (-4°F-140°F)
• IP Class: IP54
• Drop Test Rating: 2 meters
• Tripod Mounting: 1/4 adapter support
• LCD Screen Alarm: LED flashing prompt, buzzer alarm
• Battery Type: Screen and LED light alarm, buzzer alarm
• Automatic Shutdown: Optional (5 min, 10 min, 30 min, Off); default is 30 min
• Usage Time: Continuous run time > 9 hours
• Charging Time: Less than 2.5 hours
• Fuselage Size: 197 x 72 x 60 mm

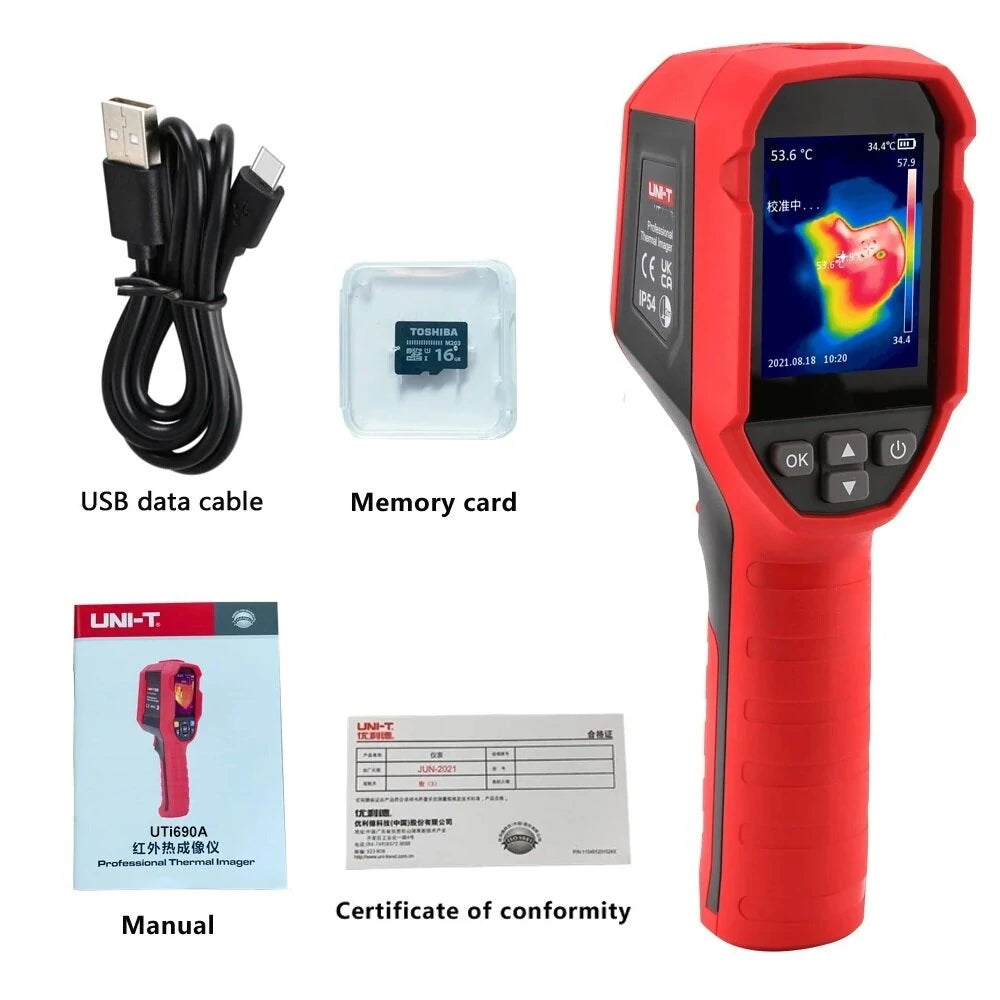

Package Included

• 1 x UTi690A Thermal Imager
• 1 x Type-C USB Cable
• 1 x 16G TF Card
• 1 x User Manual
• 1 x Packing Box

For further information, please refer to the downloadable Chinese and English manual and computer analysis software.
