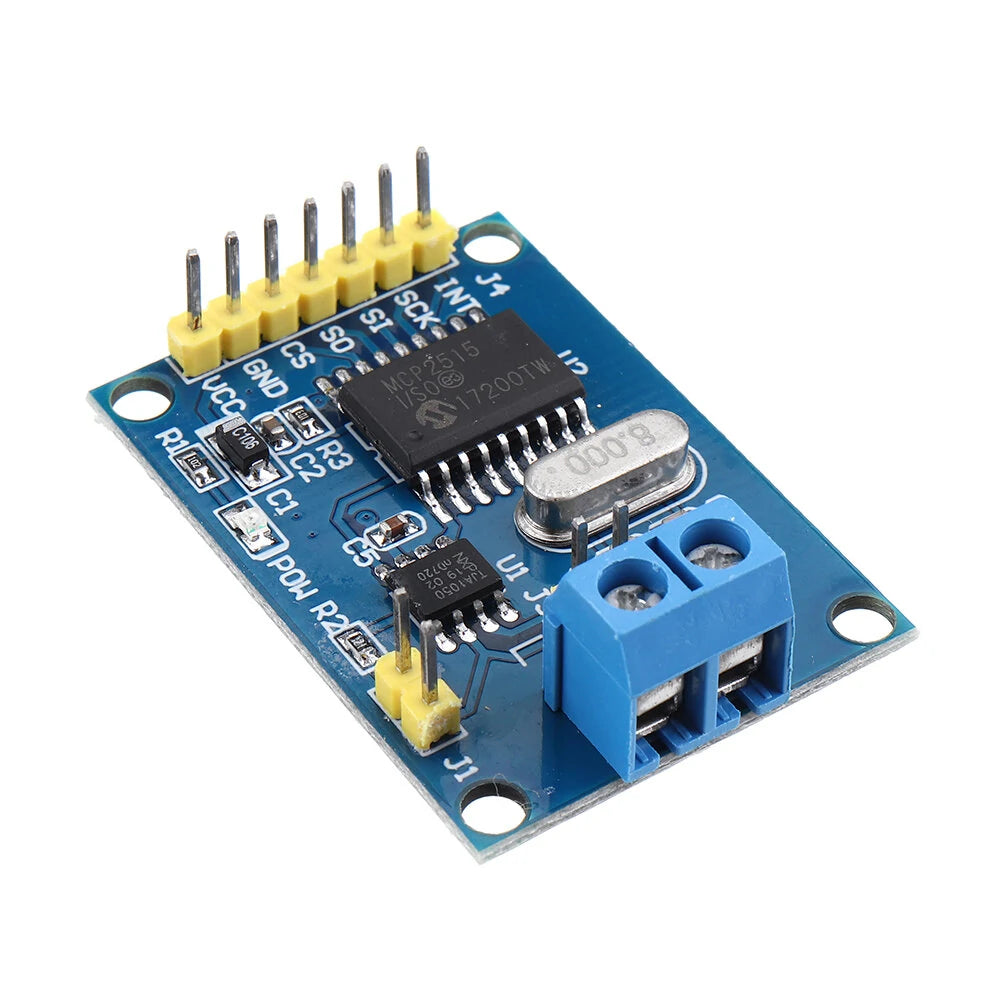

MCP2515 CAN Bus Module Board with TJA1050 Receiver, SPI Interface, Compatible with 51 MCU ARM Controller, 5V DC

More Document

Features:

• Support CAN V2.0B technical specification, with a communication rate of up to 1Mb/s.
• Data field length: 0 to 8 bytes.
• Supports standard frame, extended frame, and remote frame formats.
• Operates with a 5V DC power supply and controlled via SPI interface protocol.
• Equipped with a 120 ohm terminating resistor for impedance matching, ensuring strong drive capability and reducing signal emissions for long-distance data transmission.
• Low power consumption: typical working current of 5mA and standby current of 1 microampere (excluding power indicator).
• Designed for industrial use with an operating temperature range of -40°C to 85°C.

Package Included:

• 1 x MCP2515 CAN Bus Module Board TJA1050 Receiver
