DIY Geiger Counter Kit with OLED Display: Handheld Radiation & X-ray Tester

Description:

This Nuclear Radiation Tester is designed to detect X-rays, γ-rays, and β-rays. It can measure the radioactive dose of materials such as marble, antiques, jade, seawater products, iodine 131, medical equipment, and a variety of unknown minerals used in decoration.

Features:

• Sound and light indication for detection alerts.

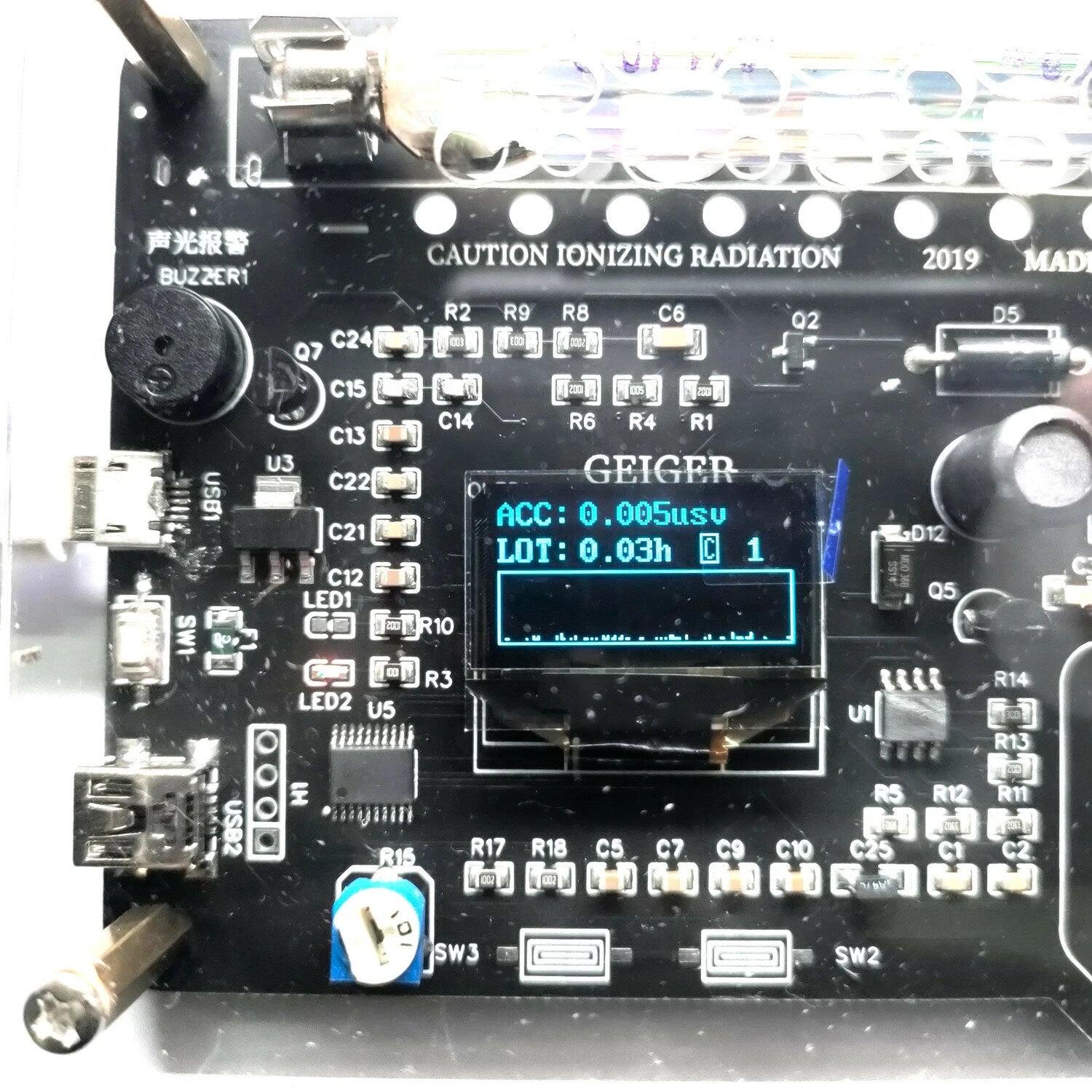

• Functions include real-time dose rate, average dose rate, cumulative dose rate, and a trend chart.
• Small OLED screen for clear display of measurement results.
• Equipped with an ARM processor for fast operation and powerful processing capabilities.

Usage:

1. Place the cover tube close to the radiation source for testing.

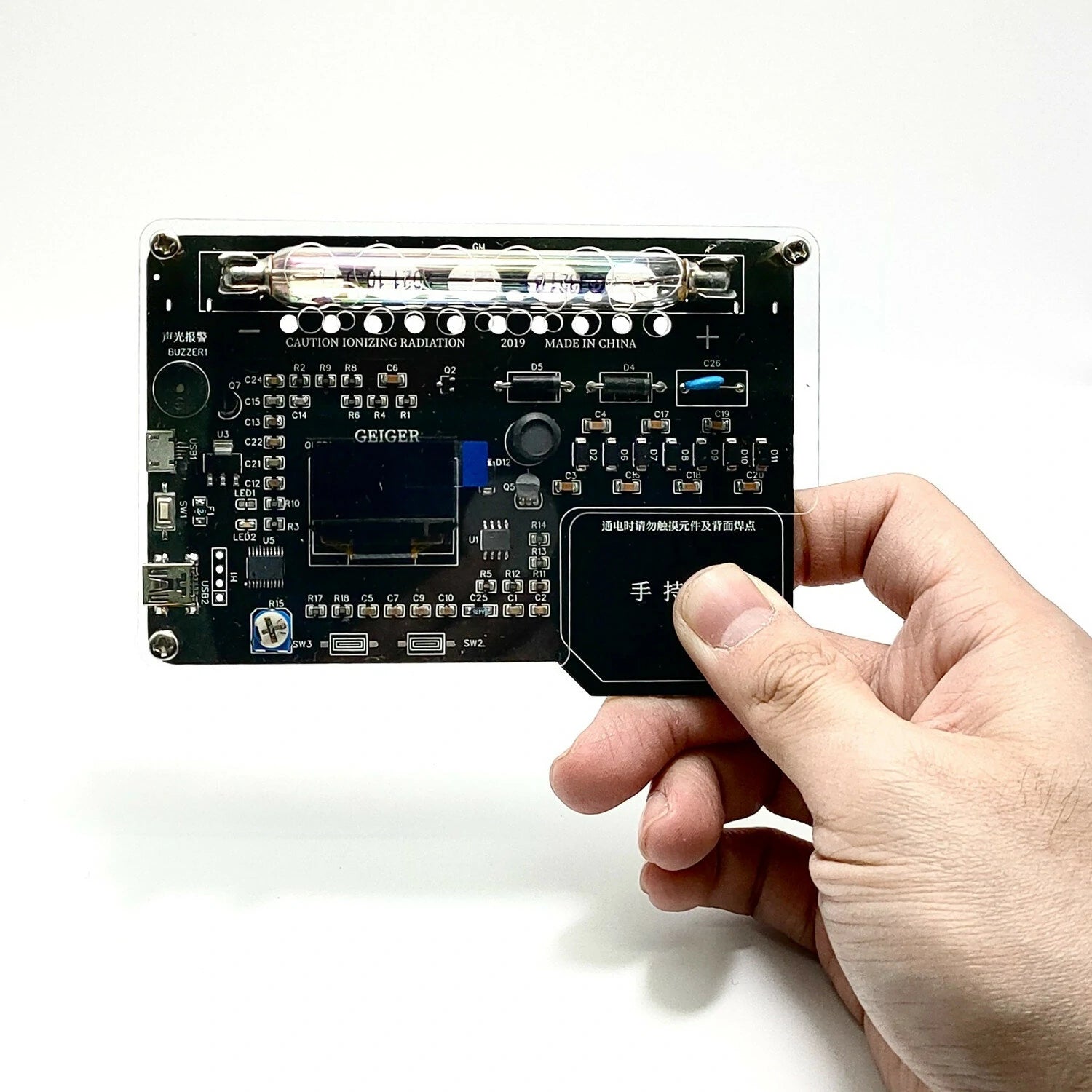

2. Avoid touching the component area when the device is powered on to prevent electric shock; hold the device in the designated handheld area.

Specifications:

• Geiger Tube: J321 (compatible with M4011)
• Screen Resolution: 128 x 64 pixels
• Microcontroller Unit (MCU): ARM
• Display Accuracy: 0.001 µSv/h
• Detection Display Range: 0-9999 µSv/h
• Size: Approximately 116 x 85 mm
• Power Supply: USB, 5V, ≥ 500mA

J321 Pipe Specification:

• Diameter: Φ 10 ± 0.5 mm
• Total Length: 90 ± 2 mm
• Recommended Working Voltage: 380V
• Minimum Ping Length: 80V
• Maximum Ping Slope: 10% / 80V
• Extreme Working Voltage: 550V
• Maximum Background Count Rate: 25 times / minute
• Service Life: > 1 x 10⁹ pulses
• Tested Rays: X, β, γ radial

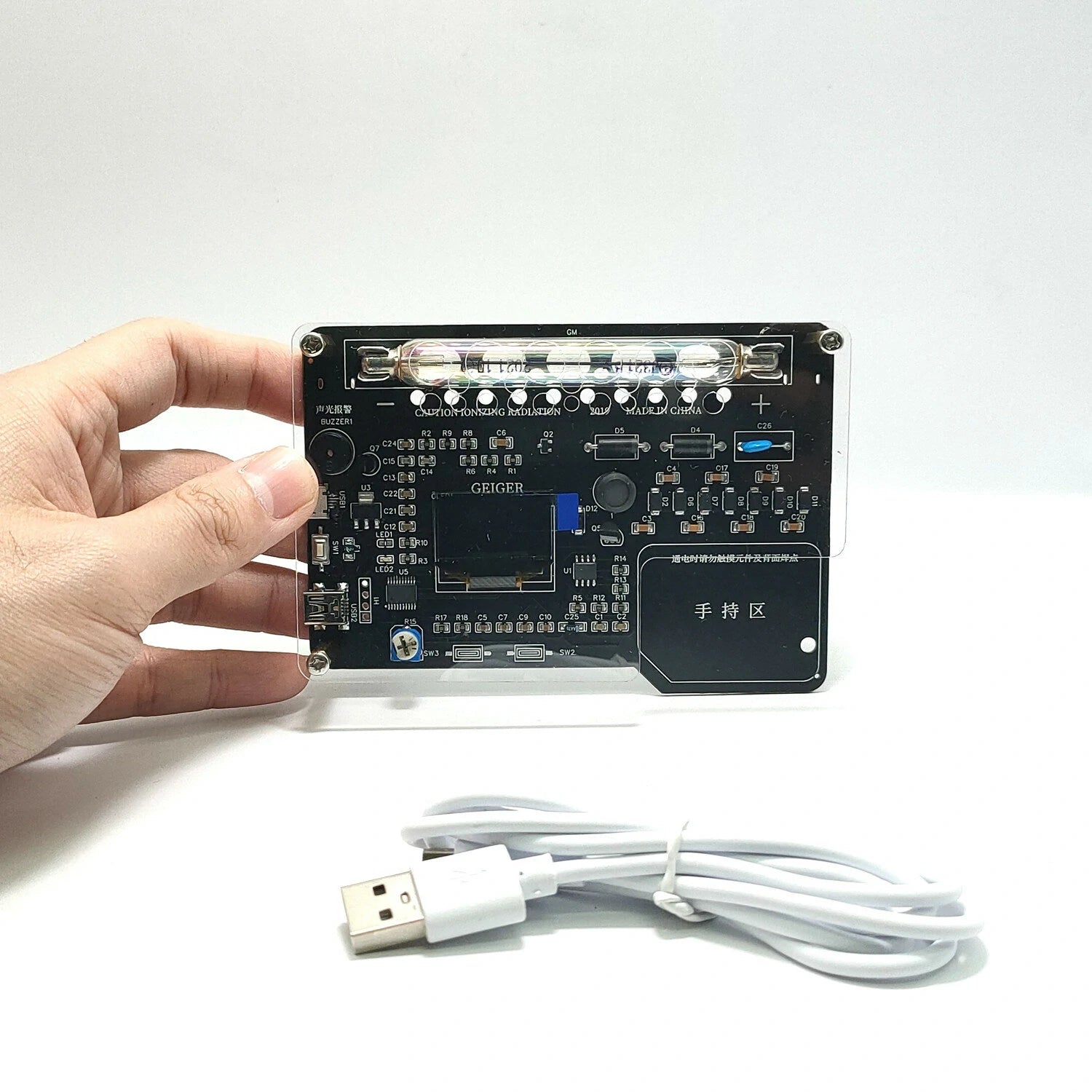

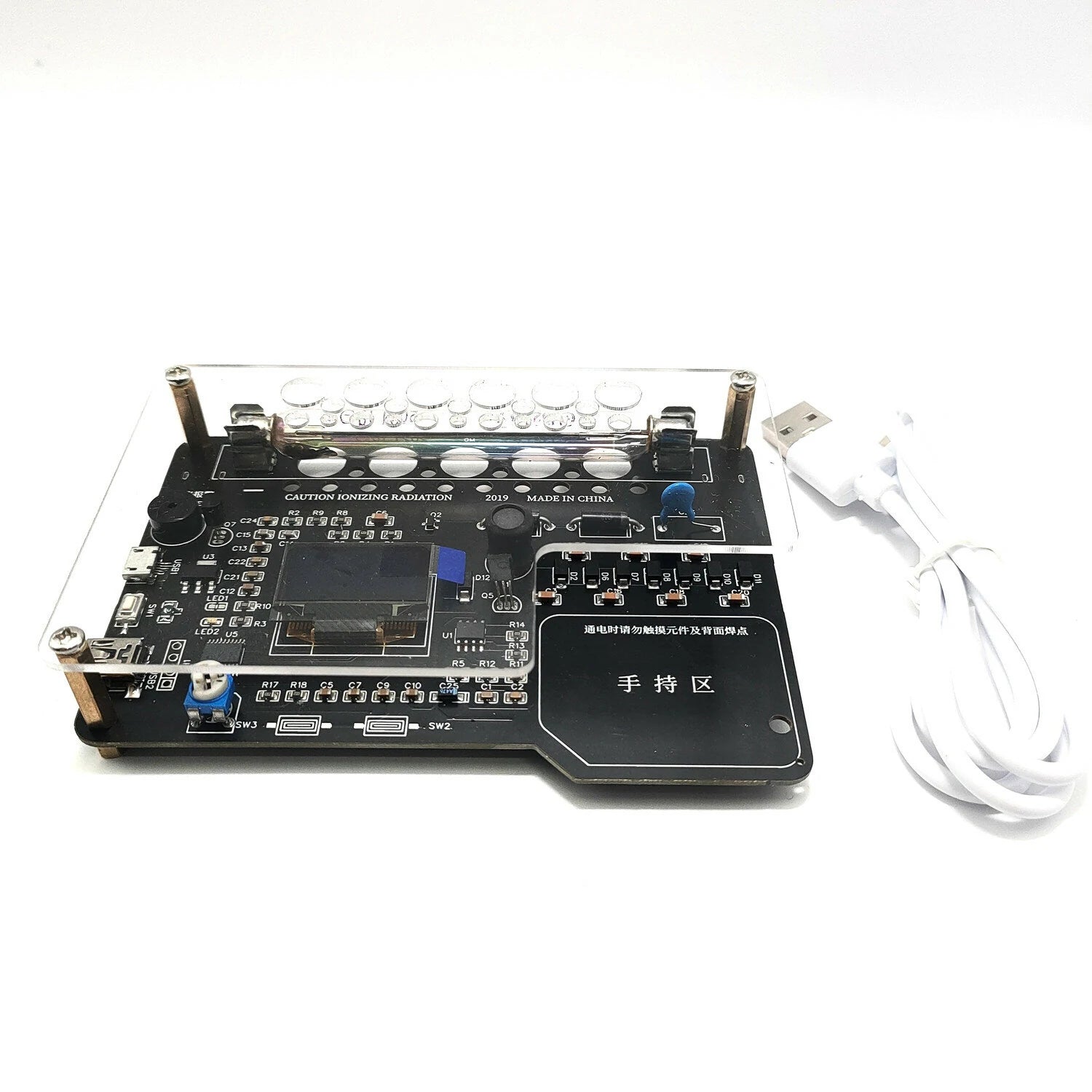

Package Included:

• 1 x Handheld Nuclear Radiation Tester
• 1 x USB Cable
