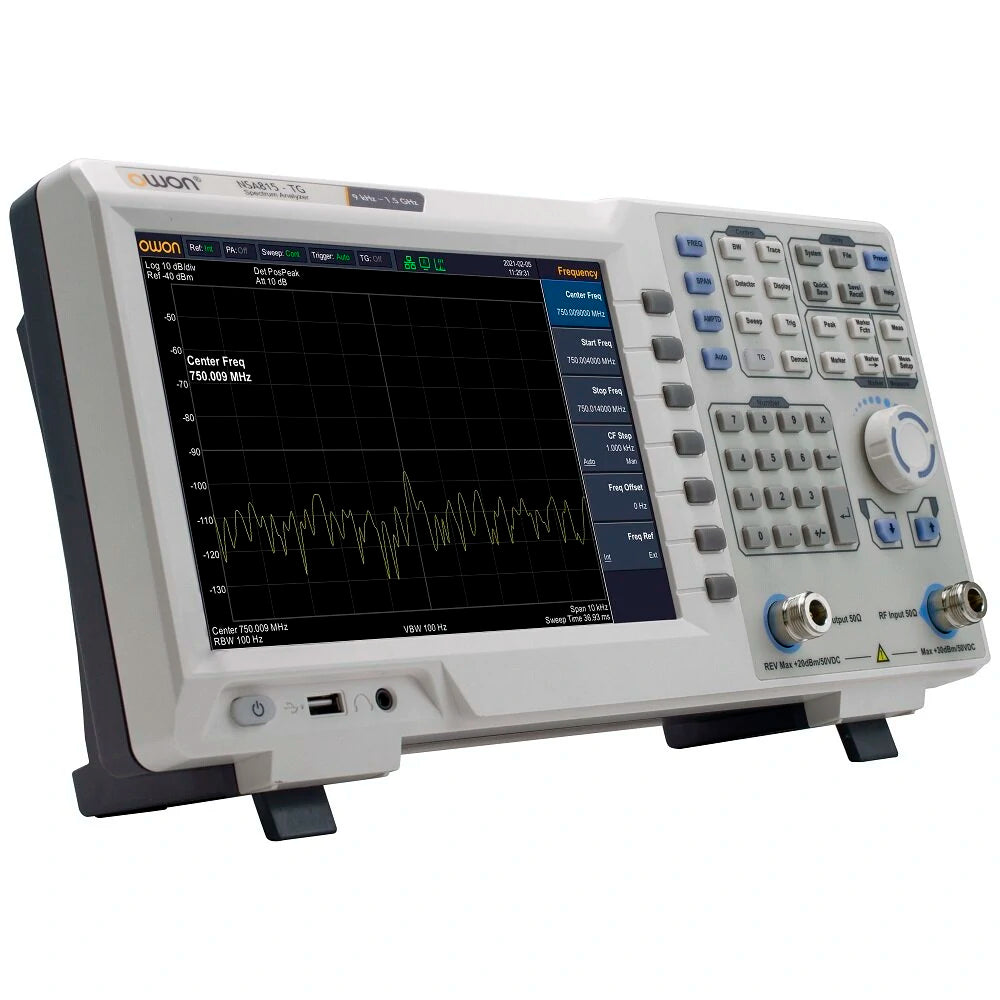

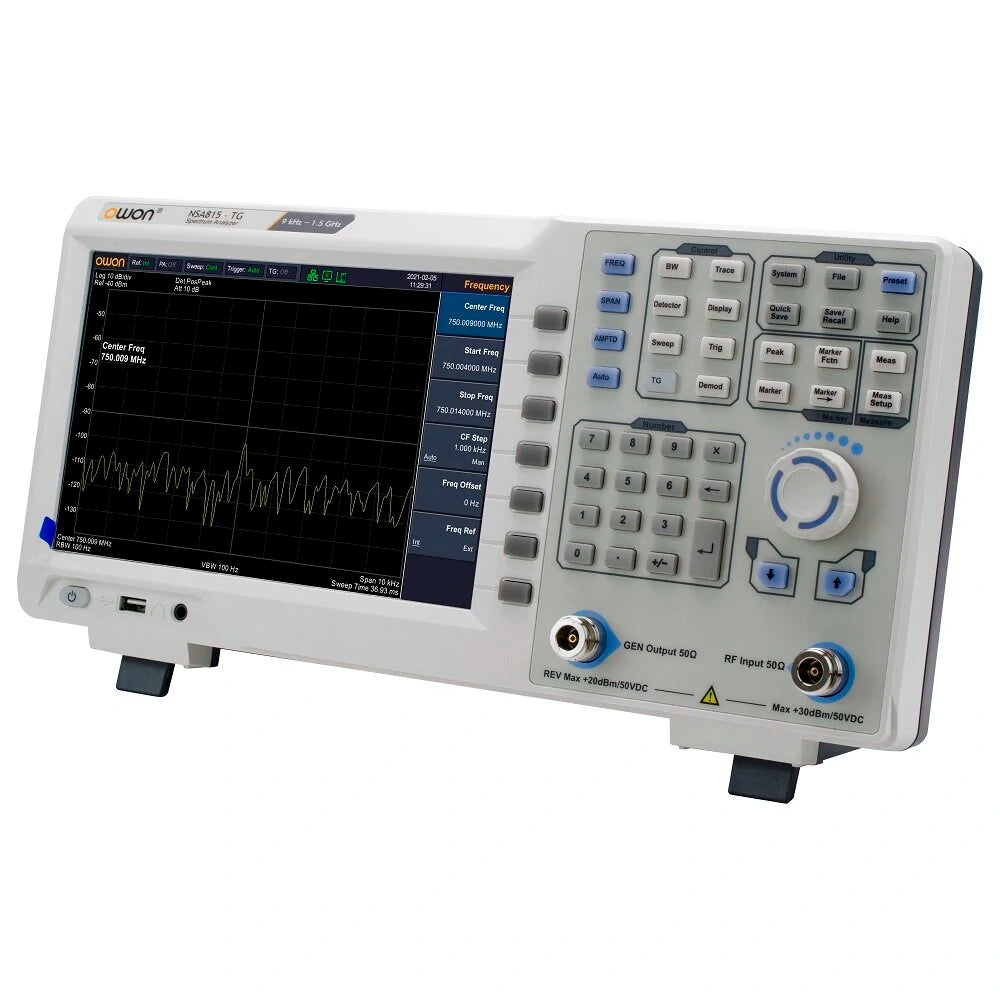

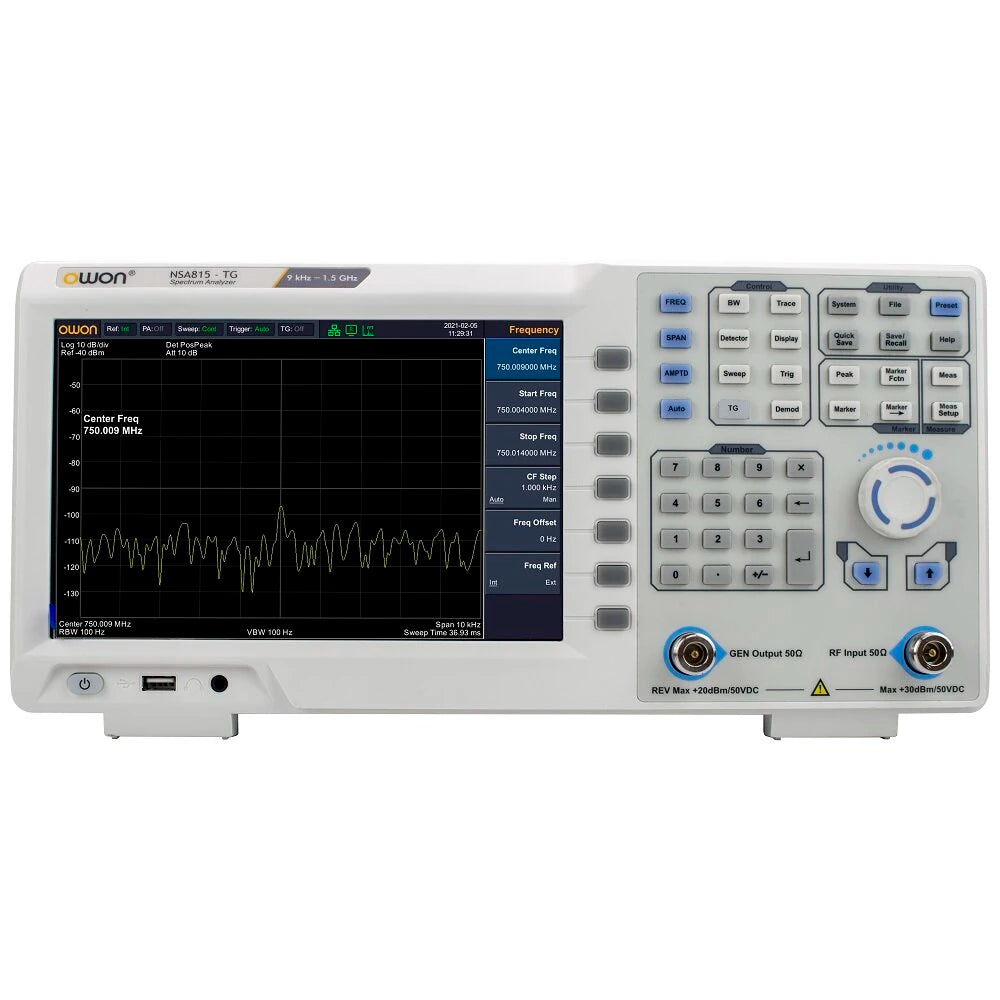

OWON XSA800 Series 9kHz-1.5GHz Spectrum Analyzer, 9-Inch TFT LCD, USB/LAN Connectivity

OWON XSA800 Series 9kHz-1.5GHz Spectrum Analyzer, 9-Inch TFT LCD, USB/LAN Connectivity

Regular price $783.99 USD
Regular price $0.00 USD Sale price $783.99 USD
Sale Sold out
Shipping calculated at checkout.
Model

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Features

  • 160 dBm Displayed Average Noise Level (DANL)
  • Phase noise -80 dBc/Hz @1GHz and at 10 kHz
  • Accurate total amplitude measurement
  • Minimum resolution bandwidth (RBW) of 1 Hz
  • Optional EMI pre-compliance test kit and EMC test software
  • Comprehensive functions: waterfall plot, modulation signal quality analysis, audio demodulation, and more
  • Standard Pass/Fail on-site testing and alert functionality
  • Advanced all-digital intermediate frequency technology
  • Multiple interfaces: USB Host, USB Device, LAN, earphone port, HDMI
  • 9-inch LCD with high resolution of 1280x800 pixels

Specifications

Models Available

  • XSA805 / XSA805(-TG)
  • XSA810 / XSA810(-TG)
  • XSA815 / XSA815(-TG)

Frequency Specifications

  • Frequency Range: 9kHz - 500MHz, 9kHz - 1GHz, 9kHz - 1.5GHz
  • Frequency Resolution: 1Hz
  • Frequency Span Range: 0 Hz, 100 Hz to maximum frequency range

Bandwidth and Noise

  • Resolution Bandwidth (-3 dB): 1Hz to 1MHz in 1 - 10 step, 1 MHz, 3MHz
  • Video Bandwidth (-3 dB): 1Hz to 1MHz
  • Phase Noise (20℃ to 30℃, c = 1 GHz): counteract features

Measurement Units

  • Level Units: dBm, dBuW, dBpW, dBmV, dBuV, W, V
  • Trace Test: positive-peak, negative-peak, sample, normal, RMS, average, quasi-peak
  • Trace Functions: clear write, max hold, min hold, view, blank, average, trace math
  • VSWR: 300 kHz to 1.5 GHz when input > 10 dB

General Specifications

  • Display: 9" TFT LCD with 1280x800 pixels resolution

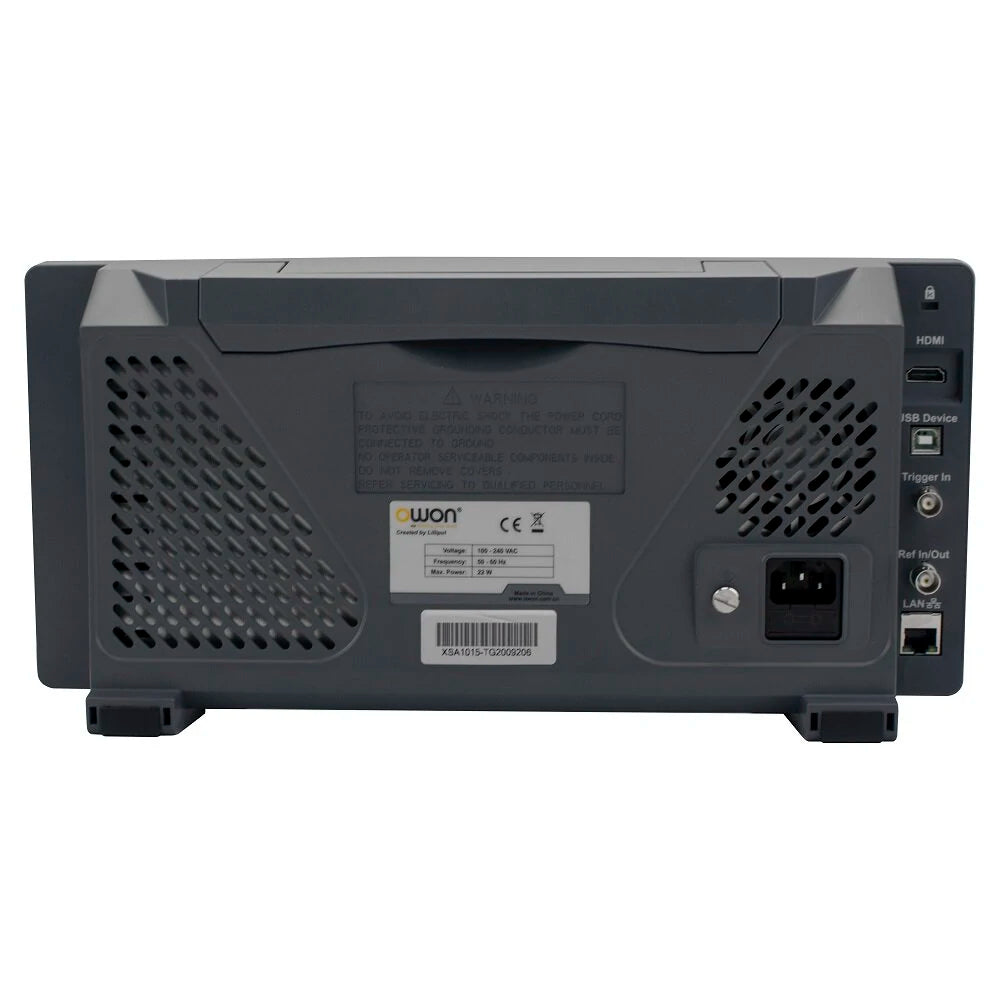

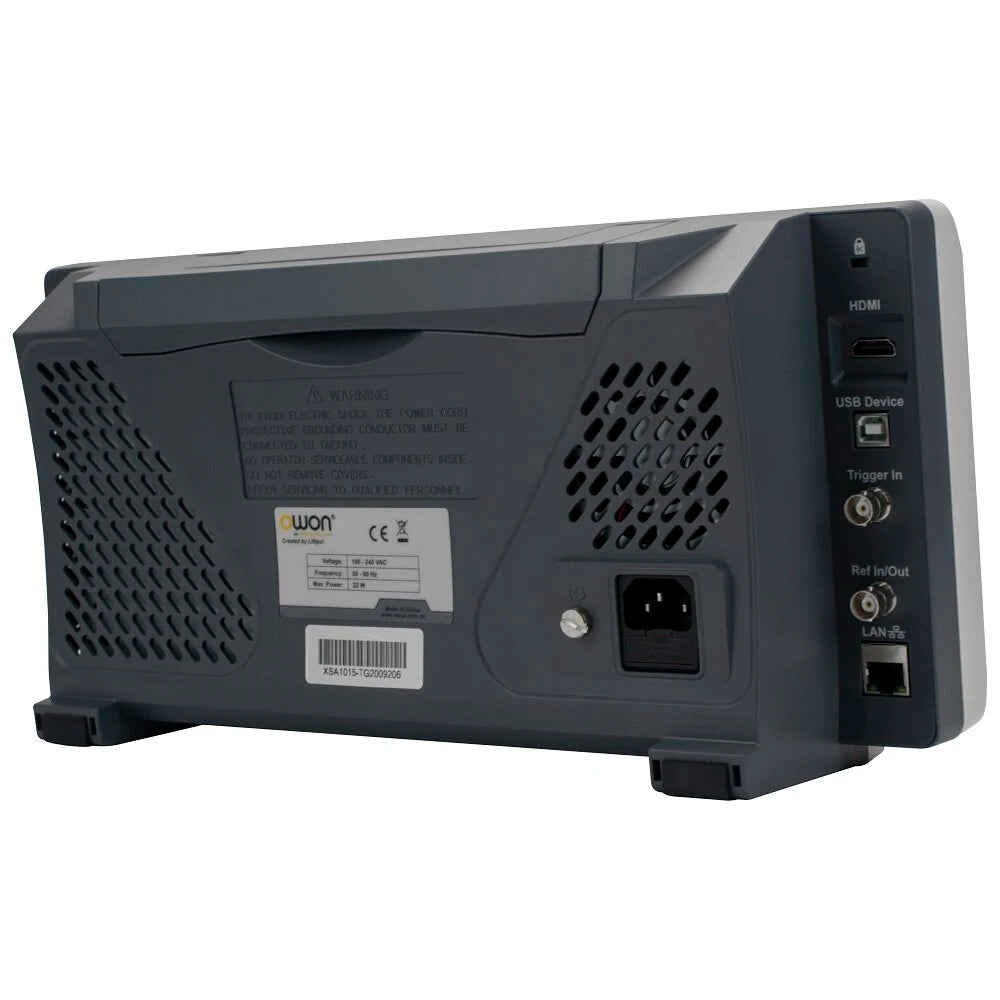

  • Communication Interfaces: USB host, USB device, LAN, earphone port, HDMI

Tracking Generator (Only for XSA805-TG/XSA810-TG/XSA815-TG models)

  • Frequency Range: 100kHz to 1.5GHz
  • Power Level Range: -40dBm to 0 dBm
  • Power Level Resolution: 1dB

Package Included

  • 1 x Spectrum Analyzer
  • 1 x USB Cable
  • 1 x Power Cord (EU Plug)
  • 1 x User Manual

Note: We will send the appropriate adapter according to your country.
