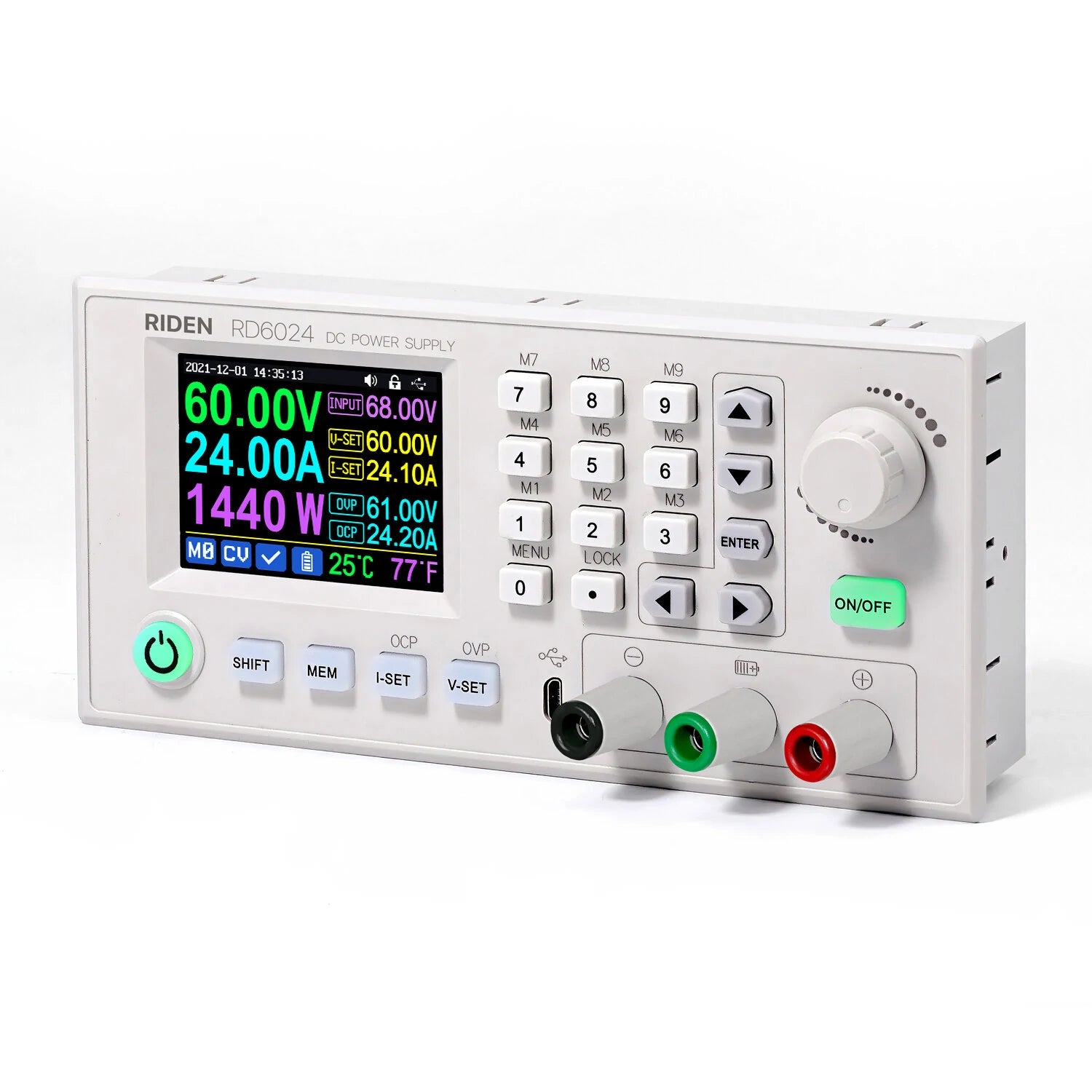

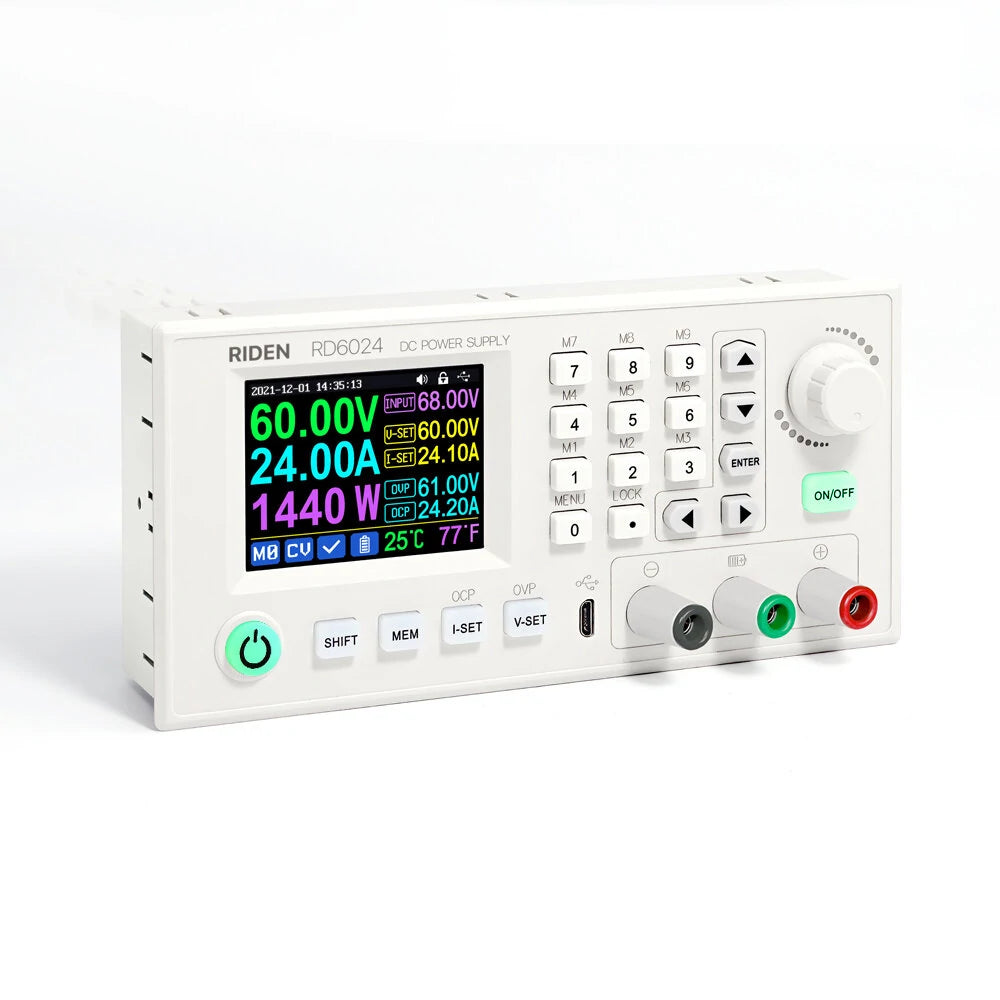

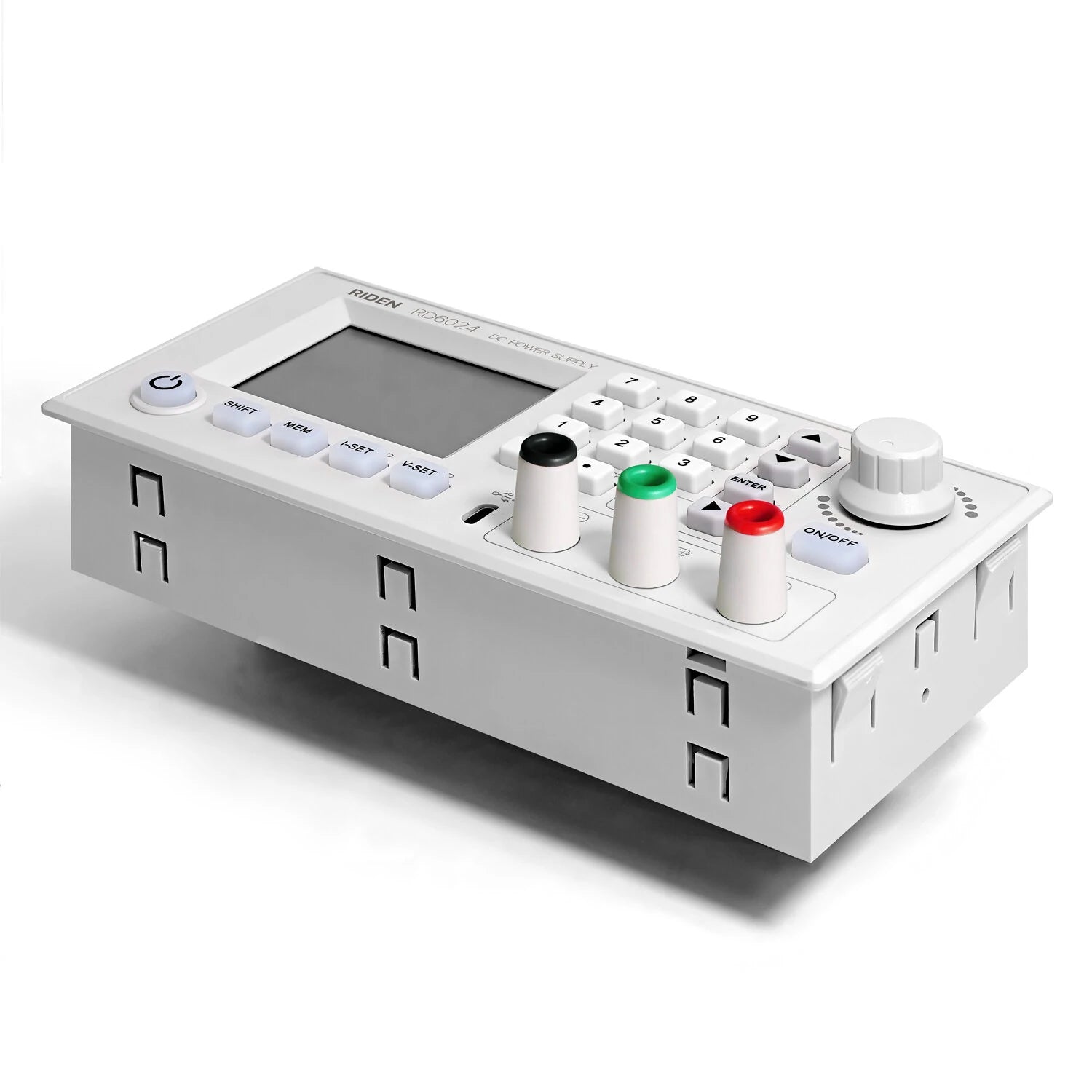

RIDEN® RD6024 1000W WiFi DC Buck Converter: 12V/36V/48V/60V Adjustable 24A Power Supply & Battery Charger

$95.99 USD

~~$0.00 USD~~ $95.99 USD

Sale Sold out

Shipping calculated at checkout.

Model RD6024 RD6024W

Estimated Delivery: -

Quantity

Note Before Buying:

Two versions: RD6024 and RD6024-W. The RD6024-W has a WiFi board and supports the app connection. The RD6024 does not.
RD6018 does not support WiFi board connection, only PC software via USB. Current WiFi-PC connection is not supported.
WiFi function is a test feature; due to poor compatibility with some computers, it might not work. We do not guarantee or provide support for this.
PC software supports Windows 7 and above. The app supports Android 5.0+. Test software/app compatibility before purchase; no refunds if software/app issues arise after purchase unless tested beforehand.
When using inductive loads (like motors), max working current is 1/3 of the range. Do not exceed.
Check output voltage stability upon receipt using a multimeter. Do not connect to RD power supply if output is abnormal; contact us first.
Surface scratches may exist but do not affect performance. Consider this before buying.
Cable connections should only be attempted by those with an electronics foundation and must be reliably grounded.
Power supply warranty labels may be damaged during delivery but do not affect the warranty.
Different production batches may use different internal materials.
A backup fuse is included with RD6024/RD6024-W. Use it temporarily if the current fuse burns (supports 10A). Best to replace with soldered fuse for full output.
For assembly, do not dismantle the PSU shell, as this affects heat dissipation and invalidates after-sale service.

Friendly Reminder:

If ordered incomplete, device only powers with DC input. Use grounded switching power supply for AC input to avoid leakage risks.
Recommended PSU: Use custom or renowned brand PSU. Not recommended: AC-DC converter/transformer without rectifiers or filters if DC output >65V to avoid voltage spikes that may damage the device.
Banned PSU: Avoid electric bike chargers, modified, or second-hand power supplies, especially those unverified for RD supply as they may output unstable high voltages.

Specifications:

Model Suitability: Various models including RD6006, RD6012, RD6018, with respective IDs for shells and power supplies.
Voltage, current, and power ranges differ per model, with specific resolution and accuracy figures provided.
Battery voltage measurement resolution: 0.01V
Ripple and noise measurement methods specified for using oscilloscope.
Various operating conditions and protections (e.g., temperature protection at >80℃)
Communication: USB support universally, WiFi only for "W" models

Package Includes:

Instruction Videos:
