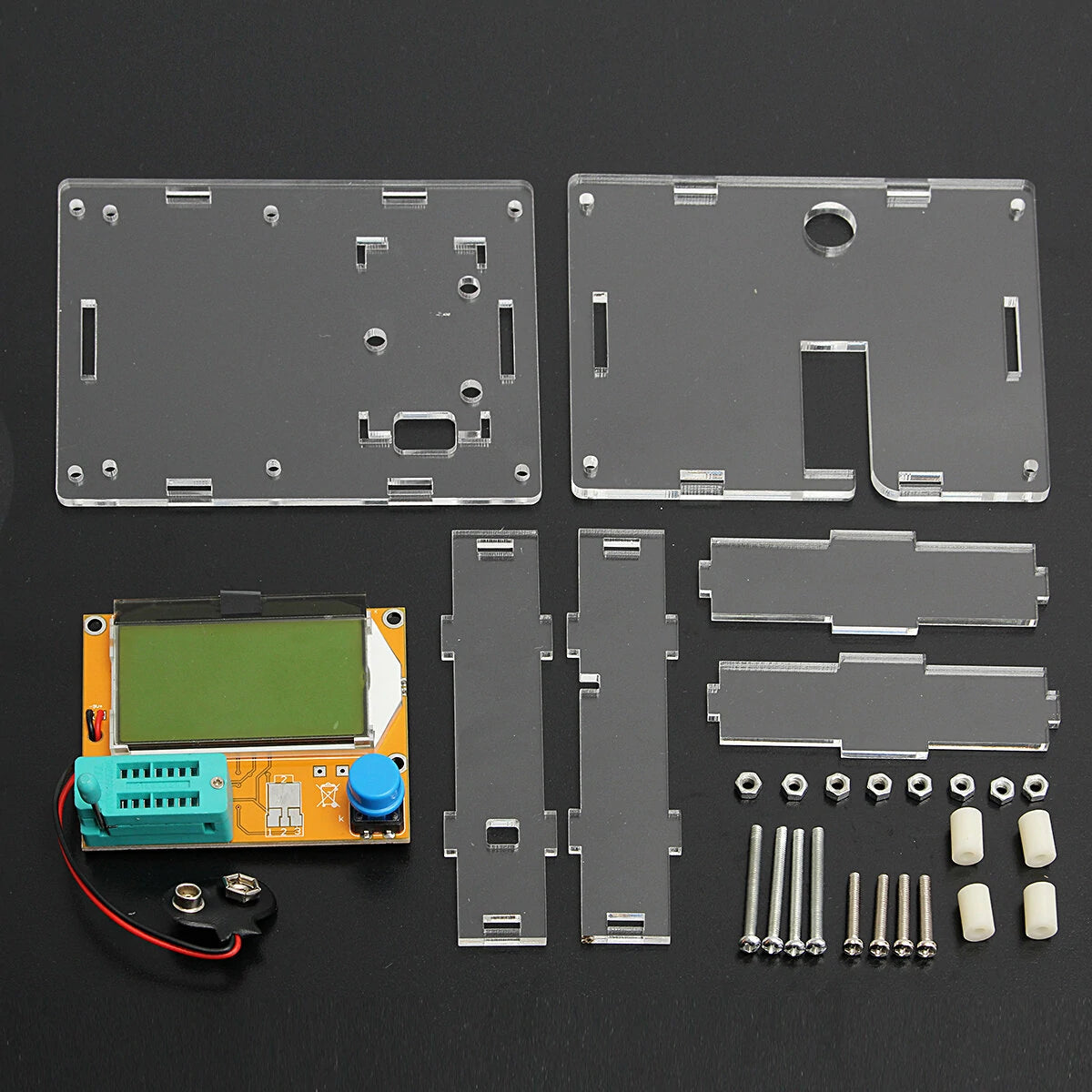

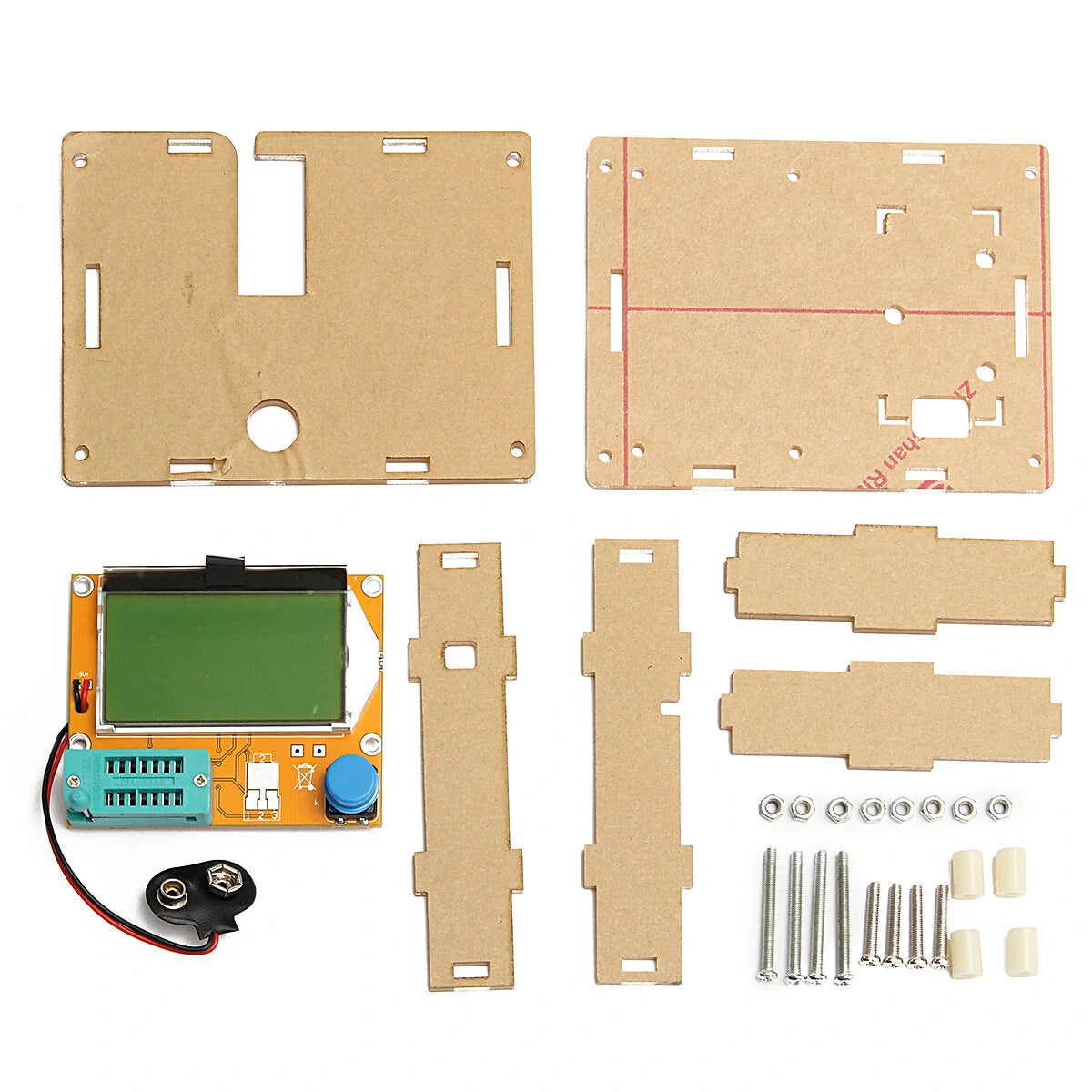

Geekcreit® Mega328 Transistor Tester LCR-T4 with Case - Diode, Triode, Capacitance, ESR Meter

Product Specifications

Discover the versatility and precision of this advanced electronic component tester, designed for the modern technician and hobbyist alike.

• Resistor Range: 0.1Ω - 50MΩ
• Capacitor Range: 25pF - 100,000uF
• Inductance Range: 0.01mH - 20H
• Working Power: DC-9V
• Standby Current: 0.02uA
• Operating Current: 25mA
• Material: Metal & Plastic
• Dimensions: 11.1cm x 2.6cm x 8.5cm (4.37" x 1.02" x 3.34")

Conversion: 1cm = 0.3937 inch, 1 inch = 2.54 cm

Description

• Features boot voltage detection functionality for enhanced performance.
• Automatically detects various components such as NPN/PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, transistors, resistors, and capacitors.

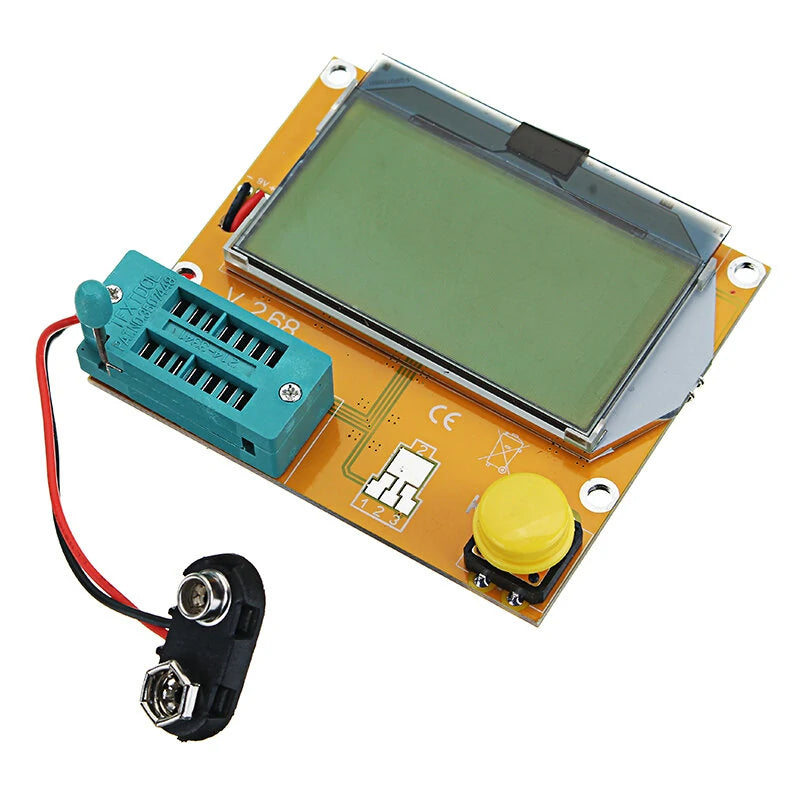

• Displays detected pin elements clearly on the integrated LCD screen.
• Capable of determining the transistor emitter forward bias voltage, MOSFET protection diode, and the base amplification factor.
• Measures gate threshold voltage and gate capacitance of MOSFETs efficiently.
• Equipped with a 1602 LCD display featuring a backlit screen for easy readability.
• Quick test speed, typically within 2 seconds, except for larger capacitance measurements, which may take up to a minute.
• User-friendly one-button operation for seamless testing and results.
• Ultra-low power consumption in off mode: less than 20 nA.
• Automatic power-off feature to conserve battery life and improve energy efficiency.

Note: Battery is not included.

Package Includes

• 1 x LCR-T4 Transistor Tester
