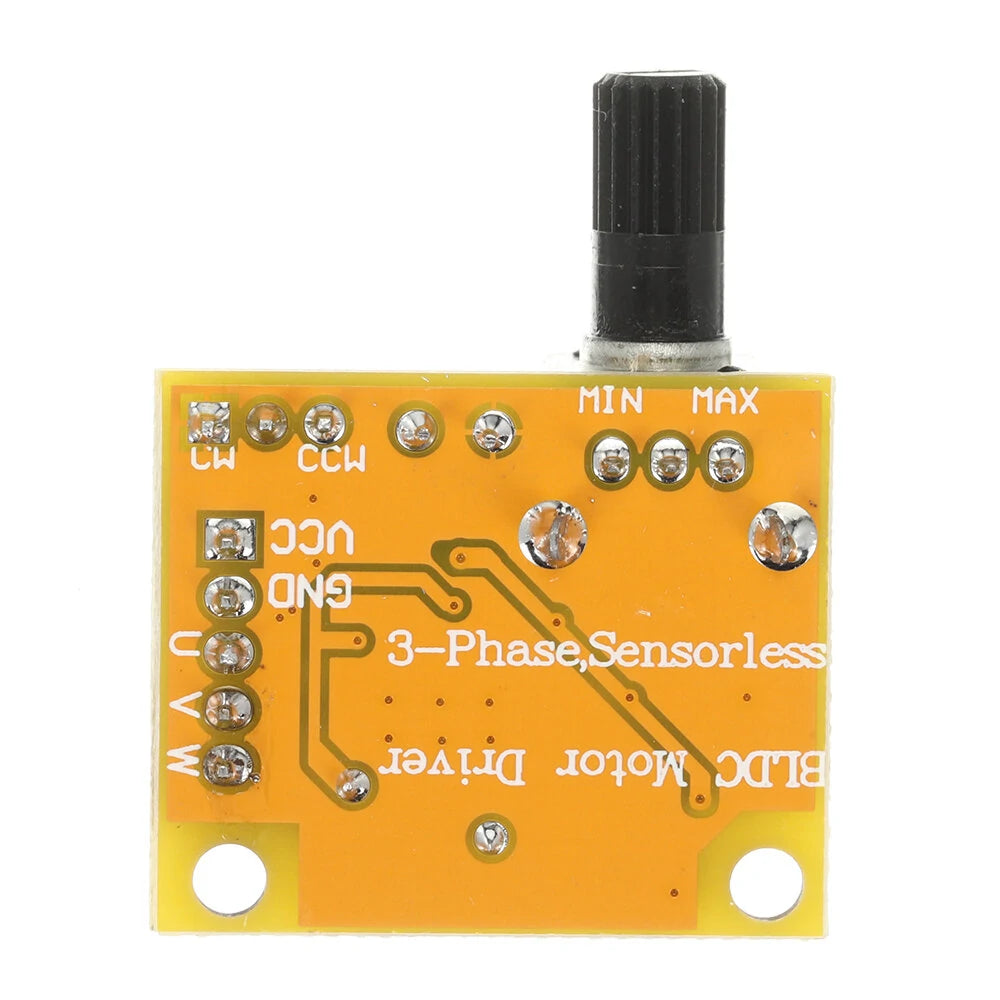

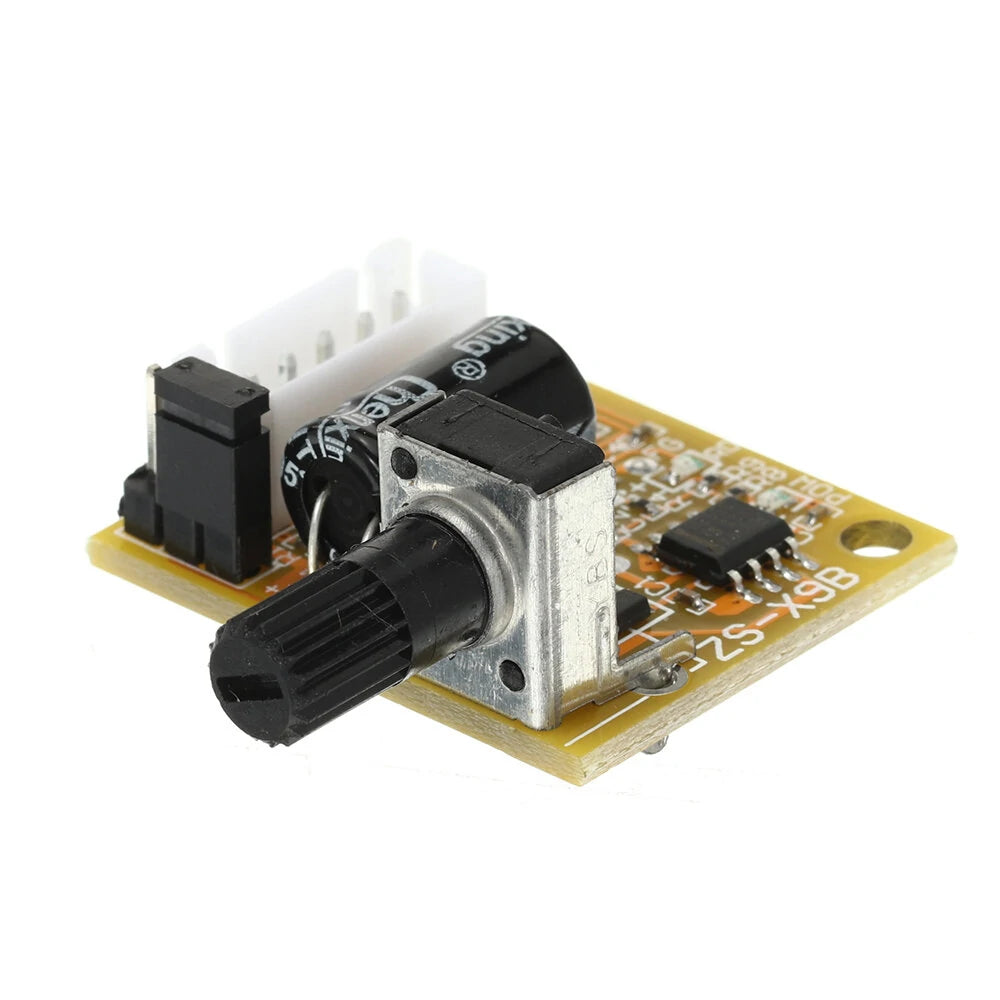

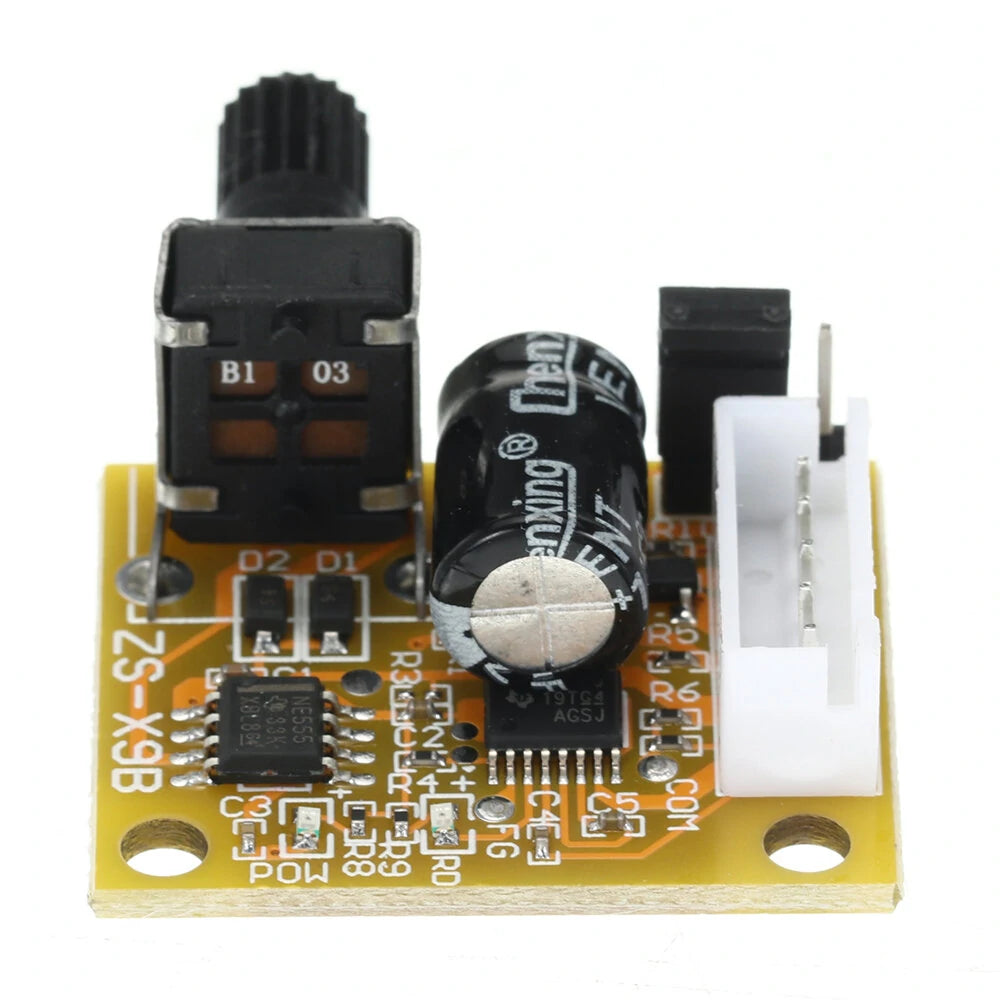

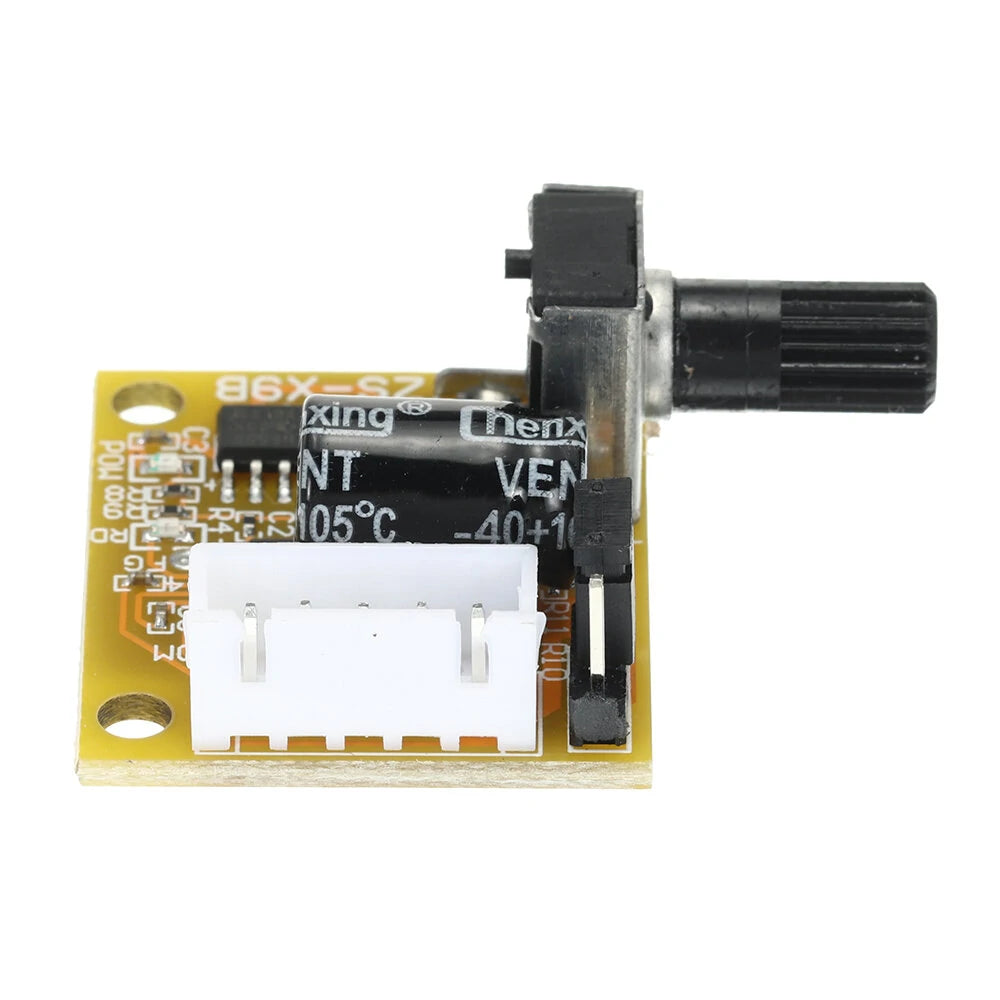

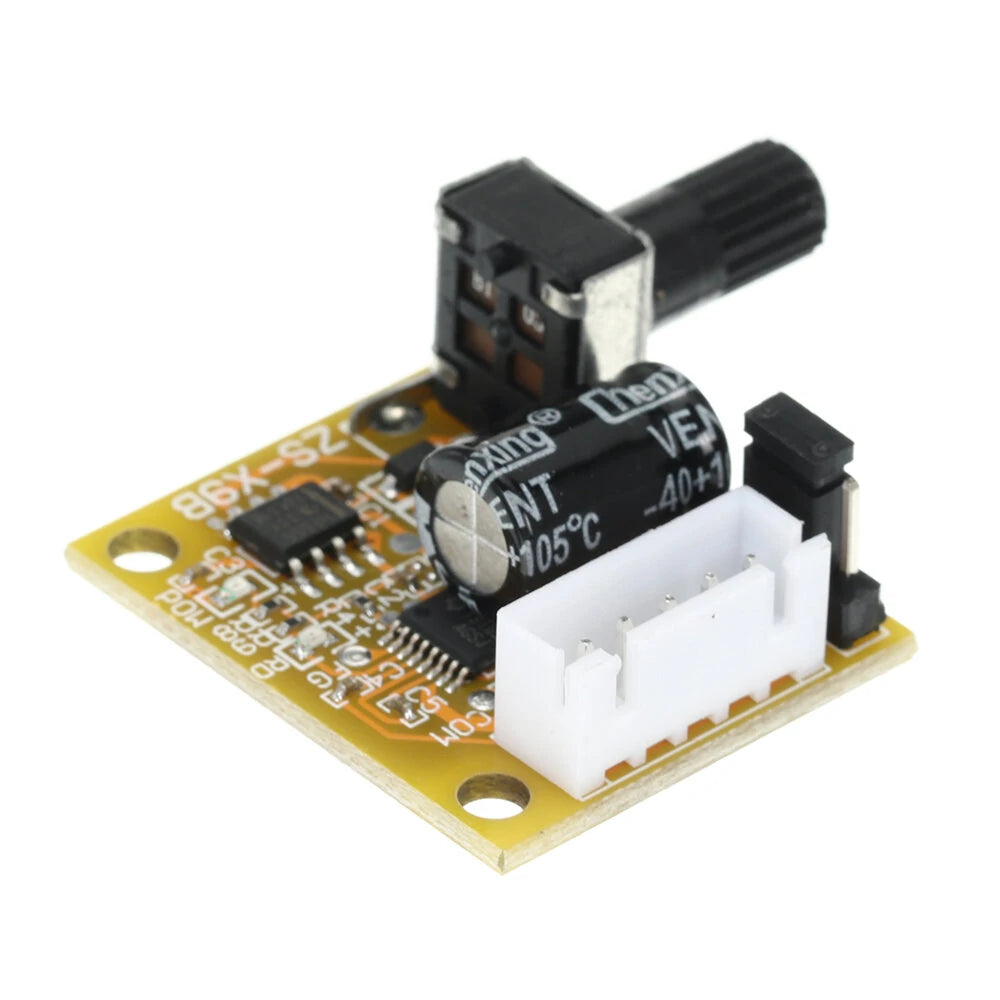

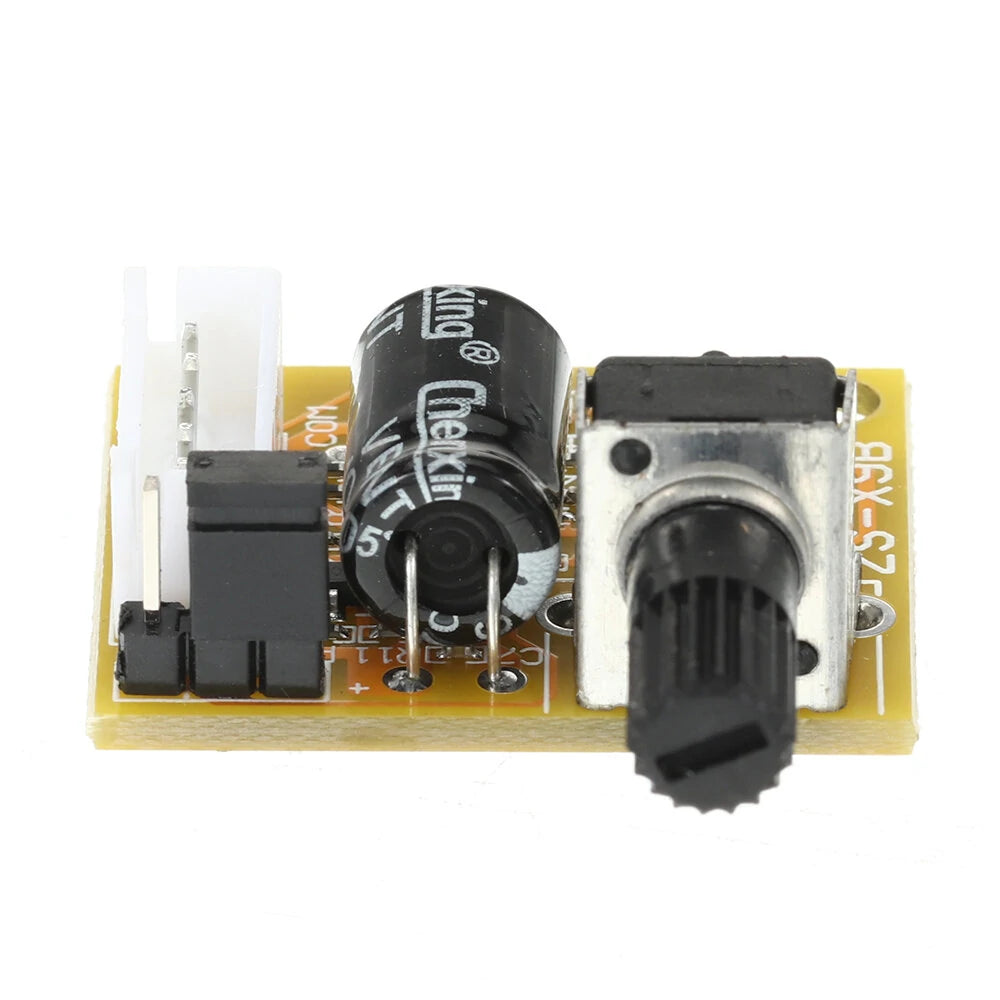

Three-Phase BLDC Motor Controller & Speed Regulator Driver Board 5V/12V
Three-Phase BLDC Motor Controller & Speed Regulator Driver Board 5V/12V
Regular price
$6.99 USD
Regular price
$0.00 USD
Sale price
$6.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Features
- Power input equipped with reverse polarity protection to prevent burn-out.
- Indication for output phase loss and stall fault.
- Supports three-phase three-wire drive and three-phase four-wire small brushless motors.
- Operates with sinusoidal signals for a quieter and more compact function.
- Delivers stable performance with simple, cost-effective multi-function operations.
Specifications
- Working Voltage: DC 5V-15V
- Continuous Current: 1.5A (Peak 2A)
- Maximum Control Power: 15W
- Quiescent Current: 0.005A (standby)
- PWM Duty Cycle: 1%-100%
- PCB Size: 3.0 x 2.5 x 1.5 cm (1.18 x 0.98 x 0.59 inches)
- Weight: 10g
Package Includes
- 1 x 15W Three-Phase Brushless Motor Driver (Motor not included)
Important Notices
- Use only DC power supply. AC power is not compatible. Ensure correct voltage and current usage as per specified parameters. Verify wiring before powering on, as not all brushless motors are supported.
- Use a motor compatible with the working voltage, current, and power to prevent damage to the main chip.
- This driver is not suitable for brushed motors.
