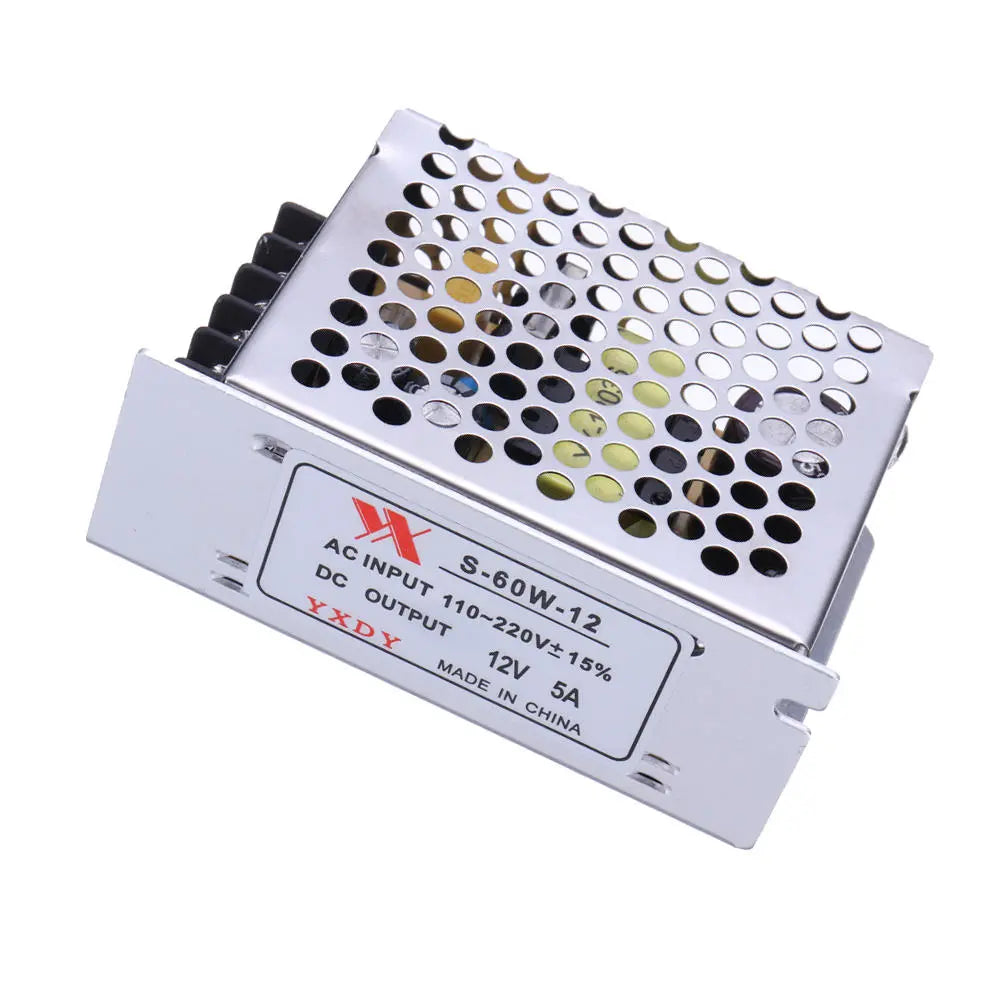

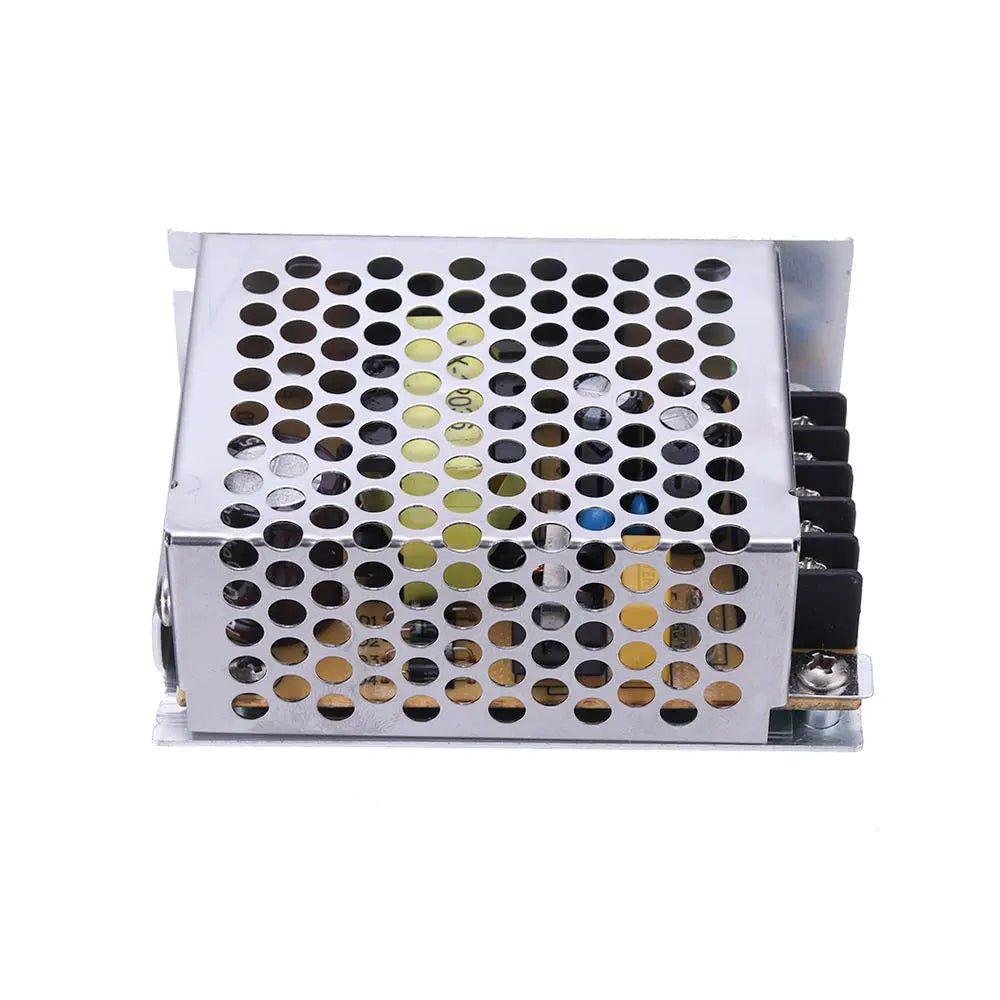

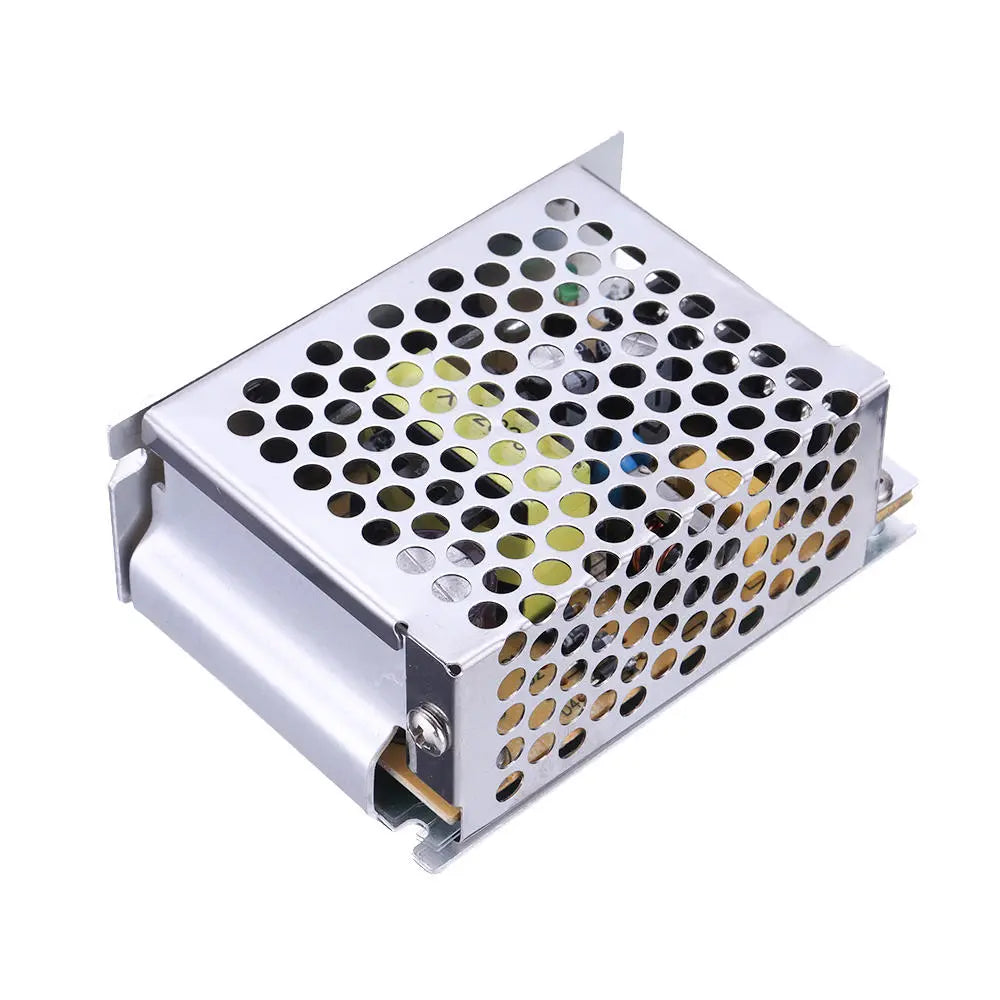

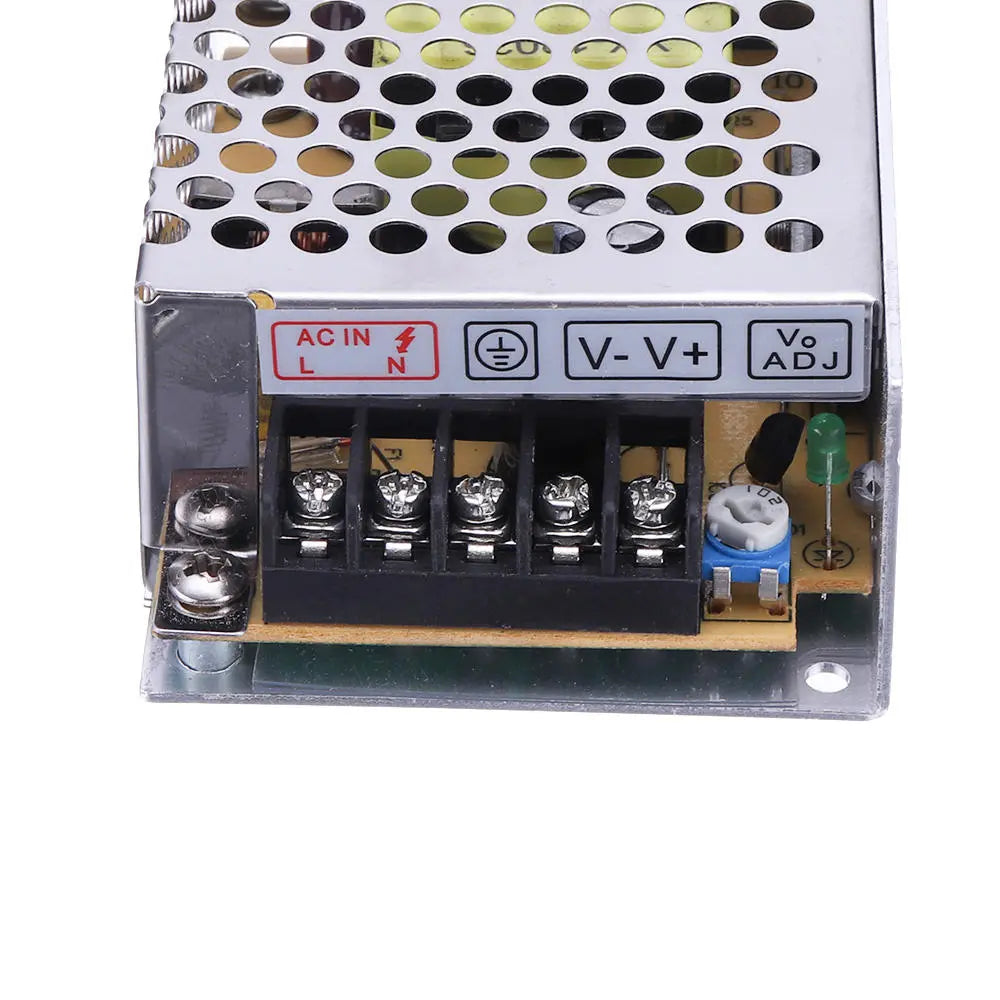

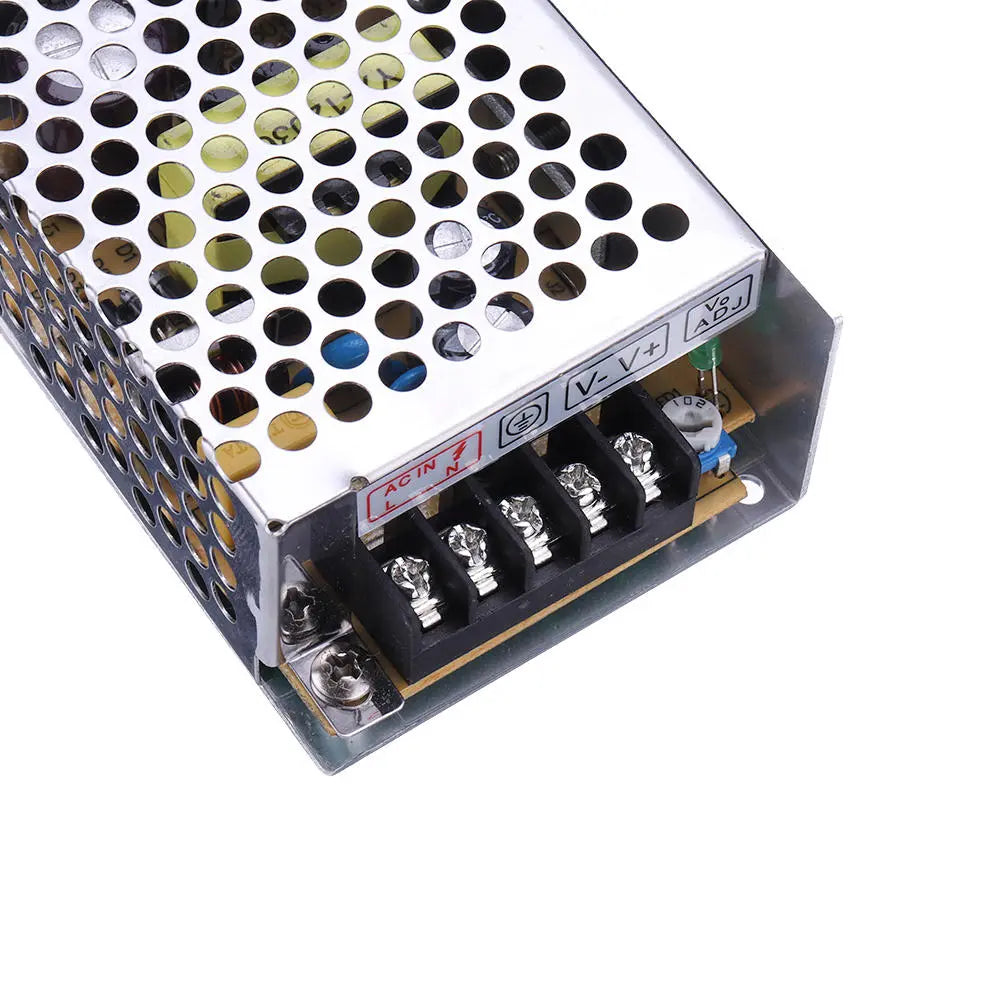

3-Pack 60W AC 100-240V to DC 12V 5A Switching Power Supply Adapter for LED Strip Lights

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below:

Year:
Select
Make:
Select
Model:
Select
Submodel:
Select
Trim:
Select
Engine:
Select
Clear All

This part is compatible with the following vehicles:

• This part is compatible with 0 vehicle(s).
• This part is compatible with 1 vehicle(s) matching your search.
• This part is not compatible with certain vehicles.

Features

• Good anti-interference performance and high reliability.
• Low operating temperature and long service life.
• Wide input voltage range (100-240V), compatible with global usage standards.
• Good insulation performance and high electric strength.
• Full load high temperature operation, 100% aging test conducted.

Specifications

• Model: HS-60-12
• DC Output Voltage: 12V
• Output Voltage Tolerance: ±1%
• Rated Output Current: 5A
• Output Current Range: 0 - 5A
• Ripple and Noise: 100mVp-p
• Line Stability: ±0.5%
• Load Stability: ±0.5%
• DC Output Power: 60W
• Efficiency: 85%
• DC Voltage Adjustable Range: ±10%
• Input Voltage Range: 100 ~ 240VAC 47 ~ 63Hz; 120-370VDC
• Input Current: 2A/115V, 1A/230V
• Inrush Current: Cold start, 30A/115V, 60A/230V
• Overload Protection: 105%~150%
• Overvoltage Protection: 15%-135%
• Temperature Coefficient: ±0.03%/°C (0-50°C)
• Start, Rise, Hold Time: 800ms, 50ms/115VAC; 300ms, 50ms/230VAC
• Shock Resistance: 10 - 500Hz, 2G, 10min per cycle, 60 points total, each axis
• Pressure Resistance: 3KvAC input/output, 1.5KvAC input/housing, 0.5KvAC output/housing
• Isolation Resistance: 500VDC/100MΩ for input/output, input/housing, output/housing
• Working Temperature: -10°C to +60°C, 20% - 90% RH
• Storage Temperature: -20°C to +85°C, 10% - 95% RH
• Dimensions: 85 × 60 × 34mm

Package Included

• 3 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
