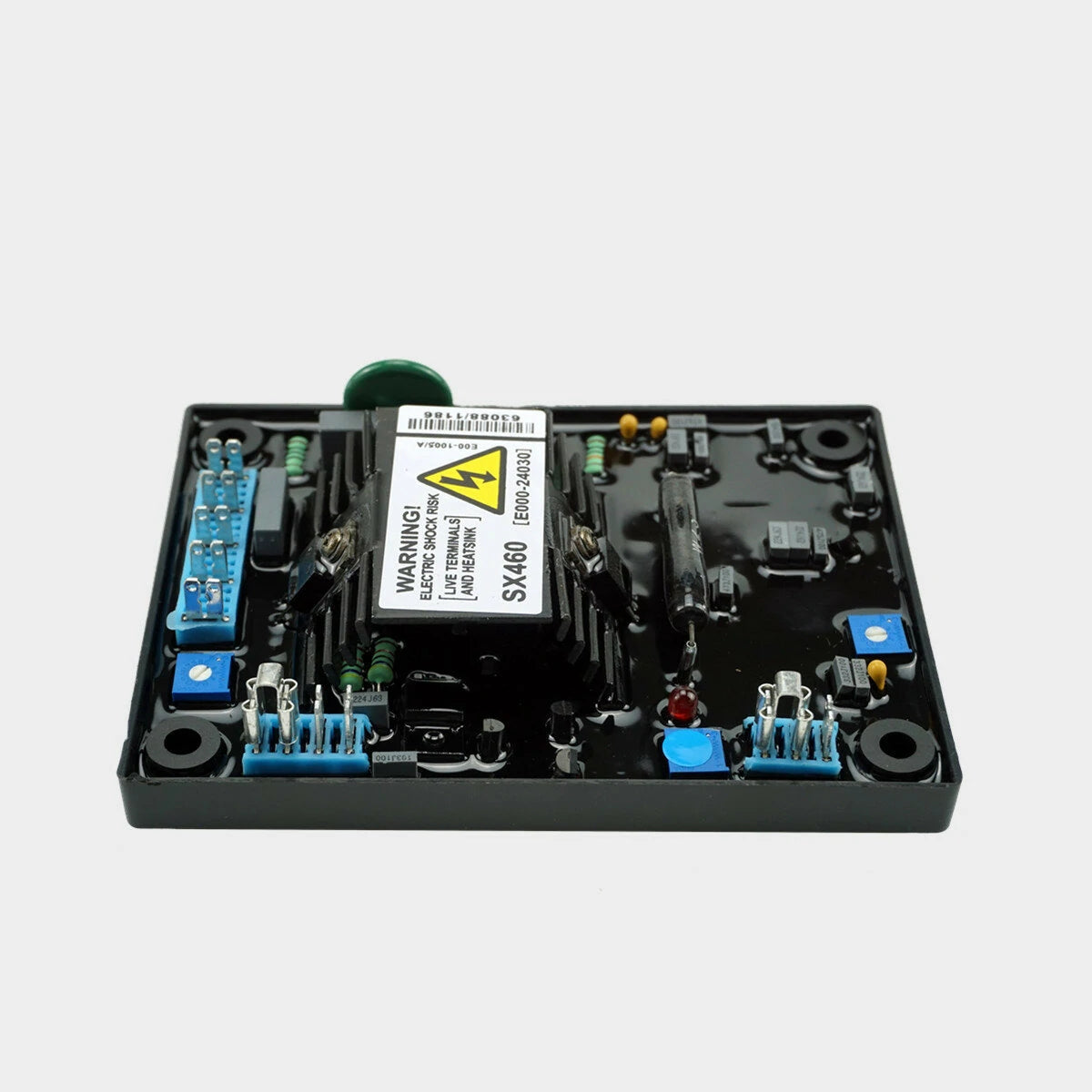

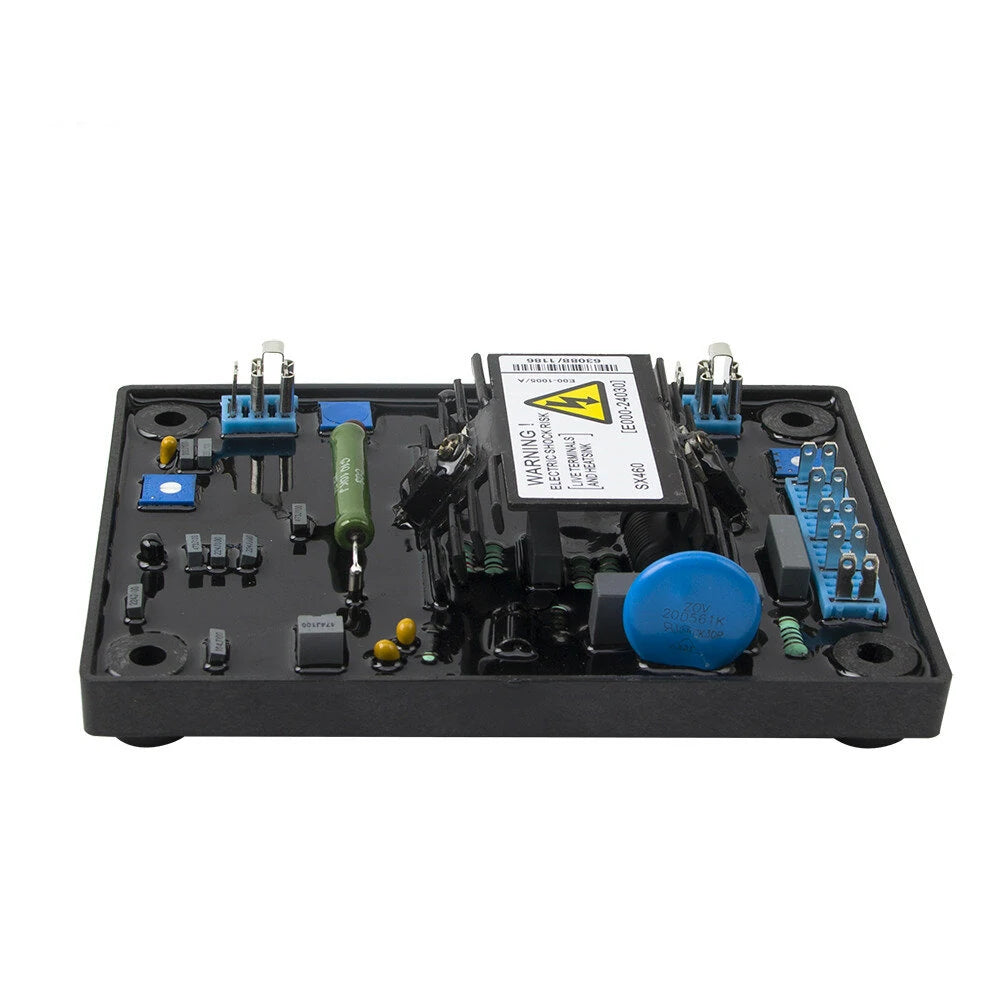

SX460 AVR Automatic Voltage Regulator for Generator Replacement

Product Description

The SX460 is a high-performance, half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR), integral to the excitation system of a brushless generator.

This AVR not only stabilizes generator voltage but also includes advanced features such as under-speed protection and sensing loss. The power for excitation is sourced directly from the generator terminals.

Ensuring a positive voltage build-up from residual levels, the AVR's power circuitry leverages efficient semiconductors for optimal performance.

Specifications

Input

• Voltage: 220V AC (Jumper selectable)
• Frequency: 50-60Hz nominal
• Phase: Single phase

Output

• Voltage: Maximum 90V DC at 207V AC Input
• Current: Continuous 4 A DC
• Resistance: 15 ohms minimum
• Size: 13.5 x 10 x 1.2 cm (Panel only)
• Regulation: ±1.0%

Typical System Response

• AVR response: 20ms
• Field current to 90%: 80ms
• Machine volts to 97%: 300ms

Package Includes

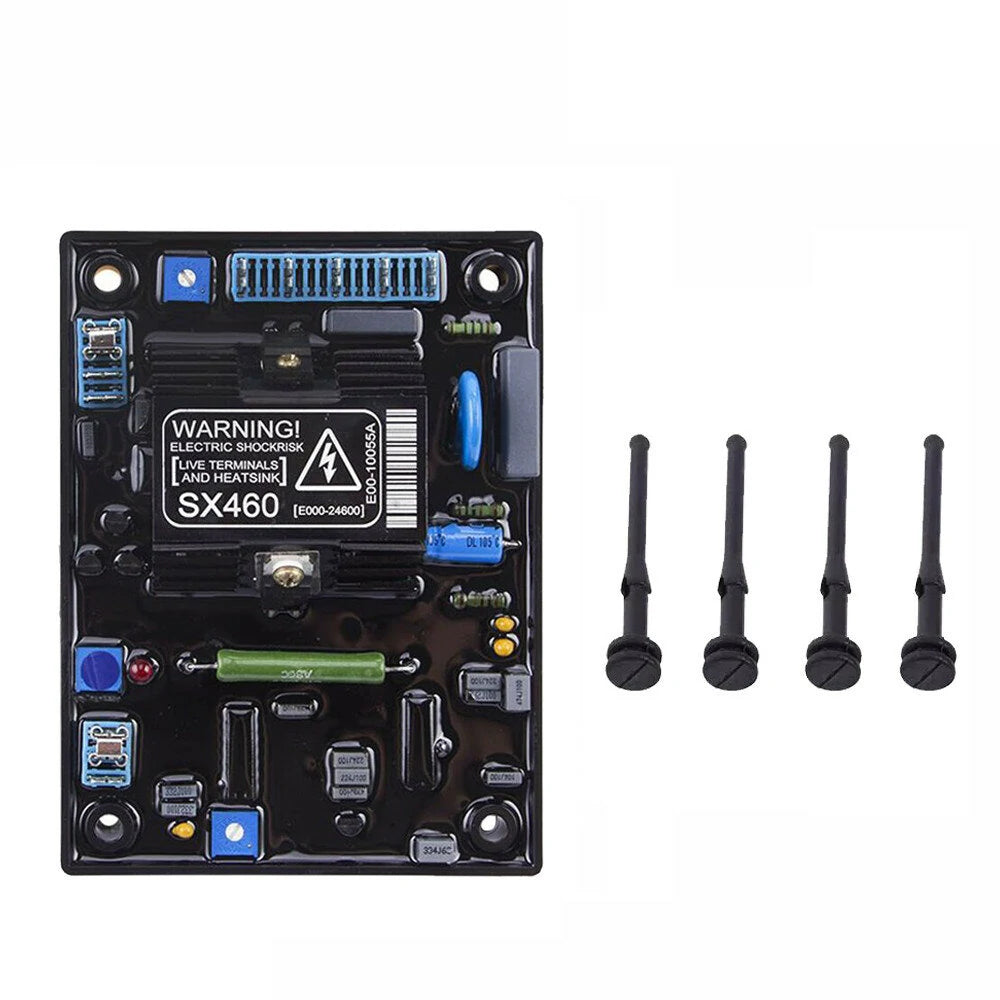

• 1 x Automatic Voltage Regulator AVR SX460 for Generator (with English manual)
