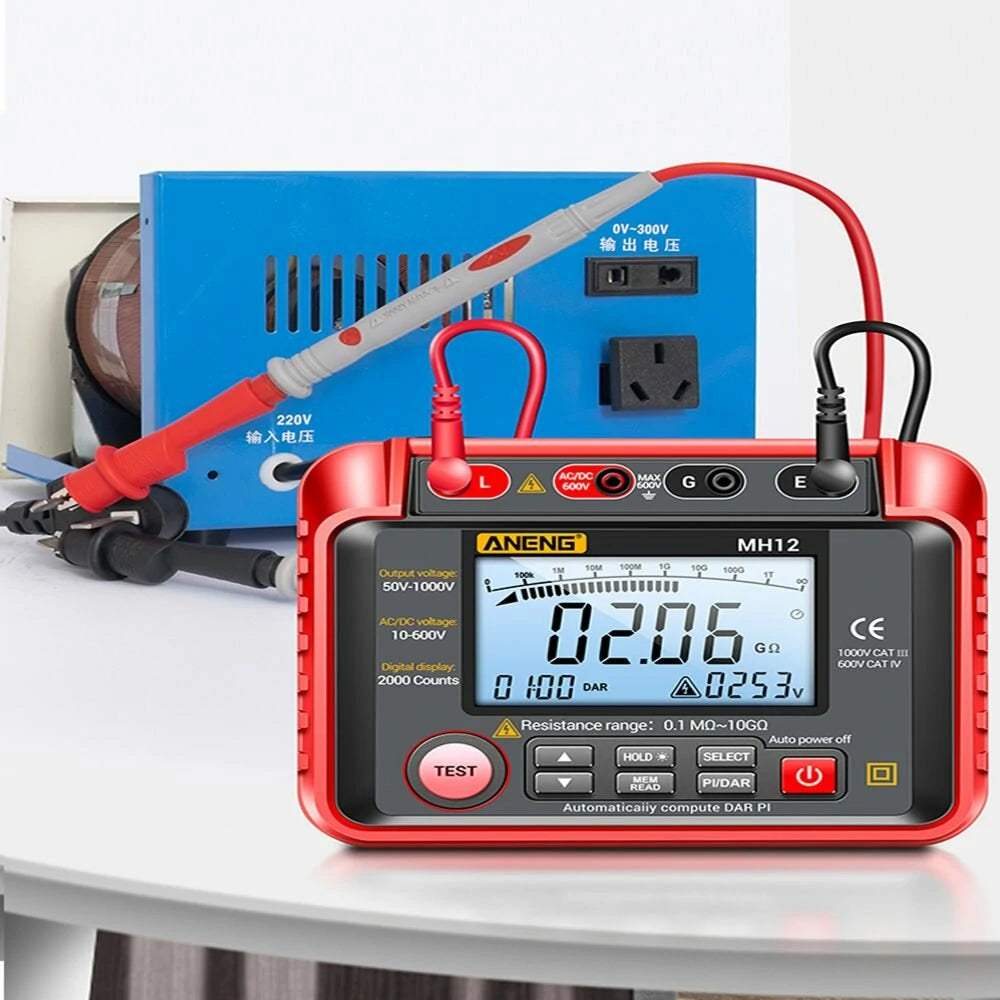

ANENG MH12 Digital Insulation Tester & Earth Resistance Meter with LCD Display

Product Features

• LCD multiple display and analog bar display with full symbol display.
• Automatic range and software calibration.
• Full key operation for ease of use.
• AC and DC voltage measurement capabilities.
• Insulation resistance measurement function.
• Stores up to 100 data groups for your convenience.
• Automatically calculates polarization index and absorption ratio.
• Includes backlight and data retention function.

Specifications

• Material: ABS plastic
• Size: 17.2 x 14 x 6.2 cm (6.79 x 5.52 x 2.48 in)
• Power Supply: 8 x AA batteries (not included)
• Maximum Display: 2000 counts

Measuring Range

• Output Voltage: MH12: 50V-1000V (50V, 100V, 250V, 500V, 1000V)
• Insulation Resistance: MH12: 0.1MΩ-10GΩ

Absorption Ratio and Polarization Index

Absorption Ratio (DAR): The ratio of the insulation resistance value at 1 minute to the insulation resistance value at 30 seconds.

Polarization Index (PI): The ratio of the insulation resistance value at 10 minutes to the insulation resistance value at 1 minute. This index helps determine if equipment has been affected by moisture, impacting insulation resistance.

In high-voltage scenarios, insulating materials undergo absorption and polarization processes. The polarization index is essential in assessing the insulation quality and aging in the power system, particularly for main transformers, cables, and motors.

Package Includes

• 1 x Resistance Megohmmeter
• 2 x Test Leads
• 2 x Alligator Clips
• 1 x Storage Bag
• 1 x Manual
• 1 x Packing Box

Note

The actual color of the item may vary slightly due to variations in monitor displays and lighting effects. Please allow a measuring deviation of 1-2 cm due to manual measurement.
