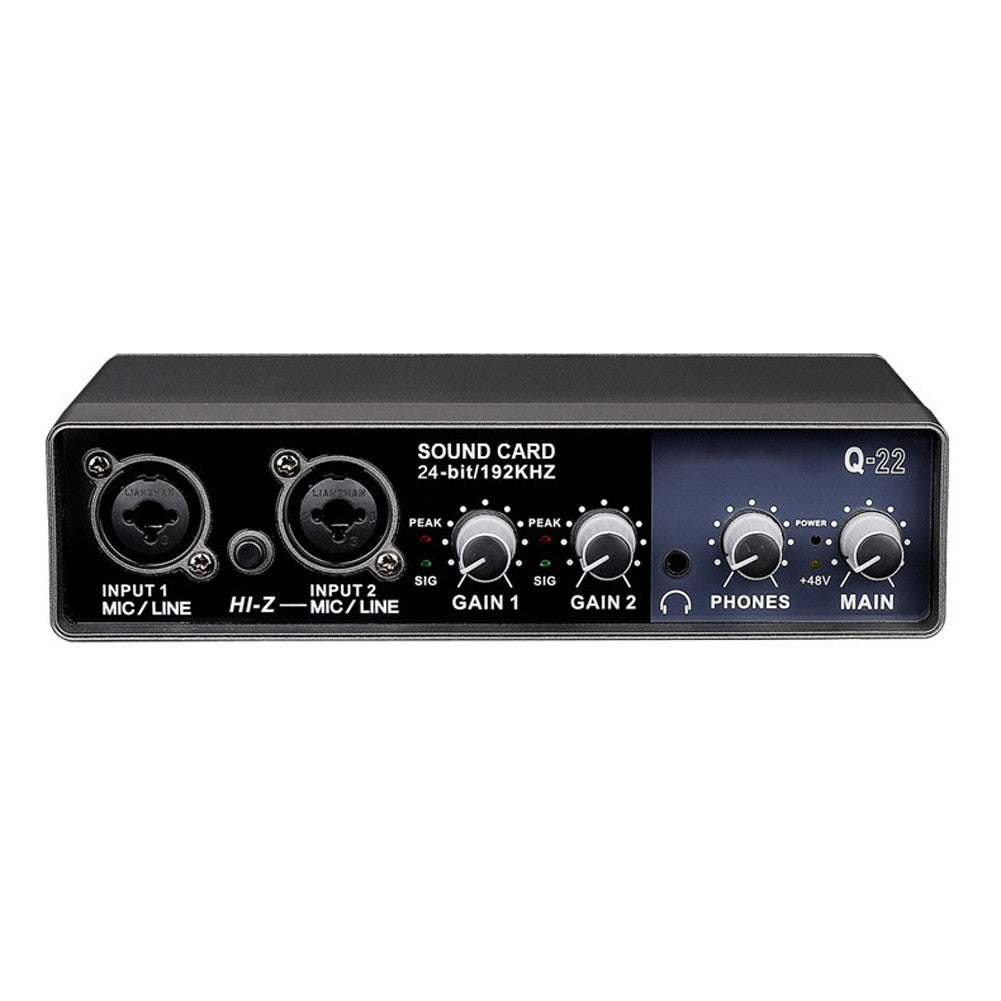

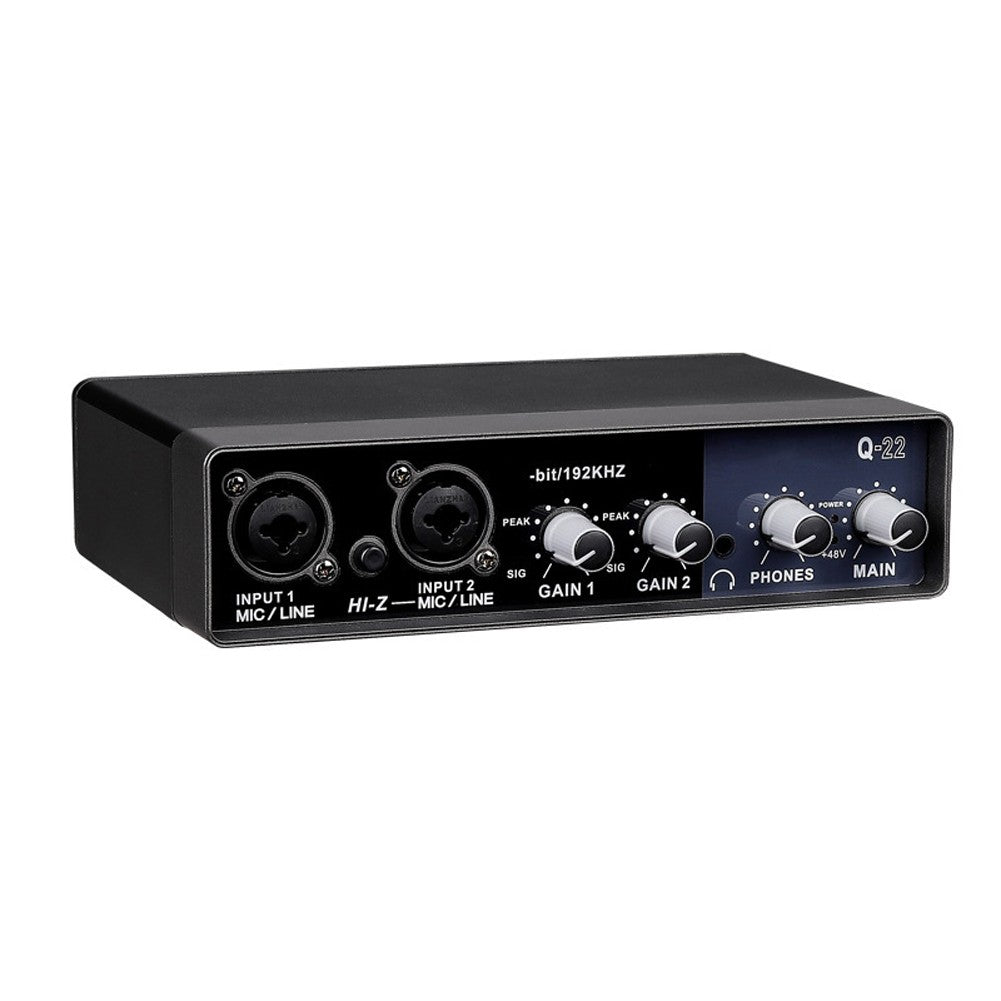

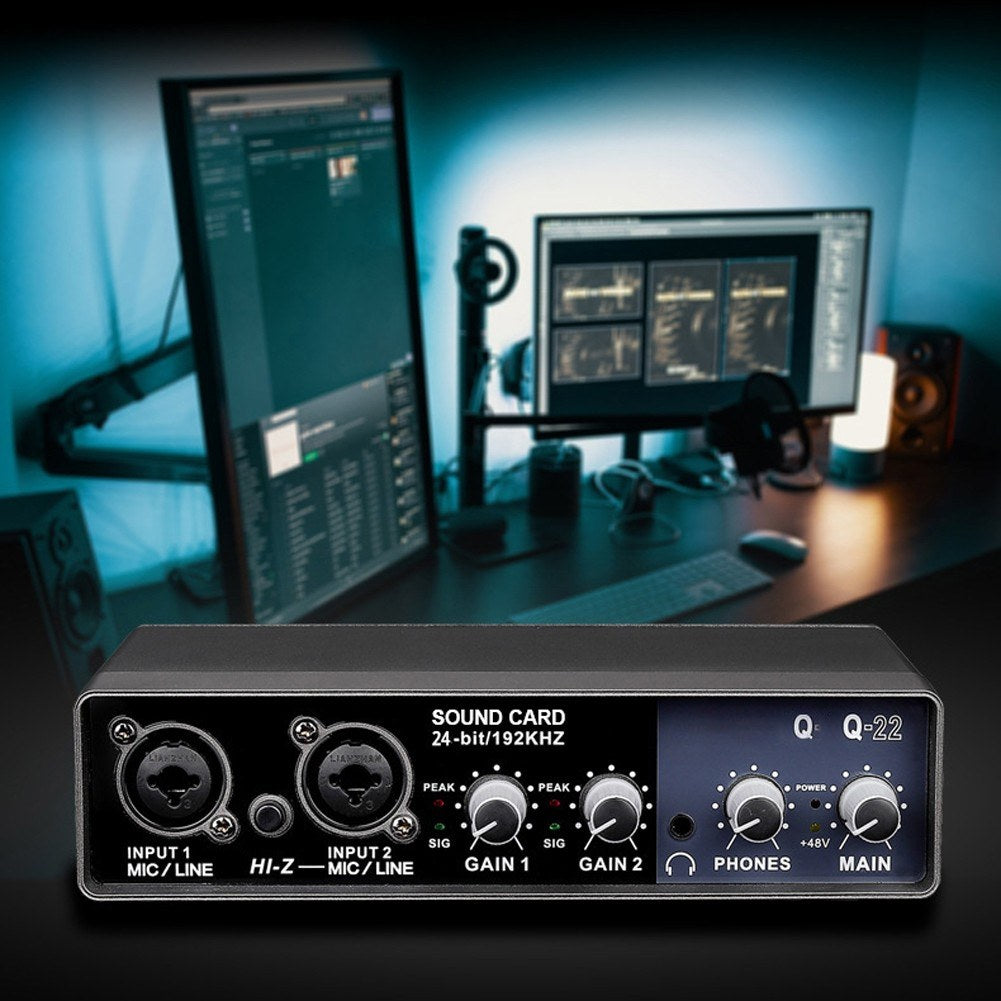

USB Sound Card Portable Audio Interface & Mic Preamplifier for Computer Recording & Digital Mixing

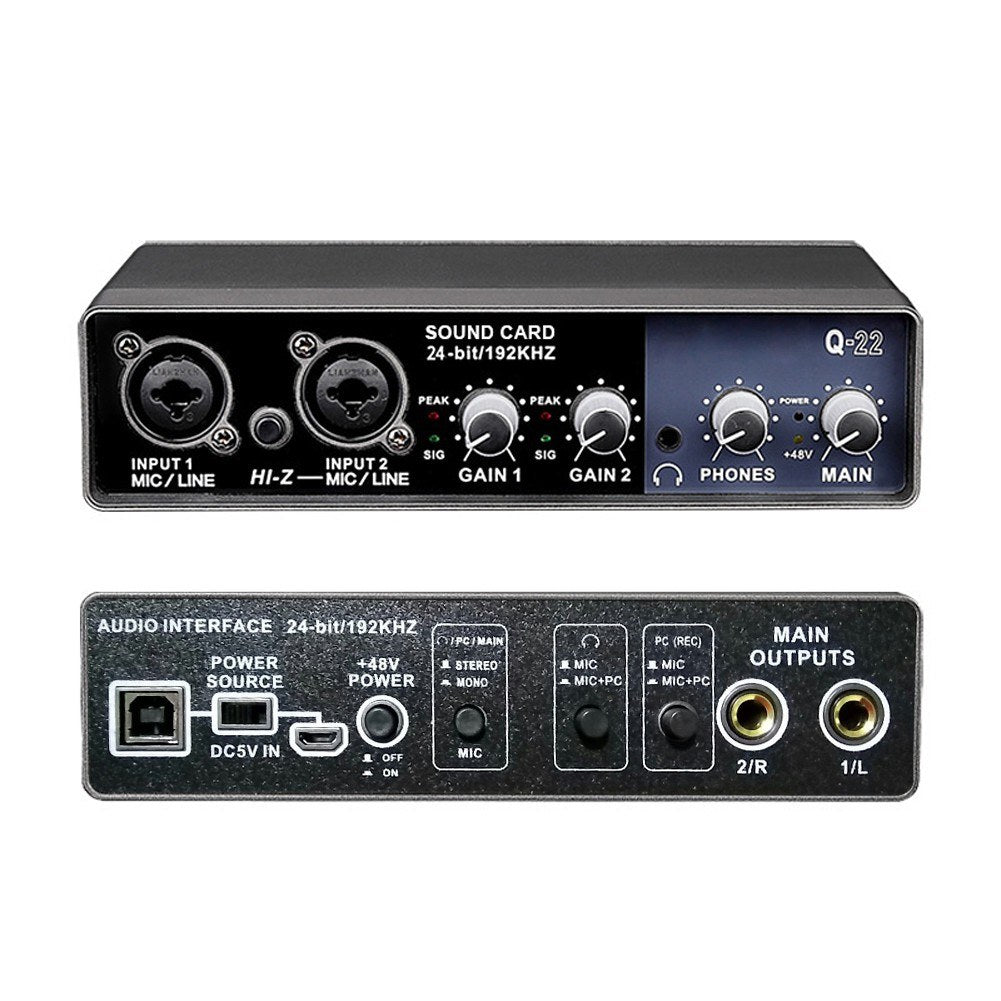

2x2 Microphone Preamplifier

This versatile and powerful microphone preamplifier offers a high-speed USB 2.0 interface with 24-bit / 192 kHz audio resolution, ensuring exceptional recording quality. It's ideal for use with microphones, guitars, basses, and computers, making it a perfect choice for your recording needs.

Features:

• Built-in high-speed digital processor delivering extremely low distortion and accurate digital signal processing.

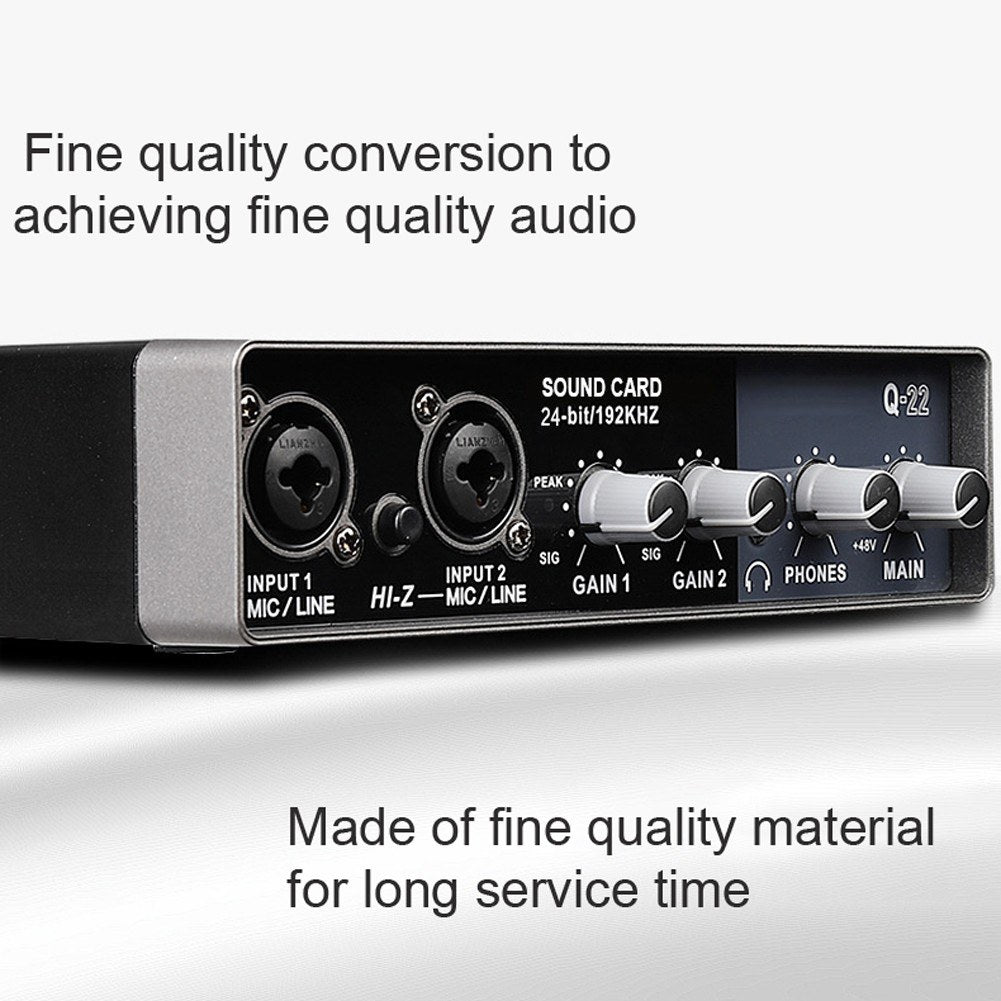

• Superior conversion quality for excellent audio output.

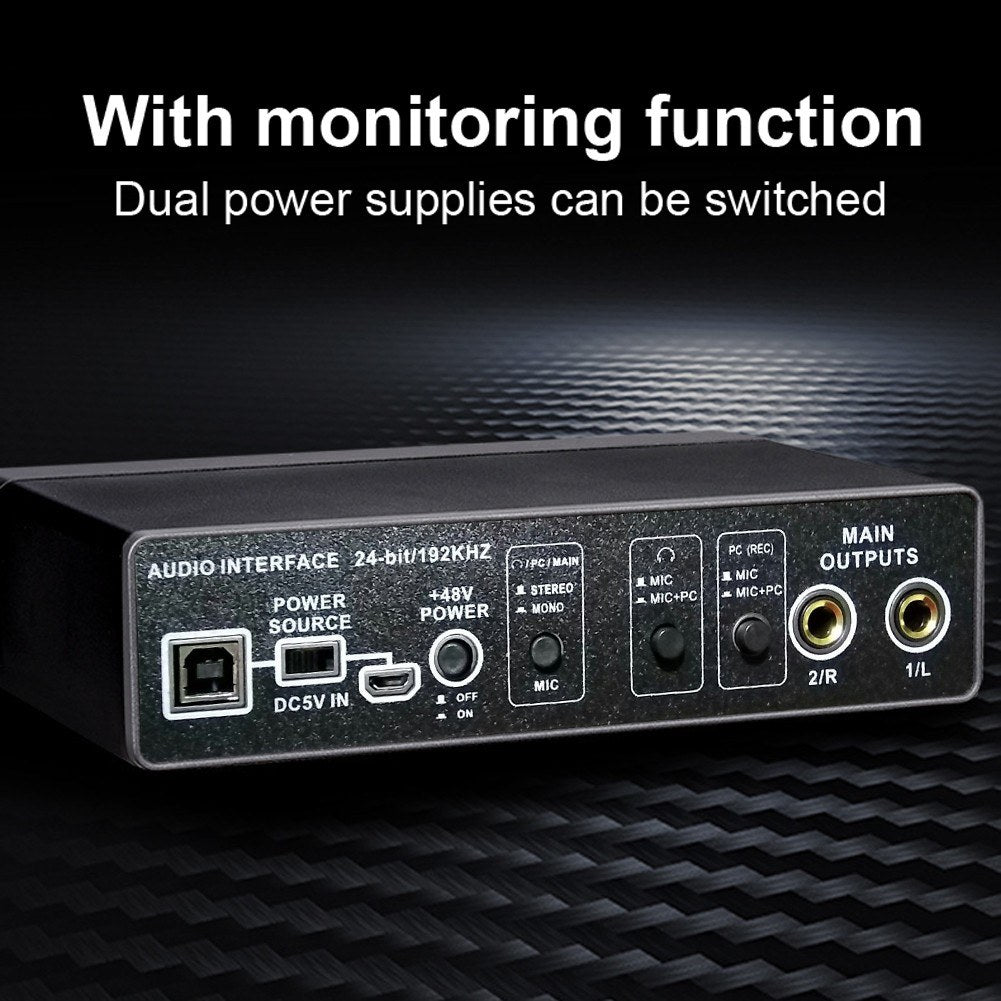

• Low noise microphone preamplifier with monitoring function.
• Dual power supply options for flexible operation.
• Constructed from high-quality materials for long-lasting performance.

Specifications:

MIC INPUT 1-2 (Balanced):

• Frequency response: -1/-1 dB, 20 Hz-20 kHz
• Dynamic range: 82 dB, A-weighting
• Maximum input level: +6 dBu
• Input resistance: 4 kΩ
• Gain range: +3 dB to +60 dB

HI-Z INPUT 2 (Unbalanced):

• Maximum input level: +3.0 dBV
• Input resistance: 1 MΩ
• Gain range: 0 dB to +40 dB

LINE INPUT 1/2 (Balanced):

• Maximum input level: +10 dBu
• Input resistance: 18.5 kΩ
• Gain range: -10 dB to +40 dB

MAIN OUTPUT (Impedance Balanced):

• Frequency response: -1 / -1 dB, 20 Hz - 20 kHz
• Dynamic range: 82 dB, A-weighting
• Maximum input level: +6 dBu
• Input resistance: 100 kΩ

Mobile Devices:

• Maximum input level: 15 mW + 15 mW, 40Ω

USB:

• Technical specifications: Full-speed USB 2.0, 24-bit, 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz

XLR INPUT:

• Polarity: 1 Ground, 2: Hot wire (+), 3: Cold wire (-)

Power Requirements: > 5W

Main Color: Black

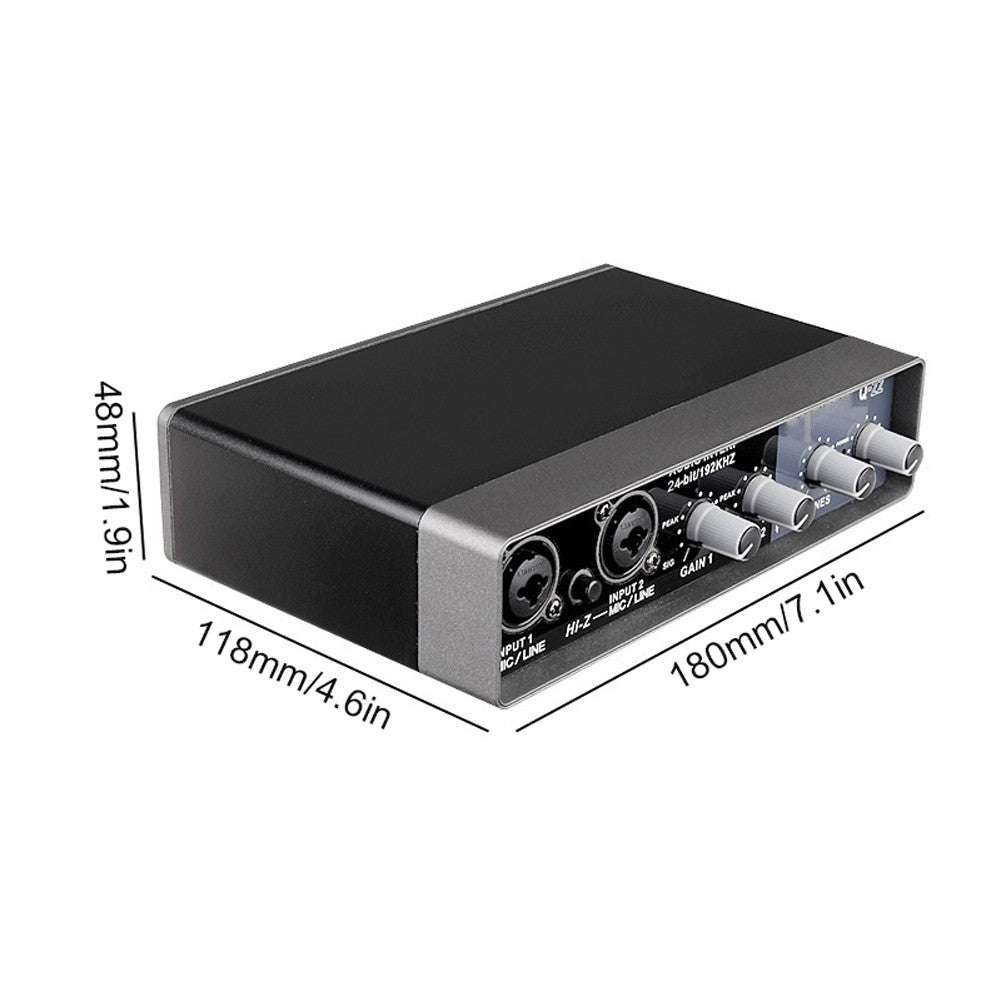

Item Size: 180 x 118 x 48 mm (7.1 x 4.6 x 1.9 in)

Package Size: 230 x 138 x 55 mm (9.1 x 5.4 x 2.2 in)

Package Weight: 600 g (1.3 lb)

Packing List:

• 1 x Sound Card
