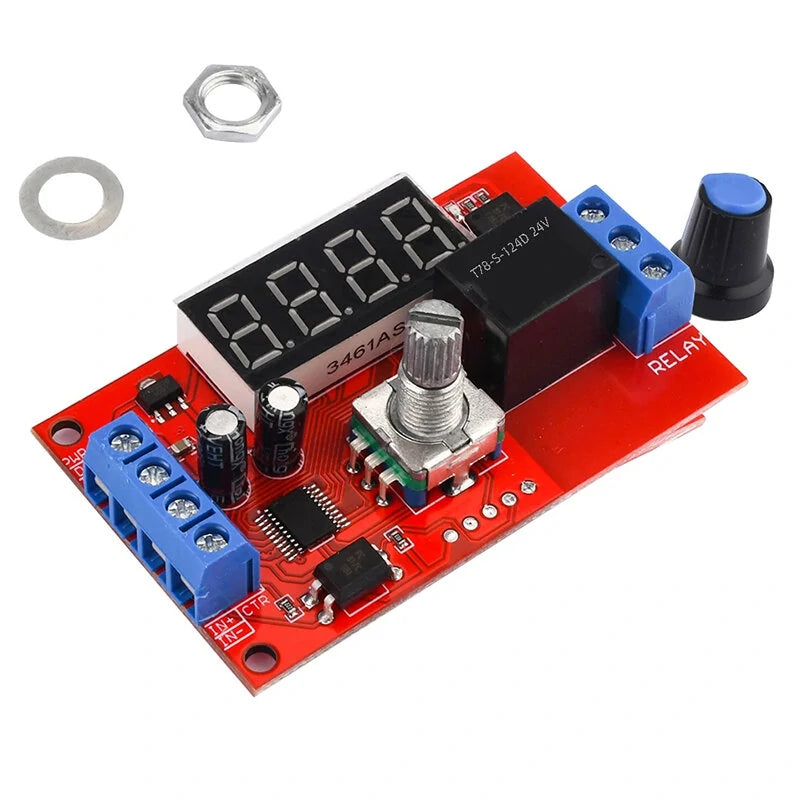

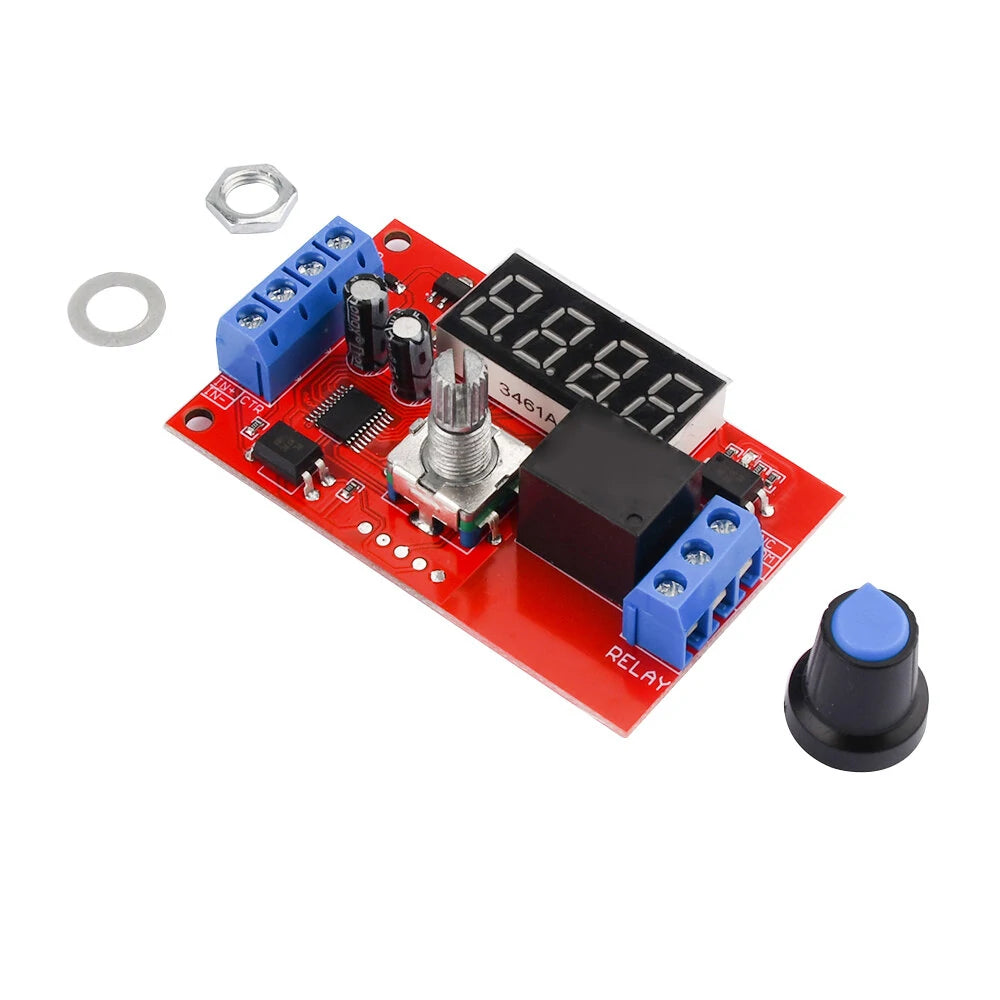

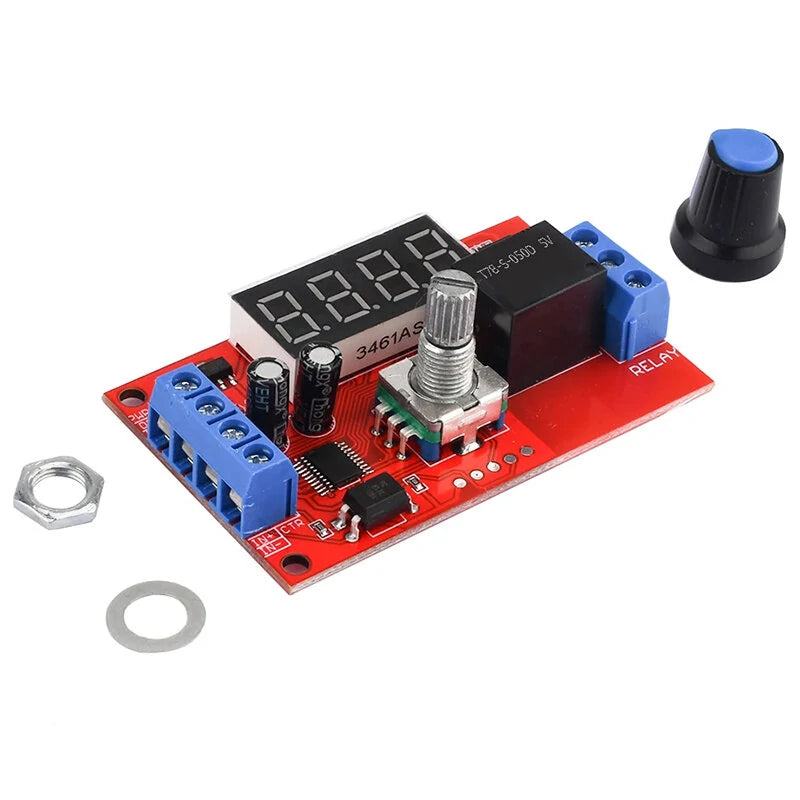

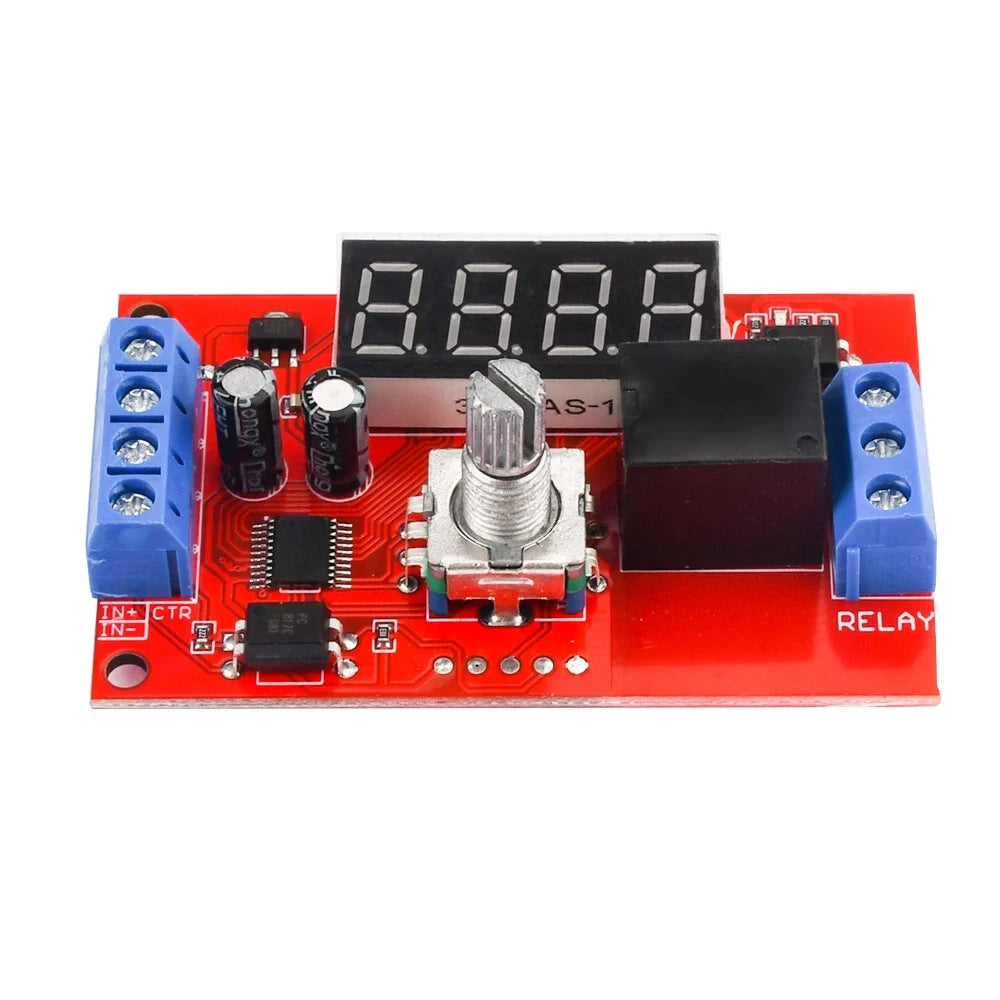

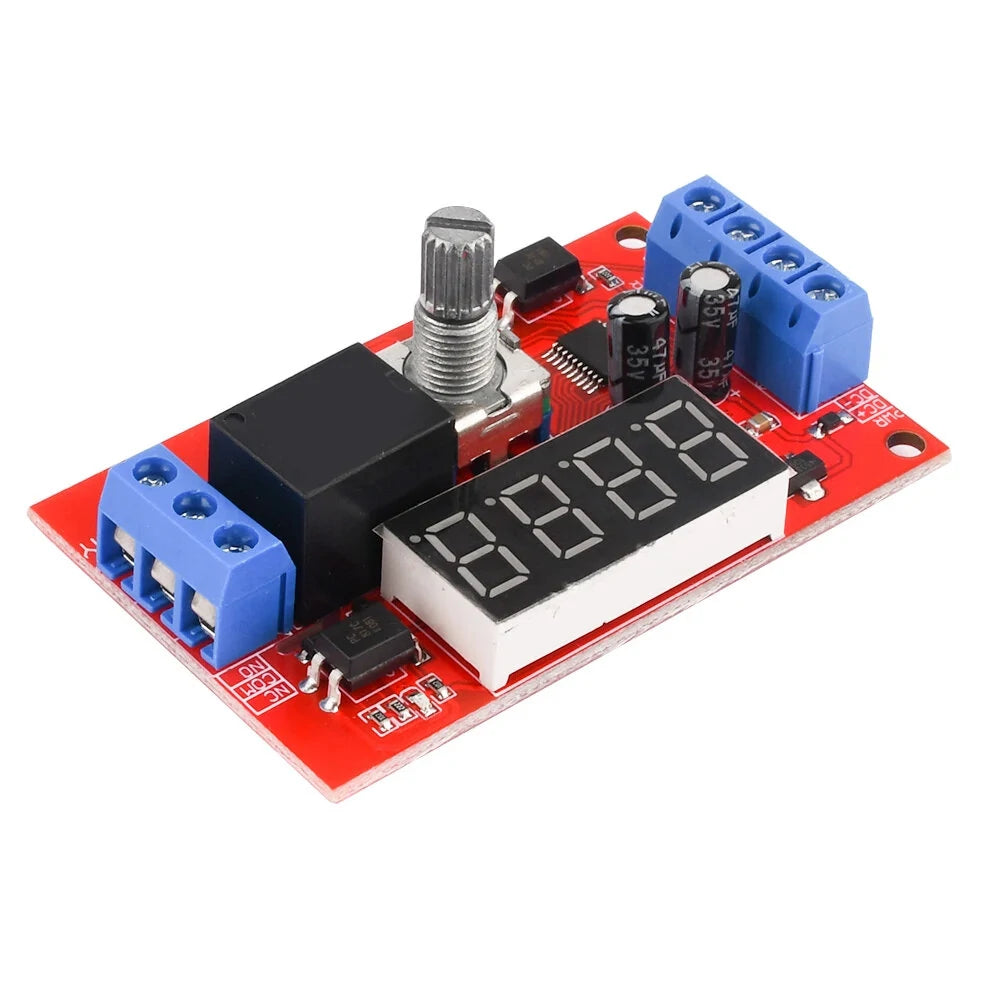

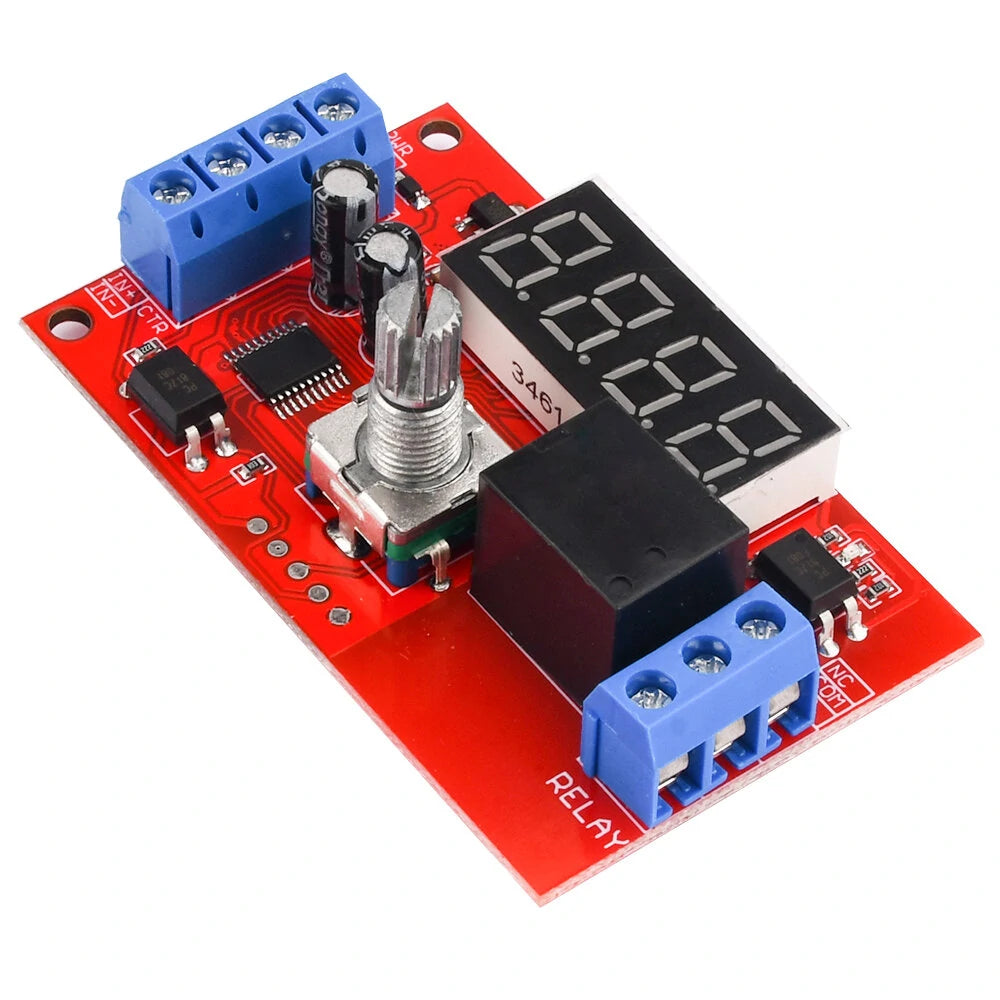

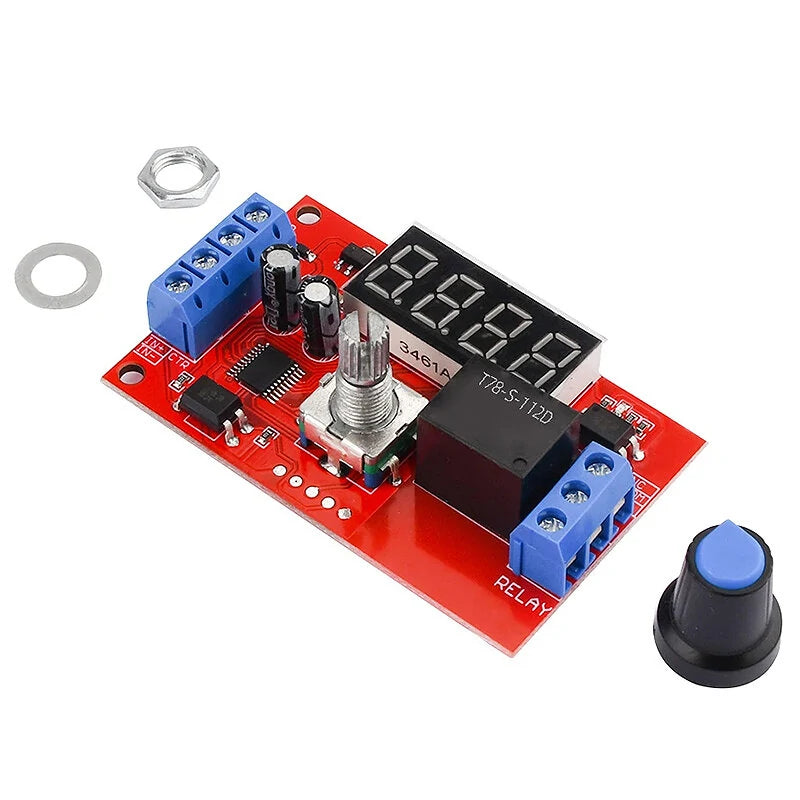

Product Description

The Multi-Function Relay Control Module is expertly crafted for users with diverse requirements. Utilizing a microcontroller as its primary unit, this module offers 32 preset functions, adaptable for varying applications such as water pump control, motor control, light belt control, and solenoid valve control.

Features

• Power-Off Memory: Retains settings even when power is lost.
• Anti-Reverse Polarity Protection: Prevents damage from incorrect power connections.
• High Timing Accuracy: Offers timing from 0.1 seconds to 999 minutes, adjustable in increments of 0.01 seconds.
• Energy Efficient: Includes power-saving settings and an option to disable the display.
• Versatile Applications: Suitable for water pump control, motor control, light belt control, and solenoid valve control.

Technical Parameters

• Commodity Name: Multifunctional Time Delay Relay
• Relay Voltage Options: DC5V, DC12V, DC24V
• Input Voltage: 5V version: DC5V; 12V version: DC12V; 24V version: DC24V
• Output Load Capacity: DC 30V (max 10A), AC 250V (max 5A)
• Trigger Signal Levels: 5V version (5V); 12V version (12V); 24V version (24V); low level: 0V
• Quiescent Current: 20mA
• Operating Current: 60mA
• Operating Temperature: -25°C to 85°C
• Memory Function on Power Loss: Yes

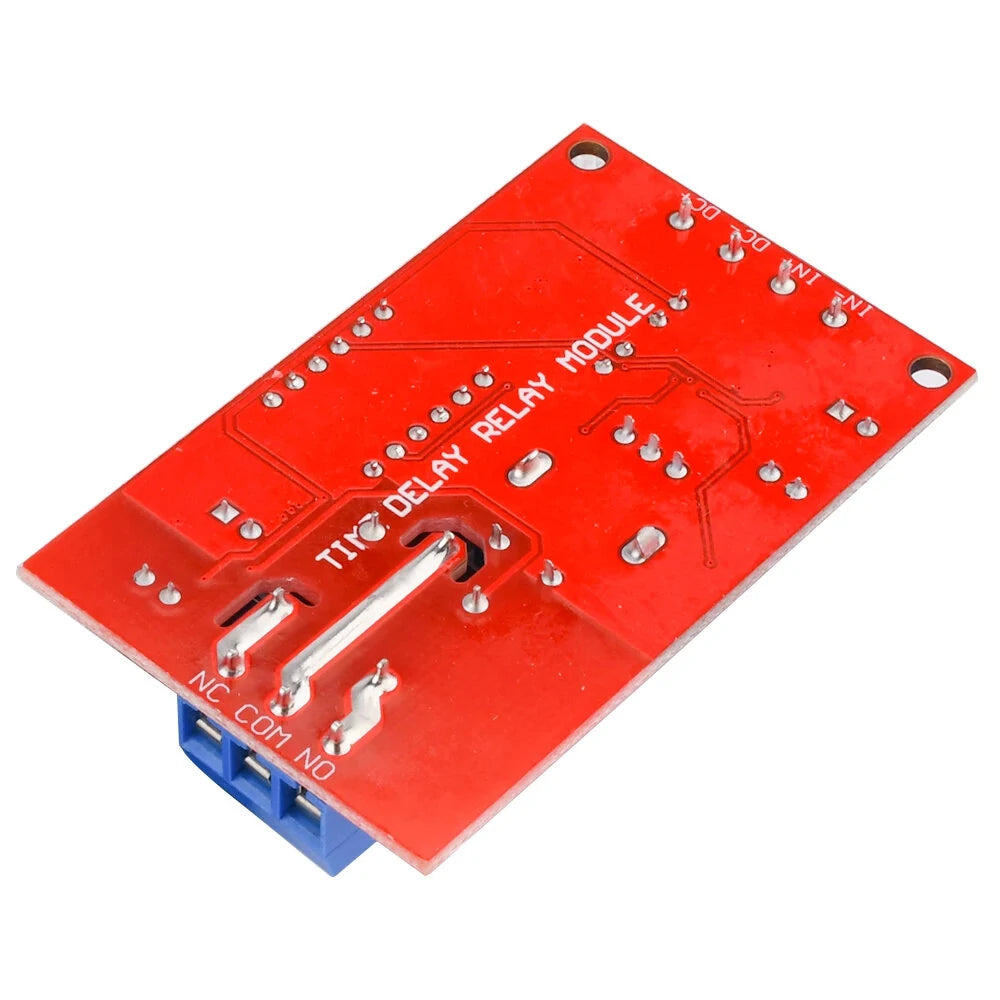

Wiring Instructions

• DC Power Positive Input: DC+
• DC Power Negative Input: DC-
• Signal Input Positive: IN+
• Signal Input Negative: IN-
• Relay Normally Open: NO (Connected to COM when active)
• Relay Common Interface: COM
• Relay Normally Closed: NC (Shorted to COM when inactive)

Available Operating Modes (32 Types)

• P-11: Jog mode, engages with signal, disengages without.
• P-12: Latches with each trigger, toggles state.
• P-13: Delays disconnection after closure; no retrigger during delay.
• P-14: Restarts delay upon retrigger, post-closure.
• P-15: Cumulative delay timing between triggers.
• P-16: Resets trigger, forcing disconnection.
• P-17: Extended signal delay before disconnection.
• P-18: Closes on power-up, with delayed off.
• P-21 to P-47: Custom configurations for delay, latch, and cycle times based on signal inputs.
• P-48: Signal-based closure with subsequent timed opening.

Package Includes

• 1x Relay
• 1x Button Cap
• 2x Screws
