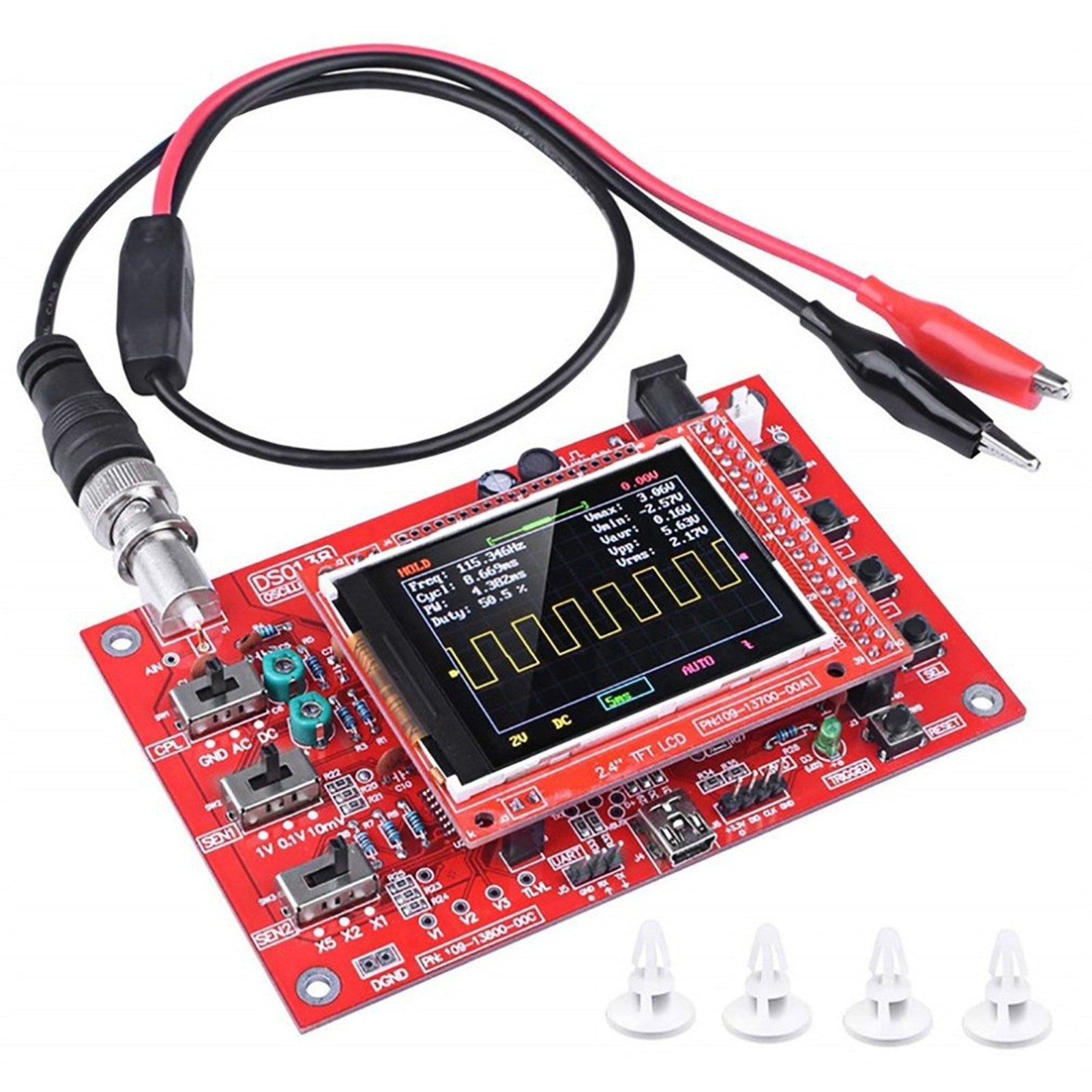

2.4 TFT Handheld Digital Oscilloscope Kit - Pocket-Size, Fully Assembled with Protective Case & Probe for Electronic Learning

Features:

• Effortlessly capture waveforms with automatic, regular, and one-shot modes.
• Utilizes rising or falling edge trigger for precision.
• Adjustable vertical displacement with easy-to-follow instructions.
• View previous trigger waveforms using the negative delay feature.
• Freeze the waveform display anytime with the HOLD function.
• Includes a 1Hz / 3.3V square wave test signal source.
• Digital display of waveform parameters: frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
• Waveform storage ensures no data loss after power off.
• Detects short-circuits and open-circuits to pinpoint soldering errors.

Note: This is not a DIY kit.

Specifications:

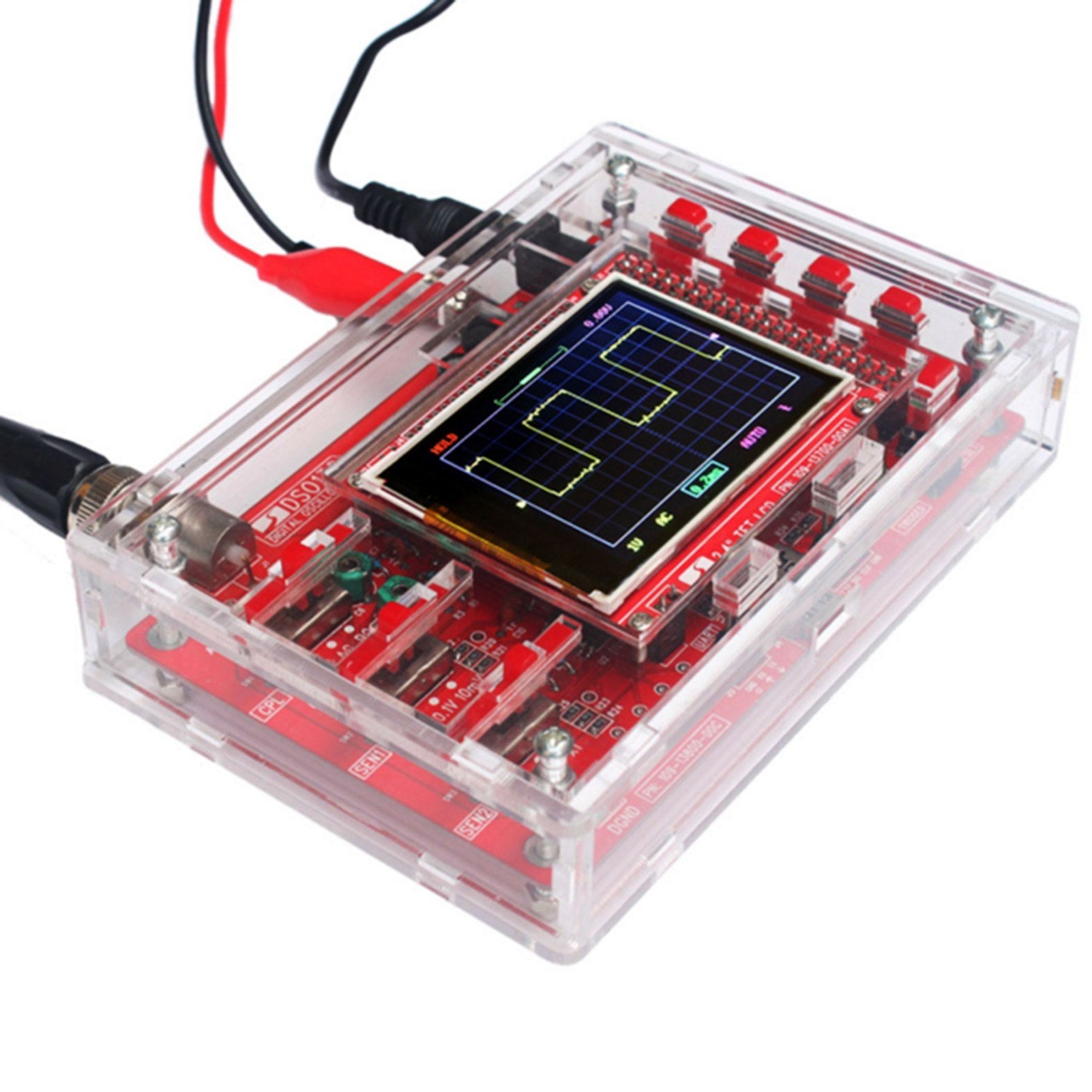

• Material: Aluminum Alloy + Acrylic
• Maximum Real-time Sampling Rate: 1Msps
• Accuracy: 12 Bit
• Sampling Buffer Depth: 1024 bytes
• Analog Bandwidth: 0-200KHz
• Vertical Sensitivity: 10mV/Div - 5V/Div (1-2-5 progression)
• Input Impedance: 1MΩ
• Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
• Coupling Modes: DC/AC/GND
• Horizontal Time Base Range: 10μs/Div - 50s/Div (1-2-5 progression)
• Supply Voltage: DC 9V

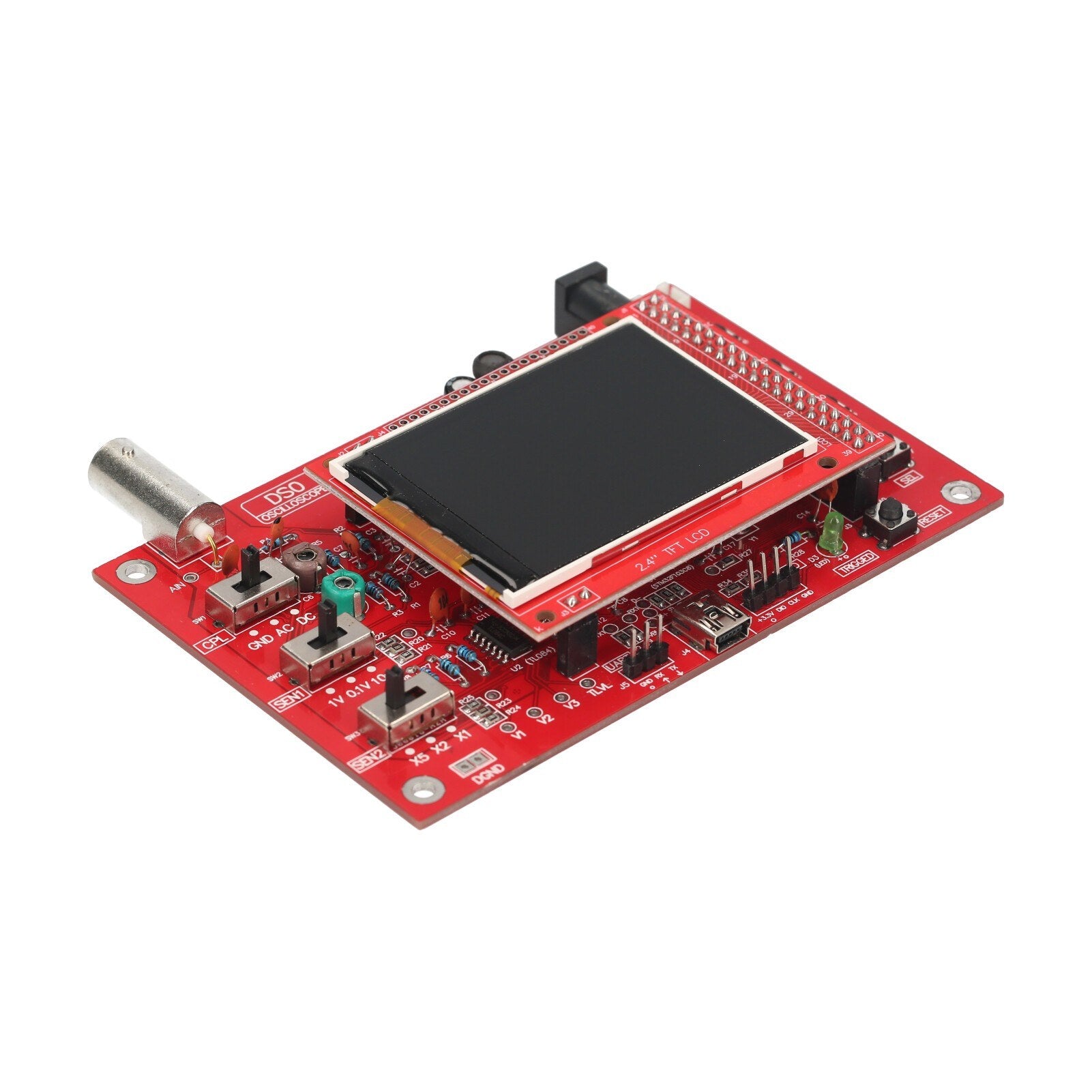

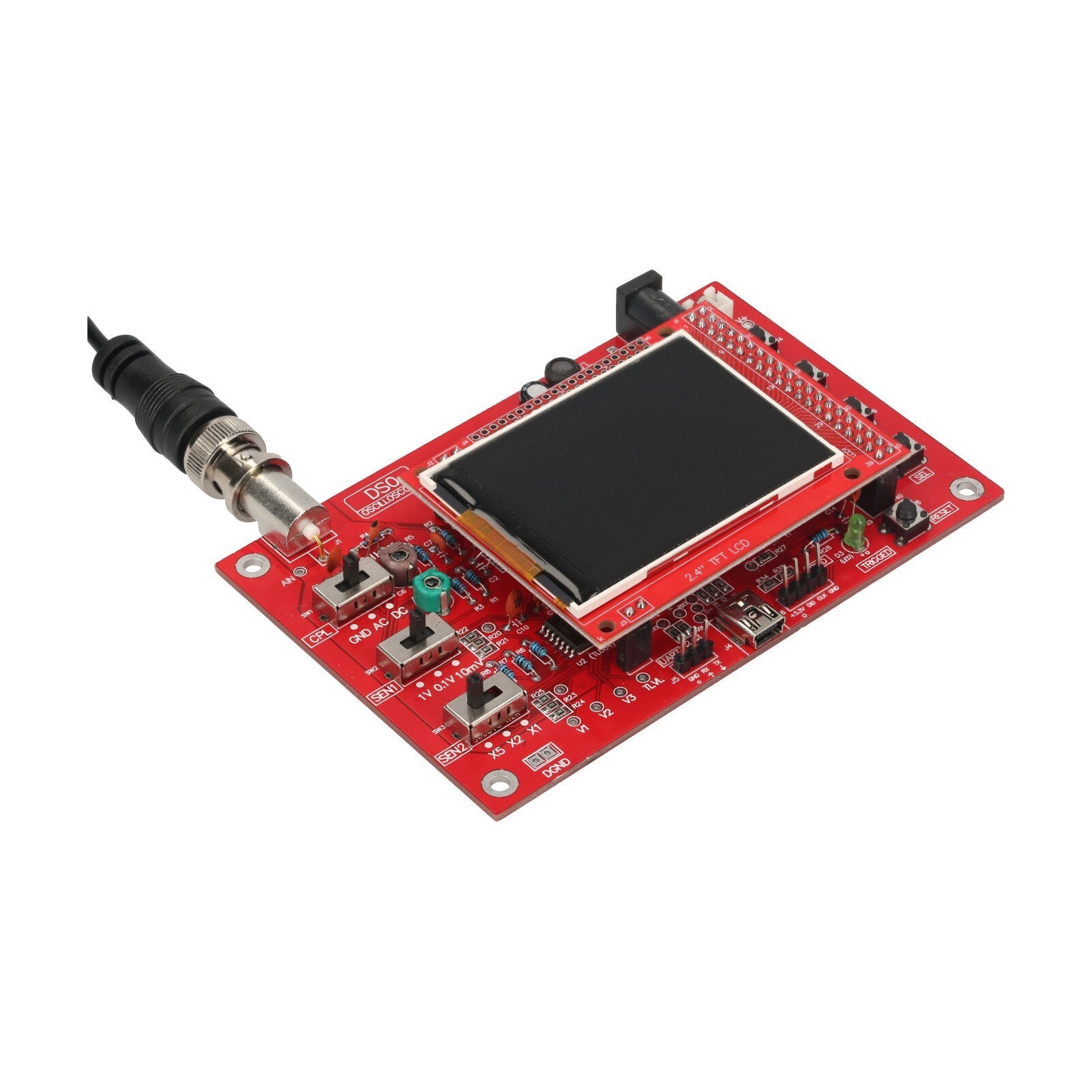

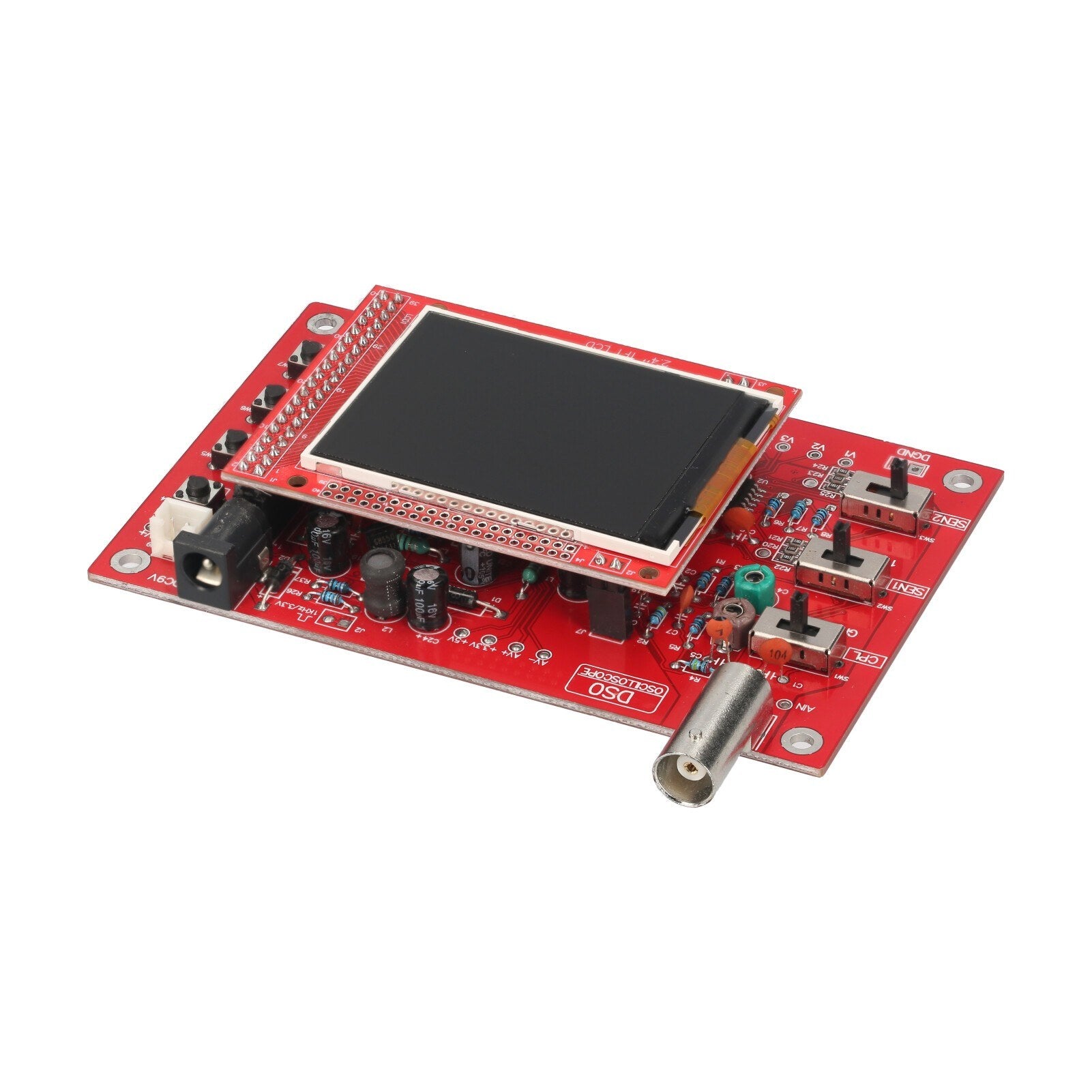

• PCB Size: 11.7 x 7.6cm / 4.6 x 3.0in
• Item Size: 17.5 x 12.0 x 2.5cm / 6.9 x 4.7 x 1.0in
• Package Size: 18.0 x 12.5 x 3.0cm / 7.1 x 4.9 x 1.2in
• Package Weight: 168g / 5.9oz

Package List:

• 1 x Oscilloscope

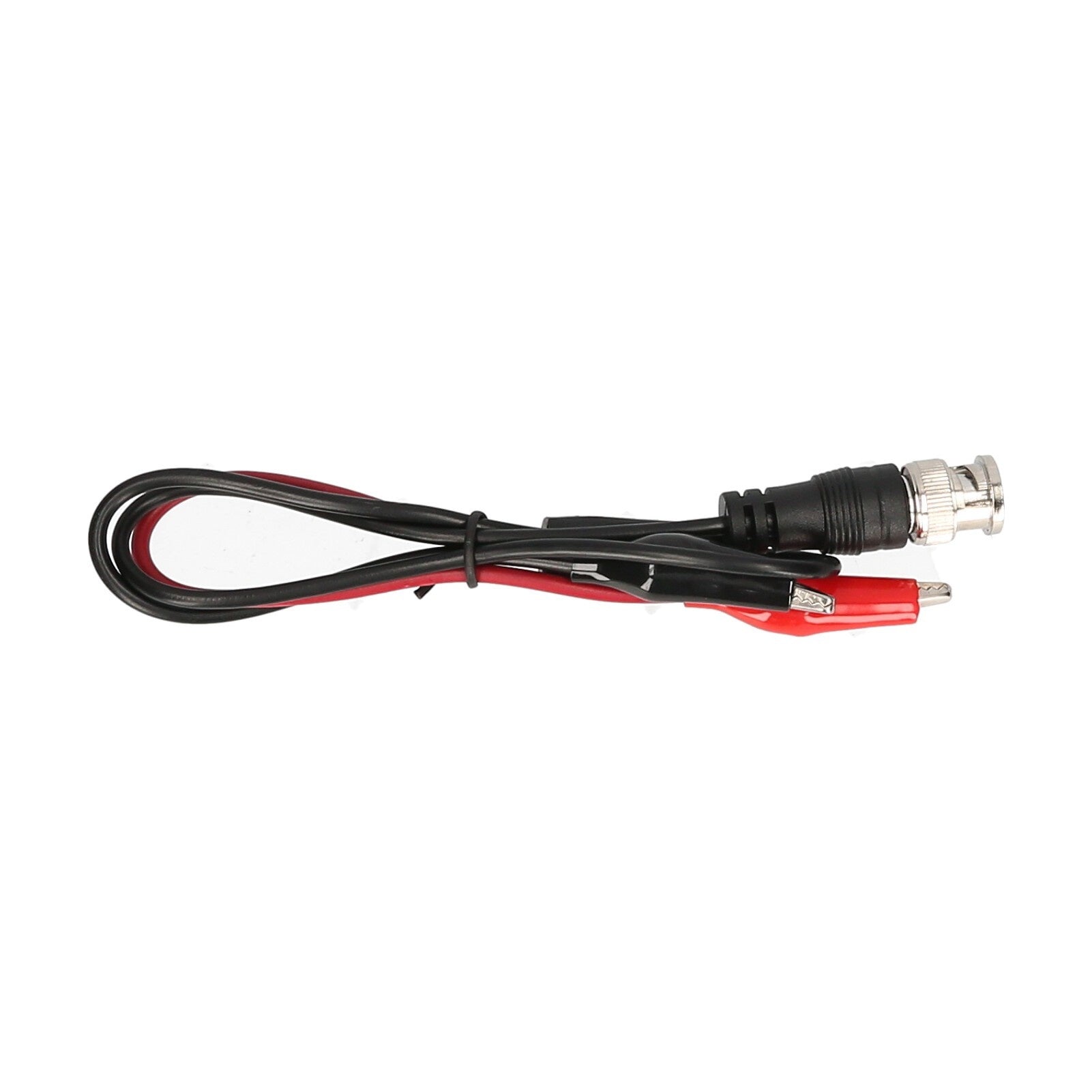

• 1 x Probe

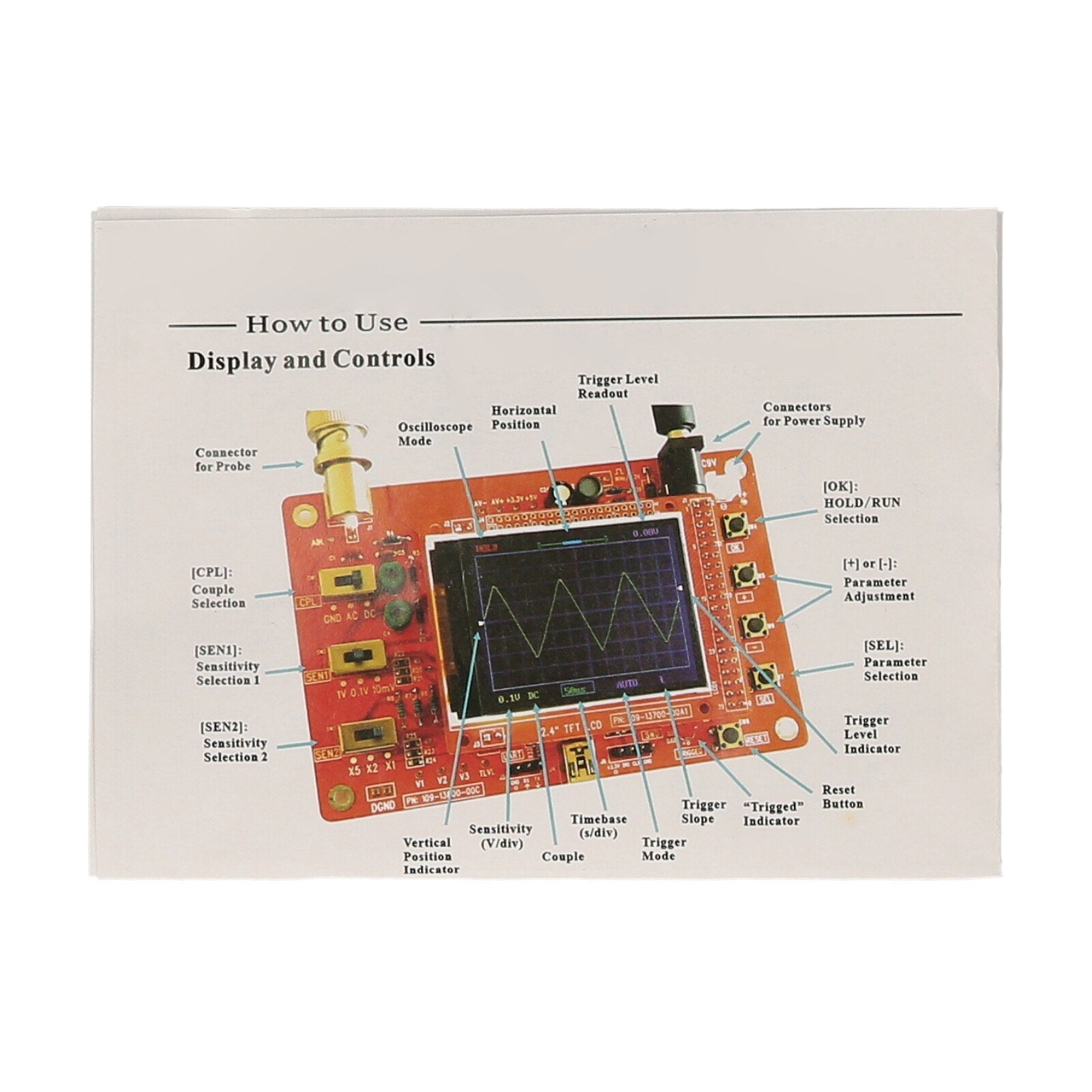

• 2 x User Manual
