Professional Digital Multimeter - Voltage, Current, Resistance, Frequency, Diode, Temperature, Capacitance Measurement Tester with Backlit Display

Product Overview:
This digital multimeter is designed for ease of use and precise measurements, featuring a compact appearance and a clear digital backlight display with large fonts. It excels in various measurements even in complex environments, enhancing the user's reading experience. It supports a wide range of functions including capacitance, frequency, resistance, AC/DC voltage and current, diode, and temperature measurements. Additional features include VFC function, data hold, automatic shutdown, and low battery indicator.

Features:

• Concise Appearance: Compact and portable, this multimeter comes with a silicone leather cover, making it safer and easier to carry compared to traditional bulky designs.

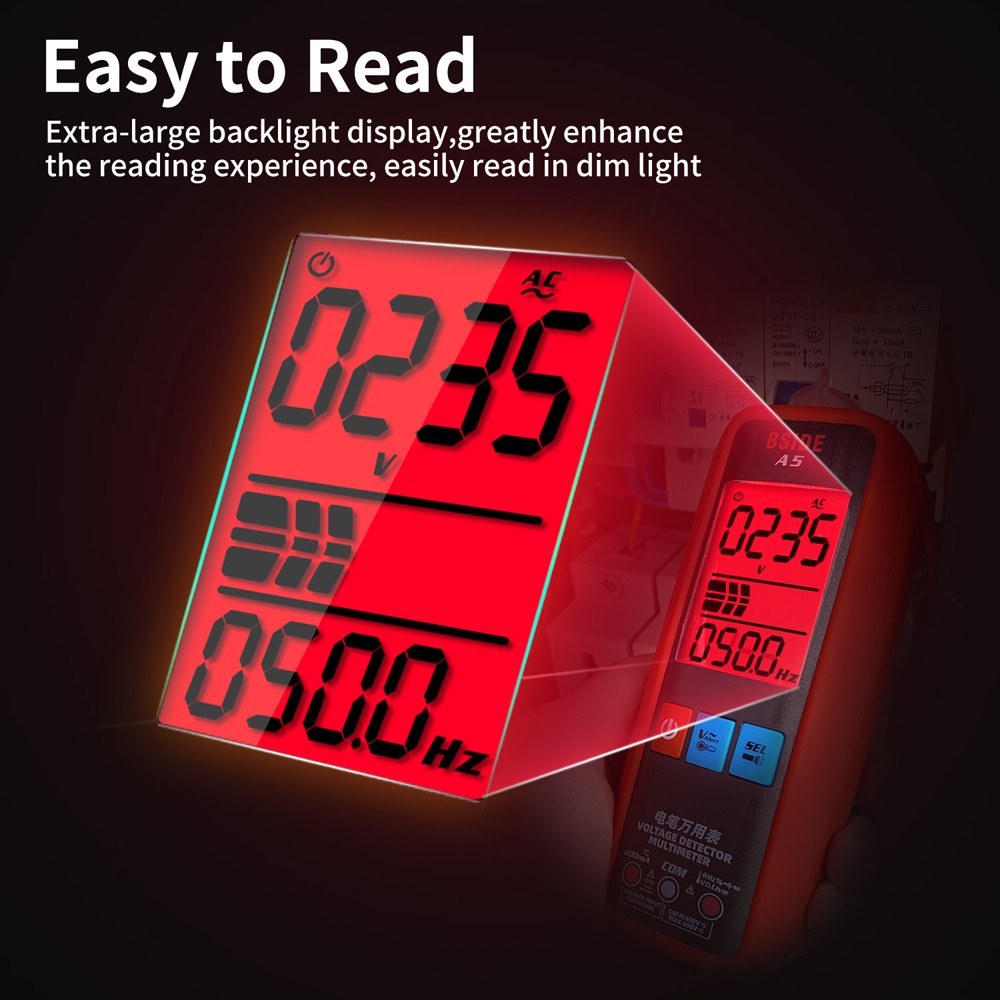

• Digital Display: Offers a high-definition digital backlight display. The large font makes data reading easy and efficient in diverse environments. The 3-results display simplifies voltage strength analysis.

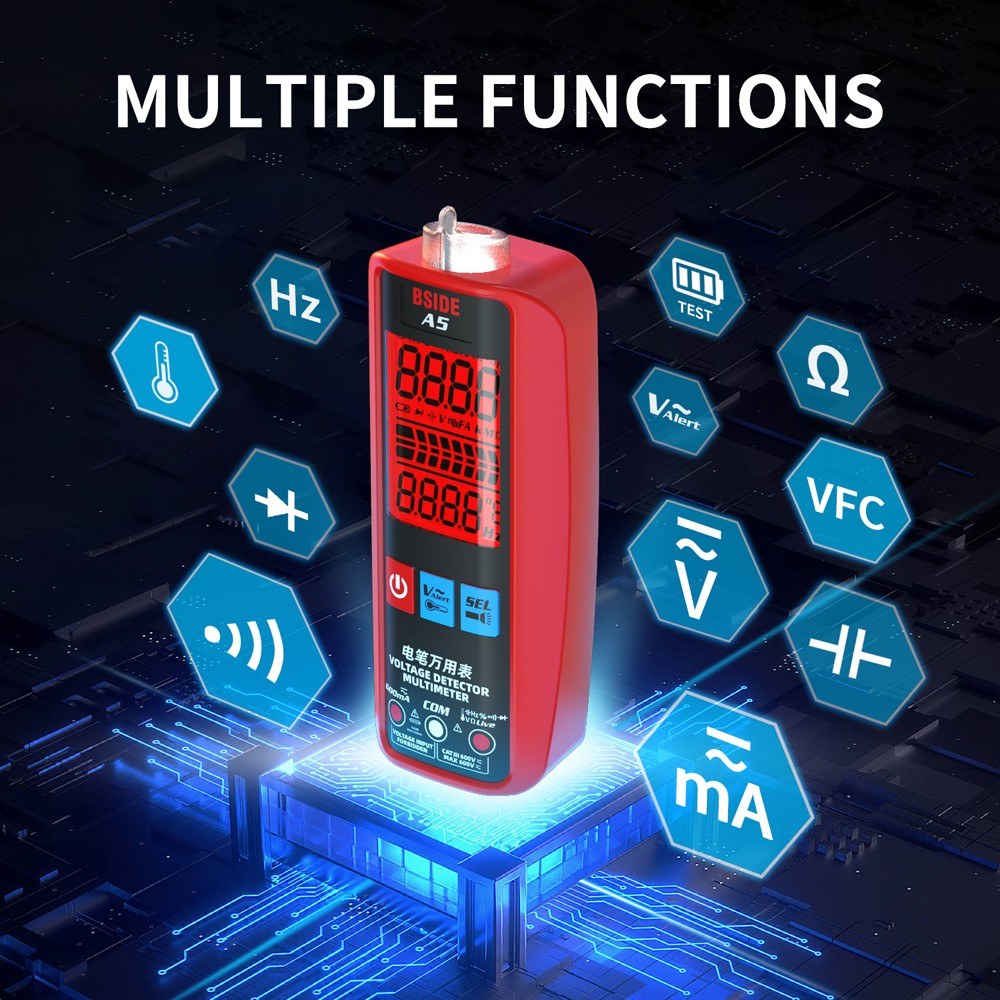

• Multiple Measurement Functions: Equipped with an intelligent chip for quick identification and accurate measurement capabilities. This includes capacitance, frequency, resistance, AC/DC voltage and current, diode, and temperature measurements, along with VFC function, data hold, and more.

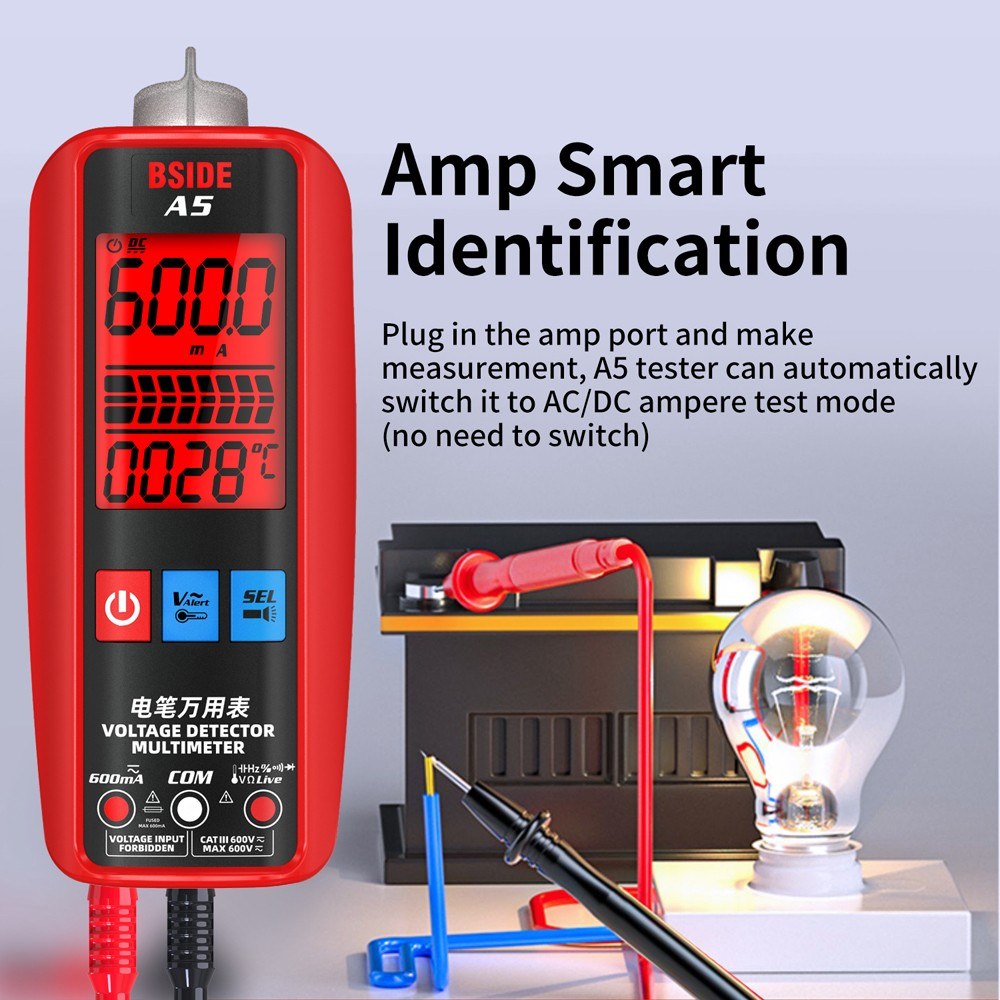

• Intelligent Amp Identification: Automatically switches to AC/DC ampere test mode when you plug into the amp port, eliminating the need for manual adjustments.

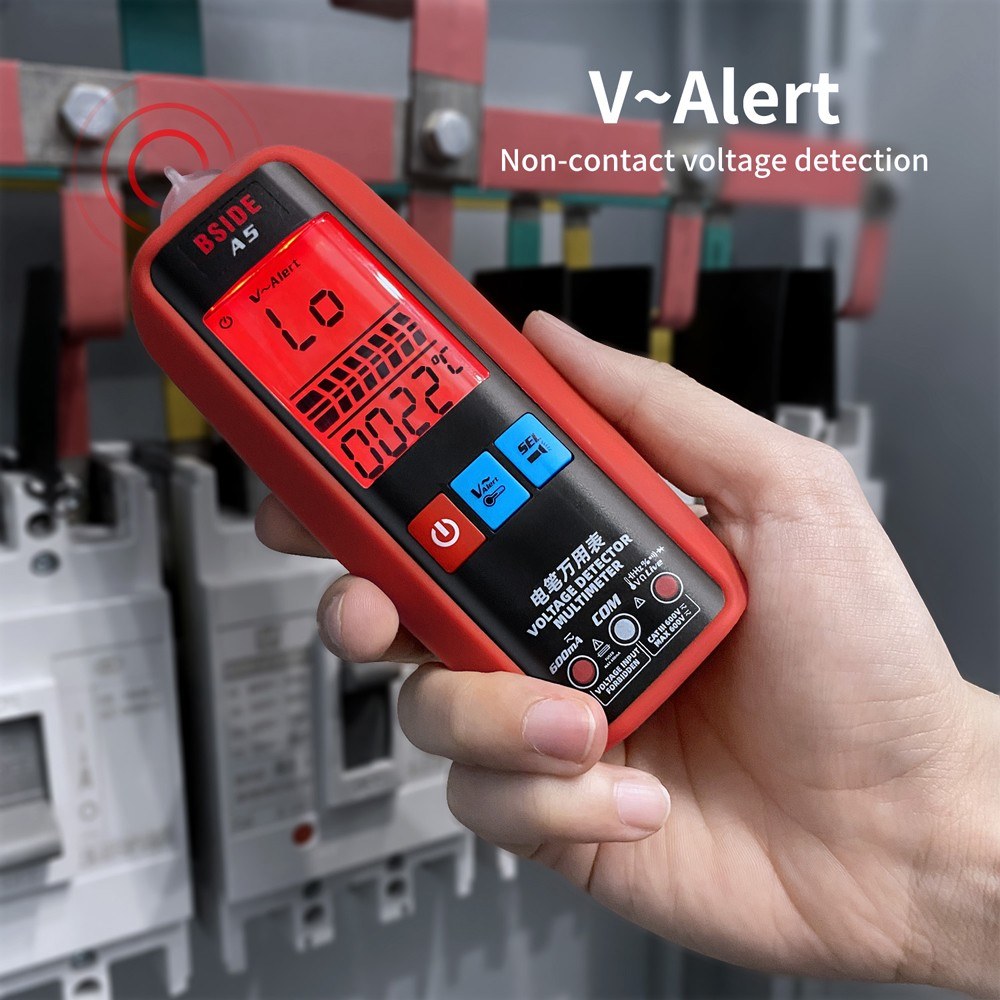

• V-Alert Non-contact Voltage Measurement: Provides non-contact voltage detection with built-in high-sensitivity sensors and dual sensitivity for safety.
• Data-hold Function: Keeps data displayed for a long time post-stabilization, freeing you from holding the device to retain the data.

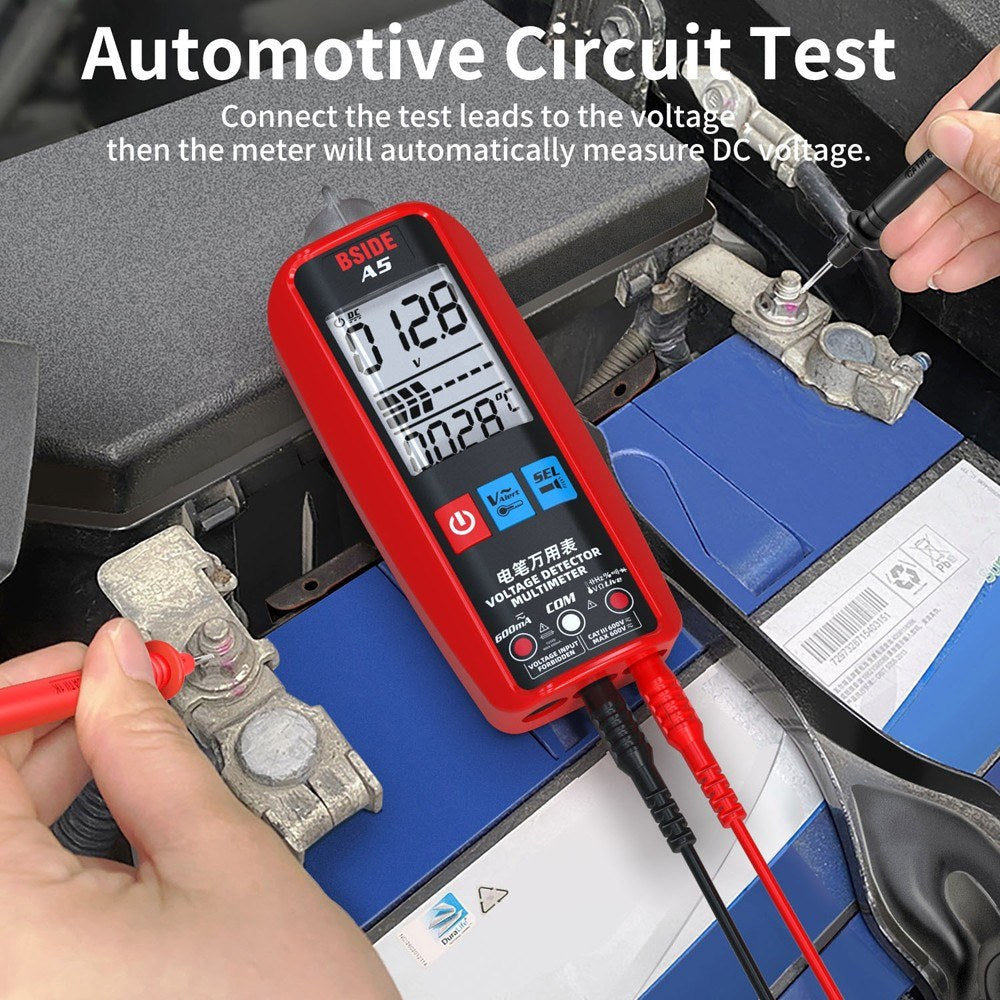

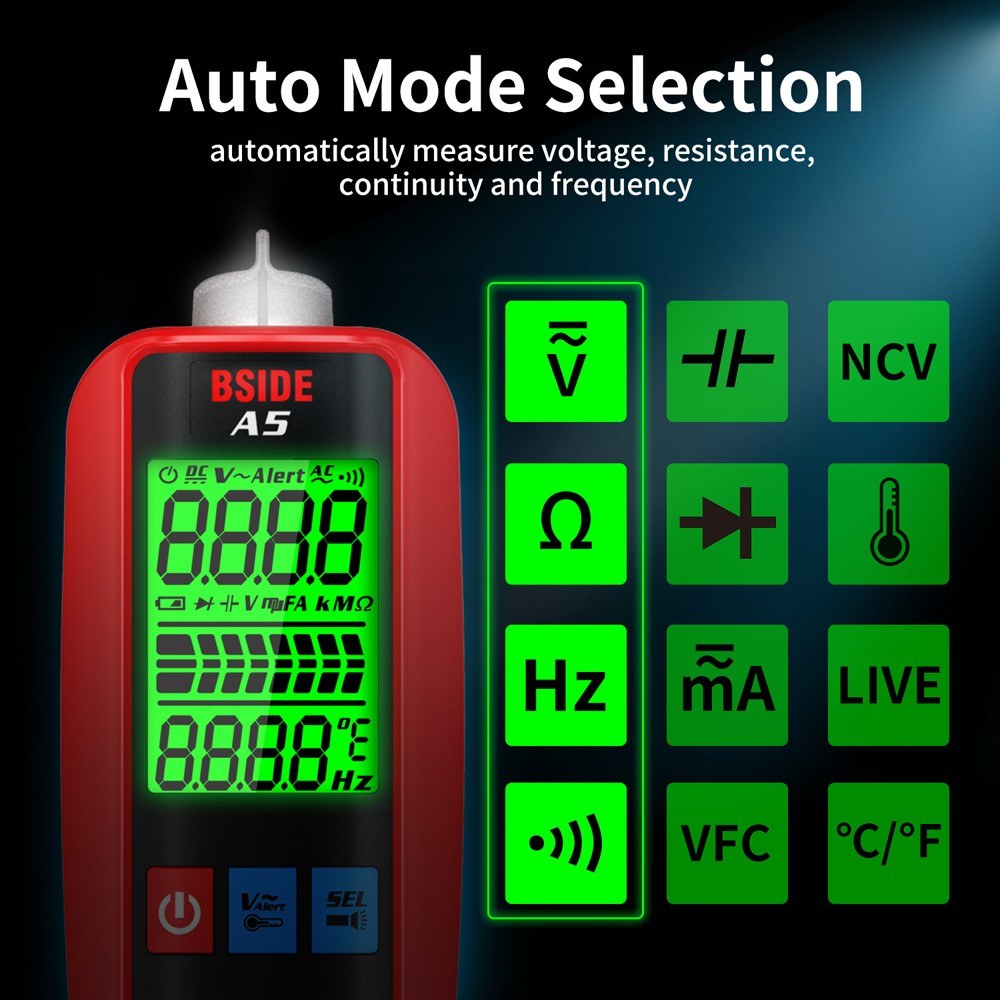

• Wide Applications: Auto mode selection makes it suitable for electrical testing, automotive repair, household improvements, industrial electrical maintenance, and more.

Specifications:

• Name: Multimeter
• Material: Plastics
• Type: Available in standard and high configurations
• Battery: Requires 2 * 1.5V (AAA) batteries (not included)
• Display: 6000 counts, 2.2 inch with backlight
• Measurements:

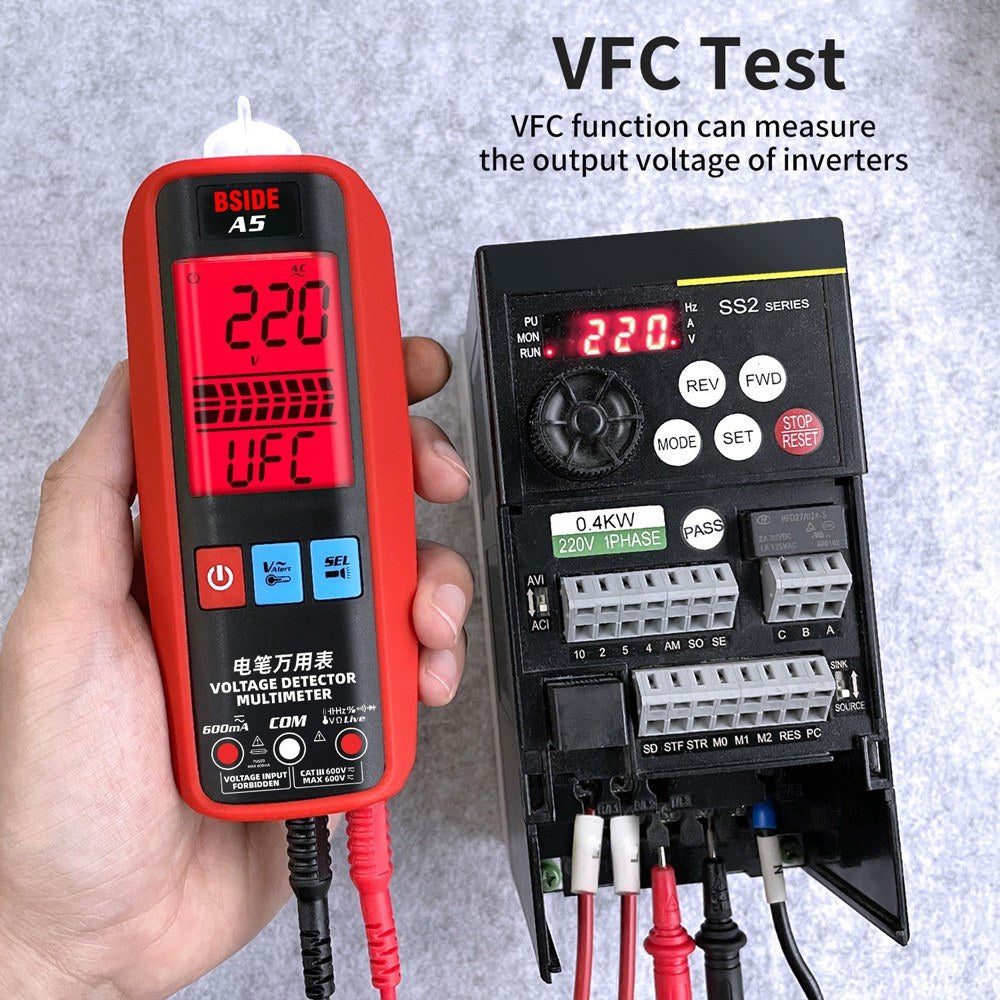

• VFC Voltage: Yes
• Direct Current Voltage: 0-620V (DC mode) / 0.8-620V (Auto mode) 0.01V ±(0.8%+3)

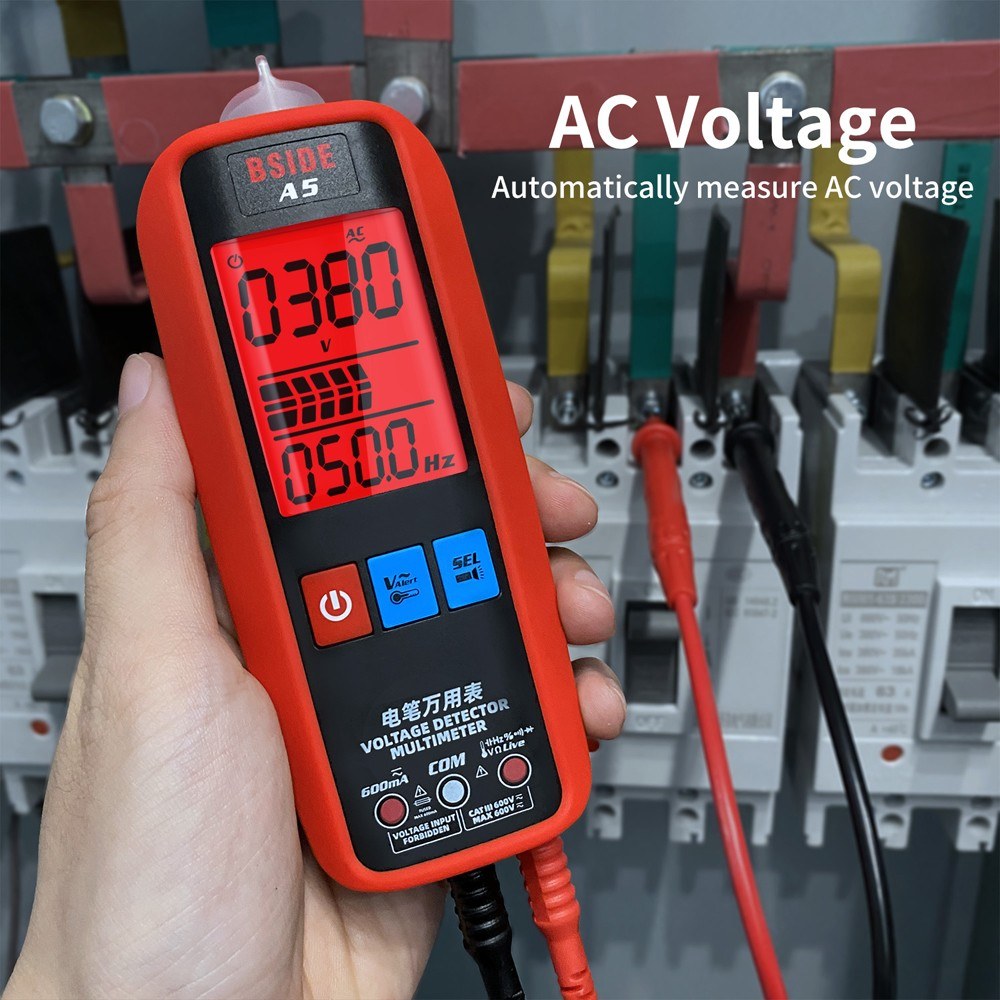

• AC Voltage: 0-620V (AC mode) / 0.8-620V (Auto mode) 0.01V ±(1.2%+5); 10-620V (VFC Mode) 1V ±(4.0%+3)
• Direct Current Current: 1.0-610mA; 0.1mA ±(1.5%+3)
• AC Current: 1.0-610mA (40-1000Hz); 0.1mA ±(1.5%+3)
• Resistance: 0Ω-6MΩ, 0.1Ω ±(1.2%+3); 6MΩ-60MΩ, 0.1Ω ±(2.0%+10)

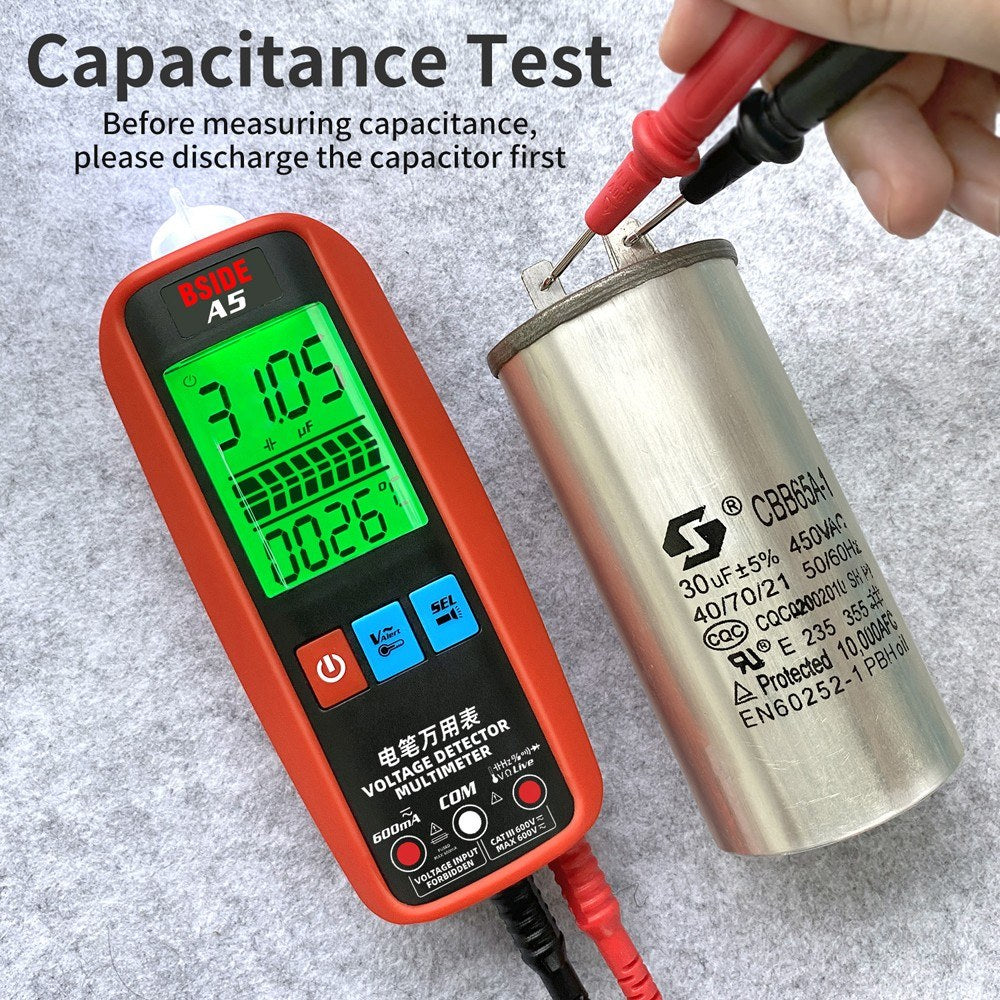

• Capacitance: 0.5μF-6mF, 0.001μF ±(3.5%+8); 6mF-60.00mF, 0.001μF ±(4.5%+10)
• Frequency: 0-9999Hz (900mVrms-20Vrms), 0.001Hz ±(2.0%+10)

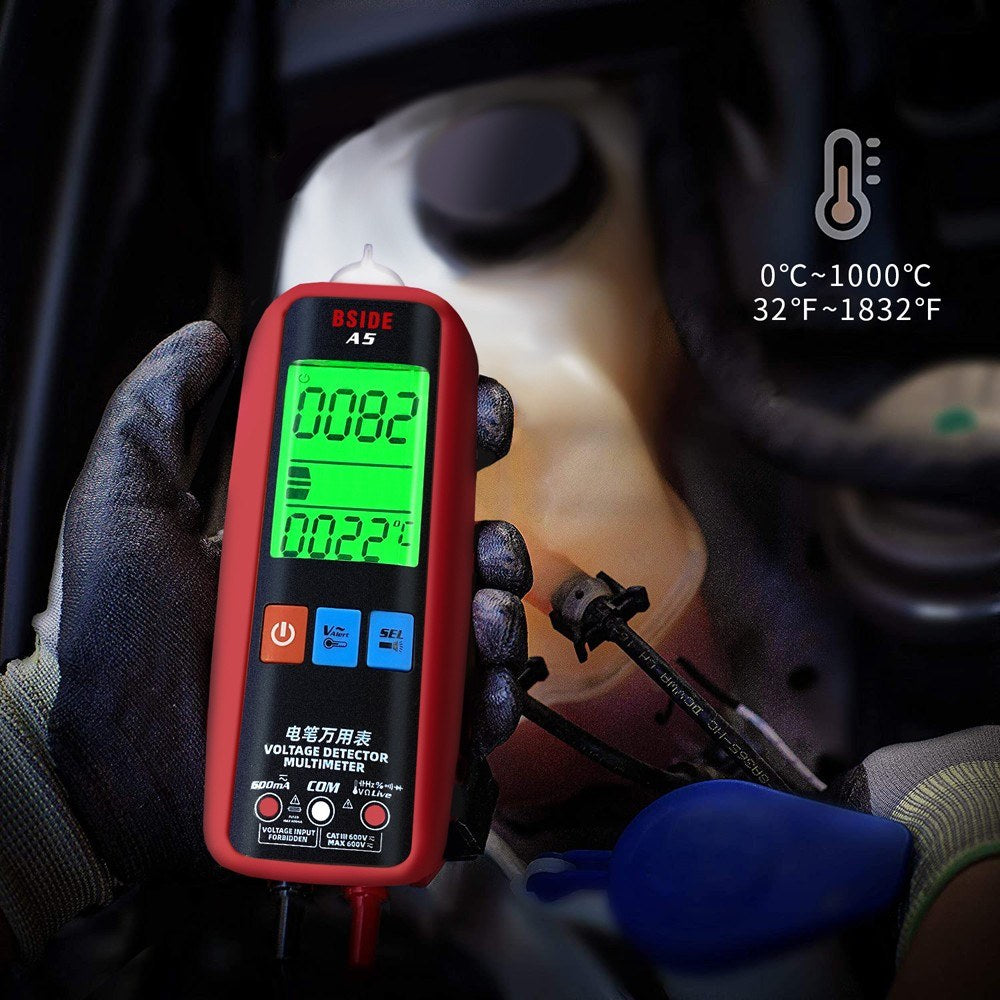

• Temperature: 0-50℃ (32-122℉), 1℃/1℉ ±(1.5%+2); 50-1000℃ (122-1832℉), 1℃/1℉ ±(2.0%+3)
• V-Alert (Non-contact Voltage Detection): Yes
• Diode: Measures diodes within 3V
• Continuity: Beeper sounds if resistance is less than 50Ω
• Live Wire Check: Yes
• Ambient Temperature: 0-50℃, ±2℃
• Item Size: 140 * 54 * 33mm / 5.51 * 2.13 * 1.30in
• Item Weight: 92g / 3.25oz
• Package Size: 147 * 84 * 42mm / 5.79 * 3.31 * 1.65in
• Package Weight: Standard configuration: 230g / 8.11oz; High configuration: 304g / 10.72oz

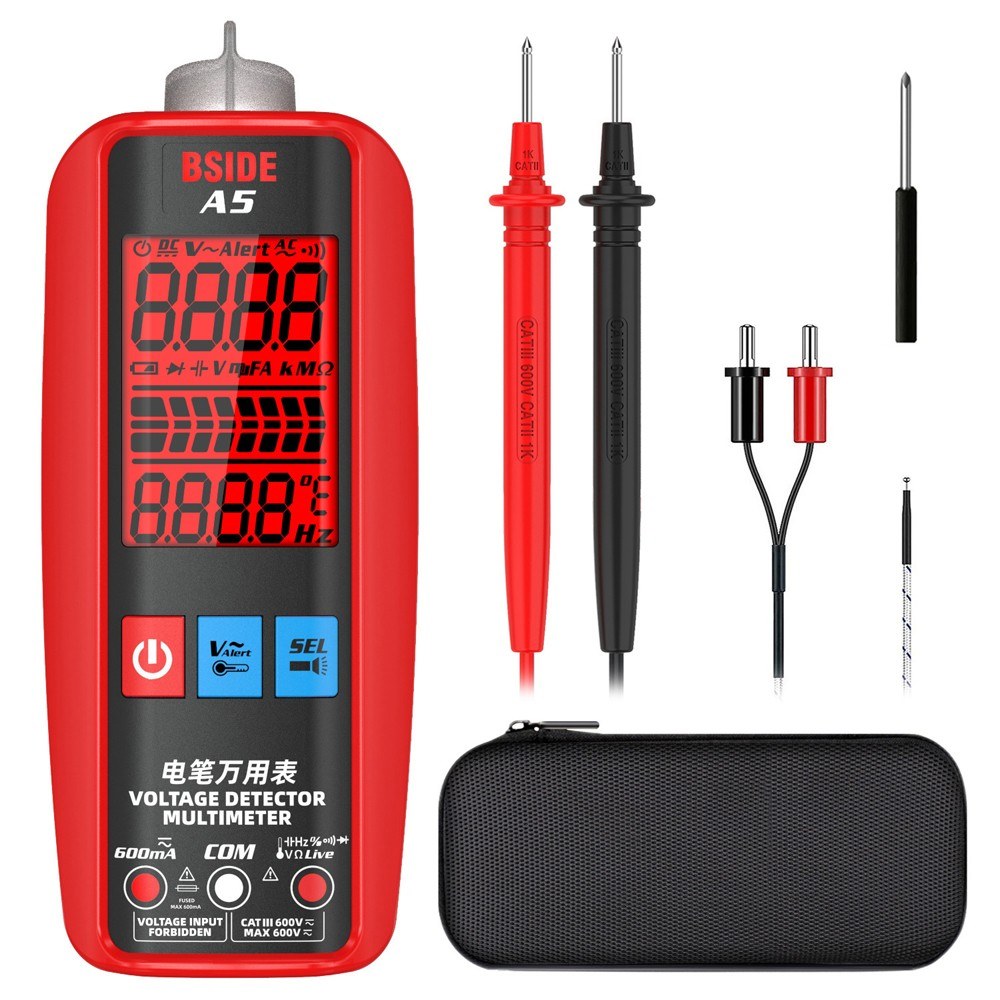

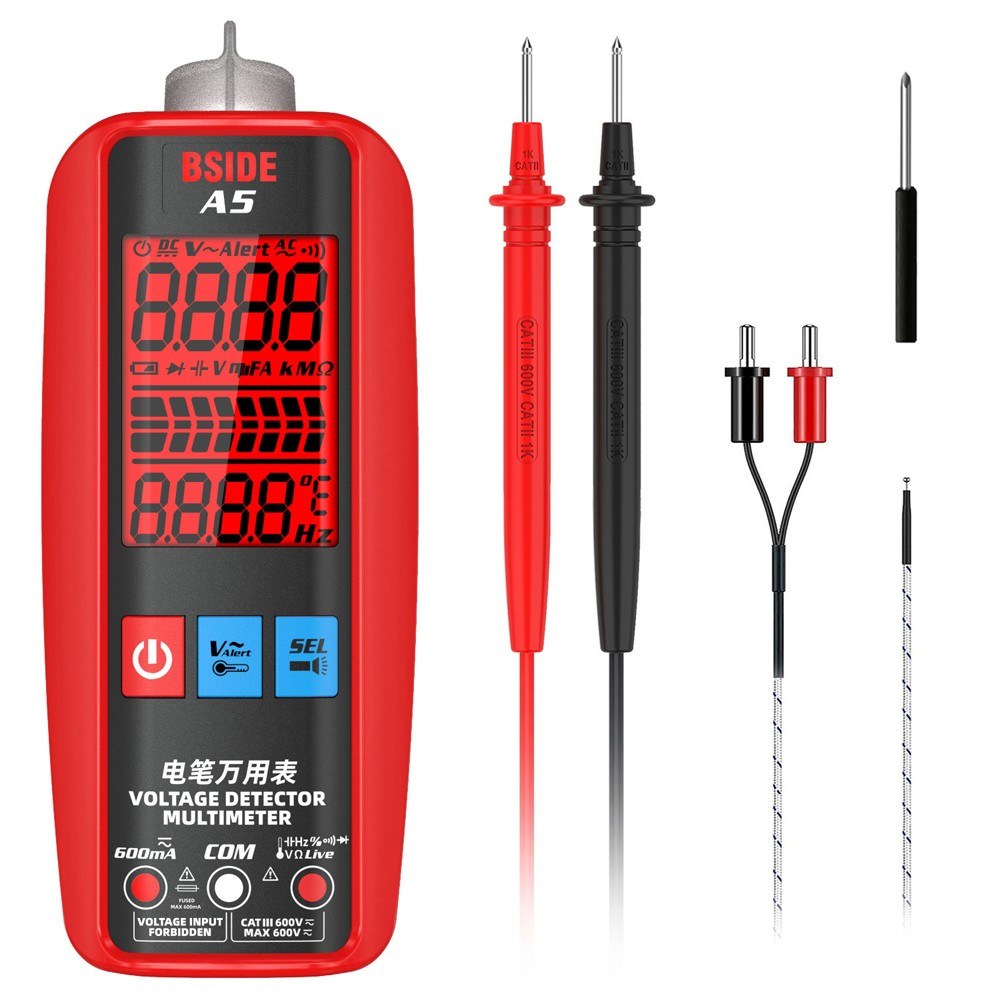

Packing List:

Standard Configuration:

• 1 * Multimeter
• 2 * Test Leads
• 1 * Cable
• 1 * Screwdriver

High Configuration:

• 1 * Multimeter
• 2 * Test Leads
• 1 * Cable
• 1 * Screwdriver
• 1 * Storage Bag
