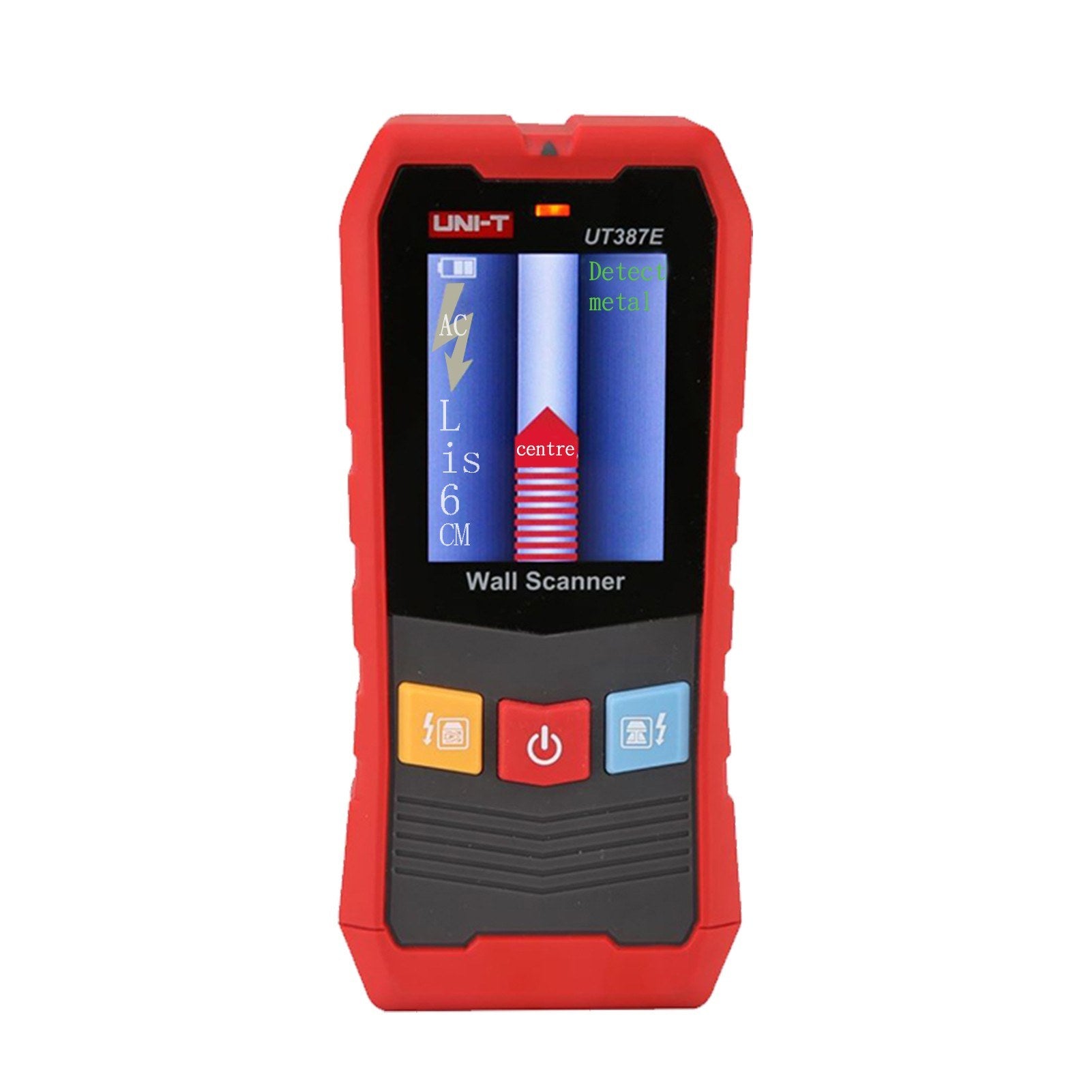

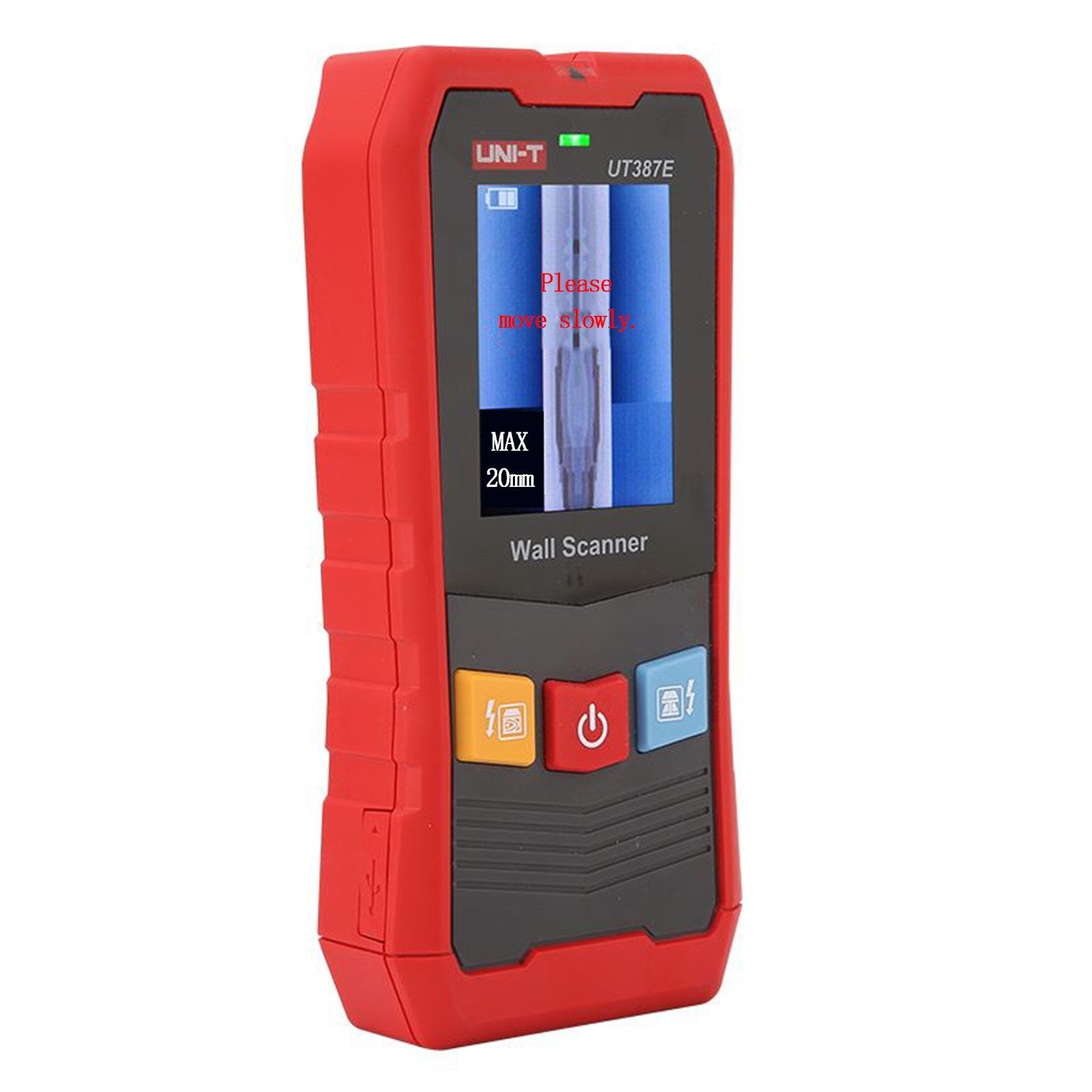

UNI-T UT387LM Metal Detector with Wall and Ranging Functions for Steel Wire and Water Pipe Detection

Digital Wall Detector: Detect with Precision

Experience superior wall detection technology with our multifunctional Digital Wall Detector. Designed to accurately locate metal, wood beams, and live wires, this tool is perfect for use on walls, ceilings, and floors made of conventional materials like concrete, tiles, and wood panels.

Key Features:

• Multifunctional Detection: Offers metal, wood, and wire detection with impressive precision.

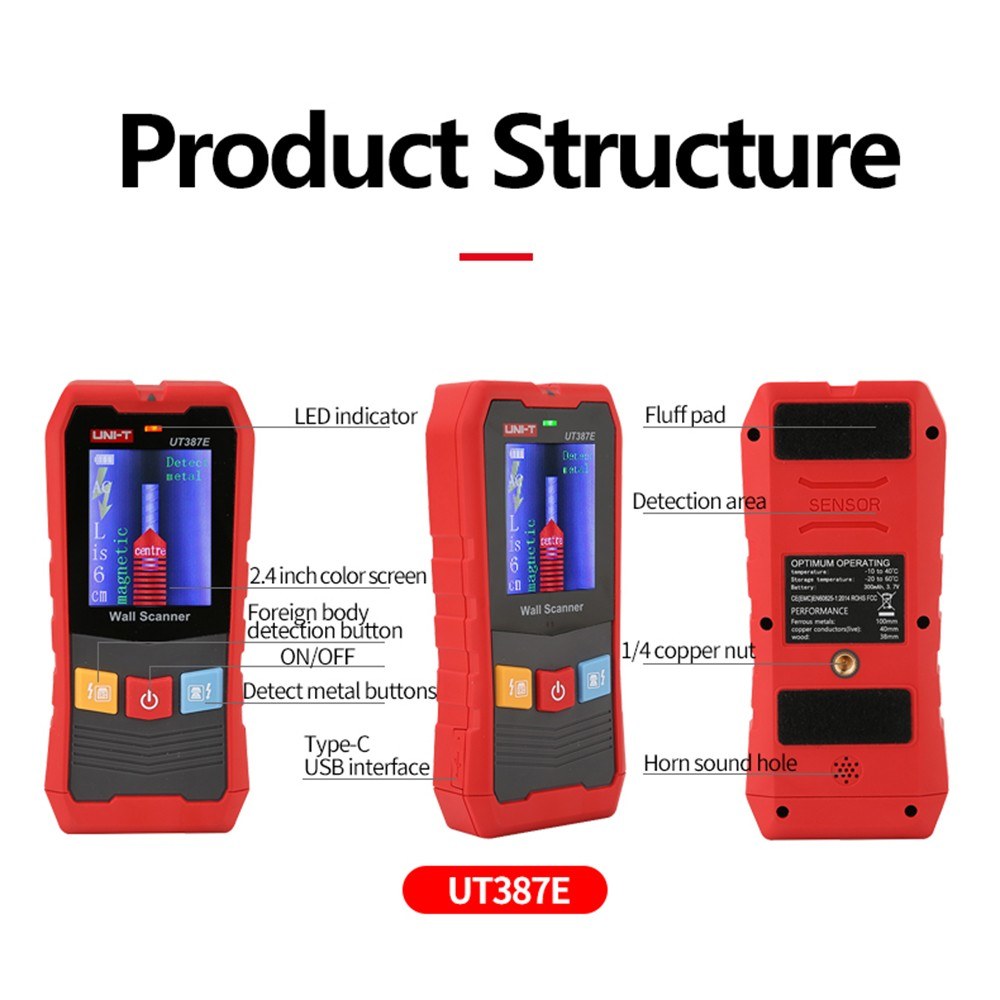

• Intuitive LCD Screen: Clear display for easy operation and accurate positioning.
• Five-in-One Detection Mode: Tailored for different materials including wood, plasterboard, metal, and live wires with AC warning function.
• Adjustable Wood Detection: Two modes for wood detection: 0.79 inches (20mm) and 1.5 inches (38mm), customizable according to your needs.
• Metal Pipe Detection: Effective for wall thicknesses up to 3.94 inches (100mm).
• Live Wire Detection: Efficient for wall thicknesses within 1.97 inches (50mm).

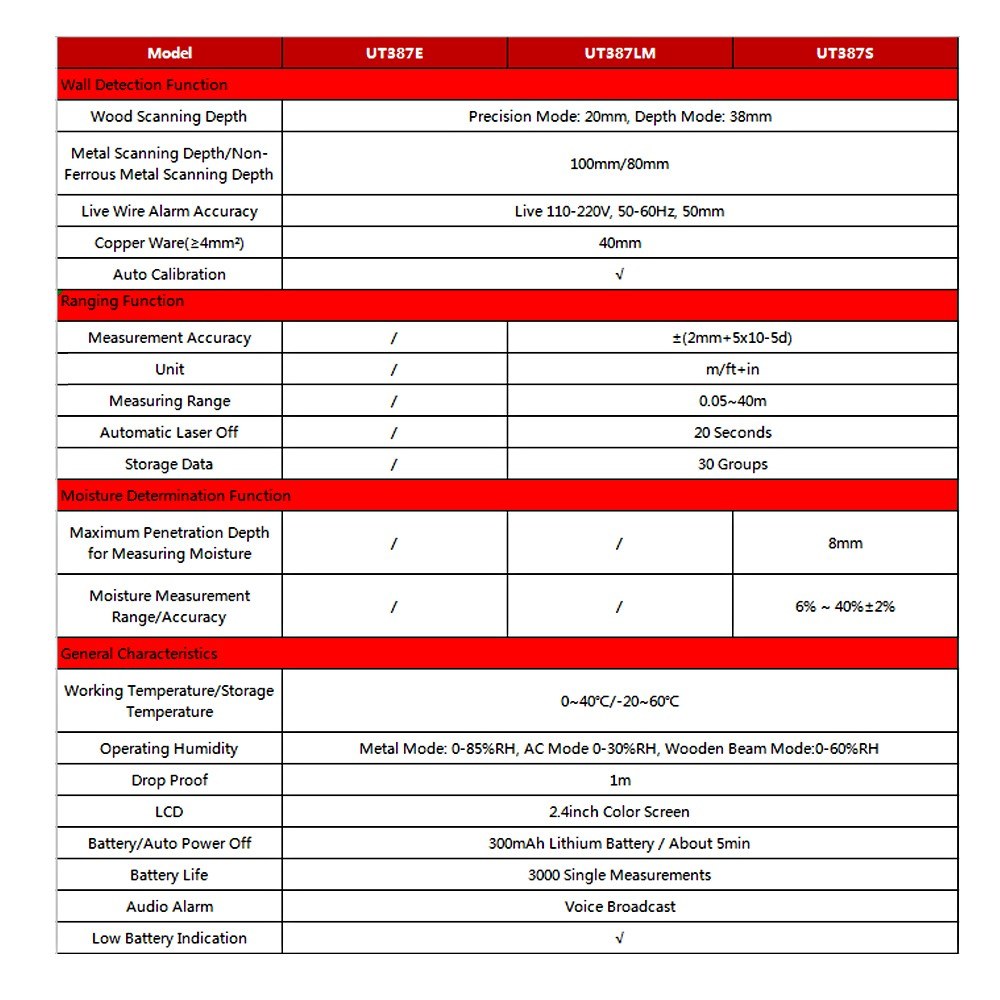

Specifications:

• Model Options: UT387E / UT387S / UT387LM
• Material: Durable ABS
• Wood Scanning Depth: Precision Mode: 20mm, Depth Mode: 38mm
• Metal Scanning Depth: Up to 100mm
• Non-Ferrous Metal Scanning Depth: Up to 80mm
• Live Wire Alarm Accuracy: 110-220V, 50-60Hz, within 50mm
• Copper Ware Detection: ≥4mm², up to 40mm
• Auto Calibration: Yes

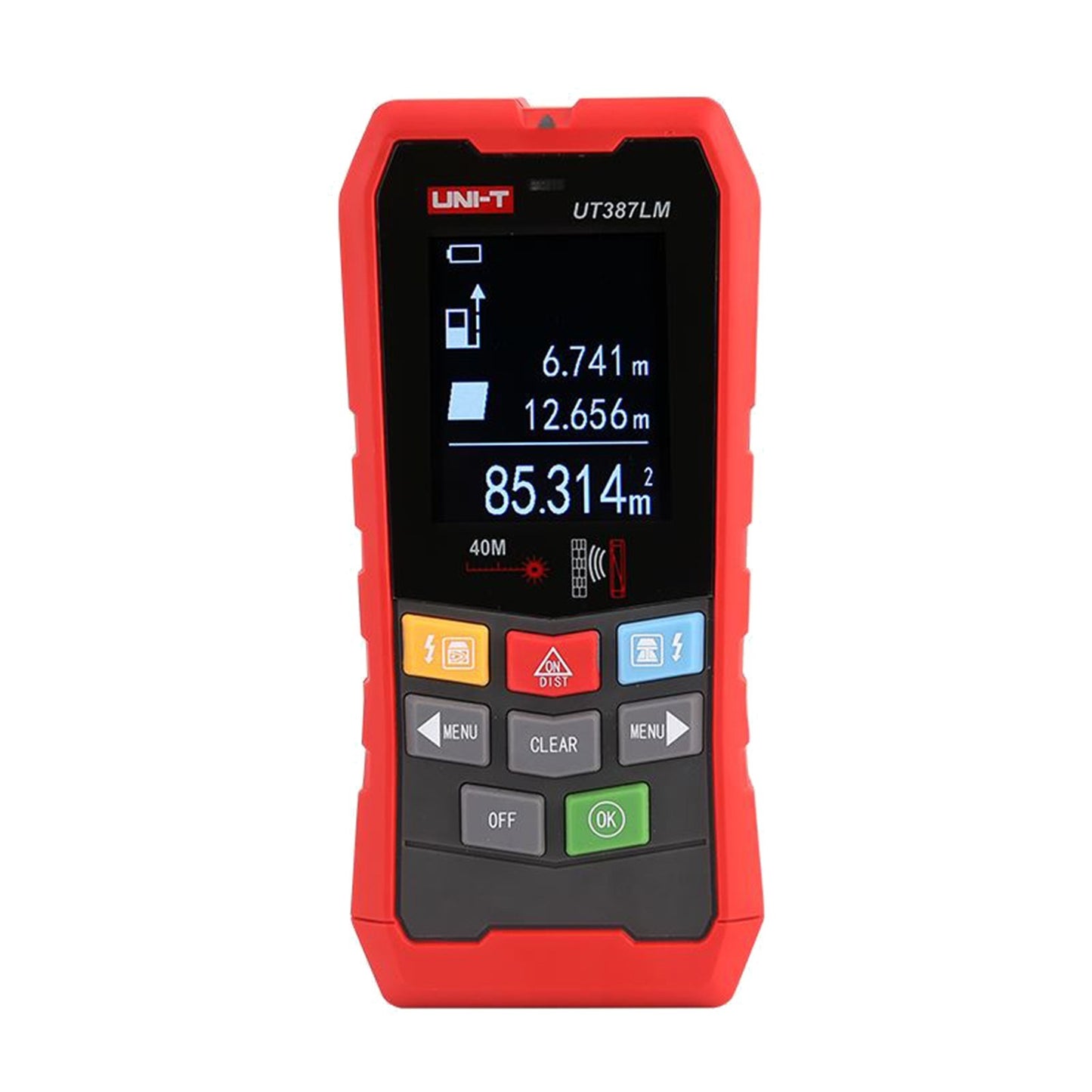

Additional Functions (UT387S / UT387LM):

• Ranging Function: Measurement Accuracy: ±(2mm+5x10-5d), Measuring Range: 0.05~40m
• Automatic Laser Off: 20 seconds
• Storage Capacity: 30 groups

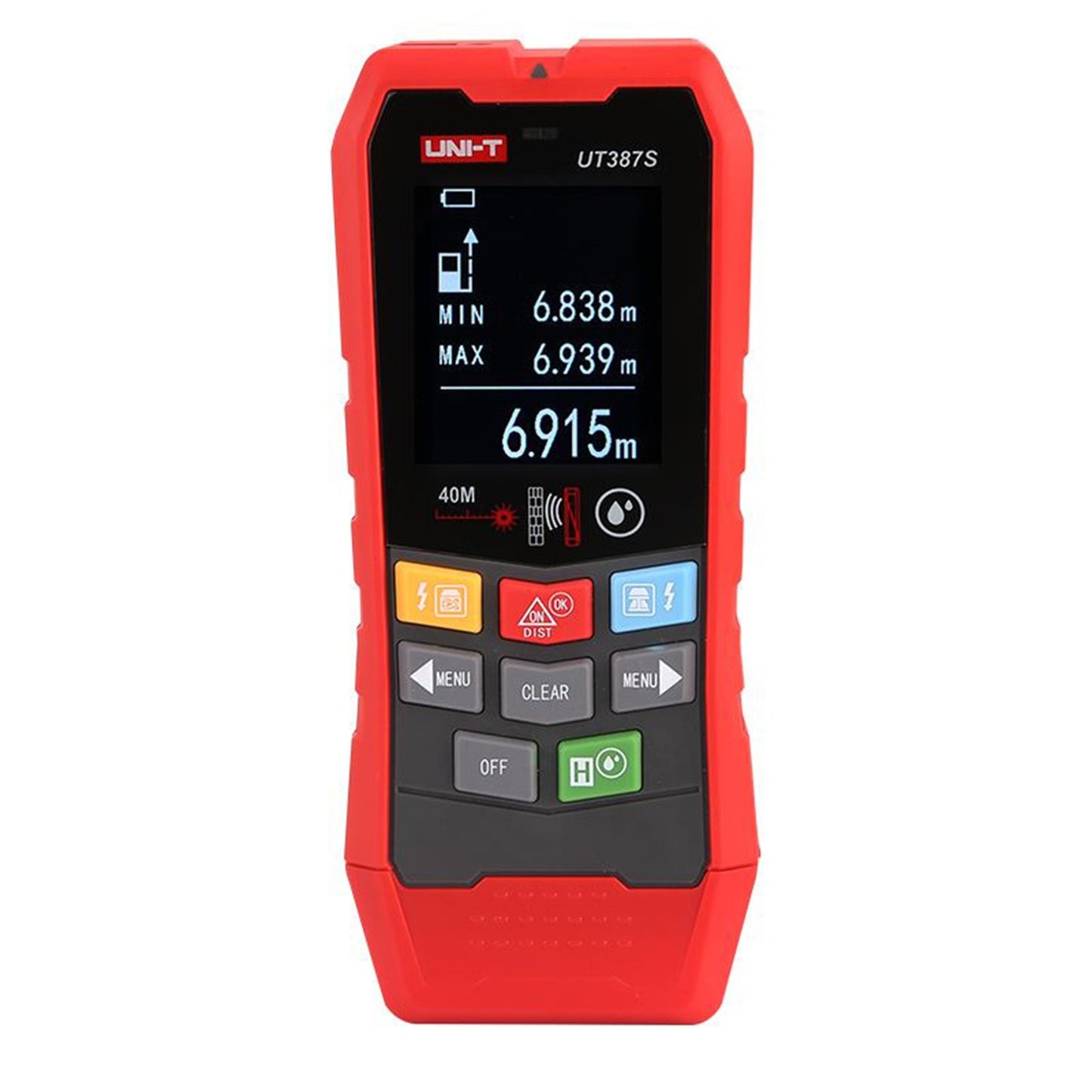

Moisture Determination (UT387S):

• Maximum Penetration Depth: 8mm
• Moisture Measurement Range/Accuracy: 6% ~ 40%±2%

General Characteristics:

• Operating Humidity: Metal mode: 0-85%RH, AC mode: 0-30%RH, Wooden beam mode: 0-60%RH
• Storage Temperature: -20-60℃
• Drop Proof: 1m
• Display: 2.4 inch color LCD
• Auto Power Off: About 5 minutes

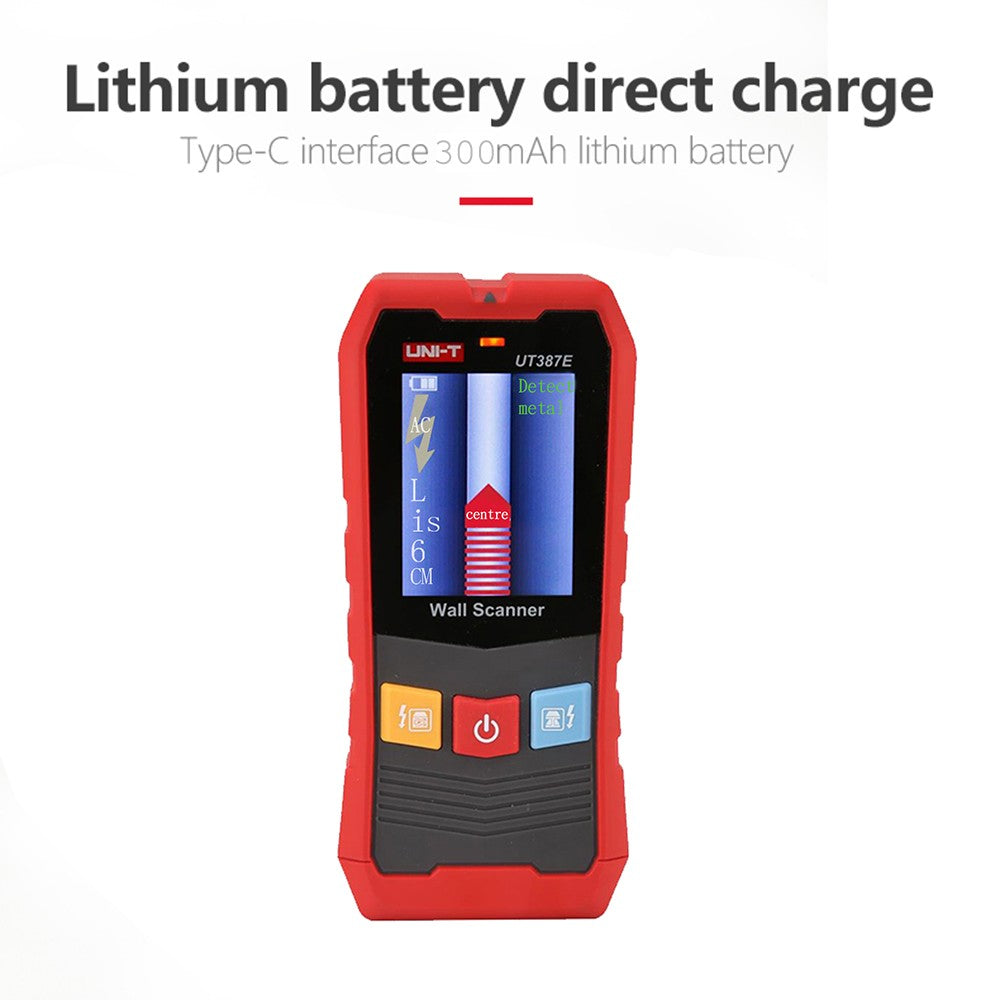

• Battery: 1 x 3.7V 300mAh lithium battery, lasting 3000 single measurements

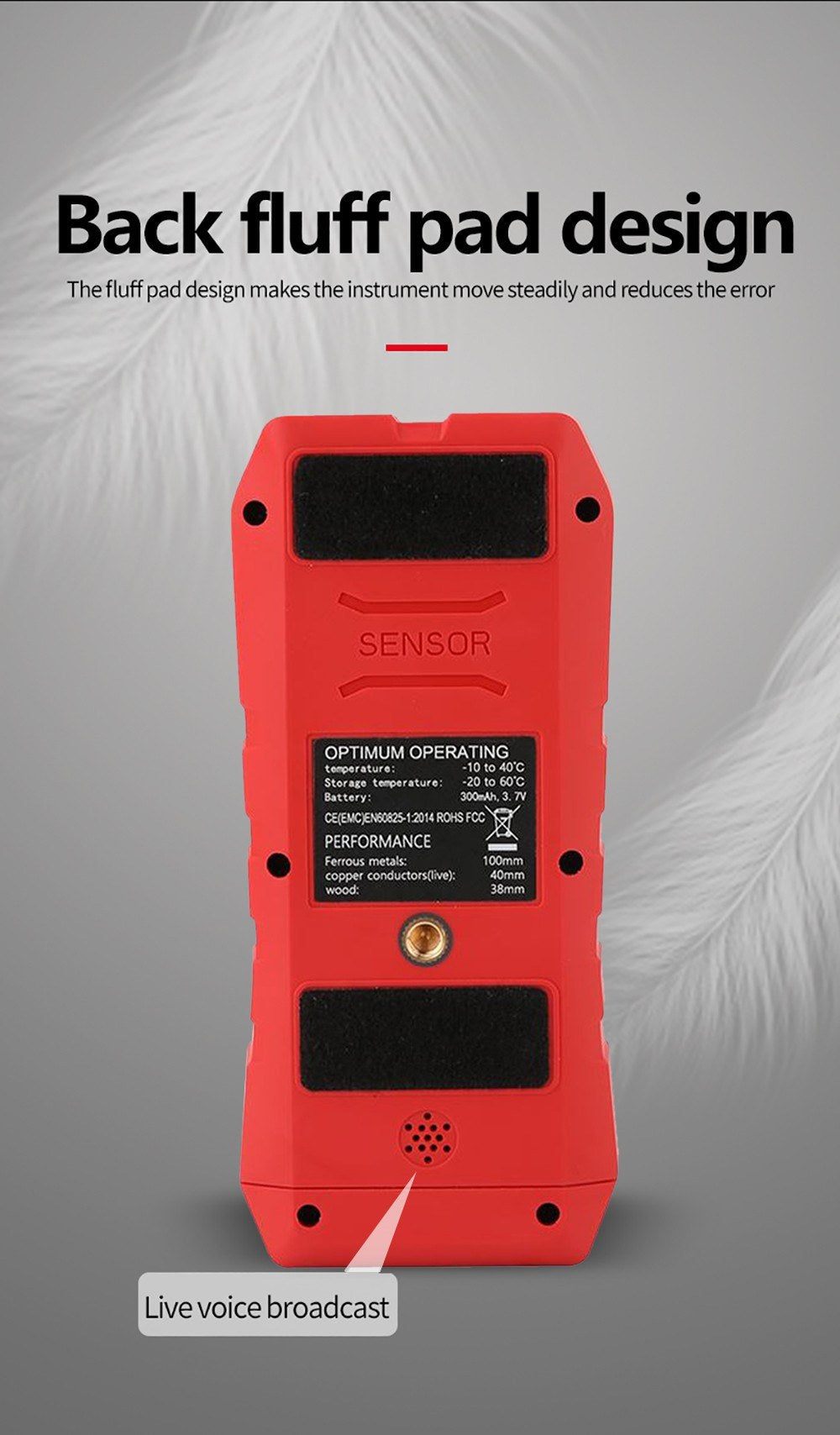

• Audio Alarm: Voice broadcast with low battery indication

Physical Specifications:

• Item Size: 148 x 68 x 32mm / 5.83 x 2.68 x 1.26 inches
• Item Weight: 159g / 5.61oz
• Packing Size: 180 x 107 x 57mm / 7.09 x 4.21 x 2.24 inches
• Packing Weight: 261g / 9.21oz

Package Includes:

• 1 x Wall Scanner
• 1 x Cloth Bag
• 1 x USB Charging Cable
• 1 x English Manual
