1400W Buck DC Voltage Regulator: Adjustable Voltage & Current Module, 22A Constant Voltage/Current Step-Down

Key Features

• LCD display board with a gold plating process to prevent oxidation and ensure clear display over prolonged use.
• Independent silicone buttons for setting voltage or current, allowing quick and easy operation.
• Offers versatility with multiple display options including LCD meter, color screen meter, or serial port screen.
• Flexible usage with individual motherboards, supporting stepless current and voltage regulation.
• Soft silicone button material provides a comfortable touch, designed for long-lasting durability and usage.

Specifications

• Input Voltage: 6.0-75.00V
• Output Current: 0-22A
• Output Power: 0-1430W
• Output Voltage: 0.0-65.00V
• Output Voltage Accuracy: ± 0.3% + 3 words (adjustable)
• Output Current Accuracy: ± 0.5% + 3 words (adjustable)
• Current Resolution: 0.01A
• Voltage Resolution: 0.01V
• Data Group Storage: 11 groups
• Screen Size: 1.8-inch upgraded large screen, visible range of 36 x 29mm
• Cooling Fan Conditions: Activates when temperature > 45℃, current > 2A, or power > 30W
• Number of Silicone Buttons: 5
• Buzzer: Yes

Protection Mechanism

• Input Undervoltage Protection (LUP): 5.5-64V adjustable, factory default at 5.5V
• Output Overvoltage Protection (OUT): 1-66V adjustable, factory default at 66V
• Output Overcurrent Protection (OCP): 0.01-23A adjustable, factory default at 23A
• Output Overpower Protection (OPP): 1-1450W adjustable, factory default at 1450W
• Over Temperature Protection (OTP): Adjustable from 30 to 99℃, factory default at 60℃
• Over Time Protection (OHP): 1 minute - 99 hours and 59 minutes, factory default off
• Overcapacity Protection (OAH): 0.001-9999Ah, factory default off
• Overpower Protection (OPH): 0.001-4000KWh, factory default off

Important Notes

• Do not input AC power or connect to 220V mains power.
• The maximum allowable input voltage is 75V. Avoid overvoltage input or reverse polarity connection.
• To prevent battery backflow and damage, ensure the output voltage is always higher than the battery voltage, or connect a diode in series with the output positive pole.
• Ensure correct polarity when connecting the output terminal to the battery.
• This is a voltage reduction module, with maximum output voltage = input voltage × 0.95 - 1V.

Packaging Options

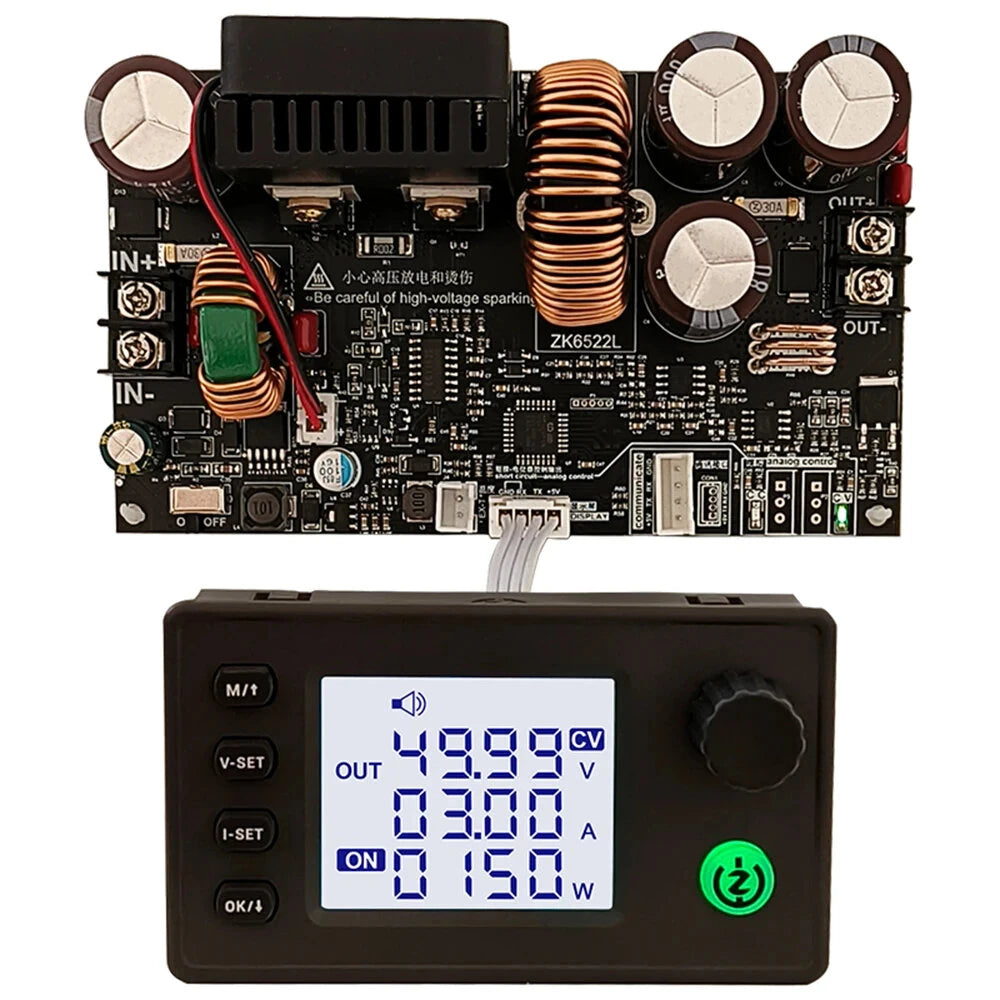

• Package A: ZK6522 board with display

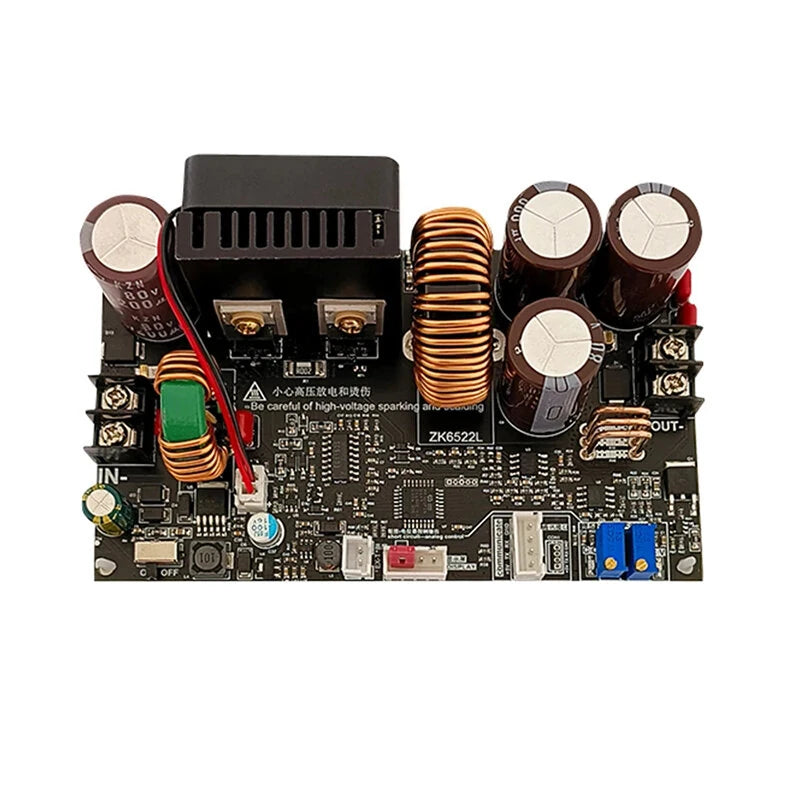

• Package B: ZK6522B Board Only

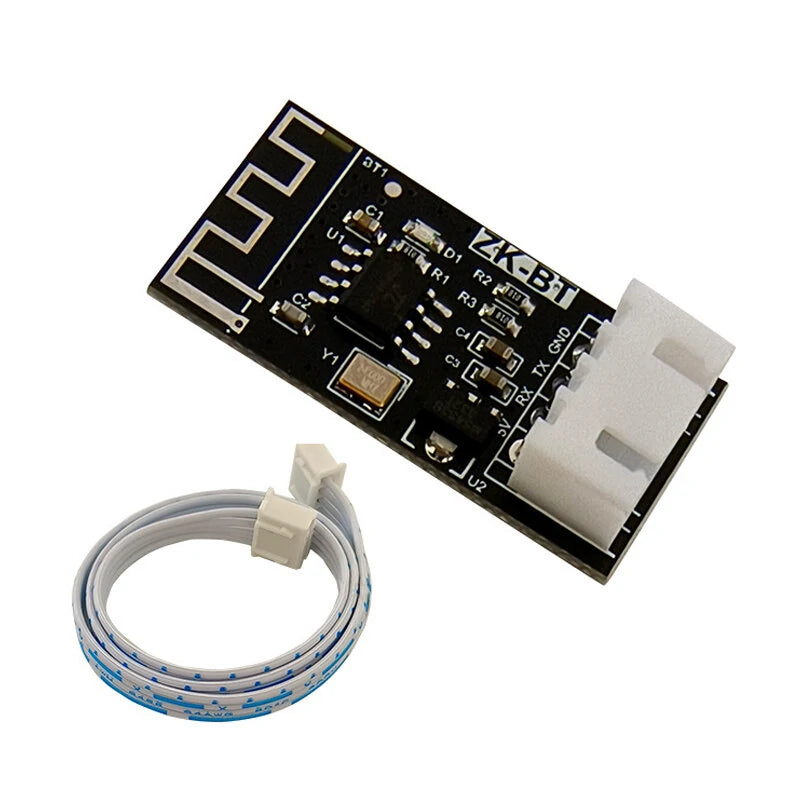

• Package C: ZK-BT Bluetooth Transparent Transmission Module

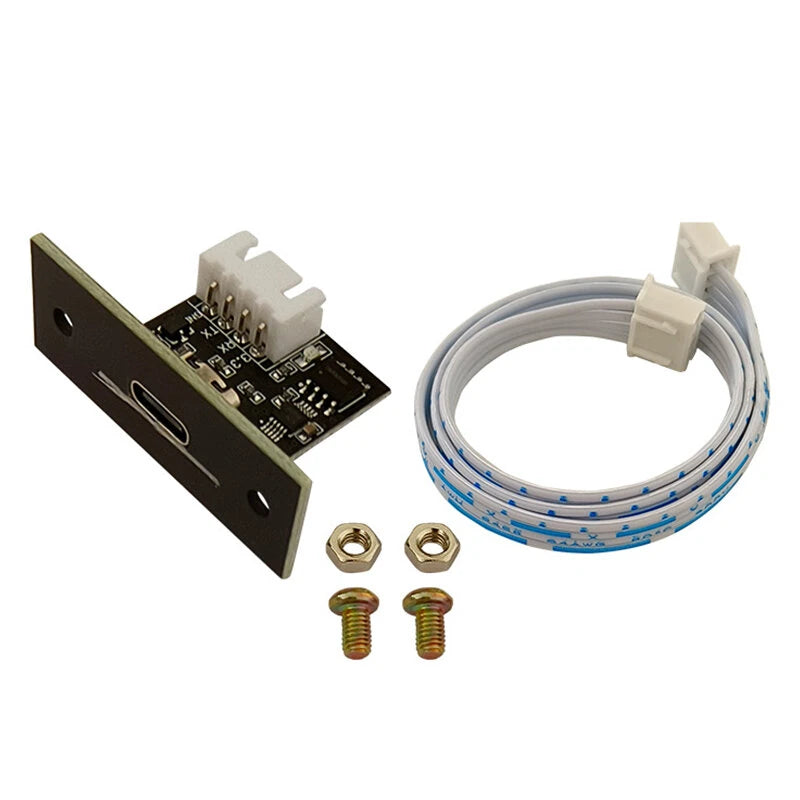

• Package D: ZK-U2T USB to TTL Module
• Note: Accessory prices may vary significantly from the main product. Please confirm before purchasing.
