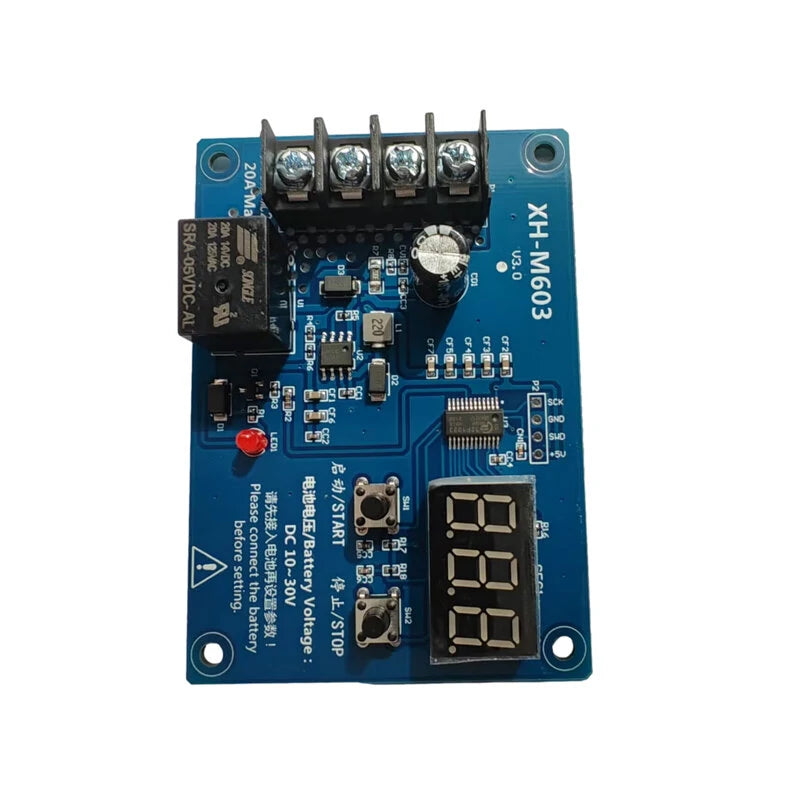

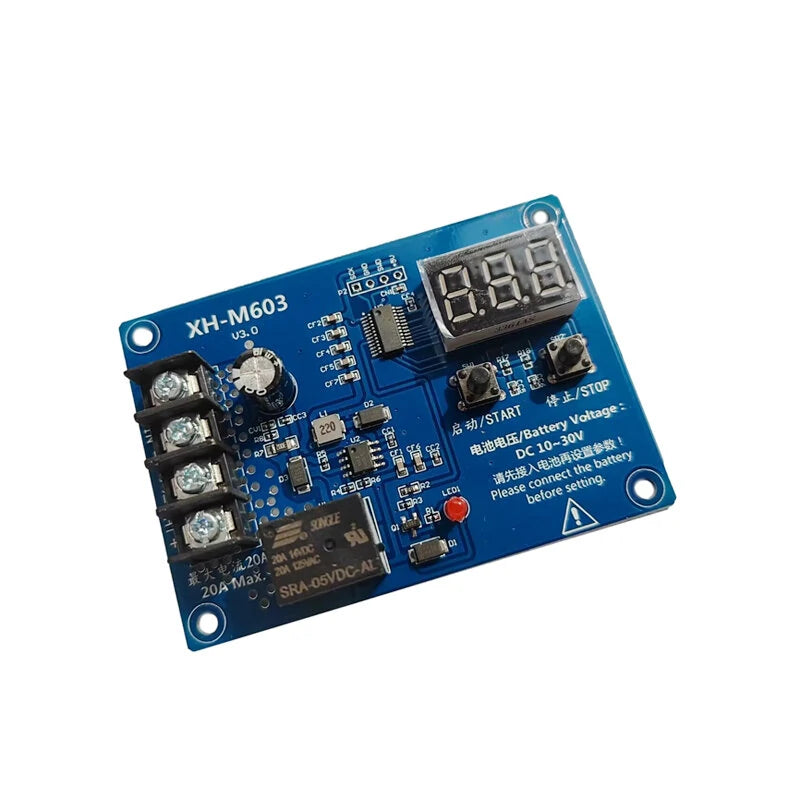

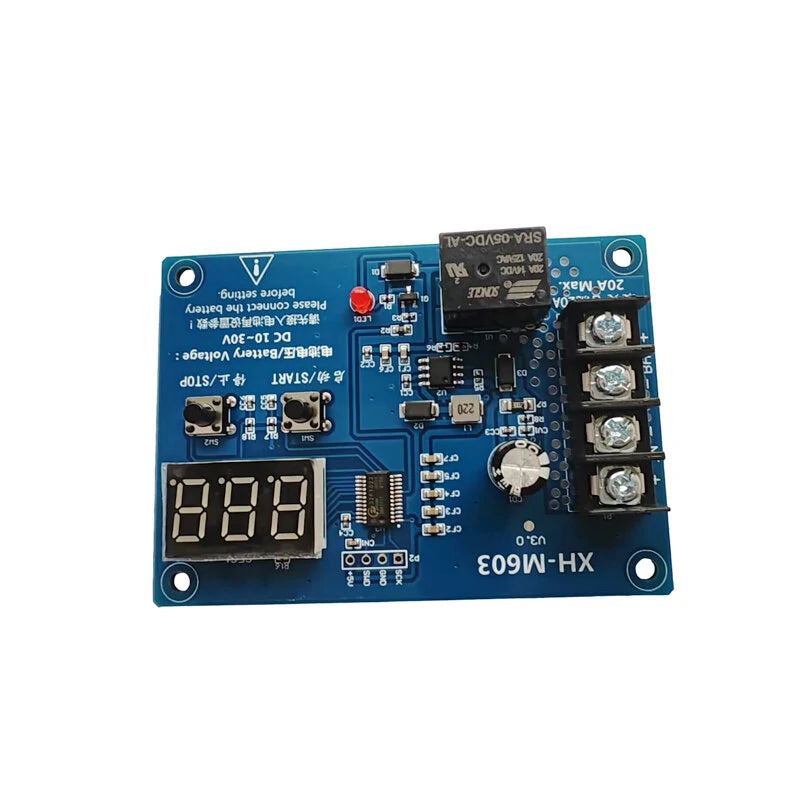

XH-M603 12-24V Lithium Battery Charger Control Module with Protection Switch

Product Description

• Model: XH-M603
• Input Voltage: DC 10-30V
• Display Precision: 0.1V
• Control Precision: 0.1V
• Output Type: Direct output
• Voltage Tolerance: +/-0.1V
• Application Fields: 12-24V storage battery
• Size: 82 x 58 x 18mm

Using Method

1. Set Starting Voltage: In normal display voltage state, press the button to display the start charging voltage. Long press for 3 seconds until the digital display flashes. Use the start or stop button to set the starting charge voltage value.
2. Set Stop Voltage: In normal display voltage state, press the button to display the stopping charge voltage. Long press the button for 3 seconds until the digital display flashes. Use the start or stop button to set the stopping charge voltage value.
3. Factory Reset: In powered-on state, press the start/stop button simultaneously. The digital display will show 888, indicating factory reset settings.

Package Included

• 1 x Charger Control Switch Protection Board
