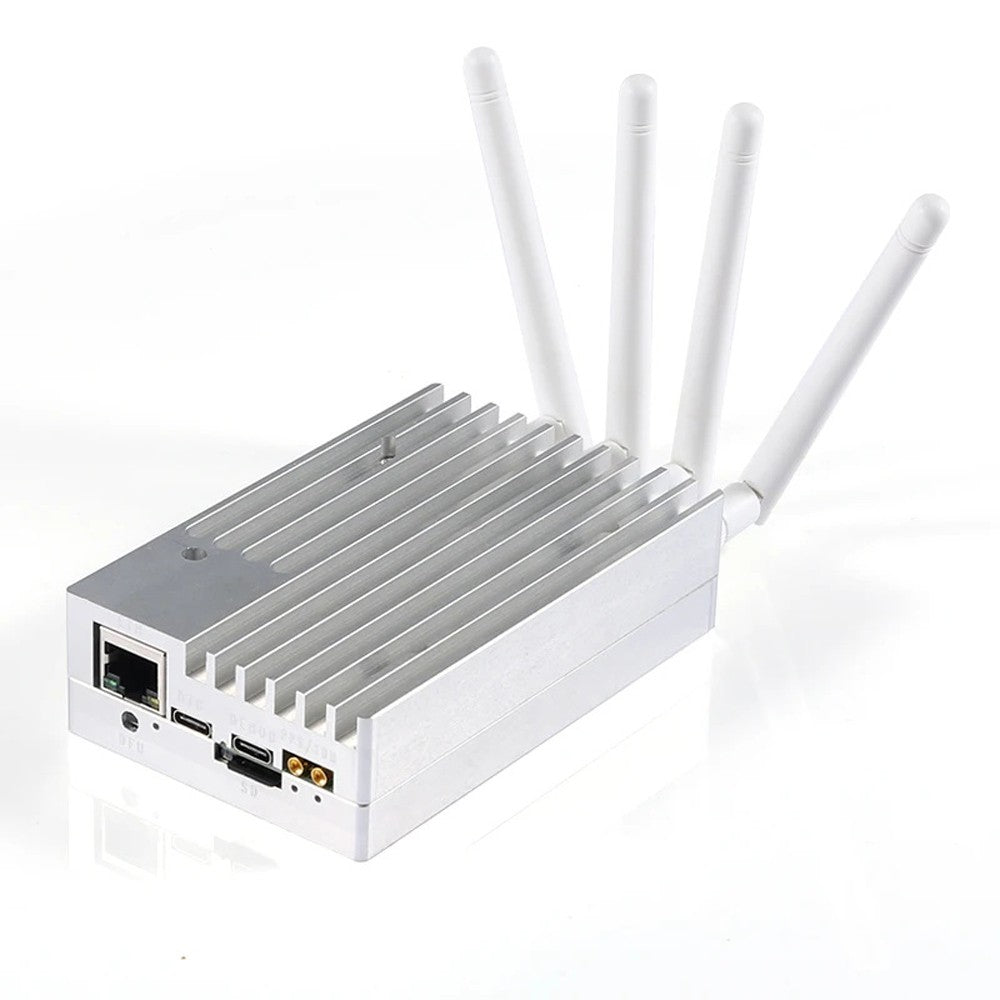

AD9363 SDR Receiver: Multifunctional Open Source Lab Platform for Professionals & Hobbyists

$288.99 USD

~~$0.00 USD~~ $288.99 USD

Sale Sold out

Shipping calculated at checkout.

Color white

Estimated Delivery: -

SDR Meter

The SDR Meter is equipped with an XC7Z020-2CLG400I chip (7z020-2I) and an AD9363 chip, offering a frequency range from 70MHz to 6GHz and a maximum sampling rate of 61.44MHz. This provides users with a mature and stable software-defined radio experiment platform. It features 1GB DDR3 memory with a 32-bit width running at 1066MHz, along with 32MB QSPI Flash. It supports TF card expansion for larger-scale data recording and application growth. Onboard JTAG circuit and USB to serial port enable both power supply and debugging with a single connection.

Features

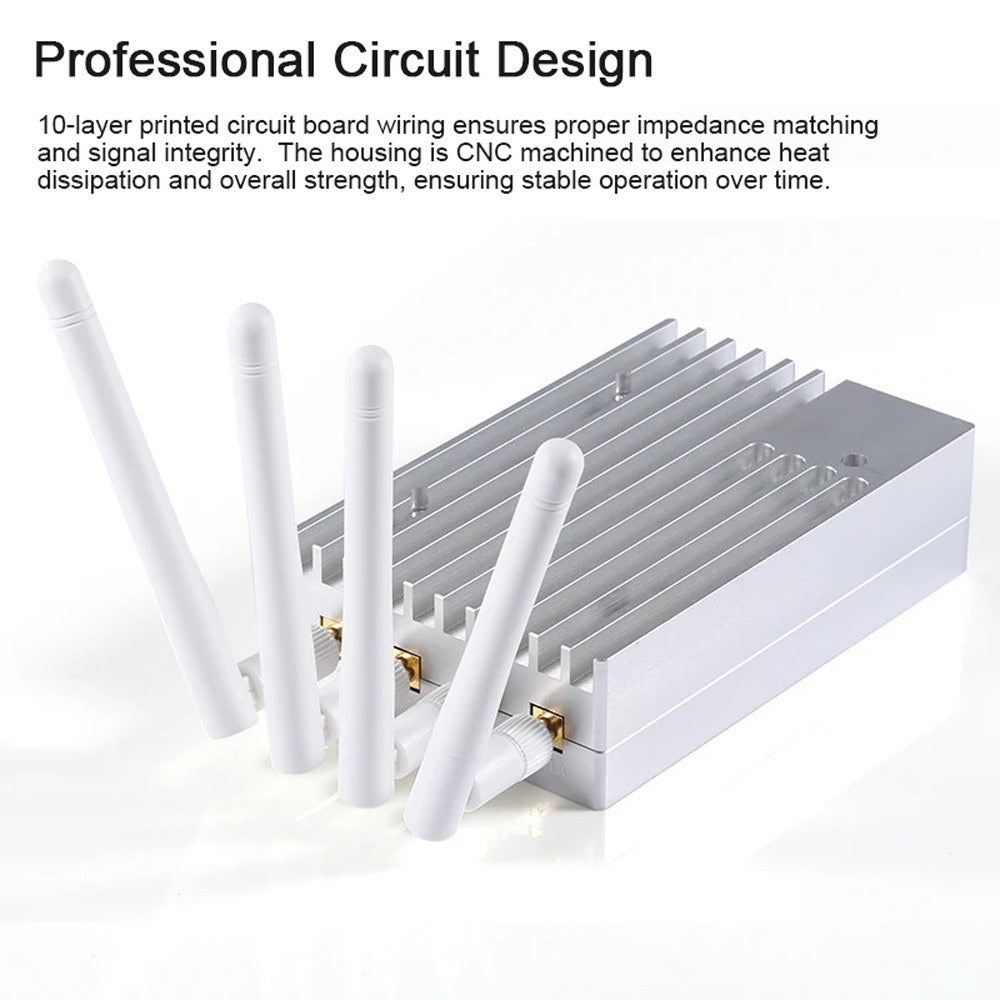

Professional Circuit Design: A 10-layer printed circuit board design ensures proper impedance matching and signal integrity. The CNC-machined housing enhances heat dissipation and strength, ensuring stable operations over time.

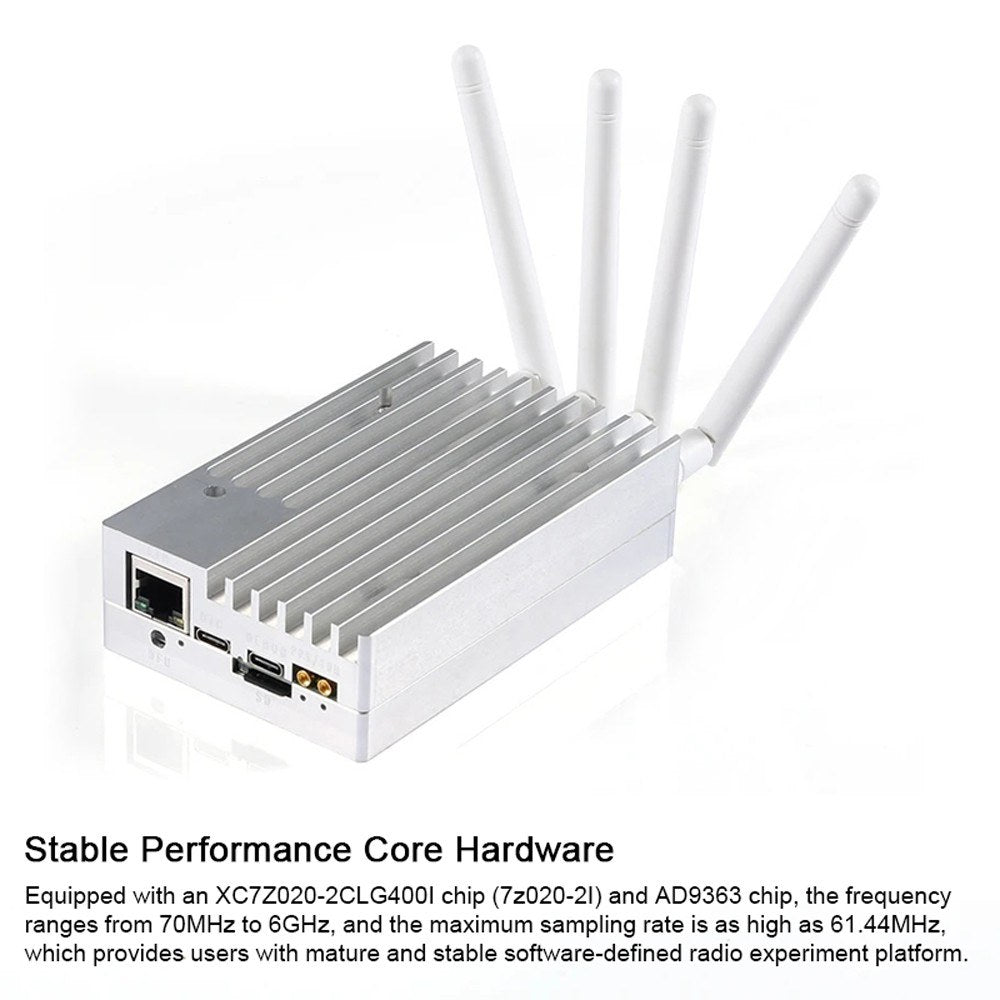

Stable Performance Core Hardware: Equipped with the XC7Z020-2CLG400I chip and AD9363 chip, this device covers a wide frequency range from 70MHz to 6GHz with a sampling rate cap of 61.44MHz, providing a reliable experimental radio platform.
Powerful Memory & Flash Configuration: With 1GB DDR3 memory at 1066MHz and a 32-bit width, high data processing capability is ensured. The 32MB QSPI flash memory provides sufficient storage, with TF card support for expanded data capacity.
Integrated Debugging & Convenient Power Supply: The integrated JTAG debugging circuit and USB-to-serial port functionality simplify connections, enabling seamless debugging and power supply through one cable. This reduces desktop wiring complexity and boosts efficiency.

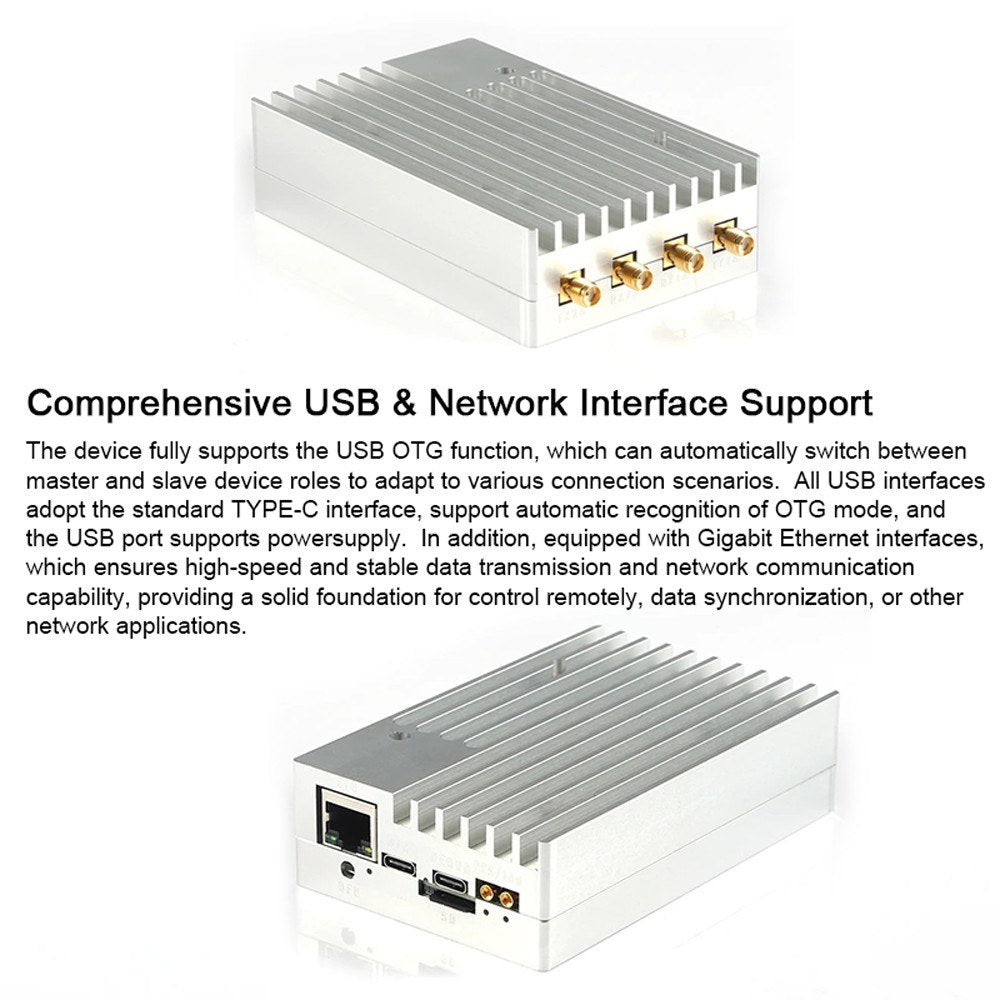

Comprehensive USB & Network Interface Support: Full support for USB OTG allows automatic switching between master and slave roles. All USB interfaces utilize the TYPE-C standard with automatic OTG mode recognition, complemented by Gigabit Ethernet interfaces for stable data transmission and network communication.
