ARINST uSDR uSDX+ Plus V2 8-Band HF SSB QRP Transceiver: All Mode SDR (10-80m)

• Product Overview

This transceiver is optimized from the uSDX QCX-SSB open-source hardware. The powerful software supports efficient use of hardware to complete the SW transceiver and supports SSB mode with excellent reception quality. While transmitting quality is slightly less, AM/FM modes are available as bonus features; their performance is limited.

Description

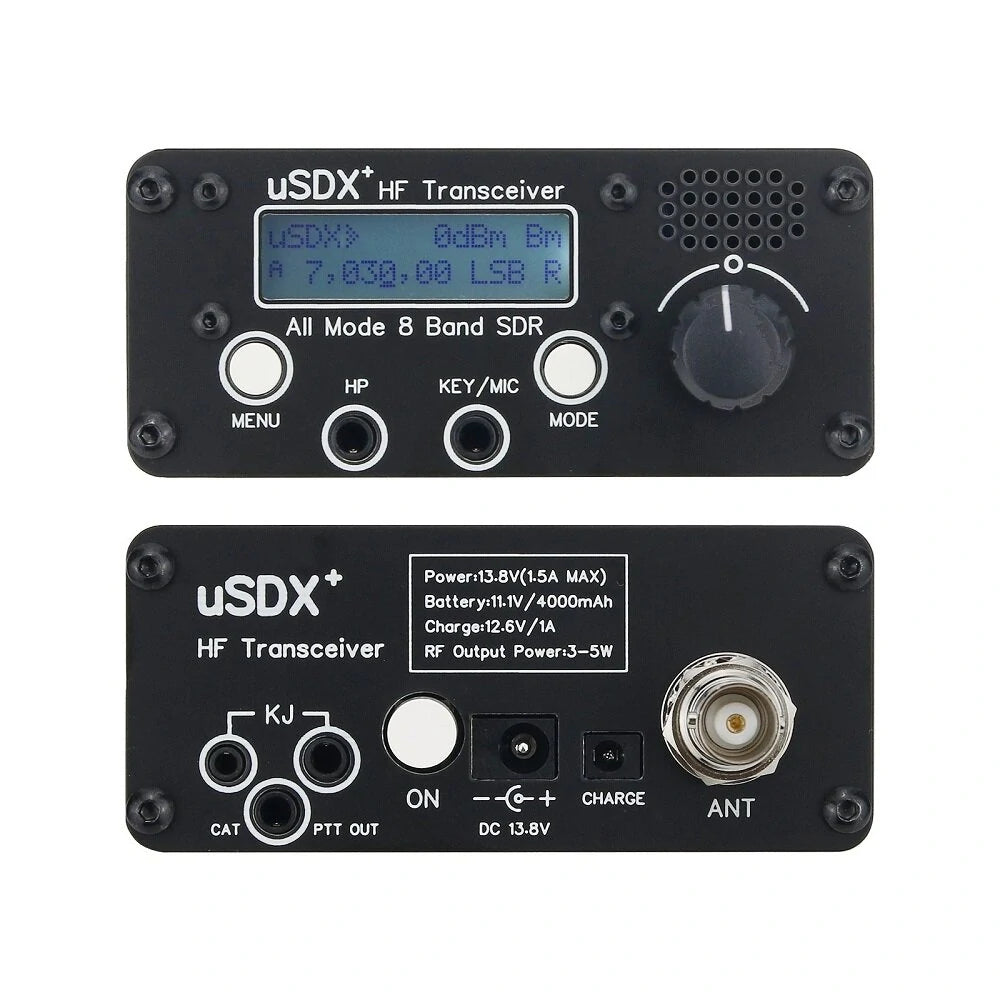

This is a compact and portable shortwave QRP SSB/CW transceiver featuring:

• 1602N LCD display screen
• Built-in speaker
• PC connectivity to use with FT8, JS8, FT4, and other digital mode software
• CW automatic decoding

Features

• 8 bands: 80m, 60m, 40m, 30m, 20m, 17m, 15m, 10m
• High-efficiency PCB layout following high-frequency circuit design principles
• 3-5W power output across 8 bands, with upgradeable SOT-223 and TO-220 pads
• High efficiency: over 80% in lower bands, 70% in 17m, 60% in 15m and 10m
• High-precision KDS brand TCXO with frequency accuracy better than 1PPM
• Compact dimensions: 83mm x 38mm x 124mm (excluding protrusions)

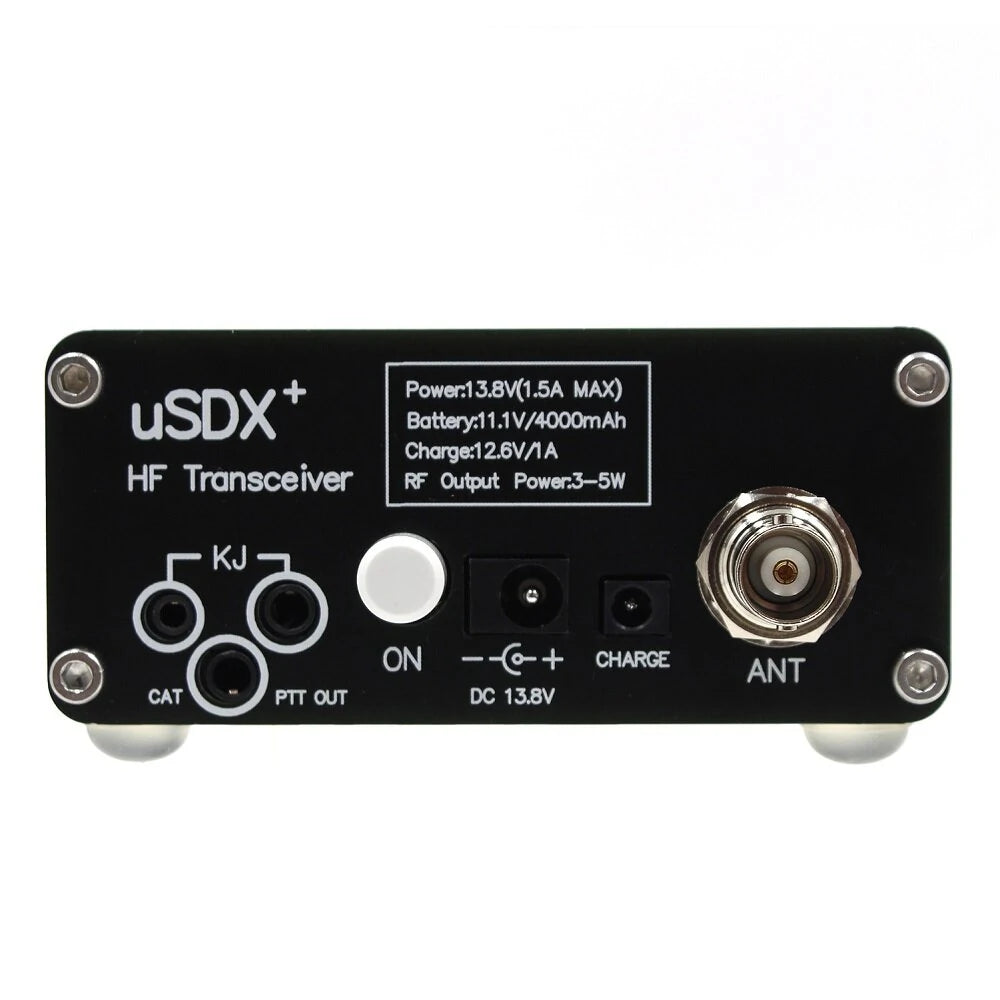

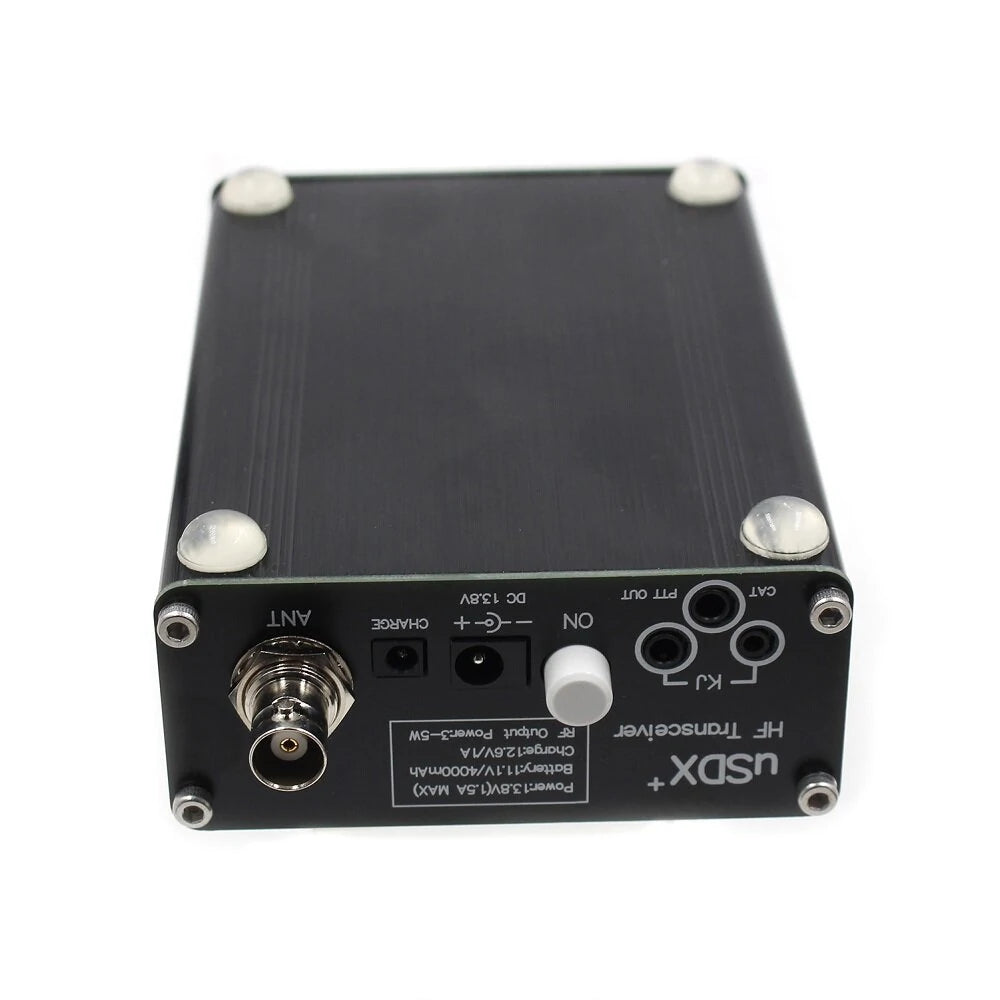

• Multiple interfaces: CAT, PTT OUT, MIC/KEY, K-head microphone
• 100V C0G/NP0 capacitors used in all LPF parts
• Original Omron magnetic latching relay for reliable operation
• Low-noise op amp chip for superior performance
• BNC Antenna Interface

Specifications

• Type: HF QRP SDR Transceiver
• Mode: SSB/CW
• RF Output: Up to 10W at 13.8V DC input
• Frequency Range: 3.5-30MHz
• Antenna/Connector: 50 ohms/SO-239
• Shell Size: 124mm x 87mm x 37mm (excluding protrusions)
• Packing Weight: 550g
• Packing Size: 18cm x 12cm x 8cm

Functions

• Simple and versatile QRP SSB HF transceiver with DSP and SDR functions
• EER Class-E drives SSB transmission
• 13.8V power supply for approx. 5W PEP SSB output
• Full mode support: USB, LSB, CW, AM, FM
• DSP filters and functions include AGC, Noise Reduction, and more
• Open-source firmware allows customization
• Lightweight and cost-effective design

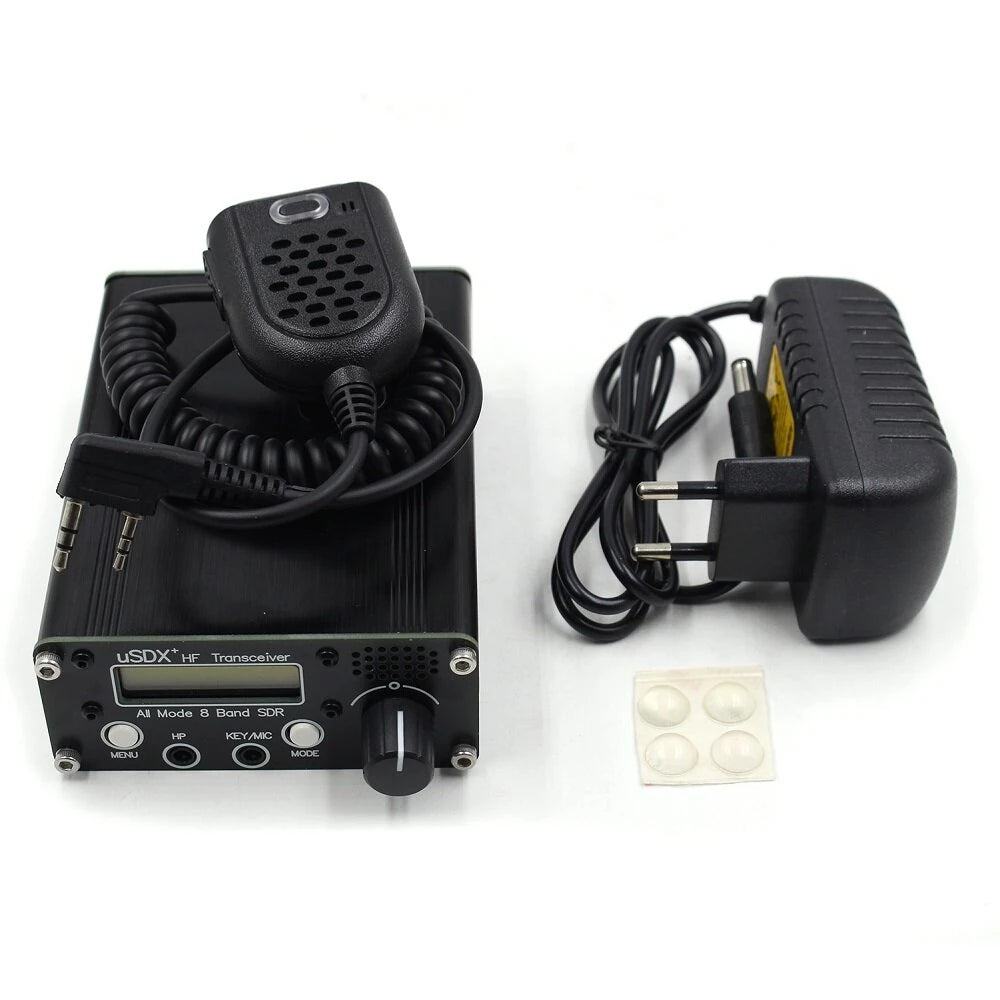

Package Includes

• 1 x Transceiver (battery not included)

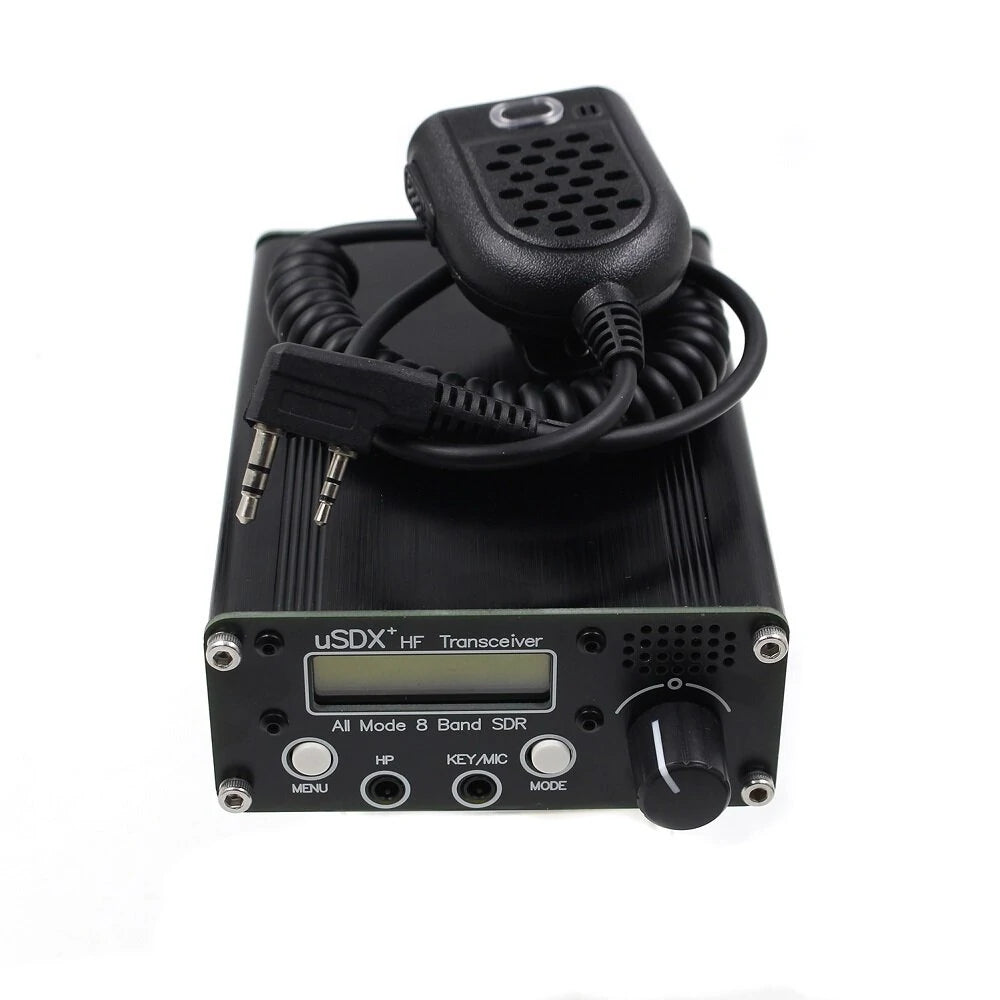

• 1 x Microphone
• 1 x Charger (EU/US plug)
• 4 x Machine Feet
