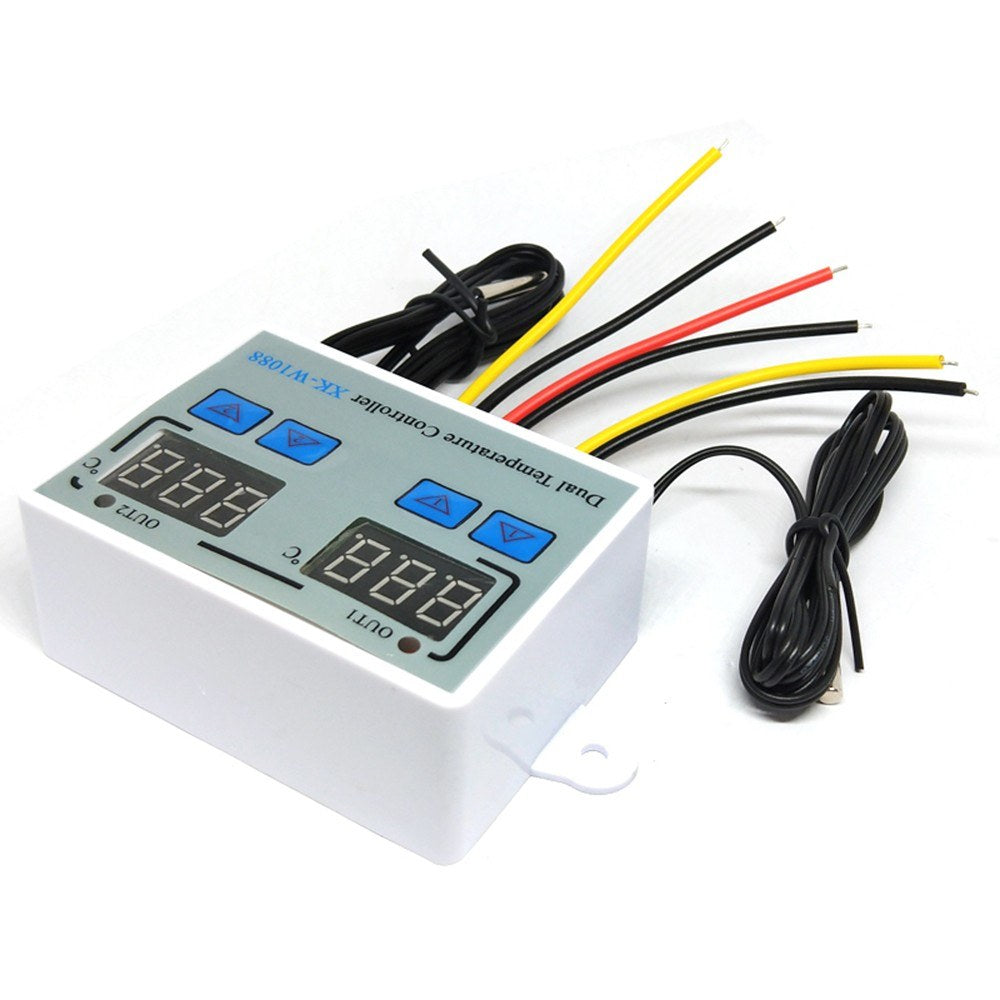

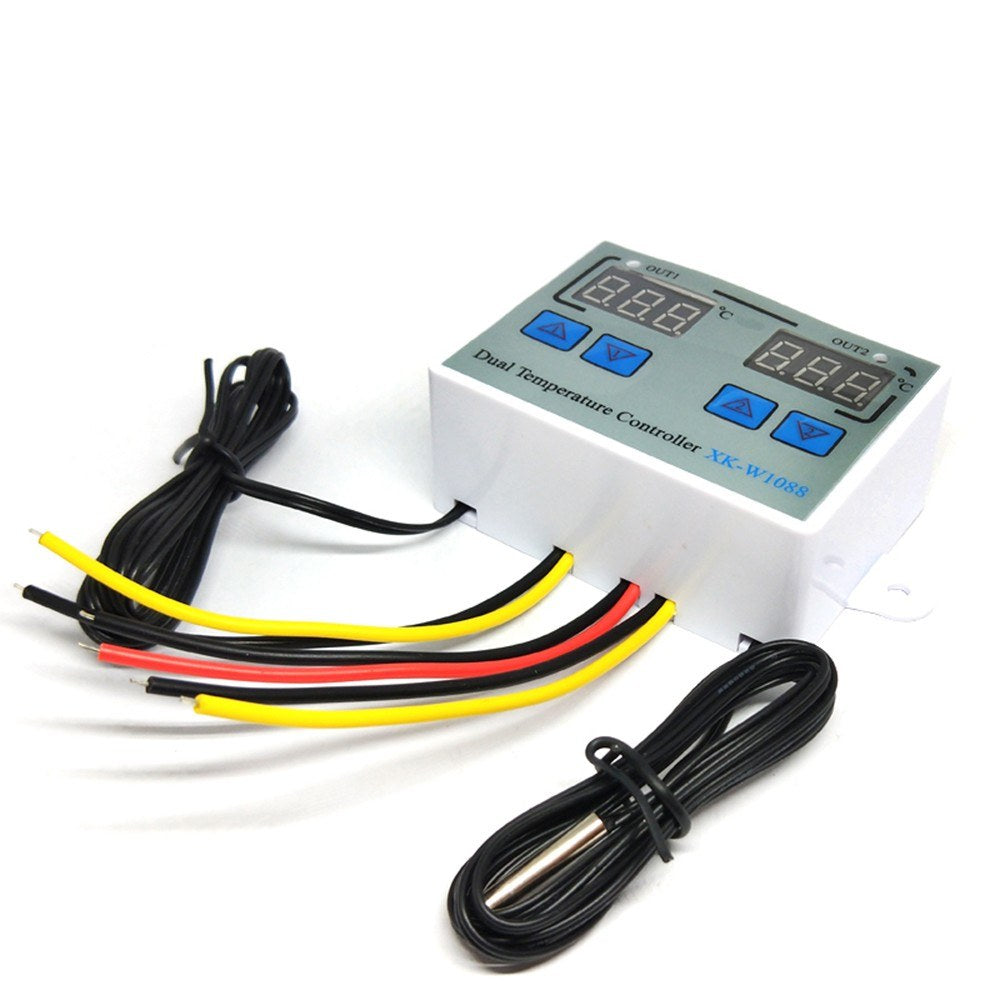

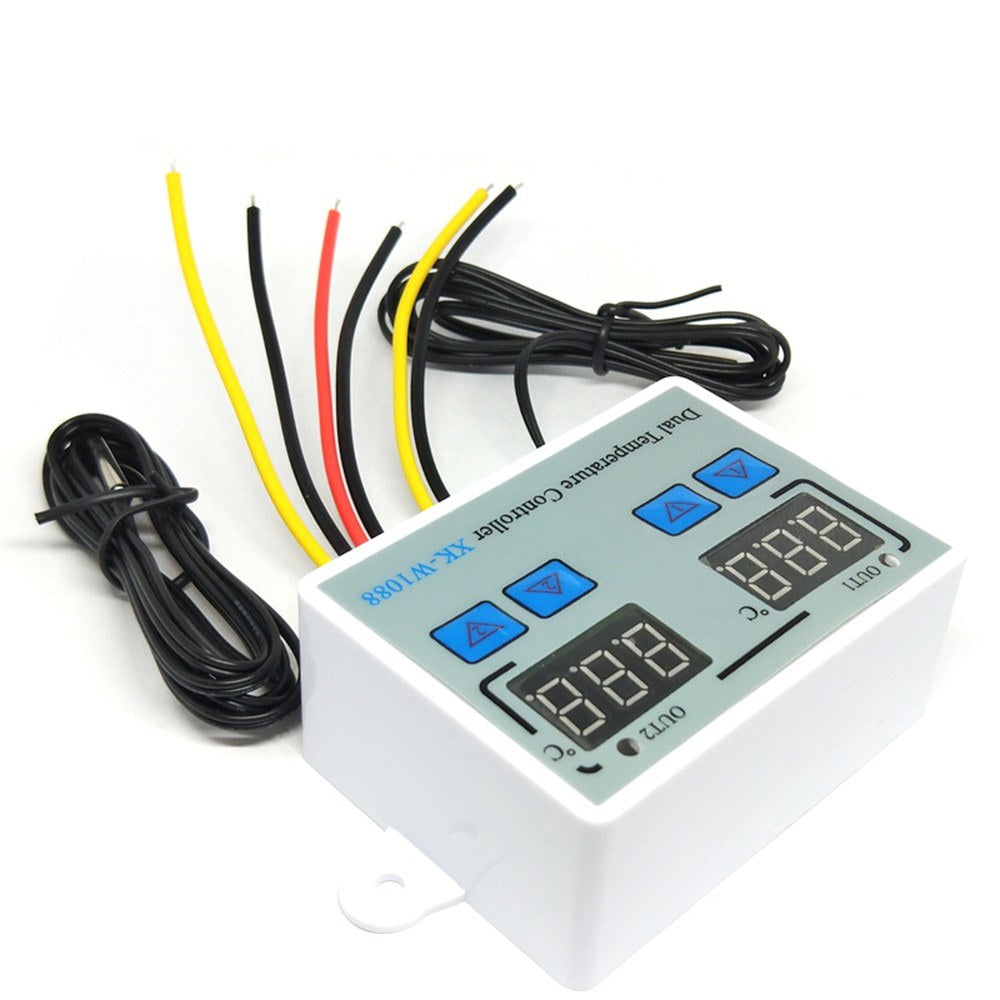

Dual Digital Thermostat Temperature Controller with Two Relay Outputs for Incubator Heating & Cooling, XK-W1088 AC110-220V

Perfect for Various Applications: Ideal for household, institutional, and industrial heating and cooling applications.

Features

• Heating or cooling control
• Red and blue dual LED display
• Independent dual-way temperature controller
• Temperature display resolution: 0.1°C

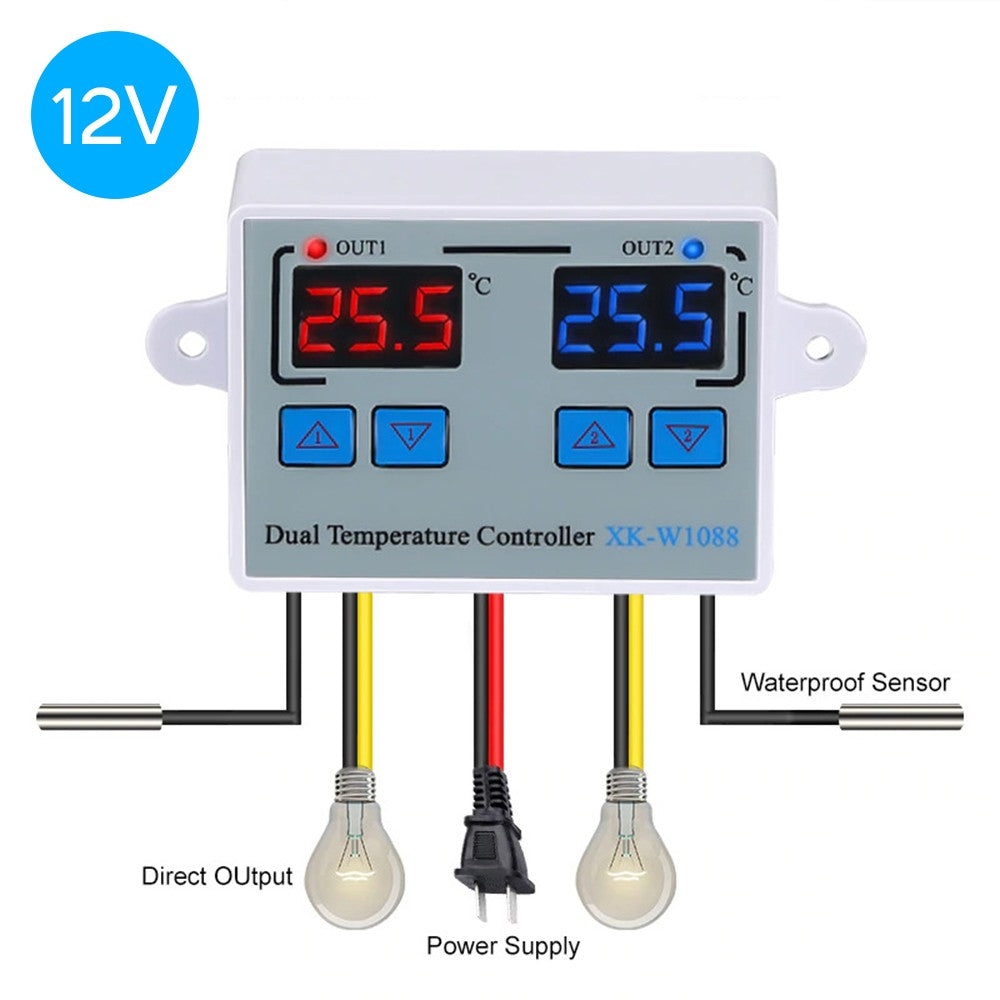

• Direct power output
• High/low temperature alarm support and power loss parameter retention
• Suitable for home temperature control, farms, cold storage, greenhouses, aquariums, etc.

Specifications

• Display Type: Digital
• Material: ABS+PCB
• Style: Standing Station

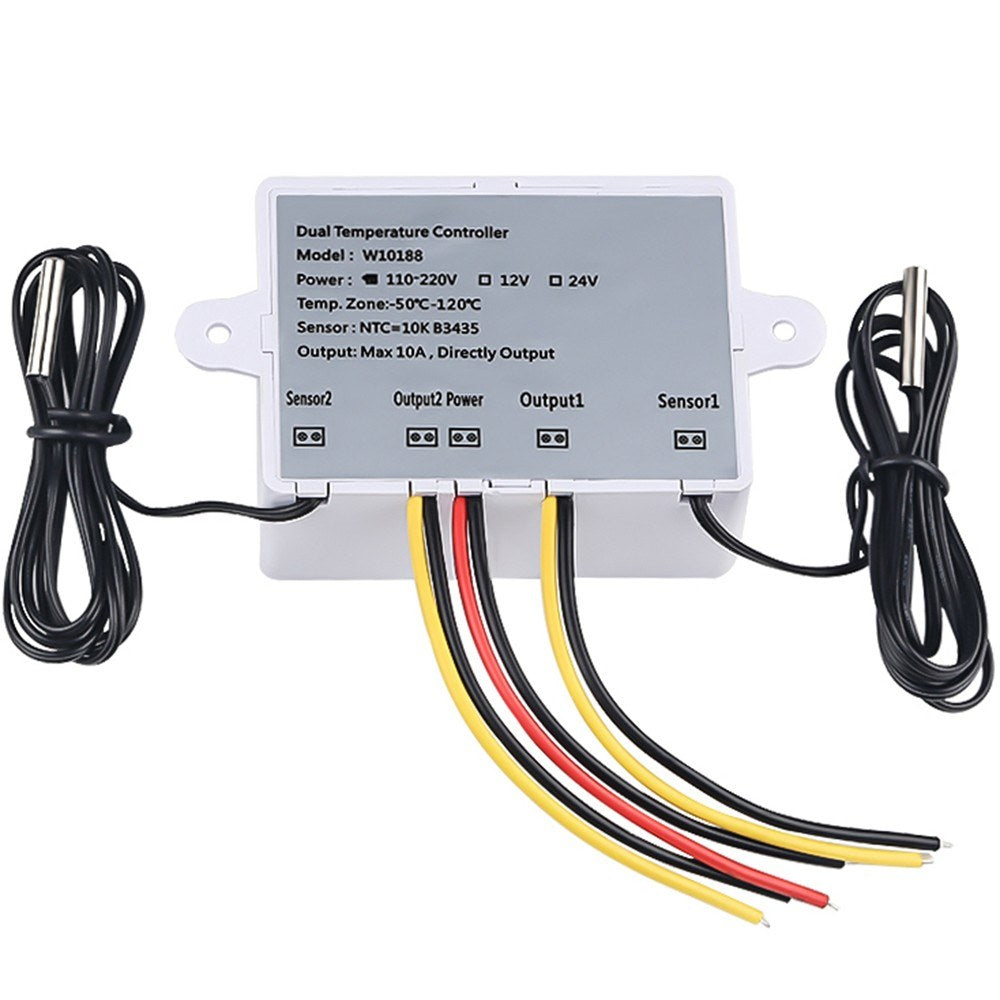

• Temperature Sensor: NTC 10K
• Sensor Length: 1.0m
• Temperature Measuring Range: -55°C to 120°C / -66°F to 248°F
• Resolution: 0.1°C
• Accuracy: ±1°C

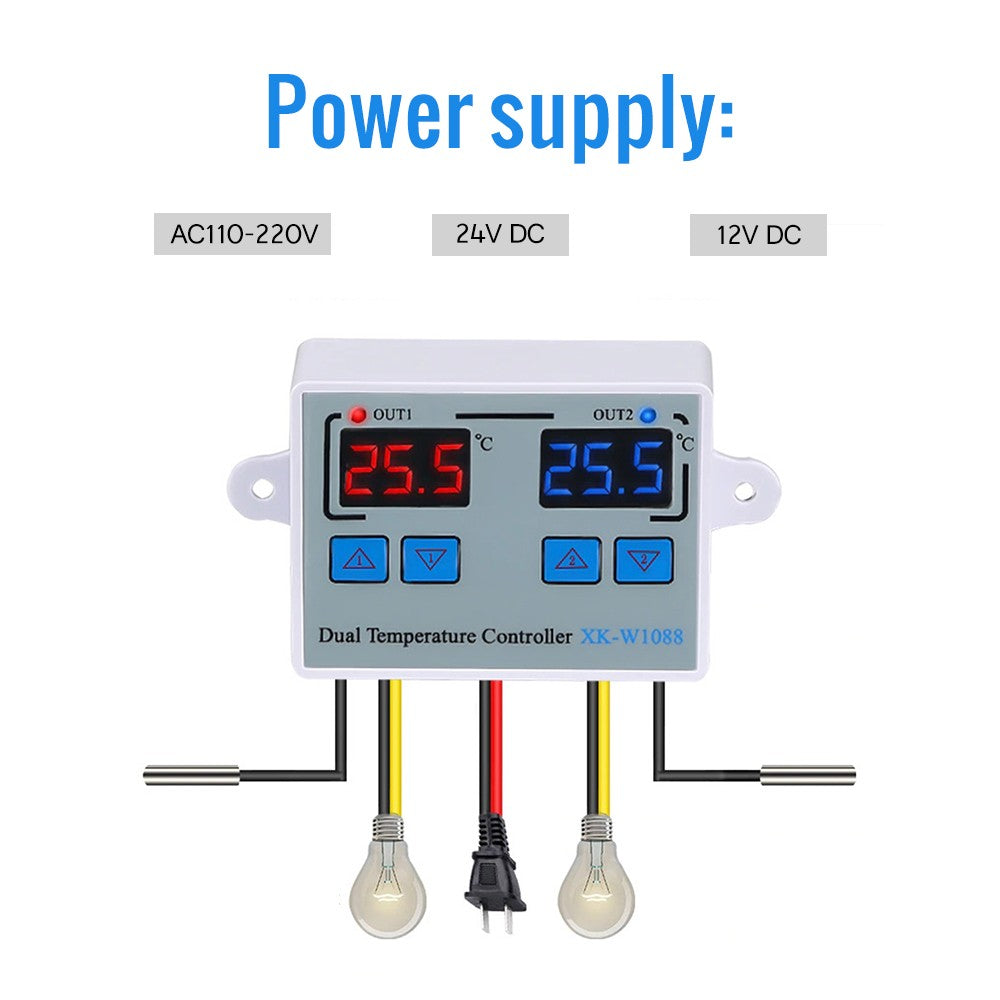

• Power Supply: 110-220VAC 50/60Hz, 12V DC, 24V DC (Choose power supply when ordering)
• Power Consumption: <3W
• Storage Temperature: -30°C to 75°C
• Relative Humidity: 20% to 85% (No condensate)

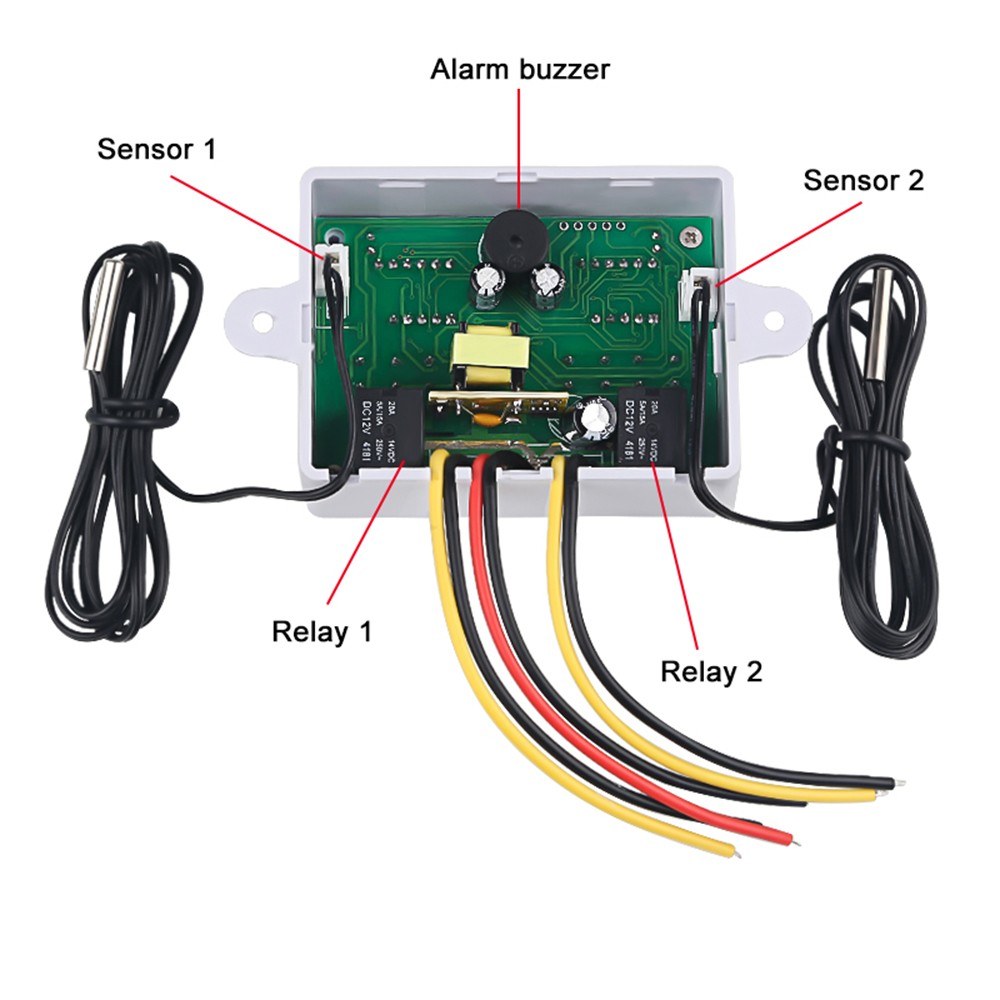

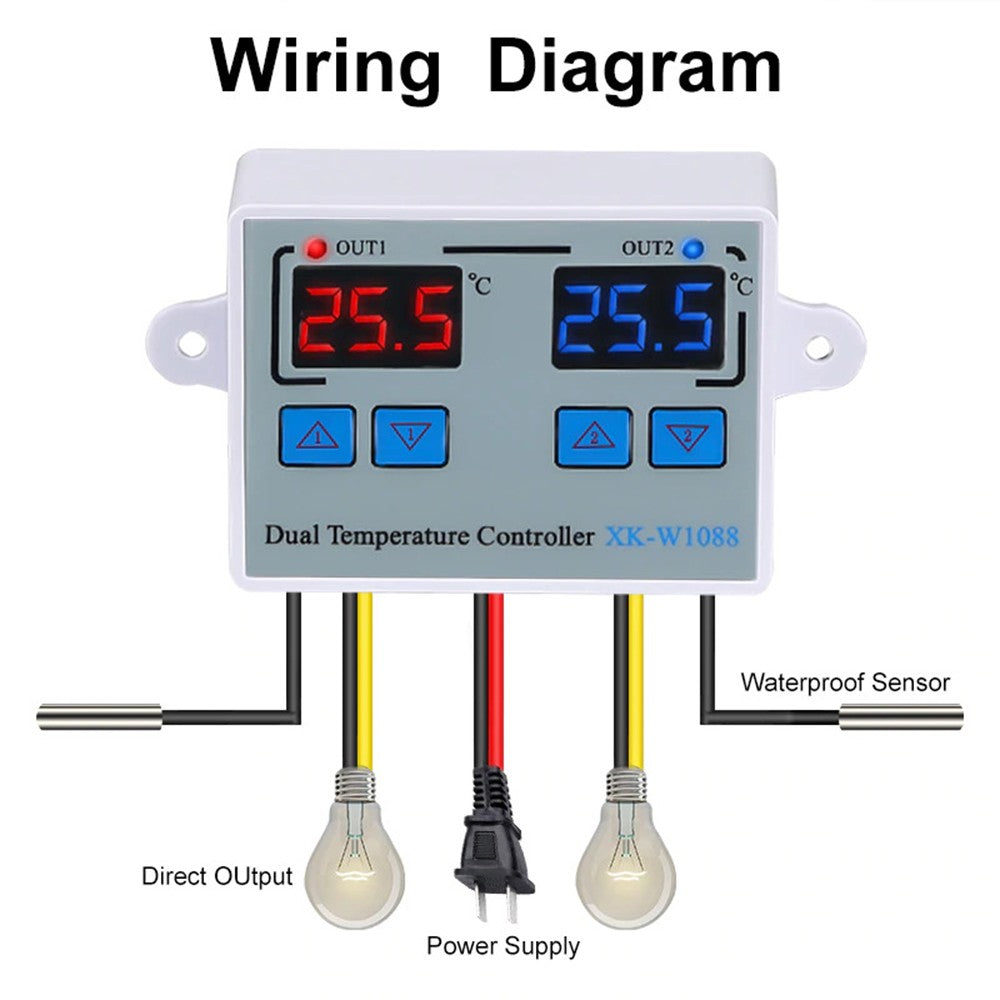

• Relay Contact Capacity: Two Relay Max 10A, Direct Output

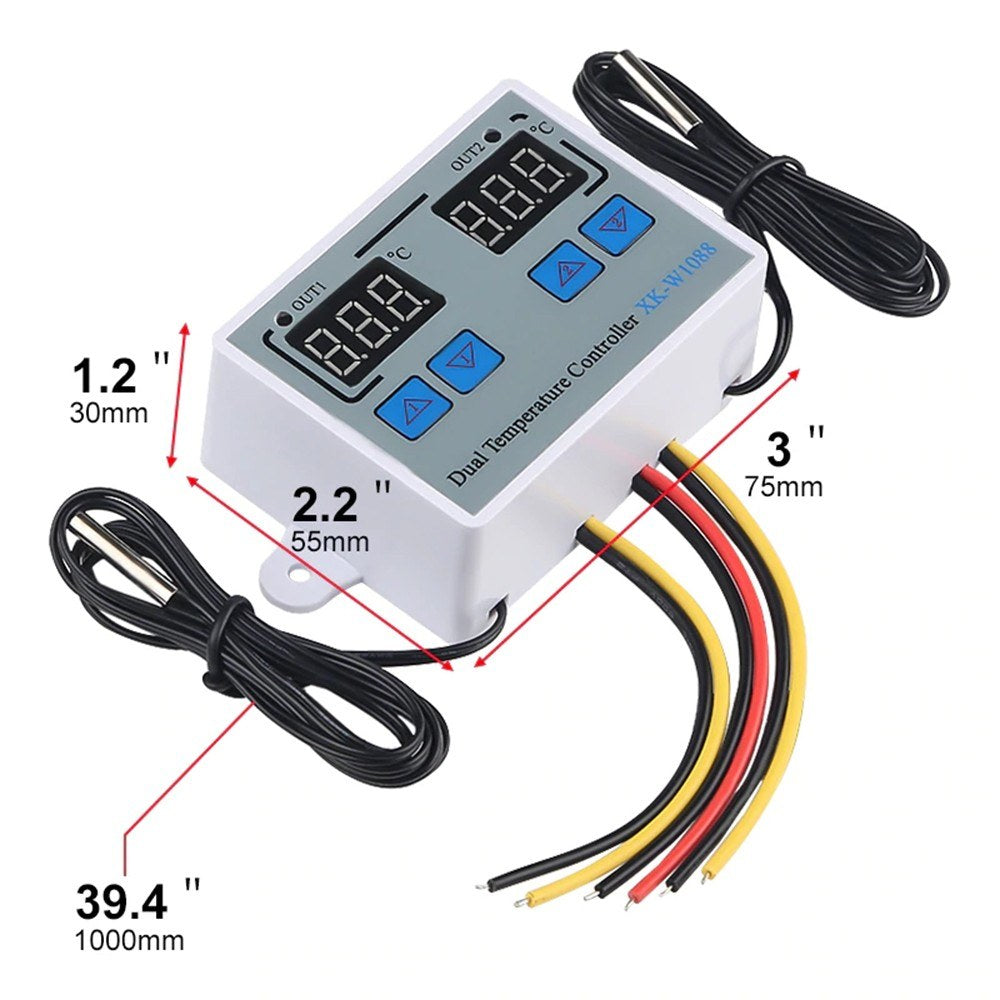

• Item Size: 7.5 x 5.5 x 3.1 cm / 2.95 x 2.16 x 1.22 in
• Item Weight: 80g / 2.82oz

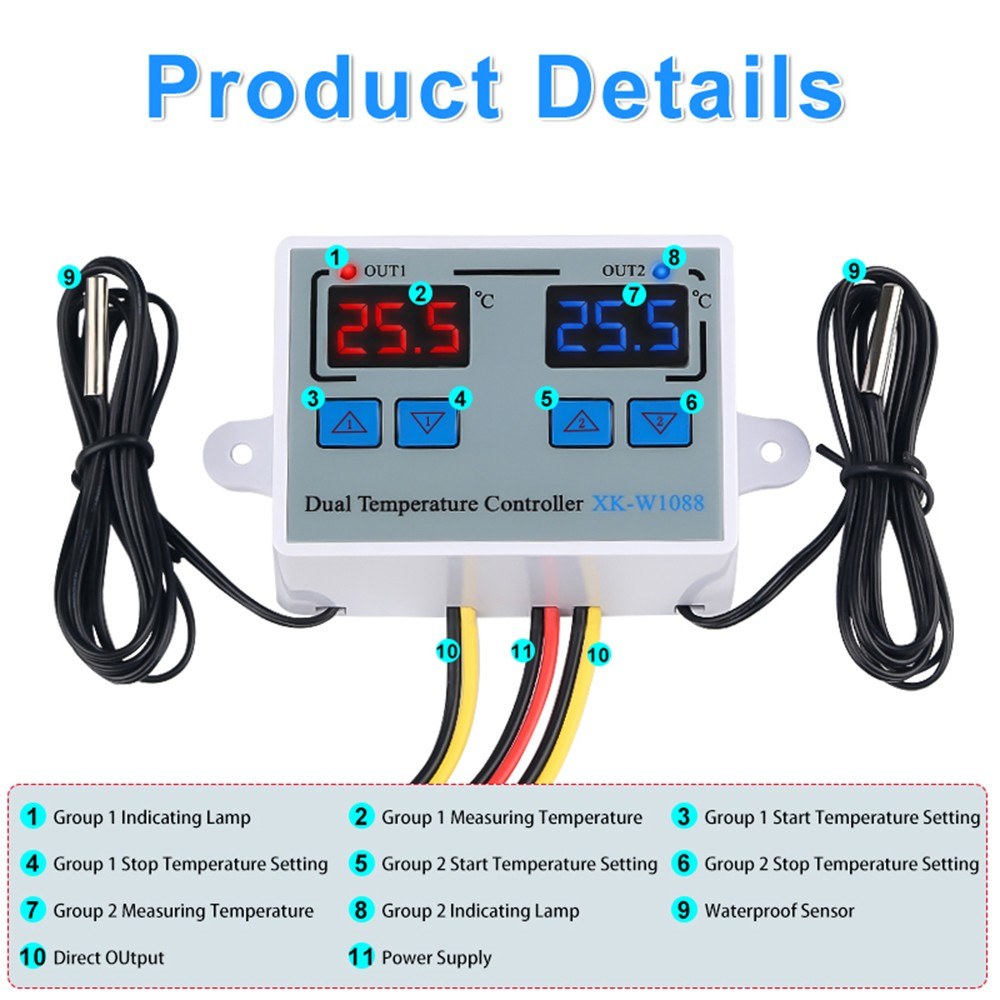

Settings and Adjustments

Set Startup Temperature: Press the "up" button once to display the starting temperature. Long press for 3 seconds to set the desired temperature using the up and down keys.

Set Stop Temperature: Press the button once to display the stop temperature. Long press for 3 seconds to set the desired temperature using the up and down keys.

Entering Setting Mode: Press "Up 1" and "Up 2" buttons simultaneously.

Restore Factory Settings: Press "Down 1" and "Down 2" buttons simultaneously to restore to factory settings.

Temperature Correction: Press "Up 1" and "Down 1" for 3 seconds. Correct positive value using measured value + corrected value (use same method for group 2 temperature correction).

Note:

• Heating Mode: Start temperature < Stop temperature
• Cooling Mode: Start temperature > Stop temperature

Parameter Settings

Code	Function	Set Range	Default
P0	Compressor 1 delay time	0-60min	0min
P1	Compressor 2 delay time	0-60min	0min
P2	High temperature alarm value	-55 to 120°C / -67 to 248°F	120°C / 248°F
P3	Low temperature alarm value	-55 to 120°C / -67 to 248°F	-55°C / -67°F

Package List

• 1 x Temperature Controller
• 2 x Waterproof Sensor
