13-17S Capacitive Battery Balancer for Li-ion, Lifepo4, LTO - Active Energy Equalizer

Product Features

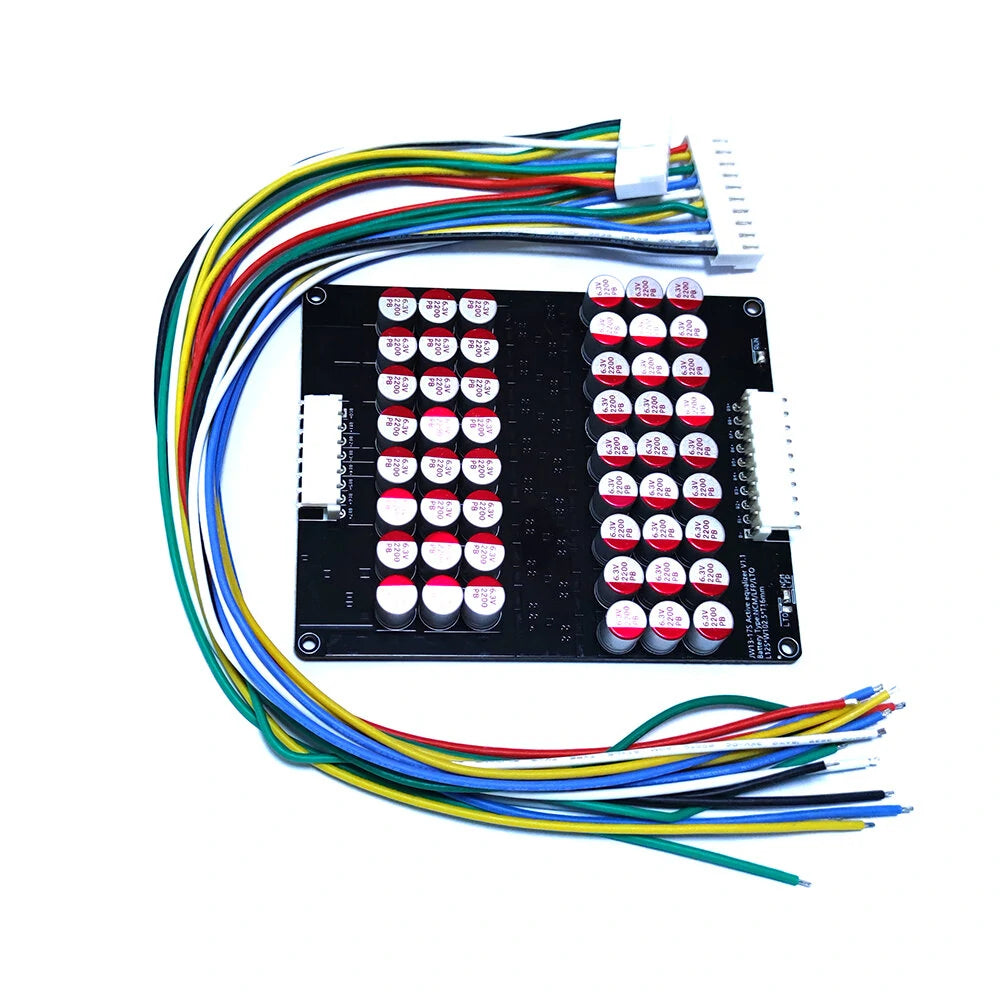

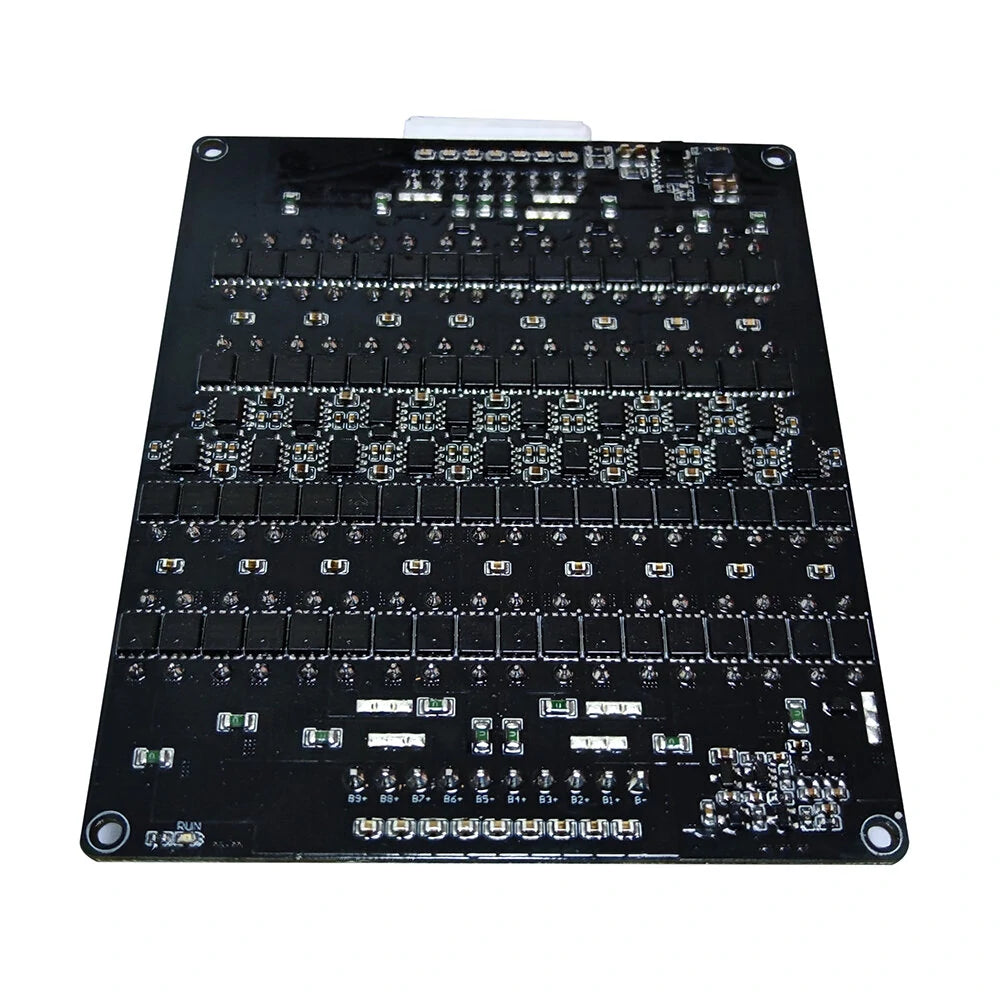

• Li-ion/Lifepo4/Lipo 16S Capacitive Active Balancer Board
• Compatible Battery Types: NCM, LFP, LTO
• Single Voltage Operating Range:
  • NCM/LFP: 2.7-4.2V
  • LTO: 1.8-4.2V
• Balancing Method: The entire battery pack actively participates in energy transfer balance simultaneously.
• Static Working Current: 17mA
• Under Voltage Protection (Sleep Voltage):
  • NCM/LFP: < 2.7V
  • LTO: < 1.8V
• Working Temperature: -10 to +60 ℃
• External Power: No external power supply needed; relies on battery's internal energy transfer for group balance.

Technical Index

Cells Supported	Applicable Battery Type	Operating Voltage Range	Voltage Equalization Accuracy	Equalizing Current	Undervoltage Protection	Static Operating Current (mA)	Size (L*W*T mm)
3S4S4-5S4£S5-7S6-8S9-14S12-16S13-17S (this item) 17-21S	Li-ion/Lifepo4 Li-ion/Lifepo4/LTO	Li-ion/Lifepo4: 2.7-4.2V LTO: 1.8-4.2V	5mV (typical value)	0.08V differential pressure 1A equalization current; differential pressure proportional to equalization current	Li-ion/Lifepo4: 2.7V LTO	9mA 9mA 7mA 7mA 7mA 7mA 15mA 15mA 17mA 16mA	66*35*16 66*46*16 69*58*16 69*69*16 80*69.5*16 91*70*16 125*80*16 125*91*16 115*102.5*16 145*130*18

Operating Environment

-10℃ to 60℃

Working Mechanism

No external power supply is required; the balancer relies on the battery's internal energy transfer to achieve group balance.

Package Includes

• 1 x Li-ion/Lifepo4/Lipo Capacitive Active Balancer Board
