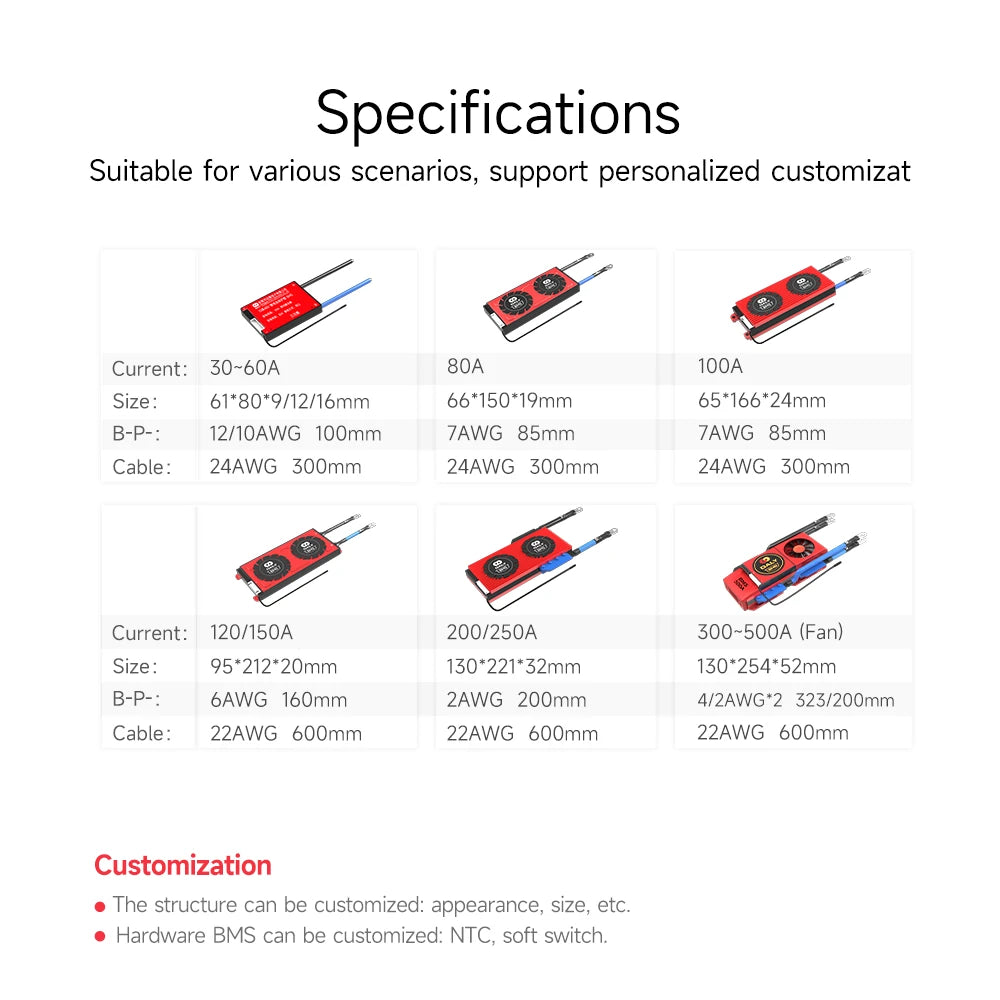

Technical Specifications

• Charge Voltage: LifePO4: N(strings) * 3.65V

Discharge Current (A)

• 30
• 40
• 50
• 60
• 80
• 100
• 120
• 150
• 200
• 250
• 300
• 400
• 500

Discharge Overcurrent Protection Value (A)

• 100 ±20
• 160 ±30
• 160 ±30
• 220 ±40
• 360 ±50
• 360 ±50
• 260 ±50
• 260 ±50
• 500 ±100
• 500 ±100
• 500 ±100
• 1000 ±200
• 1000 ±200

Charge Current (A)

• 15
• 20
• 25
• 30
• 40
• 50
• 60
• 75
• 100
• 125
• 150
• 200
• 250

Charge Overcurrent Protection Value (A)

• 45 ±5
• 60 ±10
• 75 ±10
• 80 ±10
• 140 ±20
• 140 ±20
• 100 ±20
• 100 ±20
• 200 ±30
• 200 ±30
• 200 ±30
• 400 ±100
• 400 ±100

Protection Specifications

• Main Circuit Conduct Inner Resistance: Over charge protection
• Balance Voltage: Detect voltage: LifePo4: 3.75±0.05V
• Detect Voltage: LifePo4: 3.525V
• Protection Delay: 1S
• Release Voltage: LifePo4: 3.525V
  LifePo4: 3.55±0.05V
• Balance Current: 30±5mA
• Over Discharge Protection: Detect voltage: LifePo4: 2.3±0.05V
• Protection Delay: 1S
• Protection Release Condition: Off load
• Release Voltage: LifePo4: 2.7±0.05V
• Short Circuit Protection: Self Consumption
• Protection Condition: Short circuit of external load
• Working Current: 100~200mA
• Detect Delay: 200~500uS (Subject to actual test)
• Sleeping Current Over-discharge: 0uA
• Release Condition: Off load

Temperature Range

• Working Temperature: Charge: -20~55℃, Discharge: -40~70℃ (Customizable)
• Working Temperature Range: -20~60℃
• Storing Temperature Range: -40~85℃

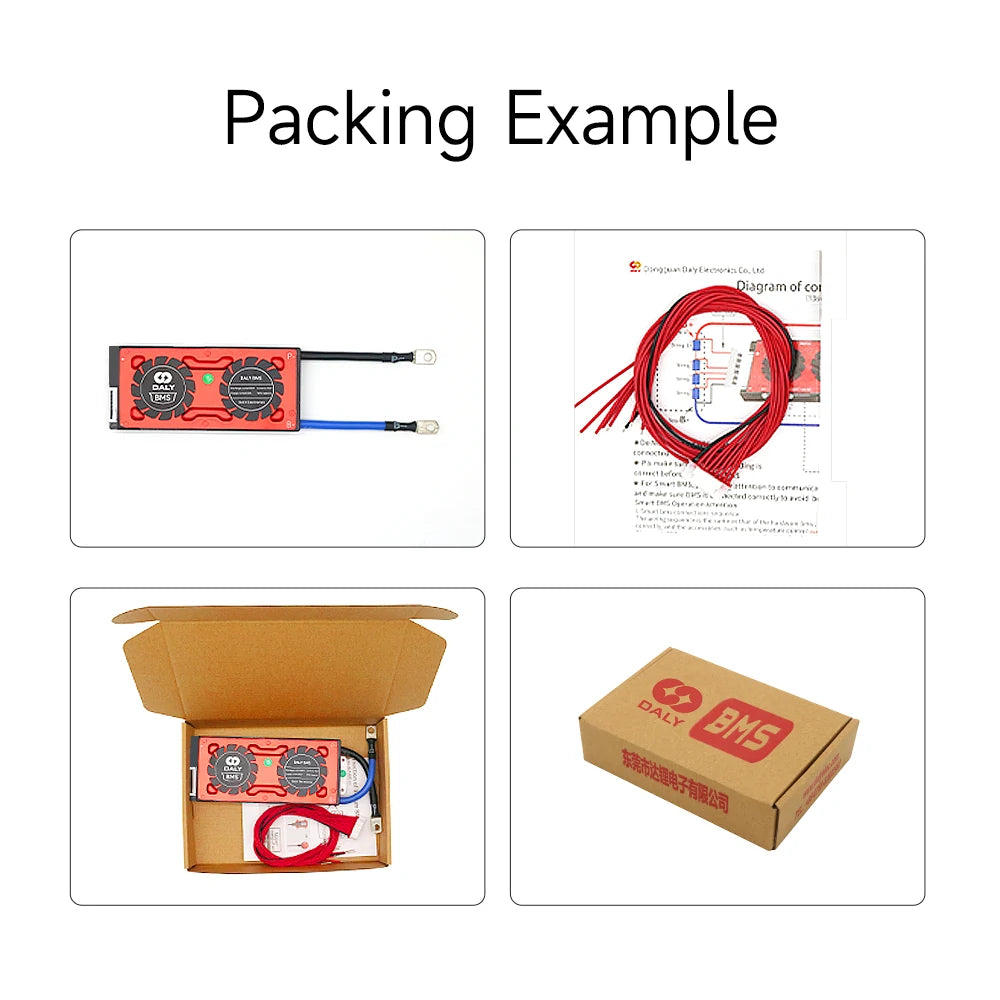

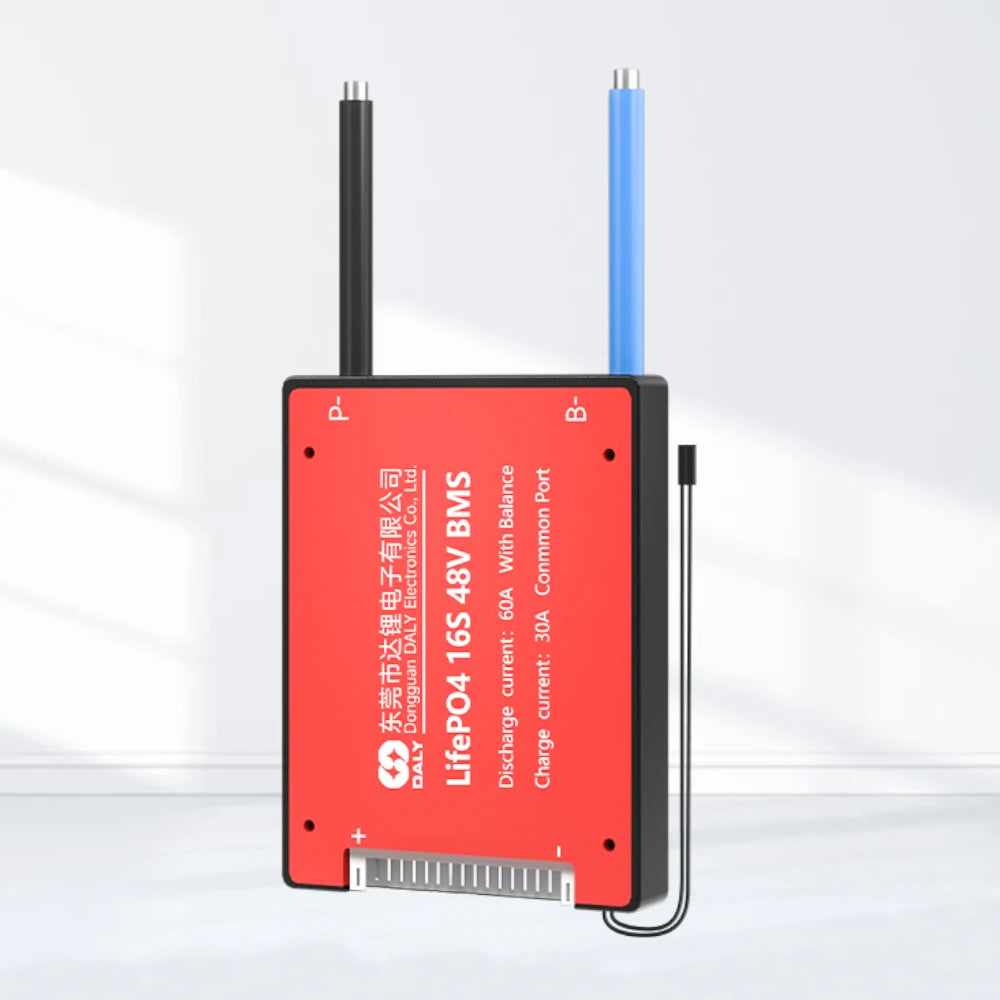

Package Includes

• 1 x Battery Protection Board
• 1 x Cable

The appearance and weight of products with different currents may vary. Please refer to the product received for exact specifications. Thank you for your understanding.

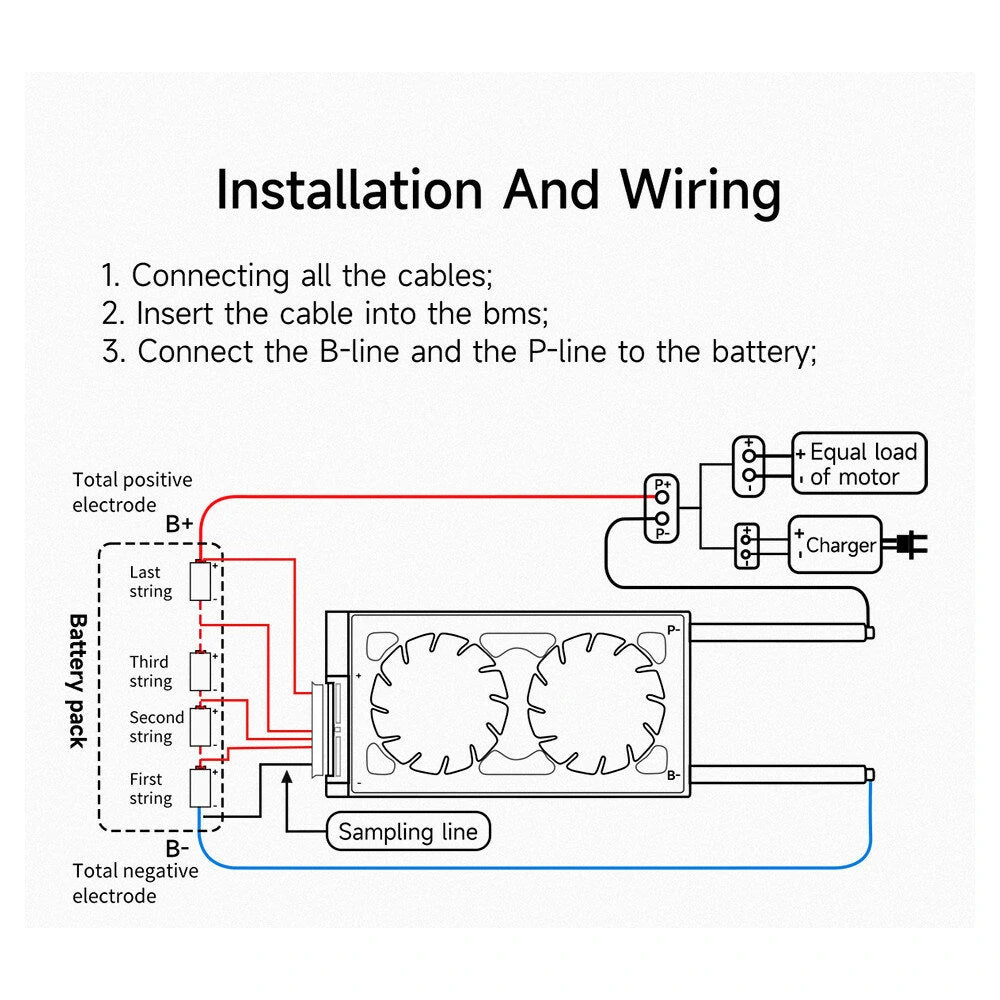

Protective Board Connection Battery Wiring

Important Note: Use matching cables as wire standards may vary among manufacturers. Pay attention to B- and P- marks as line colors can differ.

1. Attention: Do not insert the cable into the BMS when welding sampling wire cable.
2. Connect the total negative electrode B- from the fine black line. The second wire (red wire) is connected to the positive pole of the first string of batteries. Connect the positive electrode of each string of batteries in turn until reaching the last wire of the total positive B+.
3. After connecting the cable, measure the voltage between each two adjacent metal terminals on the plug's back. Voltages should be:
   - Ternary lithium battery: 3.0~4.15V
   - Iron-lithium battery: 2.5~3.6V
   - Lithium titanate battery: 1.8-2.8V
4. Connect the BMS B-line (blue thick line) to the total battery negative electrode (B-line length should not exceed 40cm).
5. Insert the wire cable into the BMS.

Post-Wiring

1. Check if the voltage of battery B+, B- is equal to B+ and P- voltage. They should be equal for normal BMS functioning. If not, recheck the wiring configuration.
2. Connecting the positive electrodes: Charge and discharge ends directly connect to the total positive pole B+ of the battery; same port BMS connects charging and discharging negative poles to the P- point; branch BMS connects charging negative to C-, discharge negative to P-.
3. For any queries, please contact customer service for assistance.
