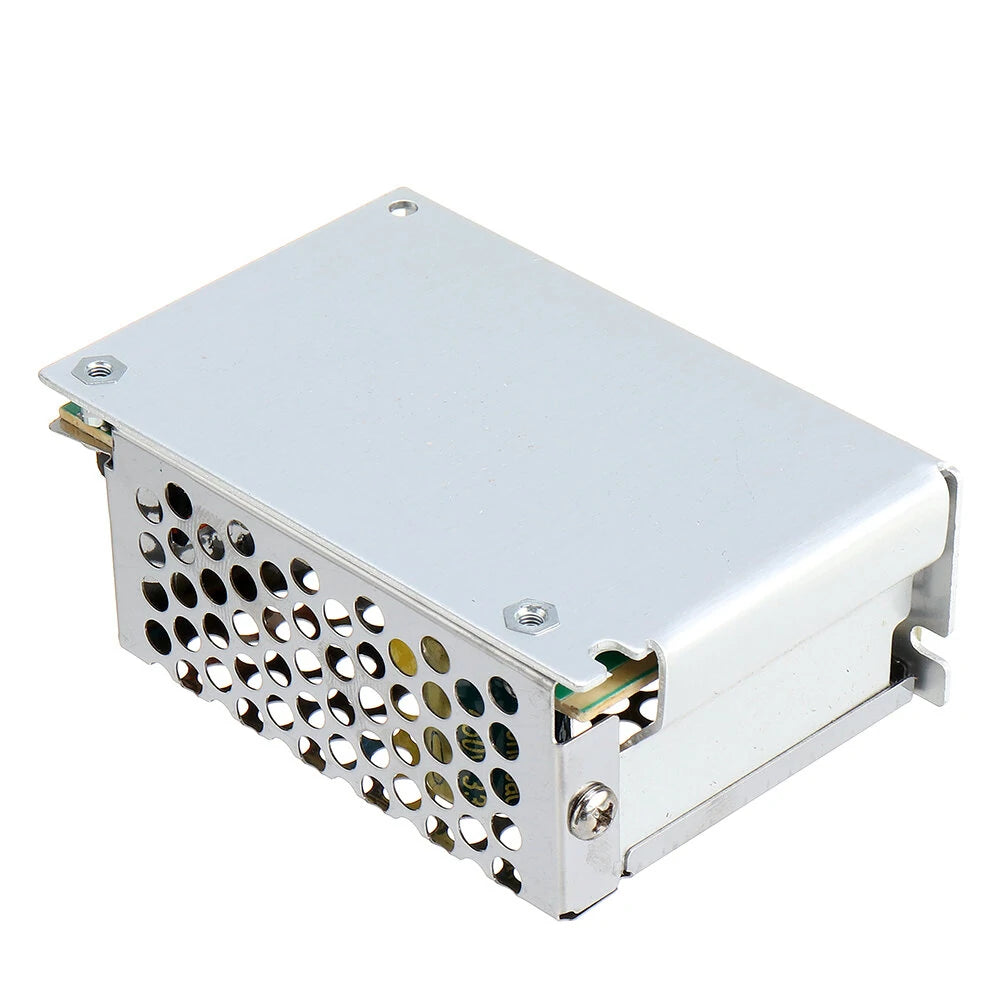

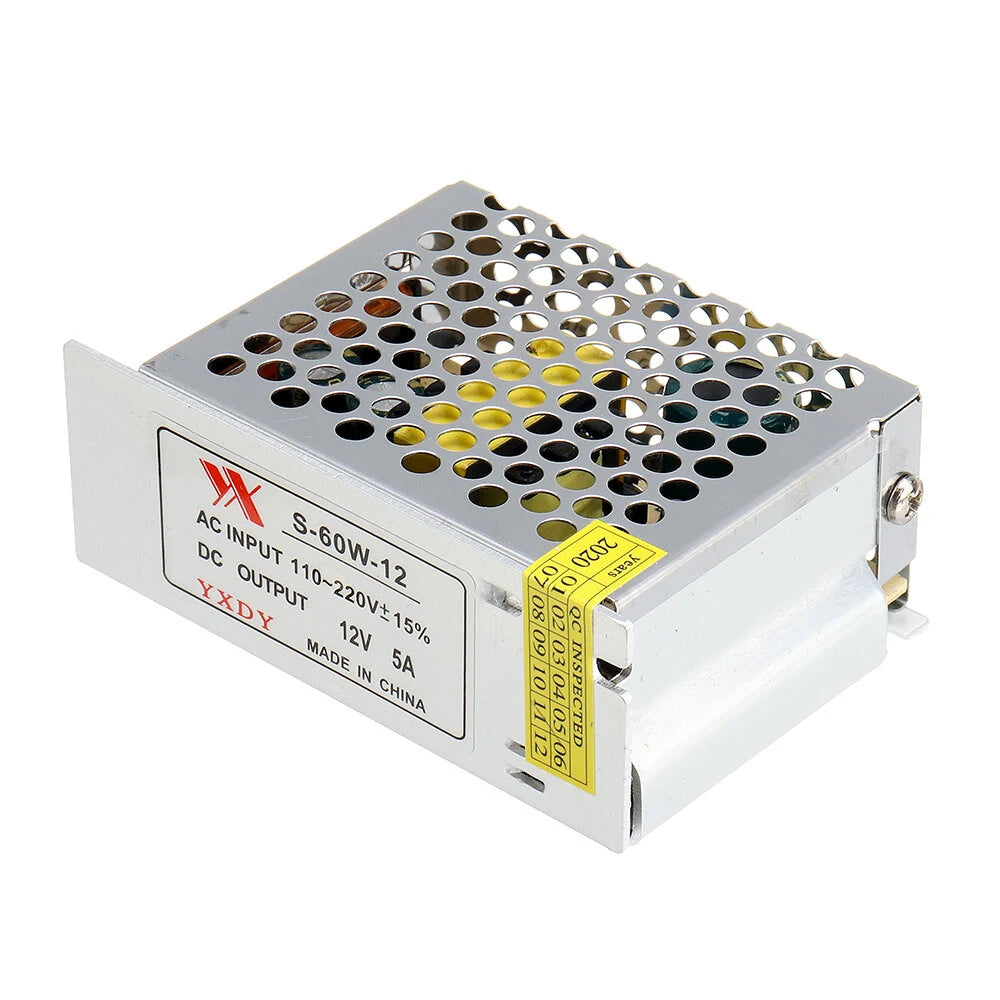

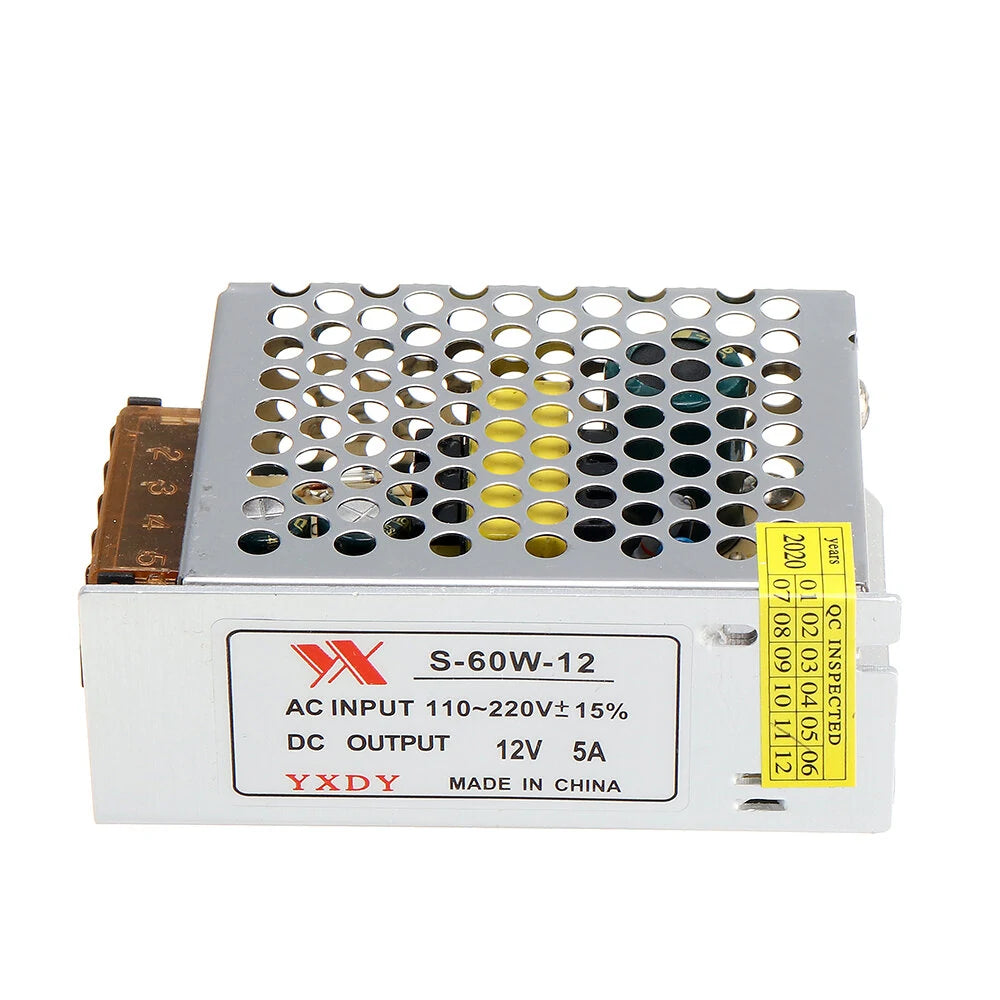

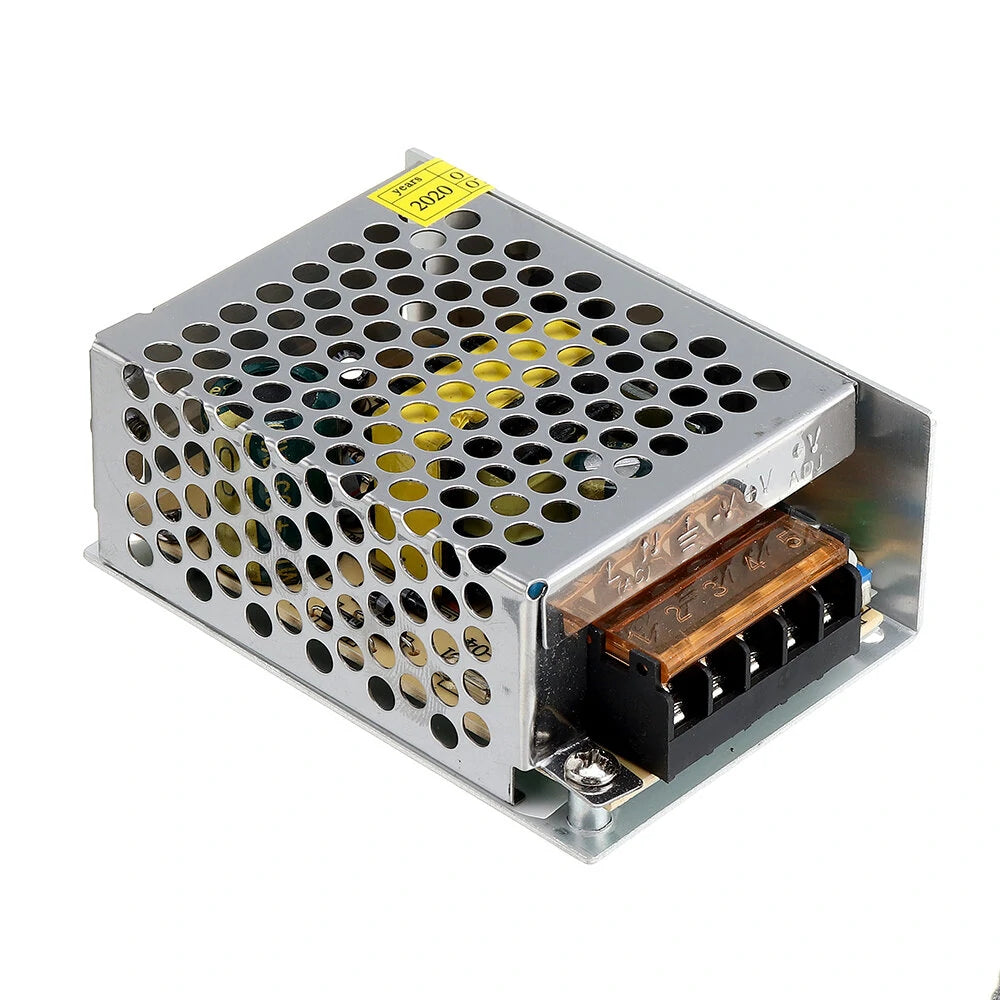

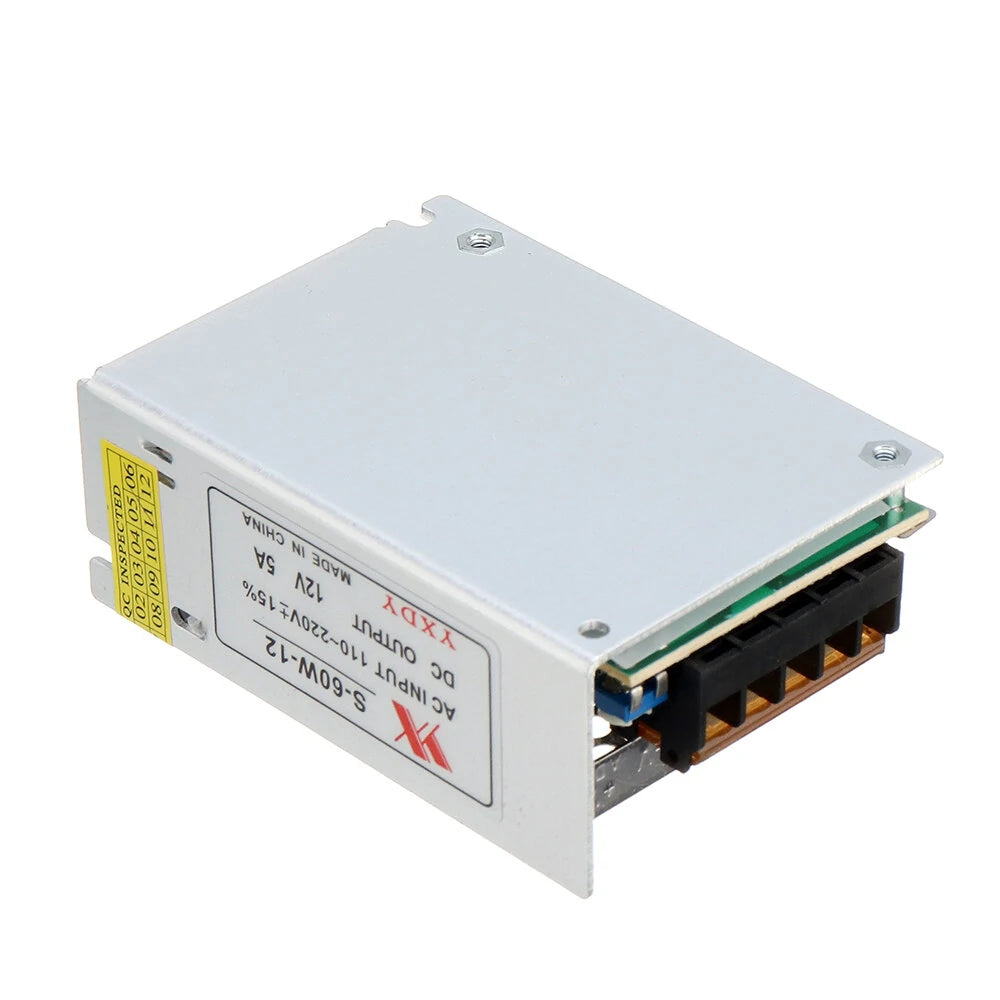

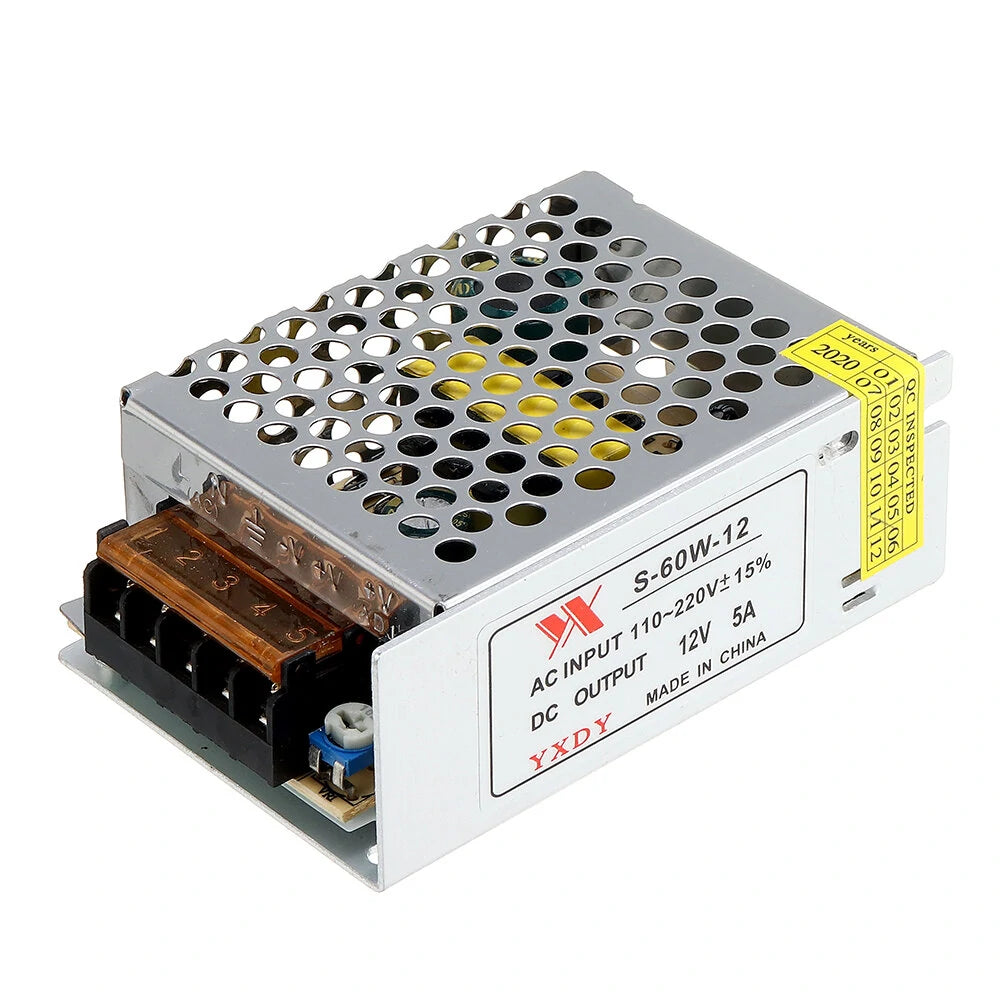

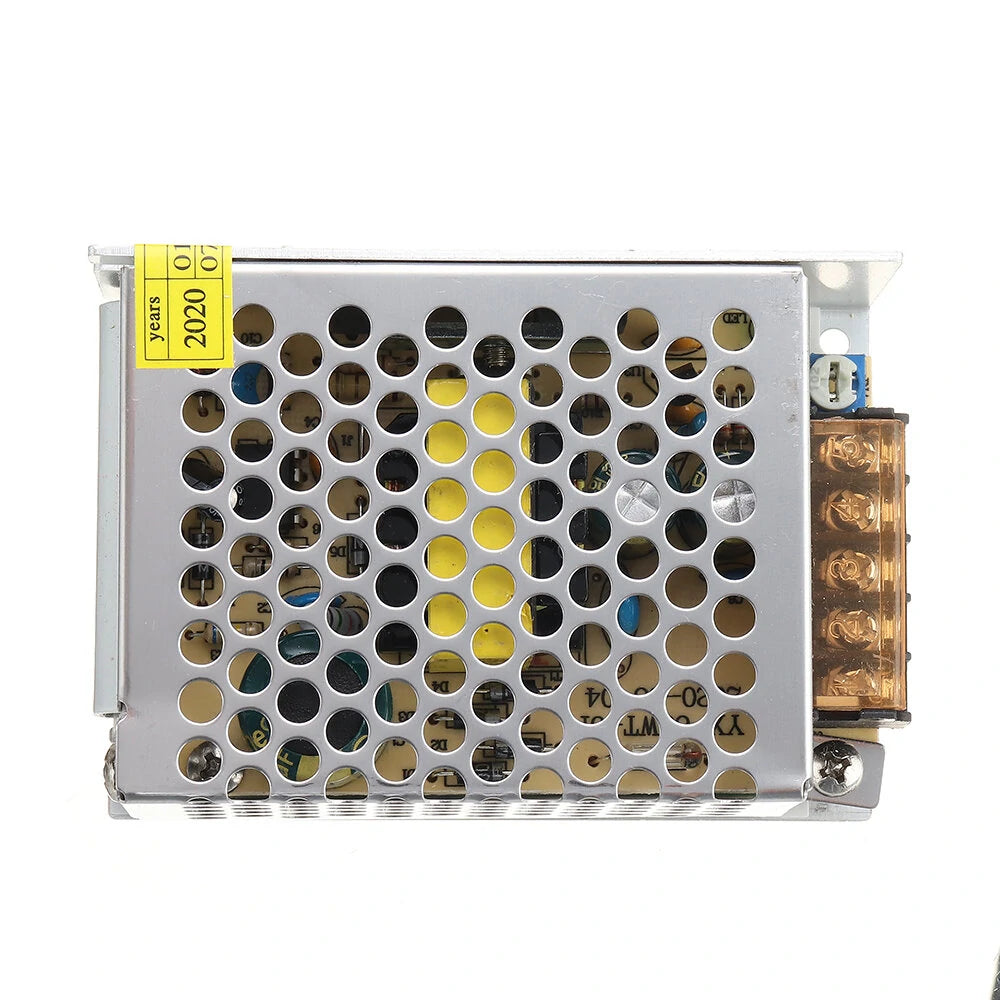

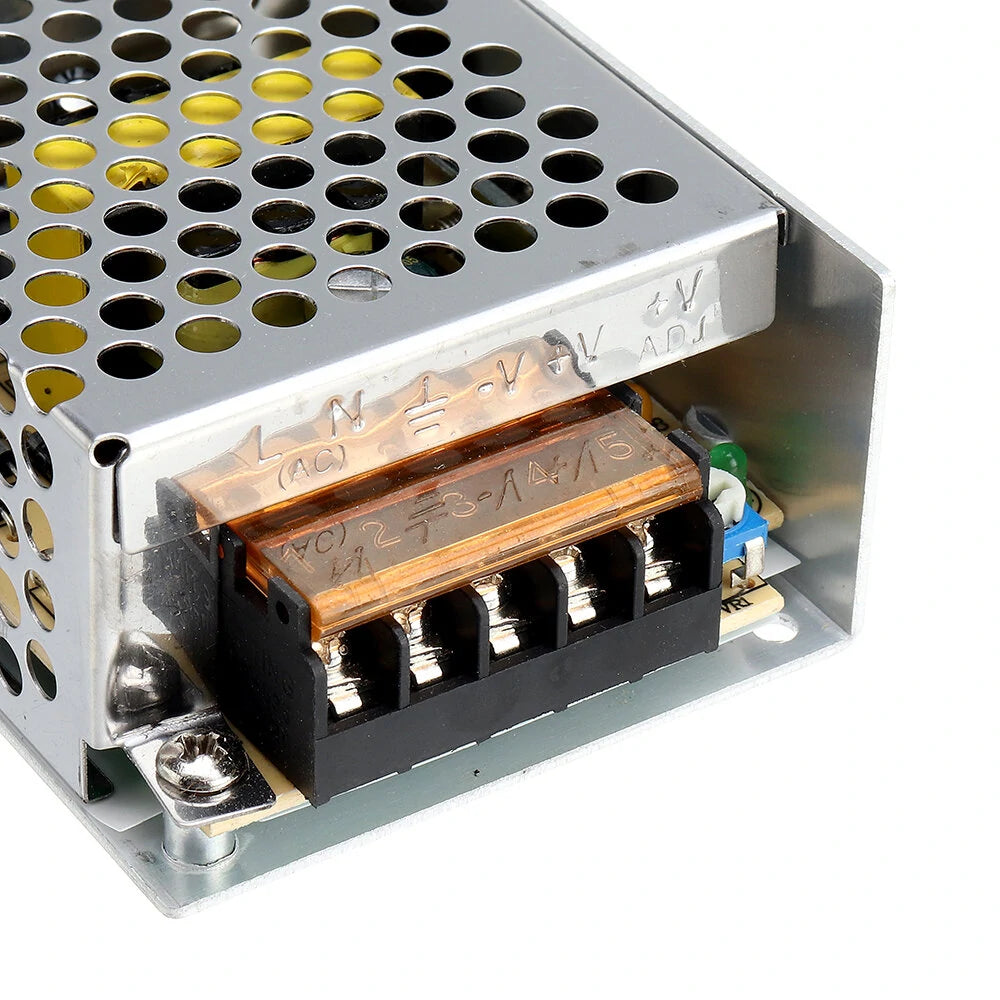

Geekcreit® 60W AC 100-240V to DC 12V 5A Power Supply Adapter for LED Strip Lights
Geekcreit® 60W AC 100-240V to DC 12V 5A Power Supply Adapter for LED Strip Lights
Regular price
$4.99 USD
Regular price
$0.00 USD
Sale price
$4.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Product Features
- Excellent anti-interference performance and high reliability for uninterrupted use.
- Operates at a low temperature with an extended lifespan.
- Compatible with global standards with a wide input voltage range of 100-240V.
- Provides superior insulation and high electrical strength.
- Endures rigorous testing with 100% aging test under full load at high temperatures.
Specifications
| Model: | HS-60-12 |
| DC Output Voltage: | 12V |
| Output Voltage Tolerance: | ±1% |
| Rated Output Current: | 5A |
| Output Current Range: | 0 - 5A |
| Ripple and Noise: | 100mVp-p |
| Line Stability: | ±0.5% |
| Load Stability: | ±0.5% |
| DC Output Power: | 60W |
| Efficiency: | 85% |
| DC Voltage Adjustable Range: | ±10% |
| Input Voltage Range: | 100 ~ 240VAC 47 ~ 63Hz; 120-370VDC |
| Input Current: | 2A/115V 1A/230V |
| Inrush Current: | Cold start current 30A/115V 60A/230V |
| Overload Protection: | 105%~150% |
| Overvoltage Protection: | 15%-135% |
| Temperature Coefficient: | ±0.03%/°C (0-50°C) |
| Start, Rise, Hold Time: | 800ms, 50ms, 115VAC 300ms, 50ms/230VAC |
| Shock Resistance: | 10 - 500Hz, 2G 10min, / 1 cycle, a total of 60 points, each axis |
| Pressure Resistance: | Input and output: 3KvAC Input and housing; 1.5KvAC Output and housing; 0.5KvAC |
| Isolation Resistance: | Input and output, input and housing, output and housing: 500VDC/100MΩ |
| Working Temperature: | -10 °C to +60 °C, 20% - 90% RH |
| Storage Temperature: | -20 °C to +85 °C, 10% - 95% RH |
| Dimensions: | 85 × 60 × 34mm |
Package Includes
- 1 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
