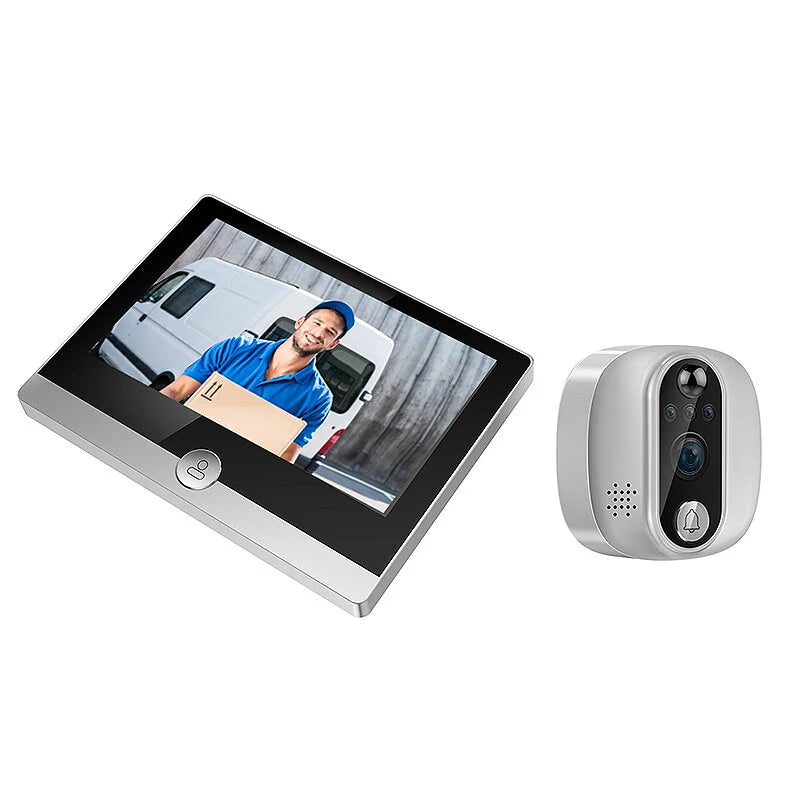

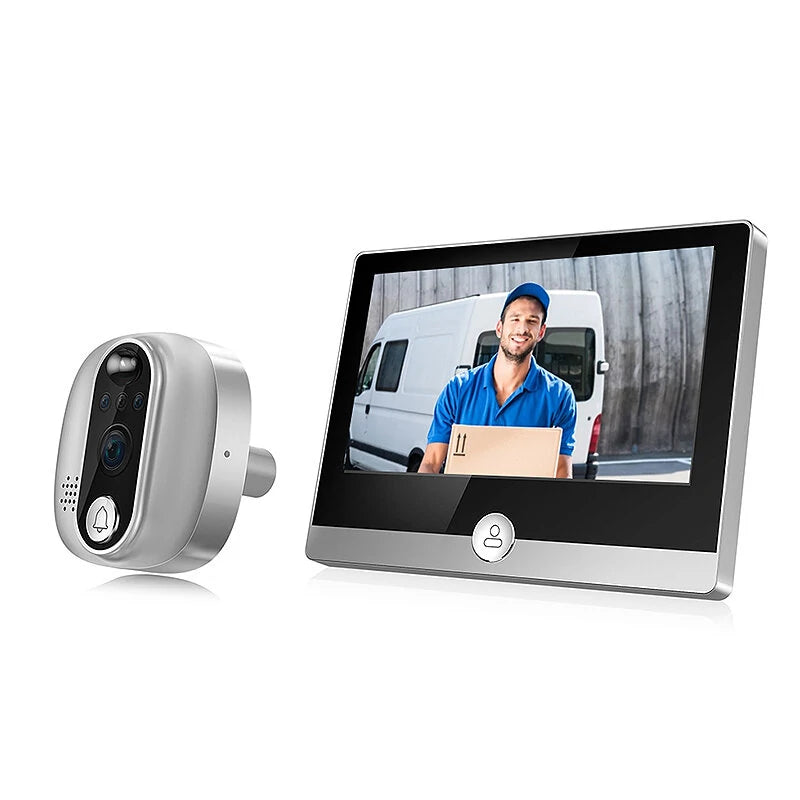

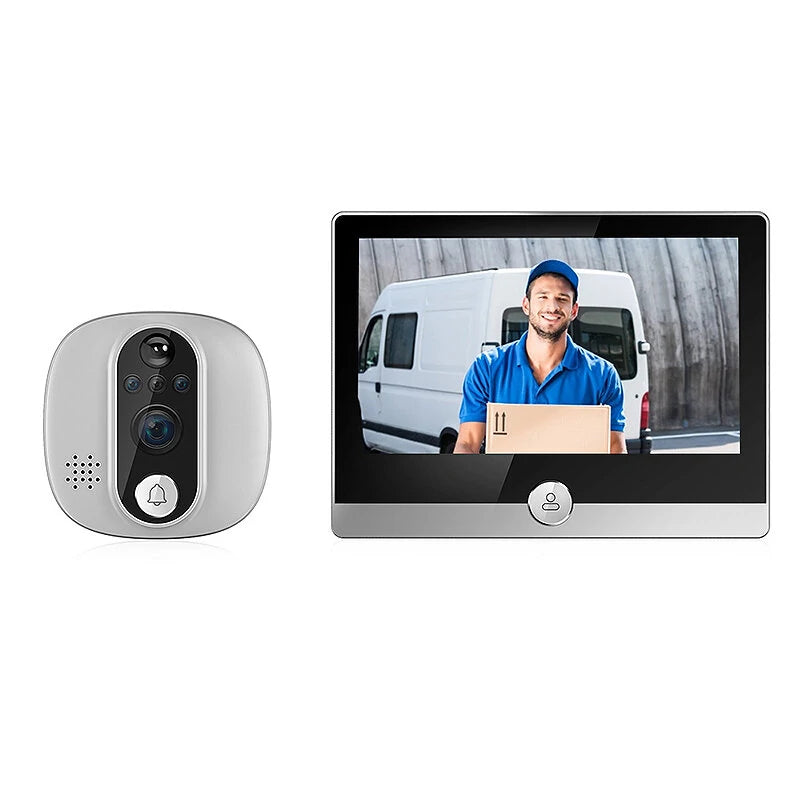

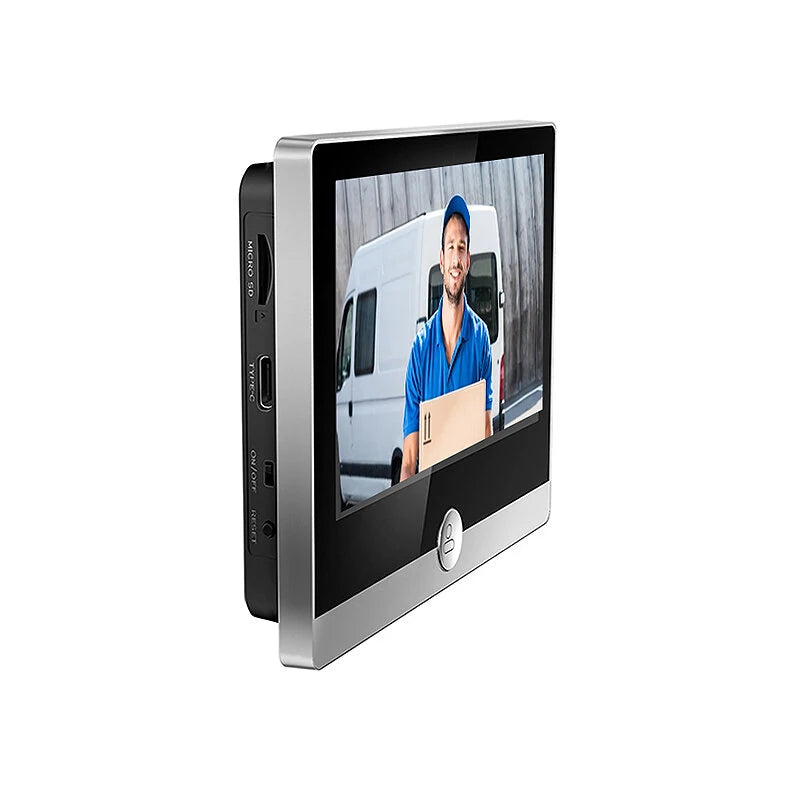

C85 Tuya Smart WiFi Video Doorbell

Specifications

• Product Name: C85 Tuya Smart WiFi Video Doorbell
• Model: C85
• Main Chip: Junzheng T31
• Sensor: 1080P COMS sensor
• Lens: 4G Wide-Angle 2.2mm Lens
• Display: 4.3-inch IPS Screen with a resolution of 480x272
• Battery Capacity: 5000mAh (Built-in)
• Field of View: 167 degrees diagonal / 138 degrees horizontal
• Video Stream: 1920x1080 at 15fps
• CMOS Performance: Supports automatic white balance, automatic gain control, and automatic backlight compensation
• Alexa Compatibility: Supported (Requires separate subscription)
• Operating System: Lite OS
• Standby Time: Approximately 6 months (wakes up 10 times a day, each time for 30 seconds)
• Day/Night Switch: Dual IR-Cut Filters for automatic switching
• Infrared Distance: 850nm IR, effective range up to 5 meters
• Connects to DingDong Device: Yes
• Network Setup: QR Code Configuration
• PIR Motion Detection: Supported, wakes up the device
• Power Consumption: Standby: 220uA; Active: 1.5W
• Audio Encoding Standard: WAV
• Audio Input/Output: -42dB microphone / Built-in speaker
• Recording Mode: Automatic Recording, Event Recording
• Network: 2.4GHz WiFi, WIFI802.11b/g/n wireless network
• Network Protocols: TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P
• Alarm: Supports passive infrared human detection
• Adaptive Bitrate: Supported
• Two-Way Audio: Supports full-duplex real-time communication
• Panoramic Display Mode: Not Applicable
• Sleep Time: Adjustable: 15S, 30S, 60S
• Voice Call: Supported
• Remote Wake-up: Supported
• PIR Wake-up: Supported
• Mobile App Compatibility: iOS 11.0 and Android 6.0 or higher
• Power Source: 5000mAh/18.5Wh Soft Pack Lithium Battery (Built-in)
• Operating Temperature: -10°C to +50°C
• Operating Humidity: ≤80%RH
• DingDong Cable Length: 155mm
• DingDong Cylinder Size: 35mm
• Fits Door Hole: 14-50mm
• Fits Door Thickness: 35-120mm
• Screen Size: 118x88x22mm
• DingDong Size: Diameter 62mm

Key Features

• Large HD Display: Enjoy clear visuals on the 4.3-inch high-definition screen, perfect for monitoring visitors.
• 1080P High-Resolution Camera: Capture crisp and detailed video with the 1080P high-definition camera.
• PIR Motion Detection: Built-in PIR sensor detects motion, waking the device to alert you of approaching visitors.
• Wide-Angle View: With a 167-degree diagonal and 138-degree horizontal field of view, view a broader area outside your door.
• Infrared Night Vision: Equipped with 850nm infrared lights, it ensures visibility in low-light conditions with an effective range up to 5 meters.

Package Includes

• 1x Indoor Unit
• 1x Outdoor Unit
• 1x Metal Bracket
• 1x Screw Kit
• 1x USB Cable
• 1x Quick Start Guide
