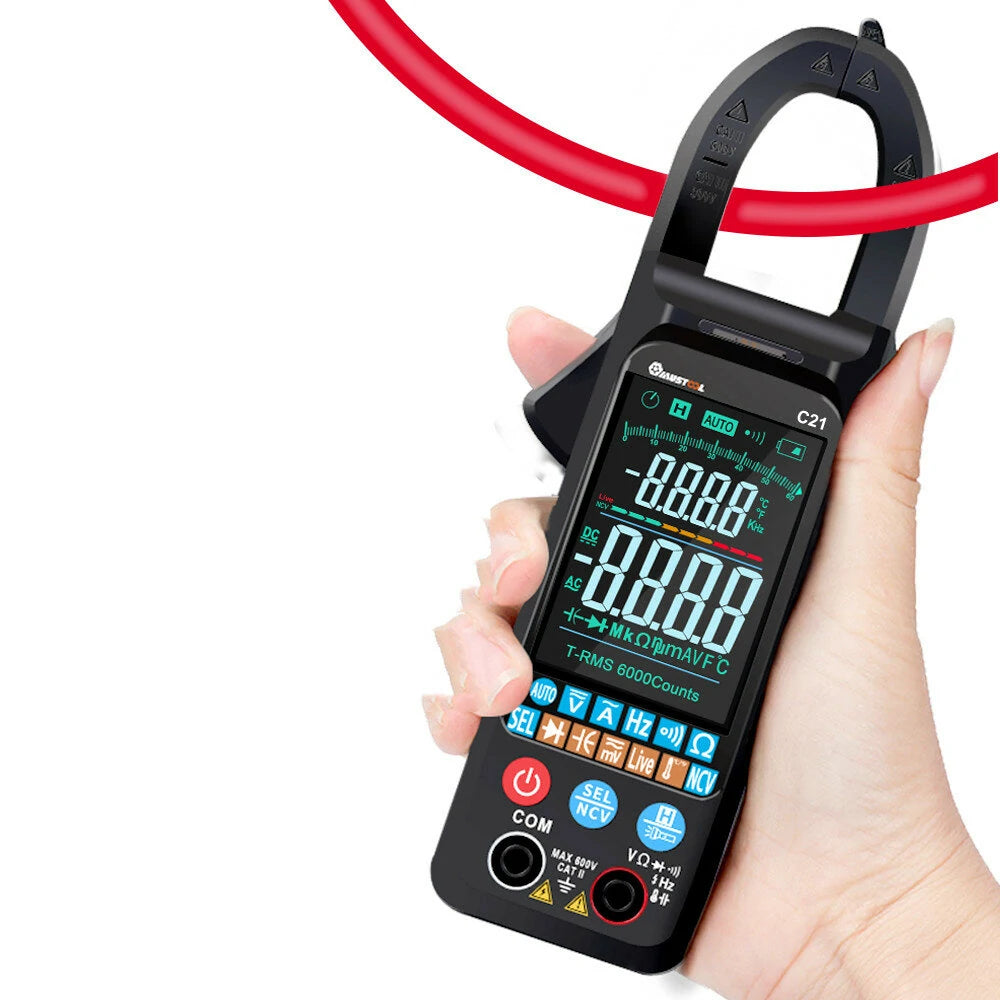

MUSTOOL C21 Digital Clamp Meter - AC/DC Current & Voltage, Large Color Screen, NCV, 6000 Counts, True RMS, Automatic Smart Multimeter
MUSTOOL C21 Digital Clamp Meter - AC/DC Current & Voltage, Large Color Screen, NCV, 6000 Counts, True RMS, Automatic Smart Multimeter
Regular price
$24.99 USD
Regular price
$0.00 USD
Sale price
$24.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Features:

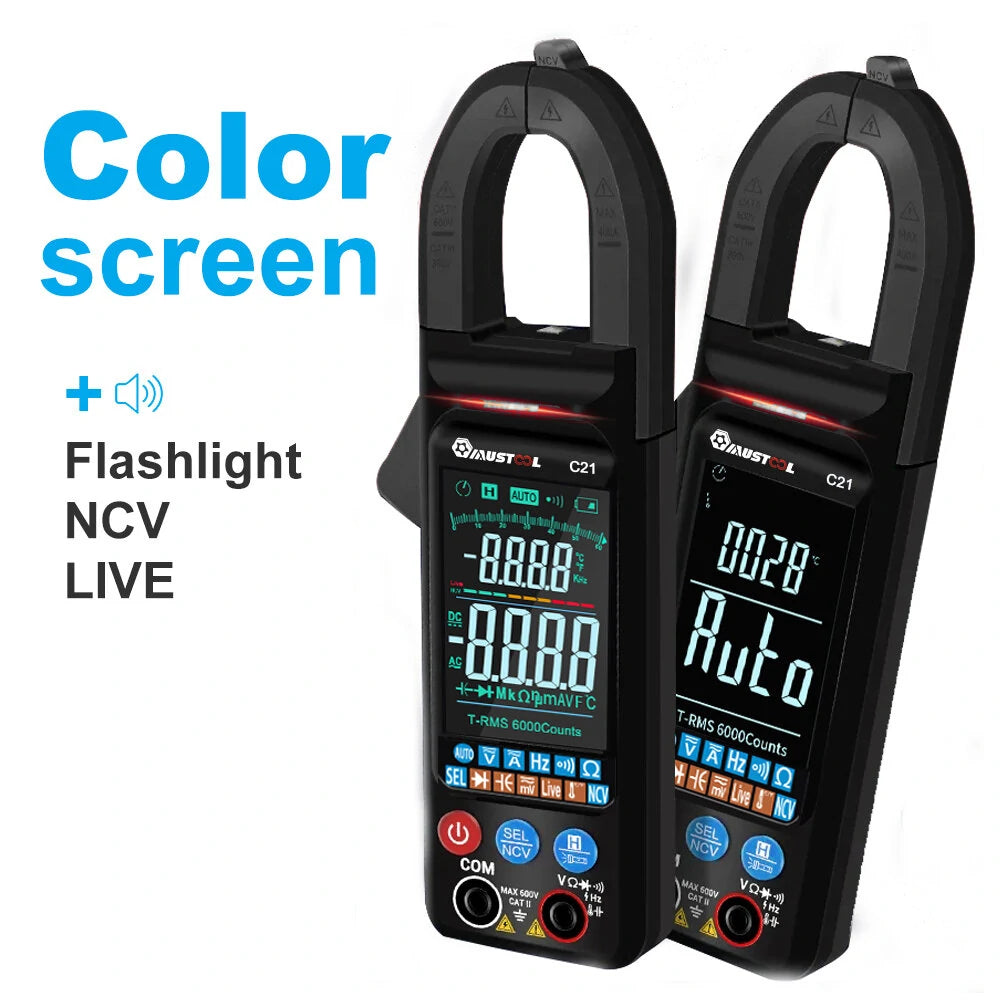

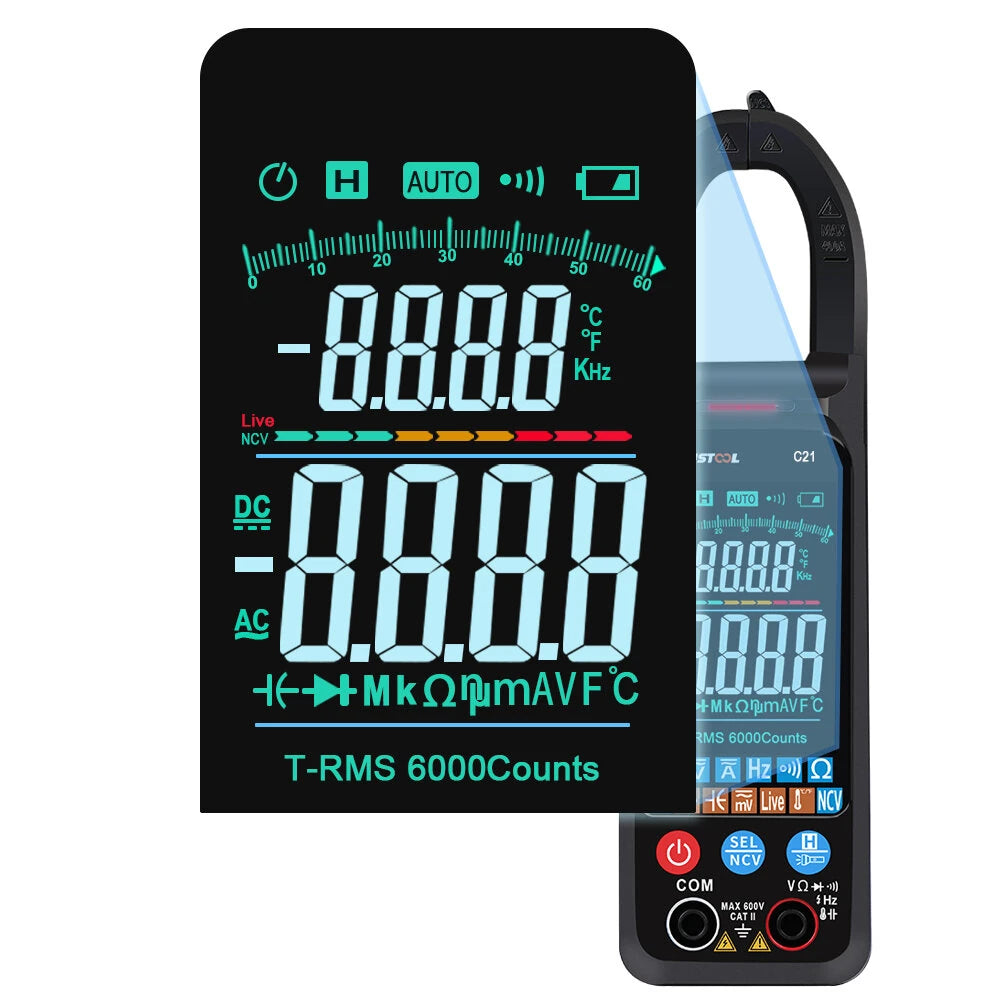

- Large Color Screen with 3 Line Display
- Automatic Measurement Function
- NCV Function
- Flashlight Function
- Multi-function Testing: AC/DC Voltage, AC/DC Current, Temperature, Frequency, Capacitance, Resistance, Line On/Off, Diode Measurement
Specifications:
| Type | MUSTOOL C21 |
| AC Current | 400A |
| DC Current | Maximum: 400A, Minimum: 200mA |
| DC Voltage | 600V |
| AC Voltage | 600V |
| Resistance | 600MΩ |
| Capacitance | 60.00mF |
| Temperature | -40~1000°C / -40~1832°F |
| Frequency | 60.0Hz - 1000Hz |
| Diode | 1V |
| NCV | Yes |
| Live Wire Detection | Yes |
| AC Voltage Measurement | Yes |
| Line On/Off Test | 1Ω |
| Automatic Identification | Yes |
| Automatic Measurement | Yes |
| Overload Protection | Yes |
| Operating Height | Max. 2000m |
| Display | LCD |
| Max Display Value | 6000 digits |
| Polarity Indication | Automatic indication, and '-' indicates negative |
| Over Range Display | 'OL' or '-OL' |
| Sampling Time | About 3 times/second, bargraph 10 times/second |
| Unit Display | Function and electricity quantity unit display |
| Automatic Shutdown | Yes |
| Power Supply | 1.5V AAA battery x 2 (not included) |
| Battery Under-voltage Indication | LCD display symbol |
| Temperature Coefficient | Less than 0.1x accuracy/°C |
| Operating Temperature | 18°C ~ 28°C |
| Storage Temperature | -10°C ~ 50°C |
| Net Weight | ≈157g |
| Packed Weight | ≈279g |

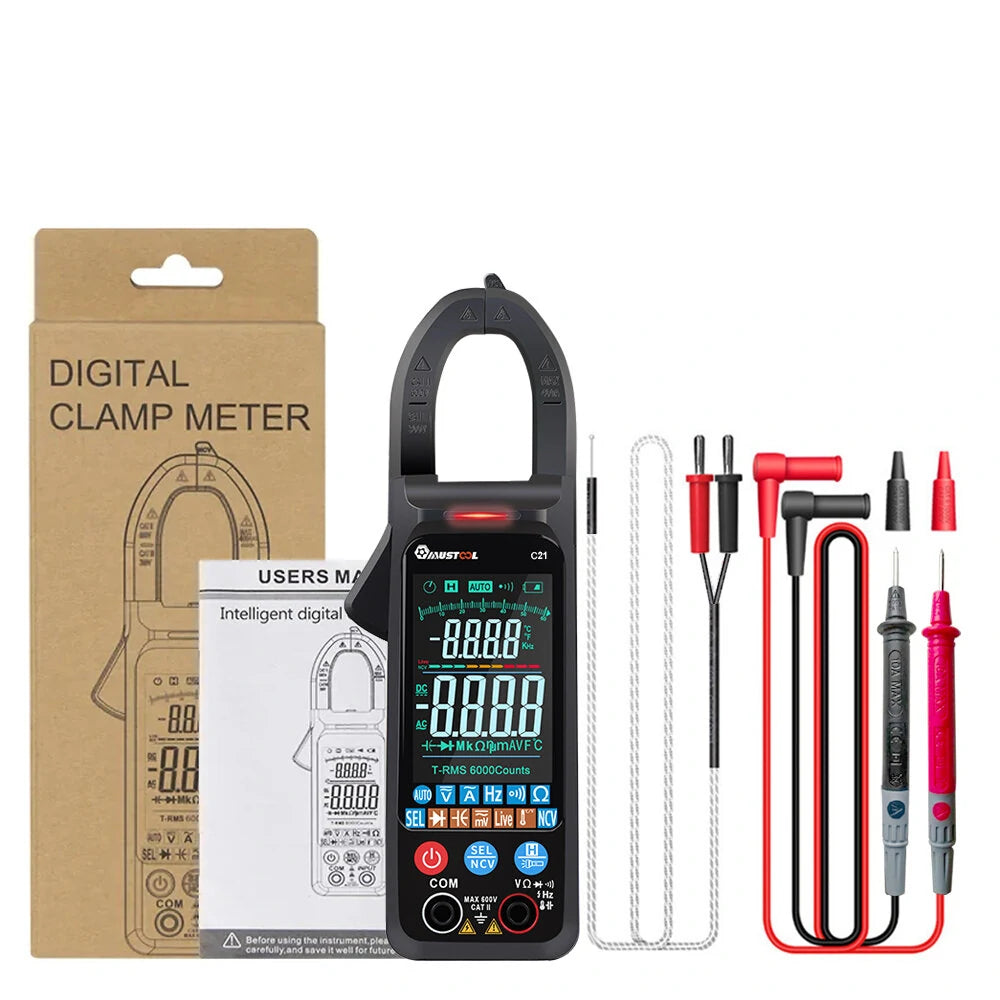

| Accessories | Pens x 1, User Manual x 1, K-Type x 1 |
