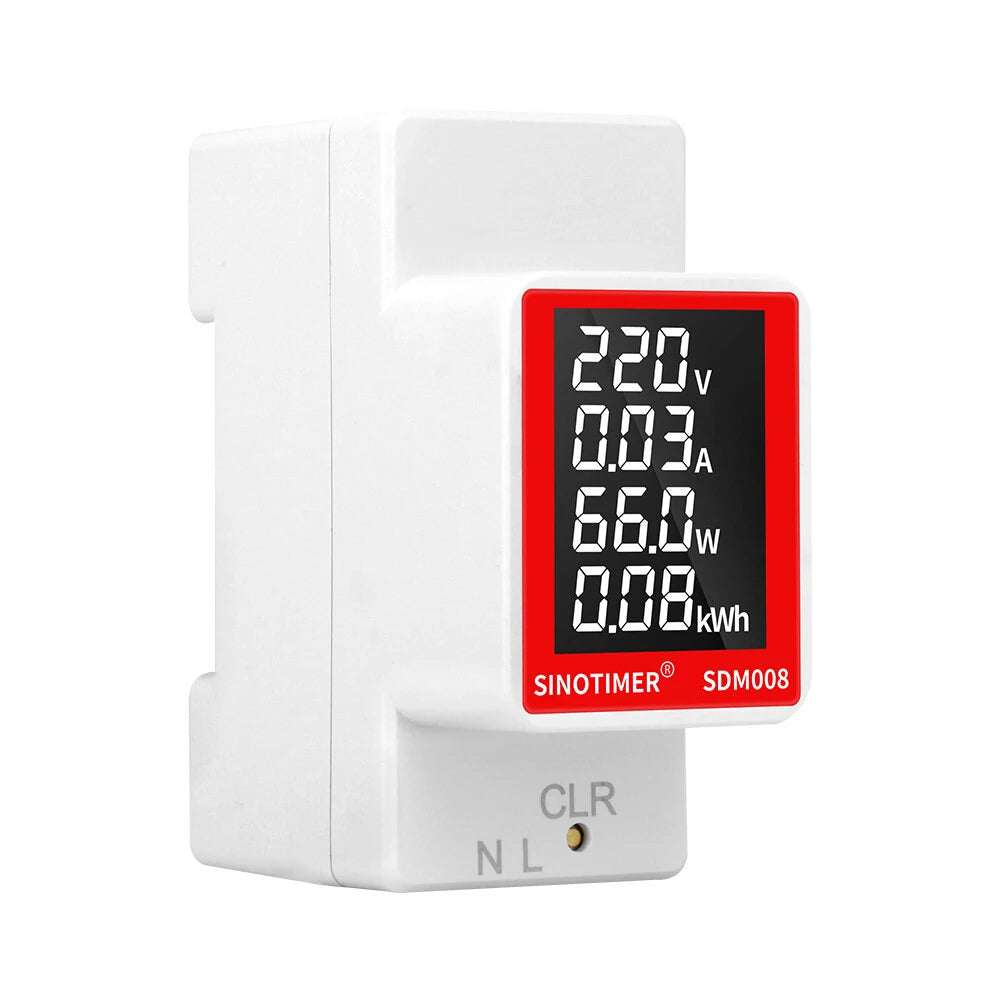

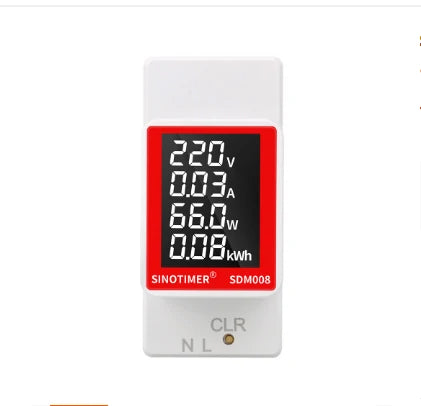

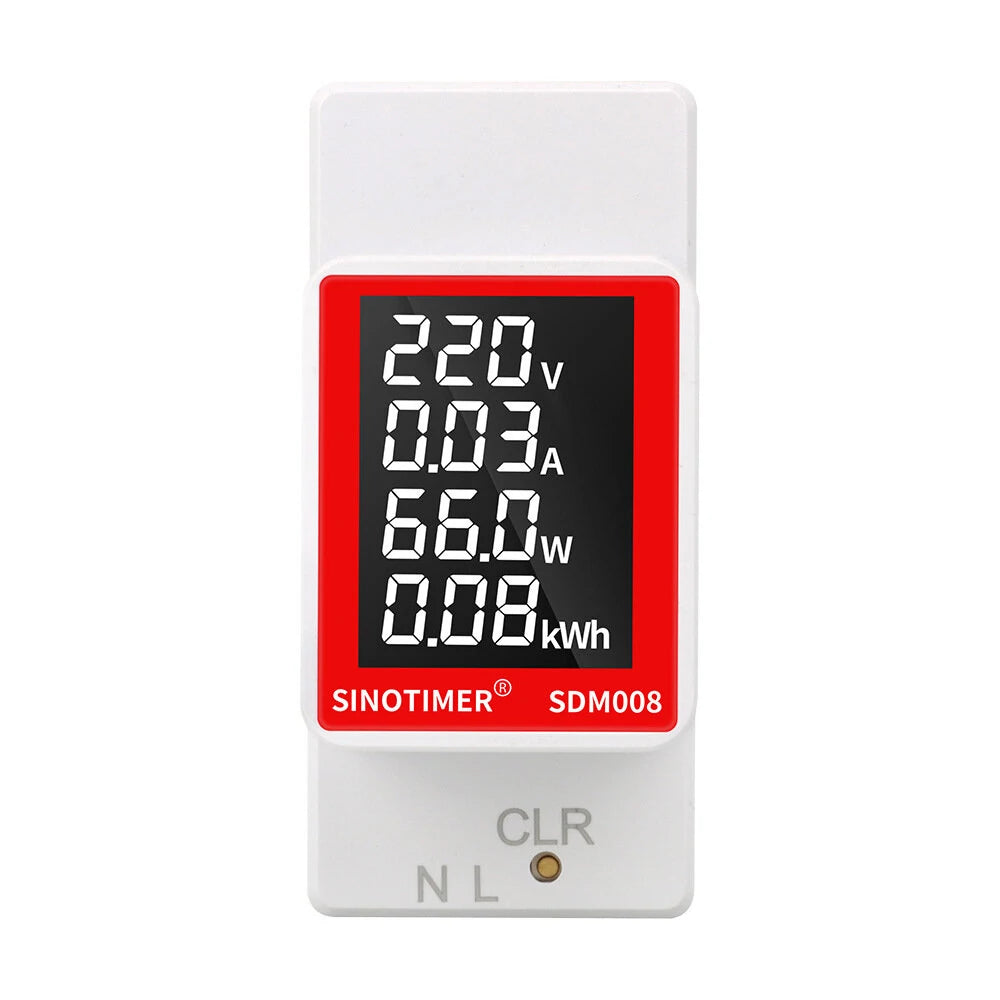

DIN Rail AC Multifunction Meter by SINOTIMER - LCD Display, Voltage 50-300V, Current 0-100A, 30kW Power, 1999kWh Energy Monitoring

Features:

• Multifunctional Meter: The SDM008 Din Rail multifunctional meter provides accurate measurements of AC Power Voltage, Current, Active Power, and Energy consumption (kWh).
• LCD Display: Equipped with an LCD display for easy viewing of measurements.
• Backlight Control: The backlight can be turned on or off as required, enhancing visibility in various lighting conditions.
• Reset Energy Function: Easily reset energy readings with a simple long press of the key.
• Data Storage: The device saves energy data and backlight status even when power is disconnected, preventing data loss.

Specifications:

• Voltage Measurement:
  • Range: AC 50-300V
  • Starting test voltage: 50V
  • Accuracy: +/- 1%
• Current Measurement:
  • Range: 0-100A
  • Starting test current: 0.02A
  • Accuracy: +/- 1%
• Active Power Measurement:
  • Range: 0-30kw
  • Starting test power: 0.5w
  • Accuracy: +/- 1%
• Energy Measurement:
  • Range: 0-1999kwh
  • Accuracy: +/- 1%
• Note: Display format and measurement accuracy vary as per the range of each parameter.

Package Included:

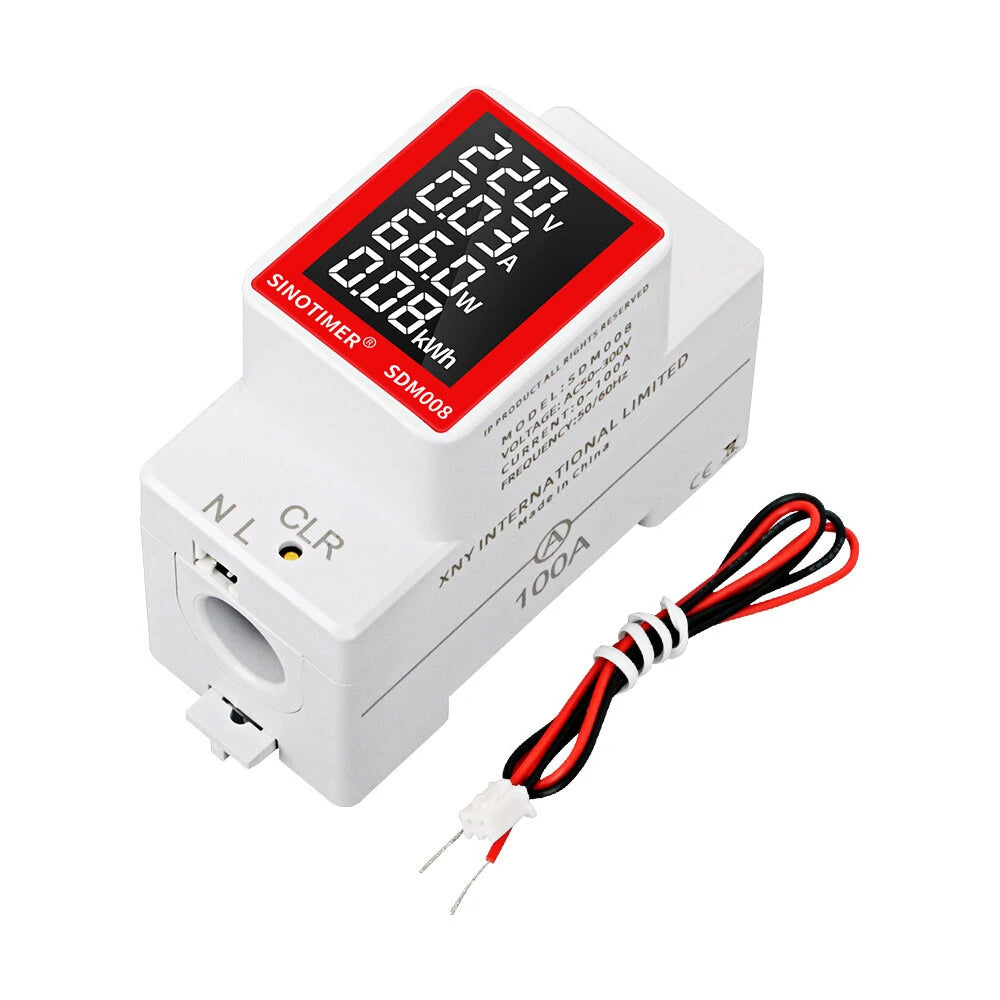

• 1 x AC Din Rail Multifunctional Meter
• 1 x 2-pin Cable
• 1 x User Manual
