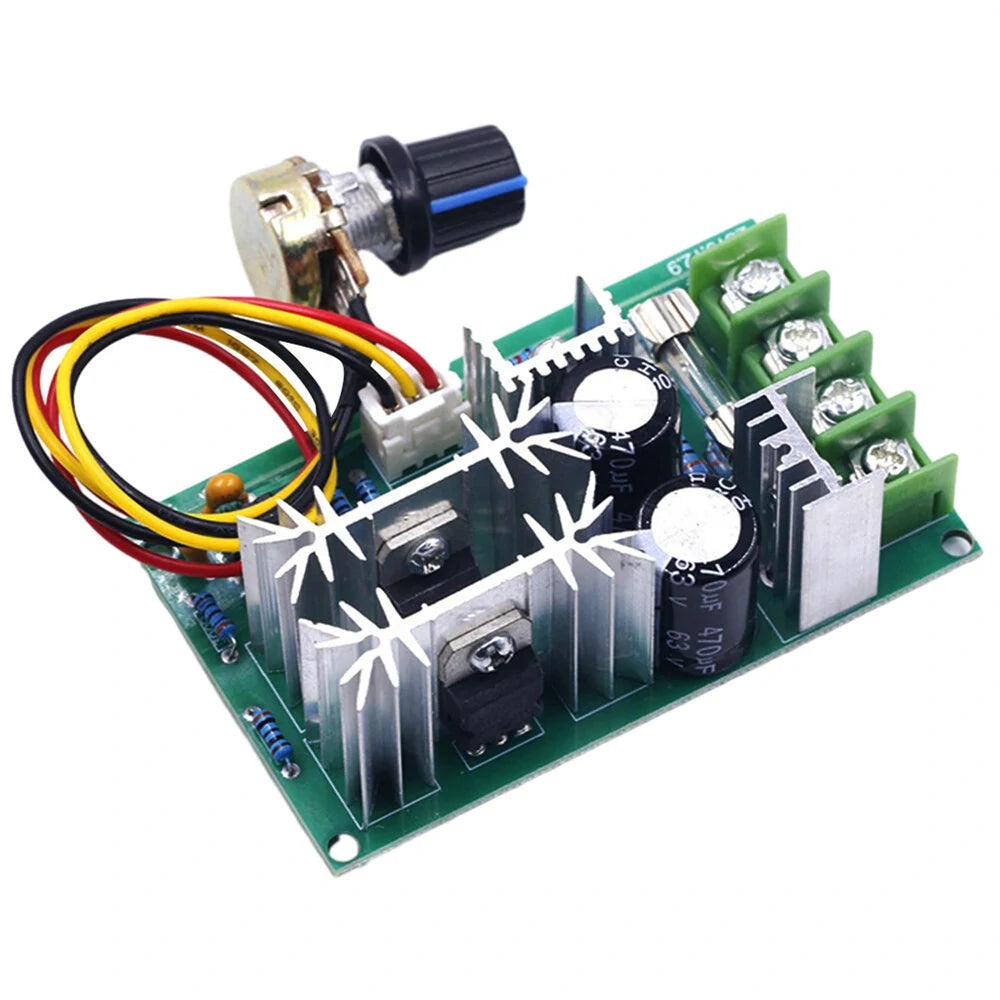

DC Motor Speed Controller 10-60V 20A 1200W 25kHz with Heat Management

Product Specifications

• Operating Voltage: DC 10V-60V
• Output Current: 0A - 20A
• Frequency: 25kHz
• Continuous Power: Max 1200W
• Speed Range: Zero to Maximum Speed
• Maximum Current: Up to 20A (requires heat sink or additional fan for heat dissipation)
• Material: Plastic and Metal

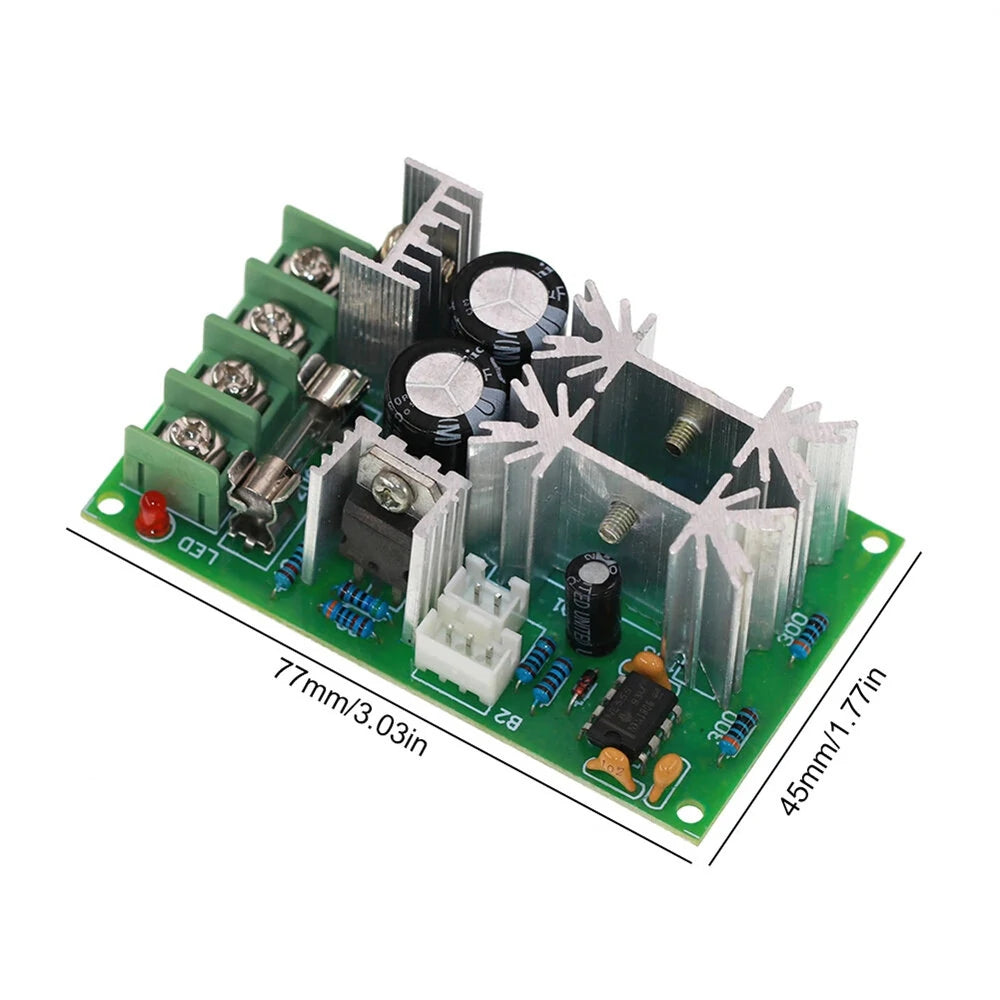

• Dimensions (L × W × H): 77 × 45 × 28mm (3.07 × 1.77 × 1.10in)
• Input Voltage: 9-60V DC
• Power Supply Connections: Power+, Power-
• Motor Connections: Motor+, Motor-

Key Features

High-Power Motor Control

The PWM Motor Speed Controller operates with an impressive range of DC 10-60V and can handle up to 20A of output current, providing continuous power up to 1200W. This makes it perfect for high-demand applications such as robotics and high-power motor control. The ability to operate a motor from zero speed to full speed ensures smooth and accurate control, minimizing wear and tear on your motor.

Versatile and Efficient

Designed for brushed DC motors, this speed controller provides precision control with a frequency of 25kHz. It can fine-tune the motor speed, making it suitable for various applications ranging from DIY projects to industrial machinery. Note that it is not compatible with brushless DC motors.

Compact and Robust Design

Constructed with quality plastic and metal materials, the controller is built for longevity and reliability. Its compact dimensions make it easy to integrate into your existing systems without requiring significant space. Despite its small size, the performance is robust, making it a reliable option for motor speed regulation.

Heat Management

To ensure optimal performance, the motor controller requires a heat sink or additional fan for effective heat dissipation when operating at maximum current levels. This feature is crucial for maintaining stable performance and extending the lifespan of the device, especially in high-temperature environments or during prolonged use.

User-Friendly Operation

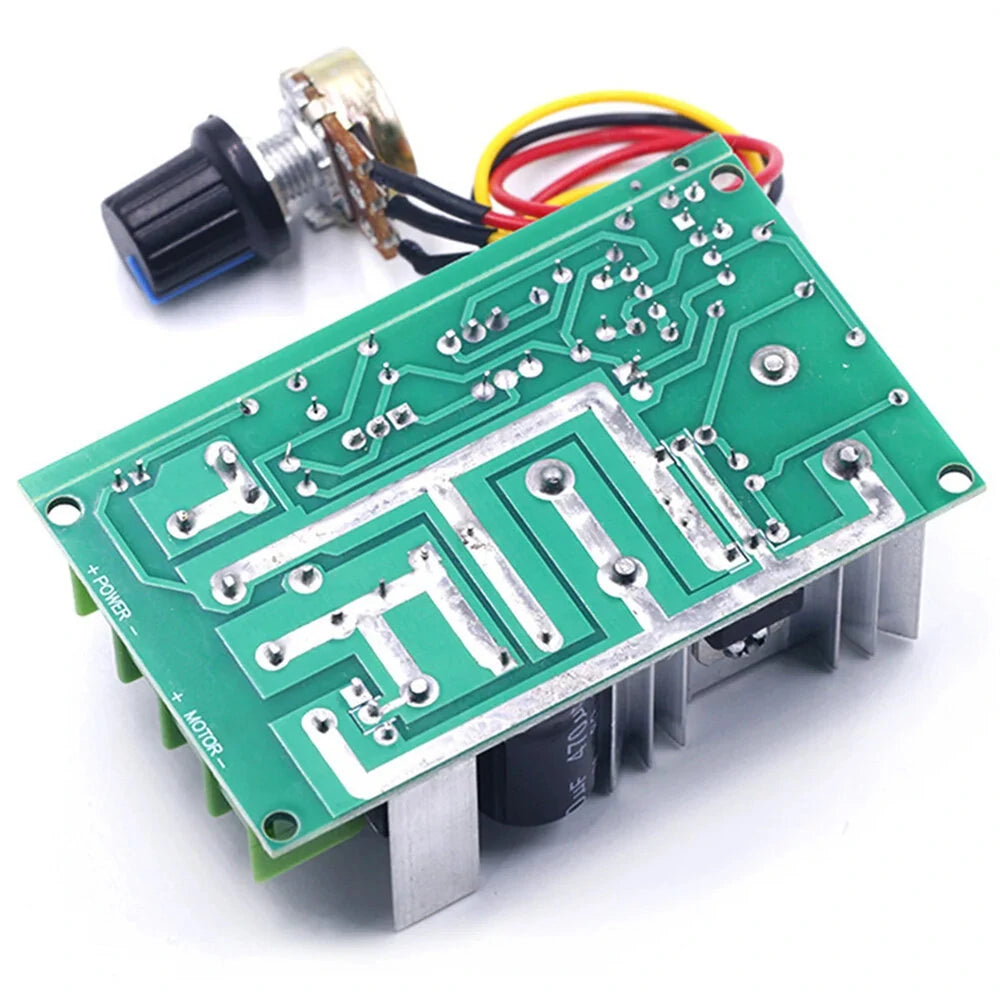

The controller is straightforward to use, featuring clear input and output terminals (Power+, Power-, Motor+, Motor-). Ensure correct connections to avoid damage to the PCB. Note that this controller is not a power supply module and must be connected to a motor to adjust speeds accurately. Caution: Avoid touching the heat sink with wiring to prevent short circuits.

Package Included

• 1 x PWM Motor Speed Controller
