UNI-T UT25CL-T Handheld Cable Locator 33KHz, 8V-480V Voltage Tester CAT III LCD Display for Underground Cable Tracing

Specifications:

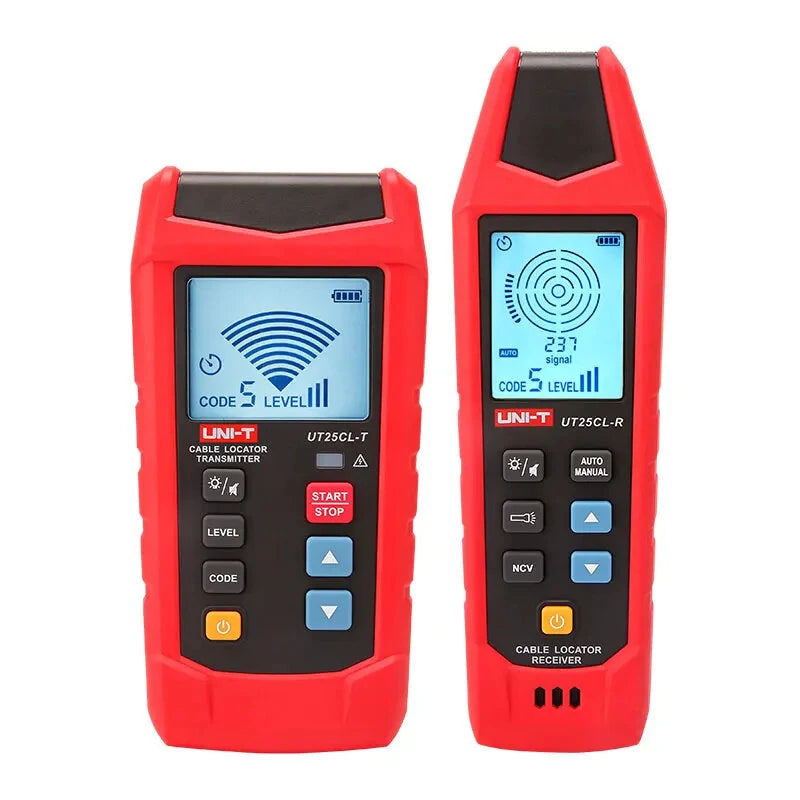

• Model: UT25CL-T
• Output Signal Frequency: 33KHz
• External Voltage Recognition Range: 8-480V
• External Voltage Recognition Frequency Range: AC: 50-60Hz
• External Voltage Measurement Accuracy: ±2.5%+3°
• Display Mode: LCD
• Power Supply Mode: 1.5V, AA alkaline batteries x6
• Overvoltage Rating: CAT III 480V
• Dimensions:
  • Transmitter: 189 x 96 x 48 mm
  • Receiver: 226 x 68 x 38 mm
• Weight:
  • Transmitter: 528 g
  • Receiver: 354 g

Features:

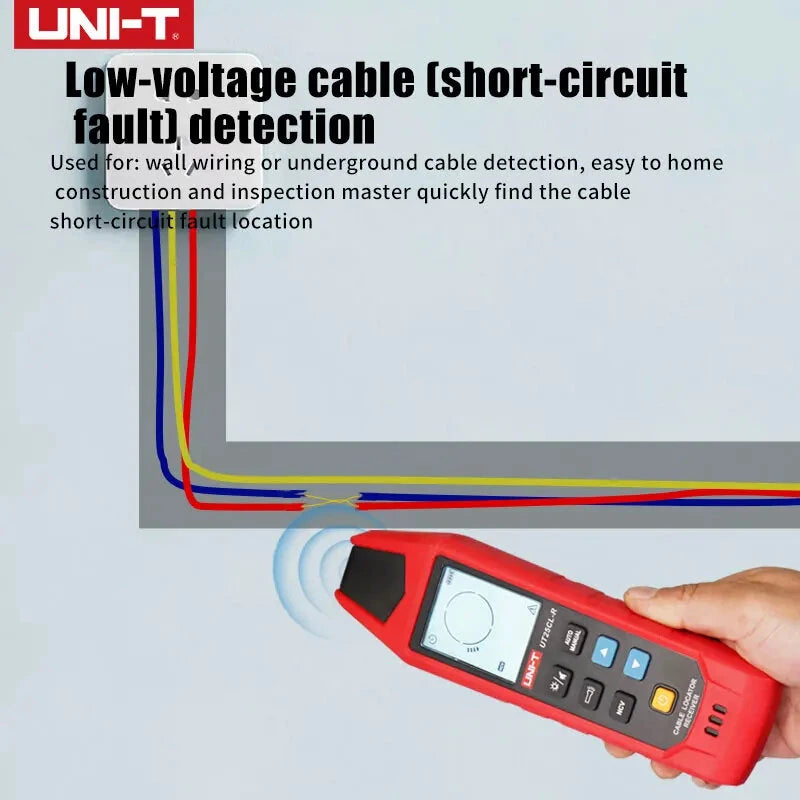

• Accurate Test: Utilizes a 33KHz output signal frequency for precise underground cable path tracing and voltage recognition ranging from 8V to 480V.
• Enhanced Safety: Equipped with a CAT III 480V overvoltage rating and 480V DC/AC maximum dielectric strength for safe operation in high-voltage environments.
• User-friendly Design: Features an LCD display with backlight, automatic power-off function, and manual sensitivity adjustment for ease of use in various settings.

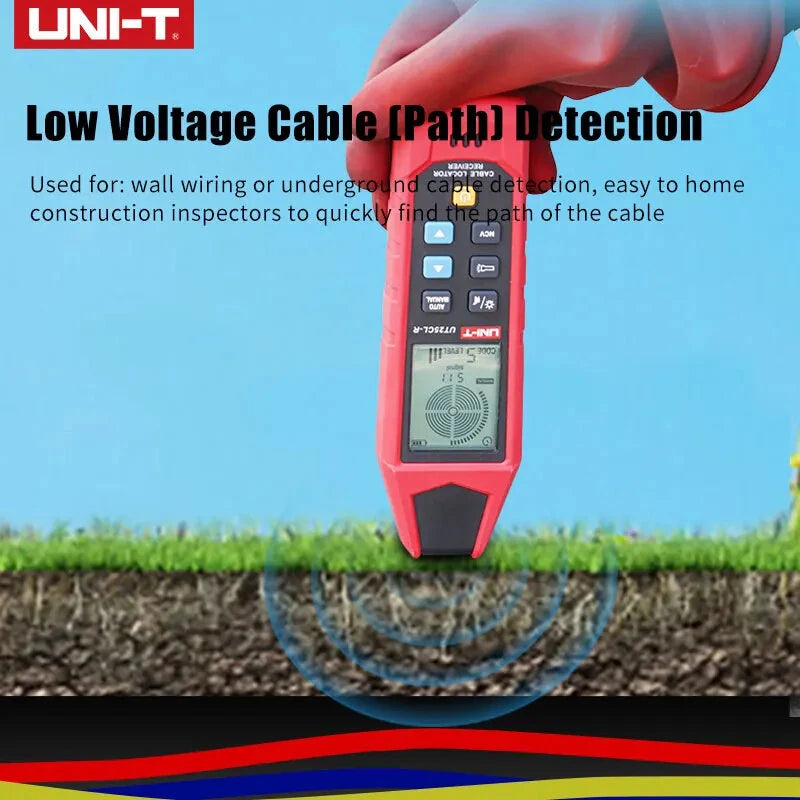

• Versatile Testing: Supports unipolar and bipolar testing under power up to 480V, as well as line find mode with positioning depths of 0-2.5m for flexible application.
• Comprehensive Accessories: Comes with test probes, dual inline test cables, alligator clips, an auxiliary grounding nail, and both Chinese and English manuals for complete setup and operation.

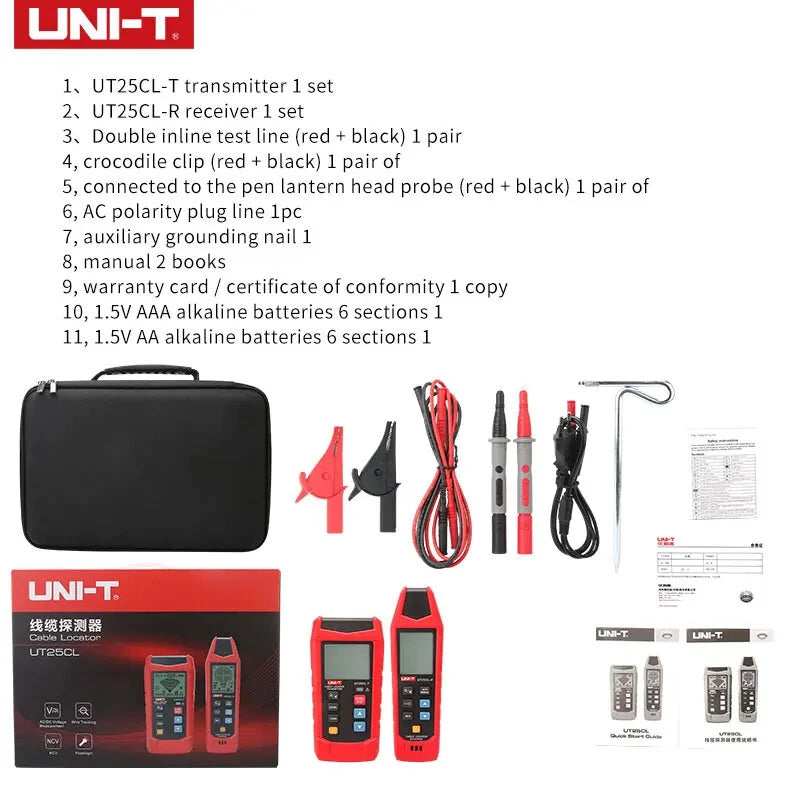

Package Included:

• 1 x UT25CL-T transmitter
• 1 x UT25CL-R receiver
• 6 x 1.5V AAA Batteries
• 6 x 1.5V AA Batteries
• 2 x Test Probes (Red, Black)
• 2 x Dual Inline Test Cables (Red, Black)
• 2 x Alligator Clips (Red, Black)
• 1 x European Plug Cable
• 1 x Auxiliary Grounding Nail
• 1 x Chinese Safety Manual
• 1 x English Safety Manual
