51MP HDMI Video Microscope Camera with 130X Zoom Lens for PCB Repair Soldering - HAYEAR Industrial
51MP HDMI Video Microscope Camera with 130X Zoom Lens for PCB Repair Soldering - HAYEAR Industrial
Regular price
$132.99 USD
Regular price
$0.00 USD
Sale price
$132.99 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.
51MP Industrial Microscope Camera
Product Features
- Compatible with multiple PC systems: Windows XP/7/8/10.
- Equipped with a 130X C-mount zoom lens for enhanced viewing.
- Ideal for use in the repair industry.
- Durable metal housing ensures long-term use.
- High resolution and dual output for convenient operation.
Specifications
| Item Type | Microscope Camera |
|---|---|
| Model | HY-5130 |
| Optical Format | 1/2.9 inch |
| Pixel Size | 1.335 μm x 1.335 μm |

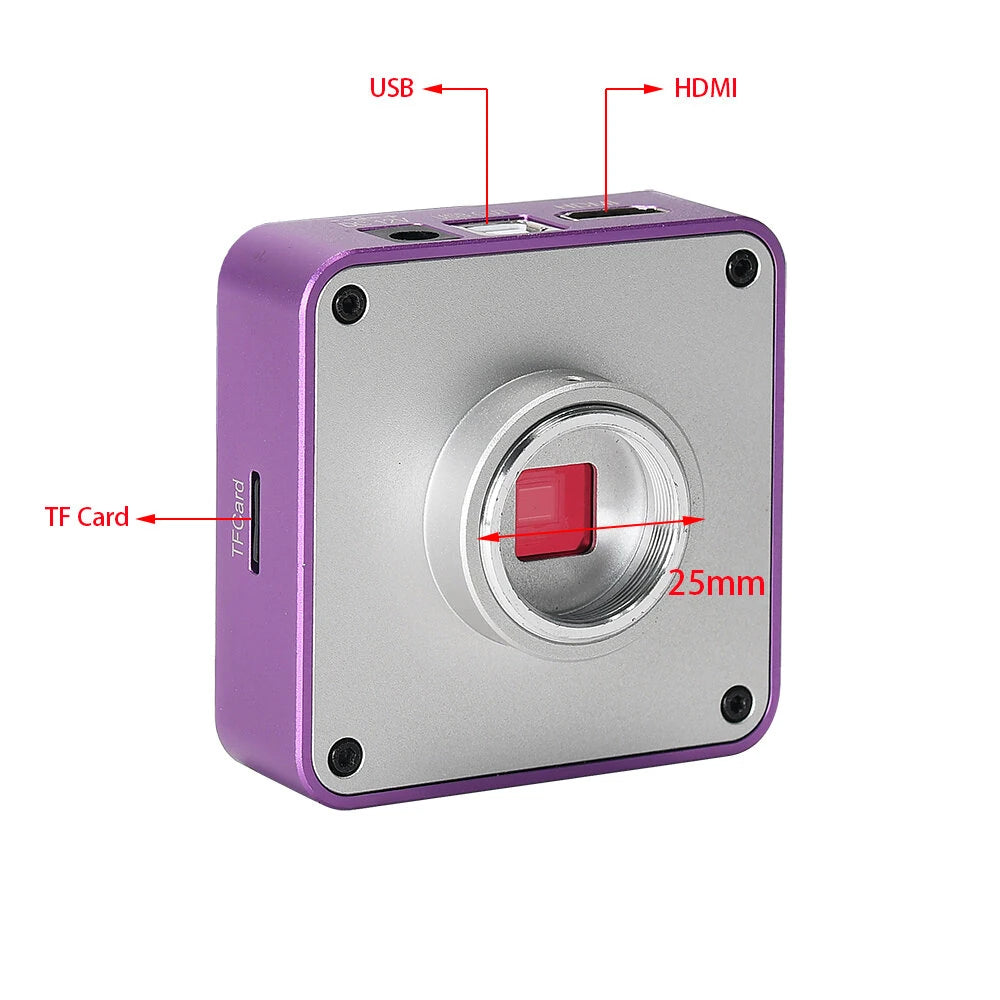

| Interfaces | HDMI (Type A), USB (Type B), Small memory card |
| Image Resolution | 51MP |
| Video Resolution | 2K at 60FPS, 1080p at 60FPS |
| HDMI Resolution | 1920 x 1080p at 60FPS |
| HDMI Scale Support | 4:3, 16:9, 16:10 |
| USB2.0 Output | 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 480 at 30FPS |
| Memory Card Capacity | Up to 256GB (not included) |
| AWB | Auto/Manual, R.G.B value setting independent |
| Exposure | Auto/Manual, AE value adjustable |
| Cross Line | 8 lines, adjustable color, width, position |
| Scale Line | 2 lines |
| Dotted Line | 2 lines, adjustable color, width, position |
| Sharpness, Contrast, Color Gain | Supported |
| Mono Negative Film | Supported |
| Mirror | Horizontal and vertical mirror supported |
| Languages | English, Simplified Chinese, French, Spanish, Japanese, German, and more |
| Digital Zoom | Supported |
| Infrared Remote Control | Supported |
| Power Input | DC 12V |
| Power Supply Voltage | Input: AC 100-240V, Output: DC 12V |
| Power Consumption | Max 0.15W 12V, 0.12A |
| Lens Interface | C/CS port |
| Remote Control Battery | 1 x CR2025 button battery (not included) |
| Lens Details |
|

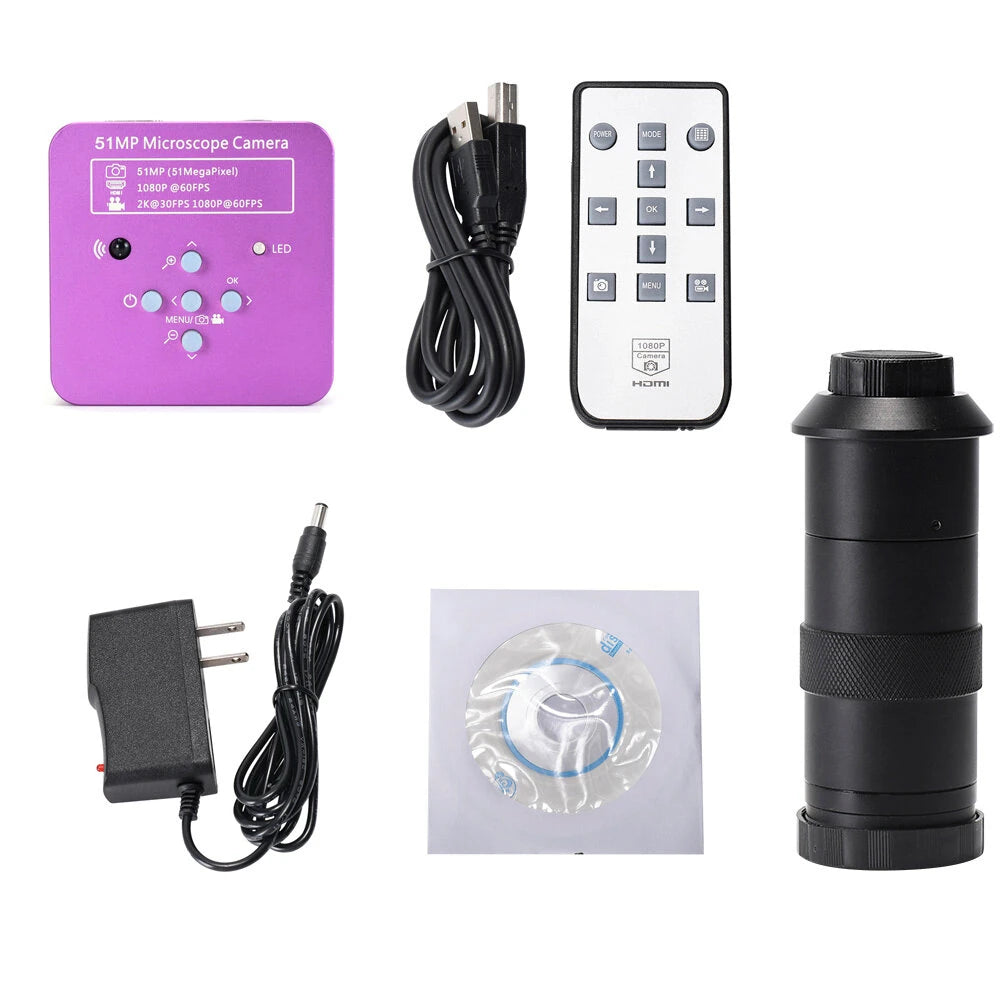

Package Includes
- 1 x 51MP Microscope Camera
- 1 x Power Supply
- 1 x USB Cable
- 1 x Software CD
- 1 x Remote Control (Battery Not Included)
- 1 x 130X Lens
Important Notes
- PC Compatibility: Works with Windows XP/7/8/10 systems.
- For USB output, software operations such as white balance, exposure, and color adjustment are fixed (camera keys and remote control are inoperative).
- For HDMI output, these functions can be adjusted when connected to a monitor (camera keys and remote control are operative).
- Ensure no memory card is in the camera when using a USB connection; the memory card is for HDMI output storage only. USB output will be stored on the PC.
- When connecting via USB, only the USB cable is needed (no power connection required).
