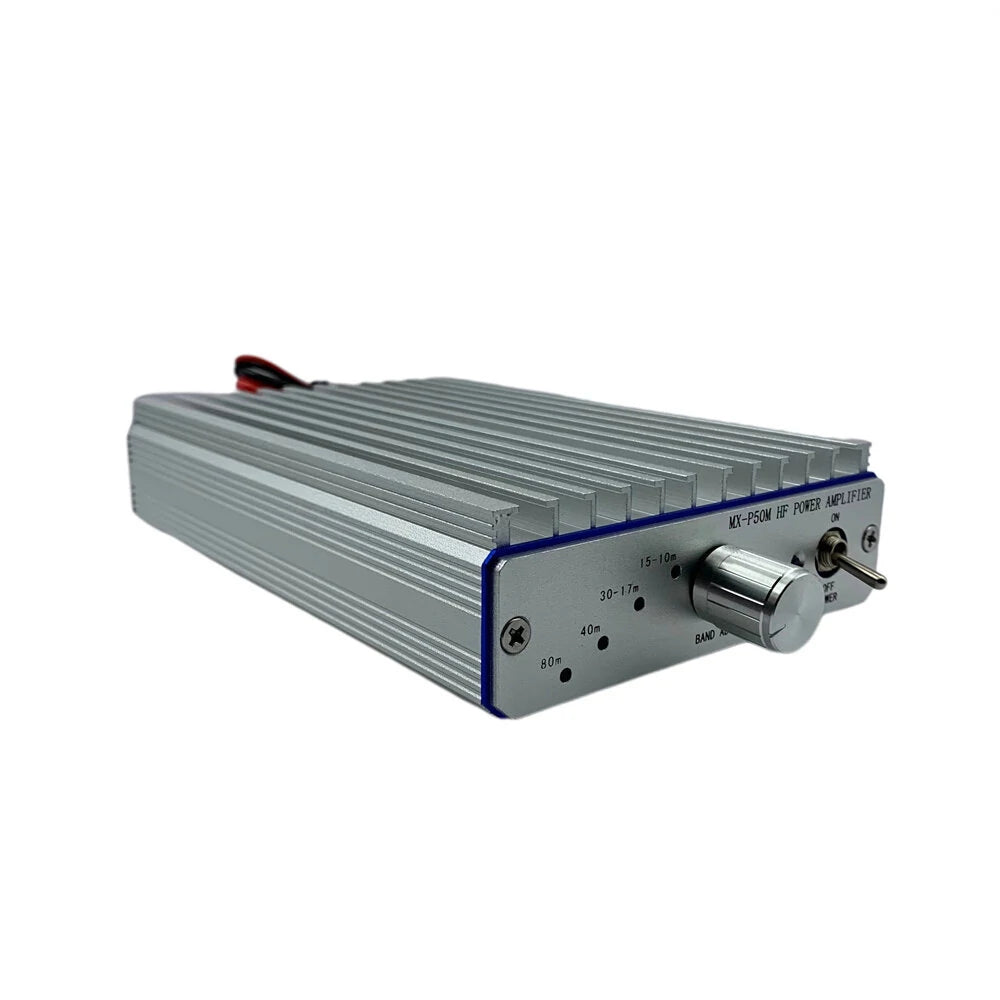

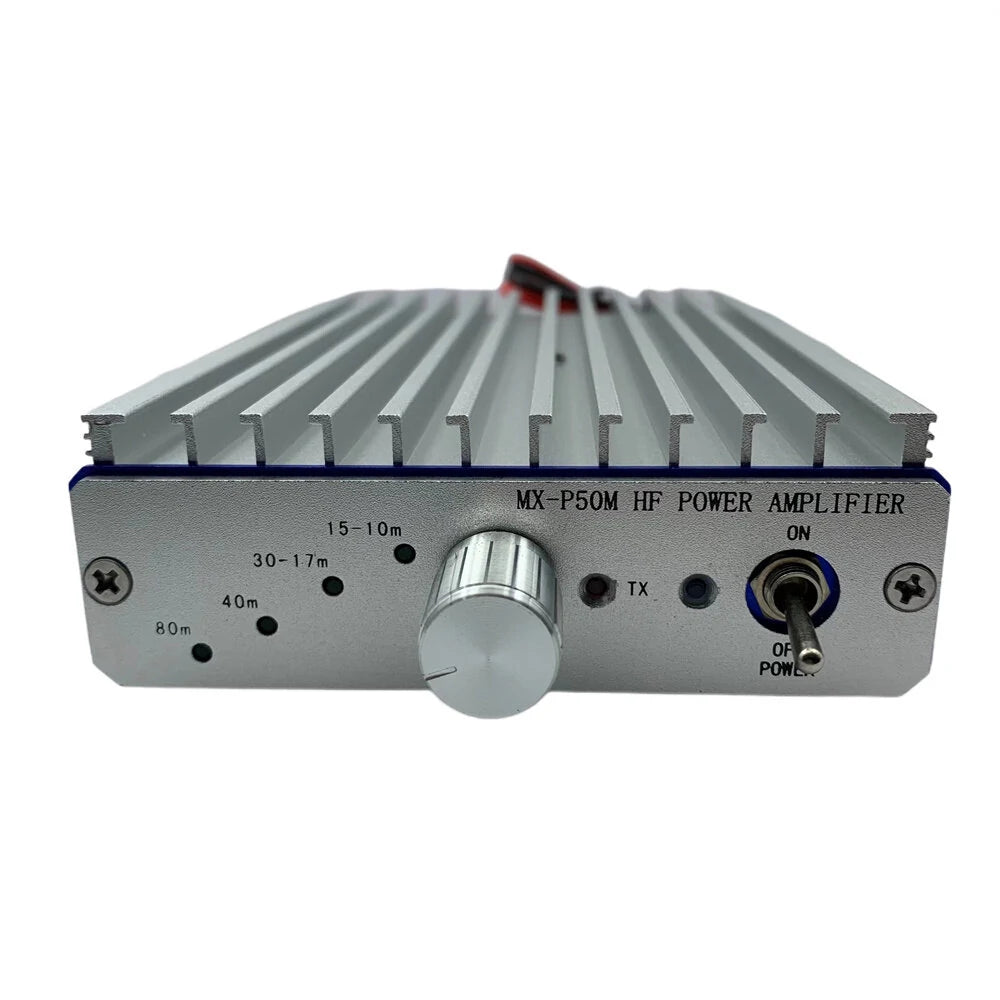

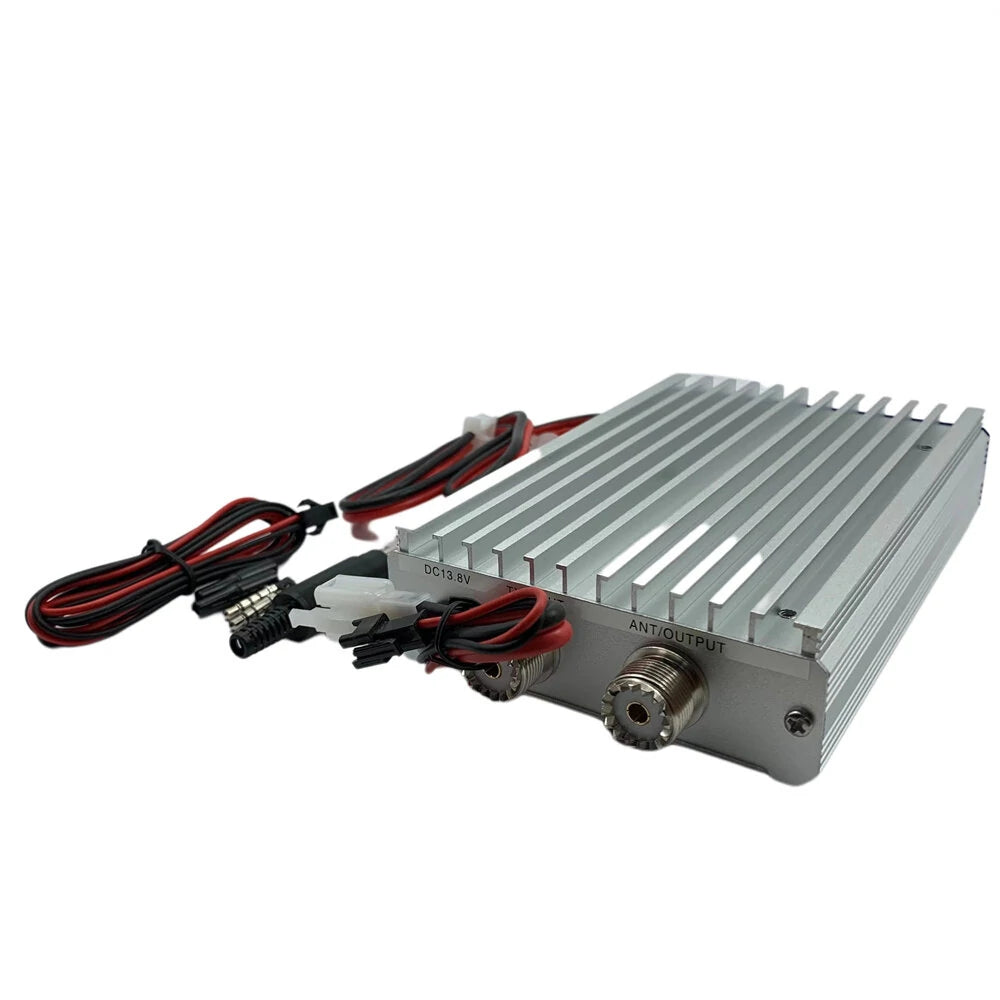

HF Short Wave Power Amplifier 45W for FT-817ND, FT-818ND, SUNSDR2, IC-703, KX3 QRP Rigs - MX-P50M

Features:

• Broad Compatibility: The MX-P50M HF short wave power amplifier works seamlessly with QRP rigs such as the ICOM IC-703 and Elecraft KX3. It is specially crafted for use with FT-817ND, FT-818ND, and SUNSDR2.
• Easy to Operate: Comes with a quick operating manual tailored for FT-817ND and compatible QRP transceivers. It includes manual band adjustment and PTT, TX indicators for a smooth experience.
• Enhanced Performance: Boosts your QRP radio's performance by delivering an output power of 45W with an input RF of 5W, enhancing signal strength.
• Compact and Portable: At just 155x100x35mm and weighing 0.55kg, this amplifier is streamlined for easy portability and installation, making it perfect for field and mobile radio communication.
• Efficient Cooling: Features a passive air cooling system to maintain optimal temperature during continuous operation, ensuring durability and longevity.

Specifications:

• Model: MX-P50M
• Frequency Band: 80m, 40m, 30m-17m, 15m-10m
• Operating Modes: SSB, CW, AM, RTTY, and FM with reduced duty cycle
• RF Input: 5W
• Output Power: 45W
• Band Mode: Manual
• Power Requirement: 13.8V 8A, RED "+" BLACK "-"
• Cooling Method: Passive air cooling
• Antenna Connector: SO-239 50Ω
• Size: 155x100x35 (mm) DWH
• Weight: 0.55KG

Package Includes:

• 1 x MX-P50M Power Amplifier

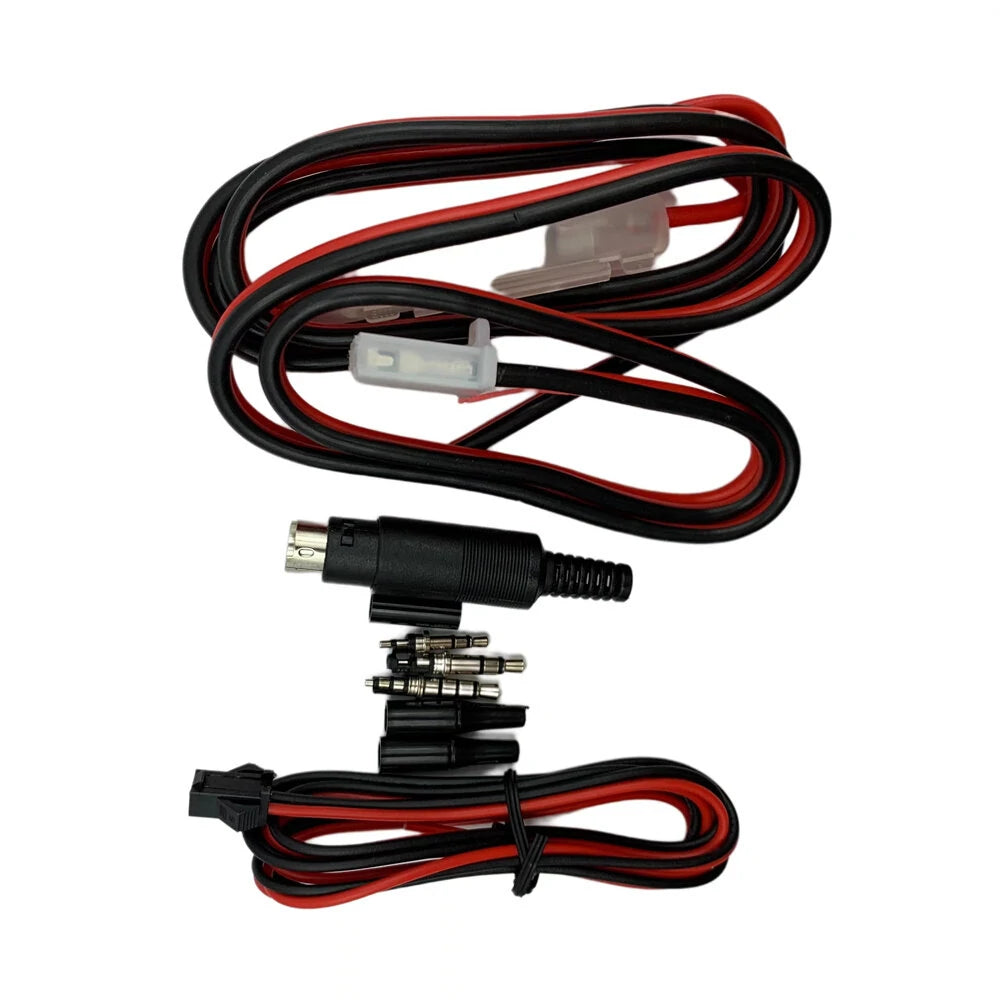

• 1 x Power Cord
• 1 x FT-817ND ACC Control Cable
• 1 x KX3 ACC Control Cable
