Automatic Egg Incubator with Digital Temperature and Humidity Controller - ZL-7802D PID Thermostat

This incubator controller is an indispensable tool for precise temperature and humidity management in a variety of controlled environments. Its multifunctional design supports automatic PID parameter tuning, customization of temperature and humidity ranges, and setting of upper and lower limits for over-temperature protection, ensuring reliable operation. With settings for timer-controlled outputs, egg-turning cycle times, and maximum incubation days, it enhances automation and efficiency in incubation processes. Designed for demanding applications, it is the go-to choice for professionals in avian incubation, research, and storage facilities.

Features

• High-Precision Temperature & Humidity Control: The controller offers a resolution of 0.01°C for temperature control, ensuring unparalleled accuracy in maintaining set conditions. Users can select between PID control and hysteresis control to suit their needs, ensuring optimal incubation or climatic conditions.

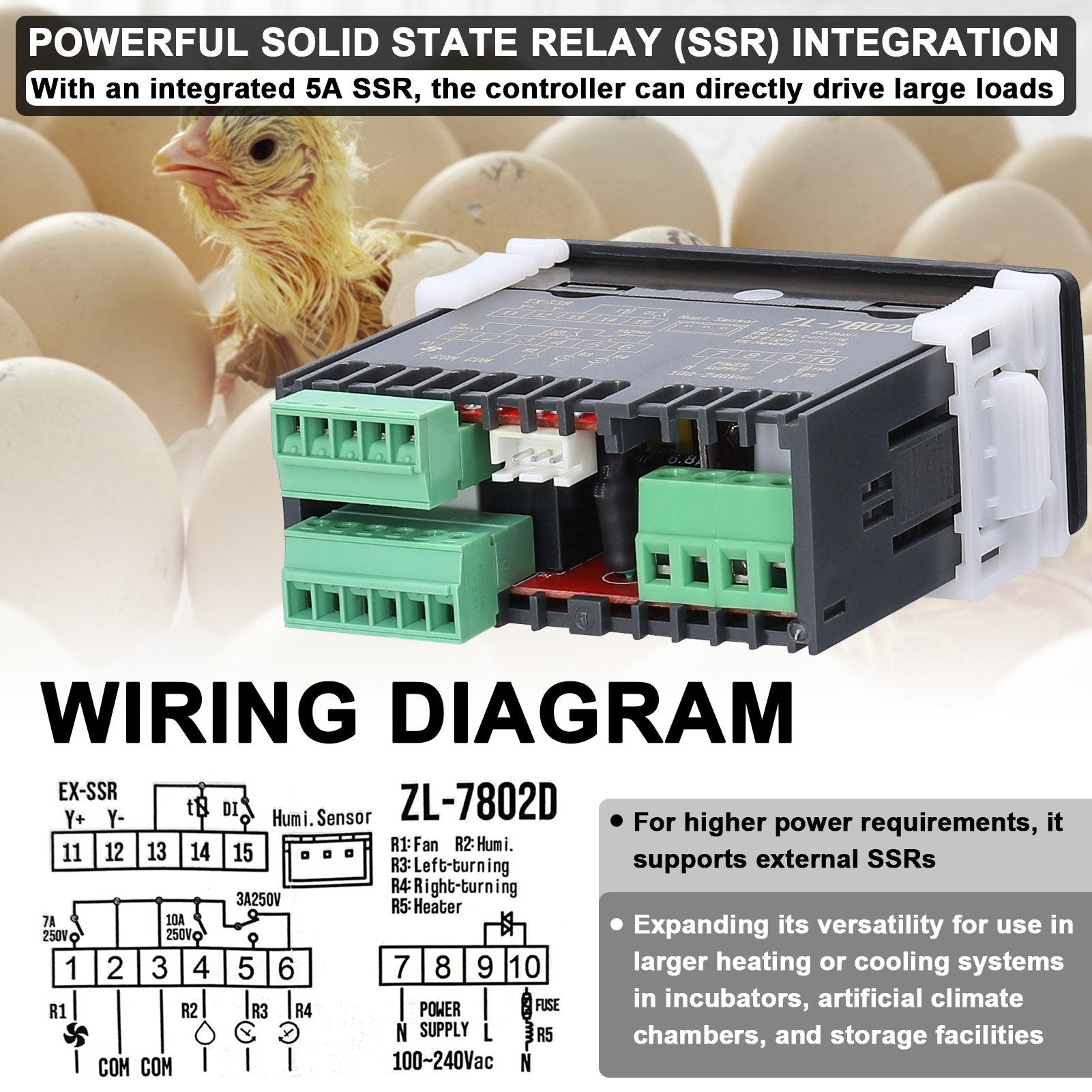

• Powerful Solid State Relay (SSR) Integration: Integrating a 5A SSR, the controller can directly manage large loads. It supports external SSRs for higher power requirements, making it versatile for larger systems in incubators, climate chambers, and storage facilities.

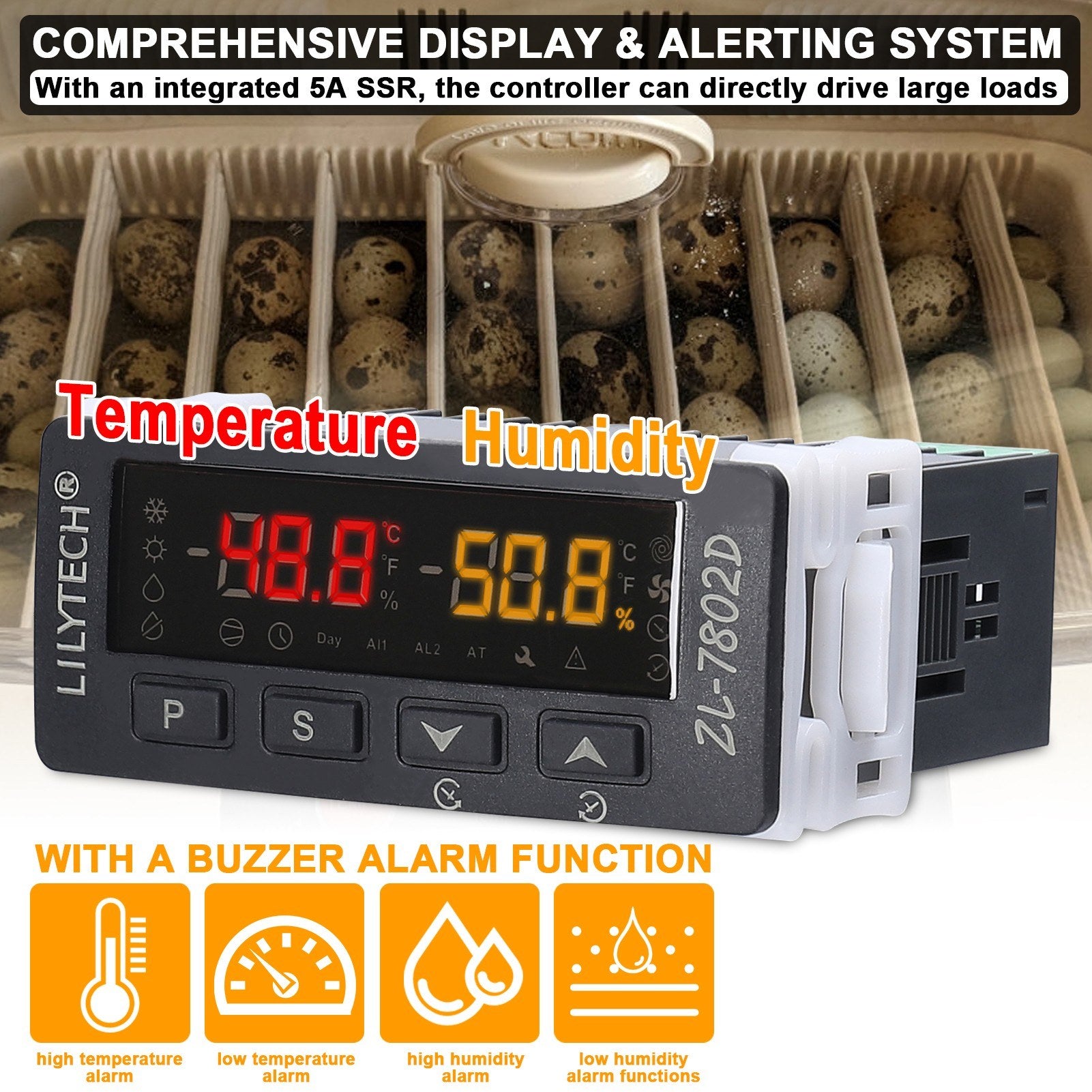

• Comprehensive Display & Alert System: The digital display provides separate readings for temperature and humidity. The multifunctional design supports automatic PID parameter tuning, and customizable ranges ensure reliable operation. A buzzer alarm alerts users to high/low temperature and humidity levels.
• Flexible Output Control & Automation: Offers output and egg-turning controls beyond basic temperature and humidity regulation, enhancing automation and efficiency in incubation processes.

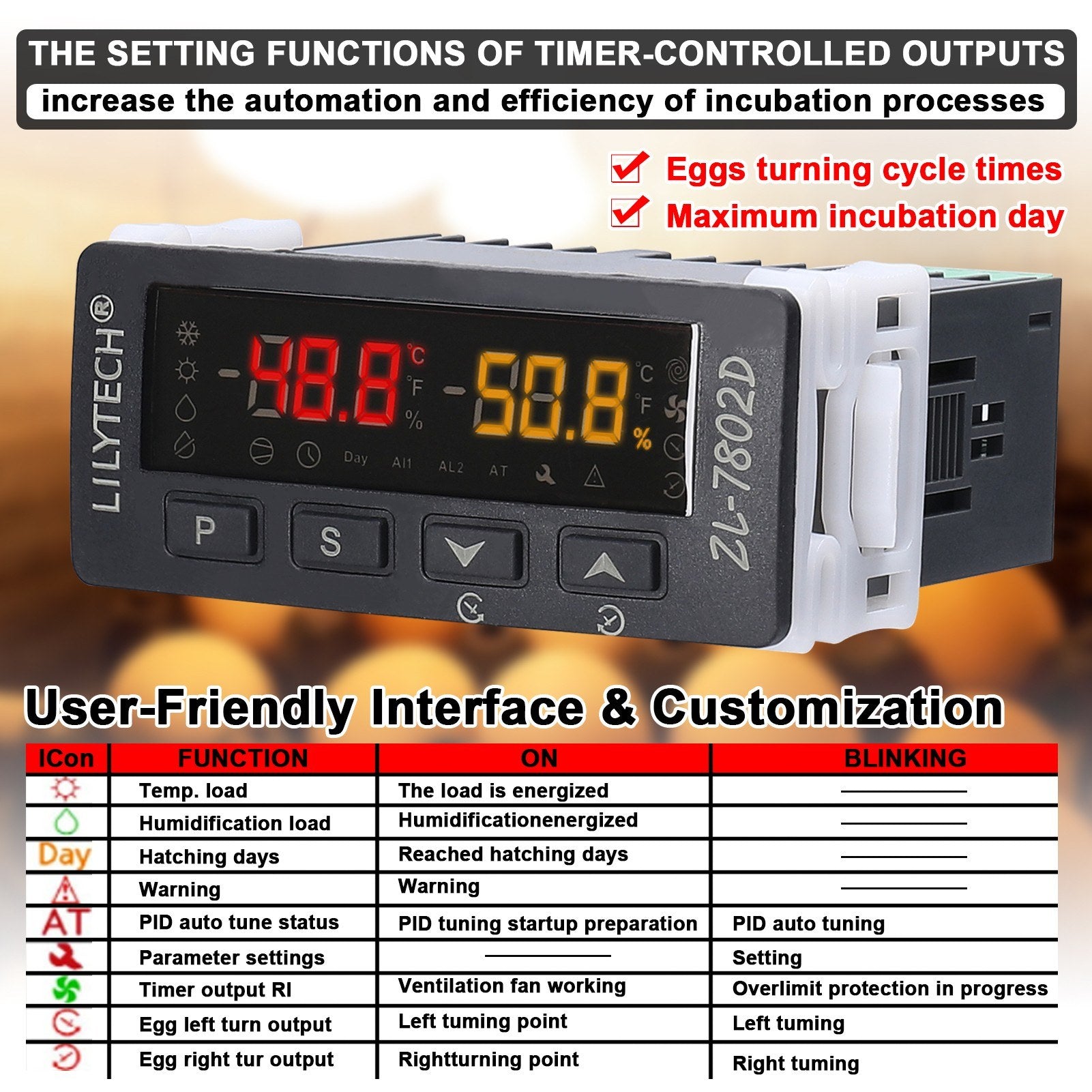

• User-Friendly Interface & Customization: Features multifunctional buttons for easy configuration. Includes power-on reset for incubation day counters and manual reset for egg-turning counts. Supports factory setting restoration for quick default parameter return.

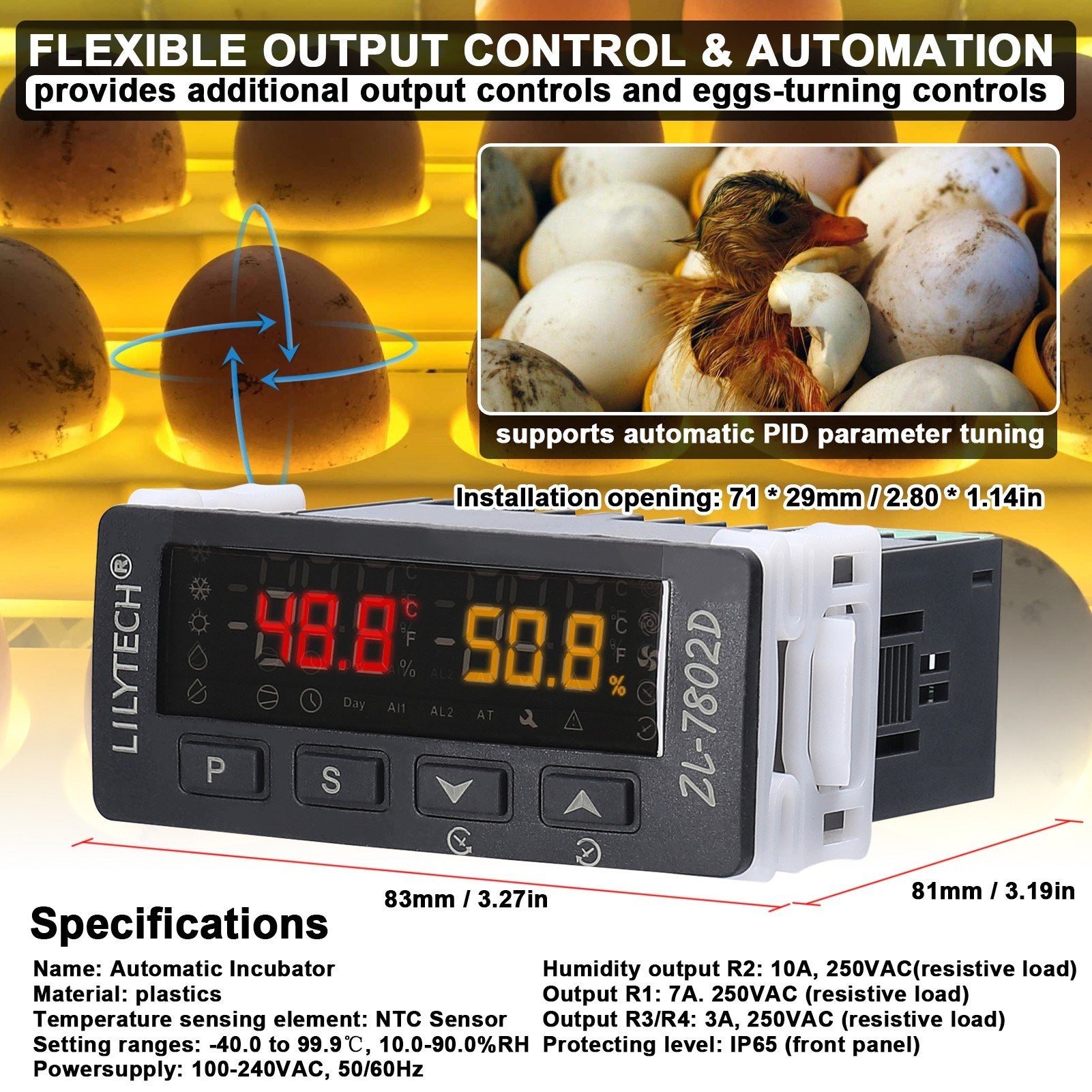

Specifications

Name:

Automatic Incubator

Material:

Plastics

Temperature Sensing Element:

NTC Sensor

Setting Ranges:

-40.0 to 99.9℃, 10.0-90.0%RH

Power Supply:

100-240VAC, 50/60Hz

Built-in SSR Temperature Control Output:

5A, 250VAC (Resistive Load)

External SSR Temperature Control Output (Y+,Y-):

4-20mA, 12VDC

Operating Environment:

-10℃ to 45℃, 5-85%RH (No Condensation)

Protecting Level:

IP65 (Front Panel)

Installation Opening:

71 × 29mm / 2.80 × 1.14in

Item Size:

83 × 35 × 81mm / 3.27 × 1.38 × 3.19in

Item Weight:

202g / 7.13ounce

Package Size:

110 × 85 × 72mm / 4.33 × 3.35 × 2.83in

Package Weight:

240g / 8.47ounce

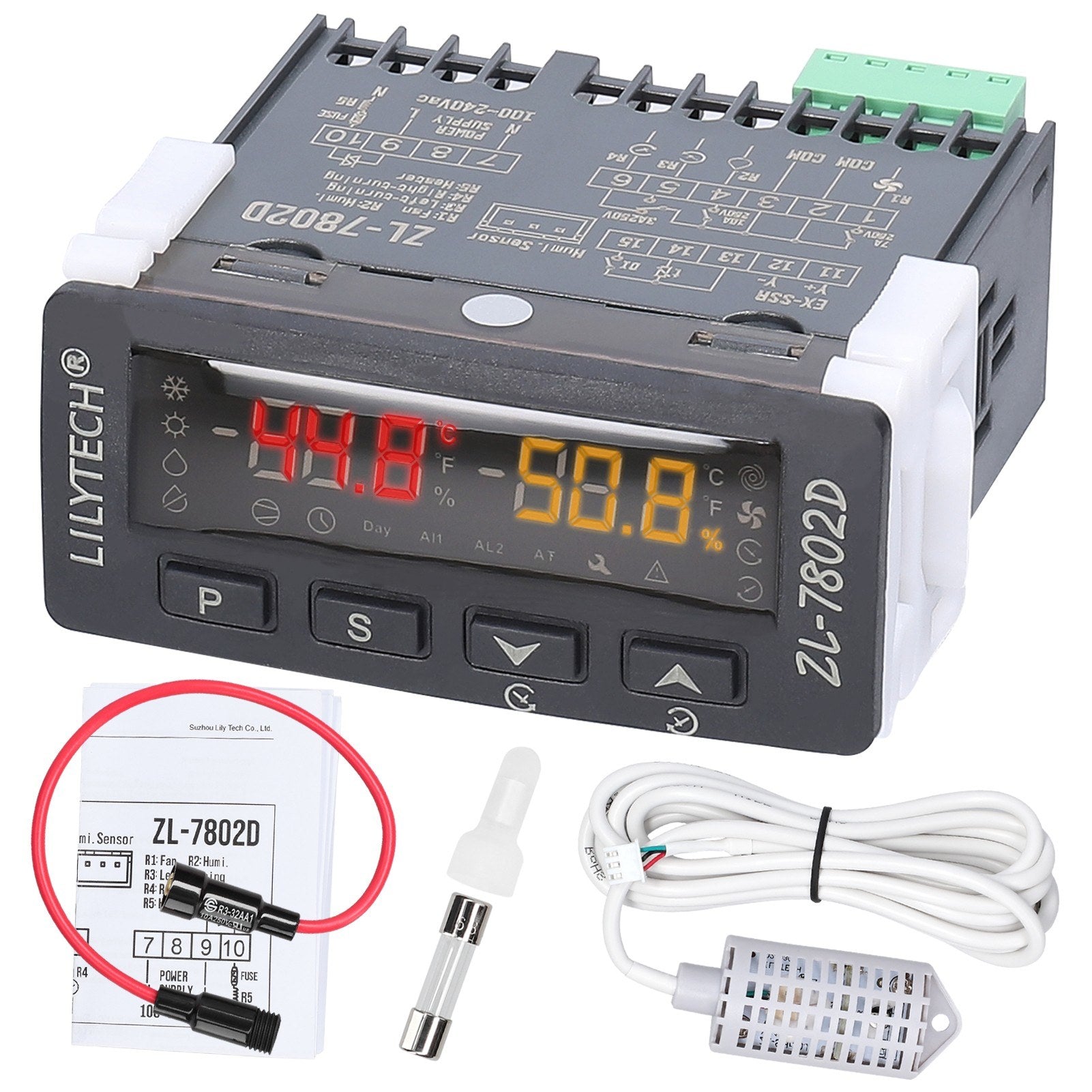

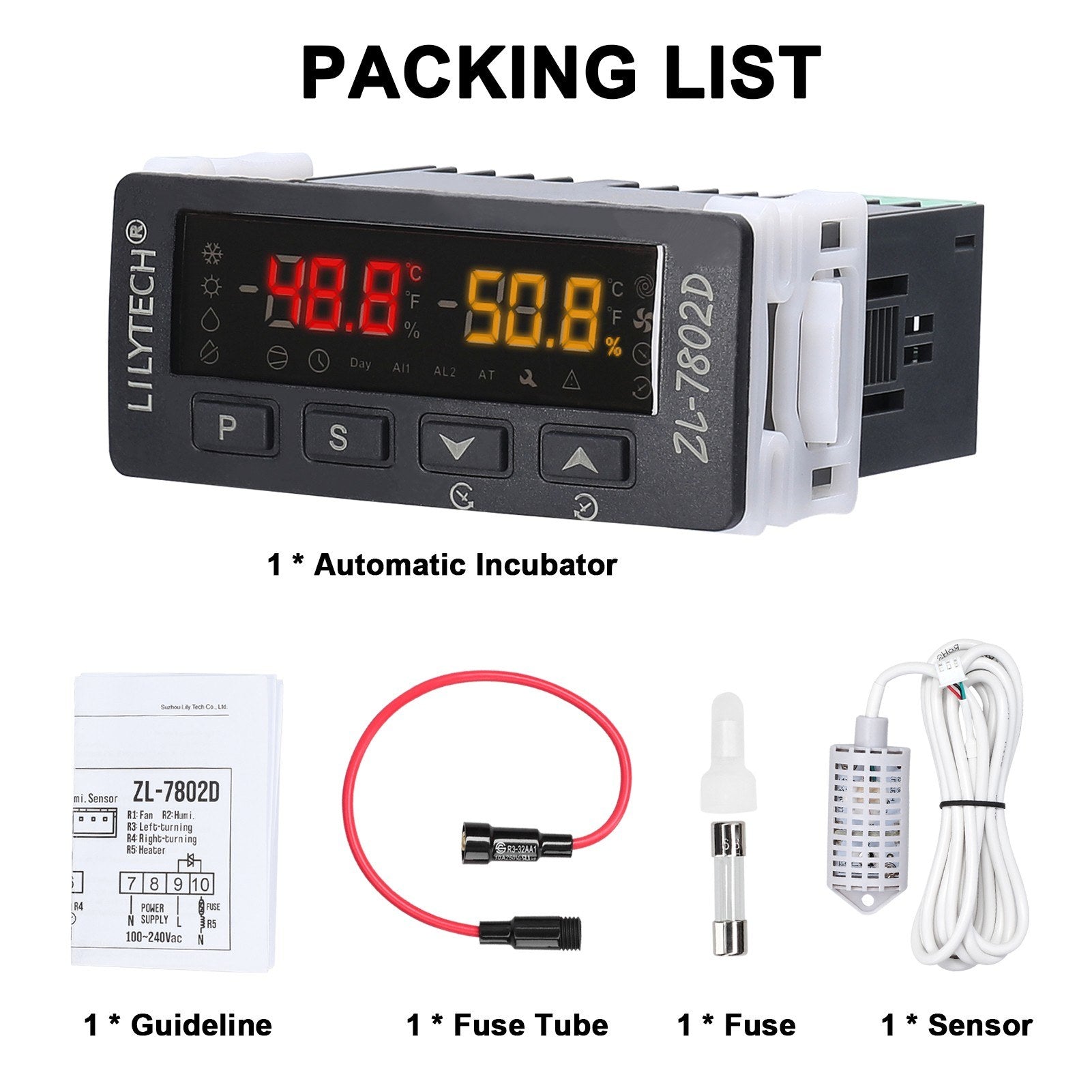

Packing List

• 1 × Automatic Incubator
• 1 × Sensor
• 1 × Fuse Tube
• 1 × Fuse
• 1 × Guideline
