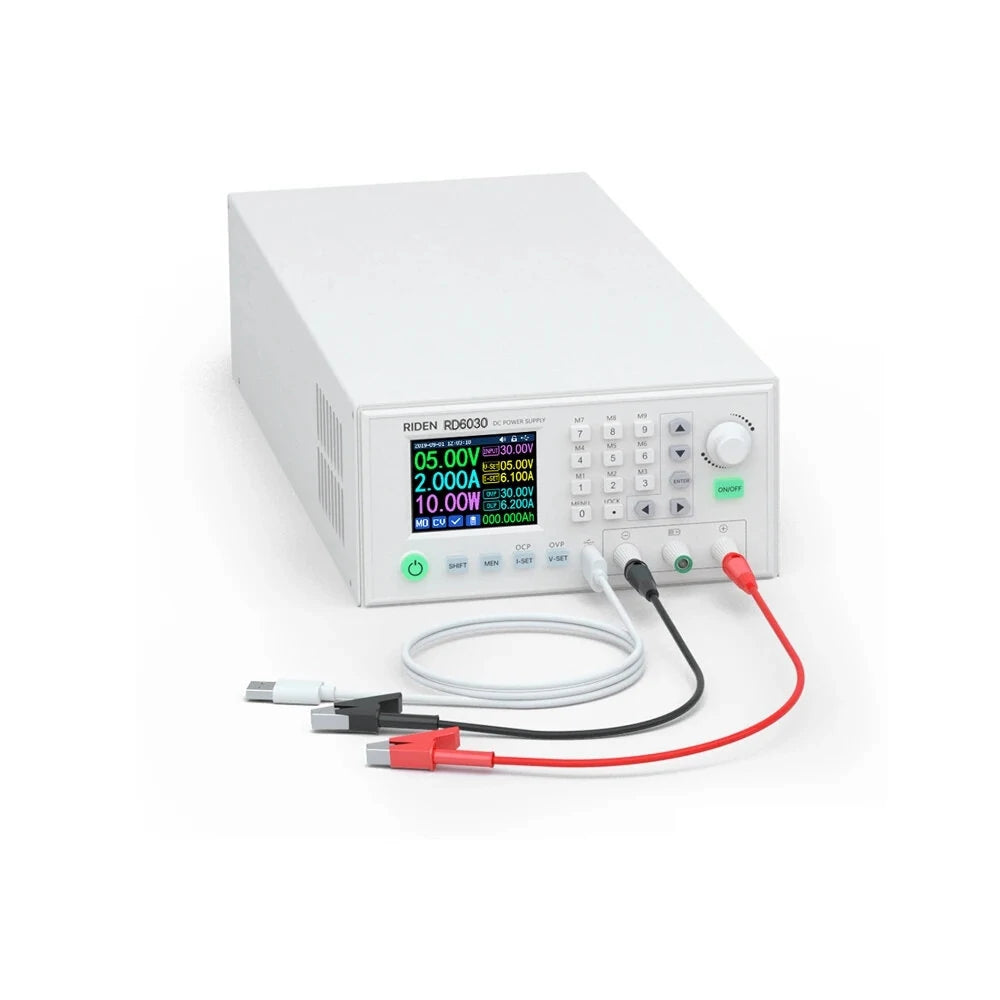

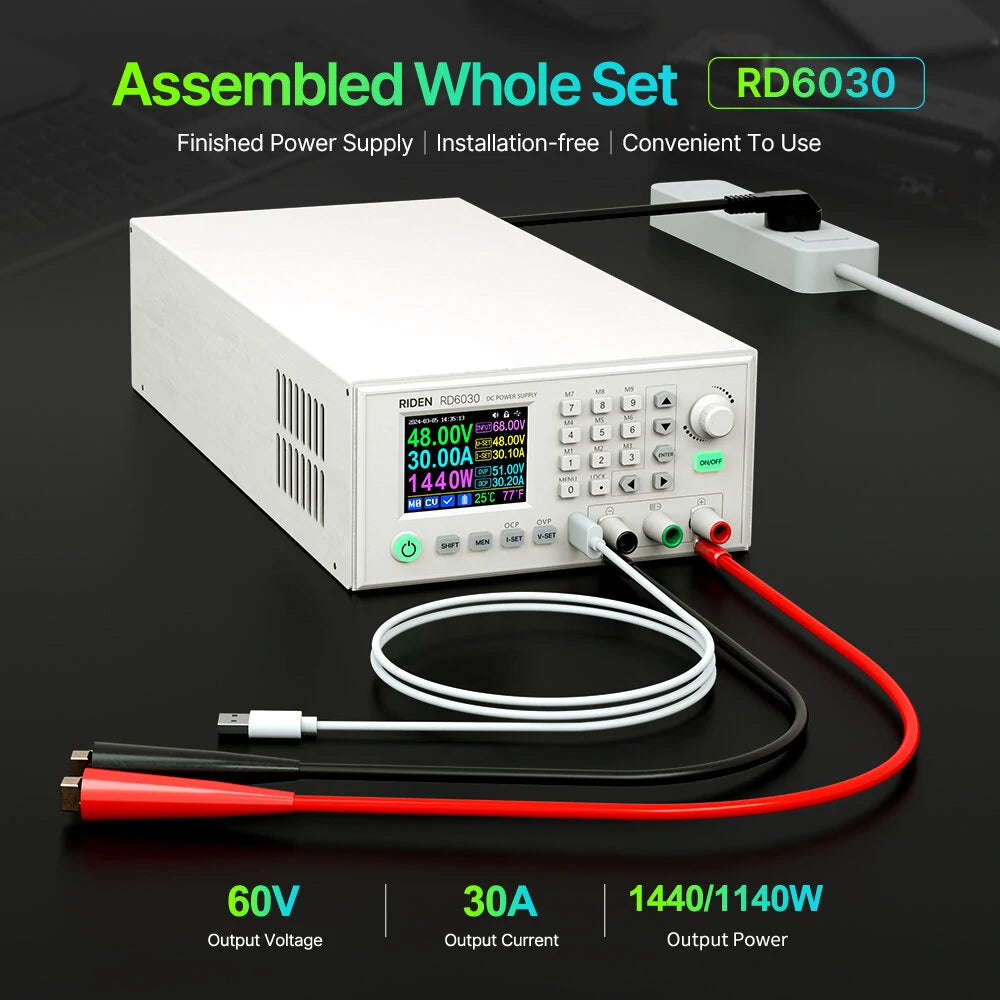

Assembled RIDEN RD6030 60V 30A DC Step-Down Lab Power Supply Module Adjustable Converter for Battery Charging

1500W PSU Notice

About the Noise:

• High-frequency noise may occur when the PSU is unloaded. This is due to the PWM control chip adjusting cycles to reduce power consumption. The noise generation varies with the production process of the transformer.
• The fan might generate a loud sound, especially at high temperatures, even when the PSU is unloaded.
• These phenomena are normal. It is advisable to turn off the AC switch when not in use. If noise is a concern, consider not purchasing this product.

Note

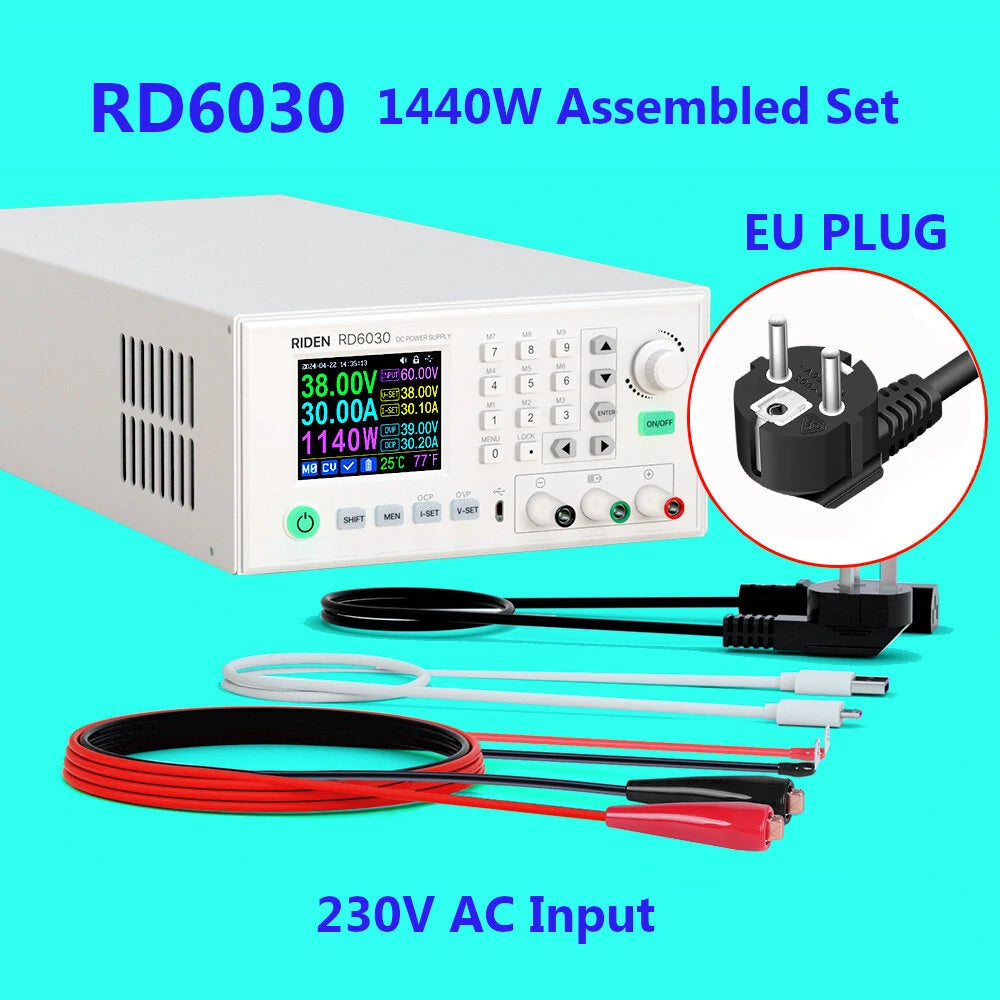

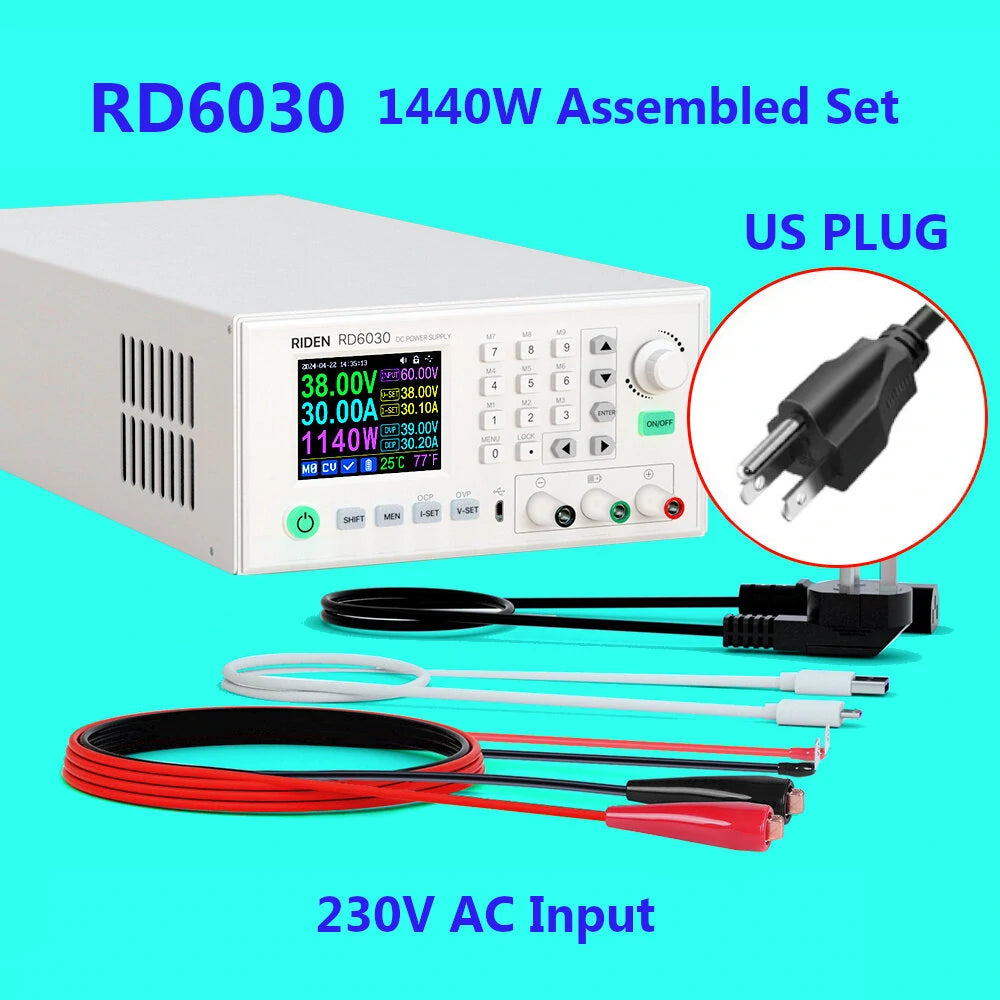

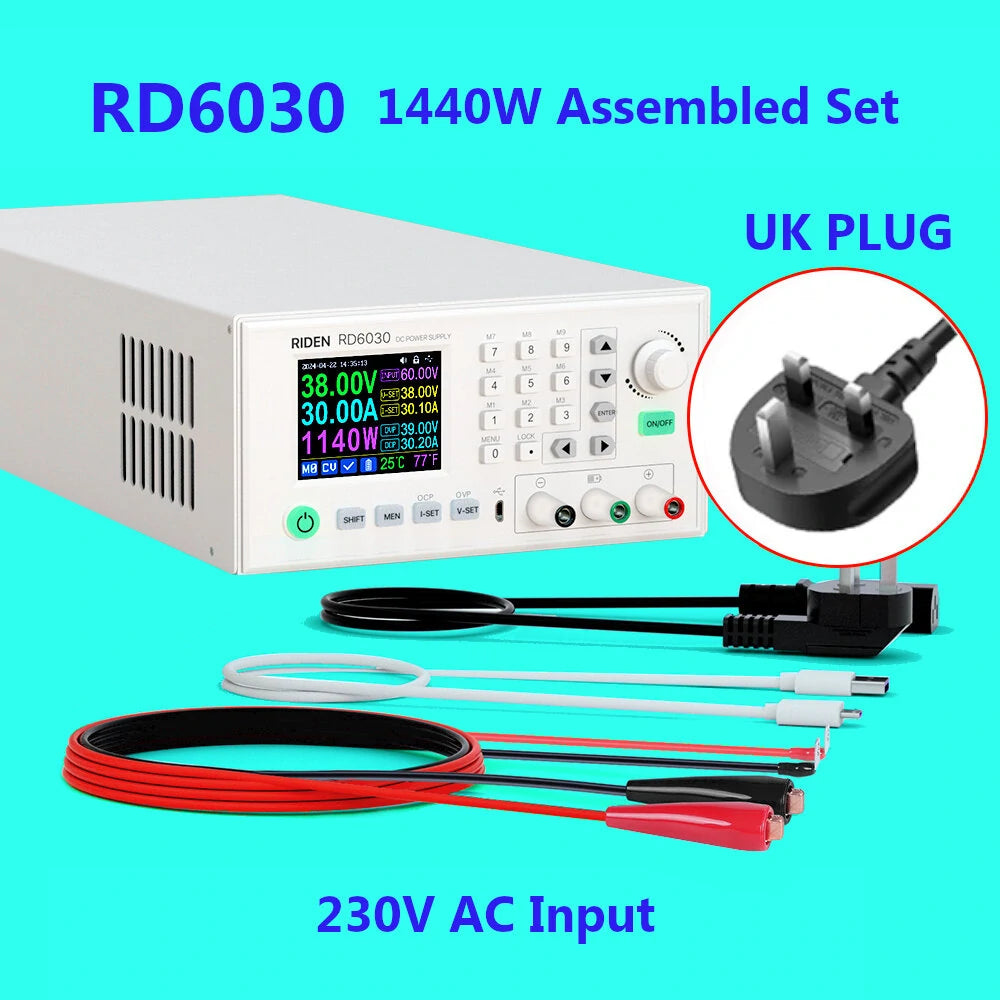

• This set is pre-assembled and ready for AC power connection. Available plug types: US, EU, UK. Differences lie only in the AC cable and voltage requirements.
• WiFicard and CR1220 battery for date/time display are not included.
• WiFicard installation requires a battery, and removal after installation is not recommended.

Features

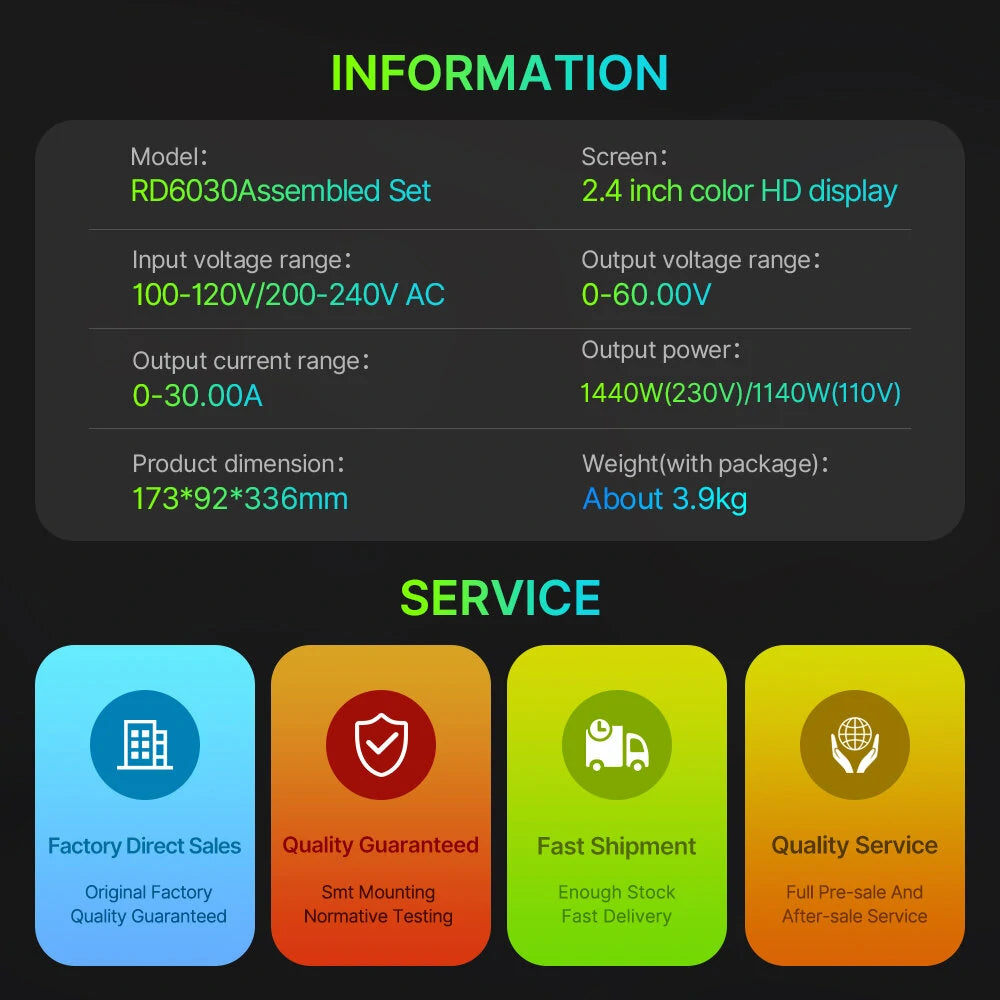

• Model: RD6030
• Input Voltage Range: 7-70.00V
• Output Voltage Range: 0-60.00V
• Output Current Range: 0-30.00A
• Output Power Range: 0-1800W
• Measurement Resolutions: 0.01V (Voltage), 0.01A (Current)
• Measurement Accuracy: Input Voltage ±(1%+5 digits), Output Voltage ±(0.3%+3digits), Output Current ±(0.5%+5 digits), Battery Voltage ±(0.5%+3 digits)
• Default Cutoff Current: 100mA when charging
• Output Ripple: 50mV@15A, 90mV@30A VPP
• Temperature Range: Working: -10℃~40℃, External Sensor Detection: -10℃~100℃/0℉~200℉
• External Sensor Accuracy: ±3℃/±6℉
• Constant Voltage/Current Regulation: Voltage ±(0.1%+2 digits), Current ±(0.1%+3 digits)
• Response Time: 2ms (0.1A-5A Load)
• Capacity/Energy Measurement: Capacity: 0-9999.99Ah, Energy: 0-9999.99Wh, Error: ±2％
• Buck Working Mode: (input voltage÷1.1) - 1
• Over Temperature Protection: System temperature >80℃
• Screen Brightness: 6 levels (0-5)
• Display: 2.4-inch color HD
• Weight (with package): Approx. 0.74kg
• Dimensions: 167 × 81 × 69mm
• Cooling Fan Activation: Output current >8A or system temperature >45℃

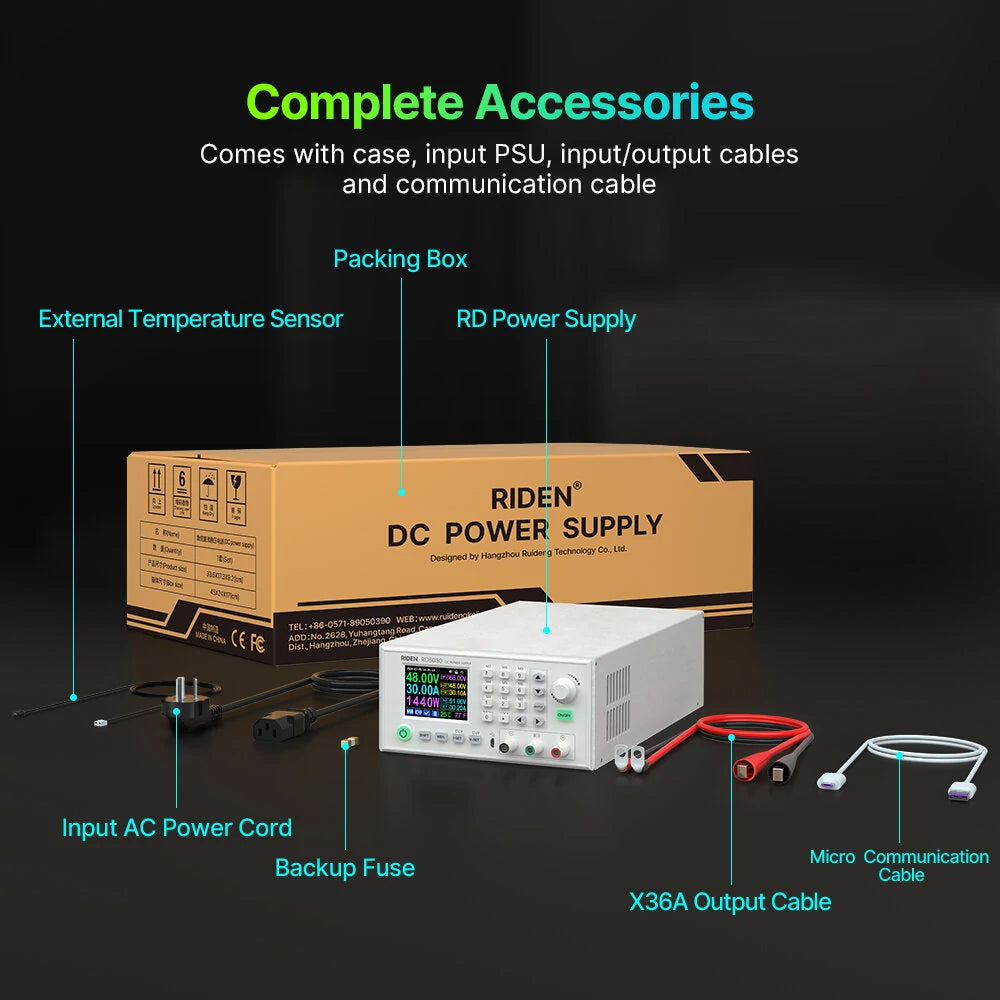

Package Includes:

1 x RD6030 Assembled Set (WiFi board not included)
