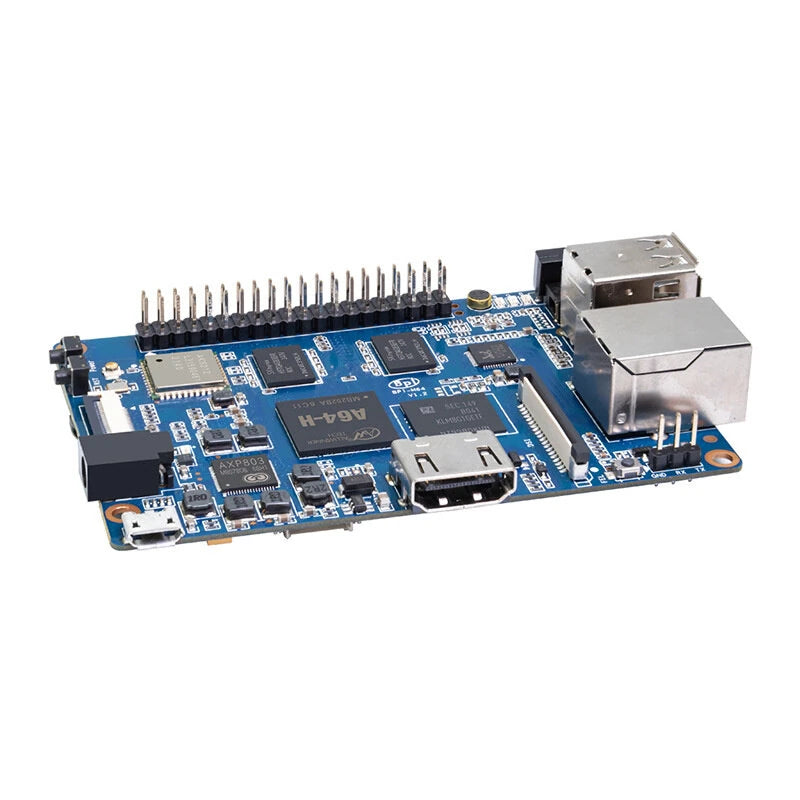

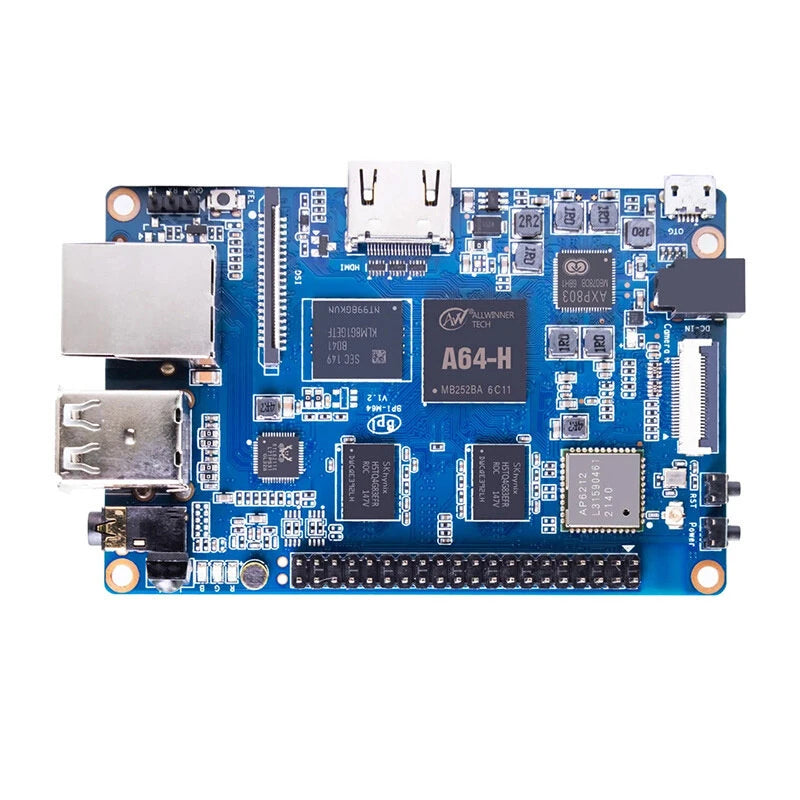

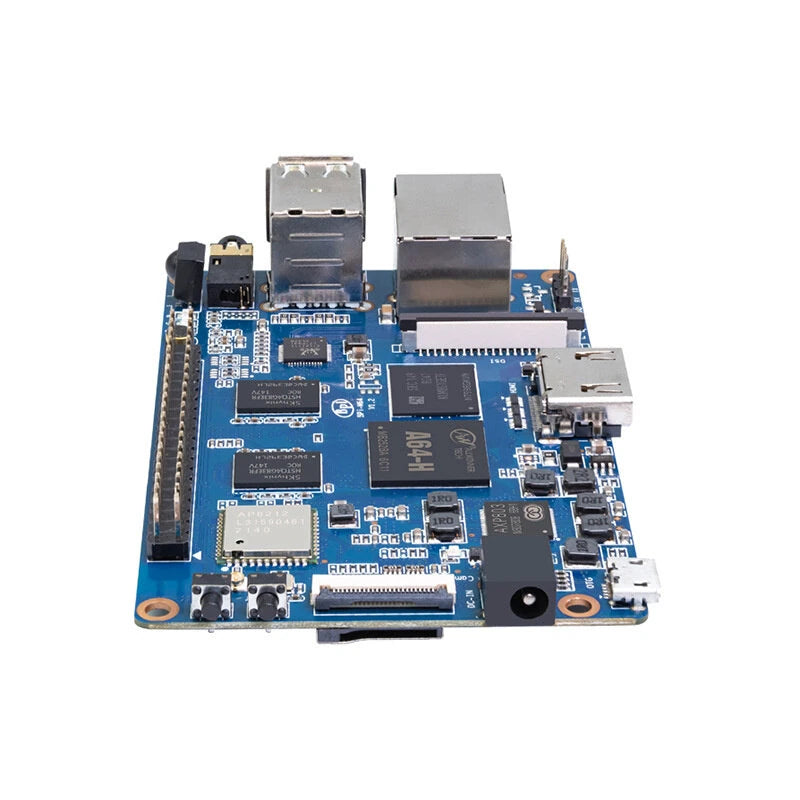

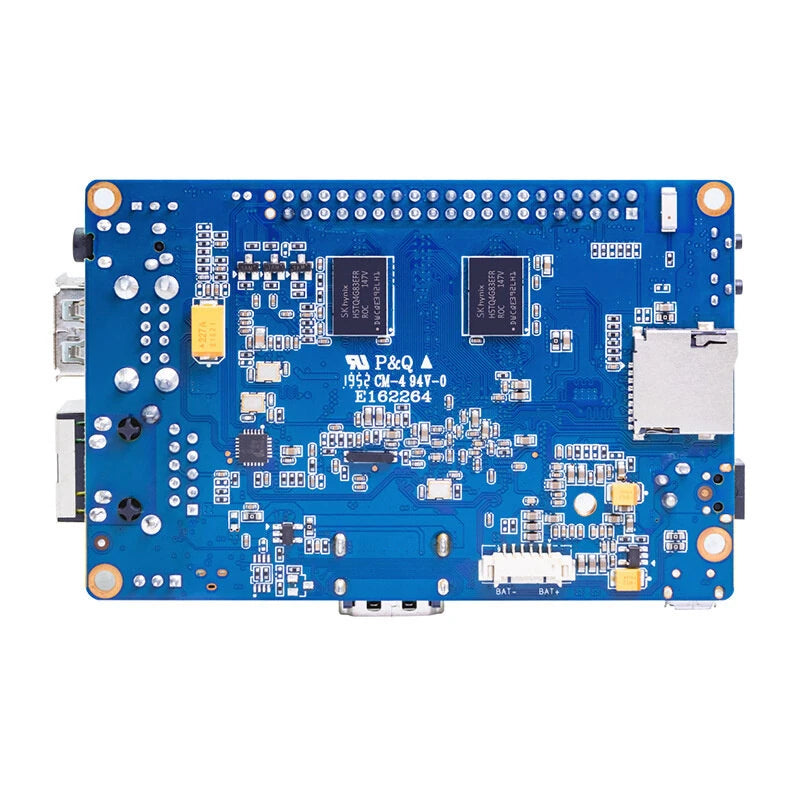

Banana Pi BPI-M64

Description

The Banana Pi BPI-M64 is a powerful development board equipped with the Allwinner A64 1.2 GHz quad-core ARM Cortex A53 64-bit processor. The dual-core 500MHz Mali-400MP2 GPU ensures impressive graphics capabilities, surpassing even the performance levels of popular gaming consoles. This 64-bit powerhouse offers a 20%-30% increase in performance over traditional 32-bit development boards.

Specifications

• CPU: Allwinner A64 64-bit Quad-Core ARM Cortex A53 1.2 GHz
• GPU: Dual-core Mali-400MP2
• SDRAM: 2 GB LPDDR3 (shared with GPU)
• Flash: 8 GB eMMC (options available: 16/32/64 GB)
• Micro SD Slot: Compatible with 8-64 GB MicroSD cards
• Network: 10/100/1000 Mbit/s Ethernet
• WiFi & Bluetooth: Wi-Fi 802.11 b/g/n, Bluetooth 4.0
• Video Inputs: CSI input connector for camera modules
• Video Outputs: 2K HD output, multi-channel audio (no H./X.265)
• Audio Inputs: Onboard microphone
• Audio Outputs: 3.5mm audio jack and HD output
• USB Ports: 2x USB 2.0, 1x USB OTG
• Remote: IR Receiver
• GPIO: 40-pin header with GPIO, power (+5V, +3.3V, GND), and specific functions (UART, I2C, SPI, PWM)
• Switches: Reset, Power, and U-boot
• LED: Power Status and 8P8C indication
• Power Source: 5 volt @2A via DC Power and/or Micro USB (OTG)
• Size & Weight: 92x60mm, 48g
• Operating Systems: Android and Linux

Features

1. High-Performance Processor: Equipped with a 1.2 GHz Quad-core ARM Cortex A53 CPU, delivering 20-30% better performance compared to 32-bit boards.
2. Enhanced Graphics Capabilities: Dual-core Mali-400 MP2 GPU with 1.1 Gpixel throughput, exceeding the graphics performance of contemporary gaming consoles.
3. Comprehensive Connectivity: Features Gigabit Ethernet, onboard Wi-Fi, and Bluetooth for versatile networking options.
4. Multimedia Ready: Supports 2K HD output, onboard microphone, and 3.5mm audio jack for an immersive multimedia experience.
5. Expandable Storage: Comes with 8 GB eMMC storage, expandable via a MicroSD slot that supports 8-64 GB cards.
6. Versatile Input and Output Ports: Includes USB 2.0 ports, USB OTG, CSI input connector, and a 40-pin GPIO header, enabling a wide range of applications.
7. Multi-Platform OS Support: Compatible with both Android and Linux operating systems for flexibility in software applications.

Package Includes

• 1x Module Board
