Handheld Thermal Imager: 24x32 Pixel Infrared Sensor, 240x320 Resolution, 2.0-inch LCD, -40℃ to 300℃

Handheld Multifunctional Thermal Imager

Experience the convenience of a compact, lightweight thermal imager equipped with advanced features for both household and industrial use. Our device integrates infrared sensors and a 32x24 pixel far infrared array, delivering clear imaging on a large 2.0 inch LCD color screen with 240x320 resolution. Effortlessly track maximum, minimum, and center point temperatures in real-time.

Key Features:

• Dual Functionality: Combines surface temperature measurement with real-time thermal imaging.
• Versatile Applications: Perfect for contactless temperature reading, human and ambient temperature detection, and industry parts analysis.
• Portable and Efficient: Lightweight with an integrated design, making it easy to carry without the need for external devices.
• Durable Design: Features an FR4 epoxy outer shell for enhanced protection and longevity.
• Advanced Sensor: High sensitivity infrared sensor with a 32x24 pixel array for clear imaging.

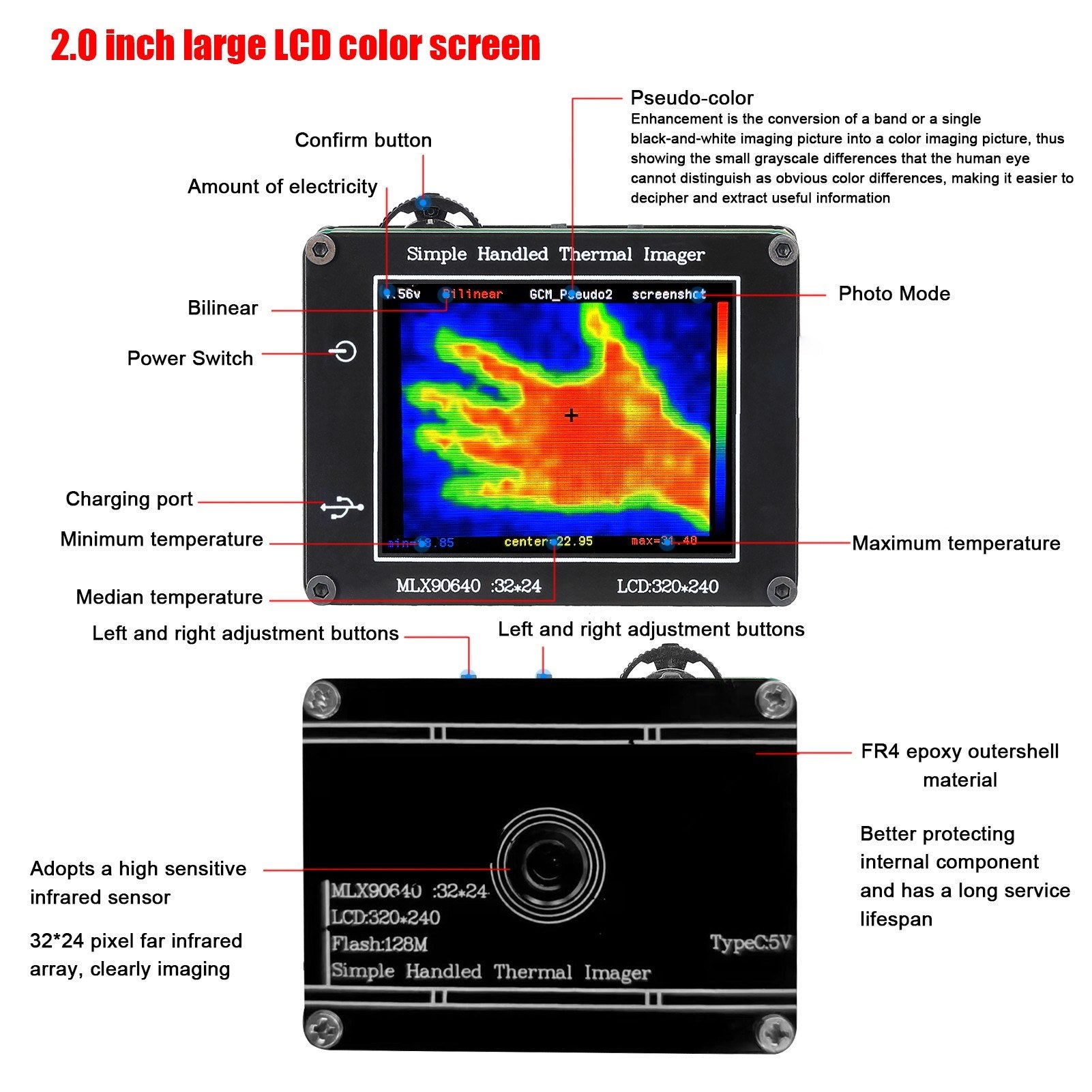

• User-Friendly Display: 2.0 inch LCD color screen that tracks temperature metrics accurately.
• Wide Measurement Range: -40℃ to +300℃ with an 8Hz refresh rate for dynamic tracking.

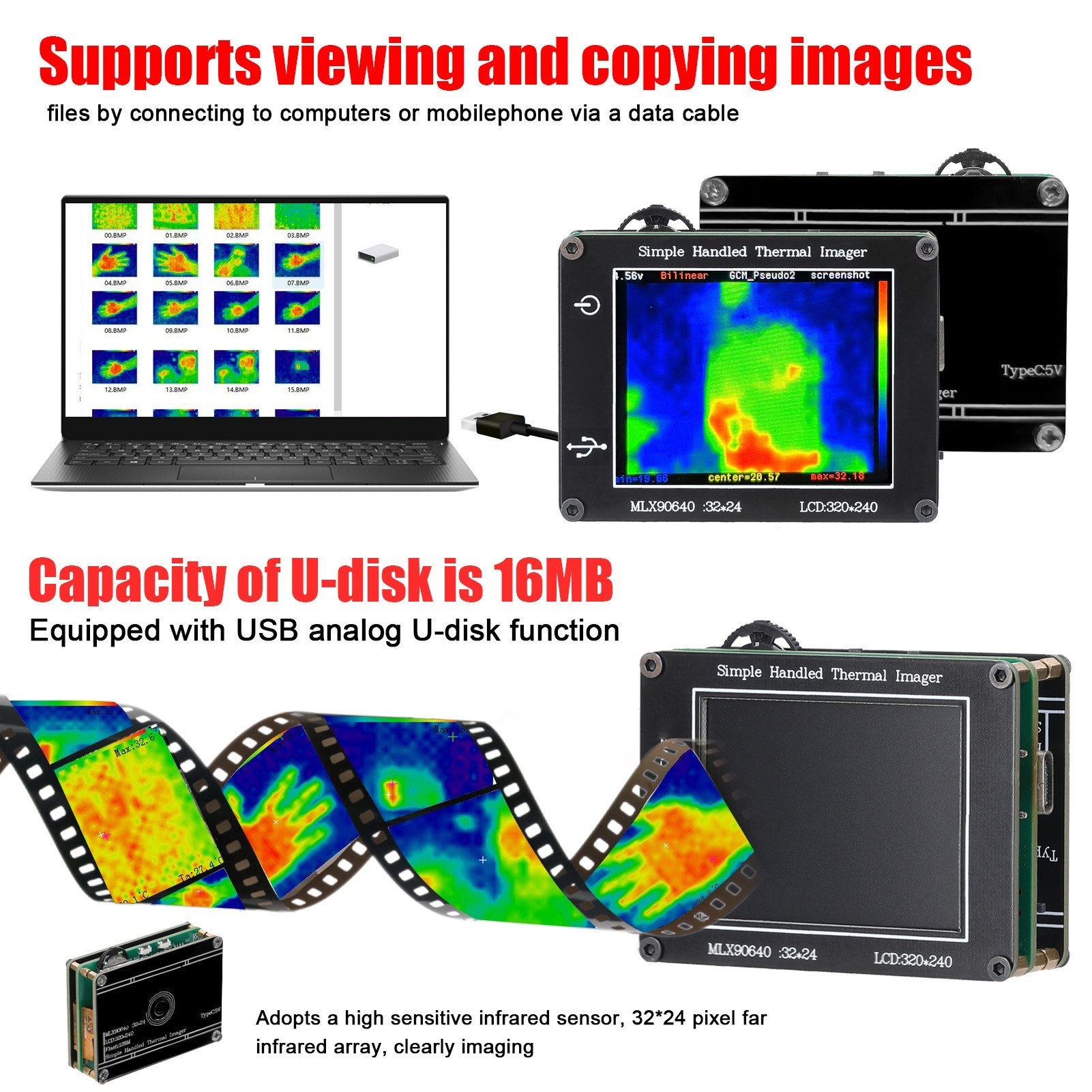

• Convenient Storage: Includes a 16MB USB analog U-disk function.
• Photo Capture: Photo-taking capability with a 15-second prep requirement.
• Rechargeable Battery: Built-in lithium-ion battery with USB Type-C charging and a long lifespan.

Wide Applications:

• Contactless temperature readings and body temperature monitoring
• Building temperature measurement and control
• Automotive repair and maintenance inspections
• Microwave and oven temperature checks
• Industrial parts temperature monitoring
• Visual temperature sensing in various settings
• Floor heating system maintenance
• Circuit board thermal inspections

Specifications:

• Product Name: Thermal Imager
• Materials: Epoxy sheet and printed circuit board
• Battery: 1 x 3.7V, 600mAh lithium-ion battery (included)
• Infrared Sensor: MLX90640ESF-BAB
• Hardware Resolution: 32x24 pixel array
• Display: 2.0 inch LCD
• Screen Resolution: 240x320 pixels
• Temperature Range: -40℃ to 300℃
• Accuracy: ±2℃
• Refresh Rate: 8Hz
• Field of View: 55° horizontal x 35° vertical
• Charging Interface: Type-C
• USB Storage: 16MB
• Item Dimensions: 62 x 50 x 20mm / 2.44 x 1.97 x 0.79in
• Item Weight: 70g / 2.47oz
• Package Dimensions: 110 x 80 x 50mm / 4.33 x 3.15 x 1.97in
• Package Weight: 80g / 2.82oz

Packing List:

• 1 x Thermal Imager
• 1 x Cable
