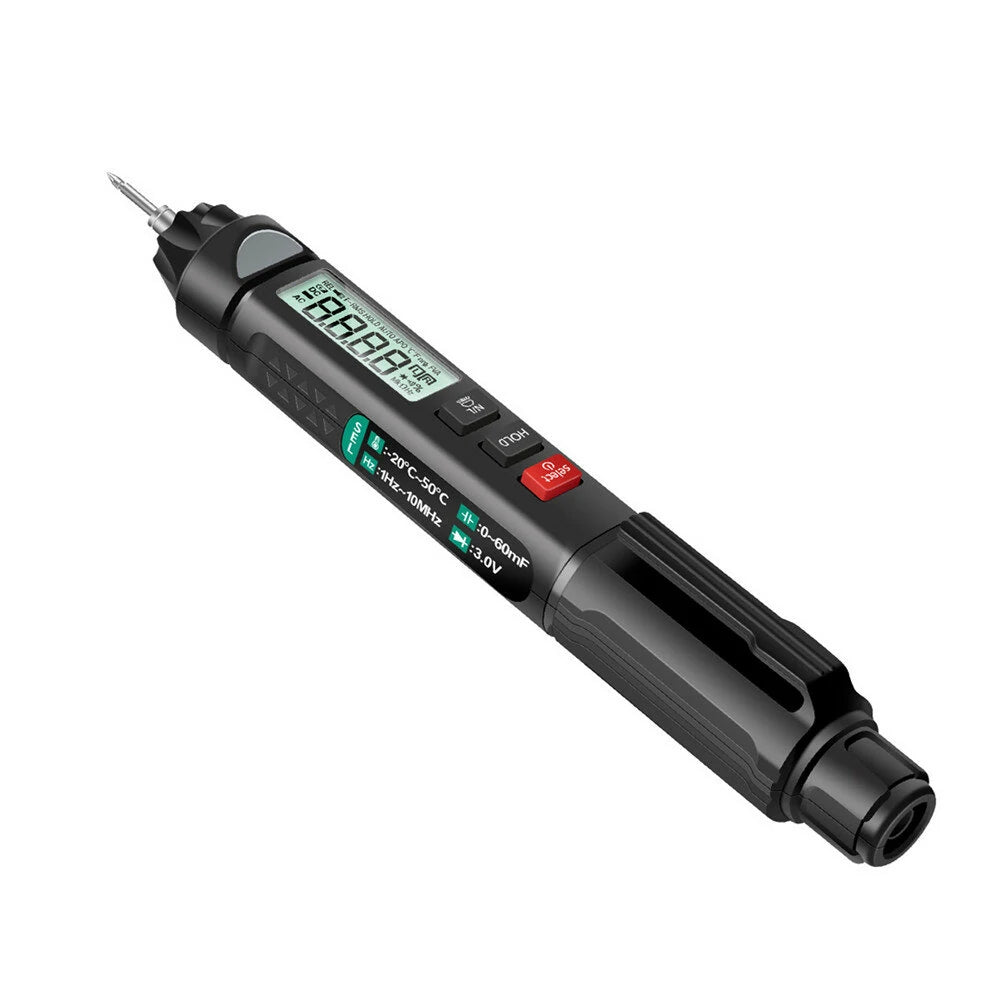

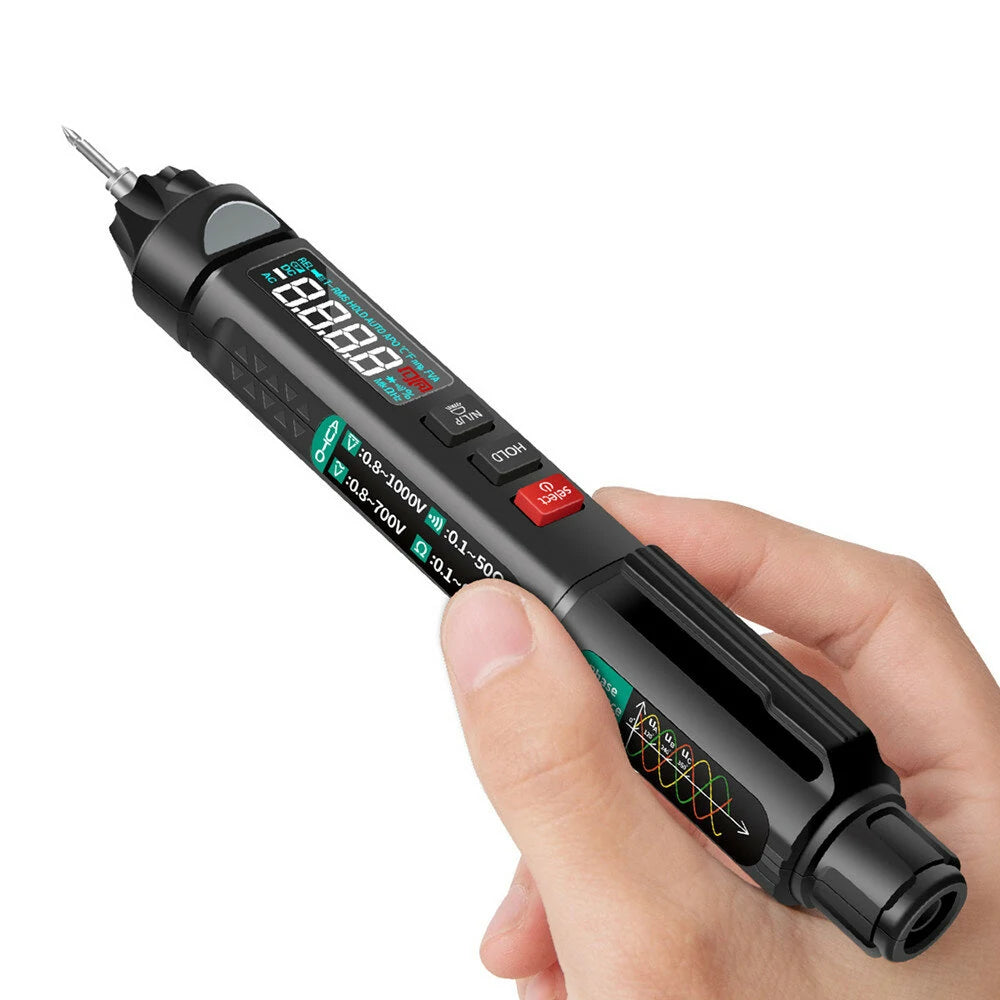

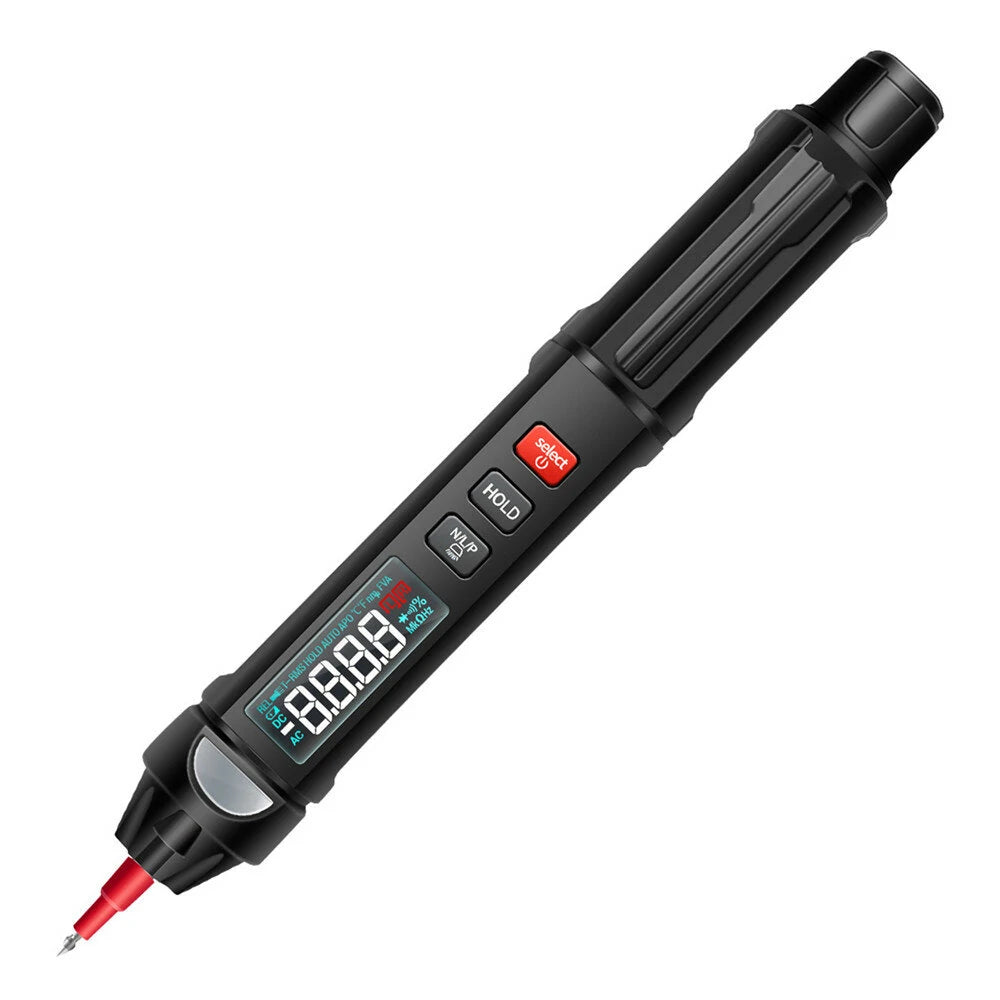

ANENG A3007/A3008 Smart Multimeter

Screens Available

Model	Normal LCD Screen	Color Screen
A3007	√	x
A3008	√	√

Product Overview

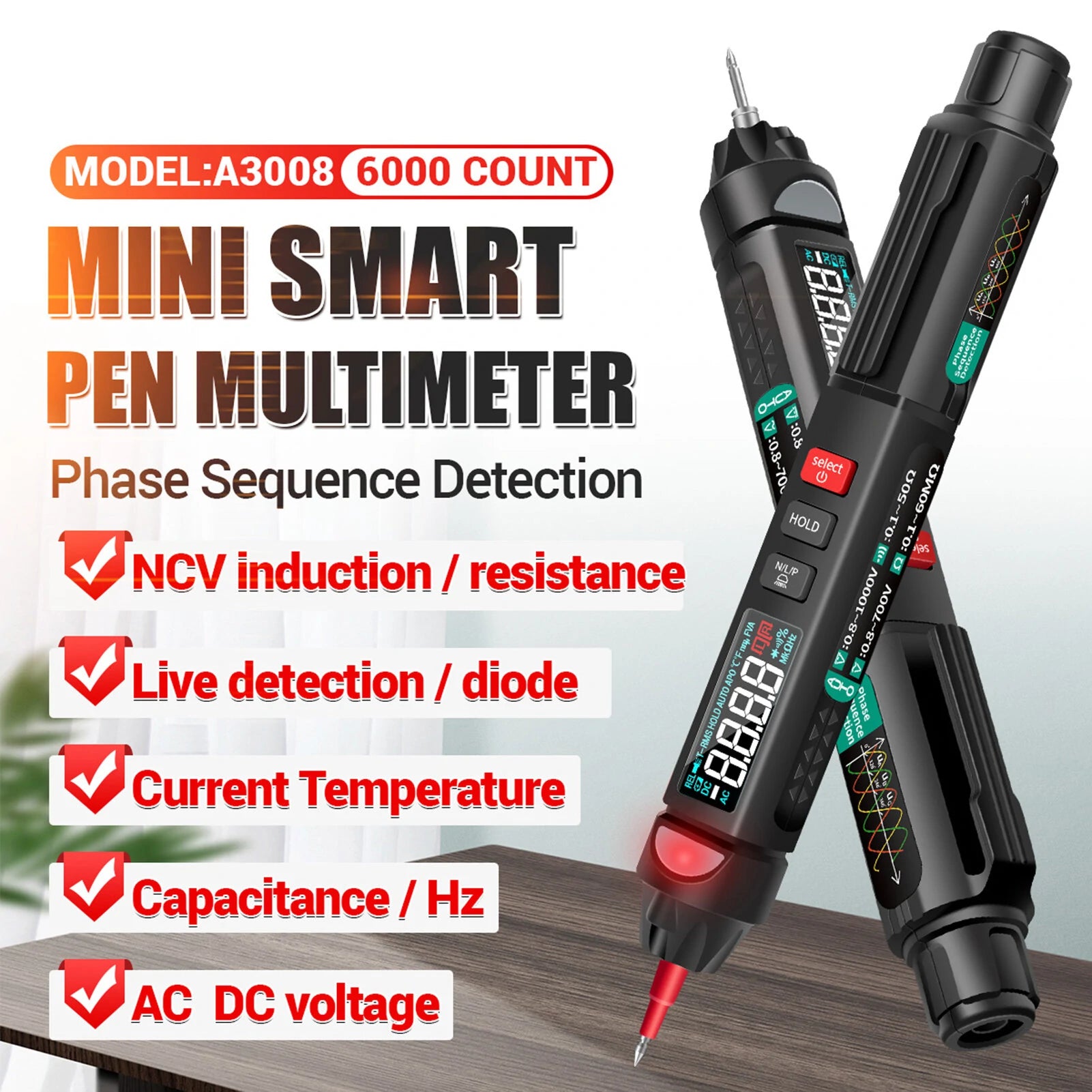

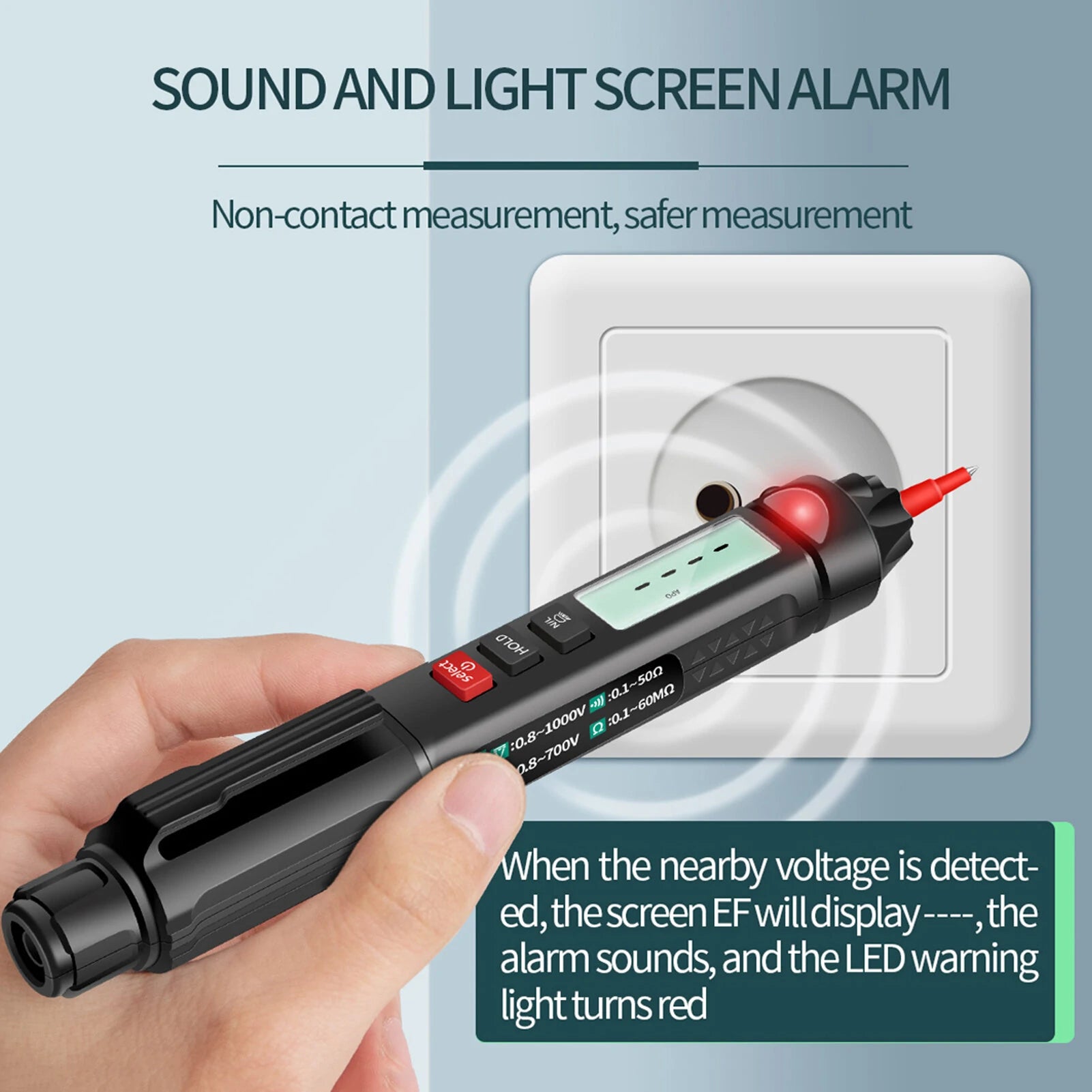

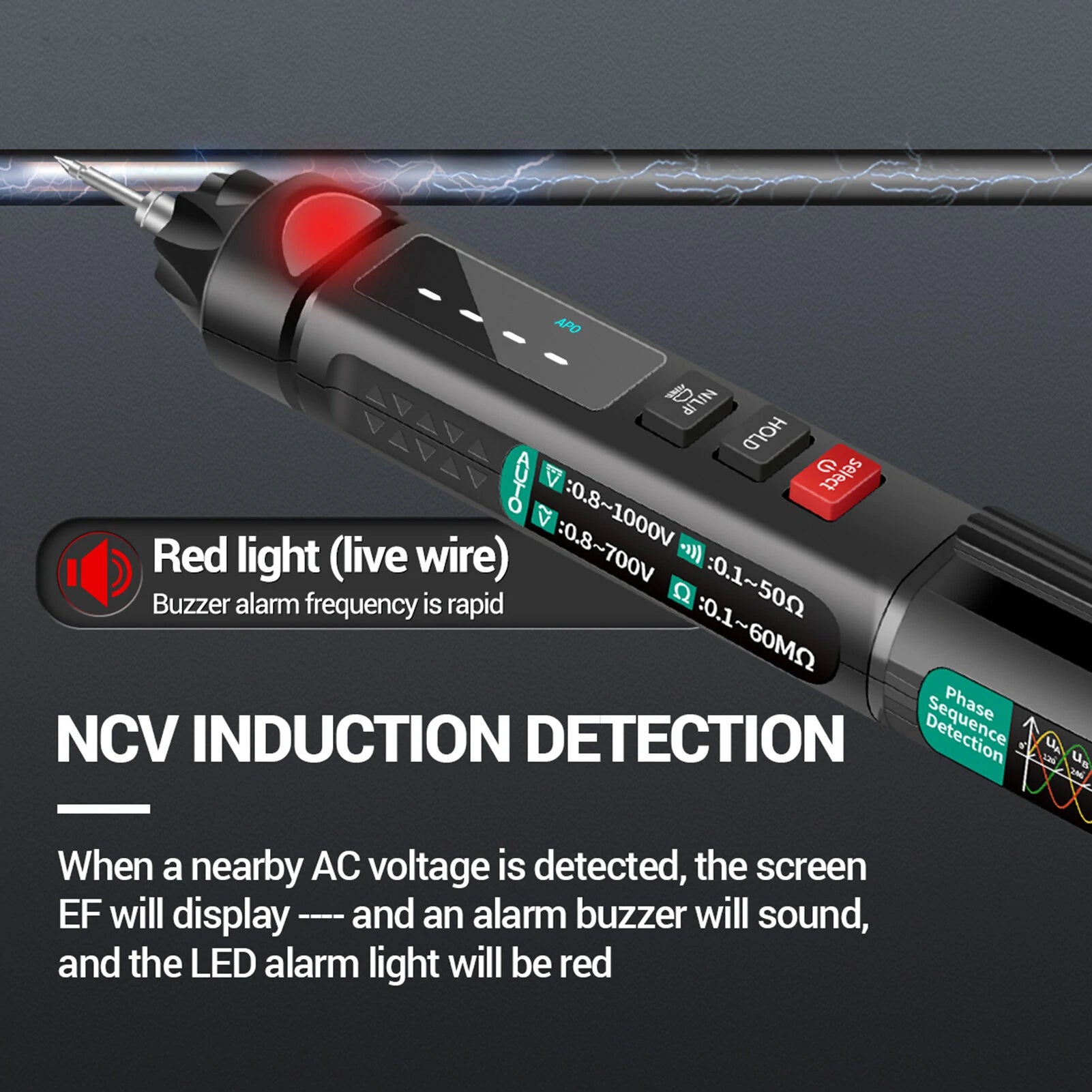

The ANENG A3007/A3008 is a pocket-sized pen-type smart multimeter featuring 3 5/6 digits, true RMS, and automatic identification of DC/AC voltage and resistance without the need to toggle dials. It boasts high precision, energy-saving auto-off after 5 minutes of inactivity, and features such as diode testing, NCV, overload protection, and zero live line measurement. Ideal for professionals, hobbyists, educational purposes, and household use.

Key Features

• Multi-Functionality: Measures voltage, resistance, capacitance, diode, frequency, temperature, continuity, and detects phase sequences without contact.
• High Precision & Speed: 6000 counts digital pen-type multimeter with a sampling speed of 3 times per second.
• Easy Operation: Equipped with a clear LCD screen, flashlight for dark conditions, data hold functionality, and an audible alarm.
• Durability & Portability: Built with sturdy components and lightweight materials for easy portability and comfort.
• Wide Application Range: Ideal for automotive, factory, educational, and household electrical troubleshooting.

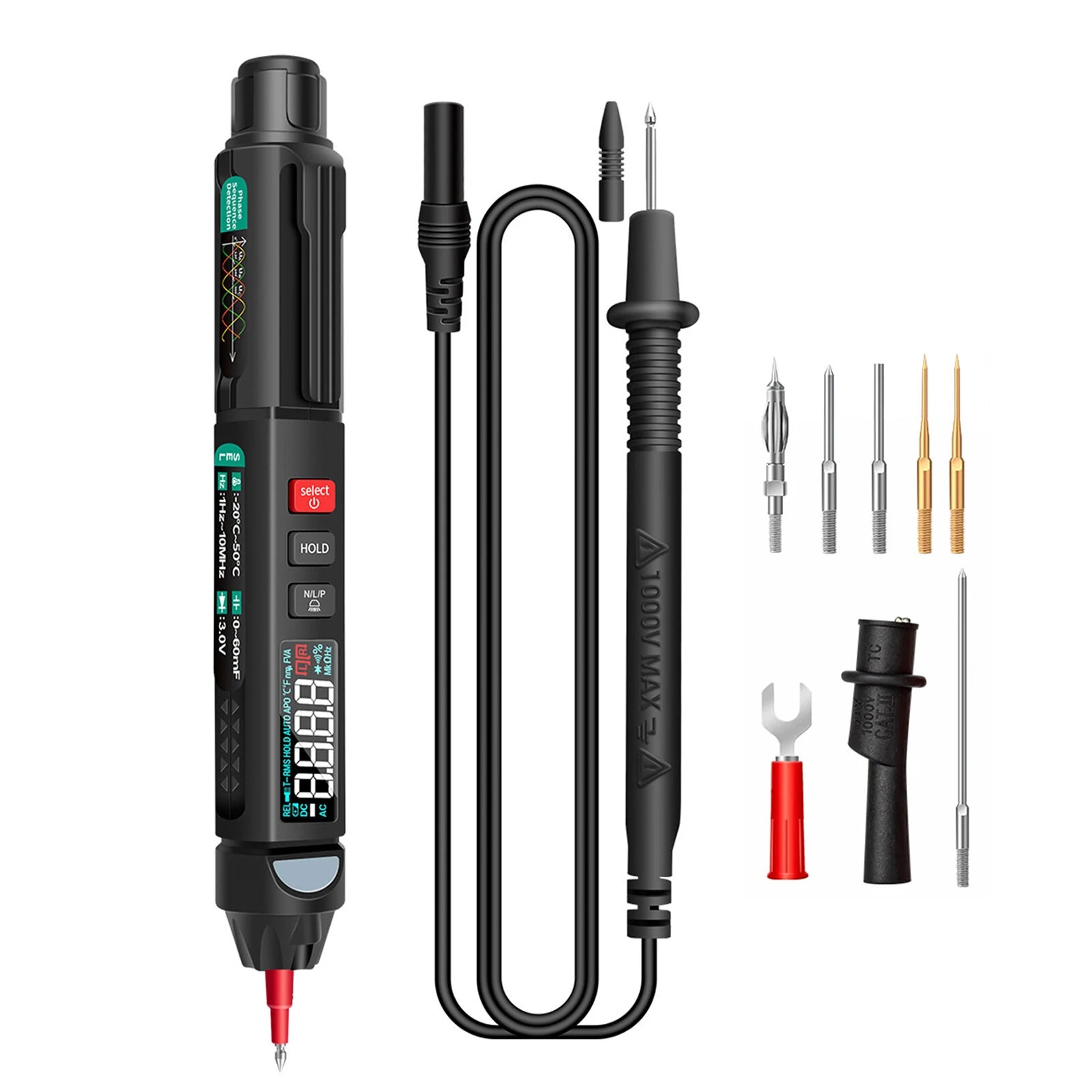

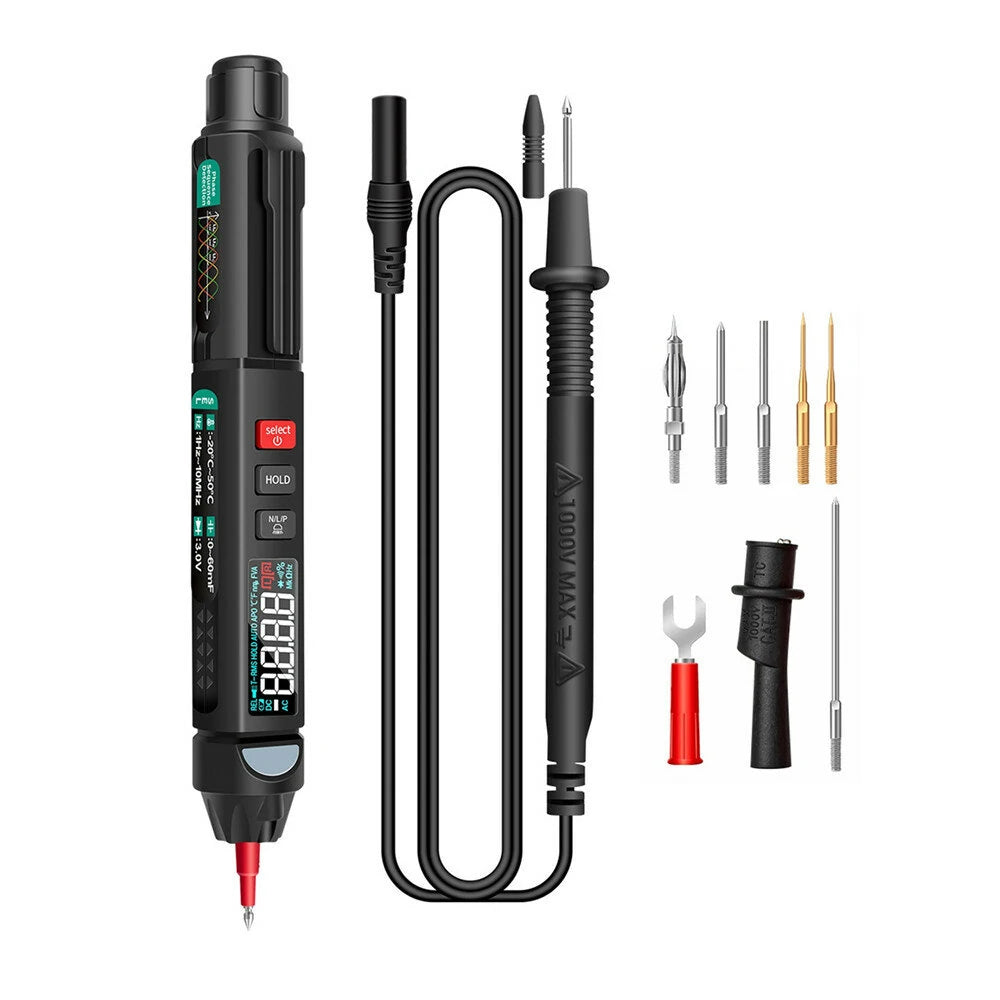

Included Accessories

• 1 x U-shaped Insert
• 1 x Alligator Clip
• 2 x Extra Tip
• 1 x Nickel-plated Copper Needle
• 1 x Tapered Needle
• 1 x Extended Nickel-plated Copper Needle
• 1 x Banana Tip

Measurement Range & Accuracy

• DC Voltage: 6V/60V/600V ±(0.5%+4); 1000V ±(0.8%+10)
• AC Voltage: 6V/60V/600V ±(0.5%+4); 700V ±(0.8%+10)
• Resistance: 600Ω ±(0.8%+5); 6kΩ-60MΩ ± up to (2.5%+3)
• Capacitance: 10nF-60mF ± up to (5%+3)
• Temperature: -20~50℃ ±(1.0%+5)

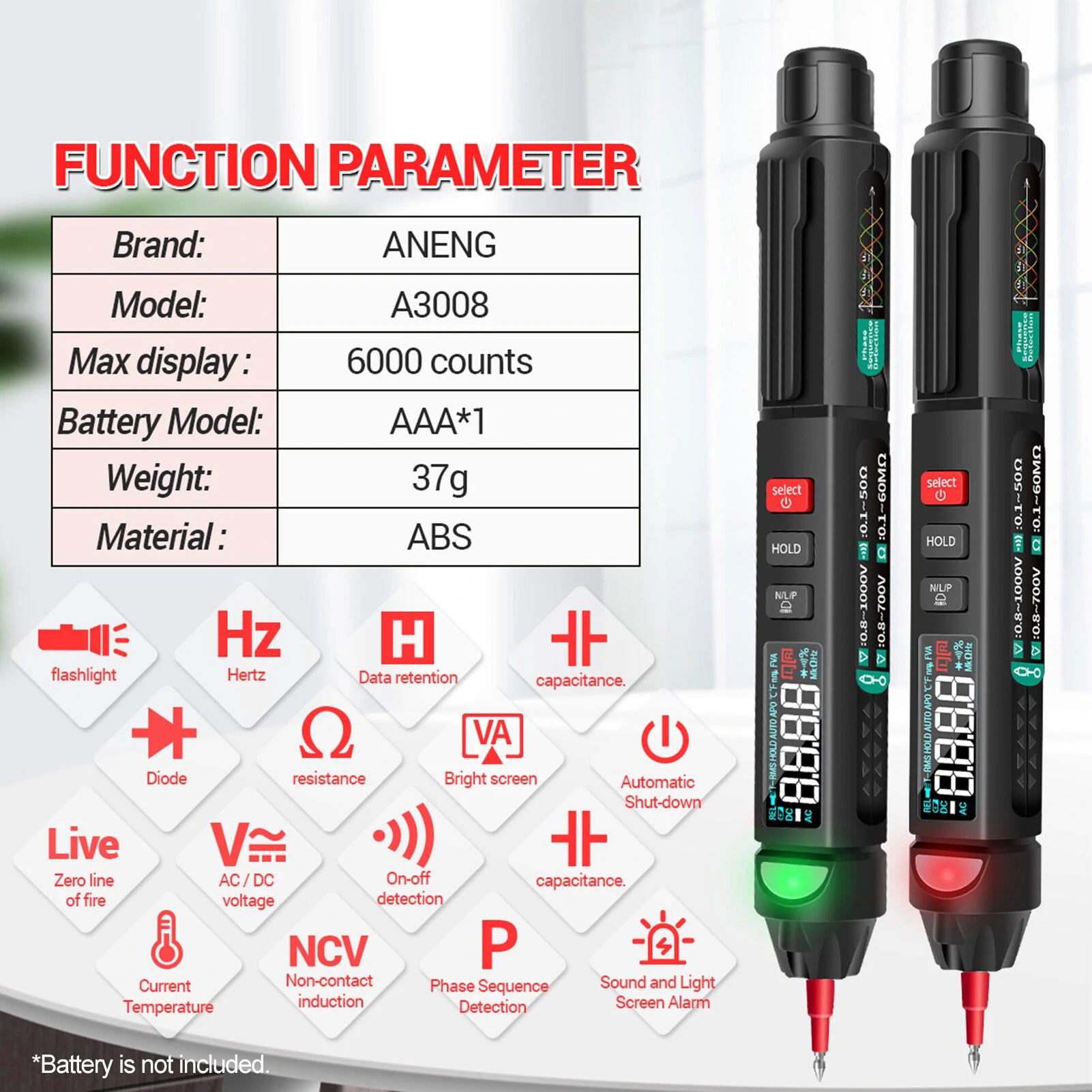

Specifications

• Brand: ANENG
• Material: ABS
• Test Line Material: Brass / PVC
• Screen: LCD display
• Measurement Method: Double integral A/D conversion
• Sampling Time: Approx. 3 times/second
• Power Supply: 1 x 1.5V AAA battery (not included)
• Product Size: 170.5 x 25.4 x 22mm
• Package Size: 190 x 80 x 35mm

Package Contents

• 1 x Multimeter
• 1 x Test Lead
• 1 x User Manual
• Various color screen options available

Experience precision and versatility with the ANENG A3007/A3008 Smart Multimeter, a reliable tool for diverse electrical testing needs.
