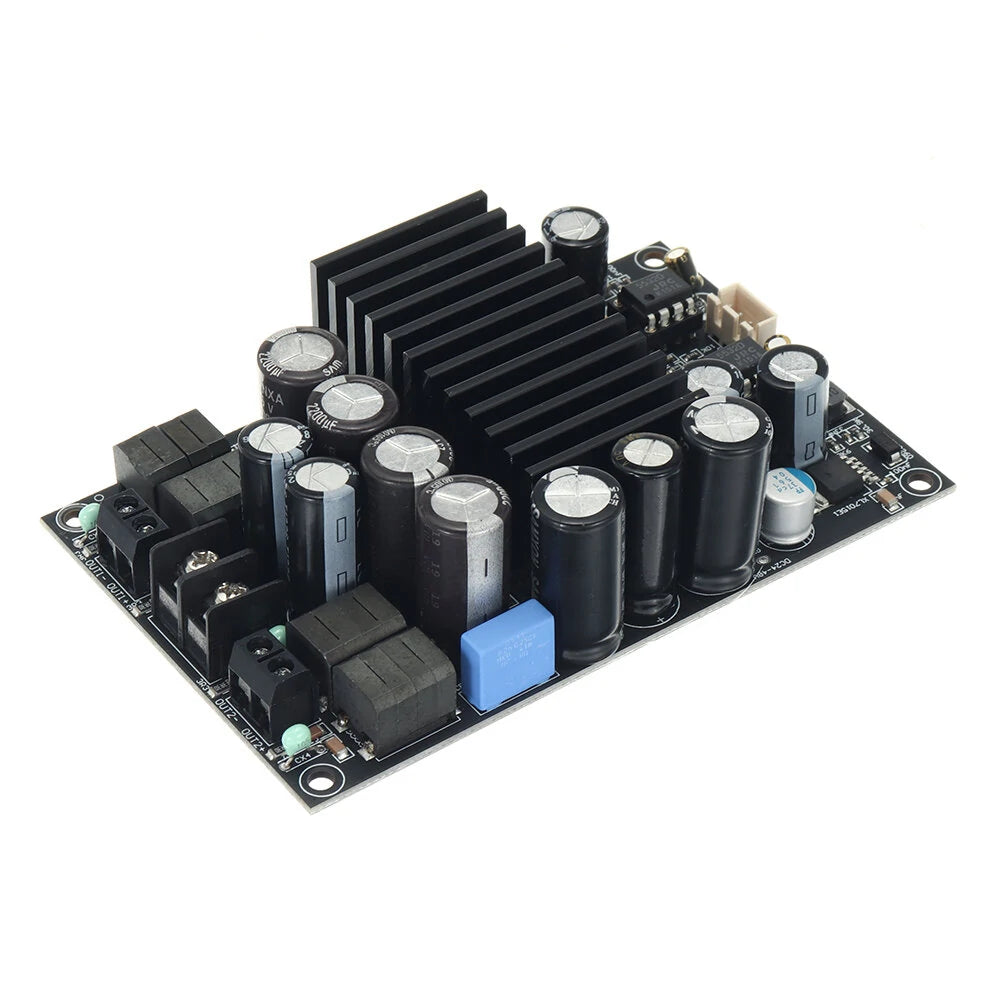

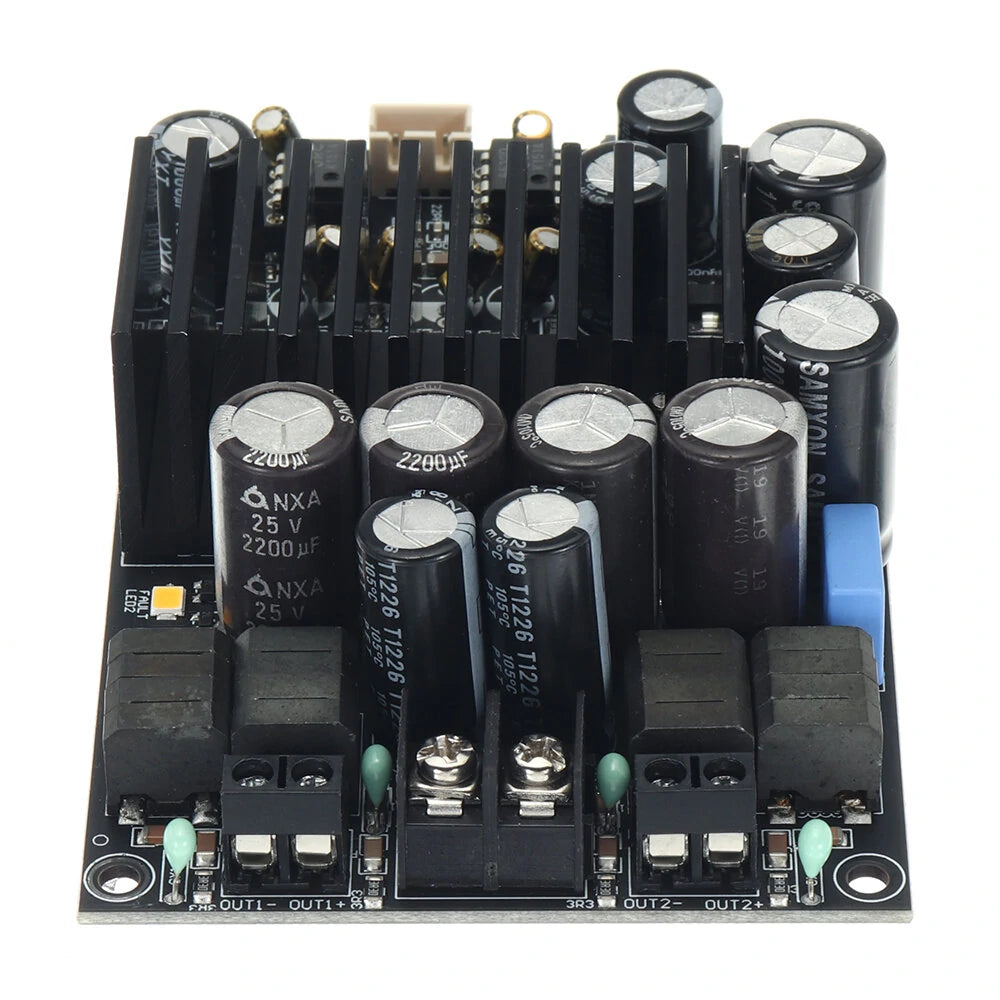

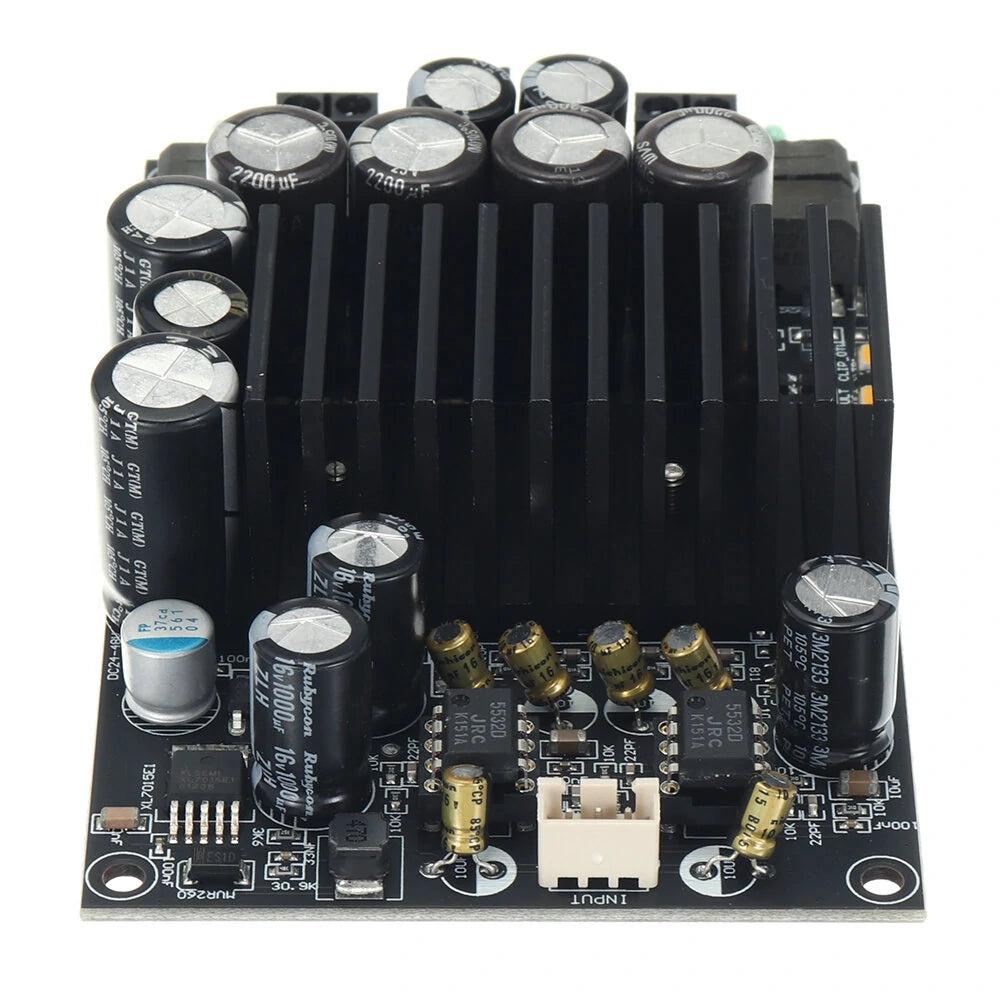

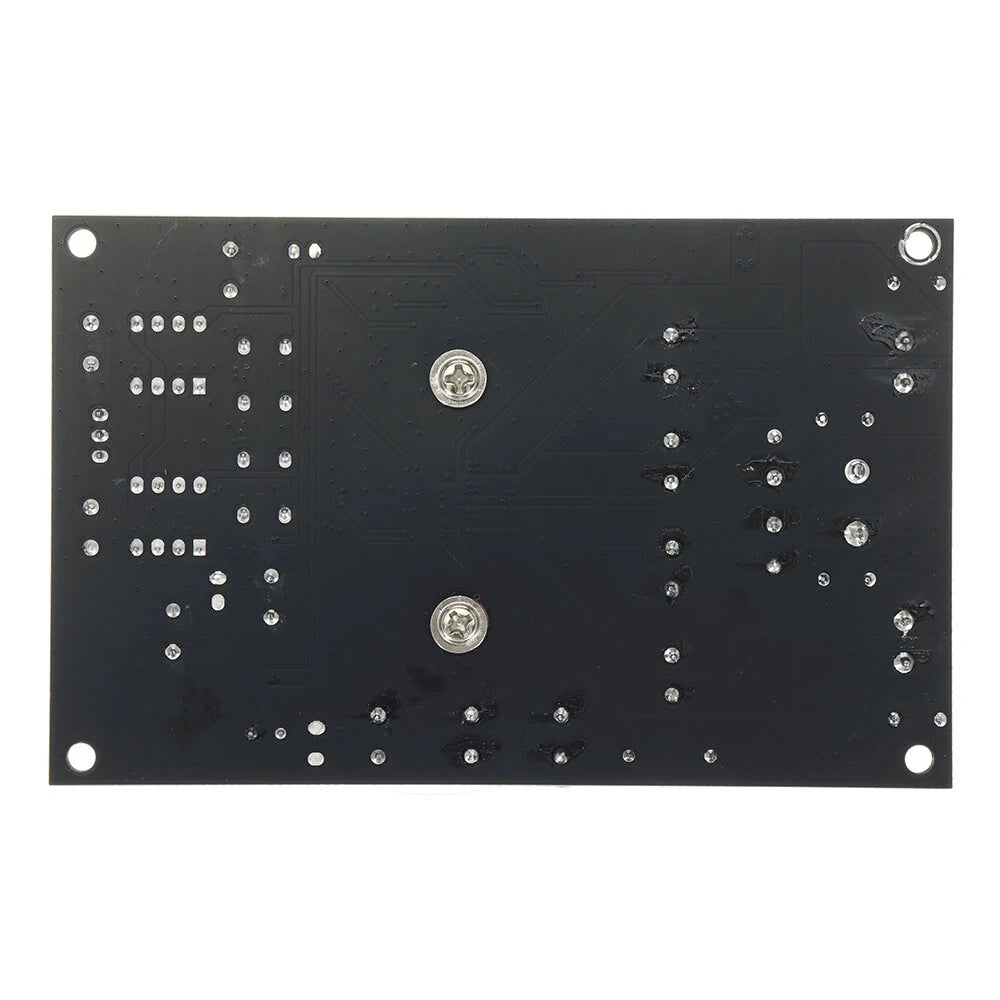

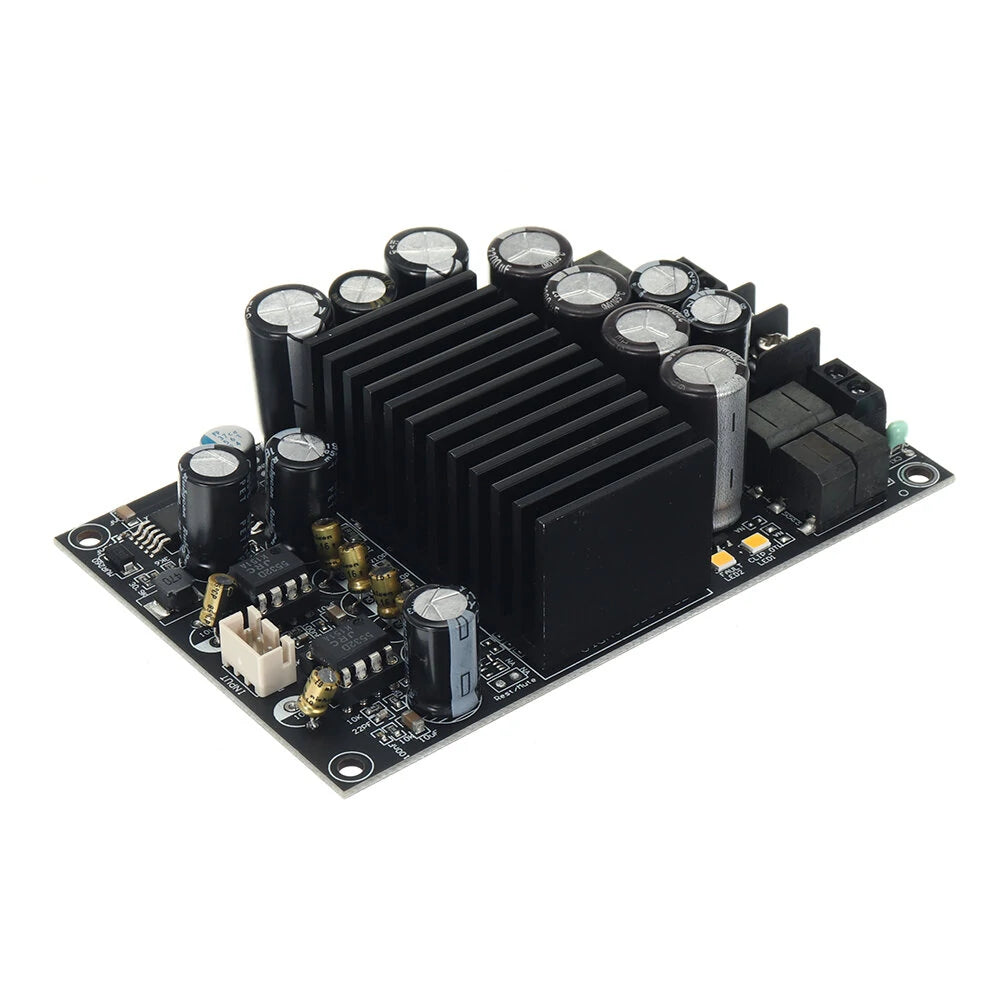

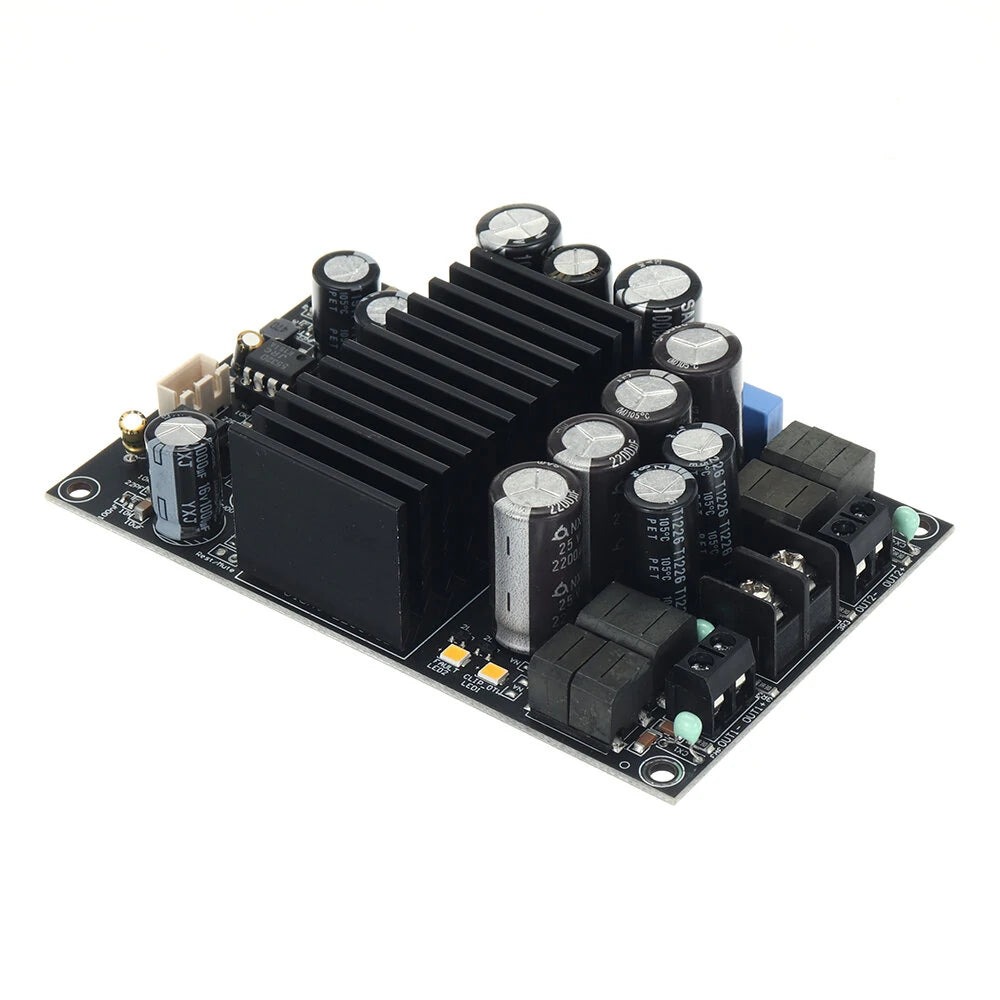

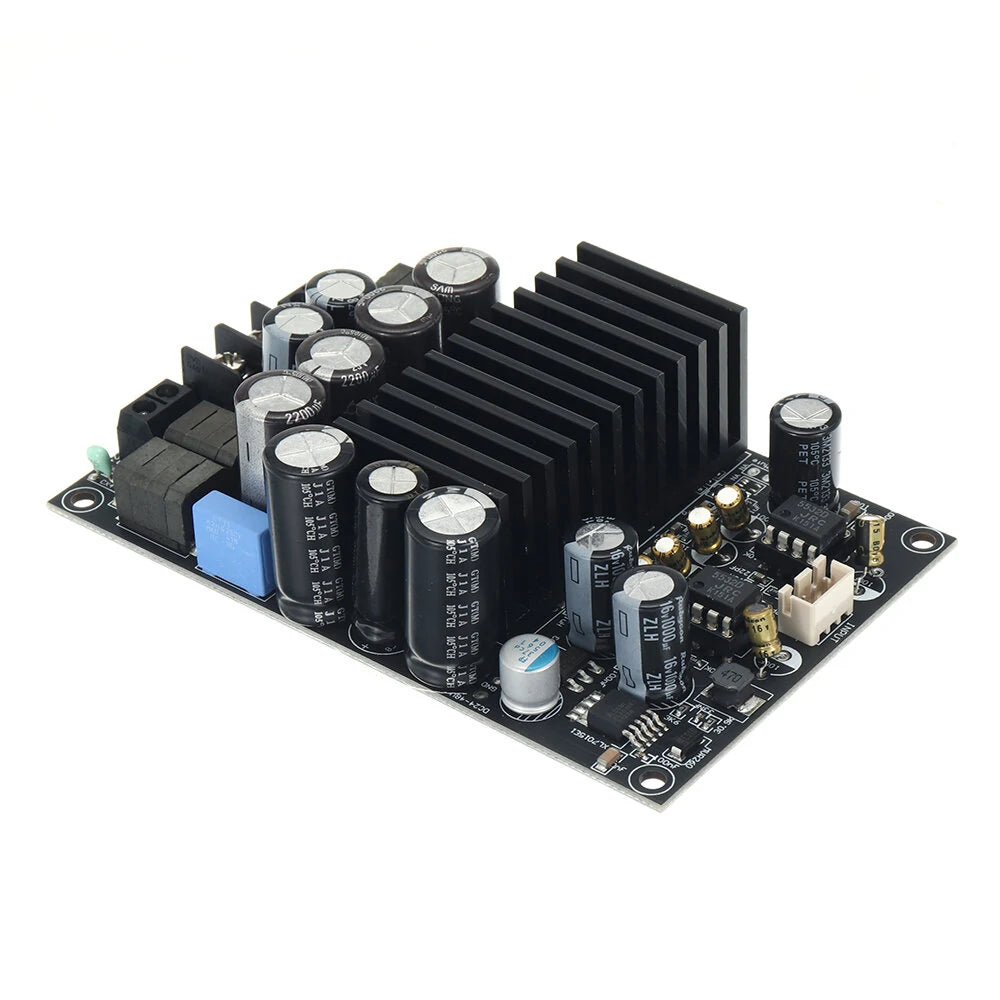

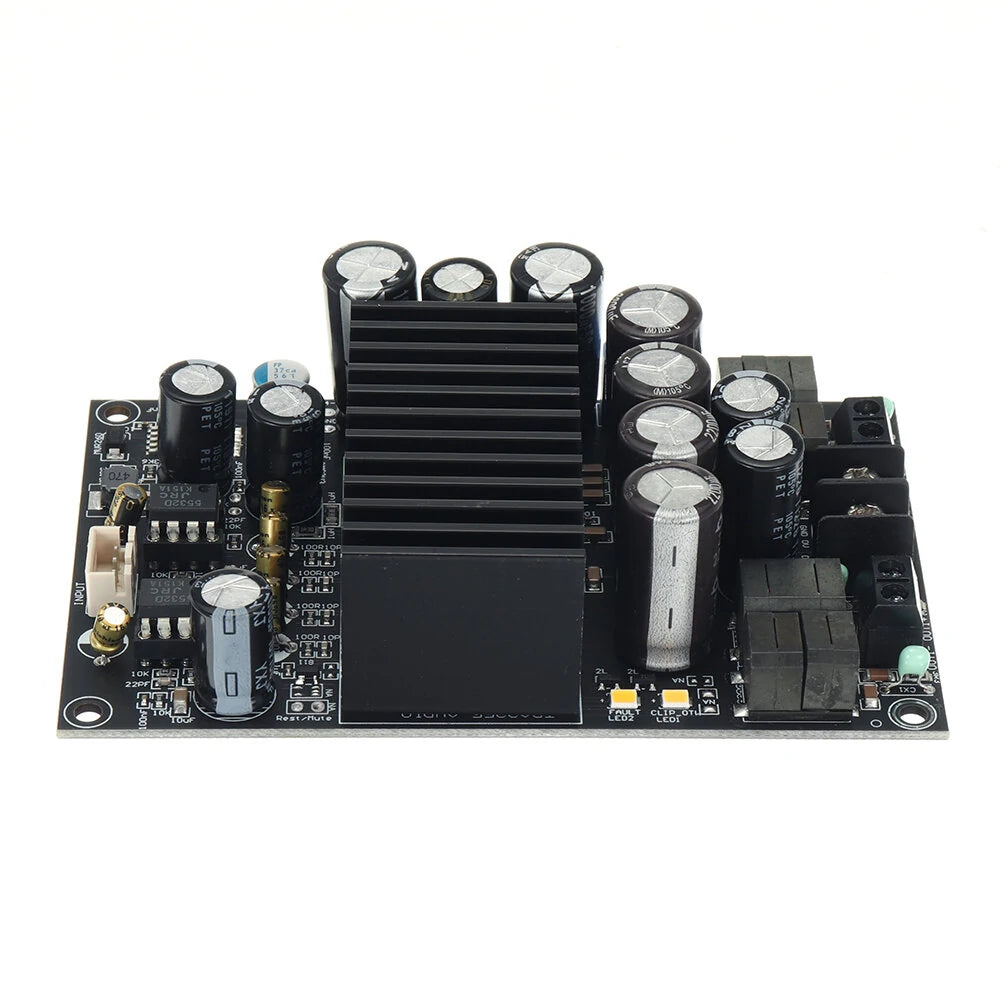

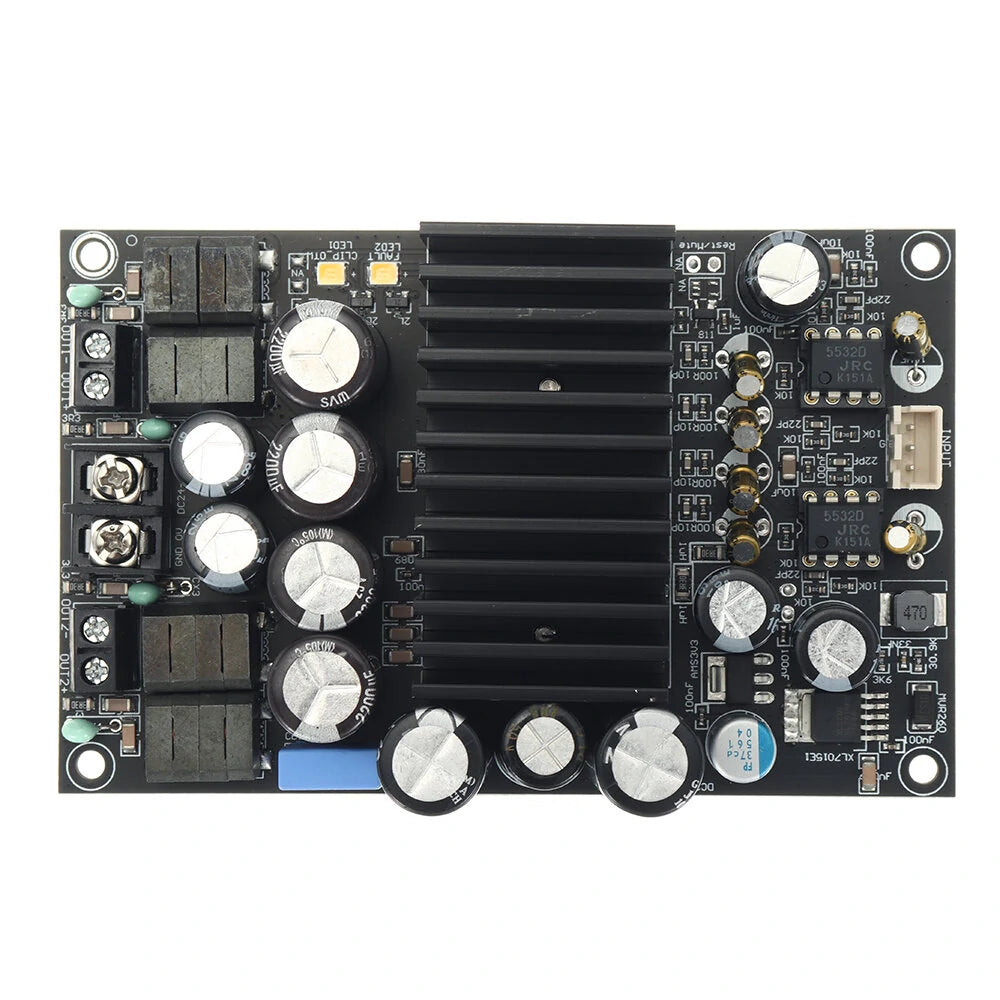

TPA3225 HiFi 600W Stereo Amplifier Board, 2.0 Channel, DC19-48V Power

Product Description

The TPA3255 is a high-performance Class-D power amplifier chip that delivers high-end sound quality with Class-D efficiency. Equipped with advanced integrated feedback design and proprietary PurePath™ Ultra HD technology, it ensures ultra-low distortion across the full audio frequency spectrum. Experience superior audio quality while driving up to two 315W/4Ω loads and two 150W/8Ω loads at 1.5% THD. Its 2 VRMS analog input interface enables seamless integration with high-performance DACs like TI's PCM5242. In addition to its exceptional audio performance, the TPA3255 offers high power efficiency and ultra-low idle power losses, achieving less than 2.5W. This is accomplished through an optimal 85mΩ MOSFET and gate driver scheme, providing significant idle loss reduction over traditional discrete implementations.

Key Features

• Power Amplifier IC: TPA3255 chip
• Input Method: 3.5MM stereo wired socket interface (3P)
• Efficiency: Greater than 90%

Output Power

• 315W/4Ω at 1.5% distortion
• 185W/8Ω at 1.5% distortion
• 260W/4Ω at 1% distortion
• 150W/8Ω at 1% distortion

Specifications

• Frequency Response: 20Hz to 20KHz
• Dynamic Range: Greater than 100 dB
• Signal to Noise Ratio (SNR): Greater than 111 dB
• Power Supply: DC19 to DC48V (current recommended above 5A)
• Overall Size: 110mm x 70mm x 30mm
• Net Weight: 0.168KG

Package Includes

• 1 x Power Amplifier
• 1 x 3P Cable
