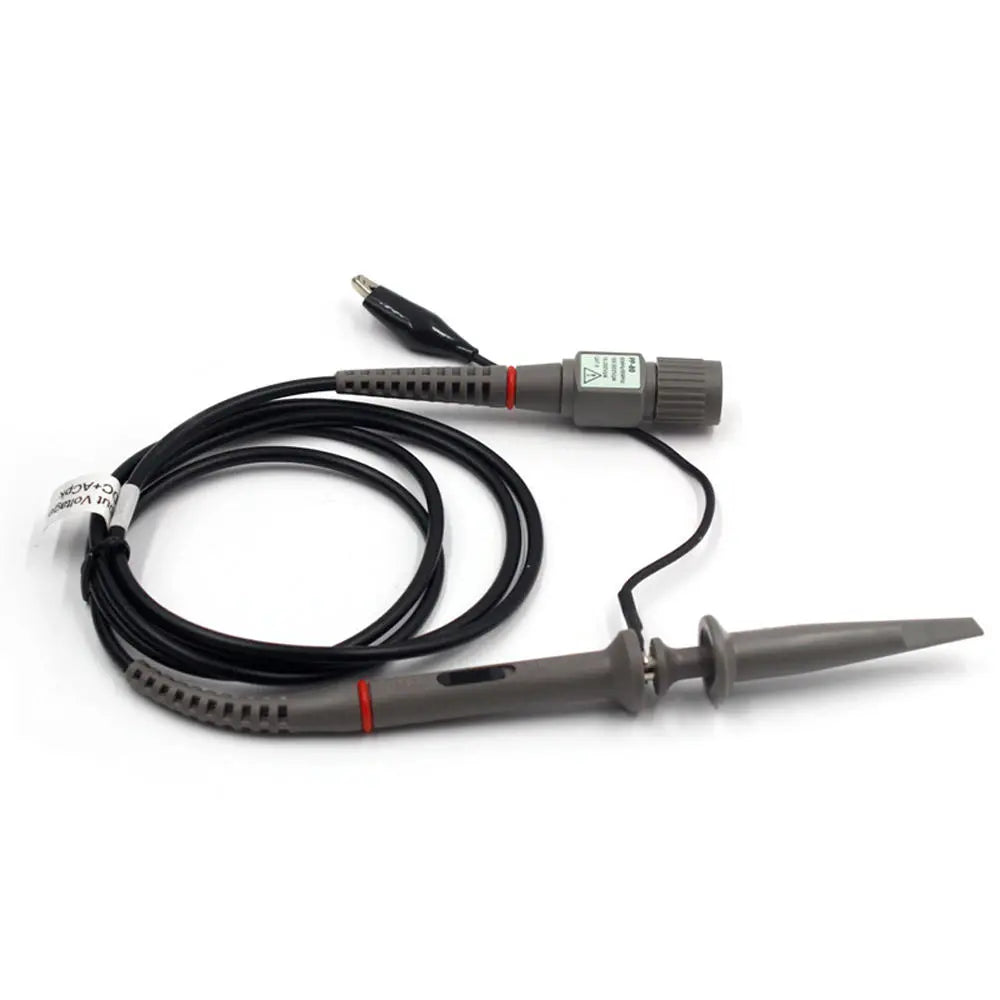

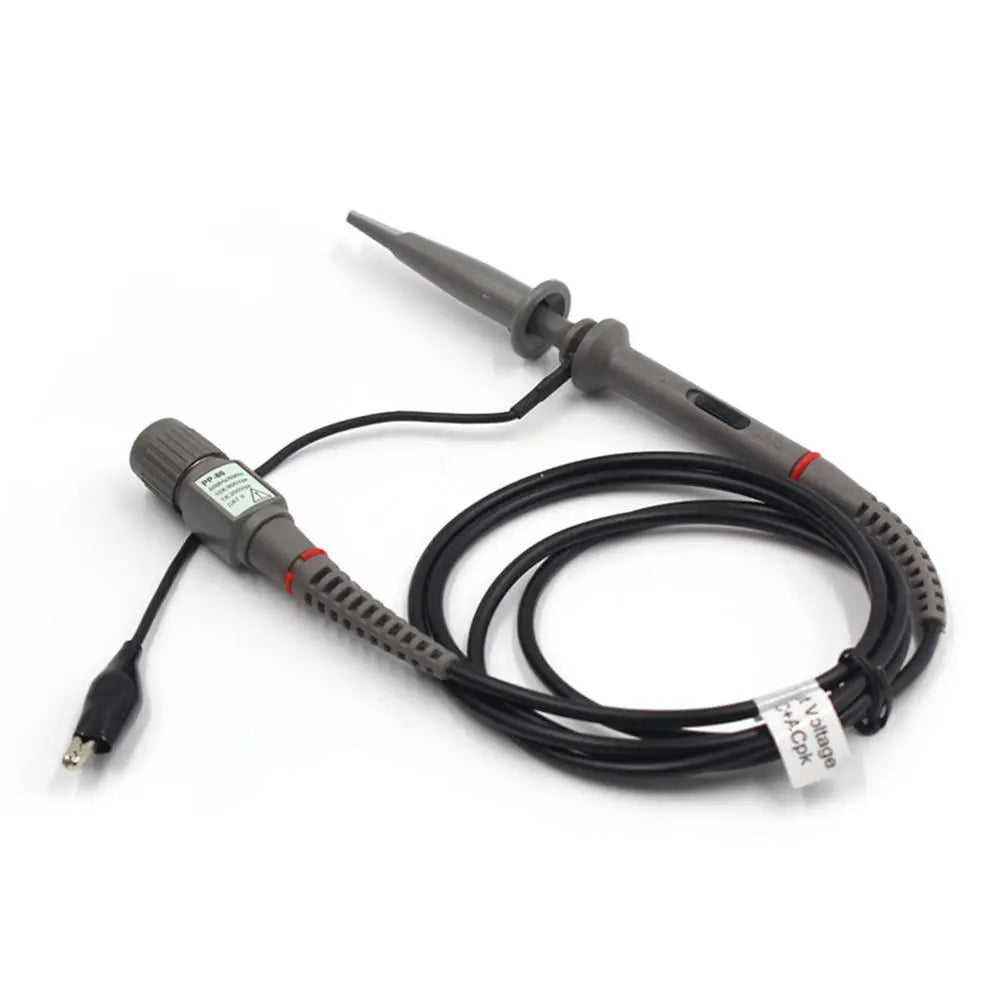

Hantek PP-200 Digital Oscilloscope Probe 200MHz Bandwidth X1/X10 for Portable Automotive Diagnostic Tool
Hantek PP-200 Digital Oscilloscope Probe 200MHz Bandwidth X1/X10 for Portable Automotive Diagnostic Tool
Regular price
$22.99 USD
Regular price
$0.00 USD
Sale price
$22.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Compatibility
To confirm that this part fits your vehicle, please enter your vehicle's details below.
- Year:
- Make:
- Model:
- Submodel:
- Trim:
- Engine:
This part is compatible with 0 vehicle(s).
This part is compatible with 1 vehicle(s) matching your selection.
This part is not compatible with recent searches:
- Year
- Make
- Model
- Submodel
- Trim
- Engine
Features

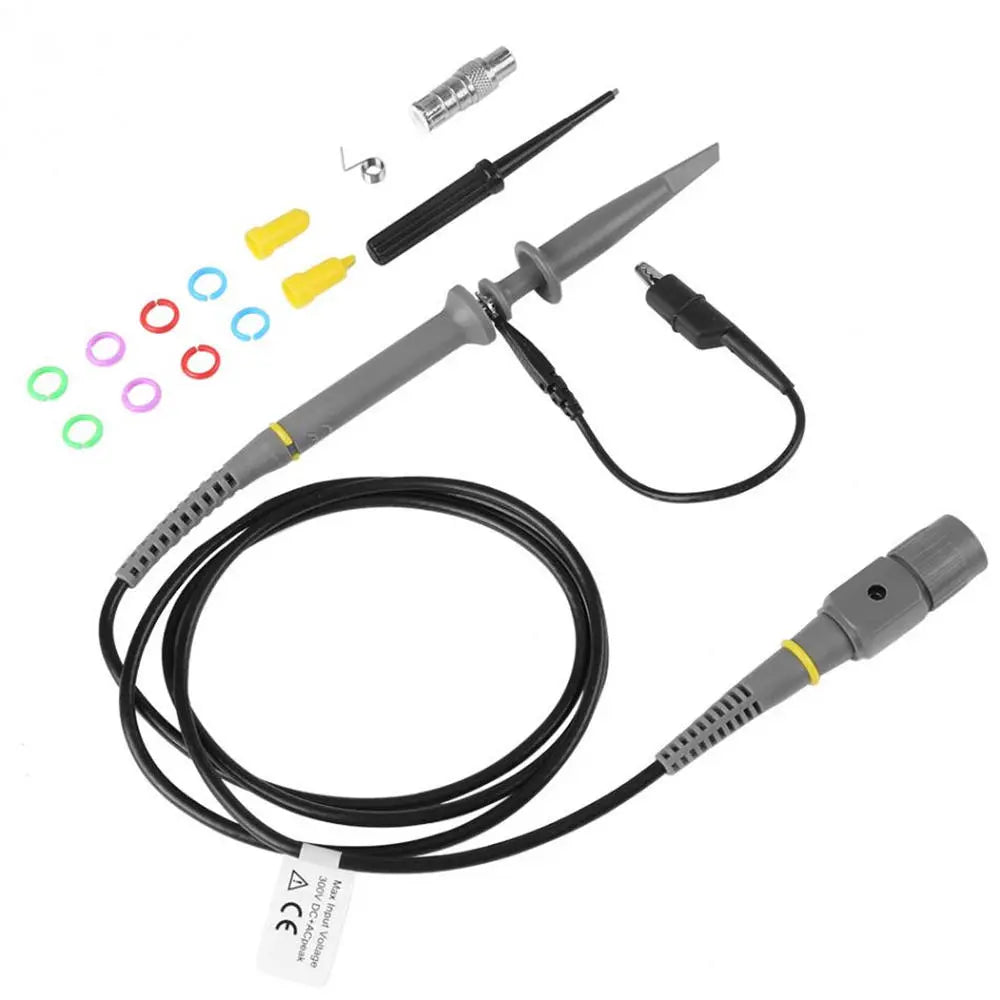

The Hantek PP-200 200 MHz Oscilloscope Probe Kit includes:

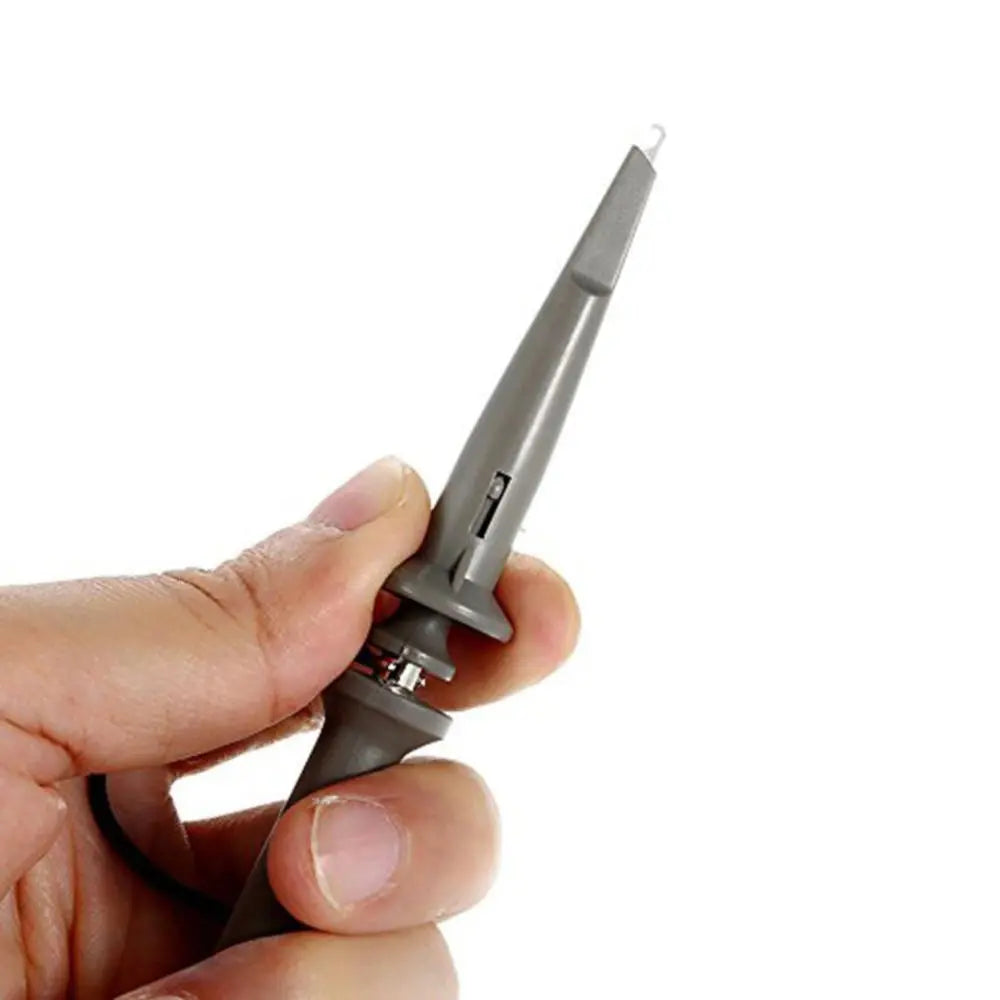

- Probe tip

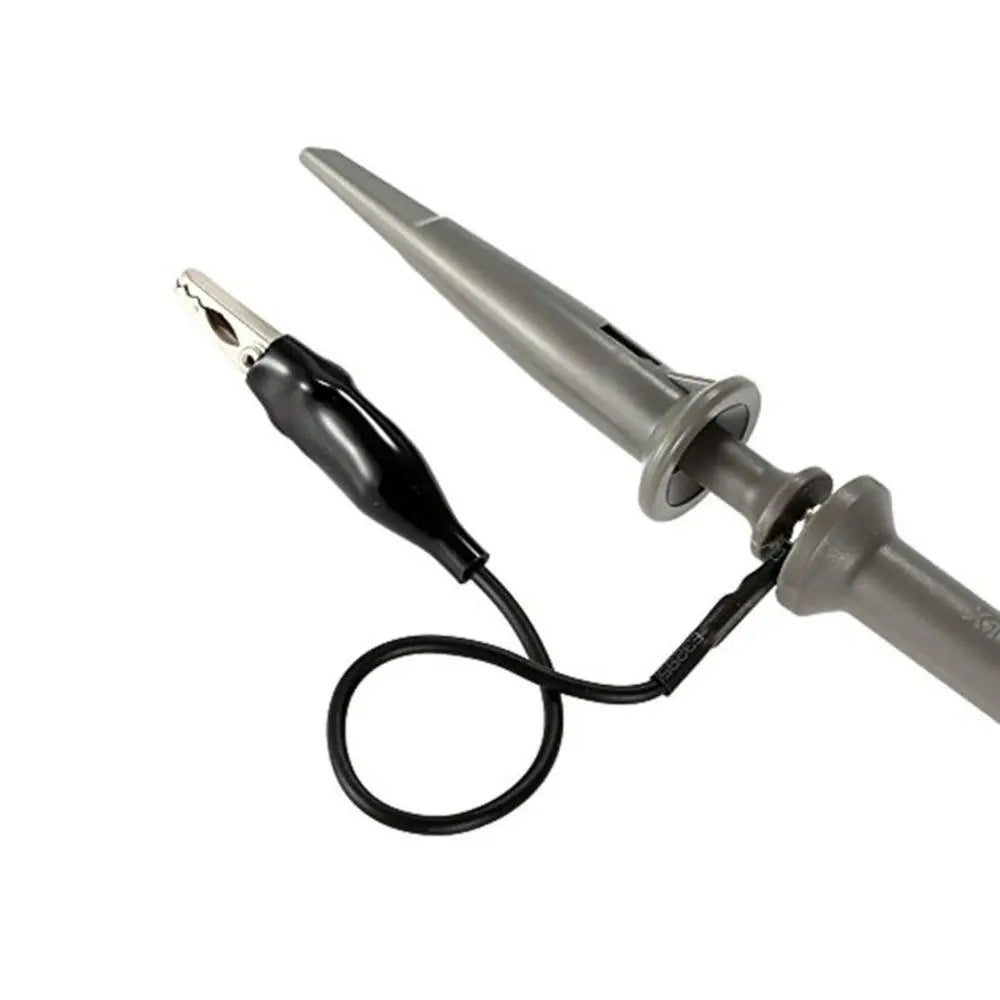

- Ground lead

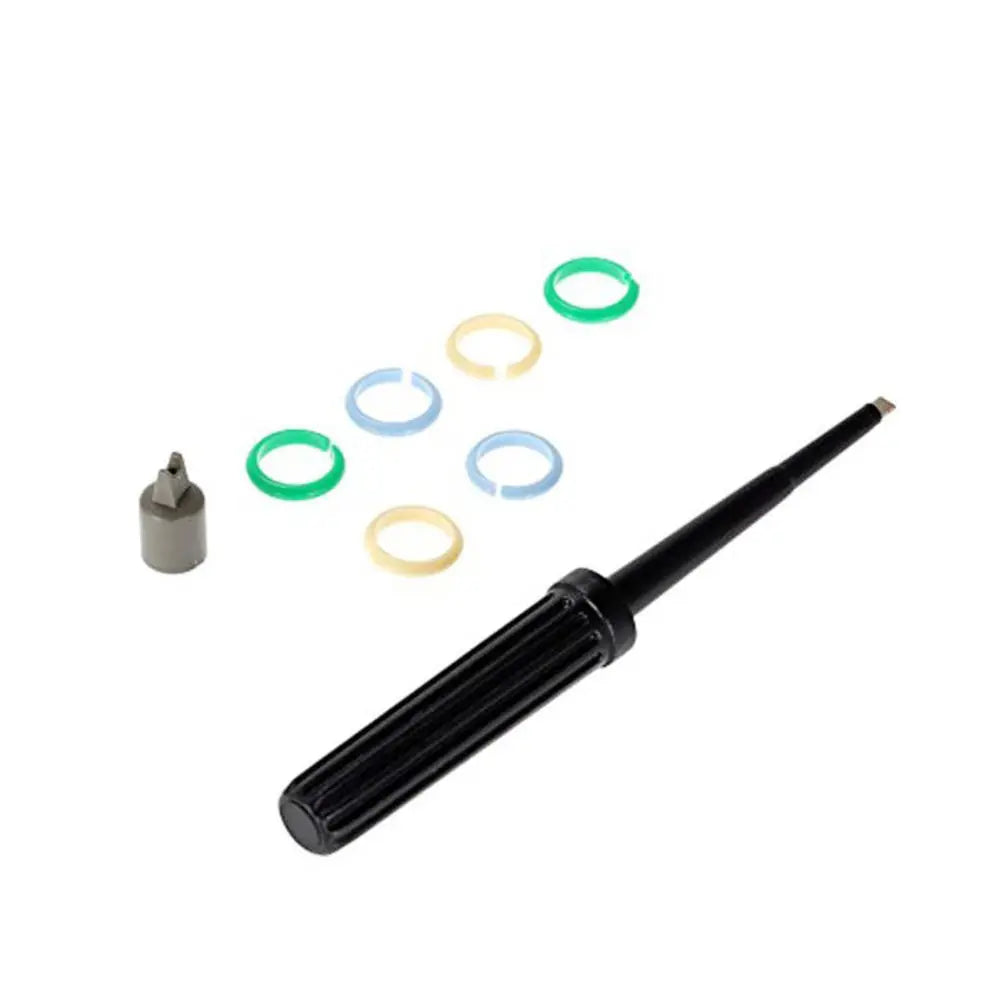

- Marker rings
- Tip locating sleeve
- Adjustment tool
The probe is a passive, low-impedance attenuation probe, designed and calibrated for instruments with an input impedance of 1MΩ paralleled by 20pF. It can be recalibrated for instruments with input capacitance from 15 to 40pF. The probe features a two-position (1X, 10X) slide switch in the compensating network with a cable length of 1.2 meters.
Specification
- Temperature: -15°C to 70°C
- Attenuation: X1, X10
- Input Capacity: 85pF~115pF, 18.5pF~22.5pF
- Oscilloscope Input Capacity: 15pF~40pF
- Input Resistance:
- X1: 1MΩ±2%
- X10: 10MΩ±2%
- Bandwidth:
- X1: DC-6MHz
- X10: DC-60MHz/100MHz/200MHz
- Max Input Voltage: X1: [Specify Voltage Details]
- Probe Body Length: 95mm
- Coaxial Cable Length: 1200mm
Package Includes
- 1 x Probe Tip
- 1 x Ground Lead
- 2 x Marker Rings
- 1 x Tip Locating Sleeve
- 1 x Adjustment Tool
