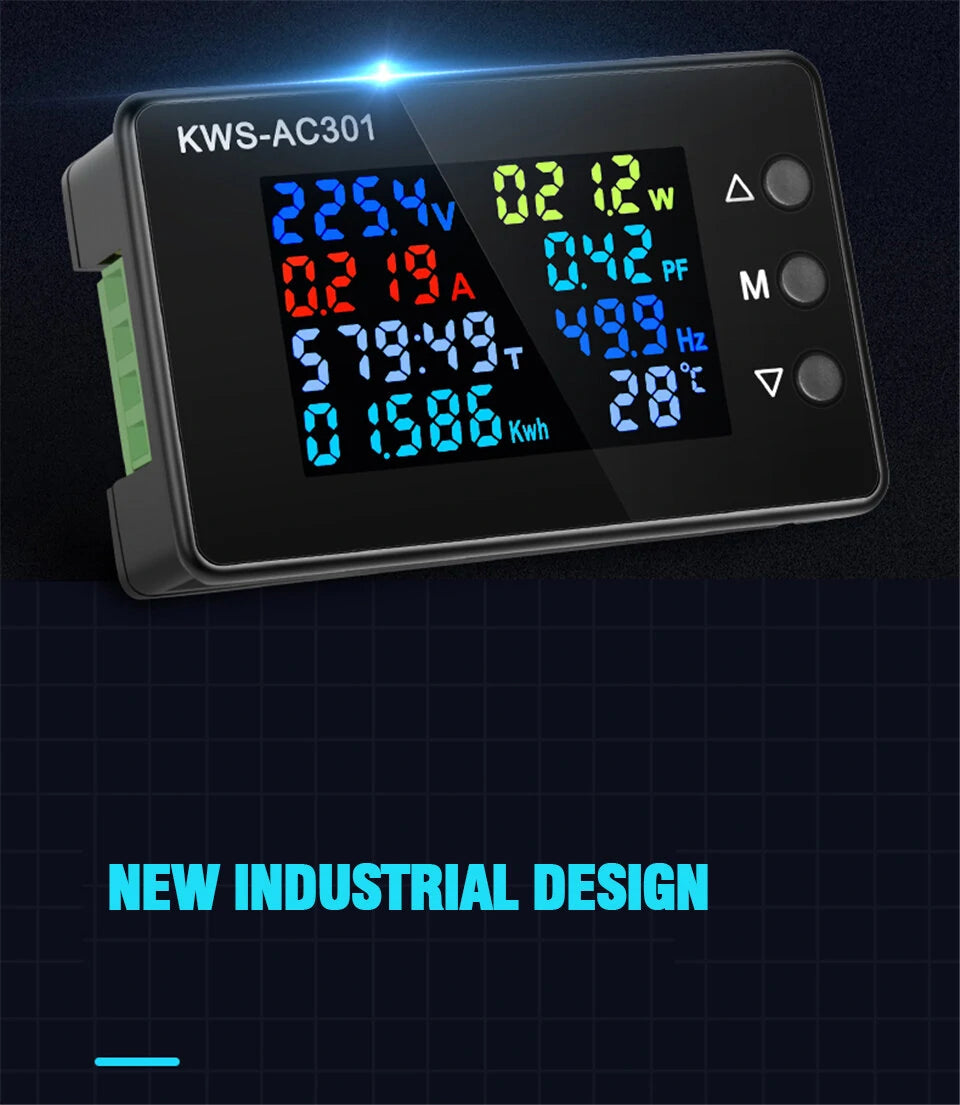

8-in-1 LED Digital AC Voltmeter Ammeter Wattmeter Power Energy Meter KWS-AC301 (AC 50-300V)

Product Options

• AC301-20A Open Sensor

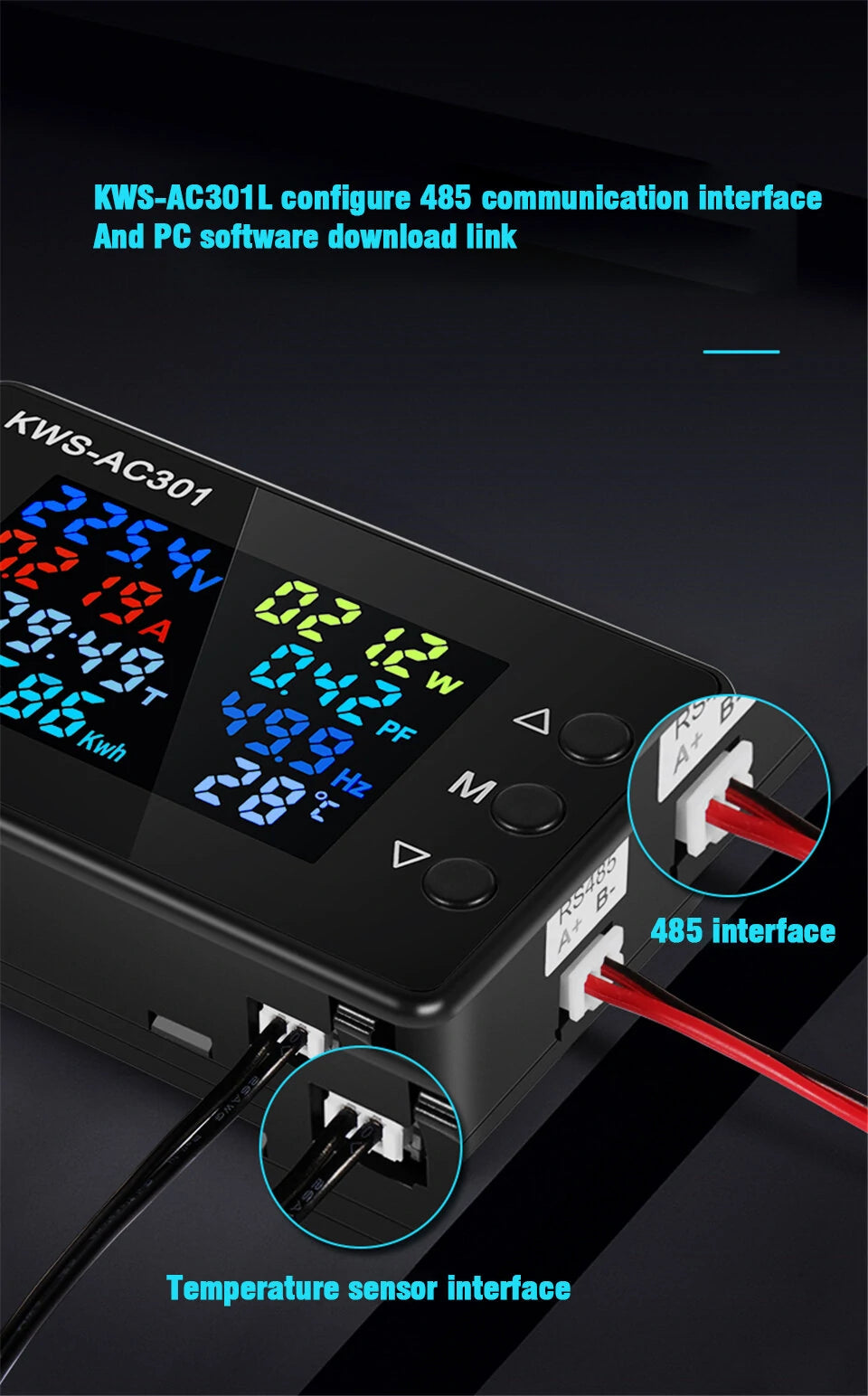

• AC301L-20A with 485 Communication
• AC301L-100A Closed Sensor
• AC301L-100A with 485 Communication

Key Features

• Digital AC Multimeter: An 8-in-1 energy meter that measures and displays voltage, current, power, electrical energy, timing, temperature, frequency, and power factor. It includes a split current transformer for flexible installation.

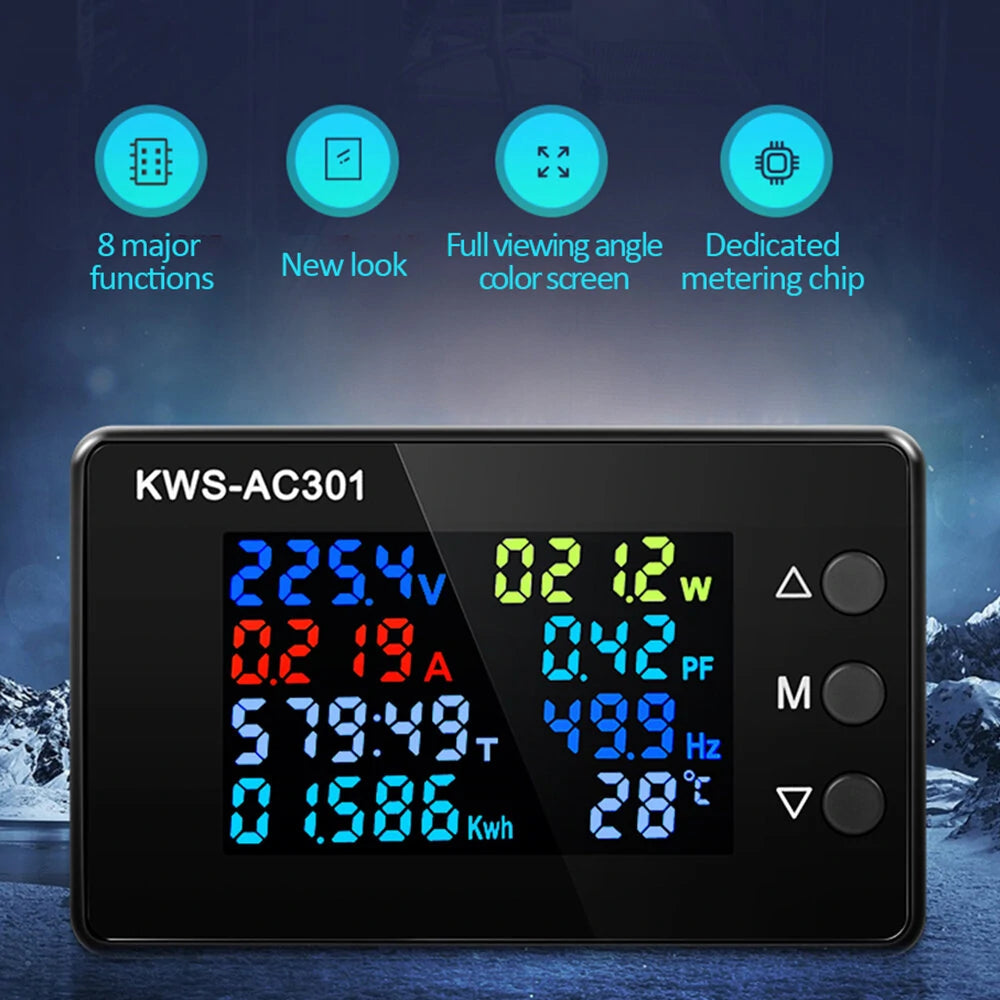

• Easy to Read: The LCD HD color display with backlight ensures the data is easy to read, providing an excellent visual experience.
• Overload Alarm Function: The voltmeter provides sound alerts and flashes the numerical unit when the preset value is exceeded. You can set numerical limits as needed.

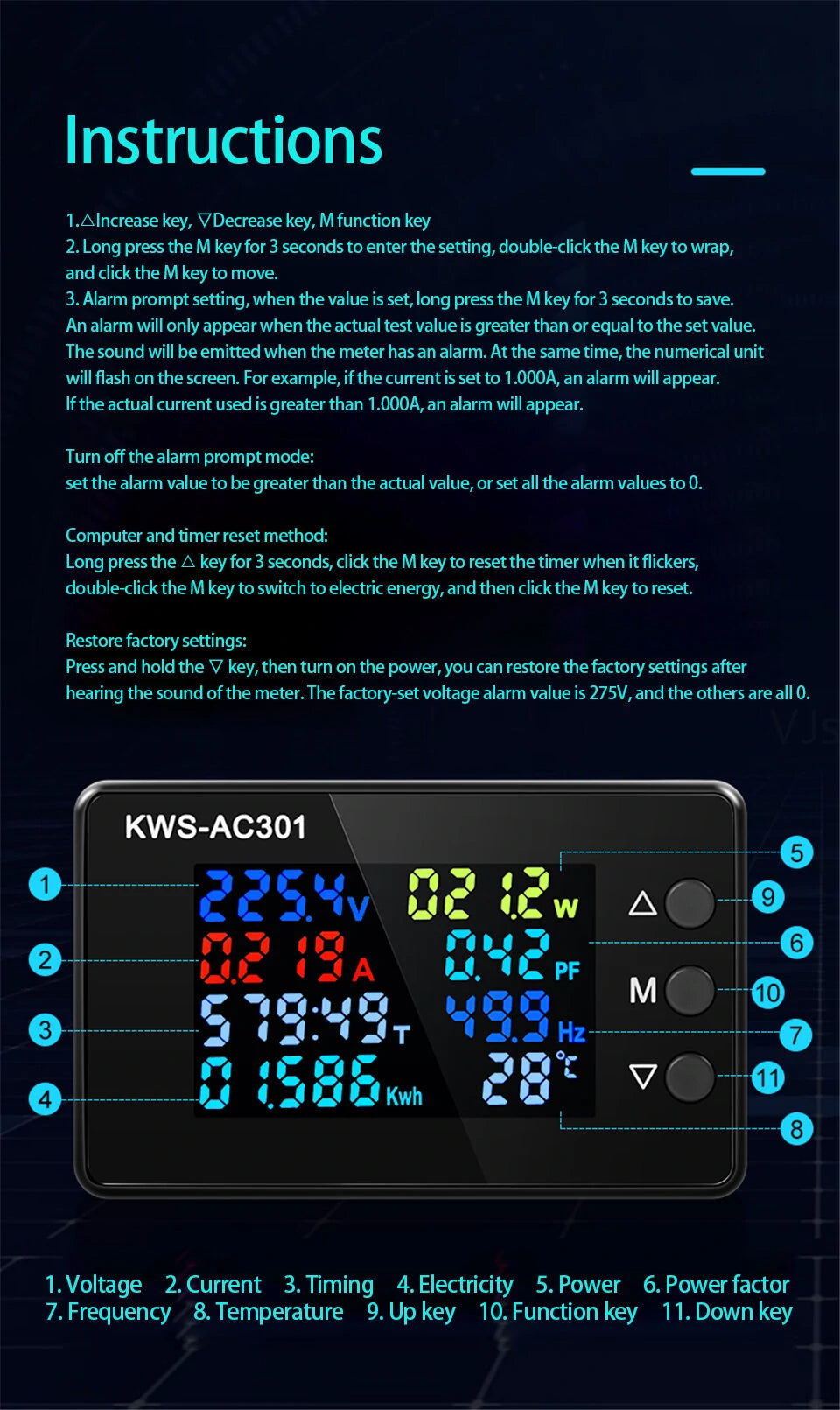

• Electric Energy and Timing Clearing Method: Press the △ button for 3 seconds to flash the timing, click the M button to clear it. Double-click the M button to switch to electric energy, and click the M button to clear it.
• Warranty: Enjoy peace of mind with our customer support. If you have any questions, please contact us for satisfactory service.

Specifications

AC301-20A / AC301L-20A

1. Voltage: AC 50-300V
2. Shunt way: Built-in
3. 485 Communication:
   • AC301-20A: Without 485 Communication
   • AC301L-20A: With 485 Communication
4. Current: 0-20A
5. Power: 0-4400W
6. Capacity: 0.01-99999 KWh
7. Timing: 0-999
8. Temperature: -10°C to 150°C
9. Frequency: 50-60 Hz
10. Power Factor: 0.01-1PF

Package Includes - 20A

• 1 x Meter (20A is without shunt/CT Coil)
• 1 x User Manual
• 1 x Temperature Sensor

AC301-100A / AC301L-100A

1. Voltage: AC 50-300V
2. Current: 0-100A
3. Shunt way: Built-in
4. 485 Communication:
   • AC301-100A: No 485 Communication
   • AC301L-100A: With 485 Communication
5. Power: 0-22KW
6. Capacity: 0.01-99999 KWh
7. Timing: 0-999
8. Temperature: -20°C to 150°C
9. Frequency: 50-60 Hz
10. Power Factor: 0.01-1PF

Package Includes - 100A

• 1 x Meter 100A
• 1 x Closed CT / Split CT
• 1 x User Manual
• 1 x Temperature Sensor
