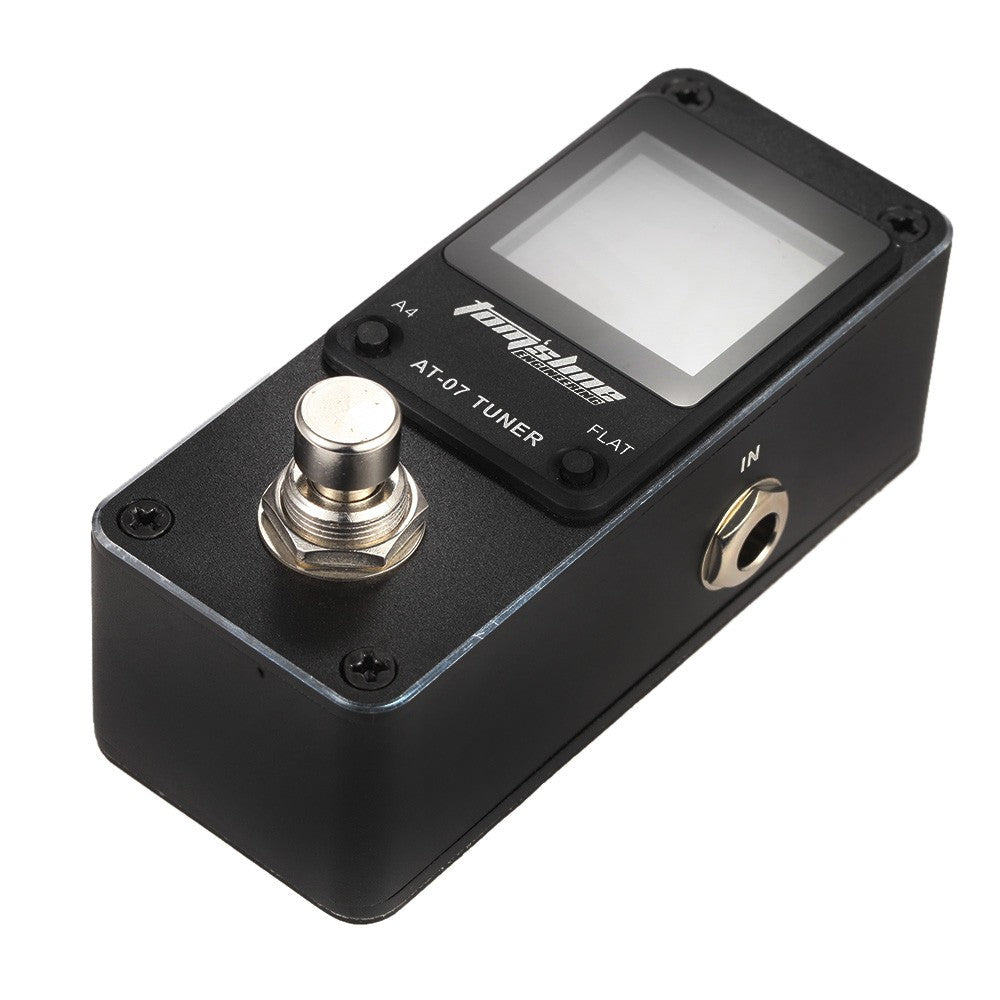

AROMA AT-07 Mini Chromatic Tuner Pedal for Electric Guitar Effects

Features:

• Full metal shell makes it durable and exquisite.
• A4 button for pitch adjustment.
• Flat button for flat tuning.

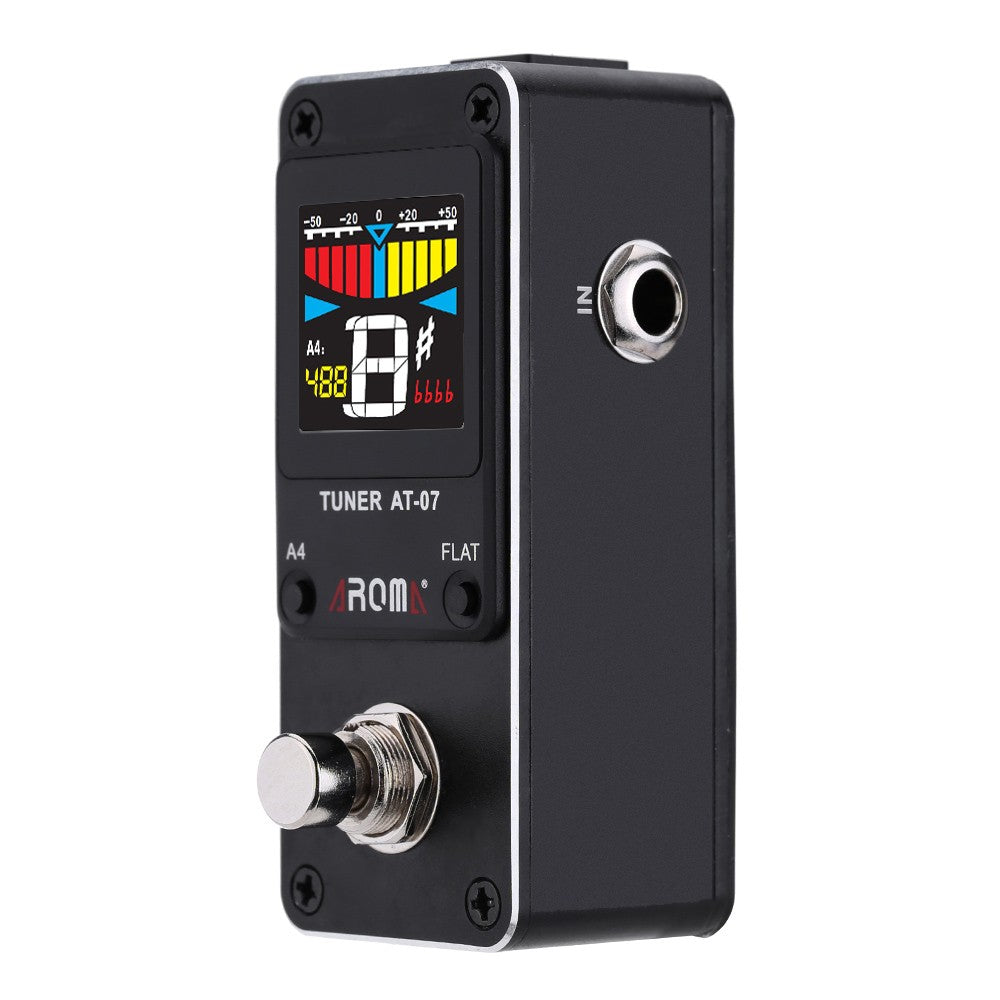

• Screen displays note name, tuning meter, calibration, pitch, and flats.

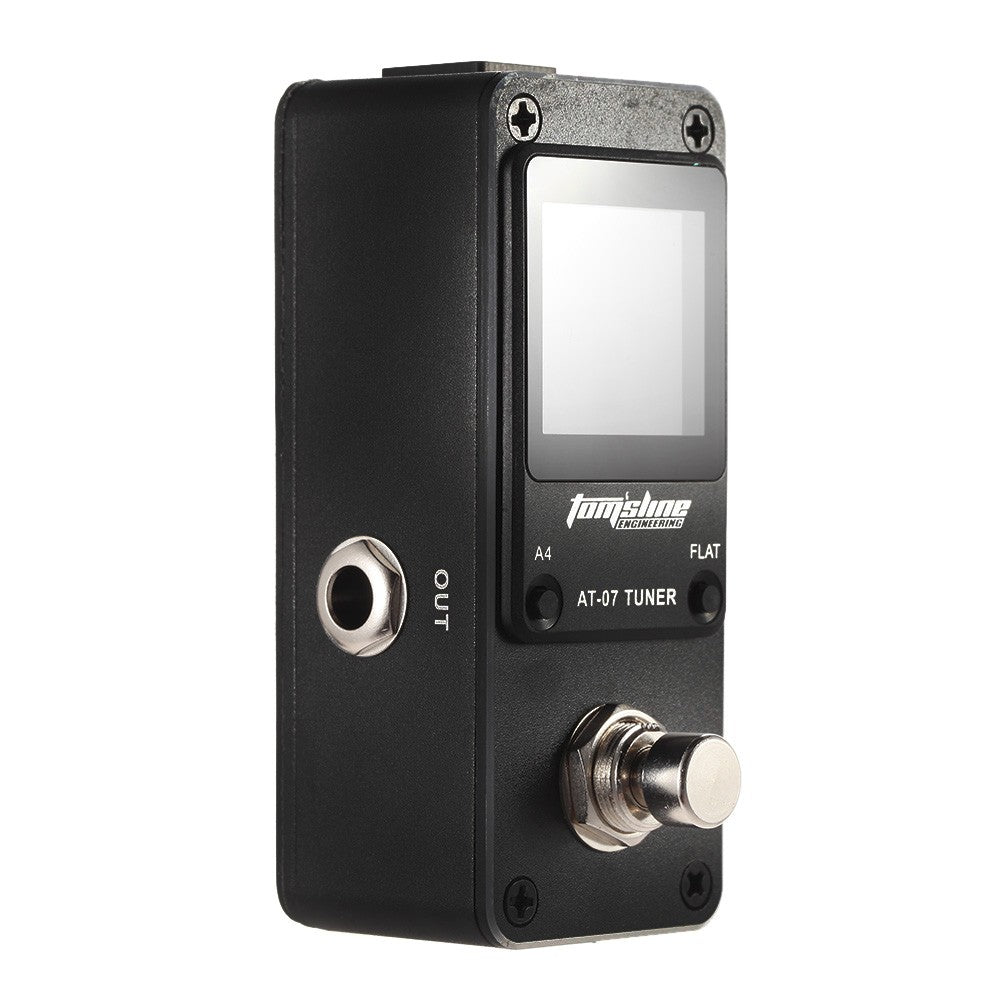

• Output jack: 1/4" mono audio jack for signal output.
• Input jack: 1/4" mono audio jack for guitar connection.
• True bypass footswitch design.

How to Use:

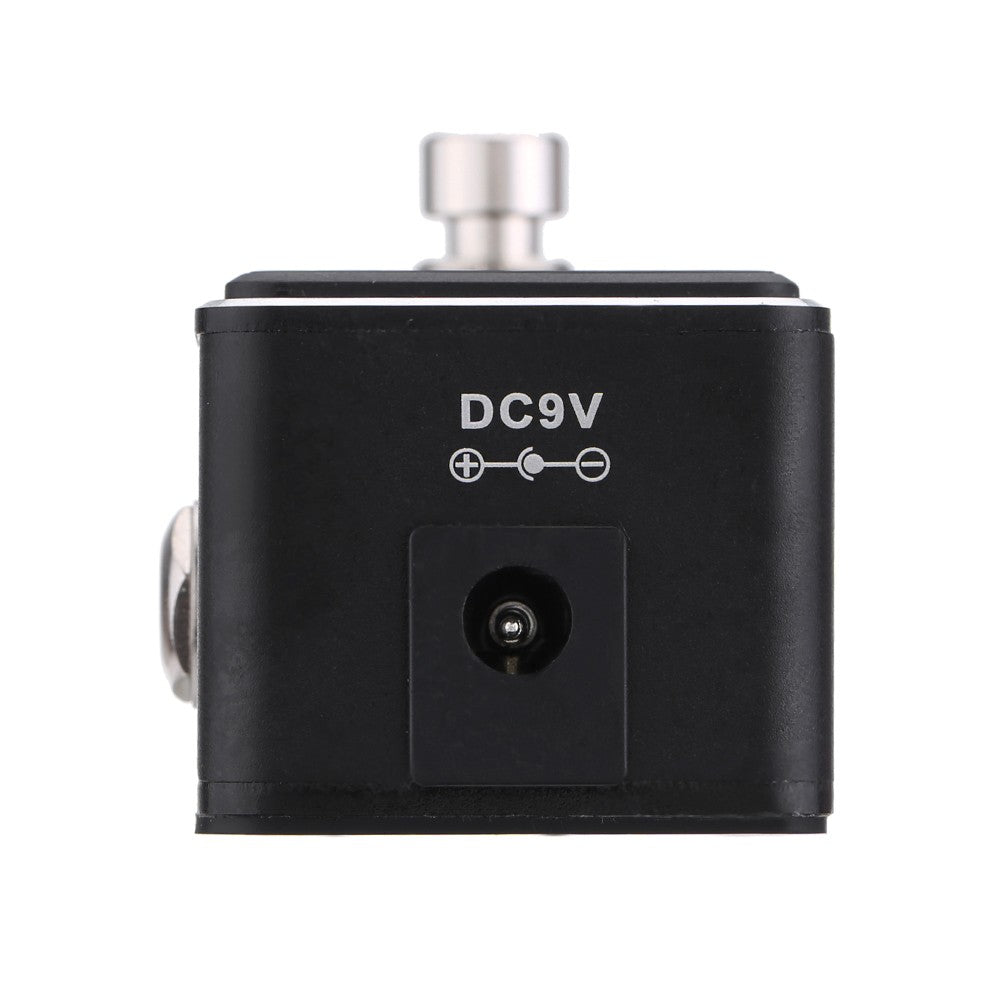

1. Connect a DC 9V power supply to the pedal.
2. Link the input, then turn on the tuner by pressing the ON/OFF button.
3. To change the pitch, press the A4 button. The pitch ranges from 430Hz to 450Hz.
4. For tuning by flat notes, press the Flat button. Four steps available: b, bb, bbb, bbbb.
5. Play a single guitar note; the note name will appear on the tuner screen. The screen color will change, and the tuning needle will move.
• Center blue tuning meter and two blue triangles: note is in tune.
• Left red tuning meters and left blue triangle: note is flat.
• Right yellow tuning meters and right blue triangle: note is sharp.
6. The tuner has a bypass function. After tuning, press the ON/OFF button to ensure the original guitar signal passes through without distortion.

Specifications:

• Model: AROMA AT-07
• Material: Aluminium Alloy
• Tuning Mode: Chromatic
• Pitch Range: 430-450Hz
• Flat: b, bb, bbb, bbbb
• Tuning Tolerance: ±0.5 cent
• Power Supply: AC Adapter 9V DC (not included)
• Item Size: 9 x 3.8 x 4.8 cm / 3.5 x 1.5 x 1.8 in
• Item Weight: 131 g / 4.6 oz
• Package Size: 12 x 7 x 6.5 cm / 4.7 x 2.7 x 2.5 in
• Package Weight: 223 g / 7.8 oz

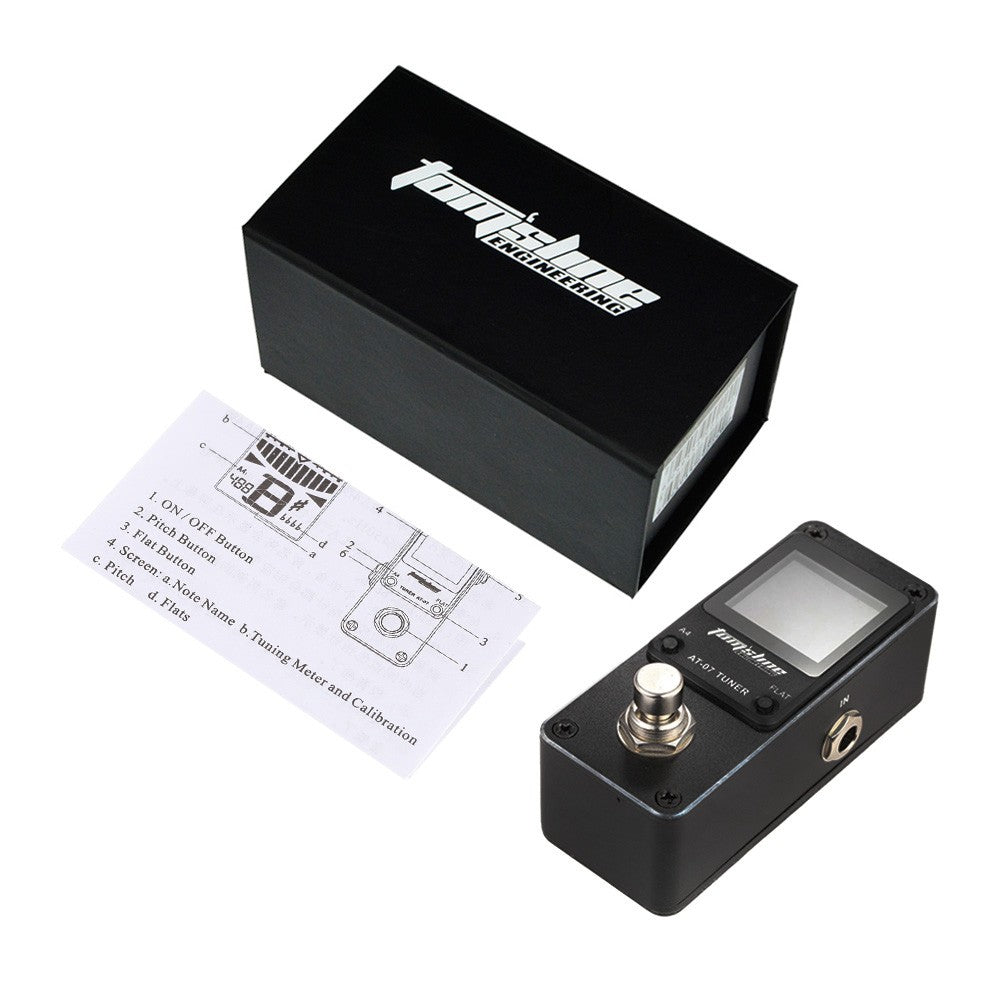

Package List:

• 1 x Chromatic Tuner
• 2 x Adhesive Tape
• 1 x User Manual (English & Chinese)
• 1 x Hardcover Box
