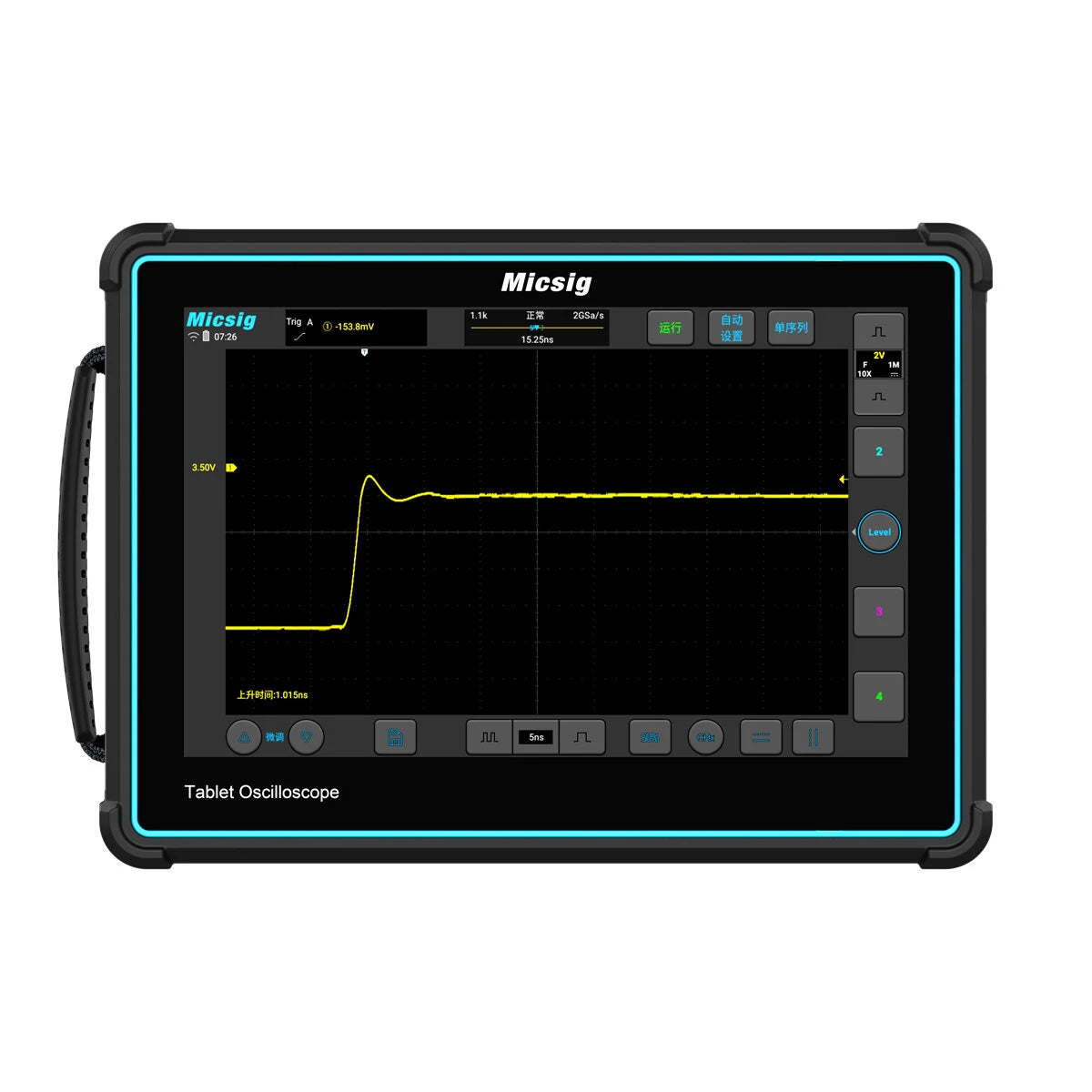

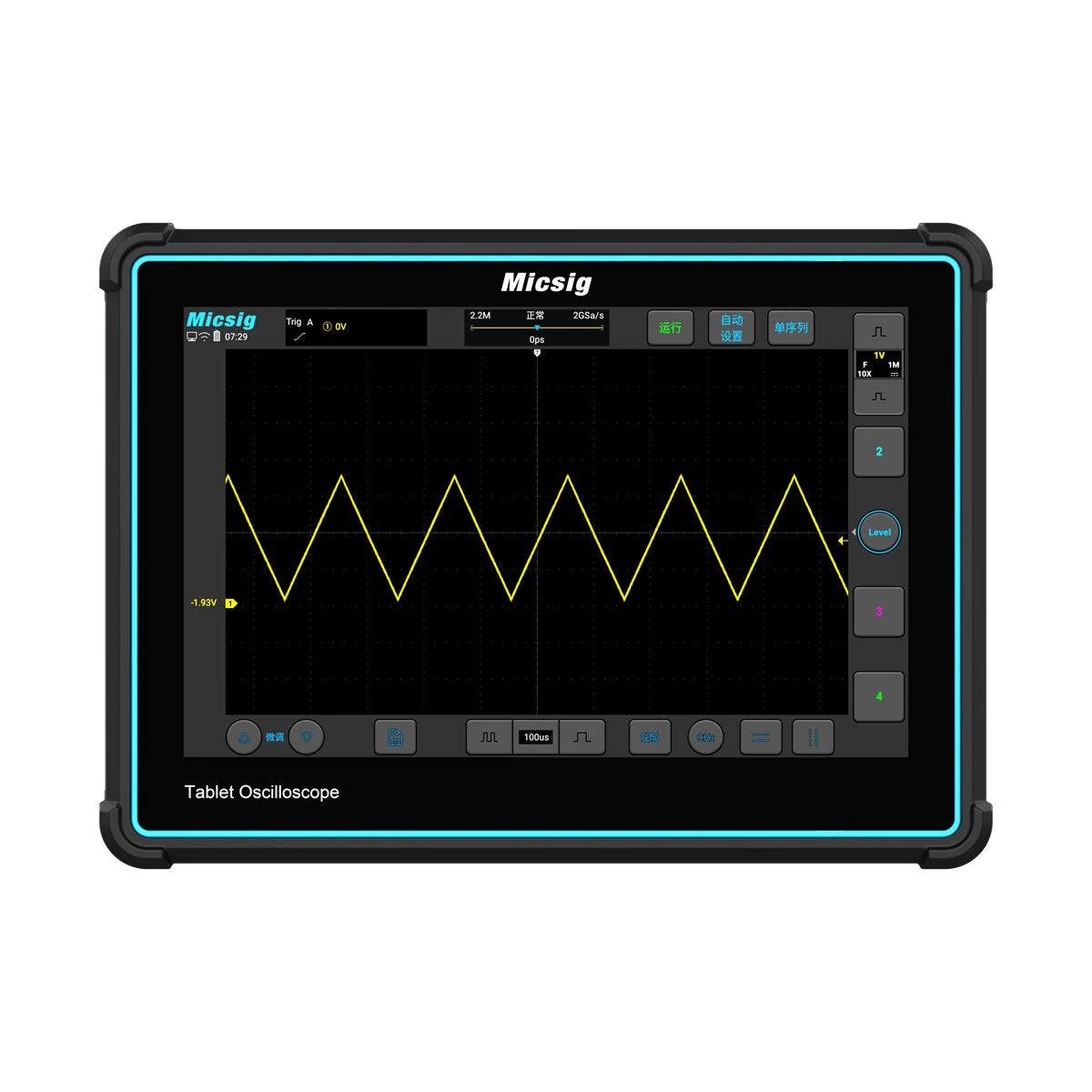

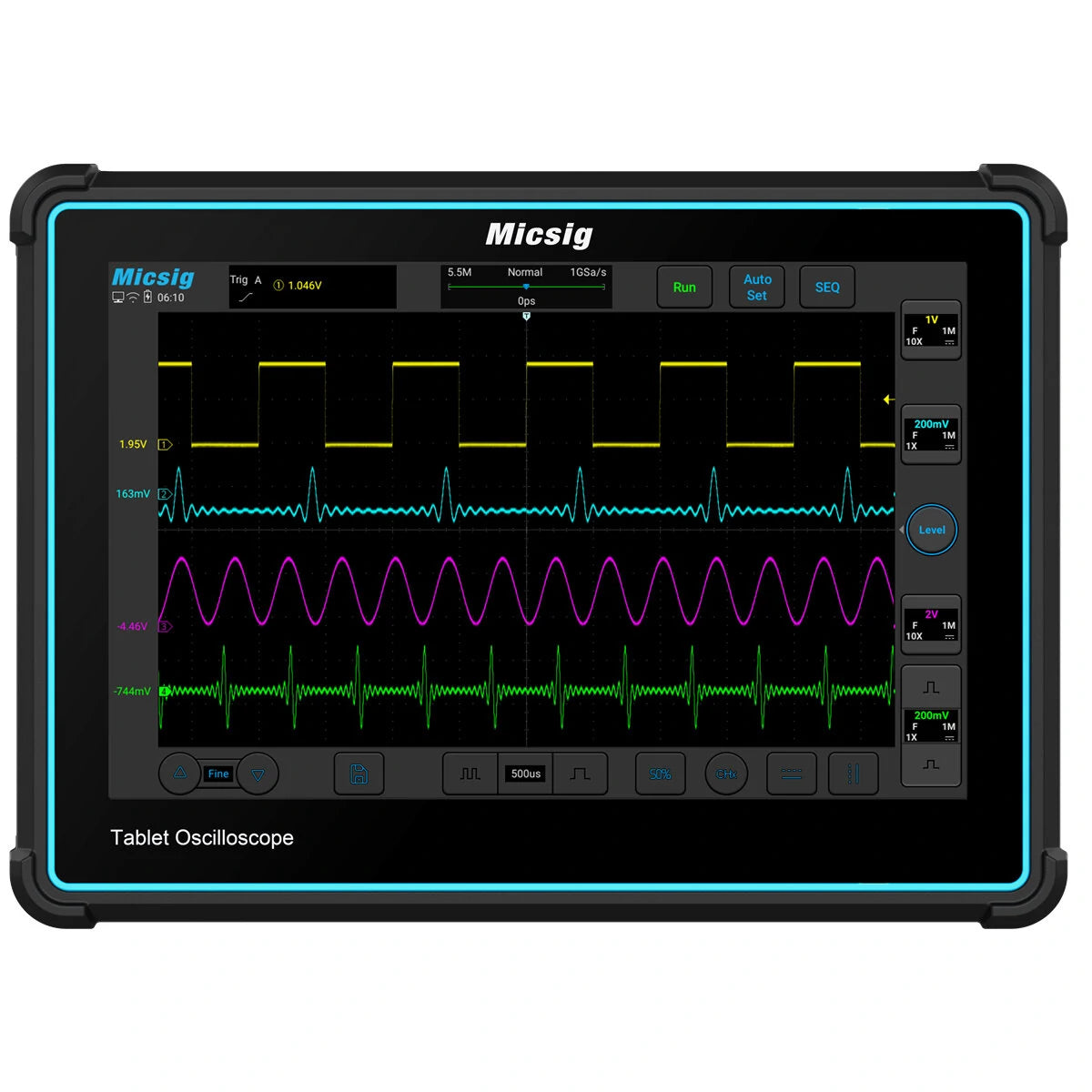

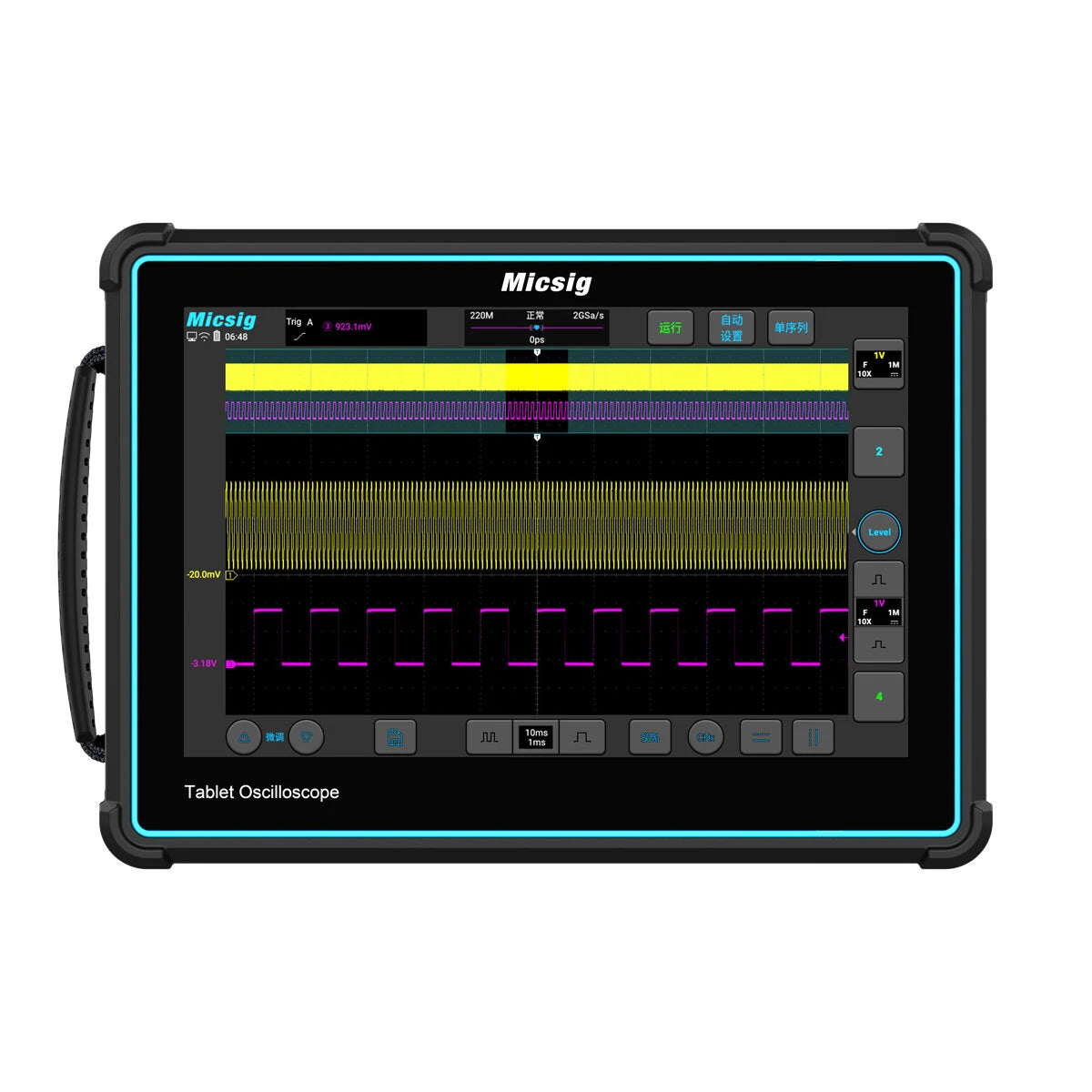

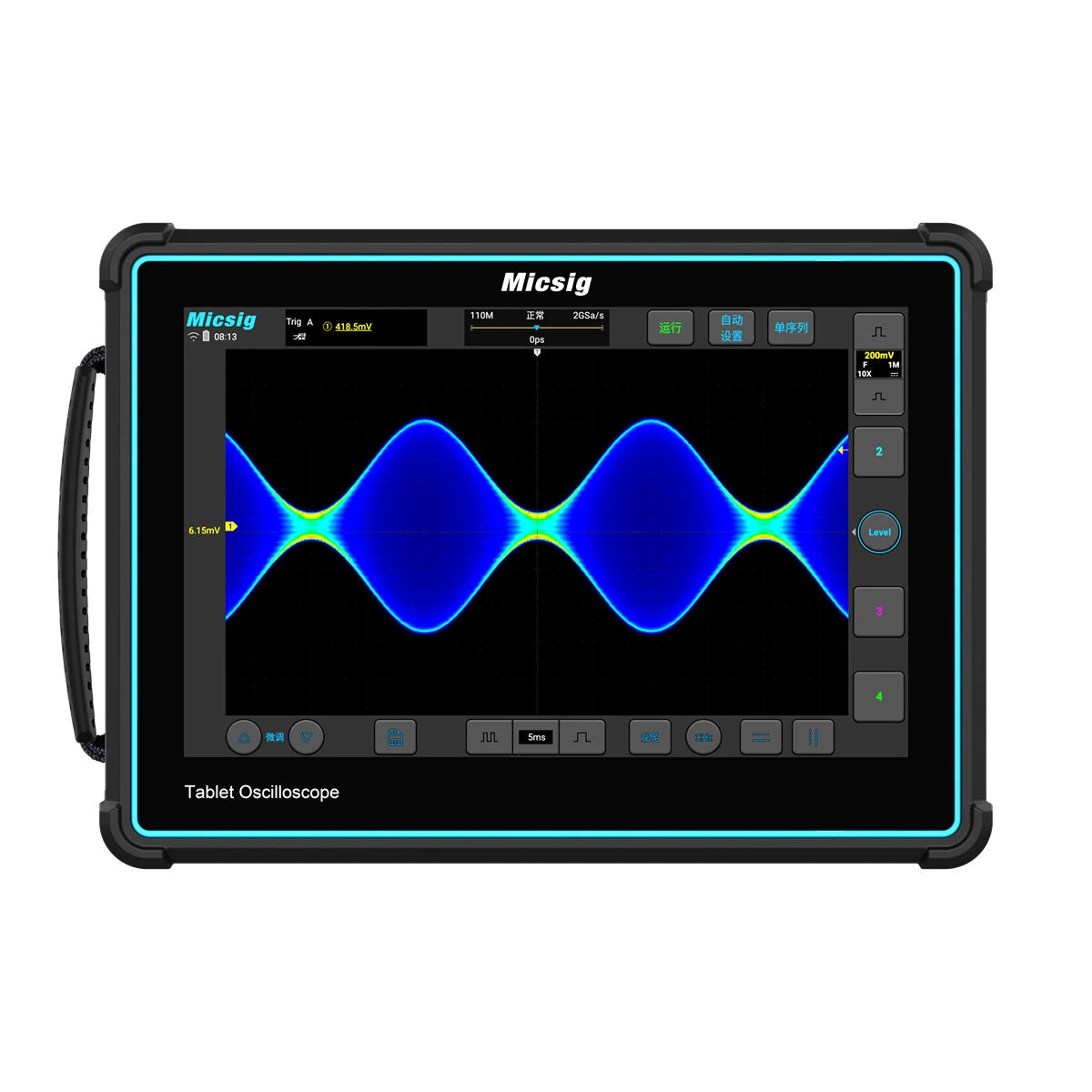

Micsig TO2002 Tablet Oscilloscope

Features

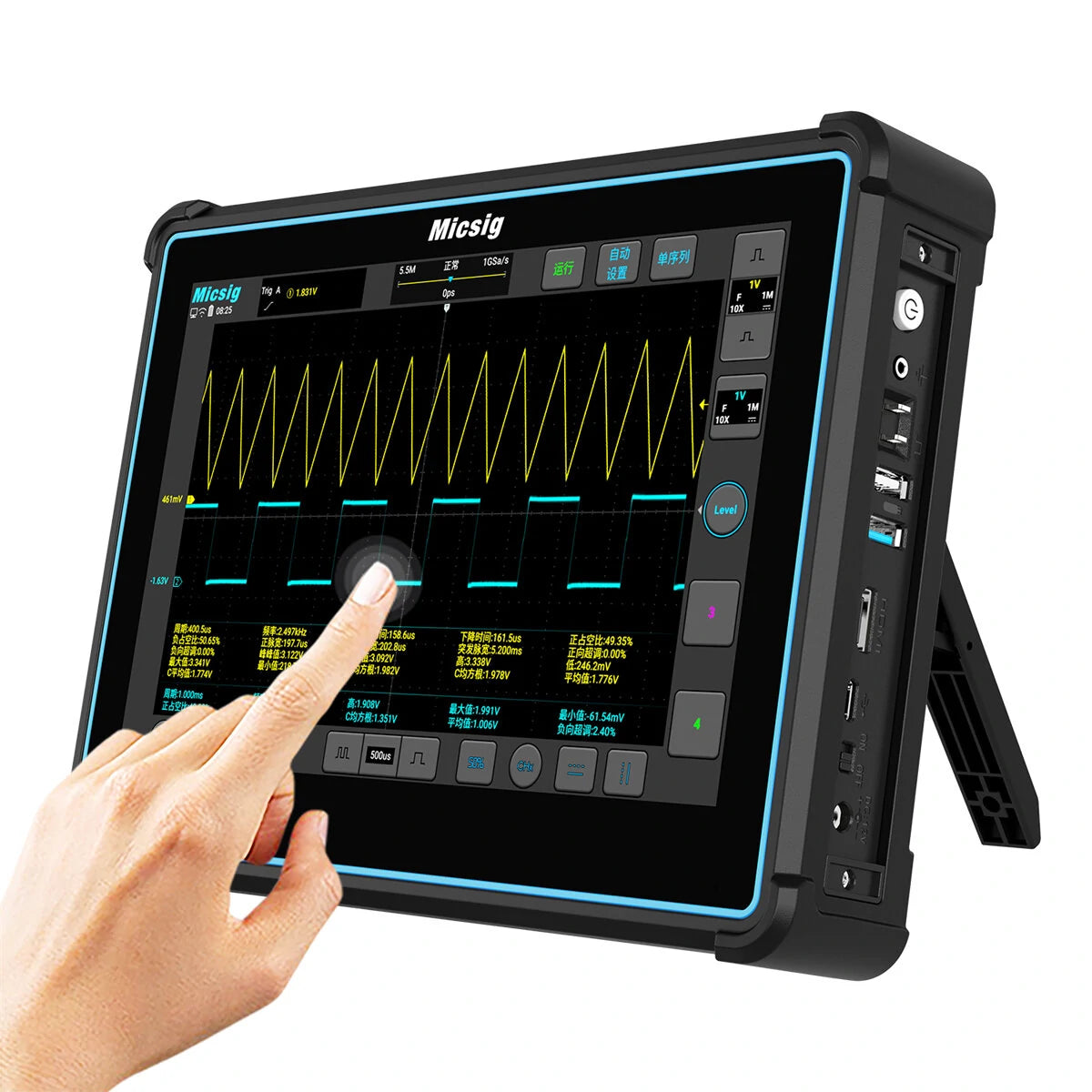

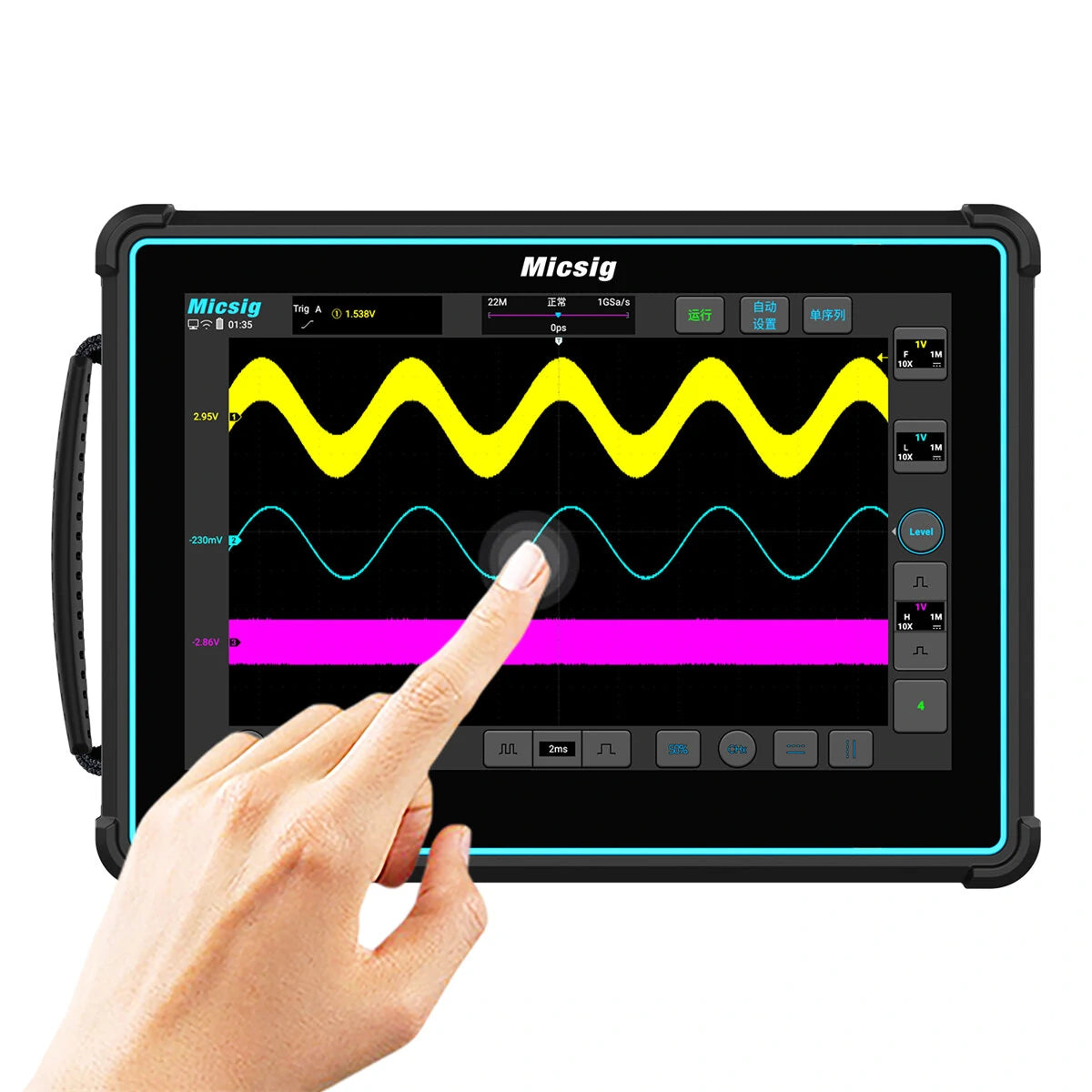

Revolutionized User Experience

The TO series Tablet Oscilloscope features a 10.1-inch integrated full touch screen with a high resolution of 1280 × 800 pixels. Micsig combines over a decade of expertise in touch control algorithms to redefine the oscilloscope touch experience, establishing a new industry benchmark.

Optimized Performance Metrics

Dive into your measurements with up to 200MHz bandwidth, an impressive 1GSa/s sampling rate, and a maximum memory depth of 110Mpts. Paired with the SigtestUITM multitasking system, the device ensures long-term stability and uninterrupted performance.

Enhanced Measurement Capabilities

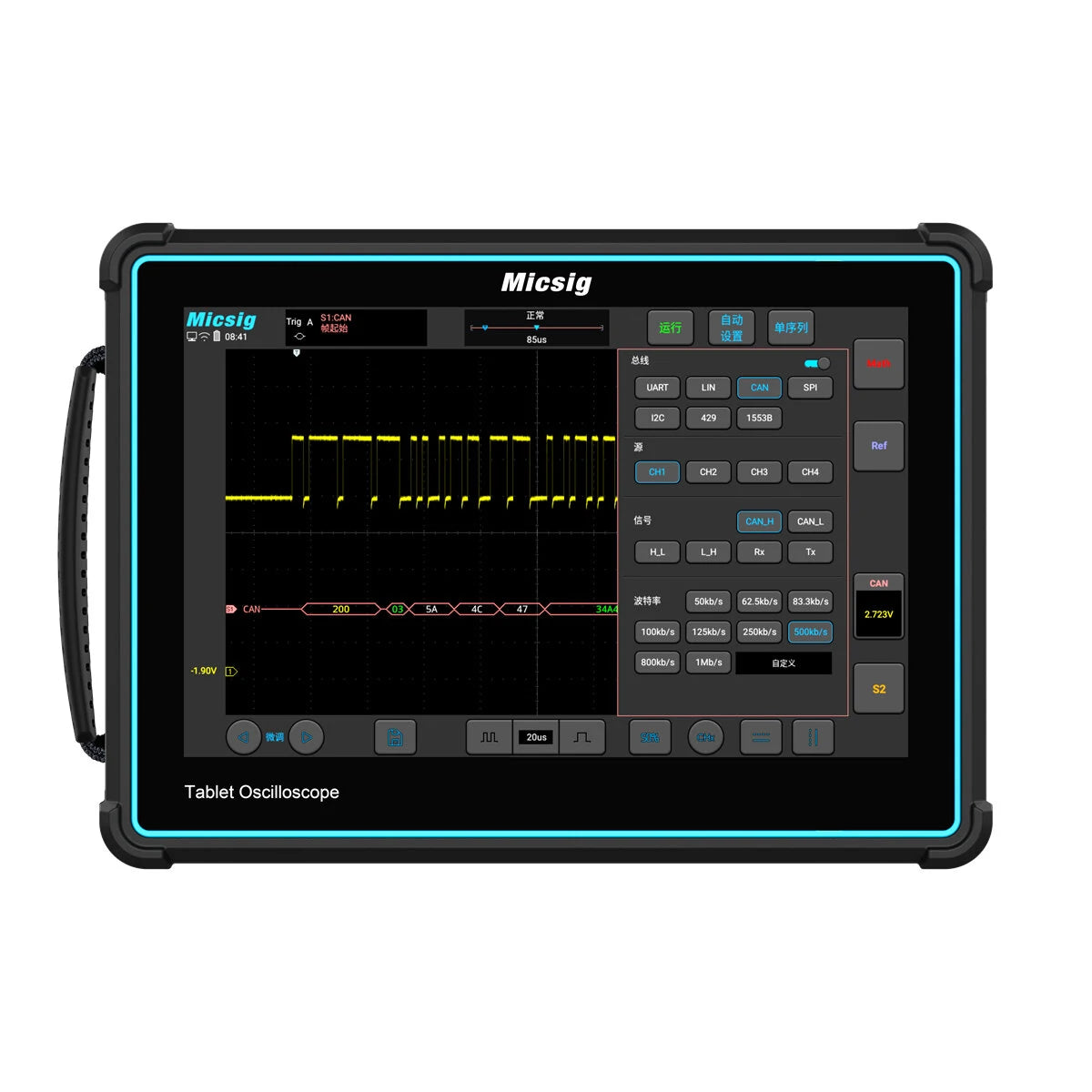

This device goes beyond a typical oscilloscope, integrating comprehensive measurement functions and mathematical analysis. It also supports serial bus triggering and decoding, and the built-in hardware digital filtering modules guarantee accurate and clear readings.

Versatile Connectivity Options

With a variety of interface options including Wi-Fi, USB 3.0/2.0, USB Type-C, and more, connecting with other devices or networks is straightforward. The TO series supports seamless data transfer and external control, meeting your needs effortlessly.

Portability and Prolonged Usage

The compact design makes it the perfect oscilloscope for on-the-go electronic debugging and testing. Equipped with a robust 7.4V, 7500mAh Li-ion battery, it allows you to work continuously, no matter where you are.

Specifications

• Model: TO2002
• Bandwidth: 200MHz
• Analog Channels: 2
• Rise Time: 1.75ns
• Max. Sampling Rate: 1GSa/s
• Memory Depth: 110Mpts
• Waveform Capture Rate: 78,000 wfms/s
• Bus Decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C
• Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Trigger out
• Display: 10.1 Inch LCD capacitive touch, 1280 × 800 resolution
• Size & Weight: 265 × 192 × 50mm / 1.9kg (with battery)
• Battery: 7.4V, 7500mAh Li-ion

Package Includes

• 1 x Micsig TO2002 Tablet Oscilloscope
• 1 x User Manual
• 1 x Charging Cable
• 1 x Battery
