Malahit SDR DSP Radio Receiver 1.10D Firmware, 50kHz-2GHz, AM SSB NFM WFM Modes

Product Features

• Based on SDR principle - functionality defined by software.
• Frequency Range: 50KHz-2GHz (Note: 250MHz-400MHz blocked).
• Supports analog modulation: AM, SSB, NFM, WFM.
• Advanced functions include variable filter width, adaptive and threshold noise suppressors, Noise Blanker, AGC, and equalizer.
• Utilizes an affordable yet effective msi001 chip.
• Powered by a robust stm32h743 chip at 480 MHz.
• Built-in UHF capability.

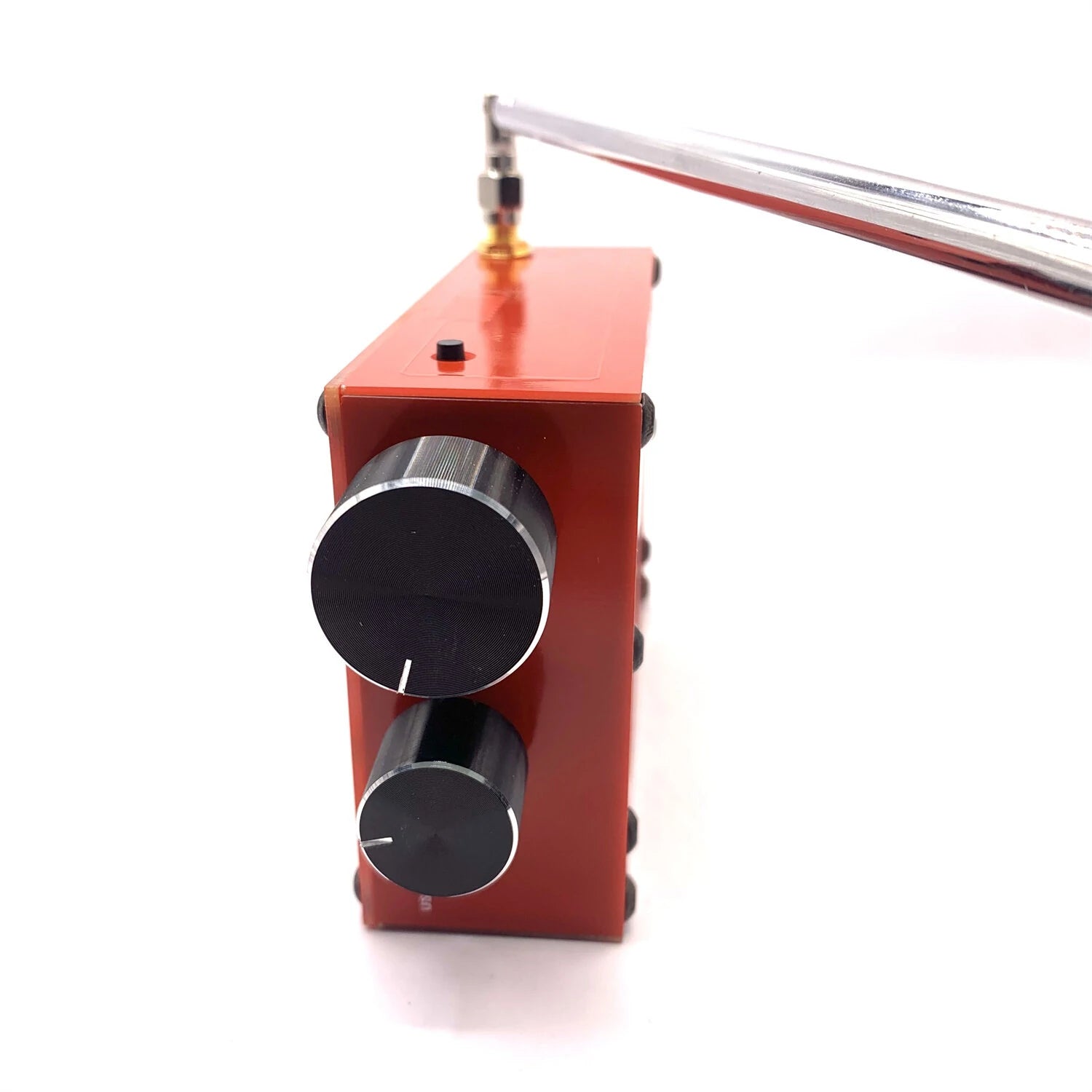

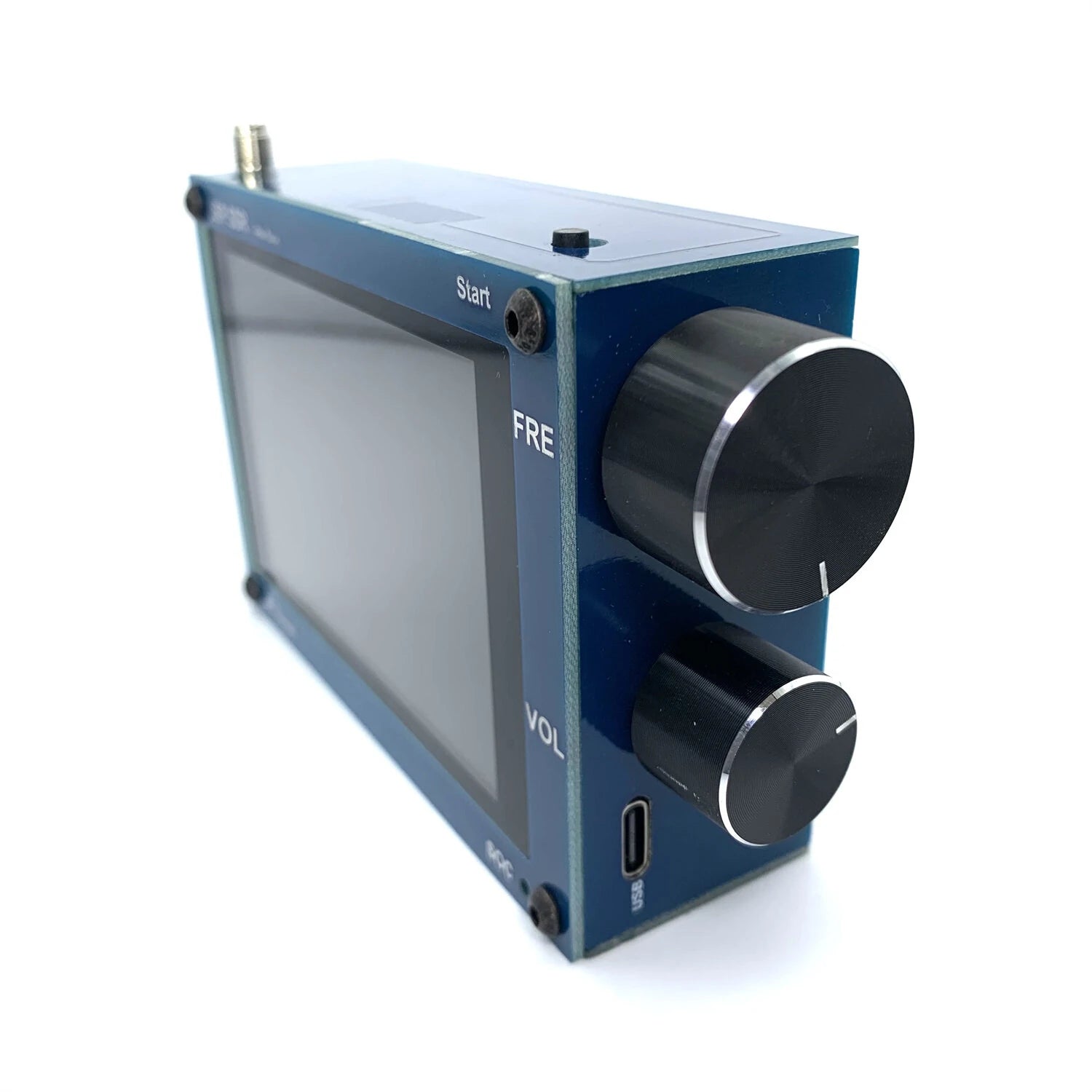

• Dual controls: encoders with buttons and a touchscreen.
• Power Consumption: 300mA with headphone use.
• Connects to a computer via TYPE-C for CAT, IQ, and audio transfer.
• 160kHz span, expandable.
• Sensitivity: Up to 250MHz, 0.3μV = 10dB.
• Dynamic Blocking Range: Approximately 85dB due to the msi001 chip.
• Backlight control feature included.
• SMA female antenna socket.
• Dimensions: Approx. 100 x 75 x 32mm (without connectors).

Specifications

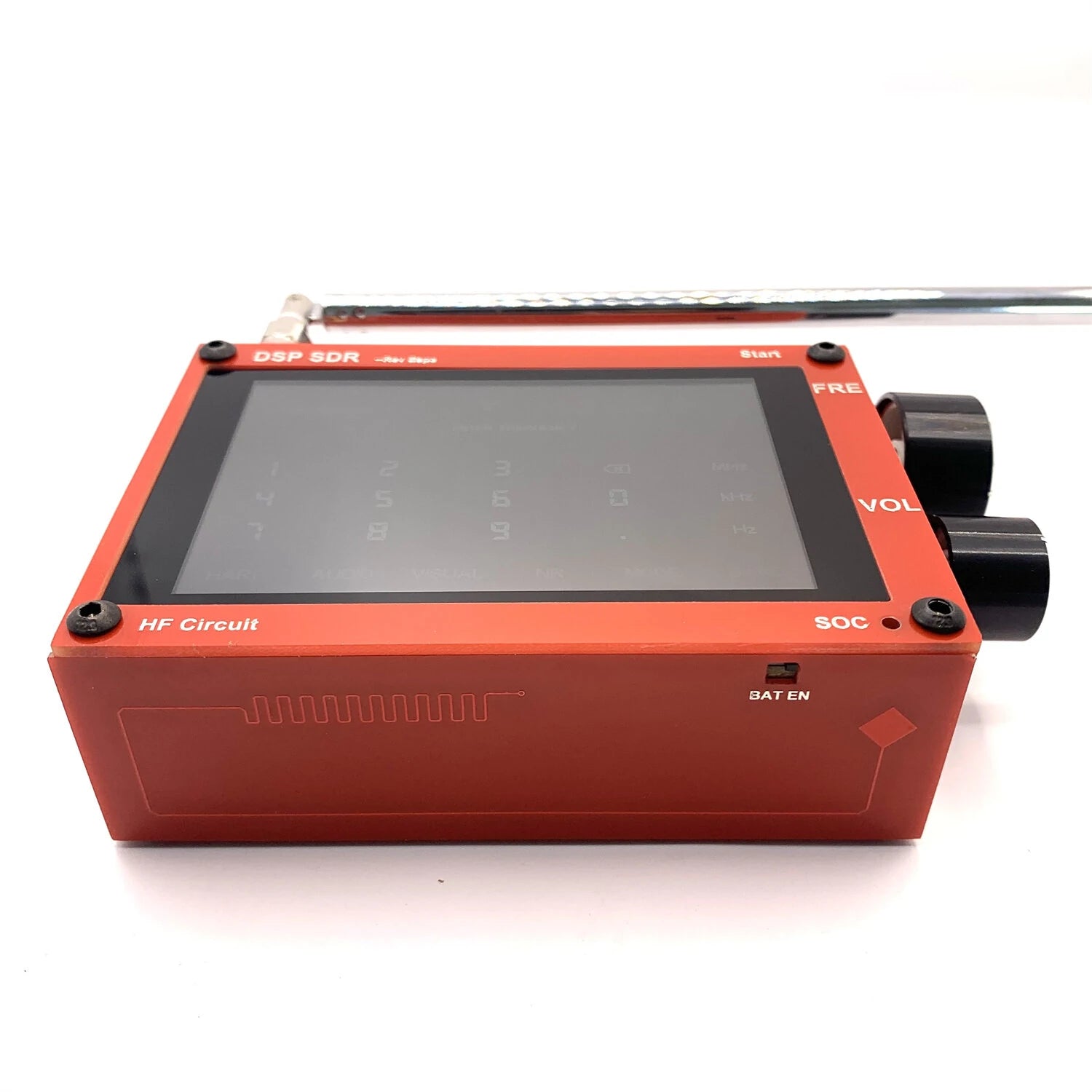

• 3.5-inch IPS capacitive screen.
• 4-layer board structure for superior performance.

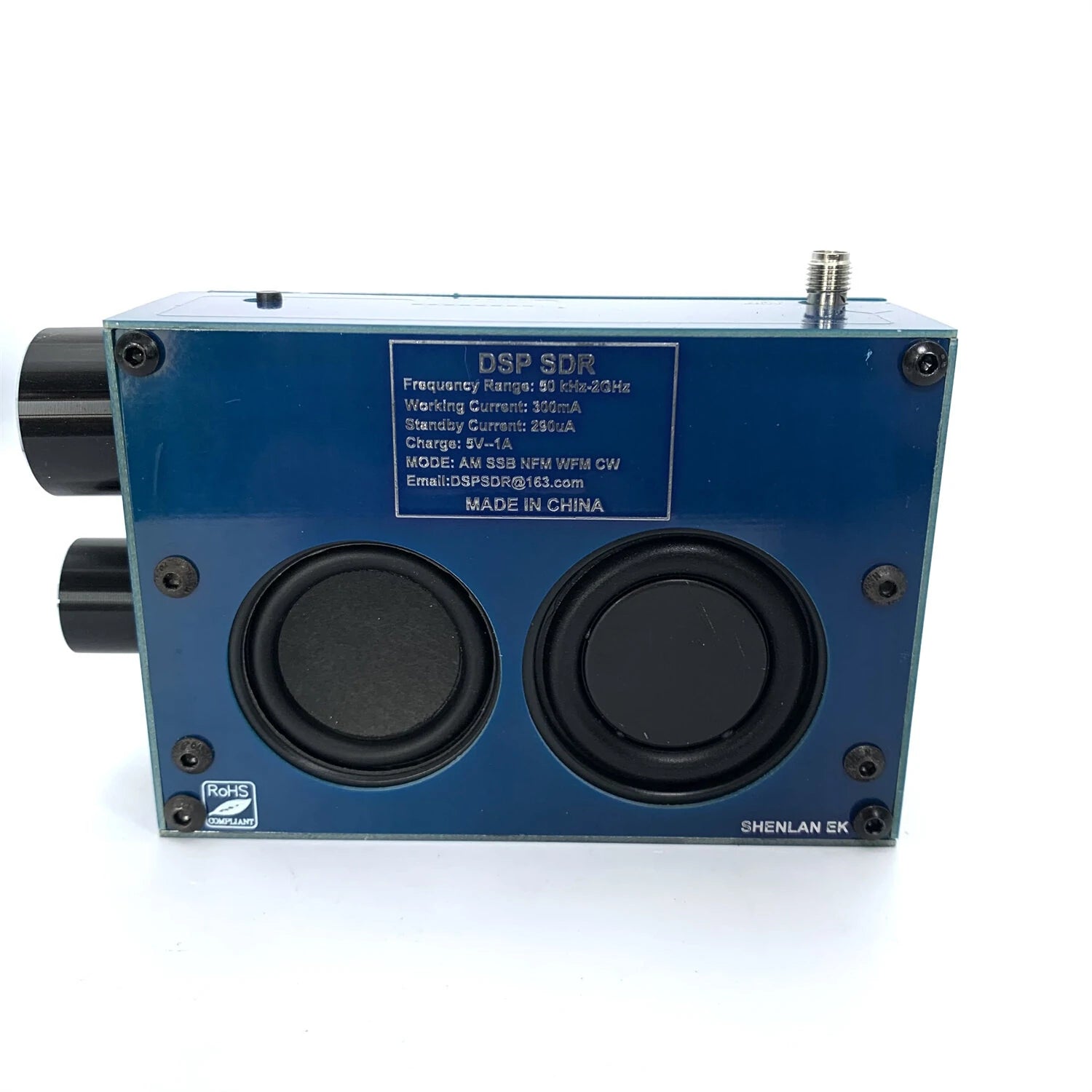

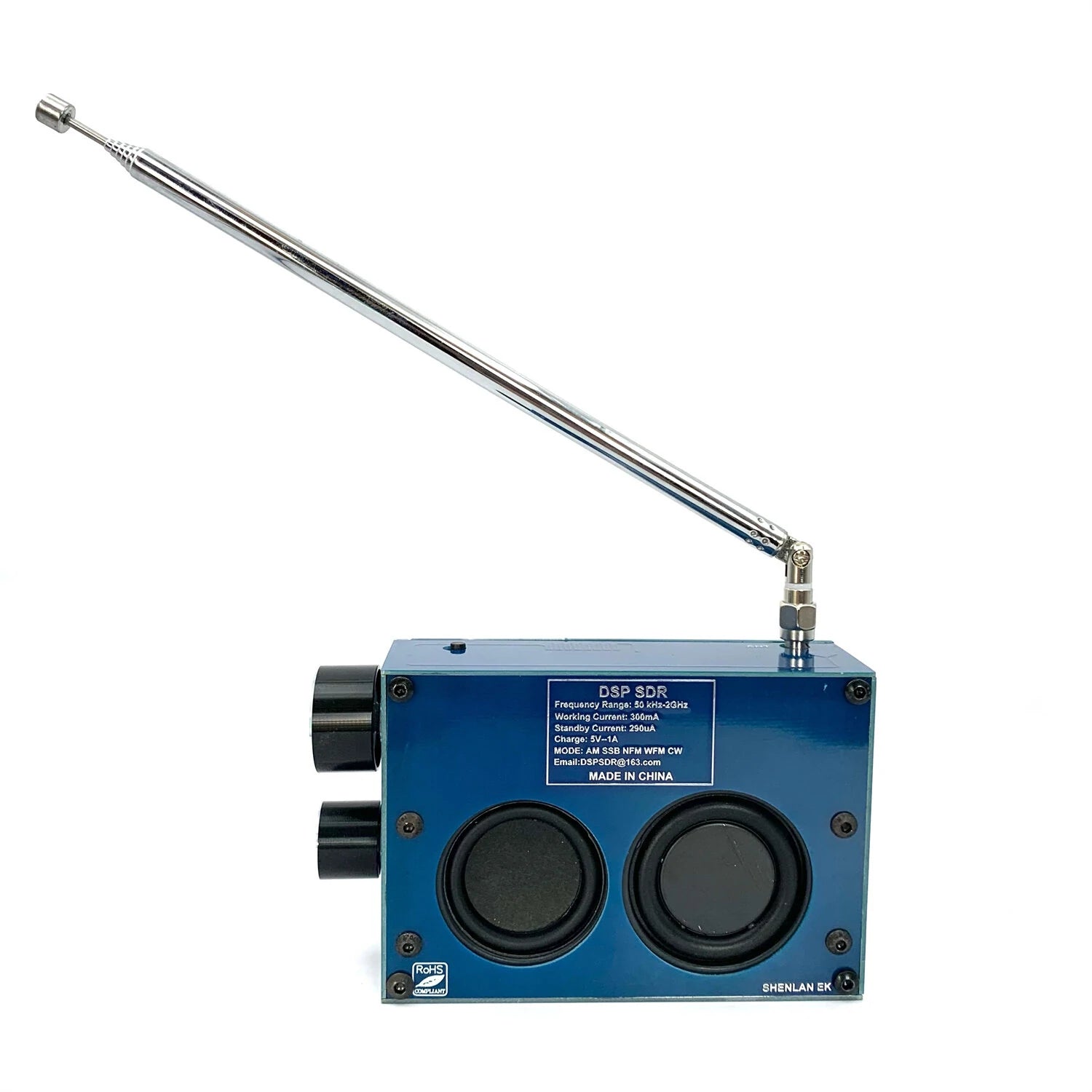

• Sound unit with 2 vibrating chambers; enhanced bass quality.
• Rechargeable 3000mA lithium battery included.
• Firmware version: 1.10D.

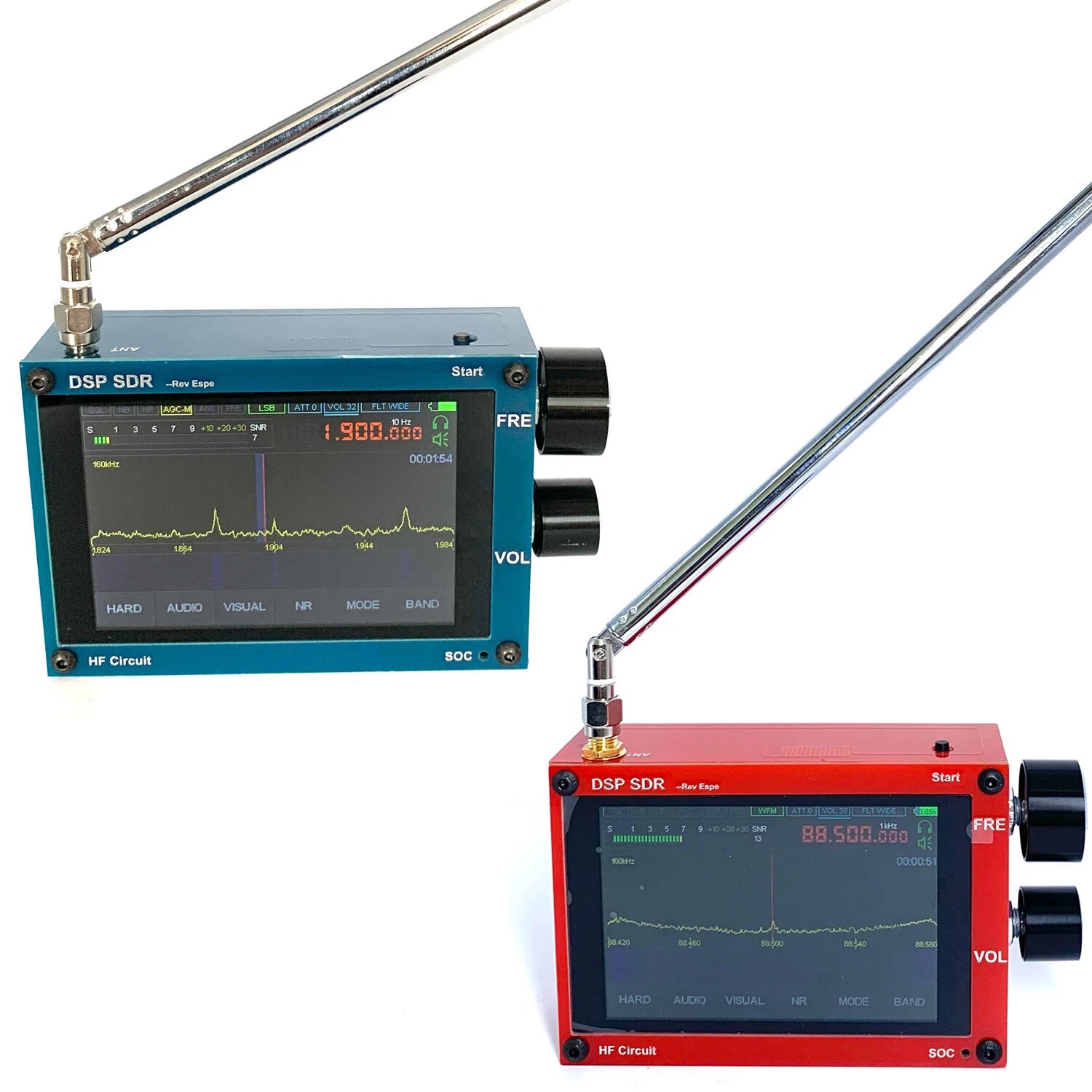

• Available in Red and Blue colors.

Package Contents

Type A:

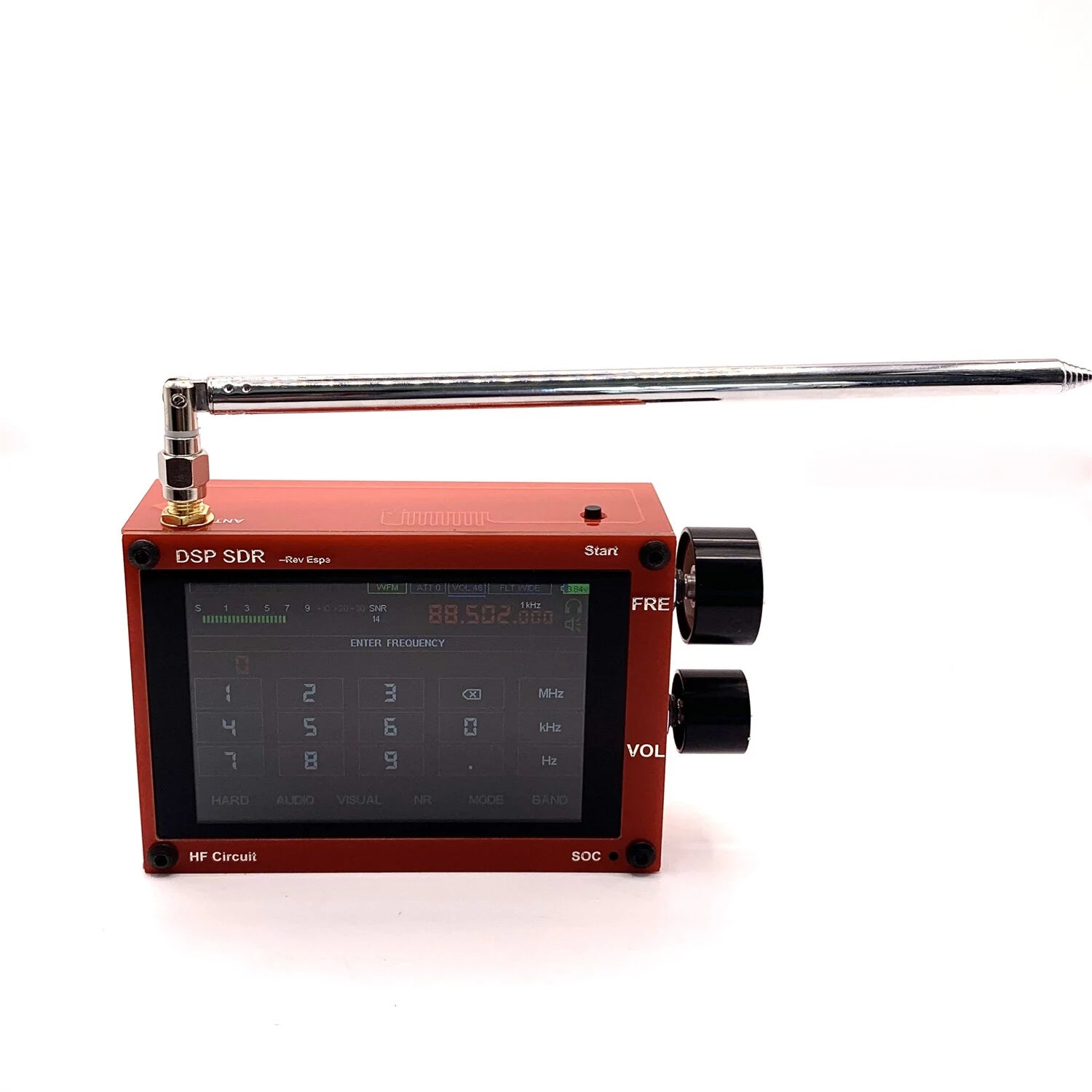

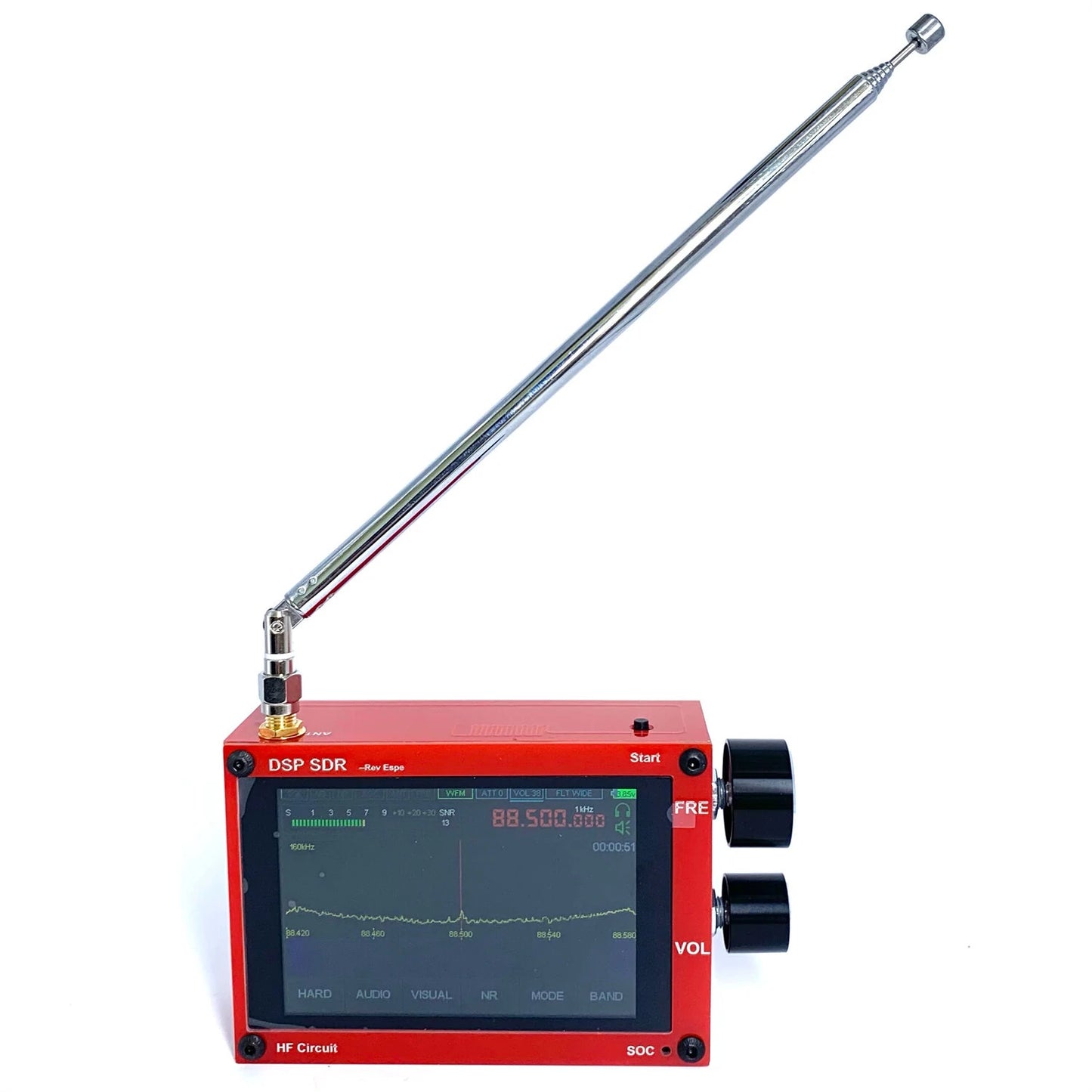

• 1 x Red SDR Receiver (Standard Version)

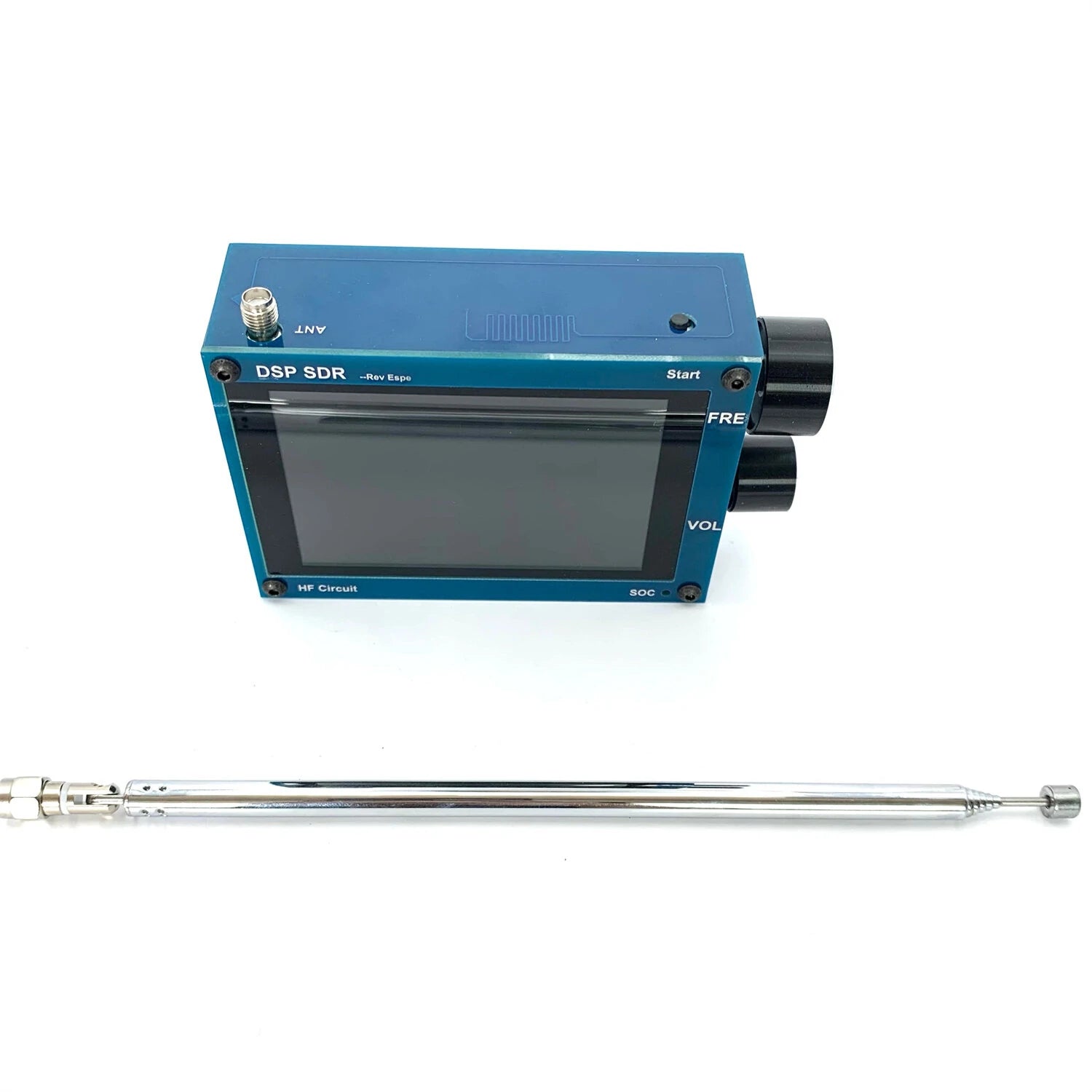

• 1 x SMA Antenna

Type B:

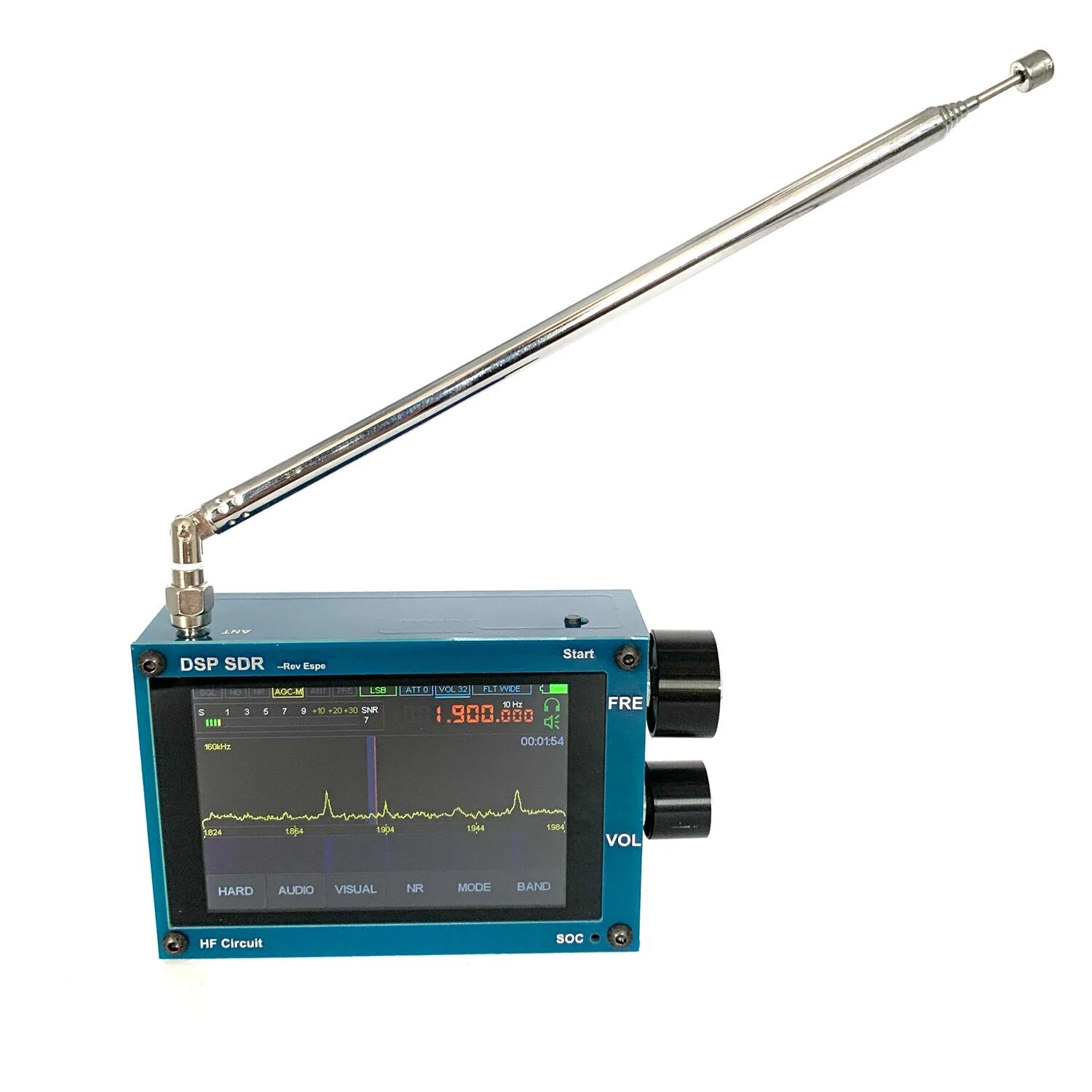

• 1 x Blue SDR Receiver (Standard Version)
• 1 x SMA Antenna
