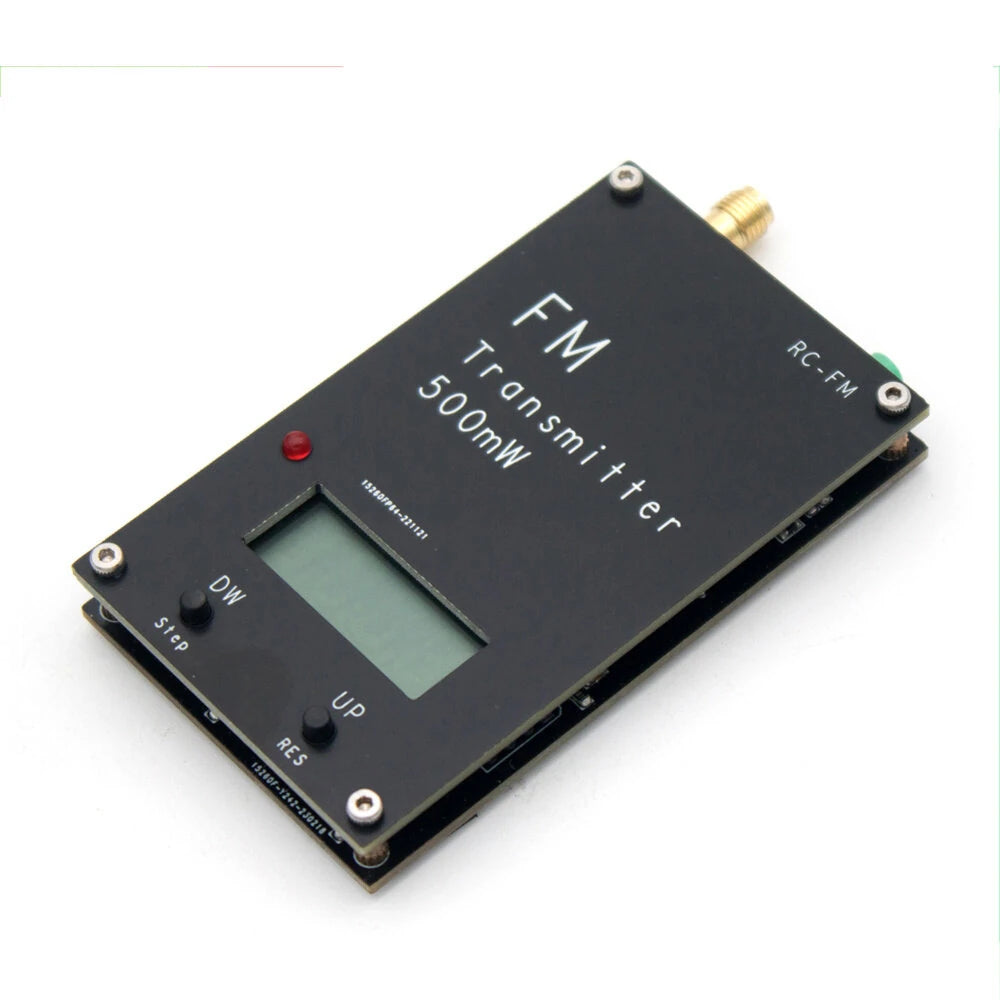

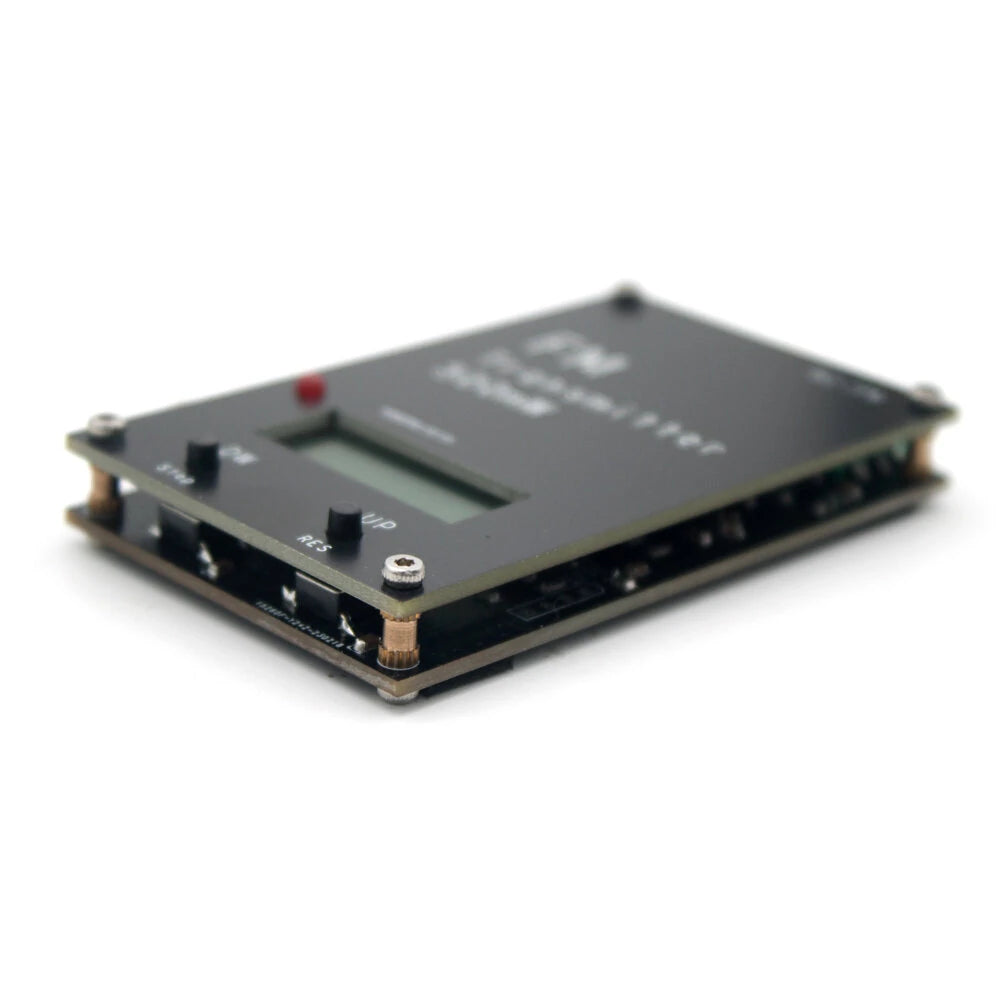

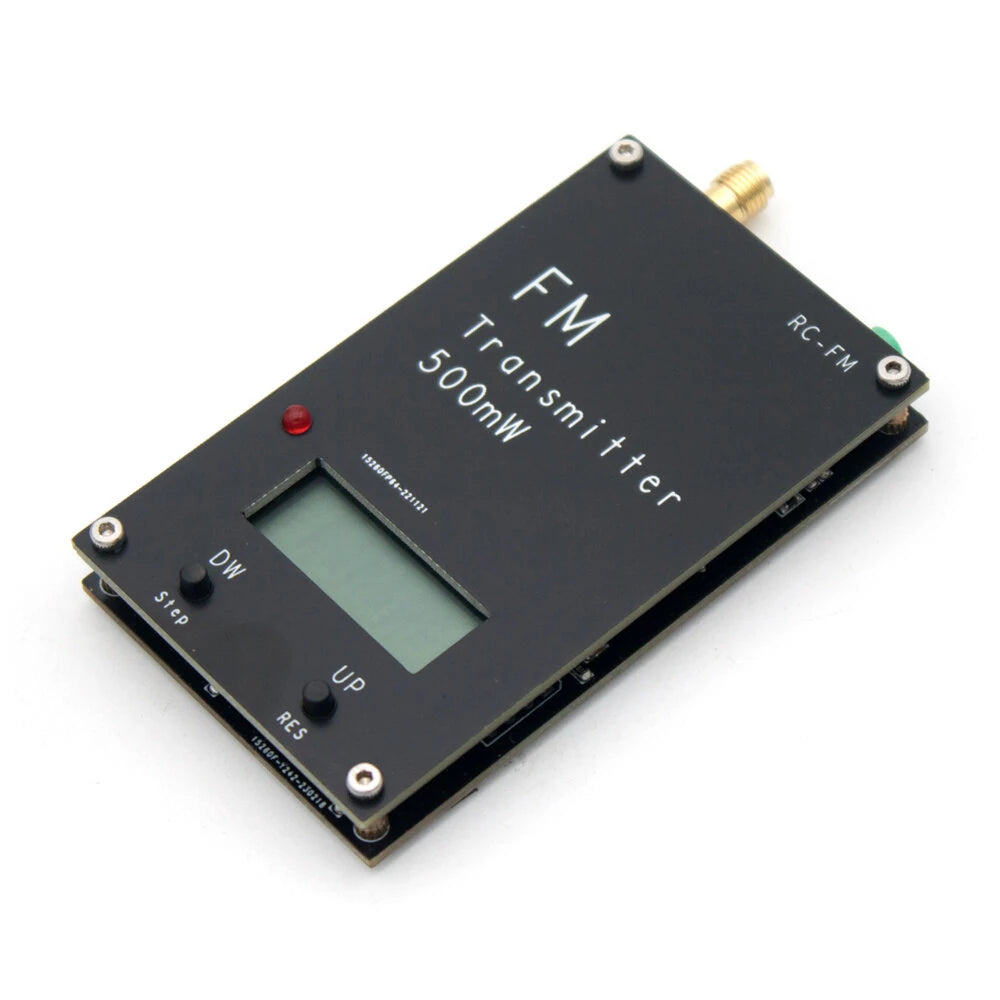

2000M 0.5W FM Transmitter with Frequency LED Display 88-108MHz Stereo DSP Radio Broadcast Receiver

Product Features

• Wide Frequency Range: Output frequency range of 88-108MHz with 100KHz steps. Choose from 200 frequencies for the ideal broadcasting channel.
• Clear Signal Quality: High signal-to-noise ratio of 63dB and only 0.05% THD, delivering crystal-clear sound to your listeners.
• Compact & Portable: Weighing just 120g, this transmitter is perfect for both on-the-go and stationary broadcasting.
• Easy Power Supply: Utilizes a convenient USB Type C interface, with a supply voltage of 5V and consumption current not exceeding 500mA.
• Long Transmission Range: Capable of reaching up to 2000M in open fields, ensuring wide coverage for your broadcast.

Specifications

• Output Frequency: 88-108MHz, 100KHz step (200 frequencies)
• Display: LCD
• Output Power: 0.5W
• Supply Voltage: 5V USB Type C
• Supply Current: 500mA
• Input Signal: Audio Stereo 3.5MM
• Signal-to-Noise Ratio: 63dB, 0.05% THD
• Weight: 120g
• Transmitting Interface: SMA female head with external thread and internal hole
• Antenna Requirements: 50 ohm pure resistive load, VSWR not higher than 1.5

How to Use

1. Connect the antenna to the transmitter.
2. Connect the power supply using the included USB Type C cable.
3. Connect your audio source to the transmitter using the provided 3.5mm male audio cable.

Package Included

• 1 x 0.5W FM Transmitter
