3-in-1 Digital Multimeter Clamp Meter Test Pen with LCD Color Display

Product Overview

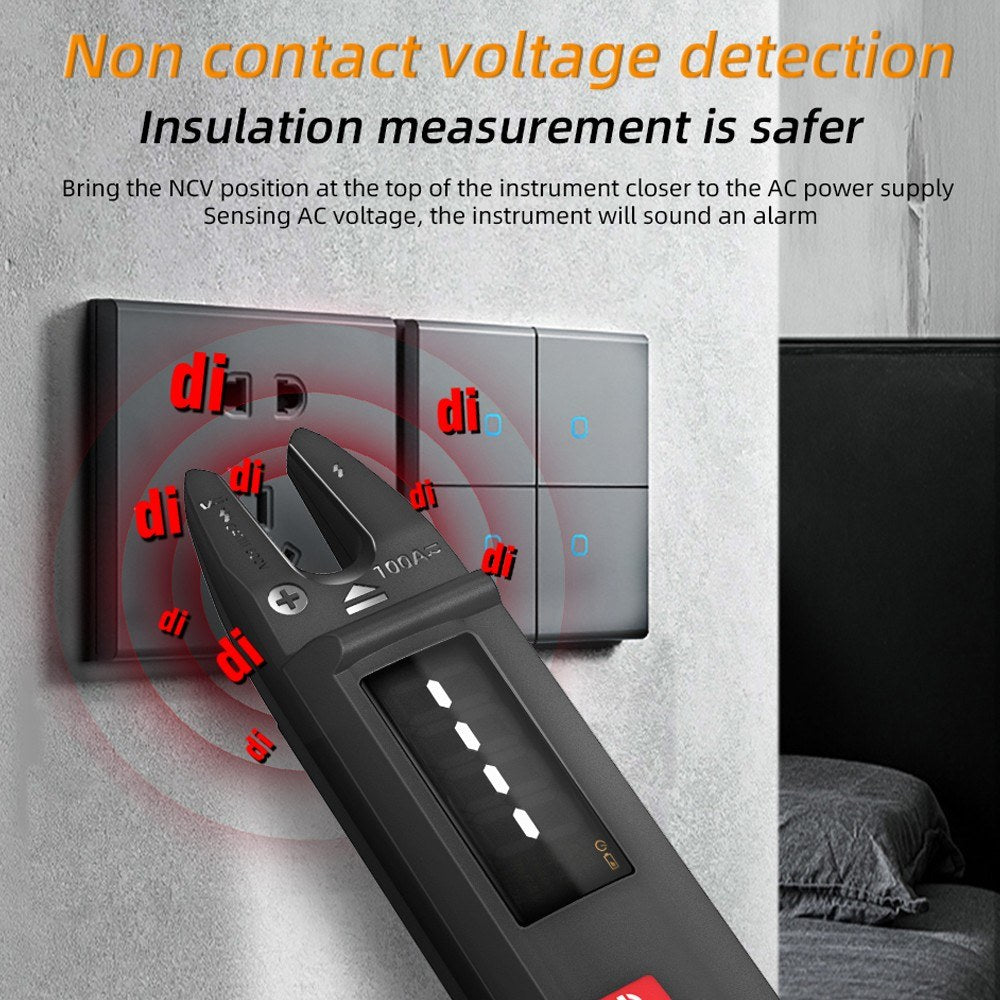

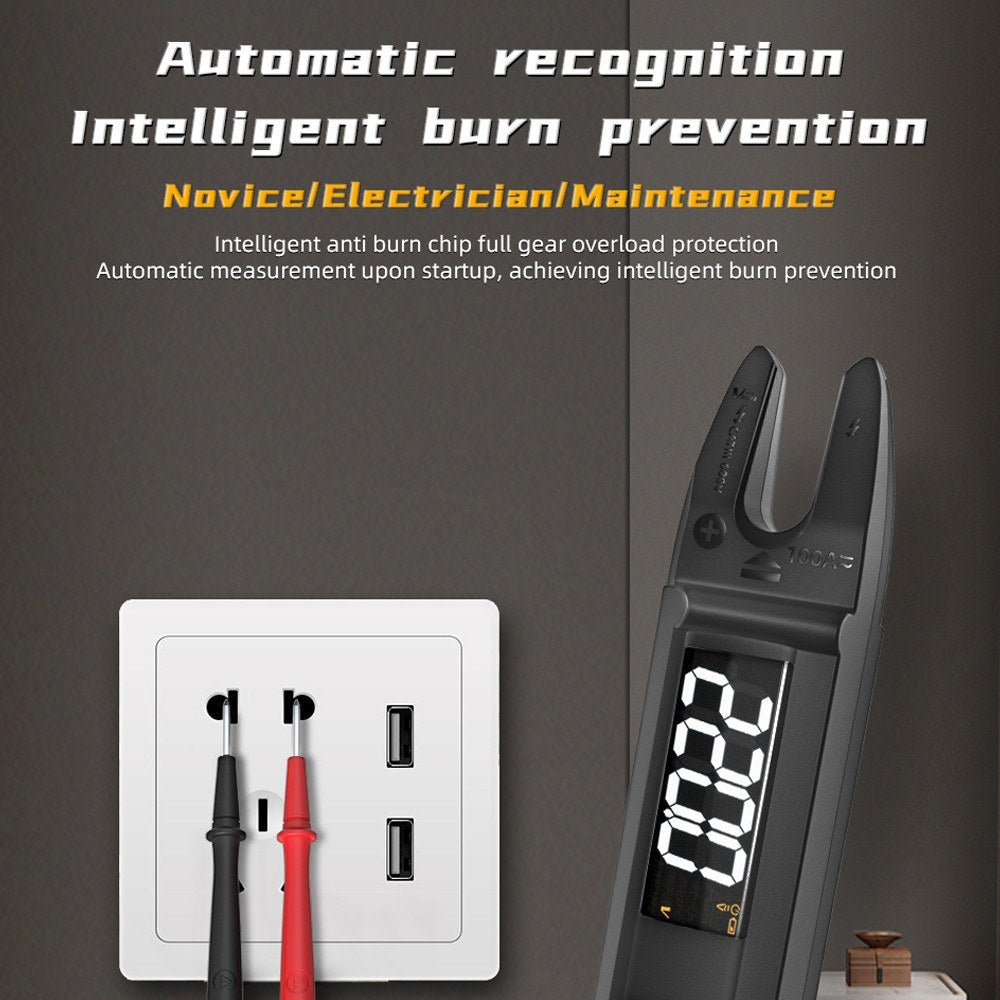

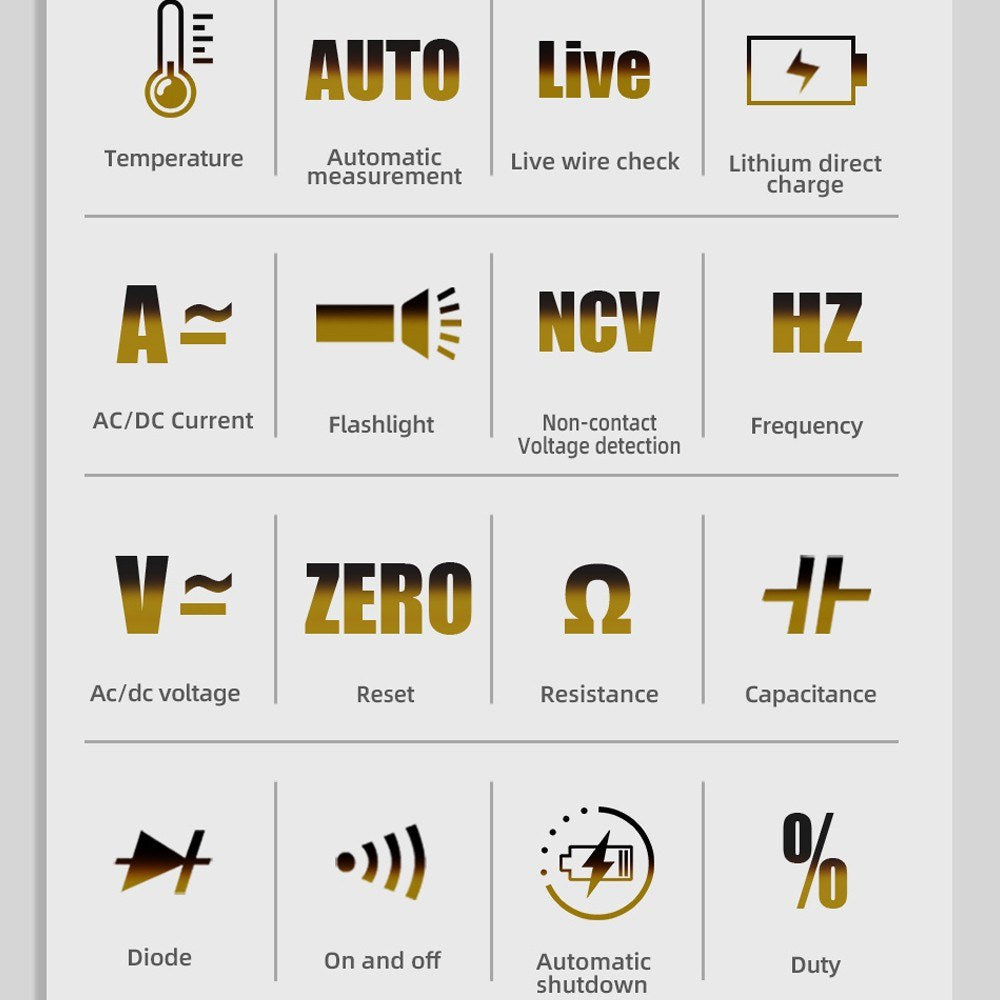

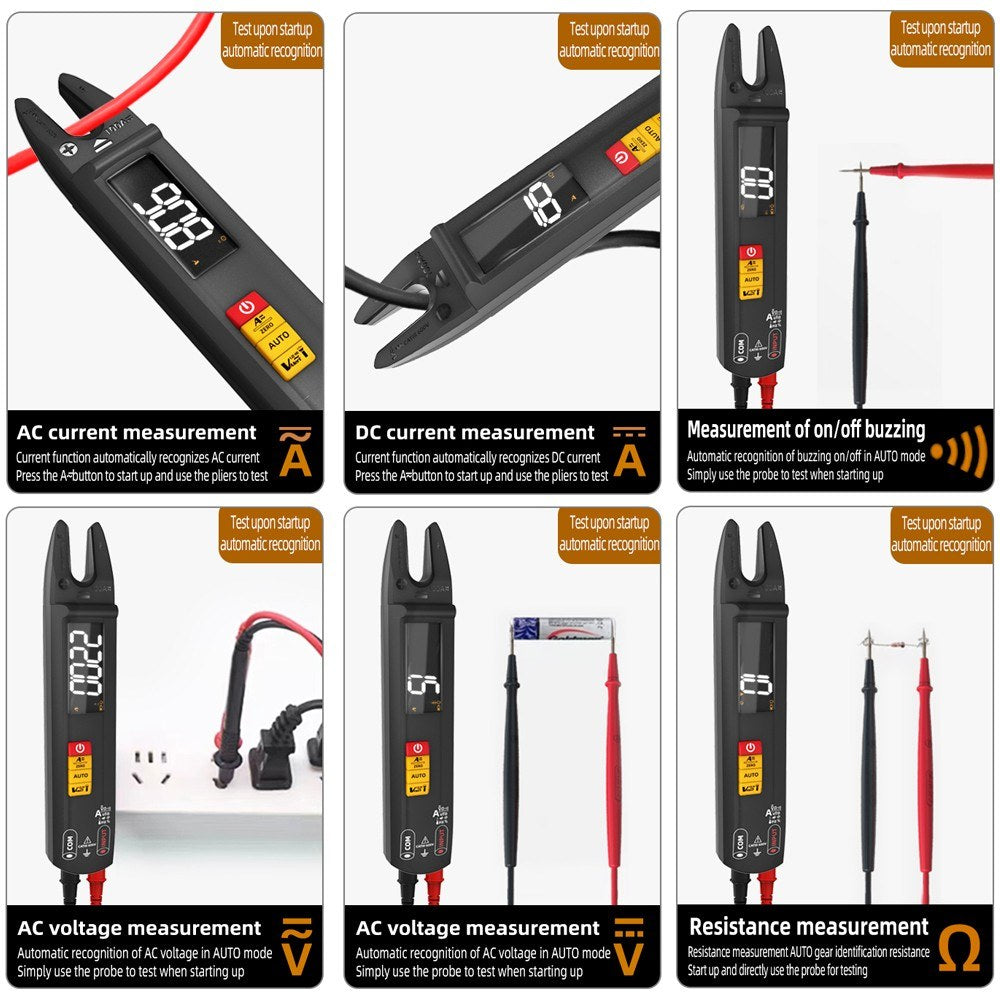

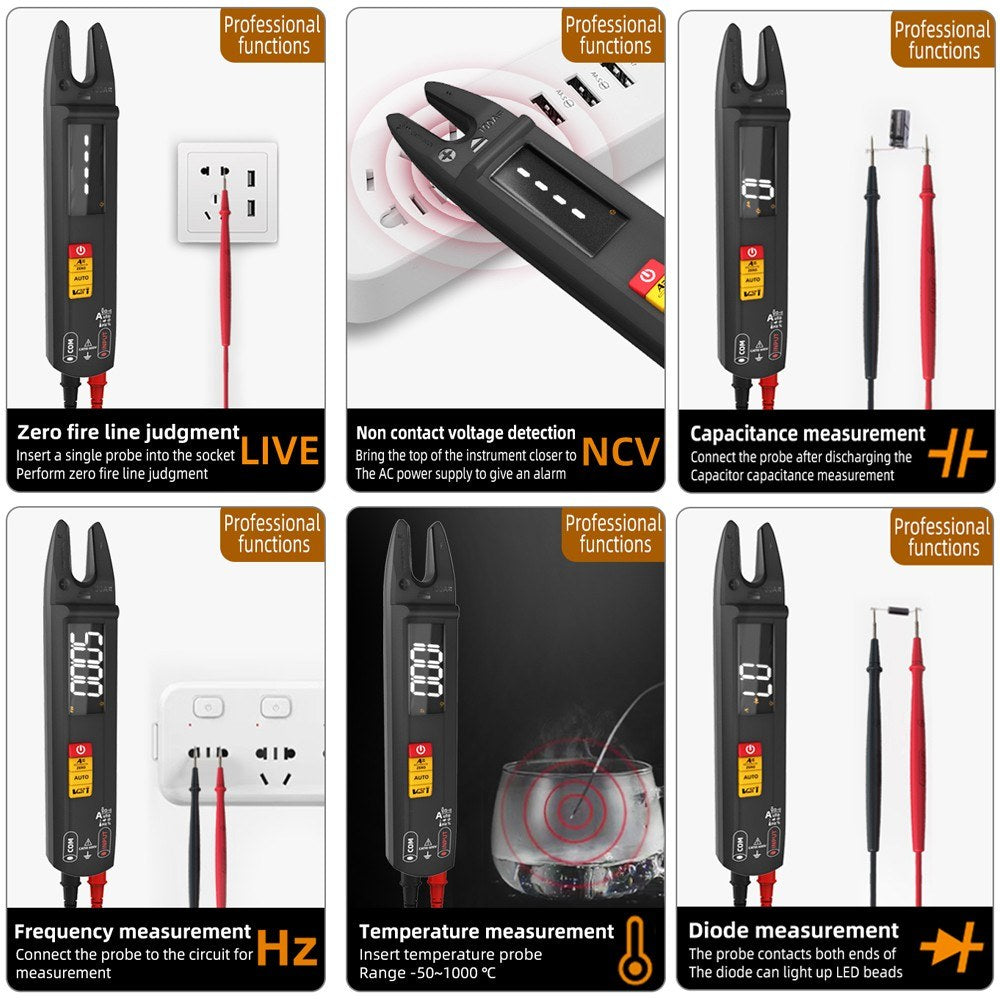

Experience the compact yet powerful 3in1 Multimeter, designed to meet all your electrical measurement needs. This versatile tool supports a wide range of functions including AC/DC Voltage, AC/DC Current, capacitance, resistance, diode testing, frequency, duty cycle, and temperature measurements. Its intelligent features like automatic identification, zero-firewire judgment, NCV voltage detection, and a flashlight for illumination make it a must-have for professionals in various industries.

Key Features

• Concise Appearance: Ergonomically designed with a large screen, compact body, and silicone protective cover for durability and safety.
• Three-in-one Design: Combines the functions of an electrical test pen, multimeter, and clamp ammeter for an integrated experience.
• LCD Backlight Display: Easy-to-read large font display suitable for all lighting conditions, perfect for electricians.
• 6000 Counts True-RMS Measurement: Provides precise readings on nonlinear loads.
• 12mm Jaw Opening: Large jaws suitable for current measurement without cable interruption.

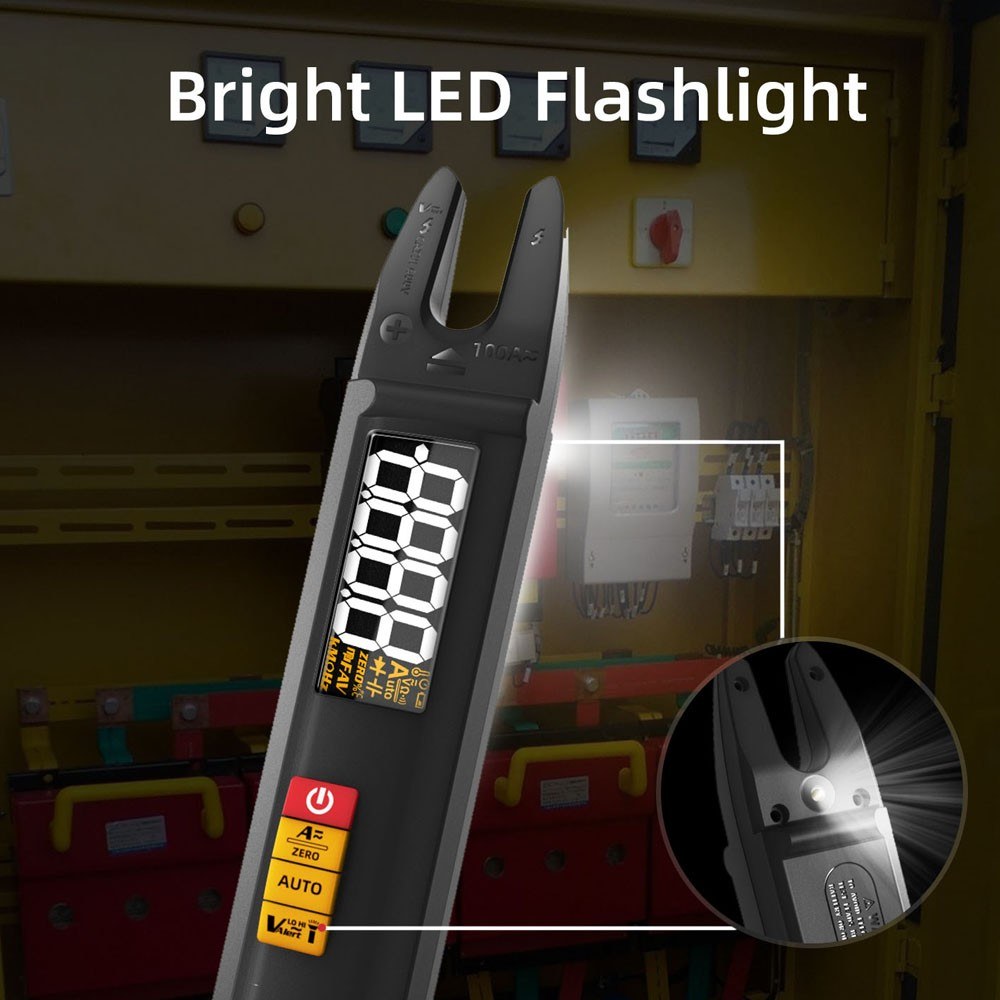

• Flashlight Illumination: Provides visibility in dark environments.
• Automatic Shutdown: Powers down after 15 minutes of inactivity to conserve battery life.

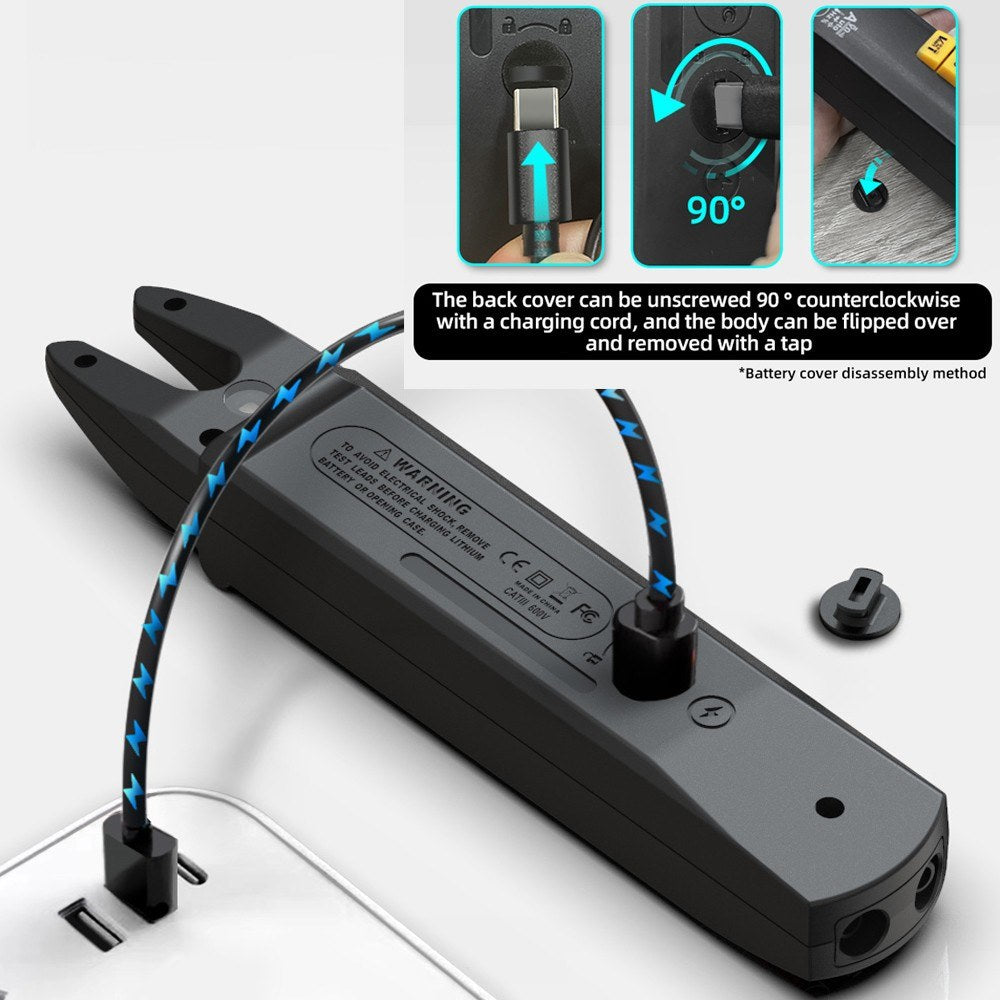

• Rechargeable Design: Equipped with a long-lasting built-in lithium battery and Type-C charging.

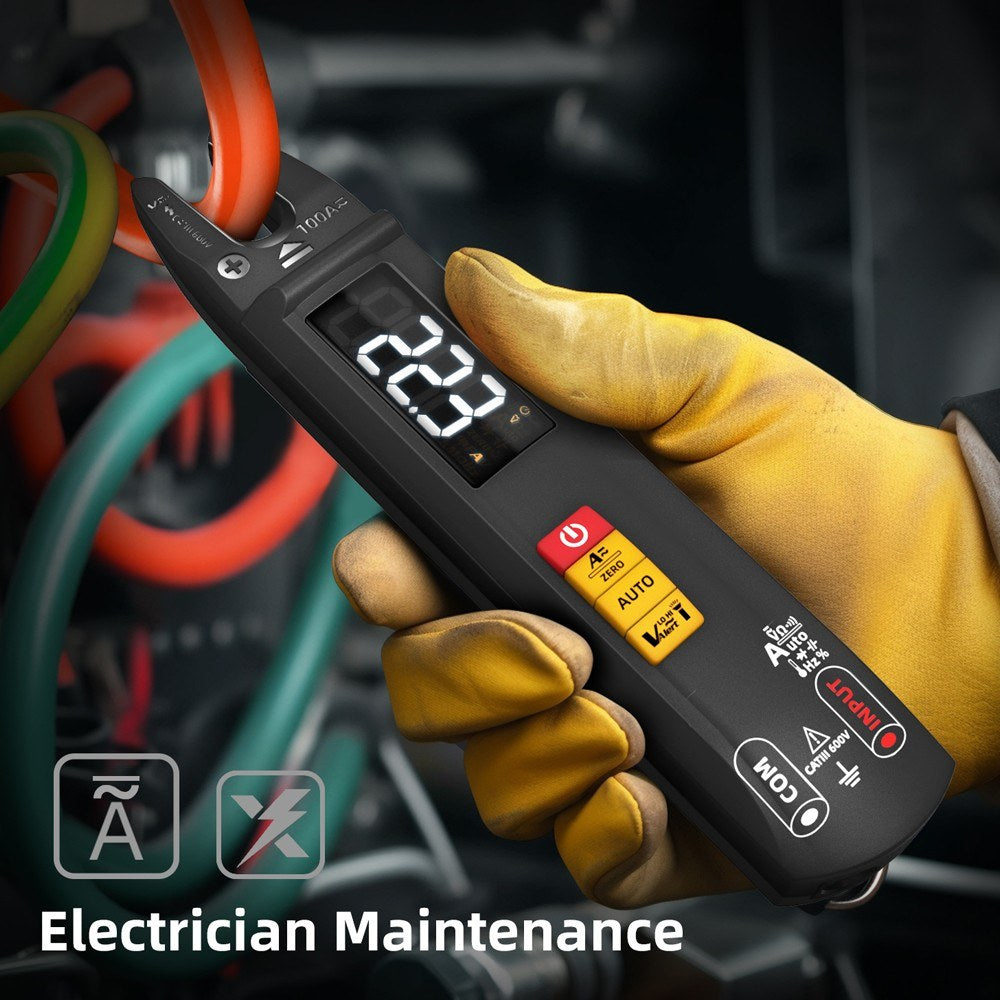

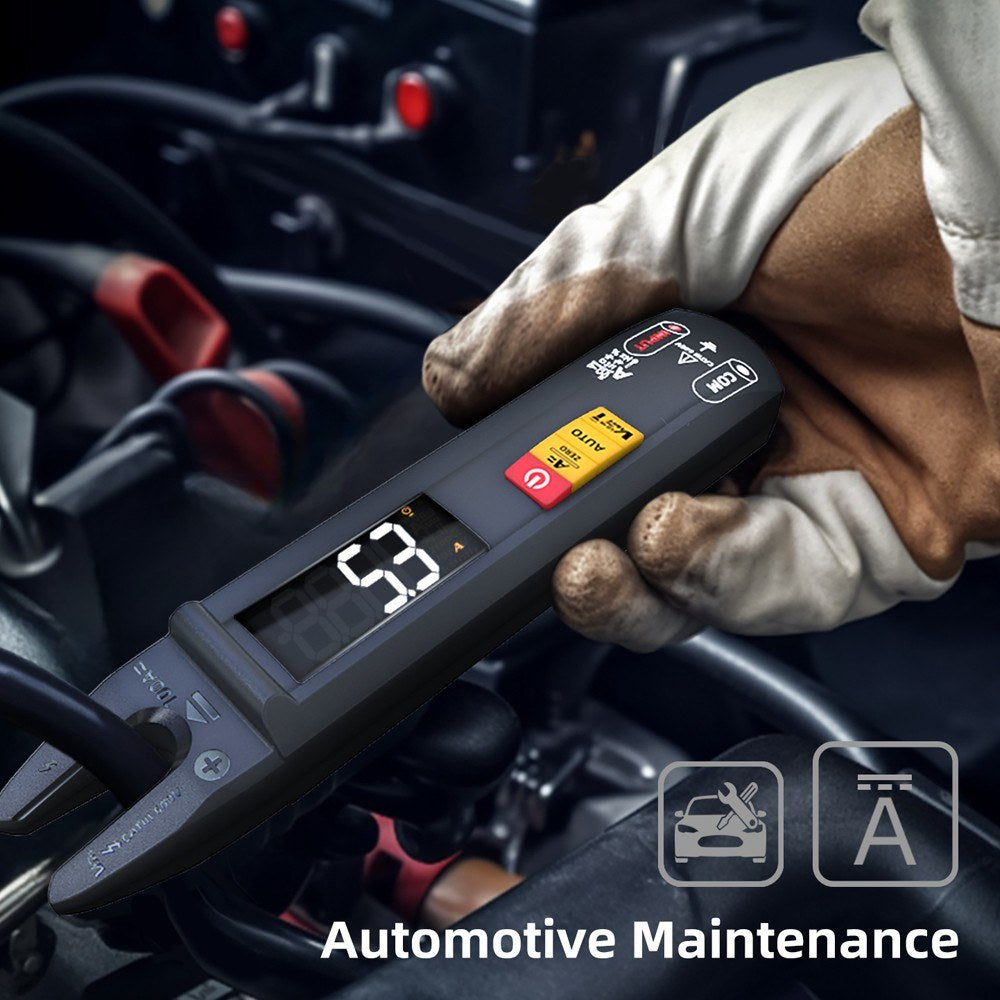

• Wide Applications: Ideal for testing and debugging in electronic circuits, repair work, and various industries.

Specifications

• Material: Plastic and metal
• Display: LCD
• Battery: Built-in 3.7V 400mAh lithium (included)
• Max Display Value: 6000 counts
• DC Voltage: 0.01V-610V
• AC Voltage: 0.05V-610V
• AC/DC Current: 1-100.0A
• Resistance: 0.1Ω-60ΜΩ

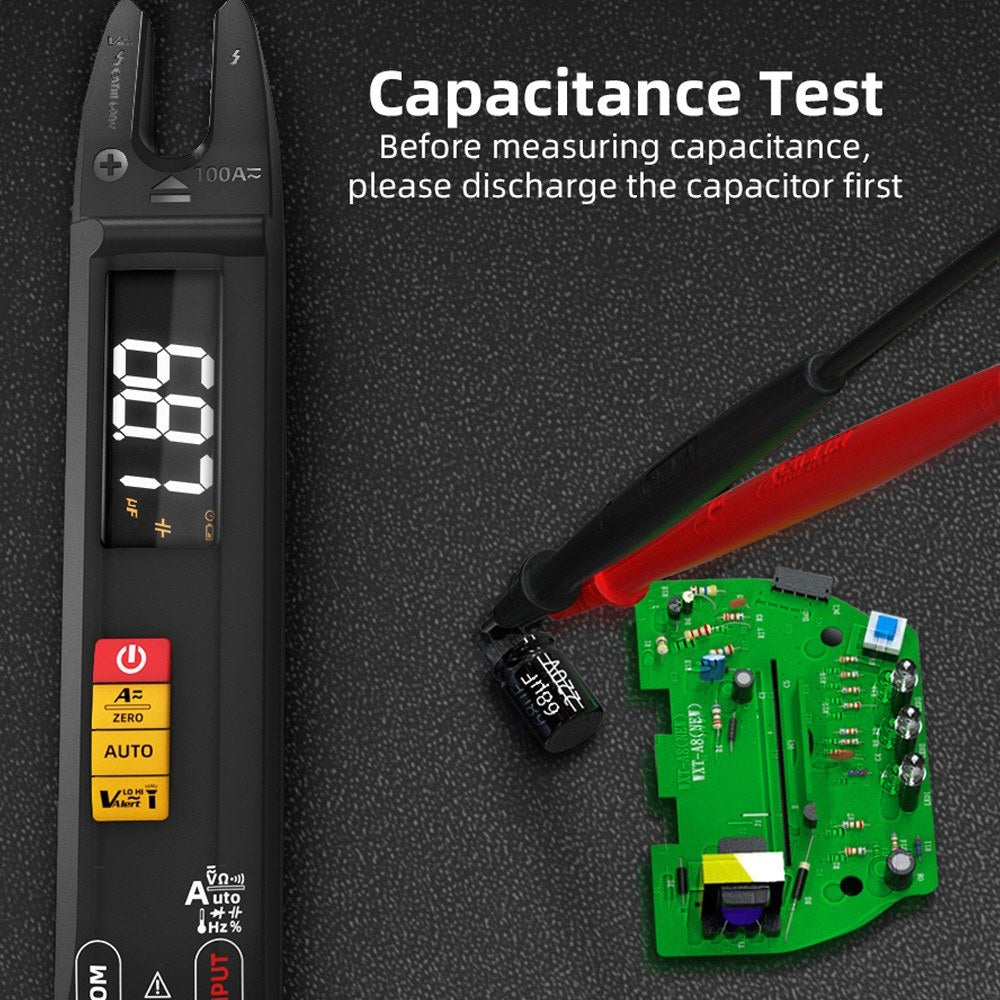

• Capacitance: 0.01μF-60mF
• Continuity: <50Ω
• Frequency: 1.000Hz-9.999MHz
• Duty Cycle: 10-95%
• Temperature Measure: -50℃~1000℃
• Operating Temperature and Humidity: 0-40℃, 0-80%RH

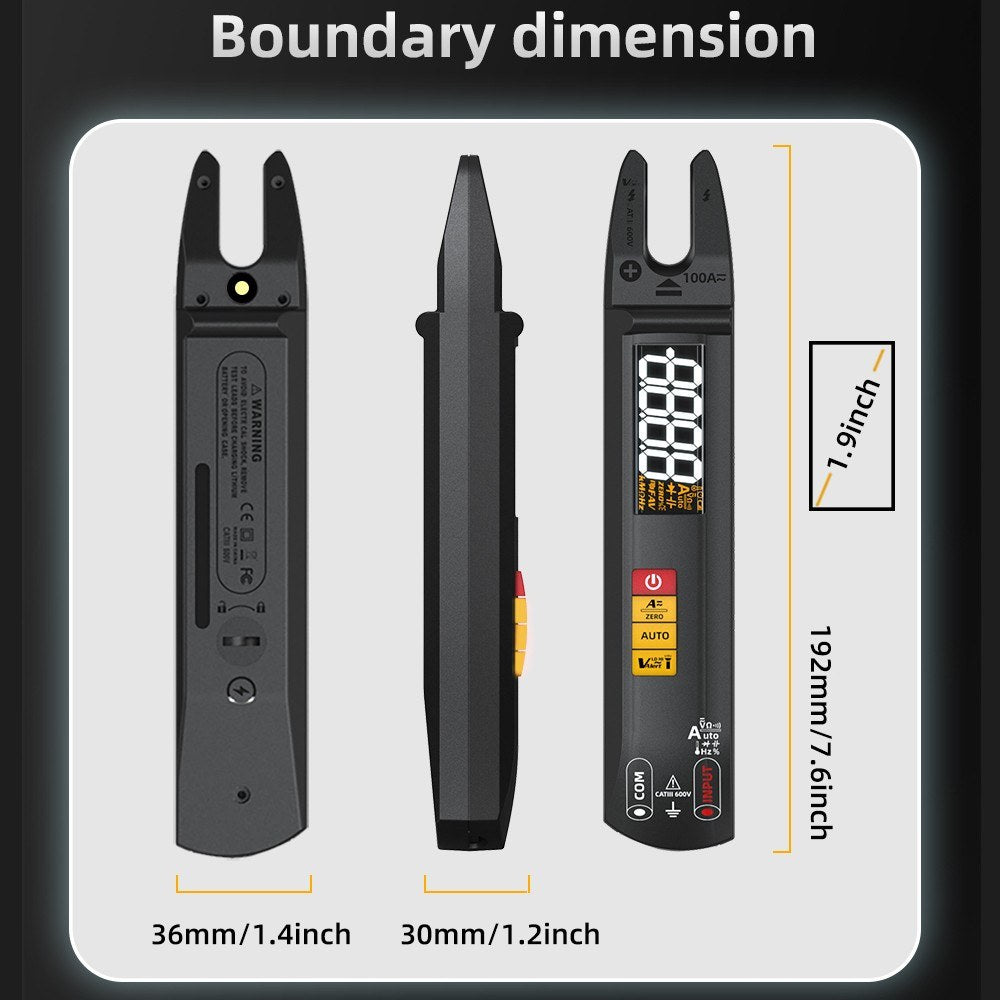

• Item Size: 192 * 36 * 30mm
• Item Weight: 102g

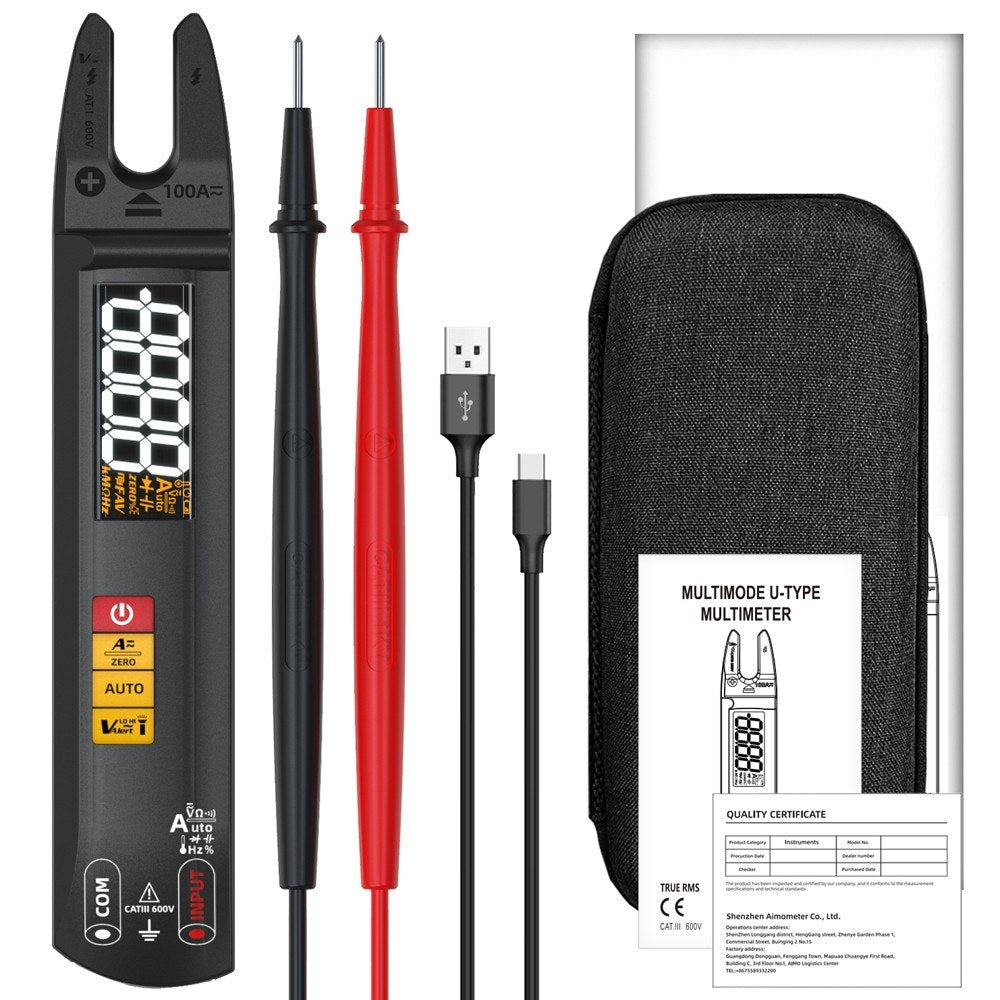

Packing List

1 x 3in1 Multimeter
