FNIRSI 2.8 Digital Oscilloscope & Signal Generator - 1M Bandwidth, 5MS/s Sampling, Handheld High-Config Oscope Meter

Introducing the 2-in-1 Handheld Oscilloscope Signal Generator

This highly practical and cost-effective handheld device is ideal for professionals in the maintenance and R&D education industries. With a real-time sampling rate of 5MS/s and a 1MHz bandwidth, it offers a complete trigger function (single, normal, automatic) to effectively manage both analog and non-periodic digital signals. The oscilloscope can handle up to 400V voltage measurements efficiently, thanks to a one-button AUTO function, eliminating the need for complex adjustments to display the waveform being measured.

Beyond its oscilloscope capabilities, it features a built-in signal generator with a frequency of 10KHz. It is equipped with a crisp 2.8-inch display (320x240 resolution) and powered by a 1000mAh high-capacity lithium battery, making it suitable for various applications such as utility measurements, DIY learning, automotive repairs, home appliance repairs, research and teaching, and more.

Features:

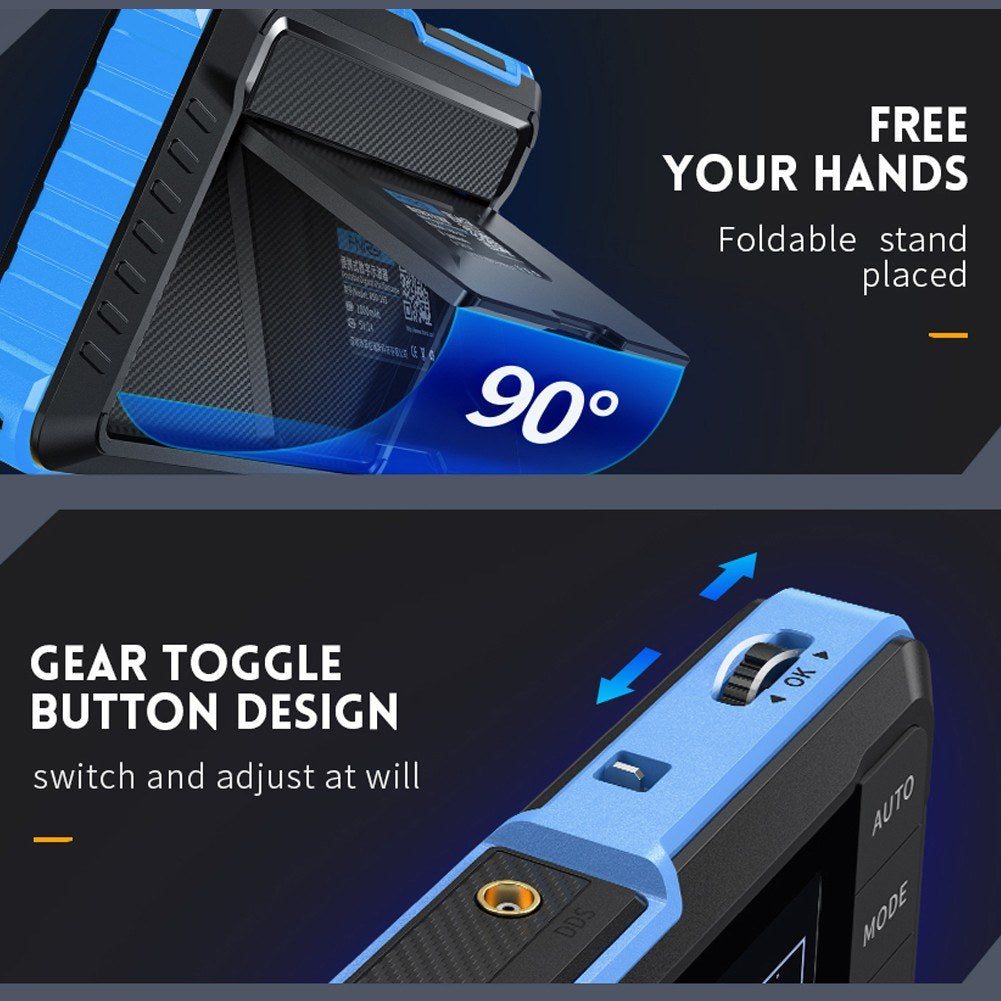

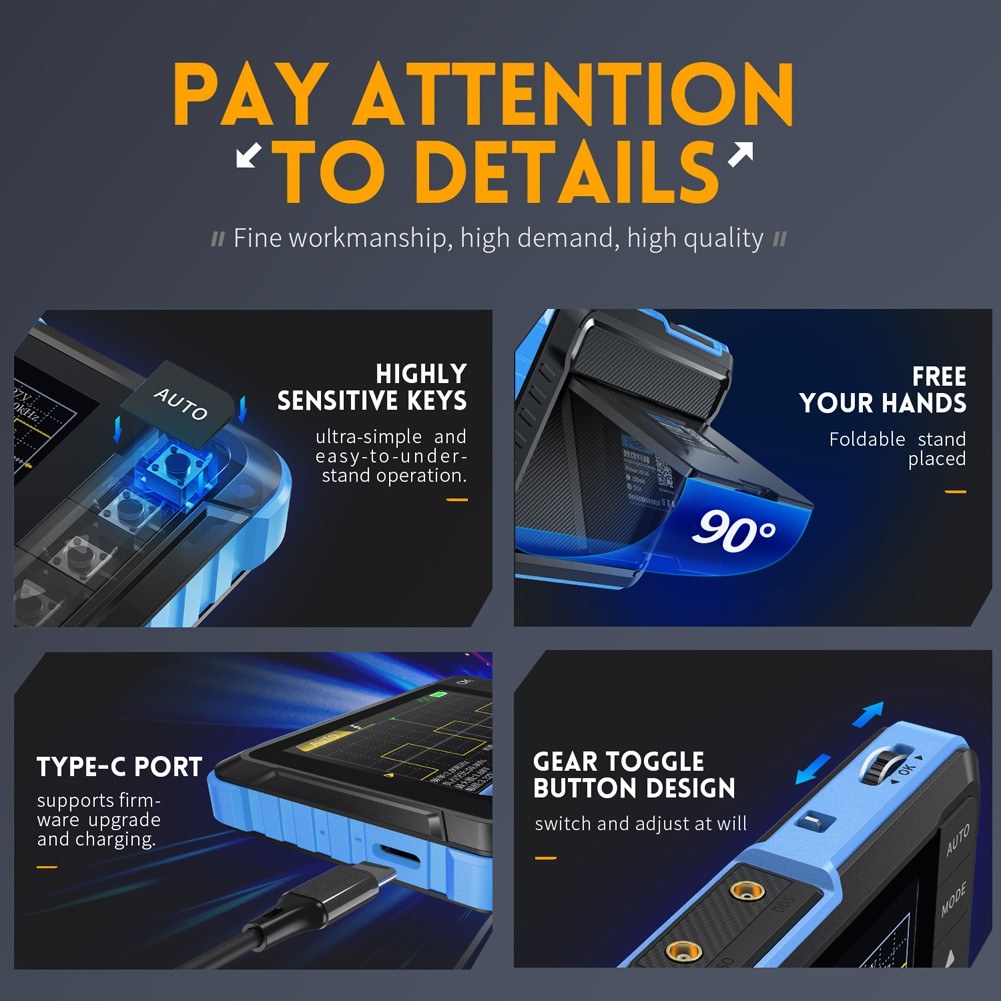

Fine Workmanship: High-sensitivity buttons provide a simple and user-friendly operating experience. The Type-C port supports both firmware upgrades and charging. It includes a 90° foldable bracket for hands-free use, a gear toggle button for easy adjustment, and a long-lasting built-in lithium battery.

2-in-1 Design with 2.8 Inch Display: Ingeniously combines digital oscilloscope and signal generator functions. The user-friendly interface and data visualization design ensure quick learning and improved efficiency.

Signal Generator: Features a signal generator with 14 adjustable waveforms, aiding beginners in learning oscilloscope usage. Includes automatic waveform measurement and recognition for clear display of measured signals.

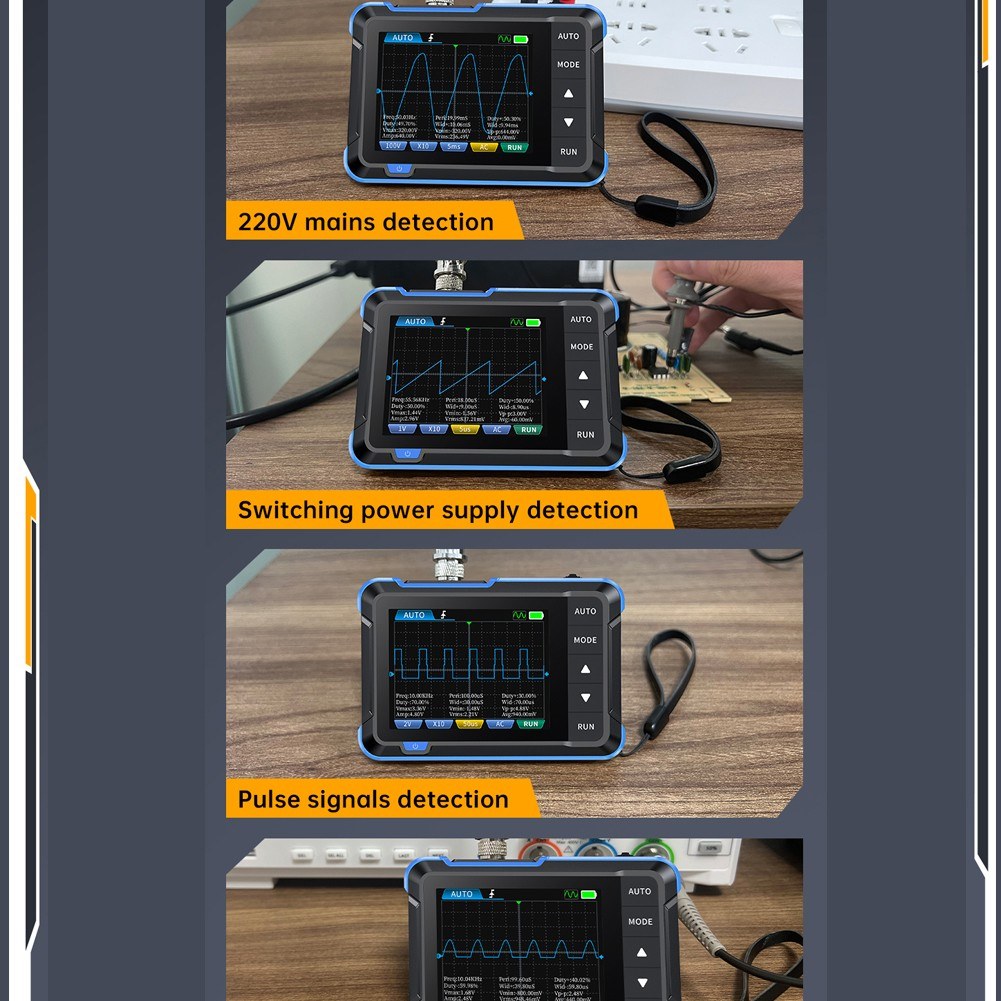

Digital Oscilloscope Function: With a sampling rate of up to 5MS/s, capture detailed signals for accurate measurements. The 1MHz bandwidth meets most electronic testing needs, offering various waveform analyses, vertical sensitivity adjustment, and more. Supports 220V mains detection and other measurements.

Wide Applications: Lightweight and space-saving, it’s perfect for on-the-go work. Suitable for a multitude of fields such as electronic circuit testing, repairs, research, and DIY projects.

Specifications:

• Name: 2-in-1 Oscilloscope Signal Generator
• Material: ABS
• Type: Standard configuration, High configuration (optional)

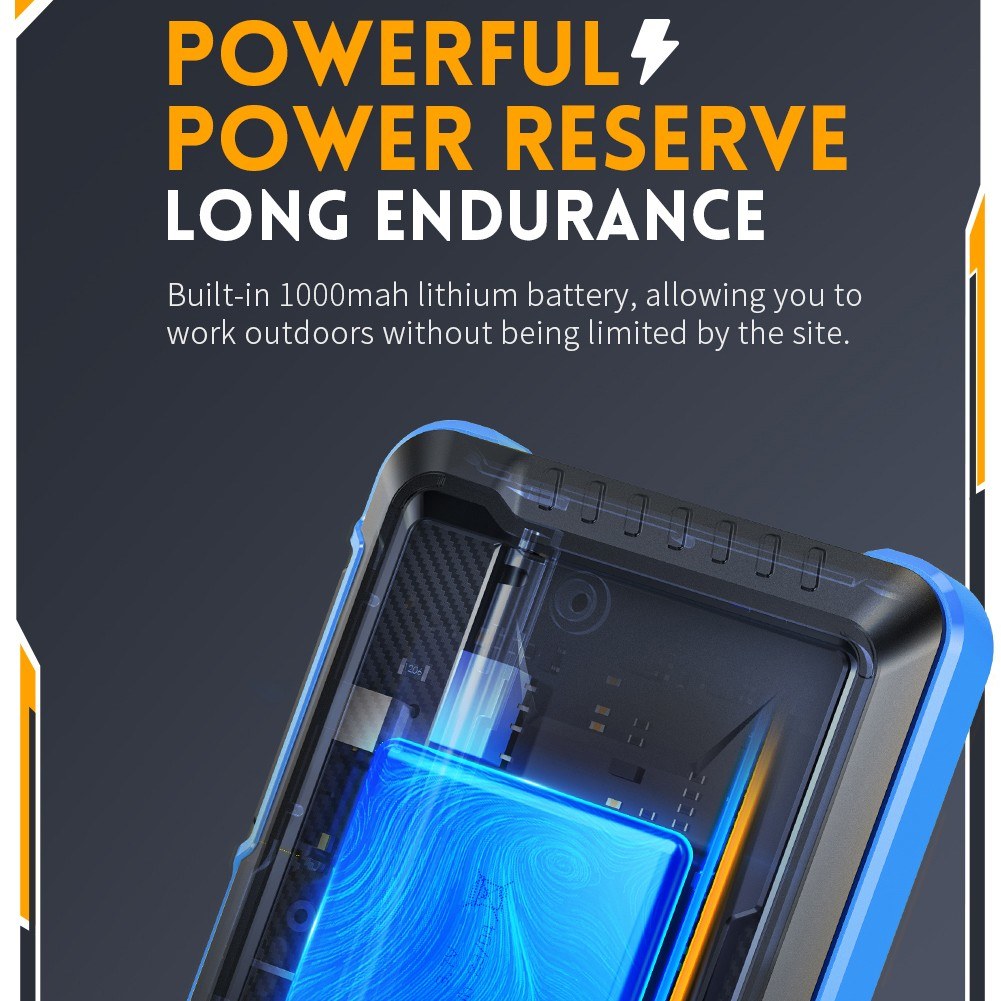

• Battery: Built-in 1000mAh lithium battery (included)
• Display: 2.8-inch display with 320x240 resolution
• USB Charging: 5V, 1A

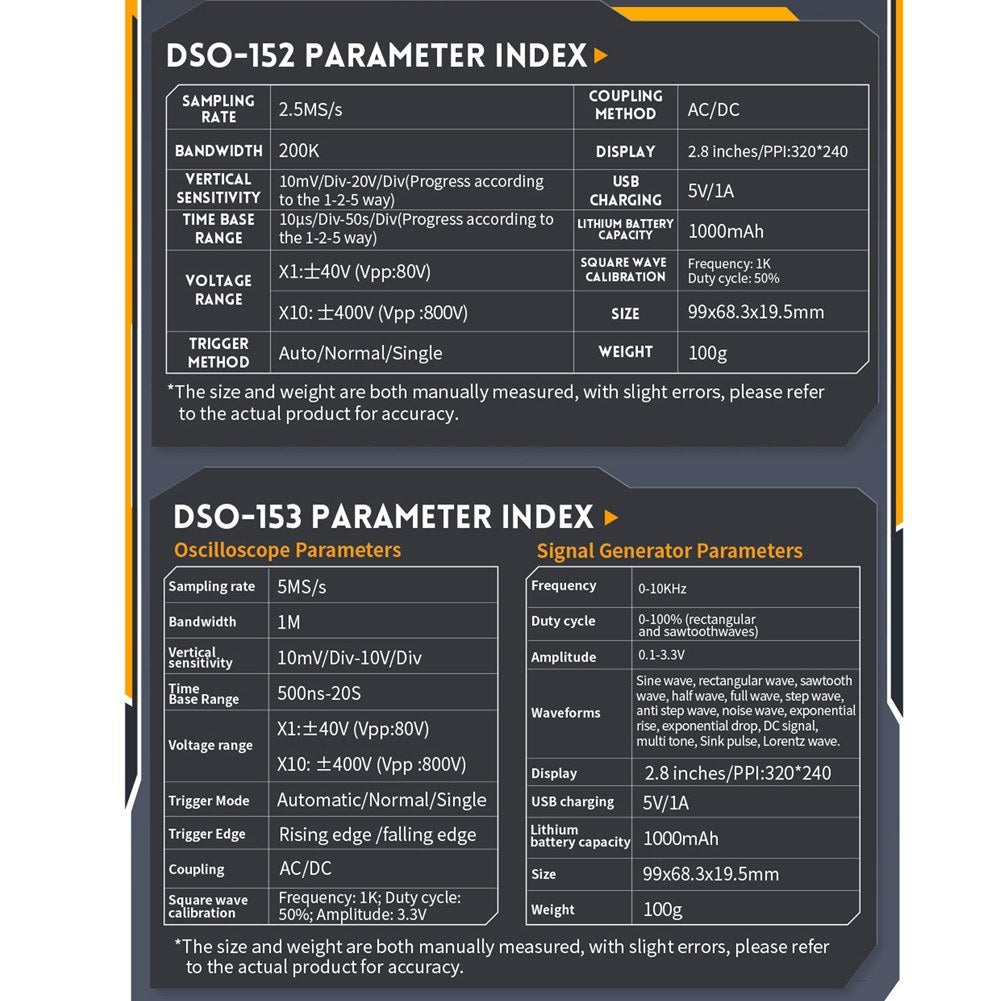

Oscilloscope Parameters:

• Bandwidth: 1MHz
• Sampling Rate: 5MS/s
• Vertical Sensitivity: 10mV/div - 10V/div
• Time Base: 500ns - 20s
• Voltage: X1 ±40V (Vpp: 80V); X10 ±400V (Vpp: 800V)
• Trigger: Auto, normal, single
• Trigger Edges: Rising edge, falling edge
• Calibration Squarewave Frequency: 1K
• Duty Cycle: 50%
• Amplitude: 3.3V

Signal Generator Parameters:

• Frequency: 1K
• Duty Cycle: 0-100% (rectangular waves and sawtooth waves)
• Amplitude: 0.1-3.3V
• Waveforms: 14 waveforms

Dimensions:

• Item Size: 99 x 68.3 x 19.5mm / 3.90 x 2.69 x 0.77in
• Item Weight: 100g
• Package Size (Standard): 125 x 85 x 40mm / 4.92 x 3.35 x 1.57in
• Package Size (High): 210 x 150 x 50mm / 8.27 x 5.91 x 1.97in
• Package Weight (Standard): 168g
• Package Weight (High): 243g

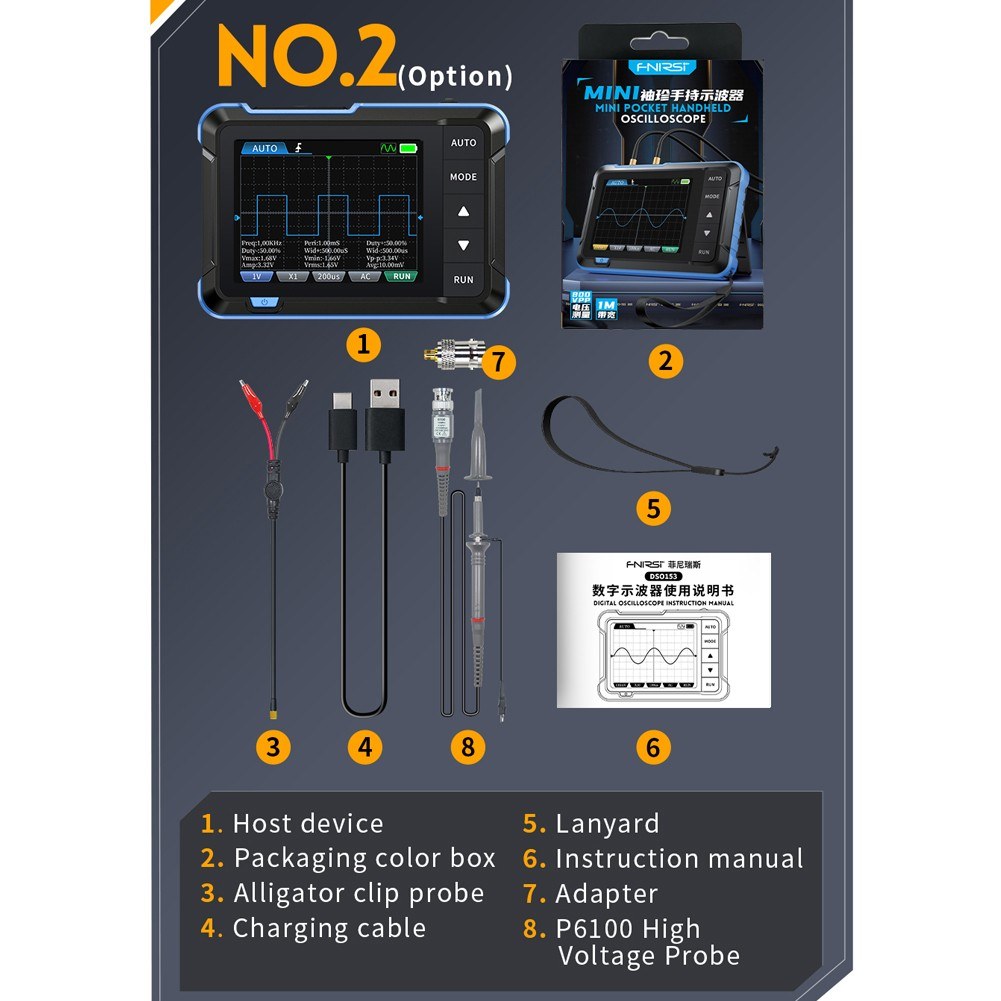

Packing List:

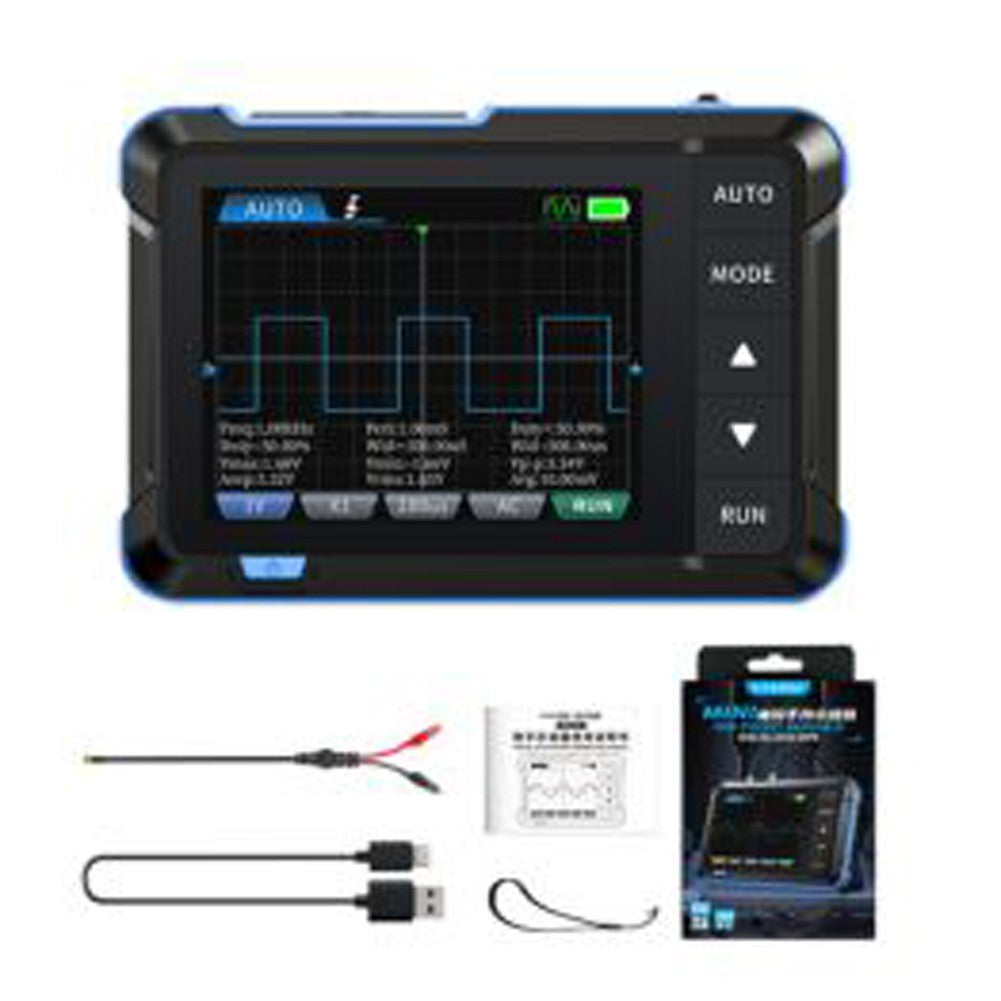

Standard Configuration:

• 1 x 2-in-1 Oscilloscope Signal Generator
• 1 x Clip
• 1 x Cable
• 1 x Guideline
• 1 x Lanyard

High Configuration:

• 1 x 2-in-1 Oscilloscope Signal Generator
• 1 x Clip
• 1 x Cable

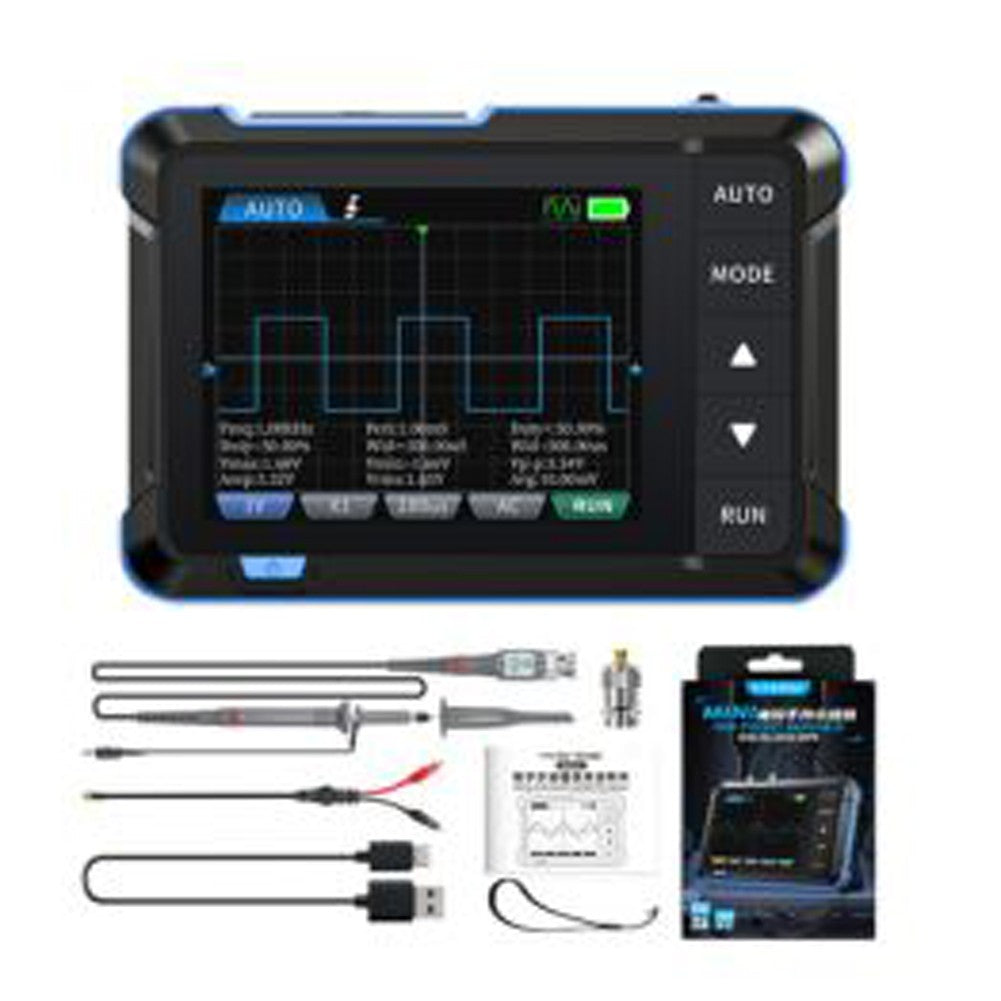

• 1 x Connector
• 1 x P6100 Probe
• 1 x Guideline
• 1 x Lanyard
