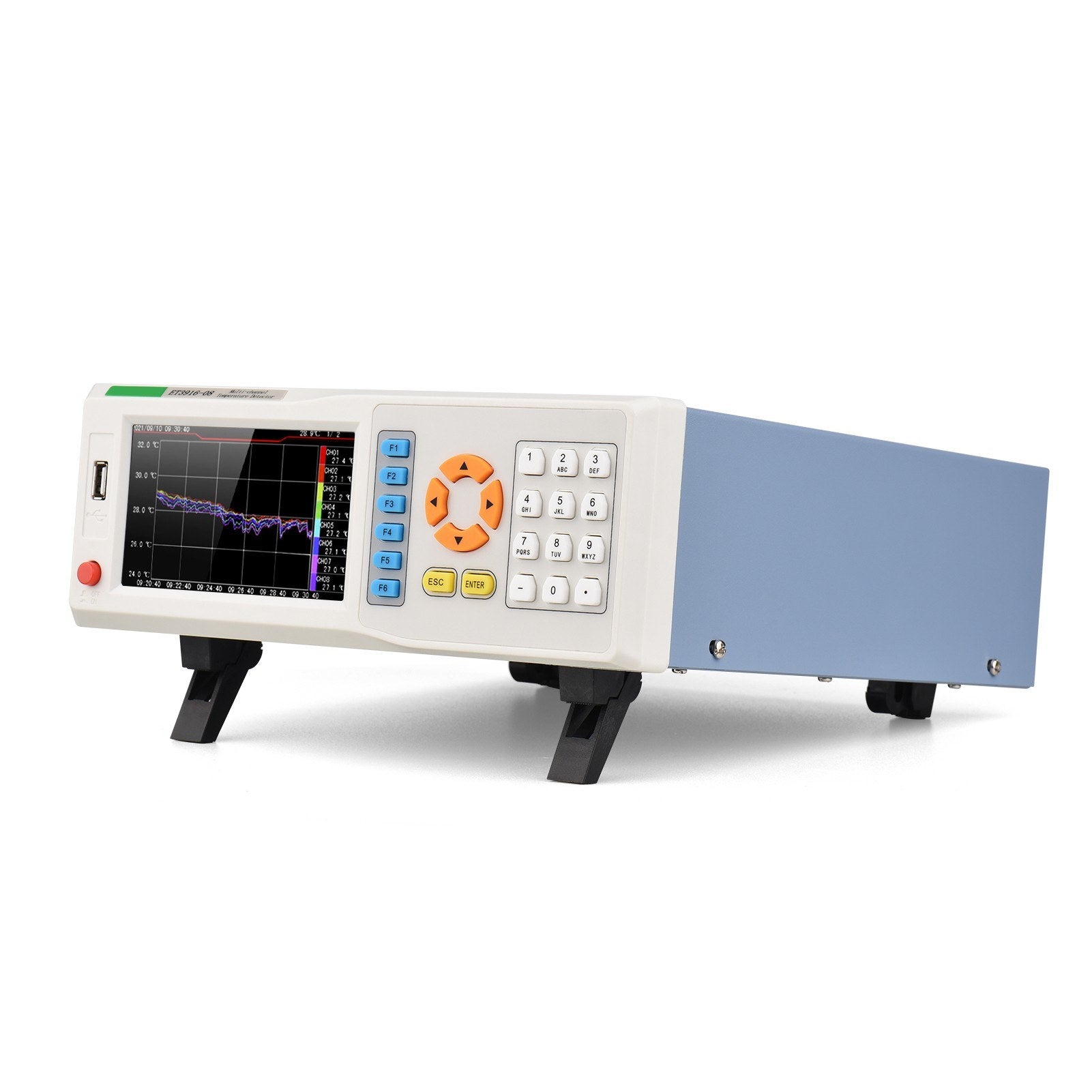

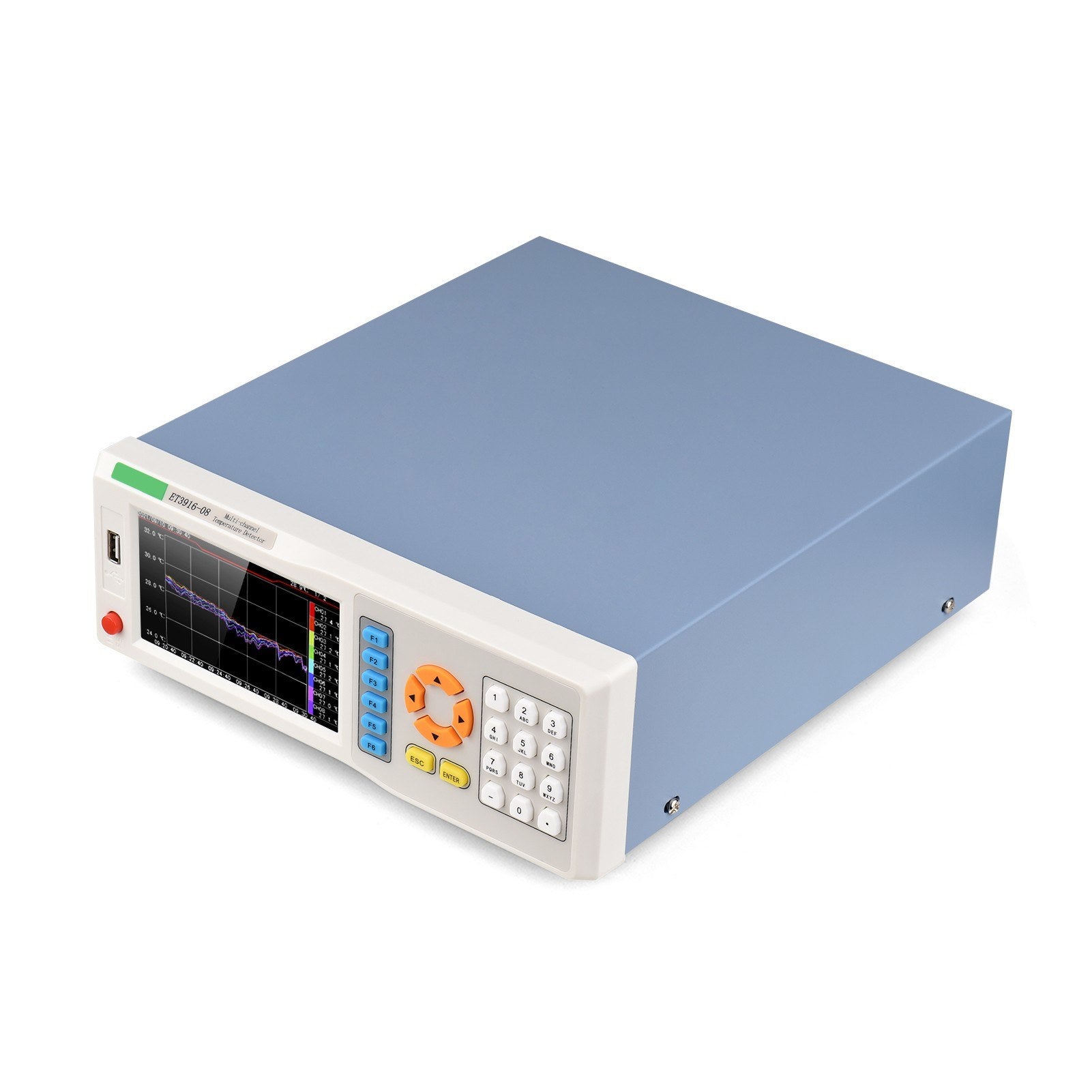

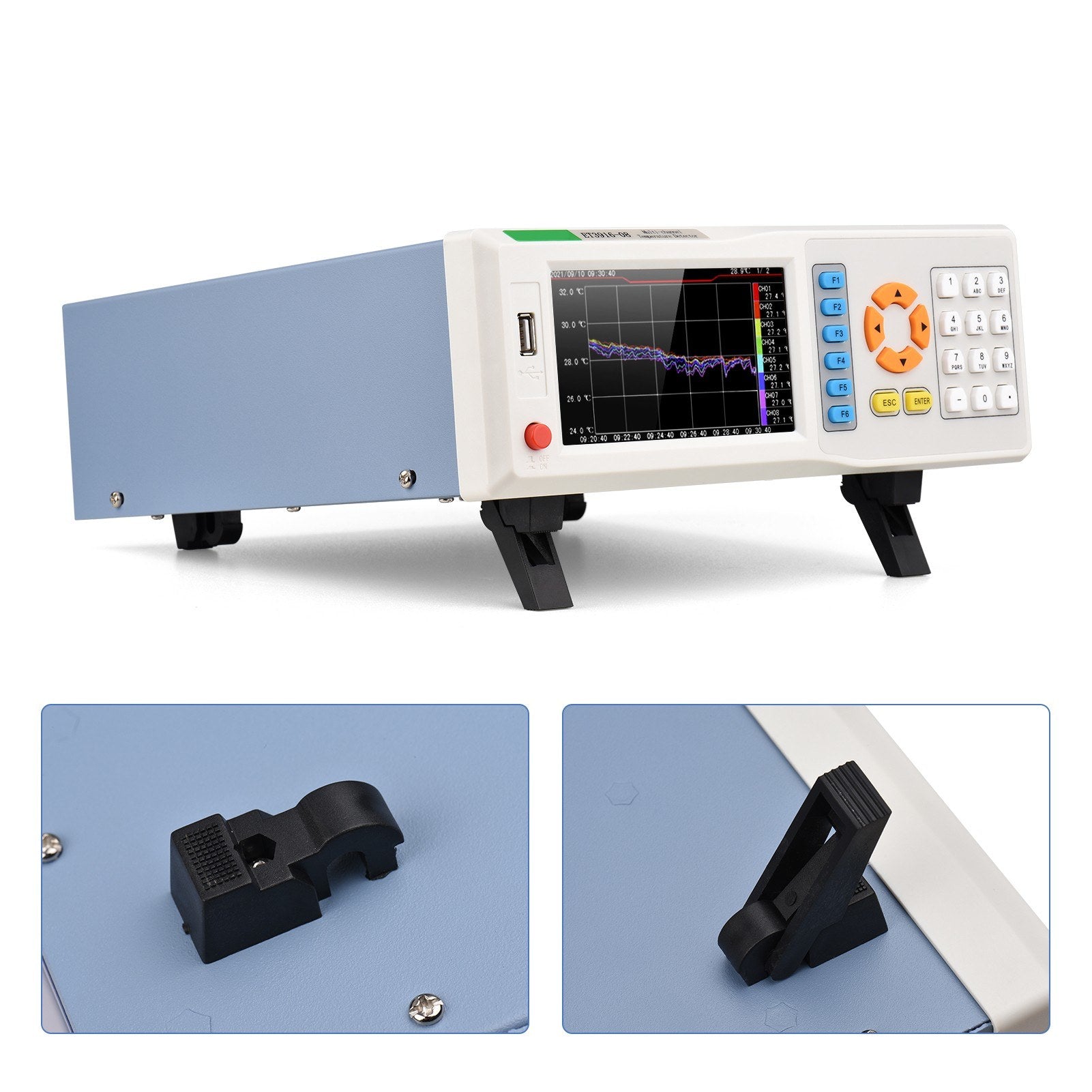

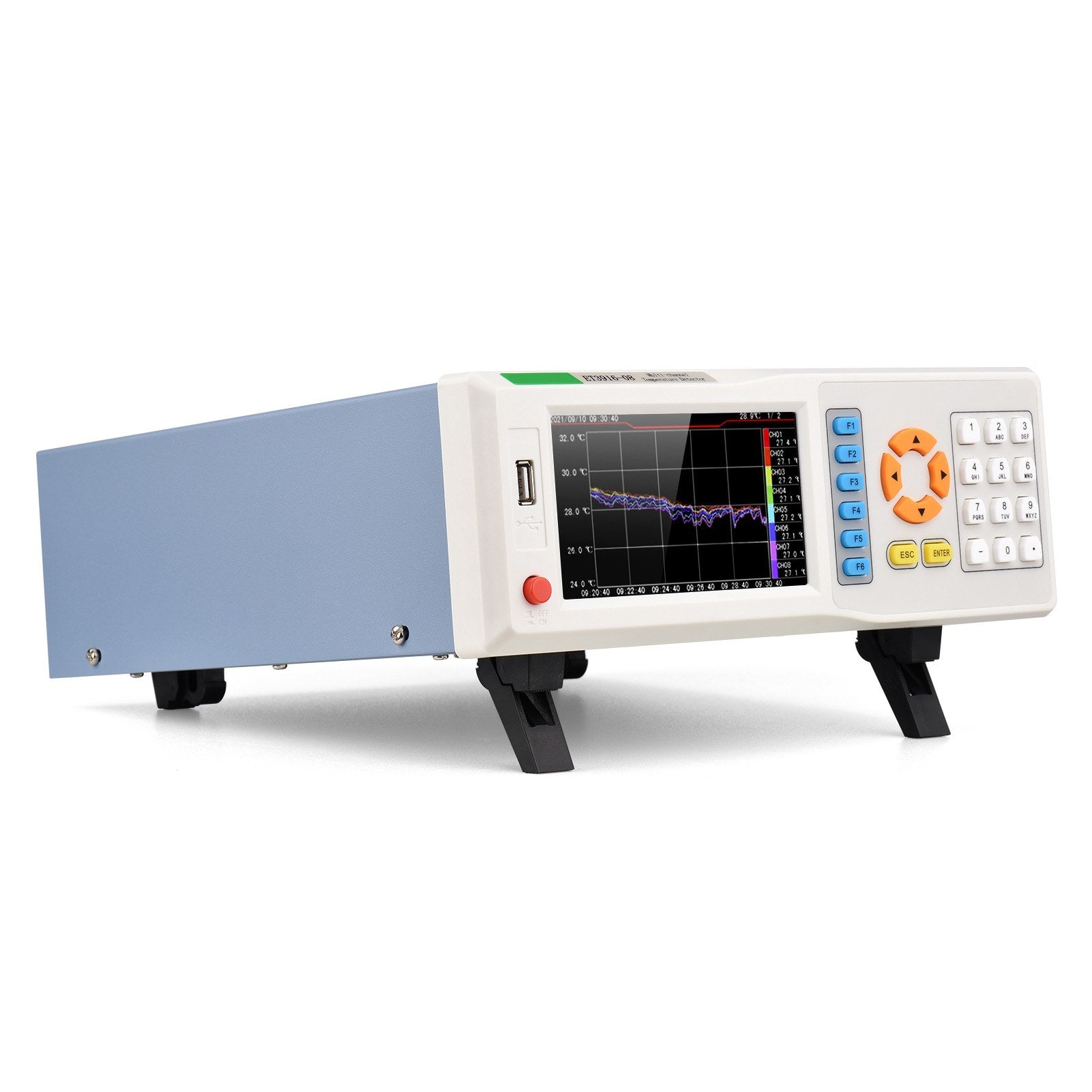

8-Channel Temperature Data Logger, 5 Color Display, -200℃ to 1372℃, Multifunctional Industrial Recorder Supports K/J/E/T/N/S/R/B Thermocouples - Ideal for Lighting, Motors, Petroleum, Chemical, Metallurgical, and Electrical Applications

Experience enhanced data collection with our cutting-edge machine that uses a 32-bit microprocessor for rapid data acquisition. View your data effortlessly on our vibrant 5-inch TFT screen. This versatile device is compatible with various thermocouples, including K-type, J-type, E-type, T-type, N-type, S-type, R-type, and B-type. Designed for ease of use, it offers multiple display modes, making it ideal for production and R&D applications in diverse industries such as lighting, power tools, household appliances, motors, electric heating, medical, petroleum, chemical, metallurgy, and more!

Features:

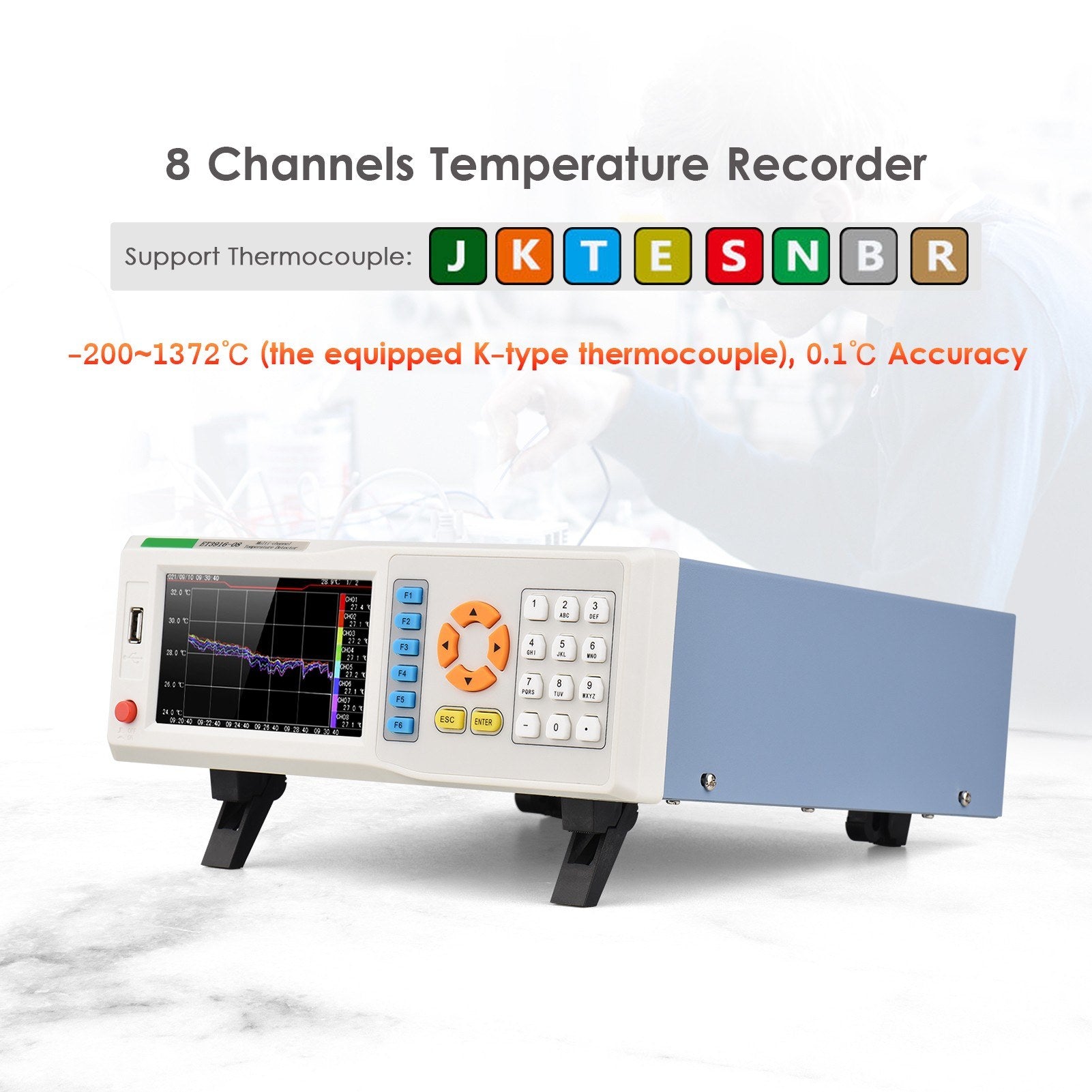

• Temperature Recorder: Supports 8 channels with exceptional accuracy and a wide temperature measurement range of -200℃ to 1372℃. Features a 1-second recording interval and built-in 8GB memory with USB file export capability.

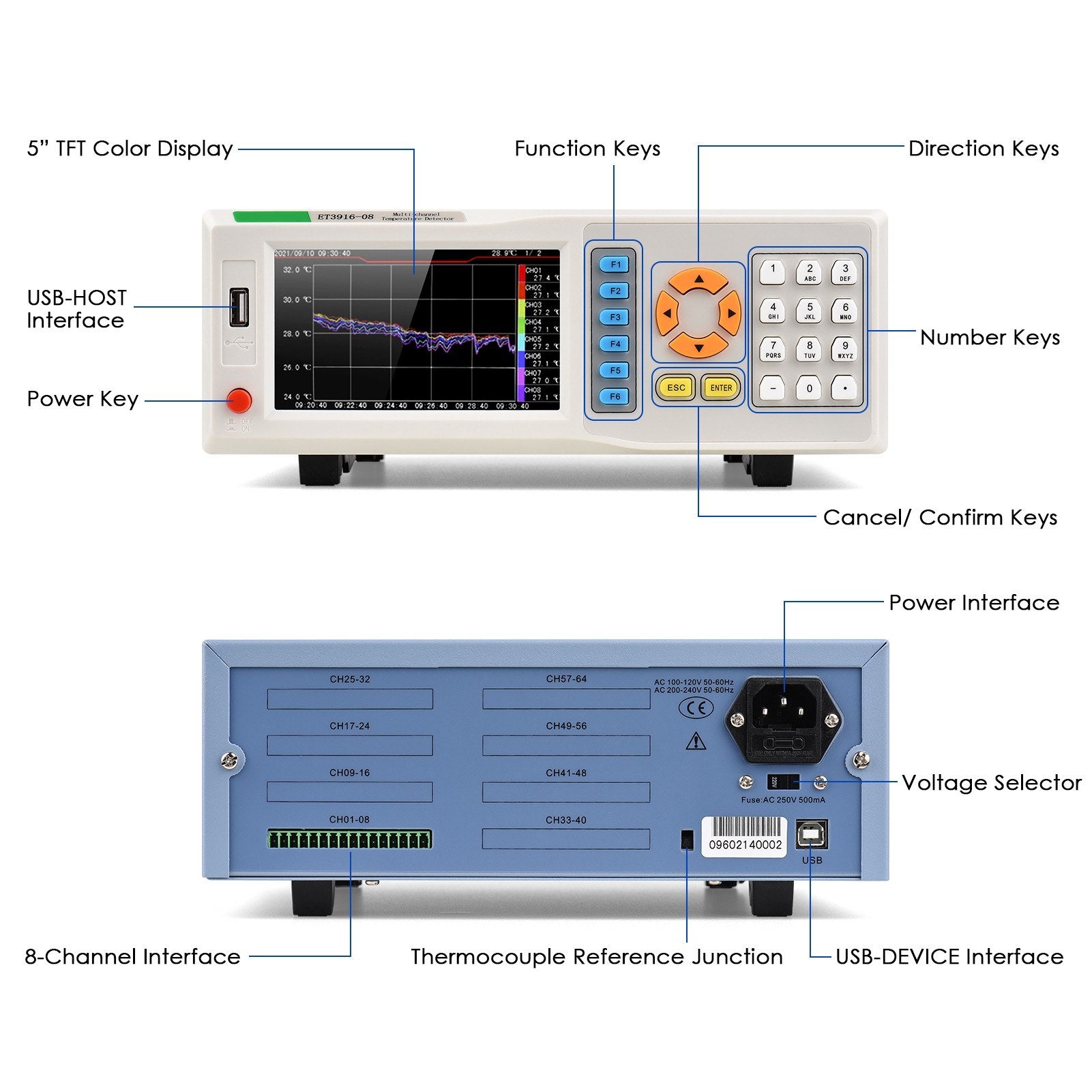

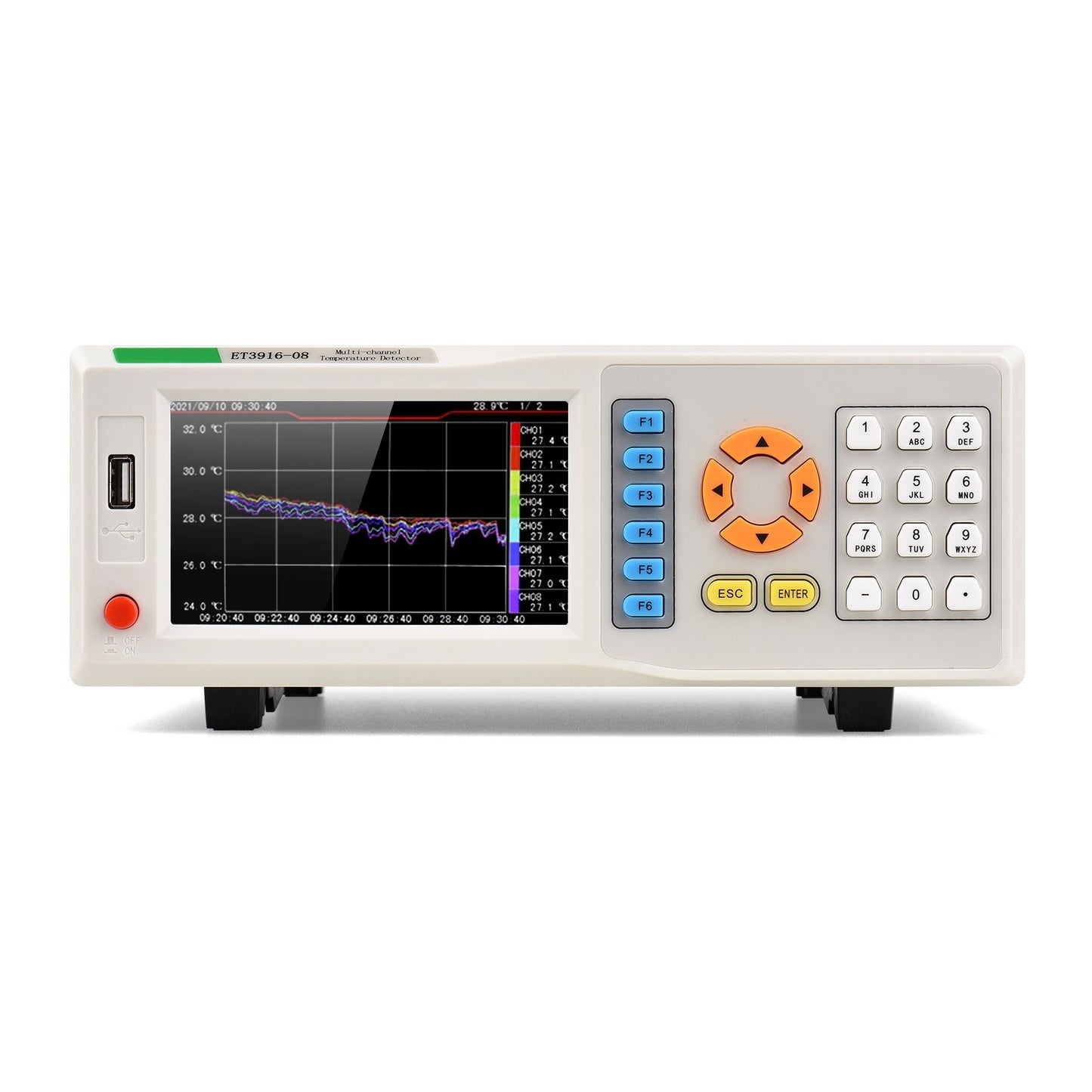

• 5-inch Color Screen & Comfortable Buttons: Enjoy the clear display on the 5-inch TFT color screen with 854x480 resolution, complemented by tactile buttons for easy operation.

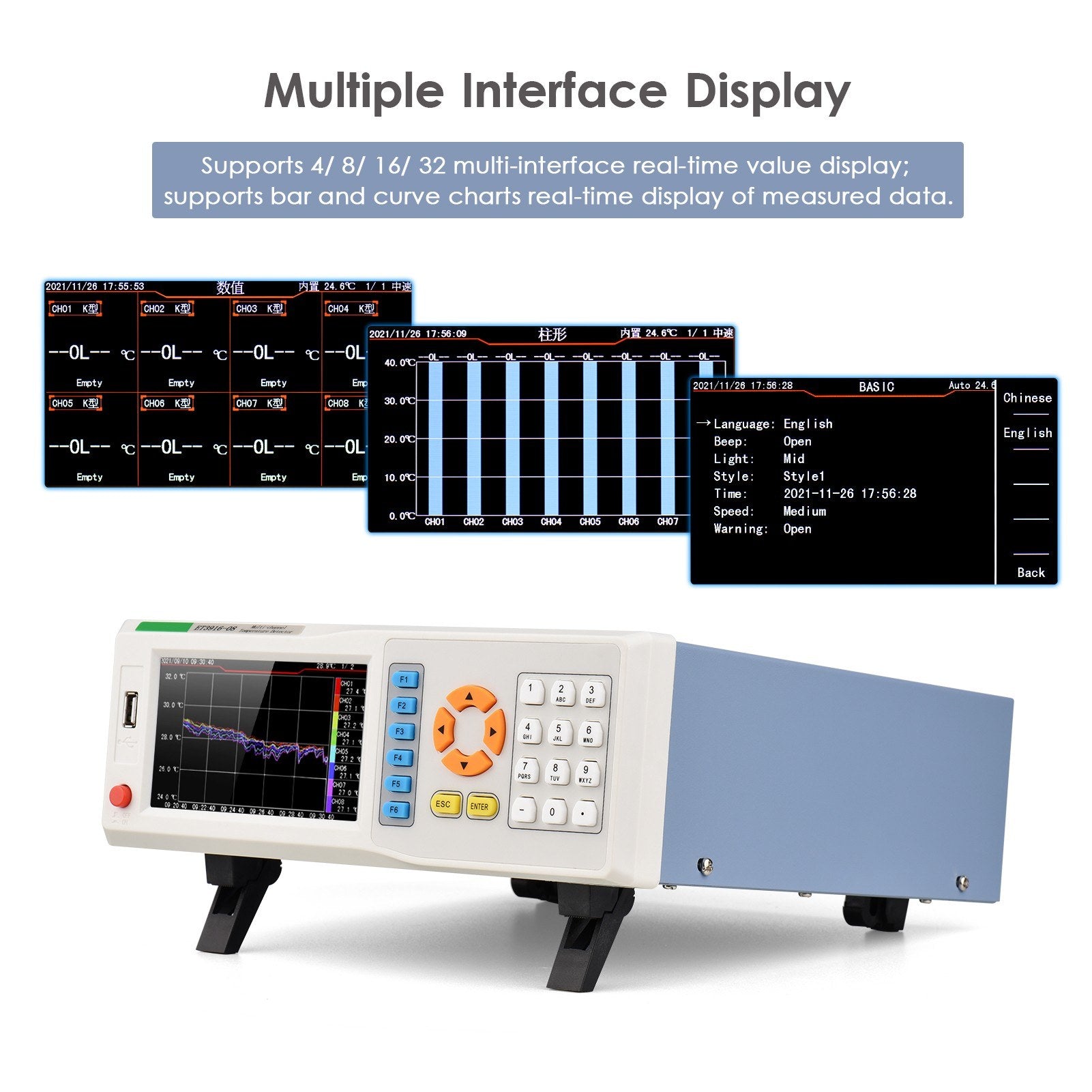

• Display Options & Interfaces: Offers 4, 8, 16, or 32 multi-interface real-time value displays, along with real-time data display via curves and bar charts.
• Quick Response & Stable Performance: Utilizes an advanced 32-bit microprocessor for rapid response, supporting multi-channel data collection, recording, display, and alarm features.
• Thermocouple Support: Compatible with K-type, J-type, E-type, T-type, N-type, S-type, R-type, and B-type thermocouples. Each channel allows for individual parameter settings and naming.
• Multi-channel Design: Configurable for up to 64 channels, with high voltage tolerance up to 400V and strong anti-interference capabilities. Features customizable high and low alarm settings with sound and light alerts.

Applications:

Suitable for a wide range of applications, including lighting appliances, power tools, household appliances, motors, electric heating appliances, medical, petroleum, chemical, metallurgical, electrical sectors, and more.

Note:

1. Ensure to read the user manual carefully before use.
2. Understand that size and color may vary slightly due to manual measurements and lighting conditions.

Specifications:

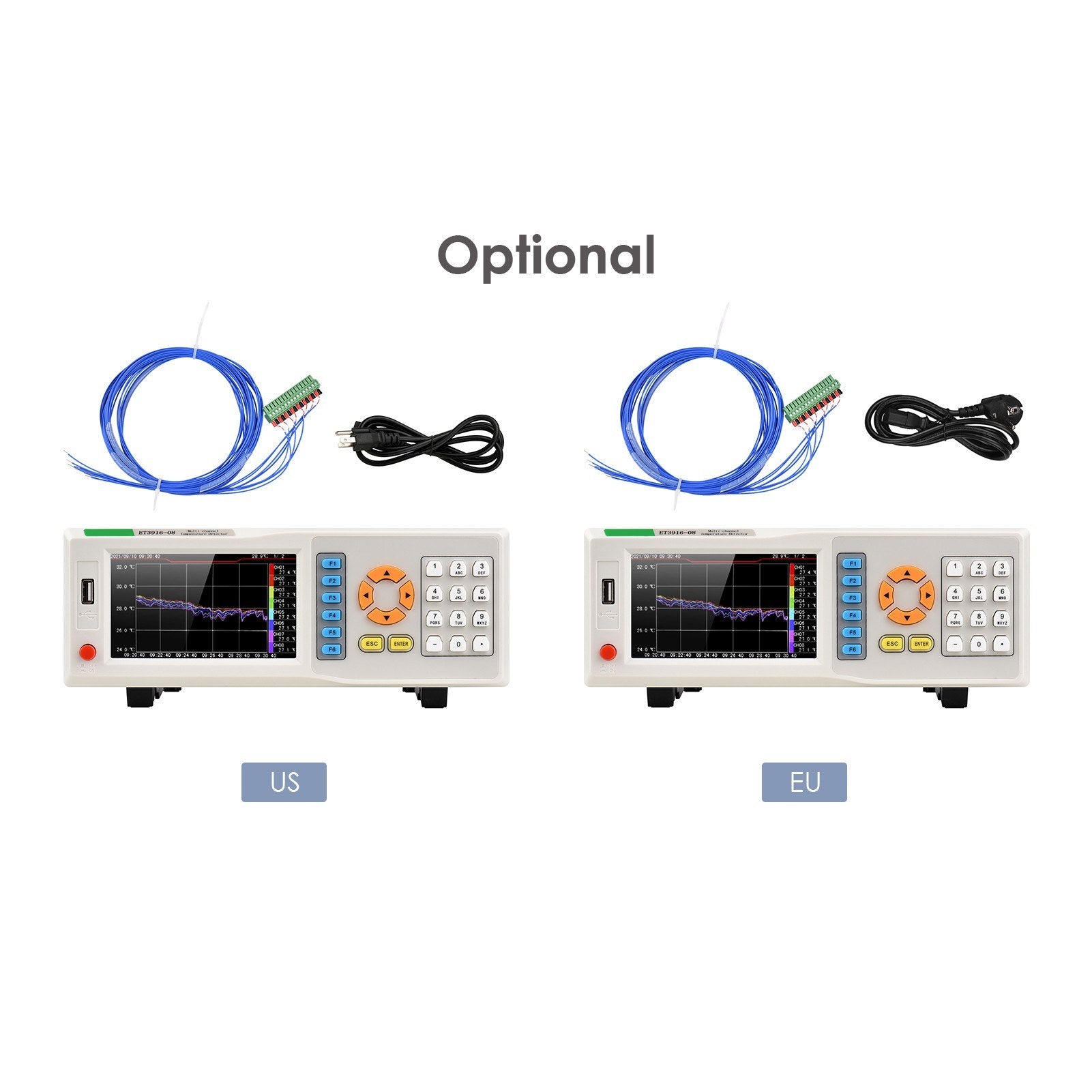

• Voltage & Plug: 220V, EU / 110V, US (Optional)
• Color: Grey & Blue
• Material: Metal + ABS
• Screen: 5" TFT with 854x480 Resolution
• Number of Channels: 8
• Support Thermocouple: KJETNSRB
• Measurement Range: 60mV
• Accuracy: 0.05%FS
• Temperature Display Resolution: 0.1℃
• Cold End Compensation Accuracy: ±0.5℃
• Temperature Measuring Range: -200~1372℃ (using K-type thermocouple)
• Measuring Speed: 1s/channel (slow), 0.5s/channel (medium)
• Display: Numerical, Curve Chart, Bar Chart
• Calibration: Isolated Correction Factor for Each Channel
• Alarm: Yes
• Record Interval: 1s
• Memory: 8GB
• Communication Interface: USB
• Working Temperature: 0~40℃
• Storage Temperature: -10~50℃
• Humidity: ＜80% RH

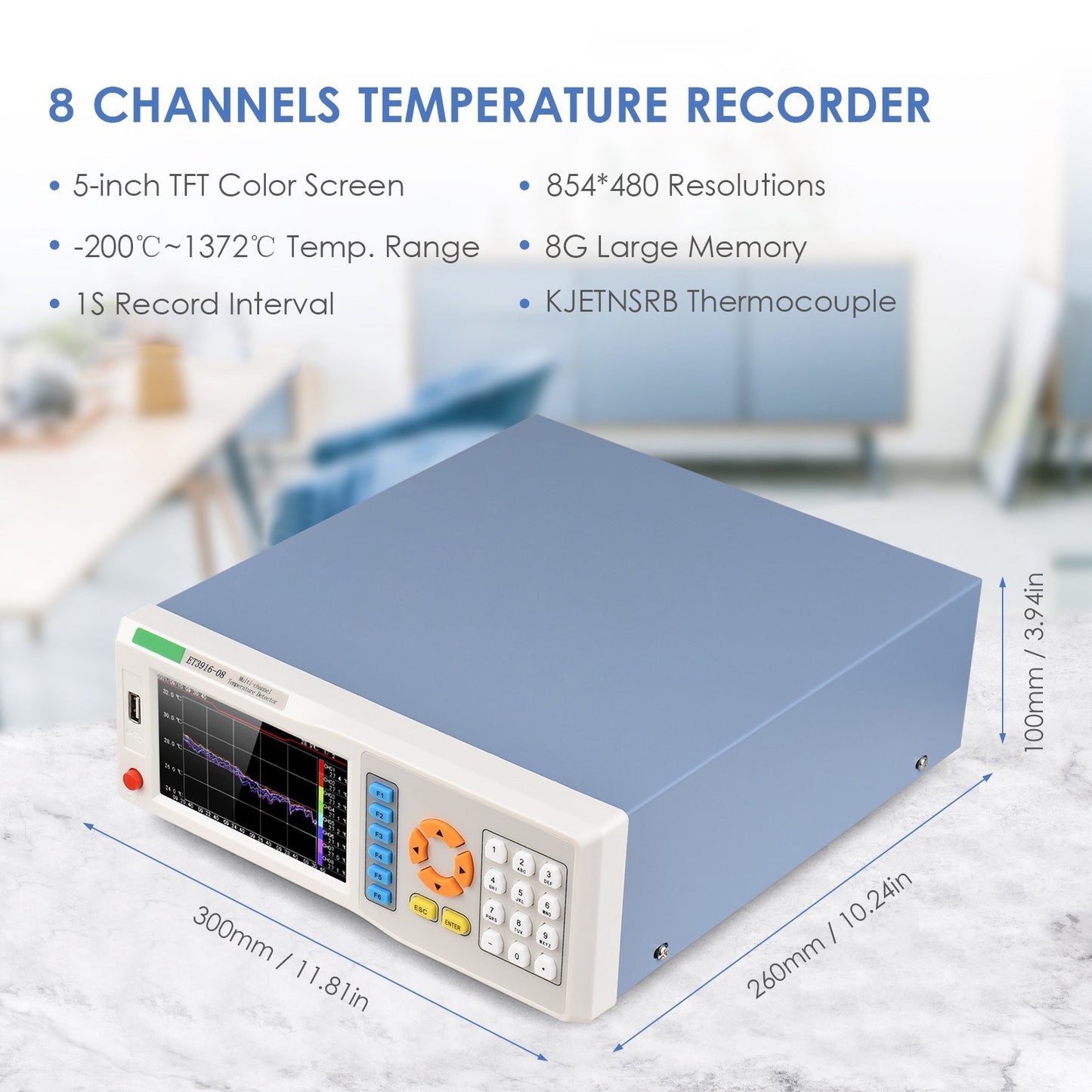

• Item Size: 300 x 260 x 100mm / 11.81 x 10.24 x 3.94in
• Item Weight: 3014g / 6.65lbs
• Package Size: 43 x 33 x 20.5cm / 16.93 x 12.99 x 8.07in
• Package Weight: 4066g / 8.96lbs

Package Includes:

• 1 Multi-channel Temperature Recorder
• 1 Power Cord

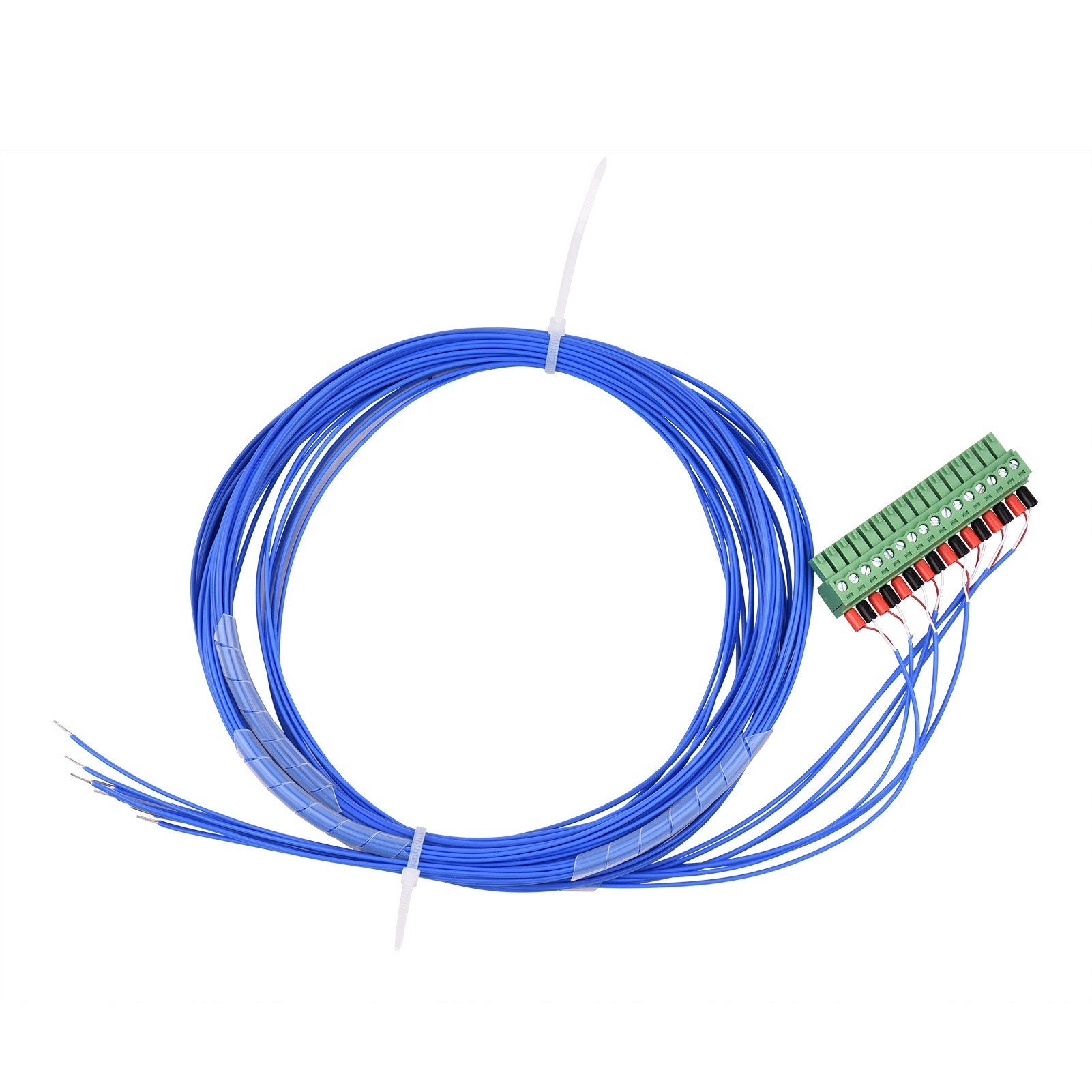

• 1 K-type Thermocouple (2m)
• 1 User Manual (English)
