FNIRSI-5012H Handheld Oscilloscope
The FNIRSI-5012H is a versatile, highly practical, and cost-effective handheld oscilloscope, perfect for both the maintenance and R&D industries. Experience FNIRSI's real-time sampling rate of up to 500MS/s and a 100MHz analog bandwidth. With comprehensive trigger functions (single, normal, automatic), it seamlessly handles both periodic analog signals and non-periodic digital signals.

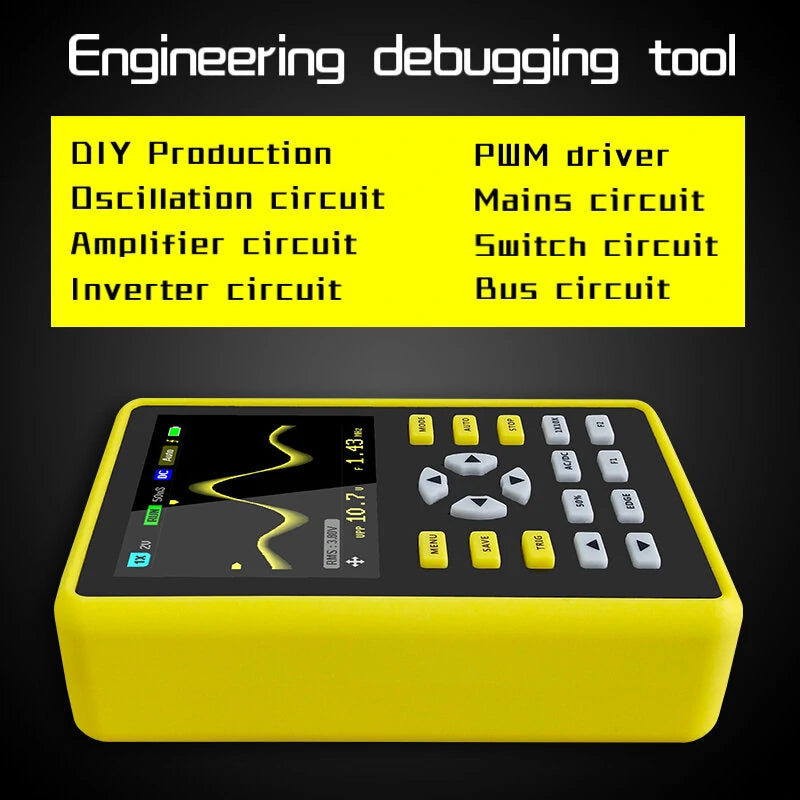

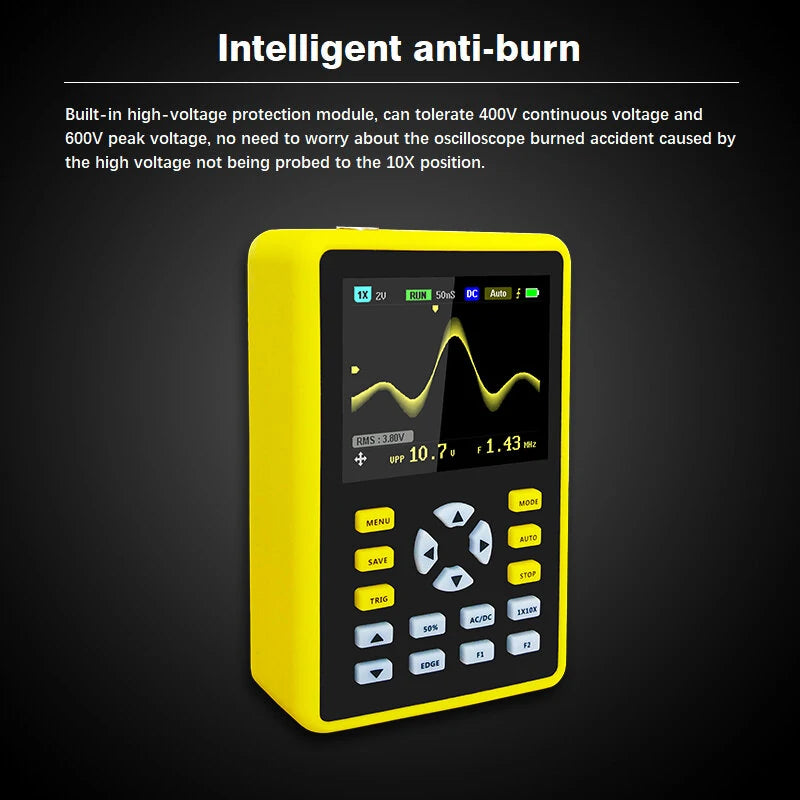

This oscilloscope includes a built-in high voltage protection module, capable of withstanding up to 400V continuous voltage and 600V peak voltage, so you can probe with confidence. The large time base scan mode allows for monitoring of slow level changes, and the high-efficiency one-button AUTO displays measured waveforms quickly and accurately.
The device features a high-definition 2.4-inch LCD screen with a 320x240 resolution and supports an extremely convenient and fast waveform storage function, storing up to 2000 waveform pictures in its built-in 64M storage space. The powerful waveform file manager supports thumbnail browsing, viewing, detailing, flipping, deletion, and more.
Powered by a built-in 3000mAh lithium battery, it offers up to 8 hours of continuous use. The device is housed in a high-quality silicone protective cover that is non-toxic and lead-free, providing anti-skid, anti-shock, and durable protection.
Key Features:
- Intelligent anti-burn with 1X resistance up to 600V
- Afterglow display technology
- 2.4-inch color display screen
- 100MHz analog bandwidth @ 500MS/s sampling rate (1X = 5MHz, 10X = 100MHz)
- One-button waveform storage
- Built-in 64M storage space for up to 2000 waveform pictures
- Advanced waveform file manager with support for various operations
- High measurement voltage range: 1X measures 0 ~ 80V, 10X measures 0 ~ 800V
- Supports 12 parameters of measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty(+/-), Time(+/-)
- Waveform freeze function
- Complete triggering functions: single, normal, automatic
- Built-in 3000mAh rechargeable lithium battery
- Adjustable screen brightness
- Memory compression technology ensuring no flicker refresh rate
- Durable anti-slip and anti-drop silicone sleeve
- Compact and portable design
Specifications:
- Analog bandwidth: 100MHz
- Max real-time sampling rate: 500MS/s
- Vertical sensitivity: 50 mV/div ~ 100 V/div
- Horizontal time base range: 50S/div ~ 6nS/div
- Max test voltage: 80 V (1X probe); 800 V (10X probe)
- Storage depth: 128KB
- Input resistance: 1MΩ
- ADC precision: 8 bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Auto
- Trigger edge: Ascending/Descending
- External trigger voltage: 0-80 V
- Display: 2.4 inch - 320x240 resolution
- Power supply: 3000mAh lithium battery
- Dimensions: 114mm x 74mm x 33mm
- Weight: 250 grams

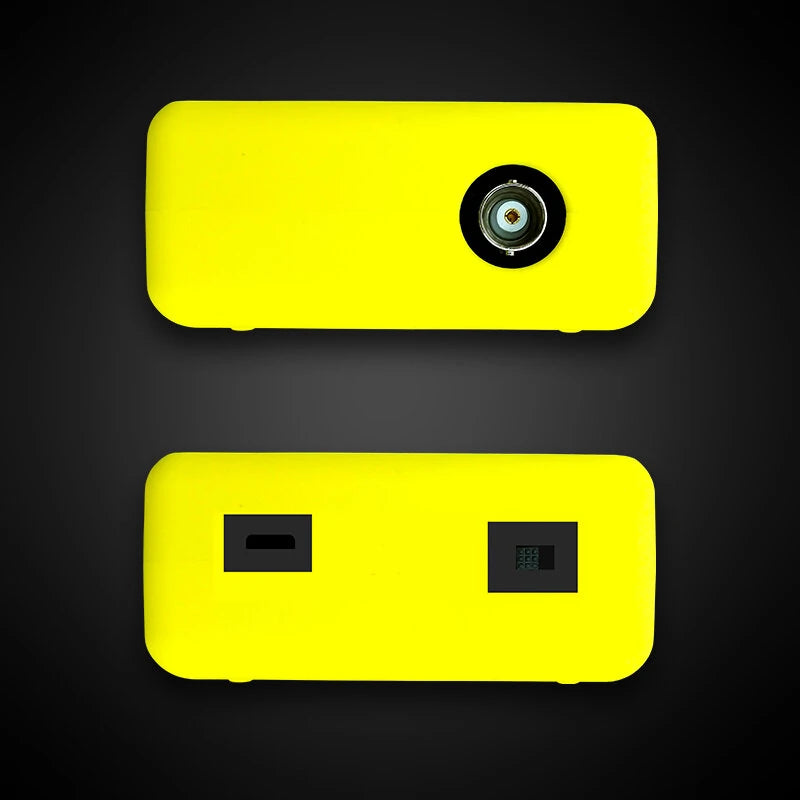

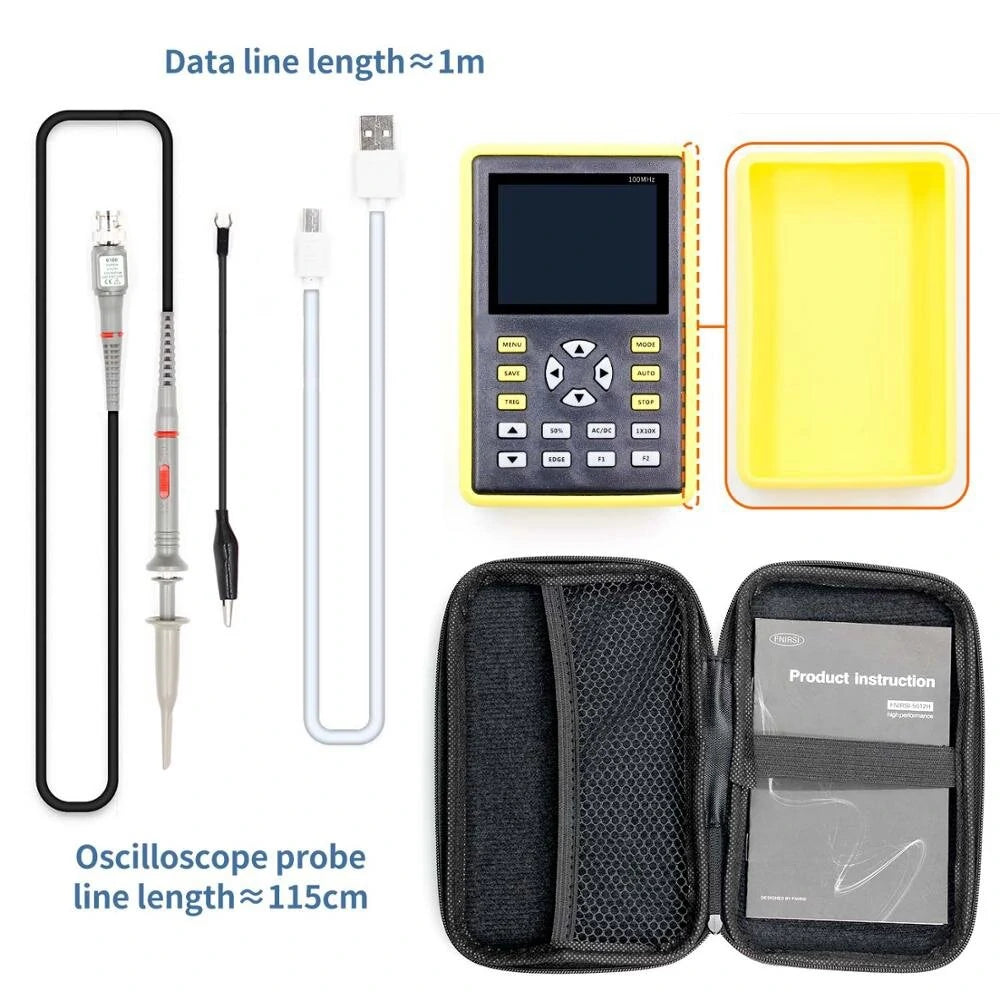

Package Includes:
- 1 x FNIRSI-5012H Oscilloscope Host
- 1 x 100MHz Probe (1X and 10X)
- 1 x Micro USB Data Line
- 1 x User Manual (English)
- 1 x High-Quality Package
