Professional Digital Multimeter: Voltage, Current, Resistance, Frequency, Capacitance, Diode, Temperature Tester

Discover the Ultimate Digital Multimeter

Our state-of-the-art digital multimeter boasts a modern and user-friendly design, featuring a digital color display with backlight and large font, ensuring effortless readability in complex environments. It offers a comprehensive range of measurement capabilities to significantly enhance your user experience.

Key Features:

• Compact and Portable: Its sleek and concise appearance makes it easy to carry without occupying much space. Comes with a silicone cover for safety and an EVA carrying bag for convenience.
• Digital Display: Experience clear and vivid digital color display with backlight and large font, enhancing the reading experience, especially in challenging conditions.
• Versatile Measurement Functions: Powered by an intelligent chip for quick and accurate measurements. It includes capacitance, frequency, resistance, AC/DC voltage, AC/DC current, diode, duty cycle, temperature measurement, VFC function, data hold, on-off buzzer, breakpoint detection, zero/fire line identification, automatic shutdown, and low battery indication.
• 3-Phase Alternating Voltage Test: Quickly identify missing phases with measurements of normal voltage ranges between phase lines A, B, and C from 365V to 425V.
• Automatic Activation Recognition: Automatically initiates current measurement (1.0-610mA AC/DC) when connected.
• Non-contact Voltage Measurement: Features voltage detection with alarm and adjustable sensitivity, ensuring operational safety with built-in high-sensitivity sensors.
• Line Identification: Provides analog bar and buzzer feedback for live wire detection, ensuring safety and efficiency.

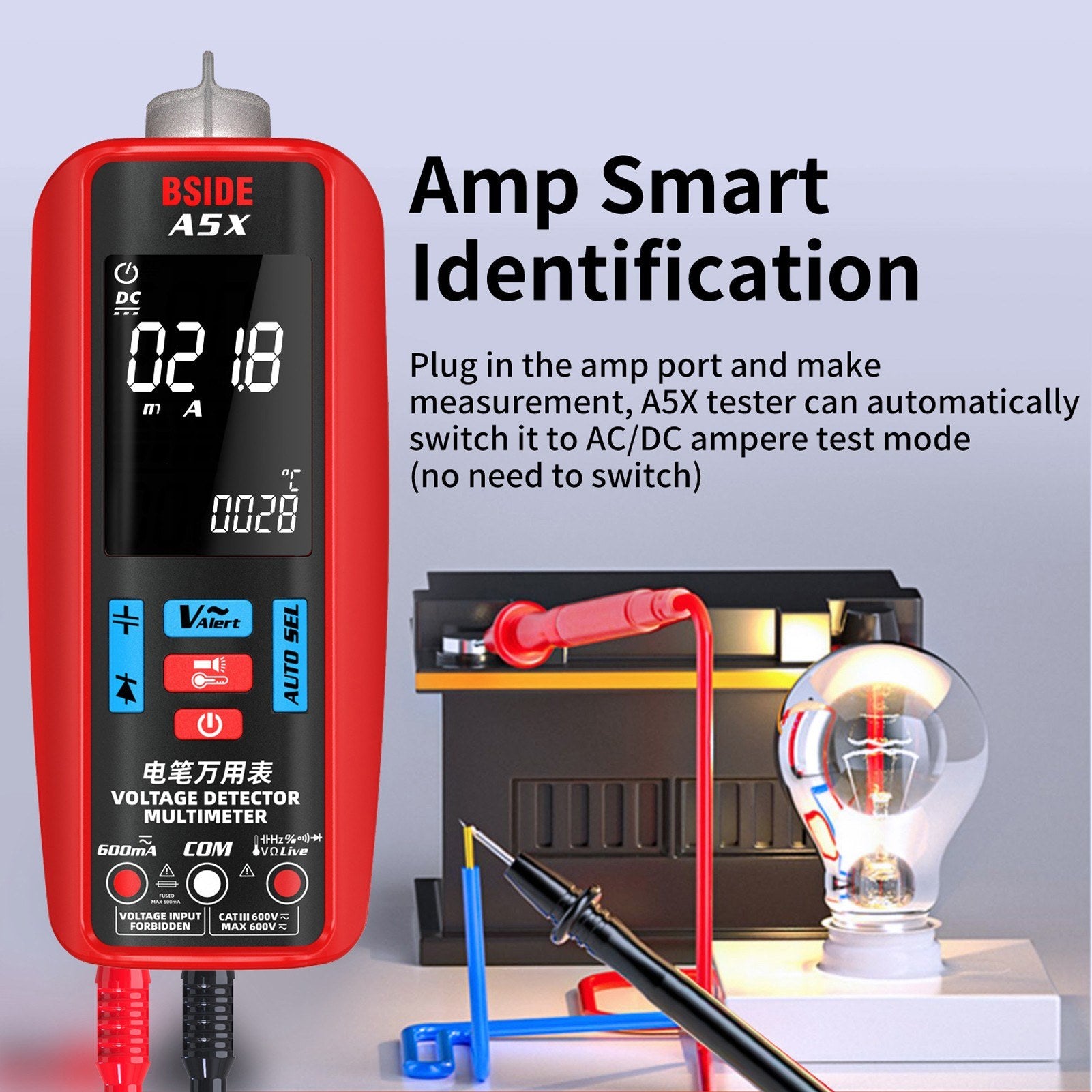

• Smart Amp Identification: Automatically switches to the appropriate AC/DC amperage test mode for ease of use.

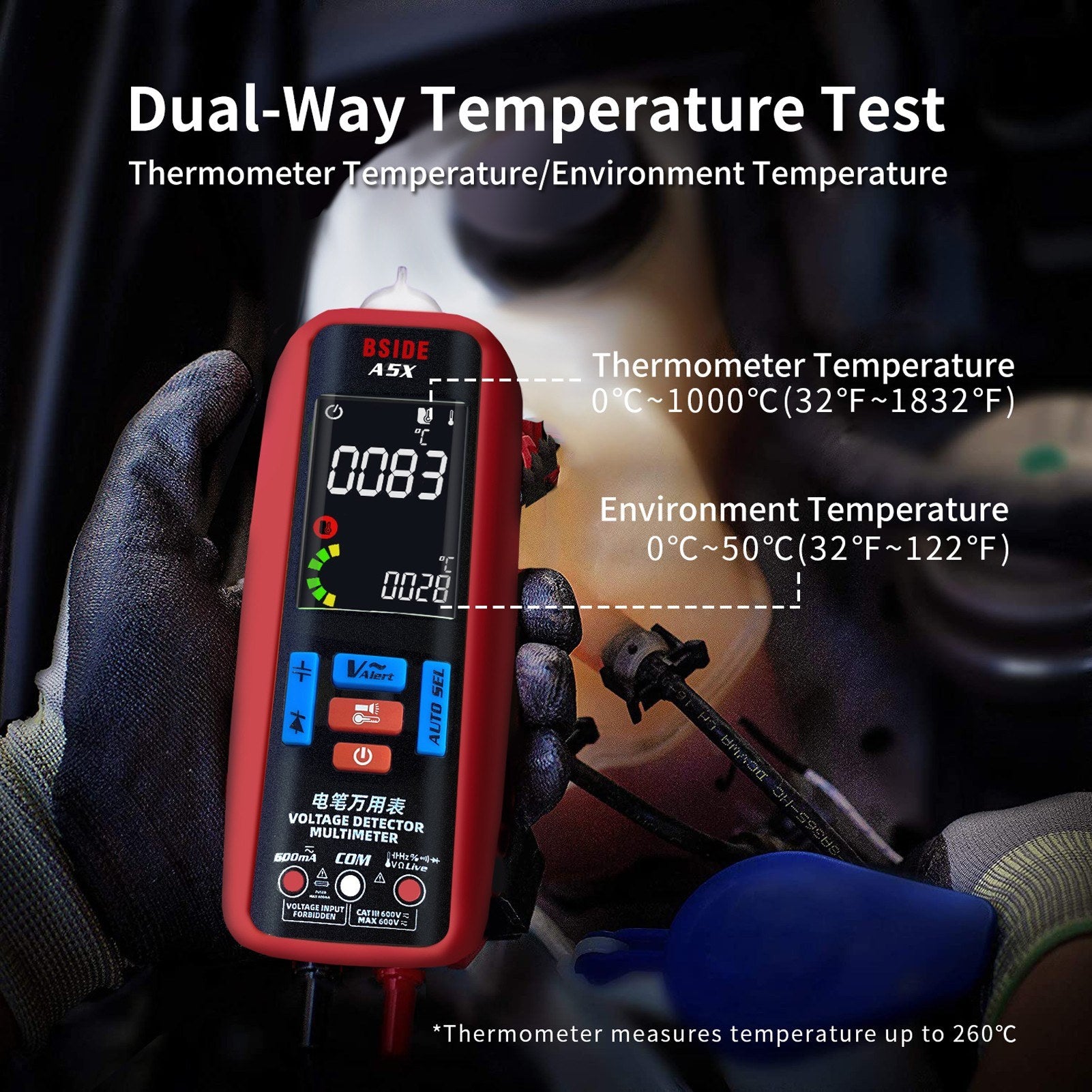

• Dual Temperature Testing: Supports both thermocouple and ambient temperature measurements, offering ranges from 0-1000℃ and 0-50℃ respectively.
• Data-Hold Function: Maintain stable measurements on display, allowing hands-free operation and worry-free data retention.
• Wide Applications: Ideal for electrical testing, automotive repairs, household improvements, and industrial electrical maintenance, thanks to an easy to replace current fuse design.

Specifications:

• Name: Multimeter
• Material: Plastics

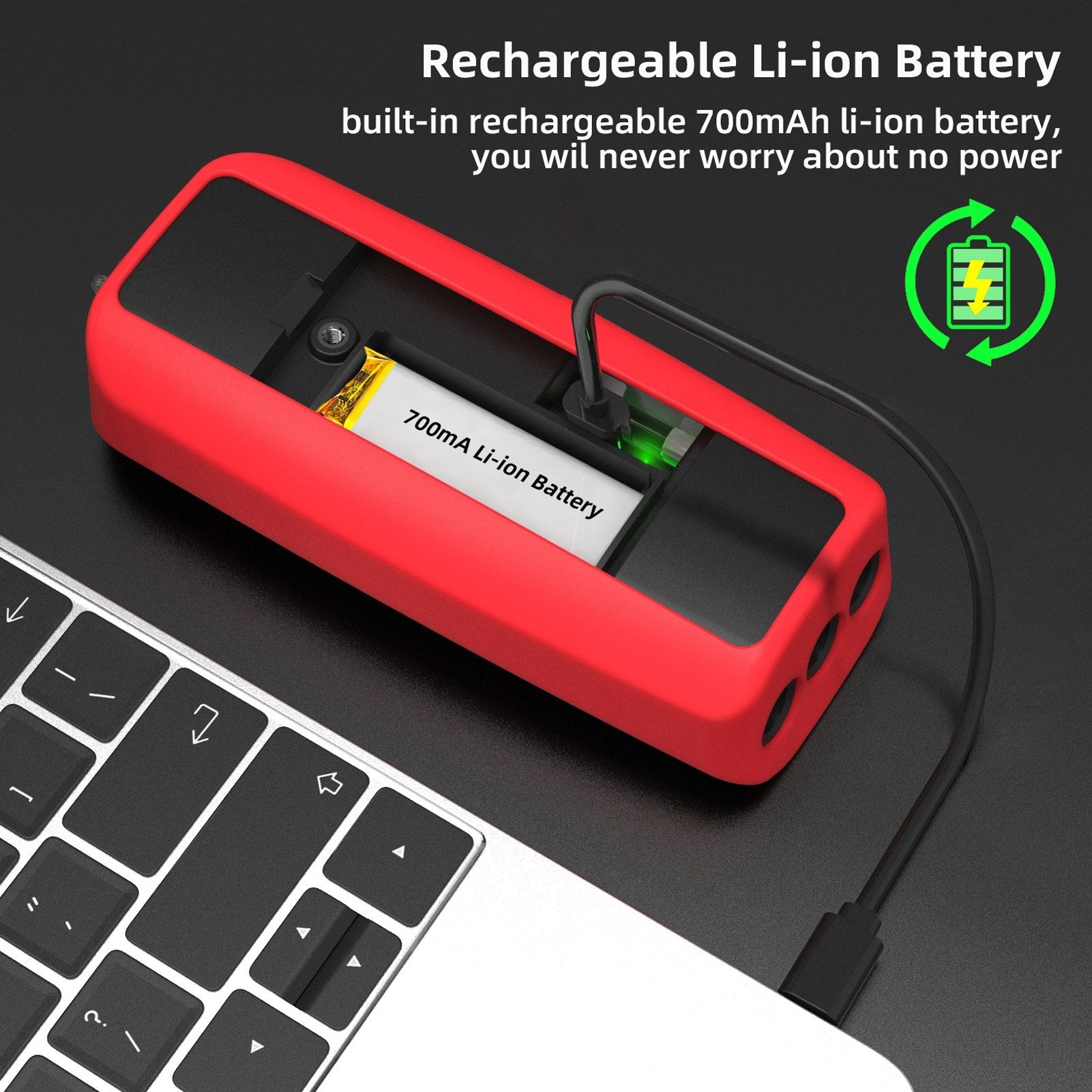

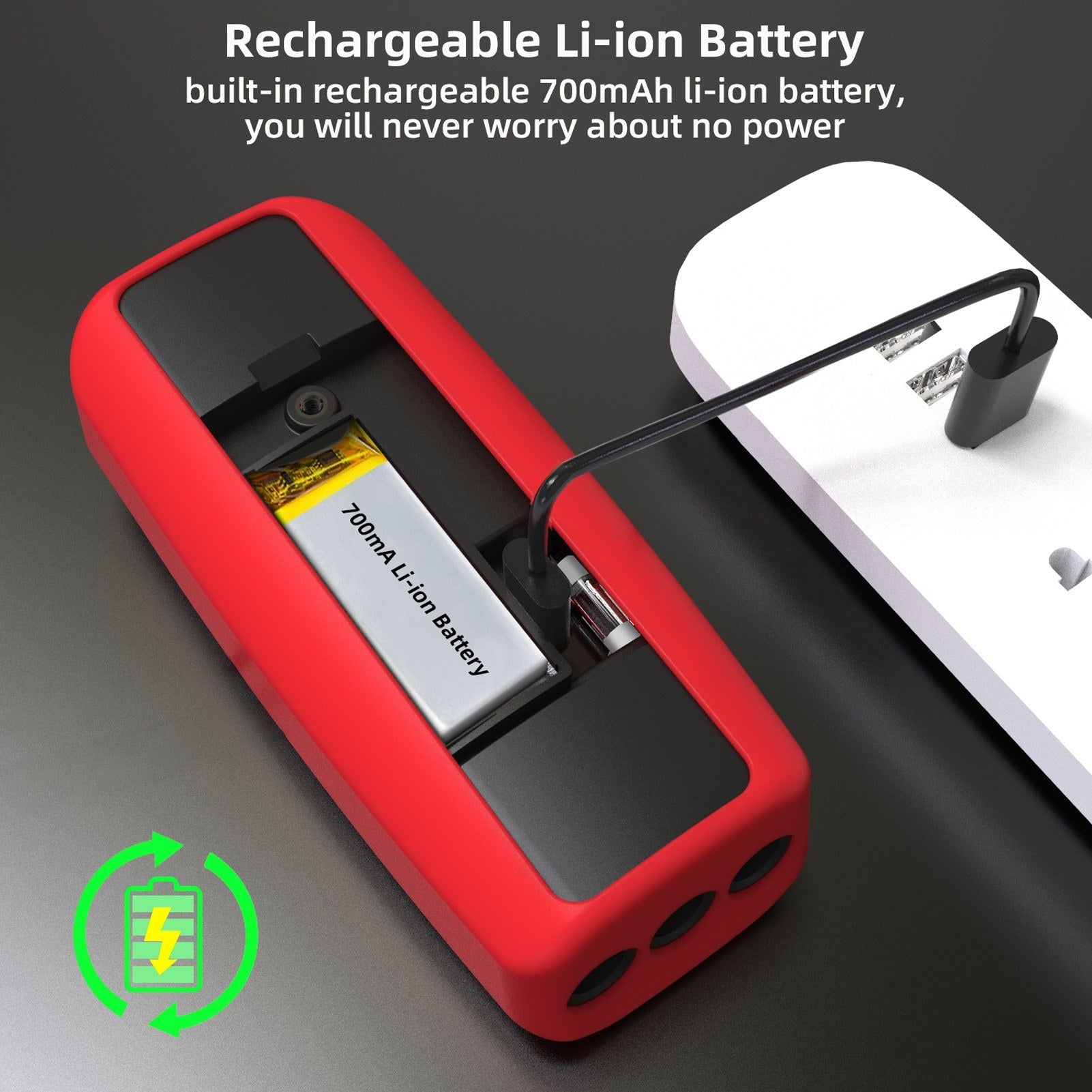

• Battery: 1 built-in 700mAh lithium battery (included)
• Display: 6000 counts, color display with backlight
• VFC Voltage: 10-620V ±(4.0+3)
• DC Voltage: 0-620V; ±(0.8%+3); 0.01V

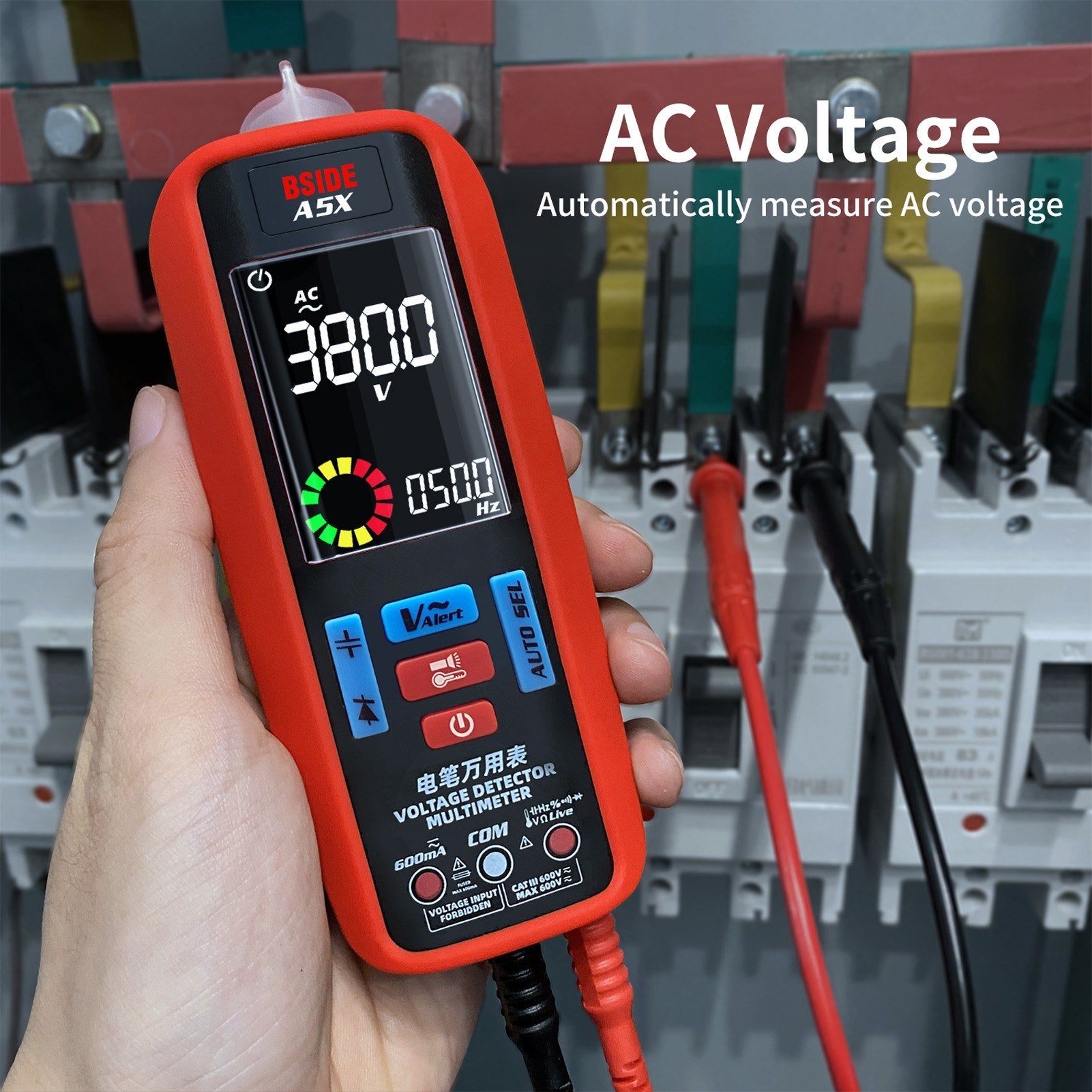

• AC Voltage: 0.8-620V, ±(1.2%+5); 0.01V
• DC Current: 1-610mA; ±(1.5%+3); 0.1mA
• AC Current: 1-610mA; ±(1.5%+3); 0.1mA
• Resistance: 0.1Ω-60MΩ, 0.1Ω ±(1.2%+3); 0.1Ω
• Capacitance: 0.5μF-60000μF, ±(4.5%+10); 0.001μF
• Frequency: 0-9999Hz, 0.001Hz ±(2%+10)
• Temperature: 0-1000℃; ±(2.0%+3)
• V-Alert (Non-contact Voltage Detection): Yes
• Diode: Measures diodes within 3V
• Live Wire Check: Yes
• NCV Test: Hi/Lo sensitivity adjustable
• Item Size: 140 * 54 * 33mm / 5.51 * 2.13 * 1.30in
• Item Weight: 125g / 4.41ounce
• Package Size: 168 * 95 * 44mm / 6.61 * 3.74 * 1.73in
• Package Weight: 324g / 11.43ounce

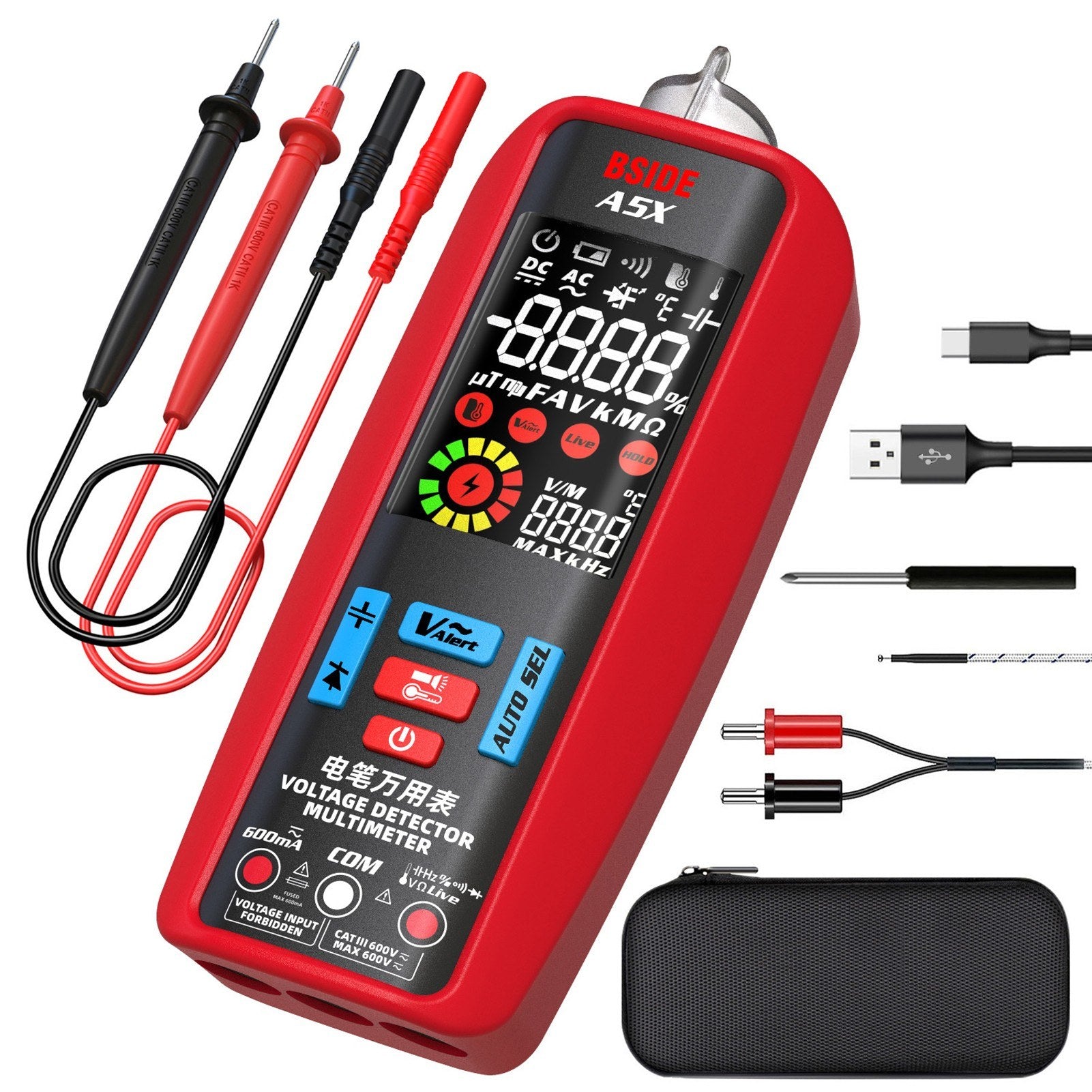

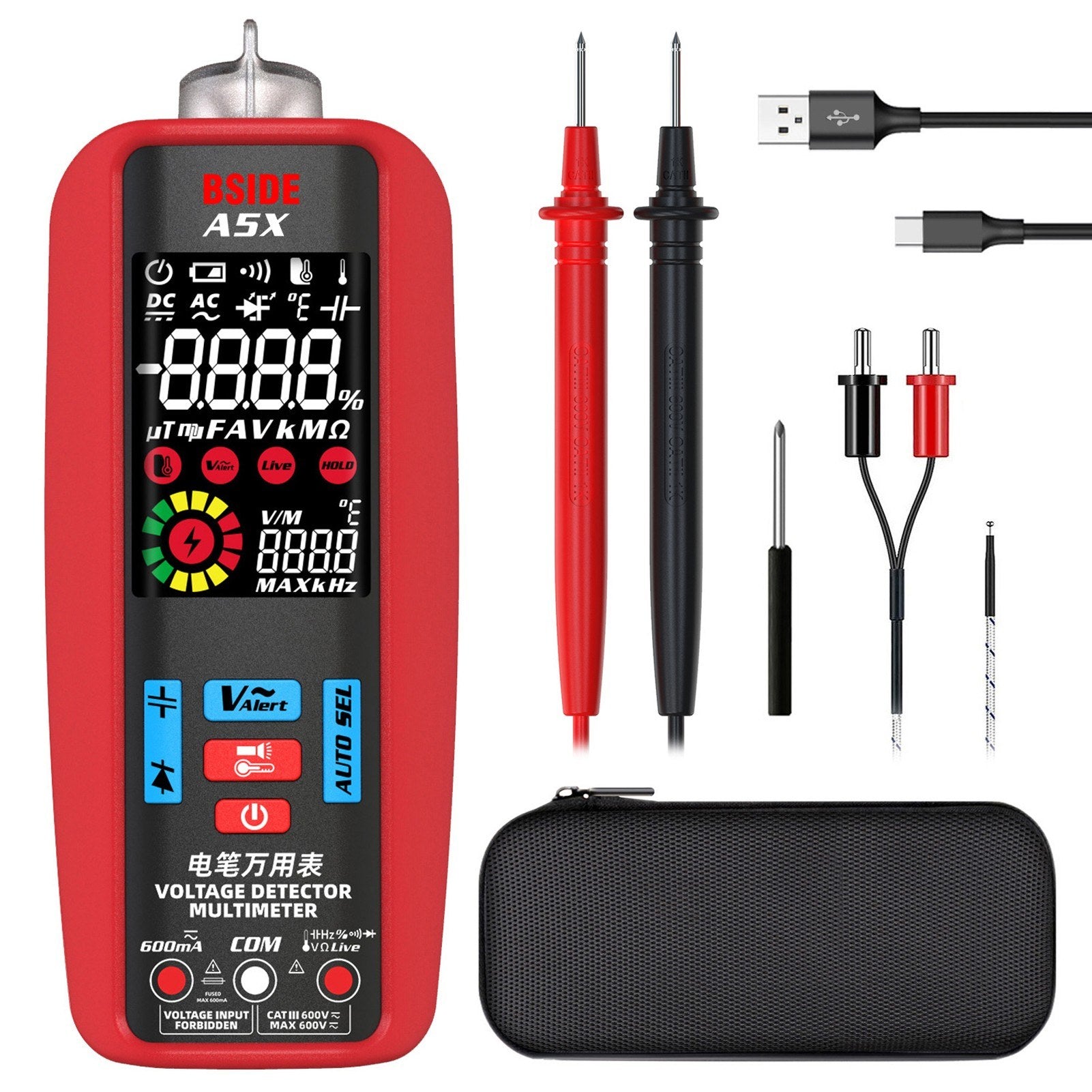

Packing List:

• 1 Multimeter
• 2 Test Pens
• 1 Thermocouple
• 1 Type-C Cable
• 1 Screwdriver
• 1 Storage Bag
