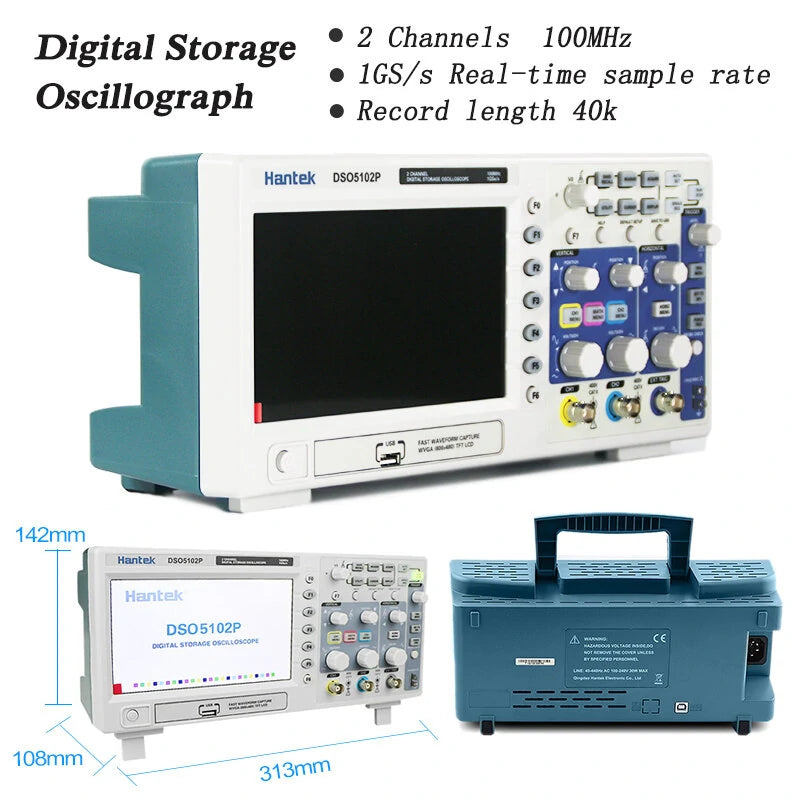

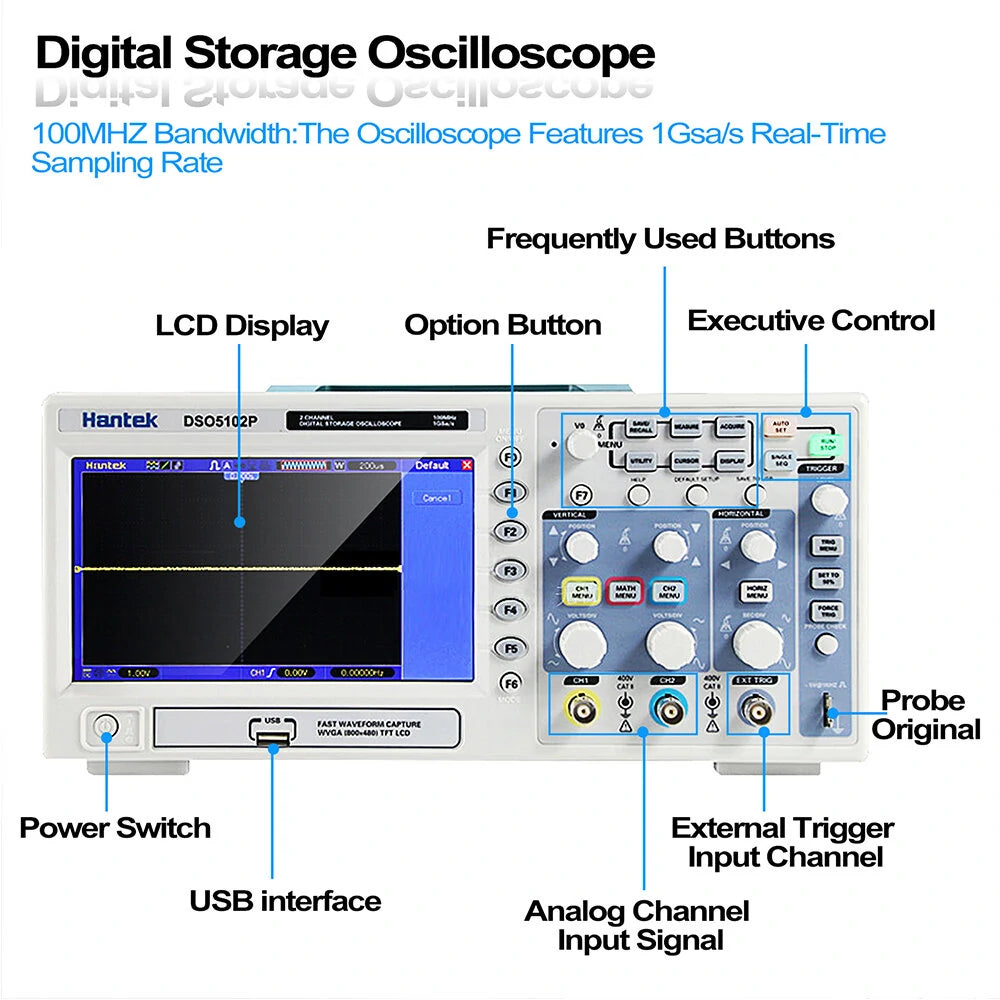

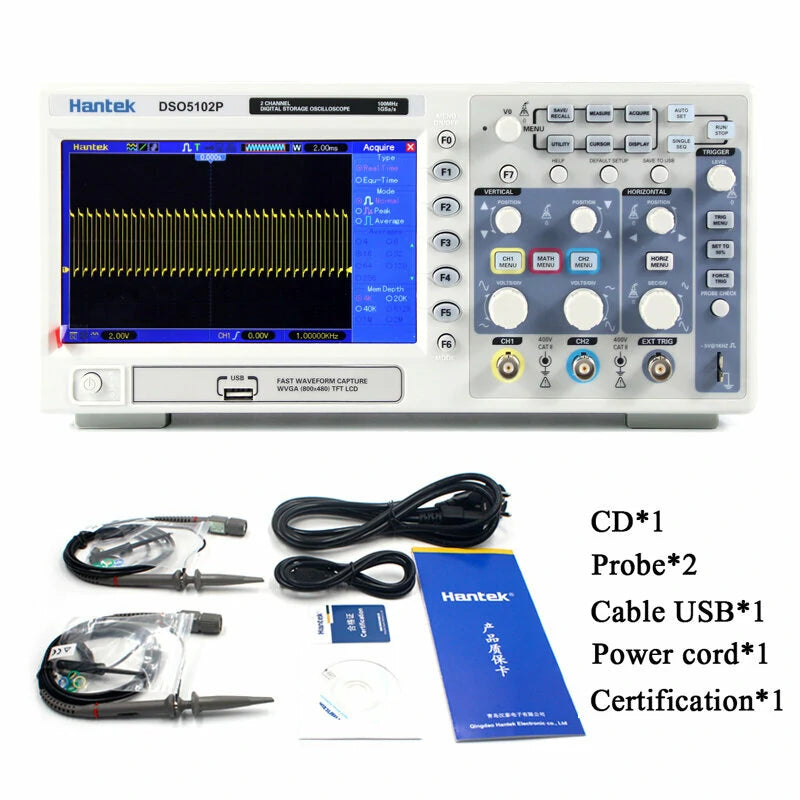

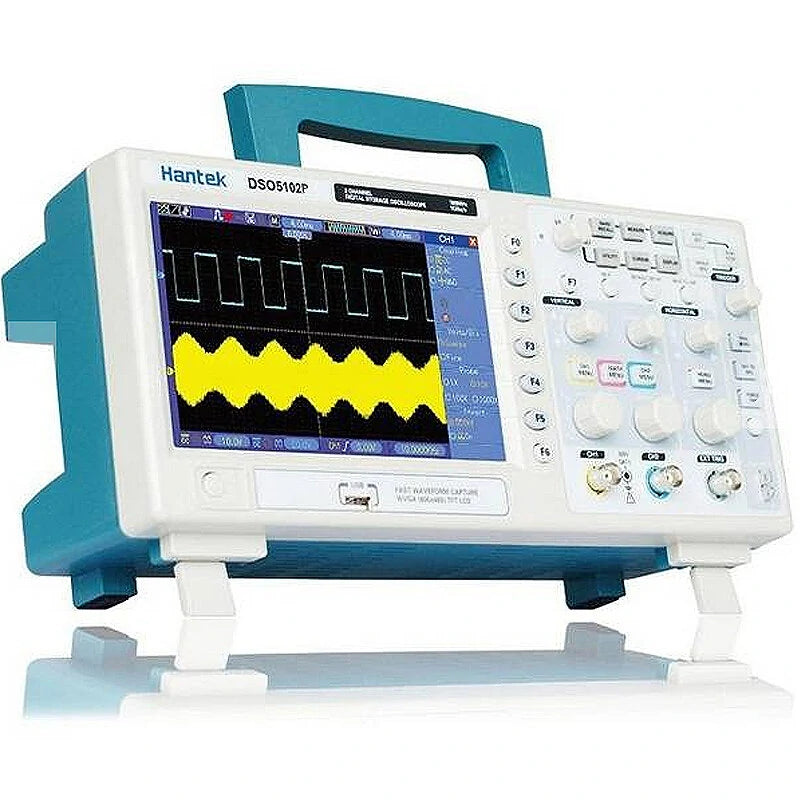

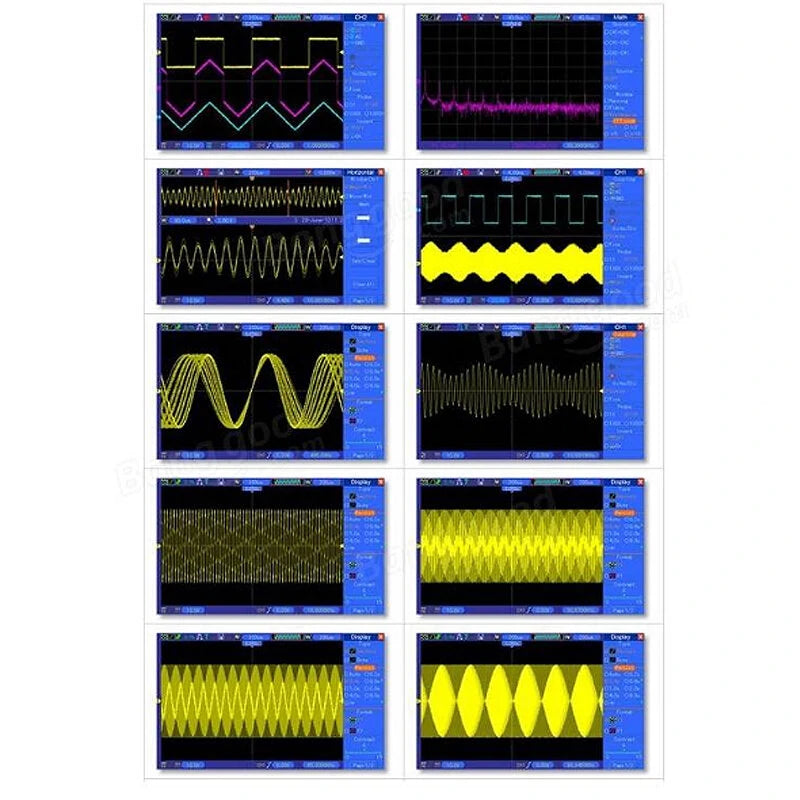

DSO5102P Digital Oscilloscope

Key Features

• Bandwidth Options: 200MHz, 100MHz, 70MHz
• 1GSa/s Real-Time Sample Rate
• Large 7.0-inch Color WVGA (800x480) Display
• Record Length up to 40K
• Trigger Modes: Edge, Pulse Width, Line Selectable Video, Slope, Overtime, etc.
• USB Host and Device Connectivity
• Multiple Automatic Measurements Supported
• Four Math Functions, Including Standard FFTs
• Includes PC Real-Time Analysis Software

Technical Specifications

Acquisition

• Sample Rate: Real-Time 1GS/s
• Acquisition Modes: Normal, Peak Detect, Average

Input Details

• Input Coupling: AC, DC, GND
• Input Impedance: 1MΩ ± 2% ‖ 20pF ± 3pF
• Probe Attenuation: 1X, 10X (Supported up to 1000X)
• Maximum Input Voltage:
  • CAT I & CAT II: 300VRMS (10×)
  • CAT III: 150VRMS (1×), Derate above 100kHz

Horizontal System

• Sample Rate Range: 500MS/s - 1GS/s
• Record Length: 40K
• SEC/DIV Range: 4ns/div to 40s/div
• Time Measurement Accuracy: ±50ppm (≥1ms time interval)

Vertical System

• Vertical Resolution: 8-bit, All Channels Simultaneously Sampled
• Position Range: 2mV/div to 10V/div
• Rise Time: 3.5ns Typical
• Analog Bandwidth Limit: 20MHz (Applicable in Normal and Average Modes)

Math Functions

• Four Math Functions: Add, Subtract, Multiply, Divide
• FFT Windows: Hanning, Flattop, Rectangular, Bartlett, Blackman

Trigger System

• Trigger Types: Edge, Video, Pulse, Slope, Overtime, Alternative
• Coupling Types: DC, AC, Noise Reject, HF Reject, LF Reject
• Supported Signal Formats: NTSC, PAL, SECAM

Display

• Type: 7-inch 64K Color TFT
• Resolution: 800 x 480 Pixels
• Contrast: Adjustable with 16 Gears Progress Bar

Environmental & Mechanical

• Operating Temperature: 0℃ to 50℃
• Weight: 3.5KG (with packing), 2.08KG (without packing)
• Size: 385mm x 200mm x 245mm
