Advanced FR2000C+ Clamp Ground Resistance & Loop Tester - 0.01Ω-1200Ω Range, 0.00mA-20A Leakage Test, 300 Data Sets Capacity

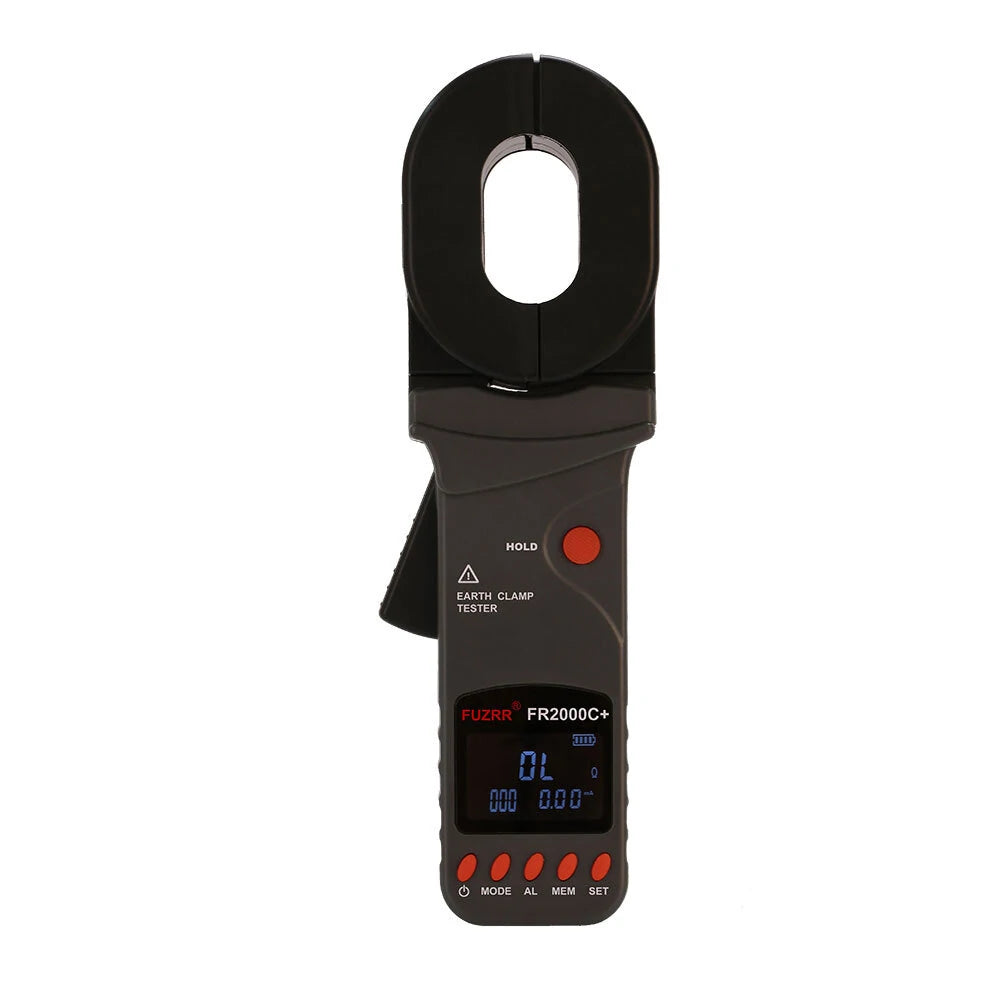

FR2000+ Series Clamp-On Ground Resistance Tester

The FR2000+ Series is an advanced clamp-on ground resistance tester, expertly crafted by our talented technical team to meet modern testing needs. Its innovative design boasts a new generation LCD black screen backlight display and incorporates cutting-edge microprocessor technology, allowing simultaneous Ω+A display. The tester uses an induction method for measuring ground resistance, making the process both convenient and efficient. This model is ideal for use without disconnecting ground lead wires or utilizing auxiliary electrodes, ensuring safe, rapid measurements.

Perfectly suited for a variety of applications including telecommunications, electric power, meteorology, computer rooms, oil fields, power distribution lines, and more, the FR2000+ Series excels in providing accurate, fast, simple, stable, and reliable testing.

Key Features:

• Resistance range: 0-1200Ω
• Current range: 0-20A
• Luxurious new black screen design
• Simultaneous display of resistance (Ω) and current (A)
• Quick self-check function without delay
• Fast filtering technology with strong anti-interference capability
• Durable clamp head design
• Stores up to 300 data sets

Specifications:

• Model: FR2000C
• Resistance Range: 0.01Ω - 1200Ω
• Type: Multifunctional
• Resistance Resolution: 0.001Ω
• Current Range: 0.00mA - 20A
• Current Resolution: 0.01mA
• Functions: Ground resistance test, loop resistance test, leakage current test
• Accuracy: Ground resistance ±1%±0.01Ω, current ±2%±1mA
• Operating Environment: 23°C ±5°C, <75% rh
• Power Supply: DC 6V (4 AA alkaline dry batteries)
• Measurement Method: Mutual inductance method
• Jaw Size: 55mm x 32mm
• Display: 4-digit LCD, black screen design
• LCD Dimensions: 46mm x 29mm
• Instrument Dimensions: 285mm x 85mm x 58mm
• Measuring Time: 2 readings per second
• Data Storage: 300 groups, with memory and full indicators
• Data Access: Memory recall functionality
• Indication for Over-range Overflow: "OL" symbol
• Interference Signal Detection: "NOISE" symbol for large interference currents
• Alarm Function: Alerts when measured value exceeds set threshold
• Battery Monitoring: Real-time battery power display, low voltage reminder
• Automatic Shutdown: 5-minute auto power-off ("APO" indication)
• Max Power Consumption: 50mA
• Weight: 1180g (including batteries)
• Operating Temperature & Humidity: -10°C to 40°C, <80% rh
• Storage Temperature & Humidity: -20°C to 60°C, <70% rh
• Insulation Resistance: >20MΩ (500V between circuit and case)
• Withstand Voltage: AC 3700V/rms (between circuit and case)
• Compliant with Safety Regulations: IEC standards including IEC61010-1, IEC61010-031, IEC61557-1

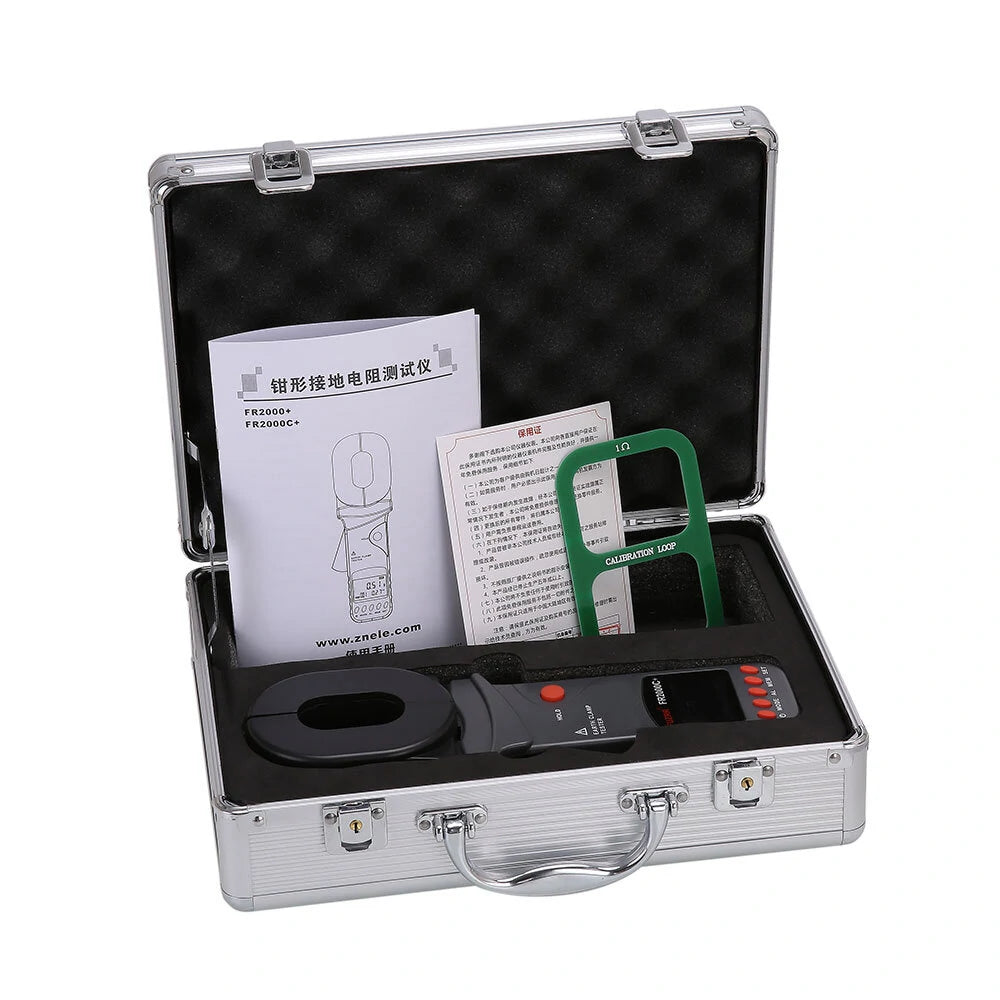

Package Includes:

• 1 x Ground Resistance Tester

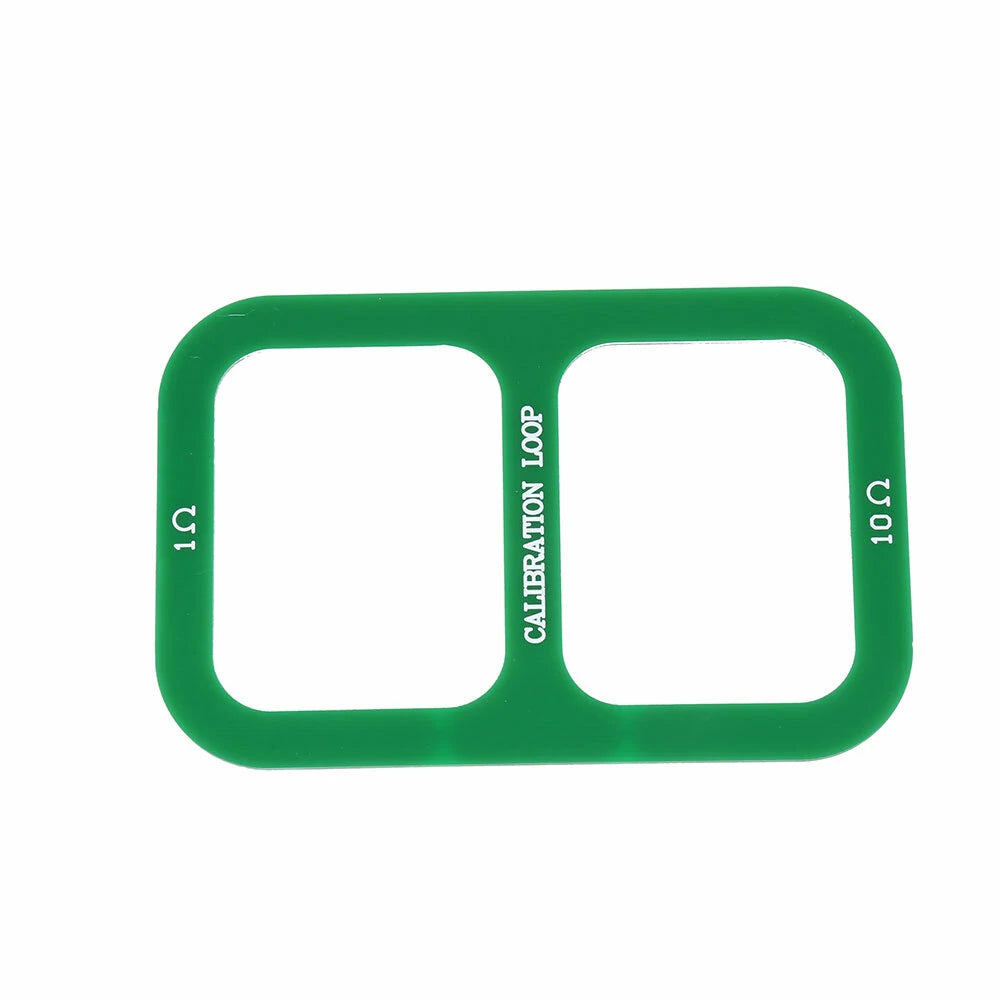

• 1 x Calibration Ring
• 1 x Instrument Package
• 1 x User Manual
